Hexagon Head Connector Screw Impreg®+

SSH is used together with connectors where high load capability is required. The conical shape under the head makes a perfect fitting to the connector hole, creating a firm assembly. Suitable for exterior use. The cut point type 17 prevents cracking, and the milling thread and serrated thread reduce the insertion torque. SSH has both 6 lobe drive and a hexagonal head, enabling mounting both with bits or with sleeves.

Technický list

Označení CE

ETA

Servisní třída 2

Impreg® +

Exteriér

EPD

Fastener Designer

Podrobnosti produktu

Obrázky

Vlastnosti

Material

Impreg^®+ coating

Benefits

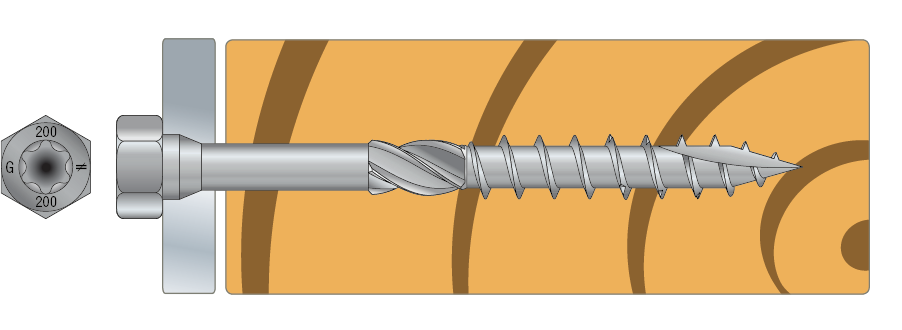

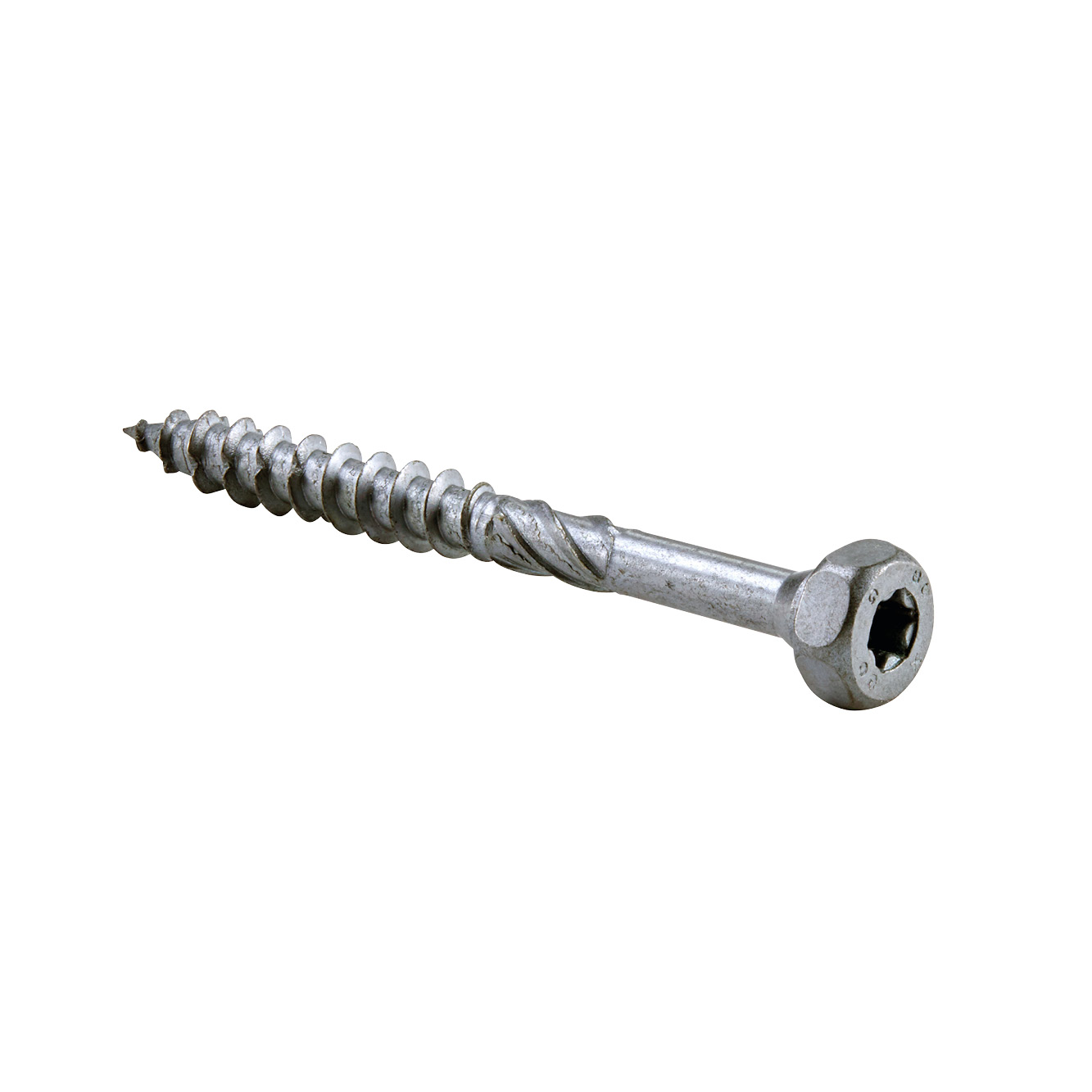

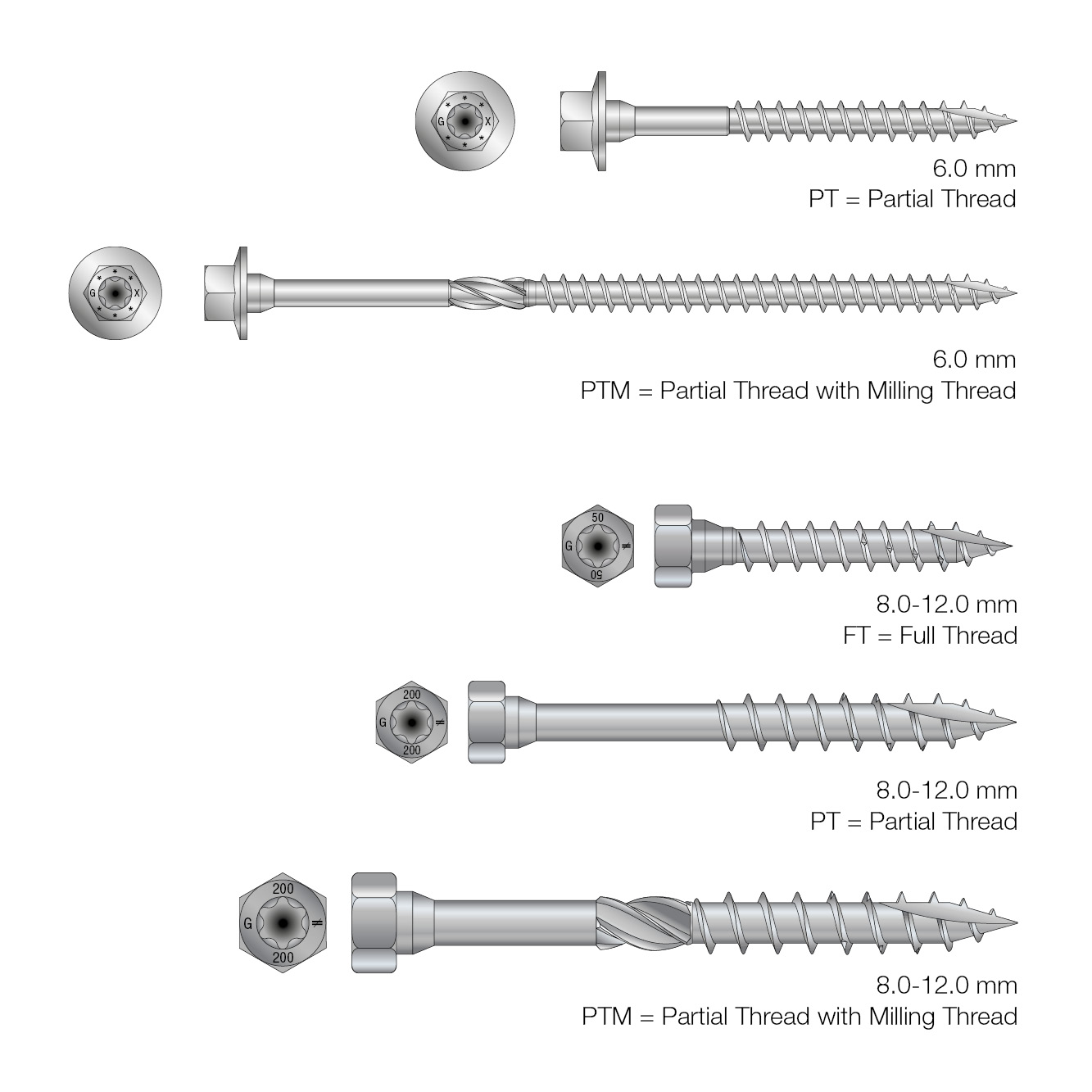

Hex head with integrated 6 lobe drive
Cone for maximum fit
Milling thread
Serrated coarse thread
Type 17 point

Aplikace

Assemblies

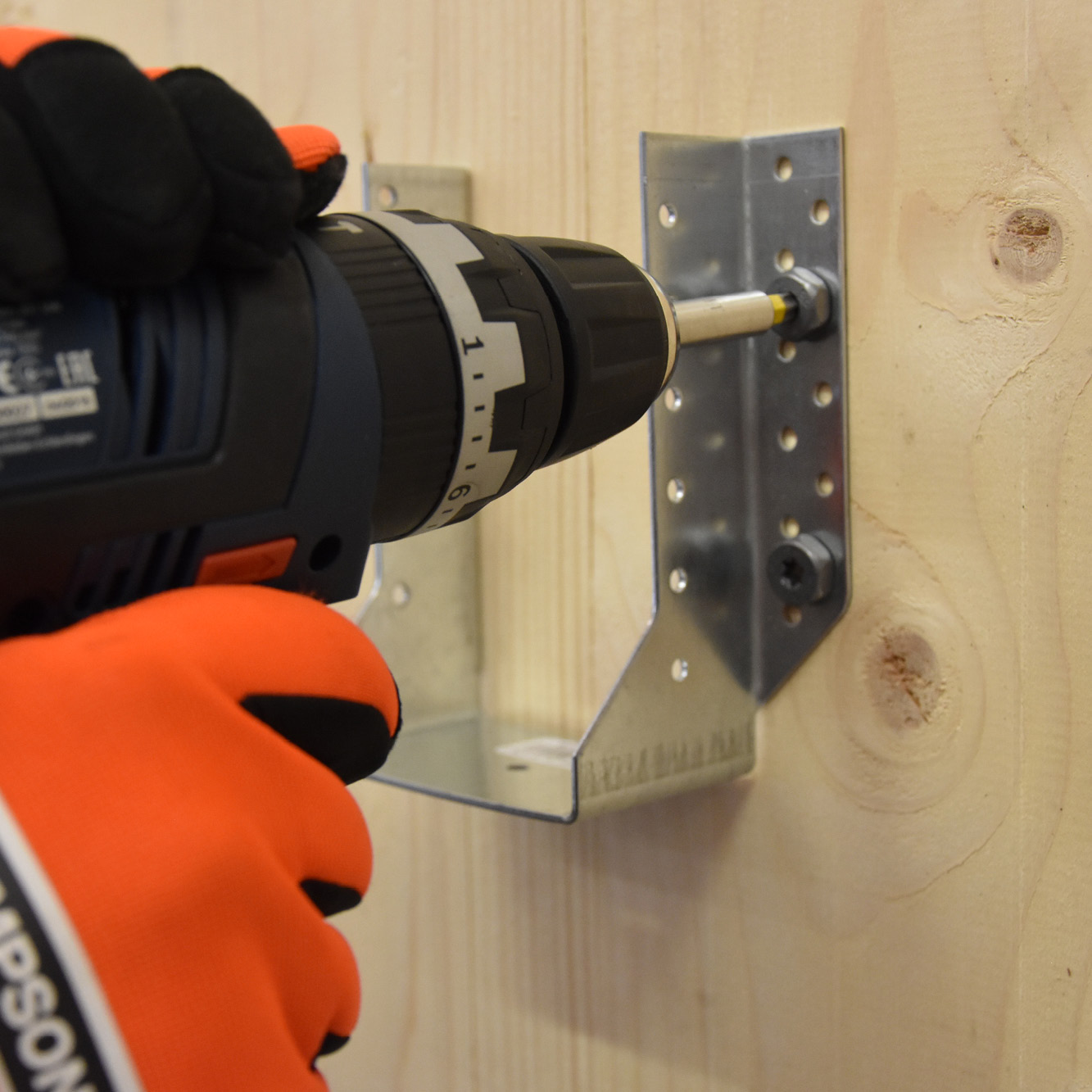

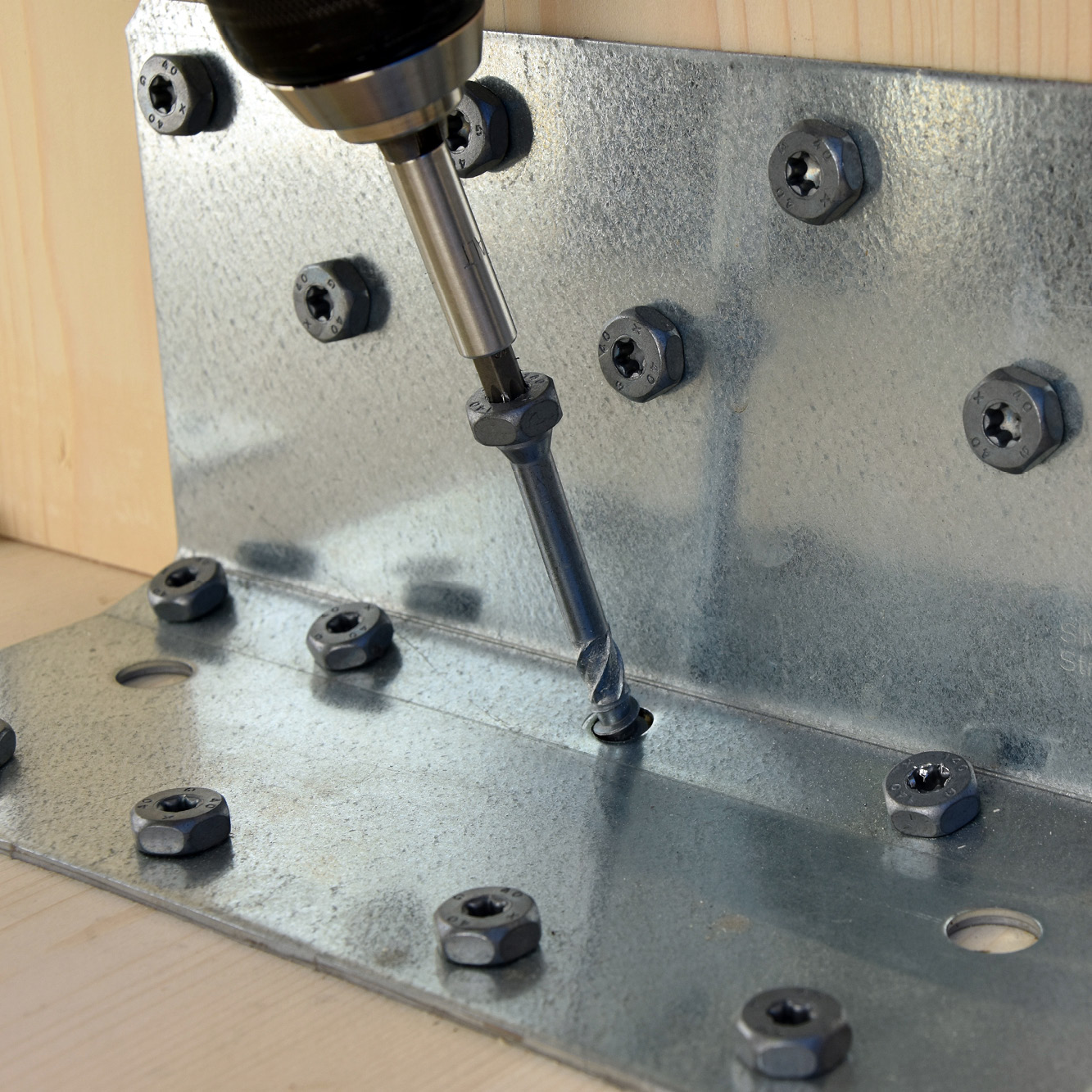

Connectors to wood

When to use

Suitable for outdoor applications

Discontinued Products

Variant Status Details

There are variants of this product family which have been discontinued and are out of production.

phased out (has Variants which were phased out)

Technické údaje

Rozměry

Product dimensions


Art. nr.	Item code	Fastener dimensions [mm]							bit	Qty per box
Art. nr.	Item code	d	l	d_h	h_t	d_uh	d₁	l_g	bit	Qty per box

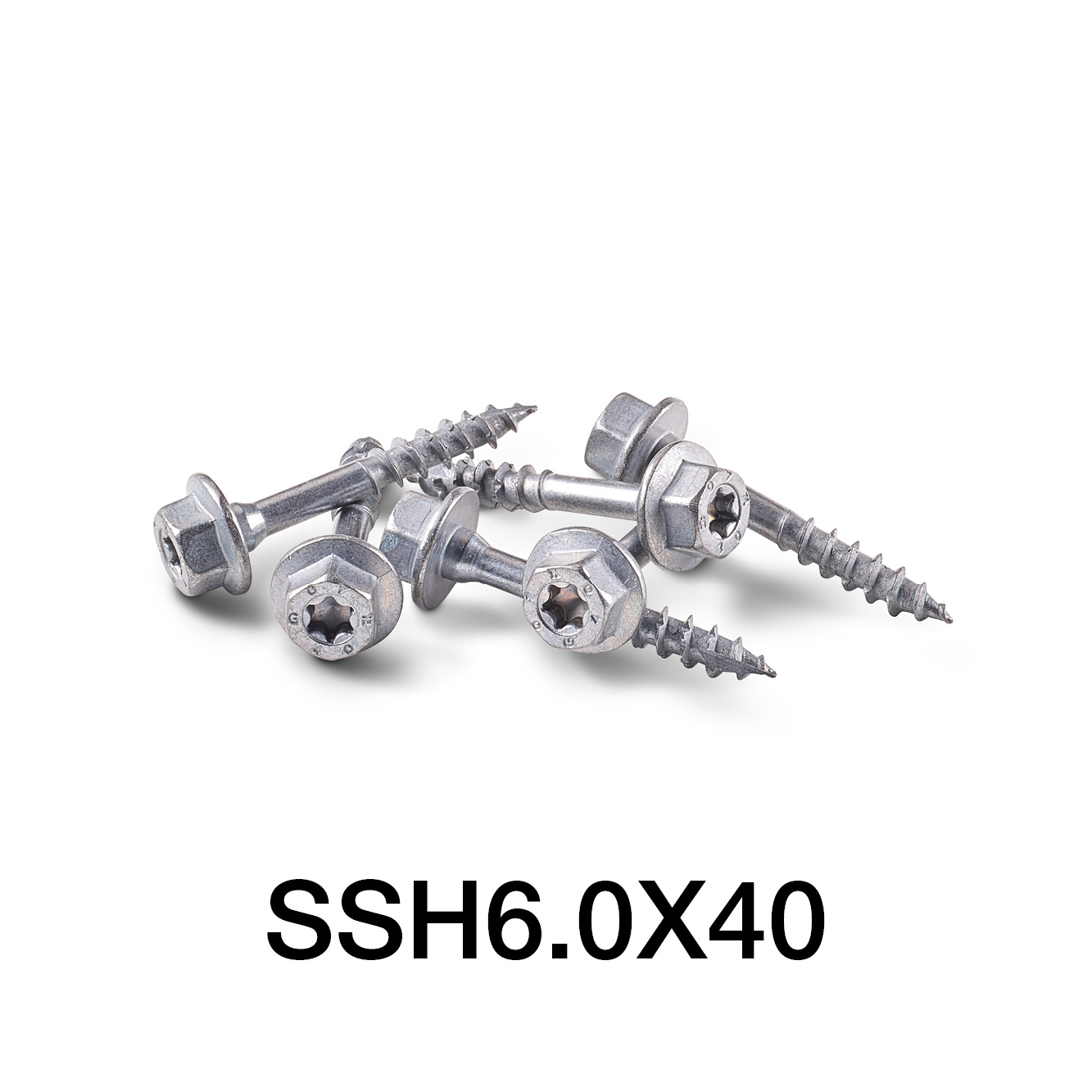

SSH6.0X40 Blister	77183	6	40	10	4.75	6.1	3.7	24	T-30	-
SSH6.0X50 Blister	77184	6	50	10	4.75	6.1	3.7	33	T-30	-

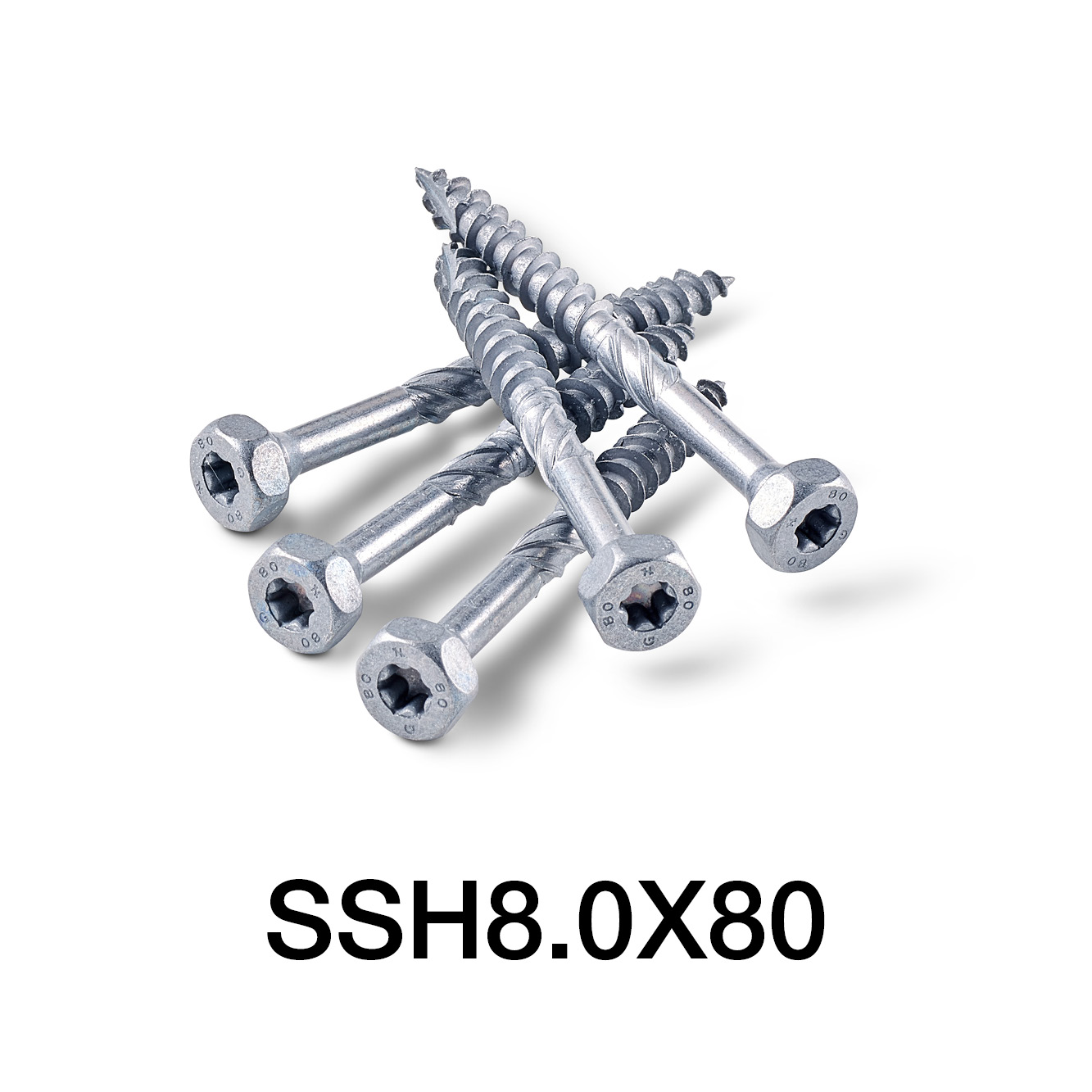

SSH8.0X40	75134	8	40	13	5.75	8.2	5.1	32	T-40	50
SSH8.0X50	75135		50	13	5.75	8.2	5.1	42	T-40	50
SSH8.0x60 Blister	77187		60	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X60	75136		60	13	5.75	8.2	5.1	42	T-40	50
SSH8.0x80 Blister	77188		80	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X80	75137		80	13	5.75	8.2	5.1	42	T-40	50
SSH8.0x90 Blister	77189		90	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X90	75138		90	13	5.75	8.2	5.1	42	T-40	50
SSH8.0x100 Blister	77190		100	13	5.75	8.2	5.1	55	T-40	-
SSH8.0X100	75139		100	13	5.75	8.2	5.1	55	T-40	50
SSH8.0X120	75140		120	13	5.75	8.2	5.1	85	T-40	50
SSH8.0X140	75141		140	13	5.75	8.2	5.1	85	T-40	50
SSH8.0X160	75142		160	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X180	75143		180	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X200	75144		200	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X240	75145		240	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X260	75146		260	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X280	75147		280	13	5.75	8.2	5.1	110	T-40	50
SSH8.0X300	75148		300	13	5.75	8.2	5.1	110	T-40	50
SSH10.0x40 Blister	77191	10	40	15	6	10.2	6.2	32	T-40	-
SSH10.0x50 Blister	77192		50	15	6	10.2	6.2	42	T-40	-

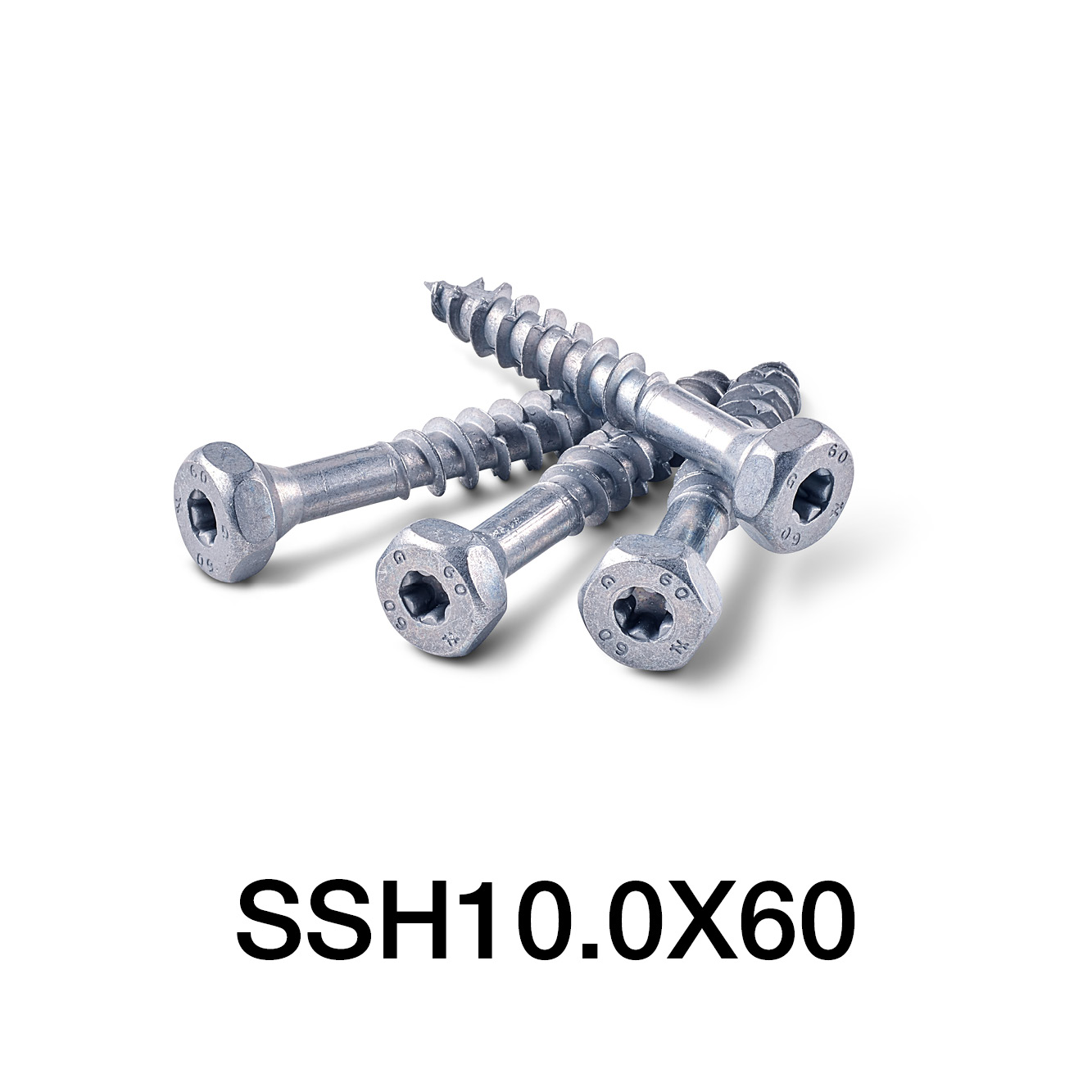

SSH10.0X50	75150		50	15	6	10.2	6.2	42	T-40	50
SSH10.0x60 Blister	77193		60	15	6	10.2	6.2	42	T-40	-
SSH10.0X60	75151		60	15	6	10.2	6.2	42	T-40	50
SSH10.0x80 Blister	77194		80	15	6	10.2	6.2	42	T-40	-
SSH10.0X80	75152		80	15	6	10.2	6.2	42	T-40	50
SSH10.0x90 Blister	77195		90	15	6	10.2	6.2	42	T-40	-
SSH10.0X90	75153		90	15	6	10.2	6.2	42	T-40	50
SSH10.0x100 Blister	77197		100	15	6	10.2	6.2	55	T-40	-
SSH10.0X100	75154		100	15	6	10.2	6.2	55	T-40	50
SSH10.0x120 Blister	77198		120	15	6	10.2	6.2	85	T-40	-
SSH10.0X120	75155		120	15	6	10.2	6.2	85	T-40	50
SSH10.0X140	75156		140	15	6	10.2	6.2	85	T-40	50
SSH10.0X160	75157		160	15	6	10.2	6.2	110	T-40	50
SSH10.0X180	75158		180	15	6	10.2	6.2	110	T-40	50
SSH10.0X200	75159		200	15	6	10.2	6.2	110	T-40	50
SSH10.0X240	75160		240	15	6	10.2	6.2	125	T-40	50
SSH10.0X280	75161		280	15	6	10.2	6.2	125	T-40	50
SSH12.0X60	75162	12	60	17	6.25	12.2	6.7	48	T-40	25
SSH12.0X80	75163		80	17	6.25	12.2	6.7	48	T-40	25
SSH12.0X90	75164		90	17	6.25	12.2	6.7	48	T-40	25
SSH12.0X100	75165		100	17	6.25	12.2	6.7	55	T-40	25
SSH12.0X120	75166		120	17	6.25	12.2	6.7	85	T-40	25
SSH12.0X140	75167		140	17	6.25	12.2	6.7	85	T-40	25
SSH12.0X160	75168		160	17	6.25	12.2	6.7	110	T-40	25
SSH12.0X180	75169		180	17	6.25	12.2	6.7	110	T-40	25
SSH12.0X200	75170		200	17	6.25	12.2	6.7	110	T-40	25

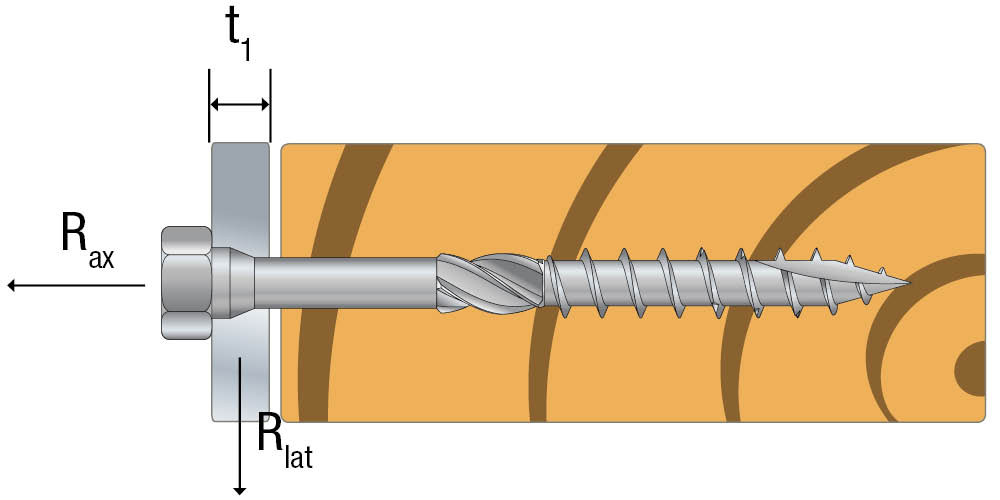

Characteristic properties

Art. nr.	Product characteristic properties
Art. nr.	Characteristic Yield Moment - M_y,k [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [N/mm²]	Characteristic head pull-through parameter - f_head,k [N/mm²]	Characteristic tensile capacity - f_tens,k [kN]	Characteristic torsional strength - f_tor,k [Nm]
SSH8.0X40	25.3	13.9	19.5	24.1	26.4
SSH8.0X50	25.3	13.9	19.5	24.1	26.4
SSH8.0X60	25.3	13.9	19.5	24.1	26.4
SSH8.0X80	25.3	13.9	19.5	24.1	26.4
SSH8.0X90	25.3	13.9	19.5	24.1	26.4
SSH8.0X100	25.3	13.9	19.5	24.1	26.4
SSH8.0X120	25.3	13.9	19.5	24.1	26.4
SSH8.0X140	25.3	13.9	19.5	24.1	26.4
SSH8.0X160	25.3	13.9	19.5	24.1	26.4
SSH8.0X180	25.3	13.9	19.5	24.1	26.4
SSH8.0X200	25.3	13.9	19.5	24.1	26.4
SSH8.0X240	25.3	13.9	19.5	24.1	26.4
SSH8.0X260	25.3	13.9	19.5	24.1	26.4
SSH8.0X280	25.3	13.9	19.5	24.1	26.4
SSH8.0X300	25.3	13.9	19.5	24.1	26.4
SSH10.0X50	38.7	12.1	19.3	32.8	43
SSH10.0X60	38.7	12.1	19.3	32.8	43
SSH10.0X80	38.7	12.1	19.3	32.8	43
SSH10.0X90	38.7	12.1	19.3	32.8	43
SSH10.0X100	38.7	12.1	19.3	32.8	43
SSH10.0X120	38.7	12.1	19.3	32.8	43
SSH10.0X140	38.7	12.1	19.3	32.8	43
SSH10.0X160	38.7	12.1	19.3	32.8	43
SSH10.0X180	38.7	12.1	19.3	32.8	43
SSH10.0X200	38.7	12.1	19.3	32.8	43
SSH10.0X240	38.7	12.1	19.3	32.8	43
SSH10.0X280	38.7	12.1	19.3	32.8	43
SSH12.0X60	52.3	12.2	18.8	40.4	62.4
SSH12.0X80	52.3	12.2	18.8	40.4	62.4
SSH12.0X90	52.3	12.2	18.8	40.4	62.4
SSH12.0X100	52.3	12.2	18.8	40.4	62.4
SSH12.0X120	52.3	12.2	18.8	40.4	62.4
SSH12.0X140	52.3	12.2	18.8	40.4	62.4
SSH12.0X160	52.3	12.2	18.8	40.4	62.4
SSH12.0X180	52.3	12.2	18.8	40.4	62.4
SSH12.0X200	52.3	12.2	18.8	40.4	62.4
