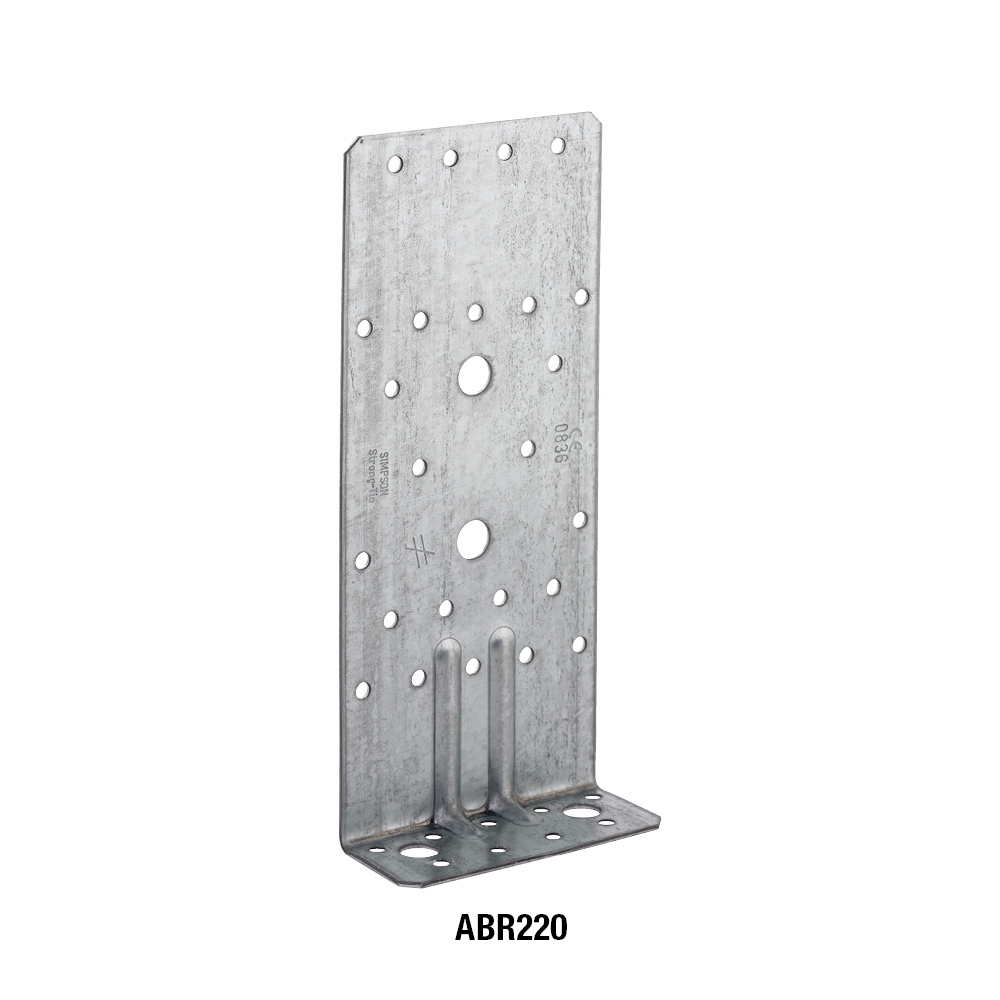

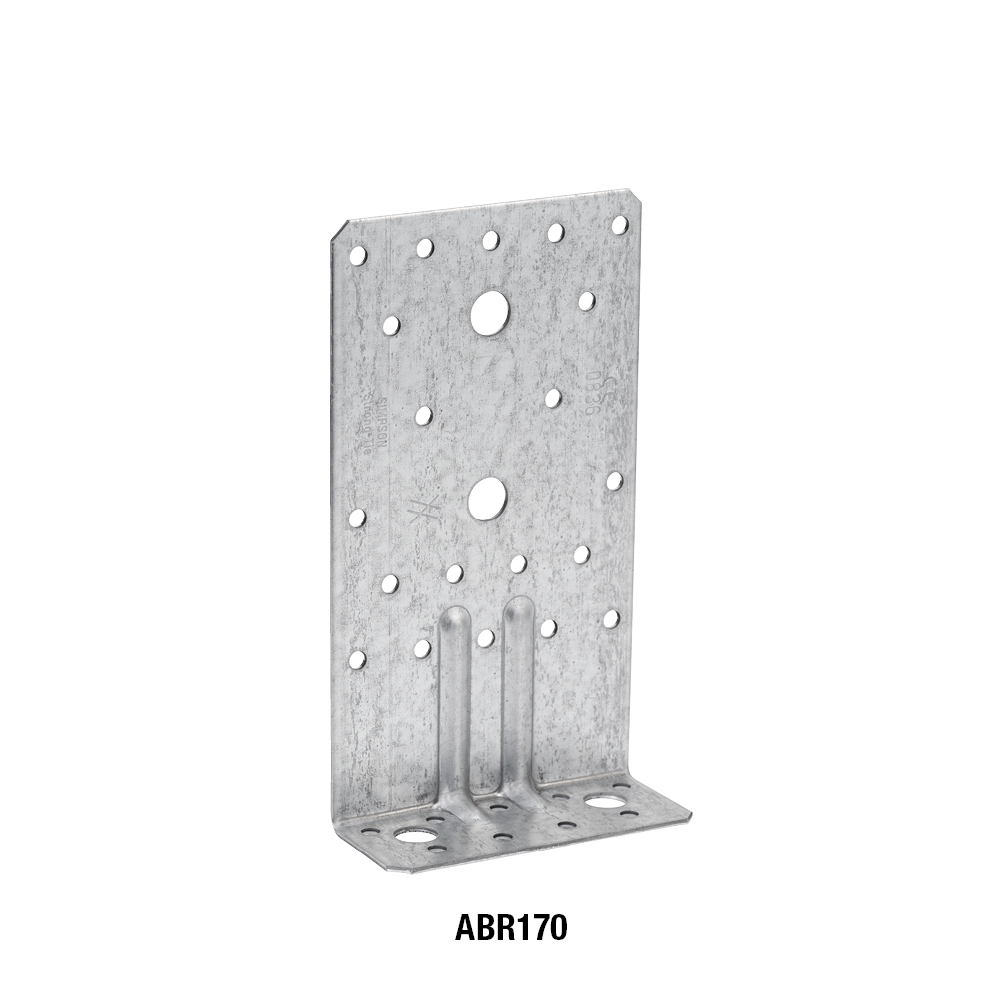

Úhelník
Vhodný pro spoje, kde je třeba většího zatížení, úhelník je opatřen žebry.





Podrobnosti produktu
Vlastnosti
Materiál
Kvalia oceli:
S250GD+Z275 dle norem DIN EN10346
Ochrana proti korozi:
275 g/m pozinkováno z obou stran cca 20mm
Vorteile
- Vysoké hodnoty zatížení ve třech směrech os
- optimalizované použití počtu hřebíků nutných k instalaci
- vhodné i pro spojení do betonu
Aplikace
Anwendbare Materialien
Dřevo, dřevěné materiály, beton, ocel
Anwendungsbereich
- Pro spoje protínajících nosníků, spoje vaznice a krokve, jako náhrada za trámový závěs, horní hřebík 160 mm, do betonu šroub M10
Technické údaje

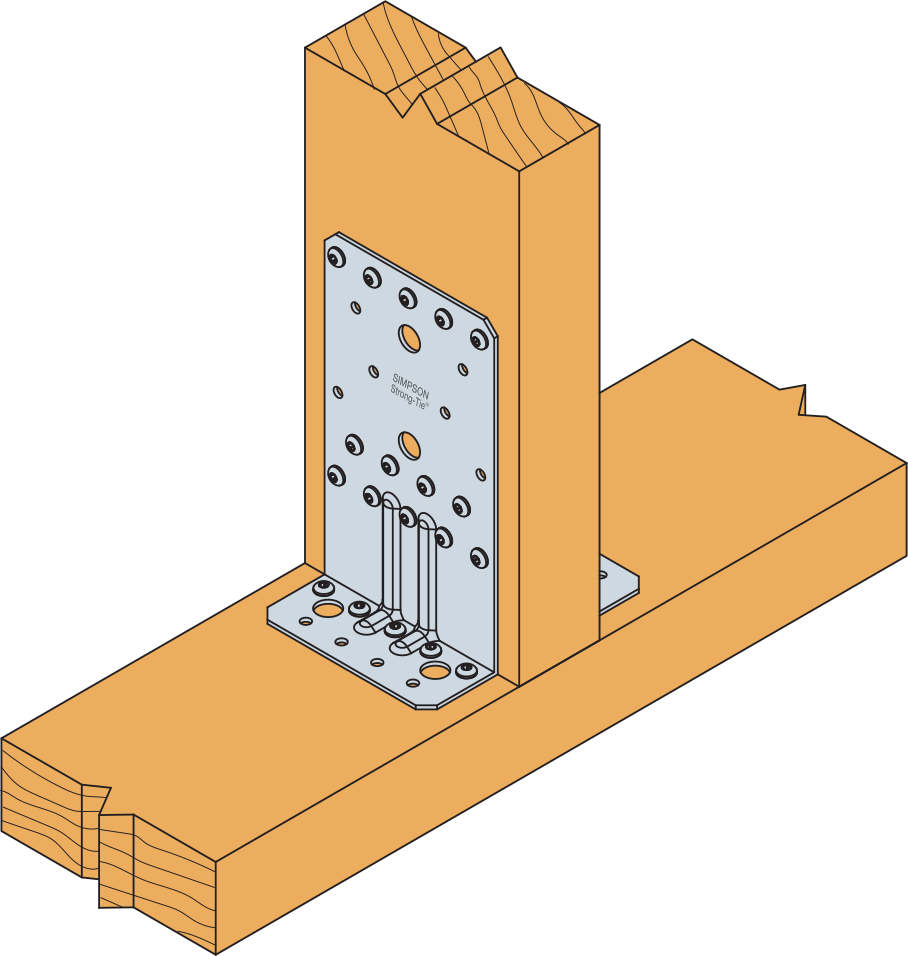

Hodnoty pro spoj dřevo a dřevo, dvě napojení
| Reference | úhelník únosnost | |||||||
|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Full nailing | ||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4/5,k | ||||
| množství | množství | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| ABR170 | 14.0 | 9.0 | 9.8 | 12.3 | 19.8 | 21.1 | 9.6/kmod^0.2 | 9.6/kmod^0.2 |
| ABR220 | 14.0 | 9.0 | 9.8 | 12.3 | 19.8 | 21.1 | 9.6/kmod^0.2 | 9.6/kmod^0.2 |
** Vyberte největší počet hřebů pro kombinované zátěže
***R4/5 s b > 60mm a e < 90mm. Pro další rozměry b a e, viz. ETA
****R4/5 s b > 60mm a e < 150mm. Pro další rozměry b a e, viz.ETA
Kombinované výpočty:

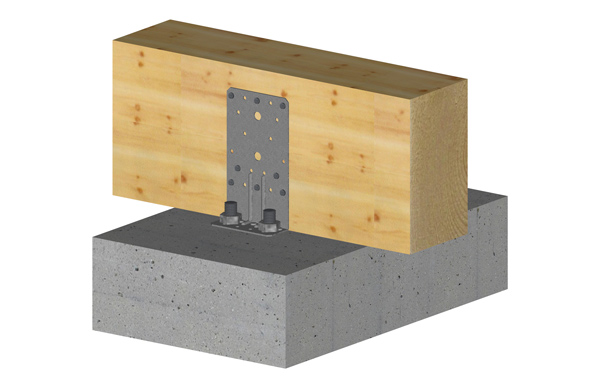

Hodnoty pro spoj dřevo a beton, dvě napojení
| Reference | úhelník únosnost | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to beton | ||||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||||
| nosník | příruba B | R₁,ₖ | R4/5,k | R2/3,k | ||||||
| množství | typ | množství | typ | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| ABR170 | 14 | CNA | 2 | Ø10 | min. (39.8 ; 25.2/kmod) | 25.2/kmod | min (9.15 + 80/e*kmod ; 6.3*b / e*kmod) | min (9.15 + 80/e*kmod ; 6.3*b / e*kmod) | min. (23.8 ; 24.6/kmod) | min. (25.4 ; 24.6/kmod) |
| ABR220 | 14 | CNA | 2 | Ø10 | min. (39.8 ; 25.2/kmod) | 25.2/kmod | min (9.15 + 80/e*kmod ; 6.3*b / e*kmod) | min (9.15 + 80/e*kmod ; 6.3*b / e*kmod) | min. (23.8 ; 24.6/kmod) | min. (25.4 ; 24.6/kmod) |
Kombinované výpočty:
Šrouby jsou prodávány samostatně.
| Zatížení pro každou dvojici šroubů v úhlu jsou: | |
| pro R_1: | R_bolt,ax,d ≥ F_1,d /2 |
| pro R_2/3: | R_bolt,ax,d ≥ F_2/3,d /2 |
|
pro R_4/5: Šroub 1: Šroub 2: a: |
R_bolt,ax,d ≥ F_4/5,d * e / b R_bolt,lat,d ≥ F_4/5,d R_4/5,d ≥ R_1,d * b / (2*e) |

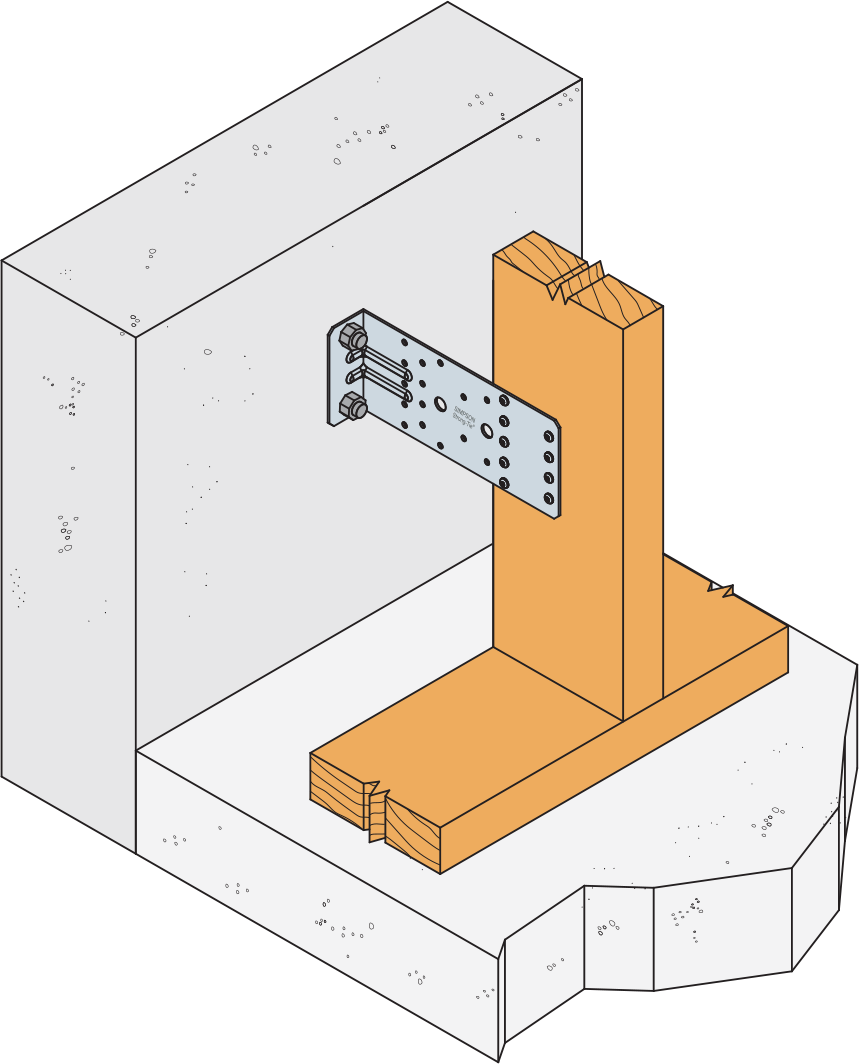

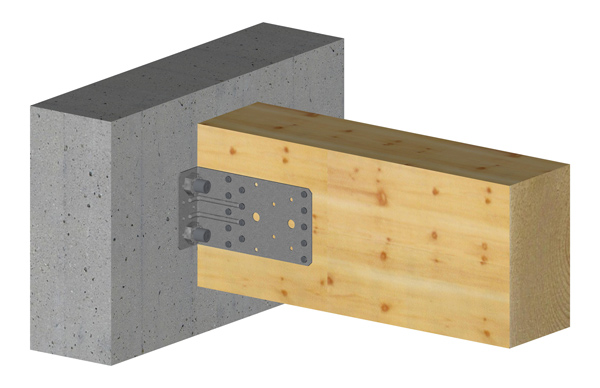

Characteristic capacities - timber to facade
| Reference | úhelník únosnost | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to beton / facade - Full nailing | ||||||||||
| výrobek capacities, beam to facade, full nailing, 1 ABR per connection[kN] | Fastener | |||||||||
| R₁,ₖ | R2/3,k | R6,k | příruba B | nosník | ||||||
| CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | množství | typ | množství | typ | |
| ABR170 | min.(14,9 ; 12,1/kmod) | min. (16,9 ; 12,1/kmod) | 4.7 | 4.9 | min. (20; 11,0/kmod) | min. (21,1; 11,0/kmod) | 2.0 | M10 | 9.0 | CNA |
| ABR220 | min. (19,4 ; 12,1/kmod) | min. (20,6 ; 12,1/kmod) | 3.6 | 3.7 | min. (20; 9,0/kmod) | min. (21,1; 9,0/kmod) | 2.0 | M10 | 9.0 | CNA |
The capacities are given for one ABR, in the case, that in total more ABR are placed alternate opposite on the beam.
It's given the option to fix the ABR with only one bolt (the upper one) for only the load in direction F1 and F6, the capacity for F1 is in this case the half.

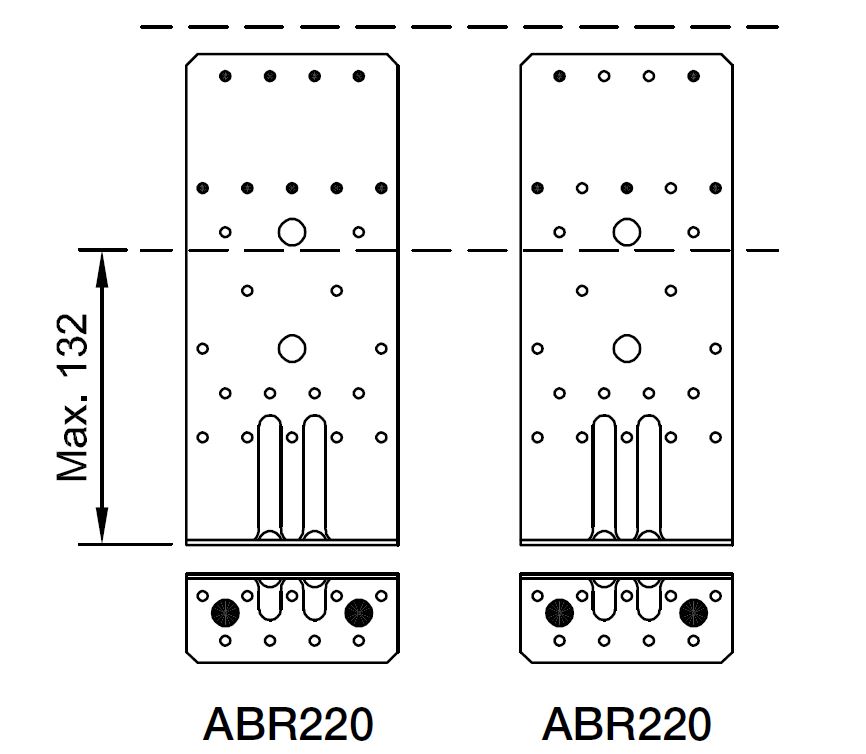

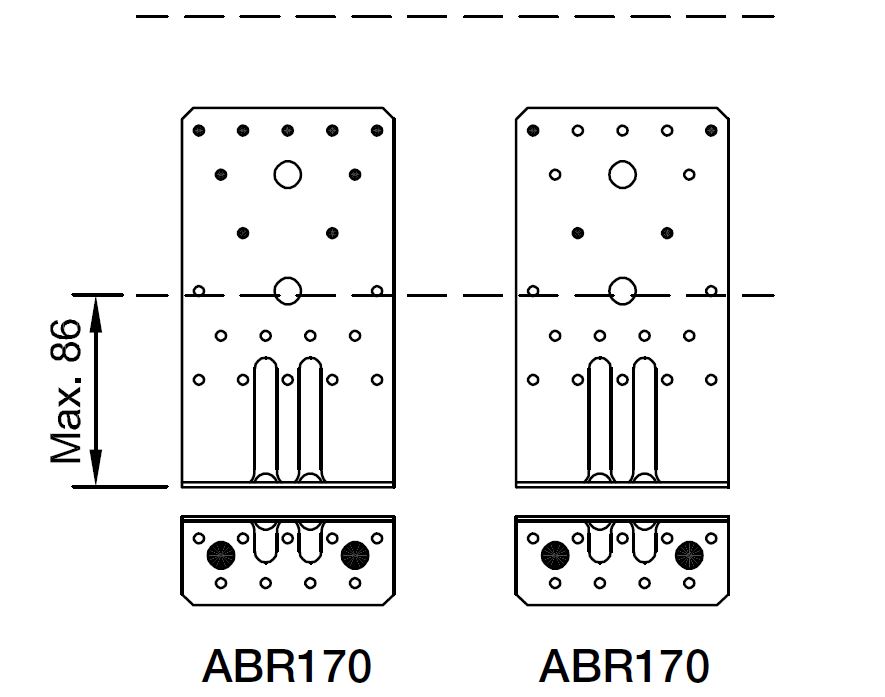

The distance of the beam to the support shall be less than 132 mm for ABR220, and less than 86 mm for ABR170.
Allowable capacities - Timber to facade - CSTB Cahier 3316
| Reference | úhelník únosnost | ||||||
|---|---|---|---|---|---|---|---|
| výrobek allowable capacities - dřevo to beton - CSTB Cahier 3316 | |||||||
| počet of Fasteners | výrobek capacities, beam to facade, full nailing, 1 ABR per connection[daN] | ||||||
| nosník | příruba B | R1,d | R2/3,d | ||||
| množství | typ | množství | typ | 1 mm | 3 mm | ||
| ABR170 | 9.0 | CSA | 1.0 | M10 | 450 | 67.7 | 76.3 |
| ABR220 | 9.0 | CSA | 1.0 | M10 | 450 | 33.3 | 80 |
The capacities are given for one ABR, in the case, that in total more ABR are placed alternate opposite on the beam.
Only the upper bolt has to be installed on the ABR.
The distance of the beam to the support shall be less than 132 mm for ABR220, and less than 86 mm for ABR170.
Instalace
Technické poznámky
Technical info

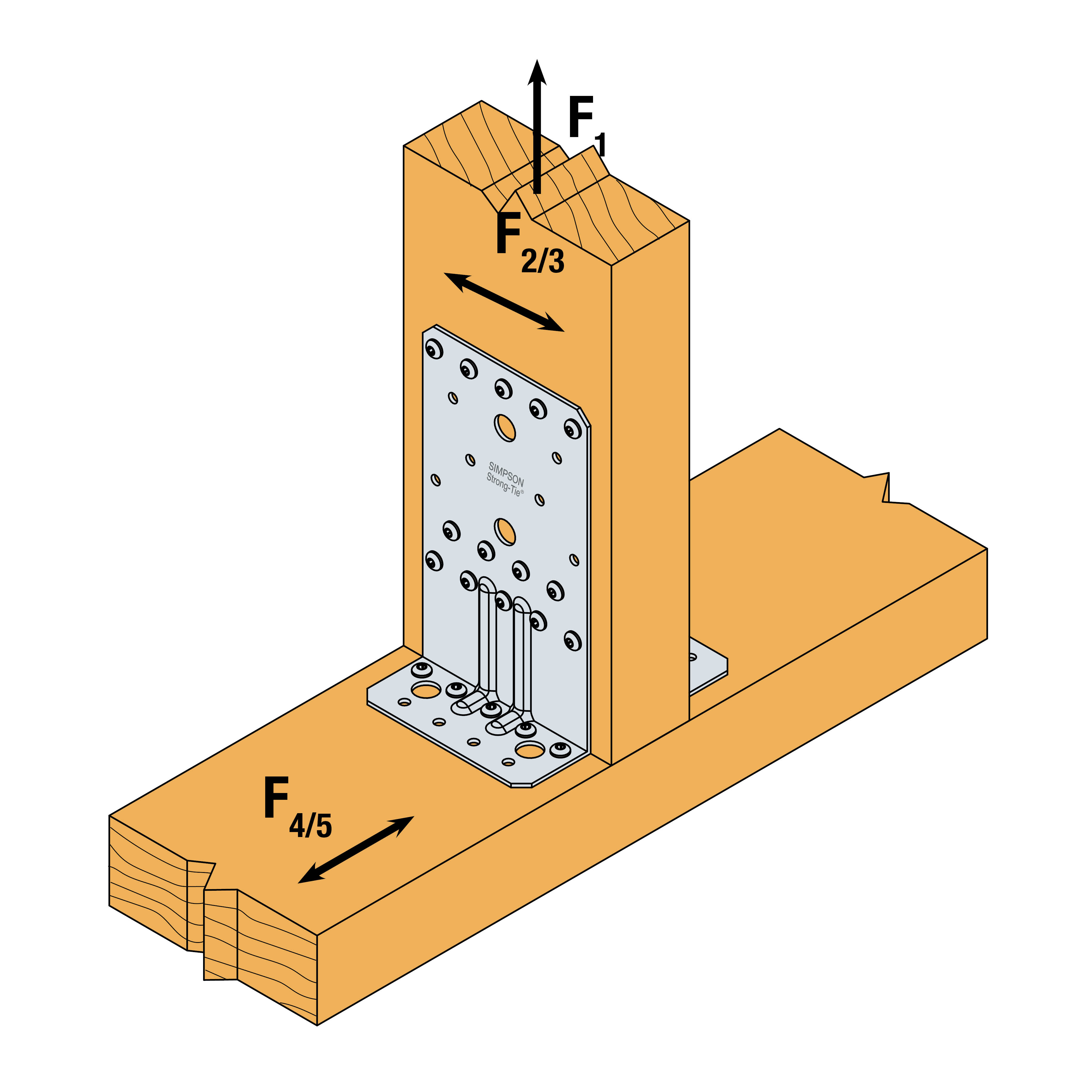

Particular situation with two angle brackets per assembly positioned opposite to each other
F1 Continious force in the central axis of the purlin.
F2 and F3 Lateral force that works between the purlin and the beam in the purlin direction.
F4 and F5 Lateral force that works in the center of the angle brackets in the beam direction positioned e above the beam.
Particular situation with only one angle bracket per assembly
F1 Continious force in the central axis of the purlin with a distance f between the vertical contact surface. If the overall structure prevents the rotation of the purlin or the post, the tensile strength is equal to half of the given value for two angle-brackets.
F2 and F3 Lateral force that works between the purlin and the beam in the purlin direction.
F4 Lateral force that works in the center of the angle brackets in the beam direction. Works towards the bracket positioned e above the beam.
F5 Lateral force that works in the center of the angle brackets in the beam direction. Works away from the bracket positioned e above the beam.
