ABR

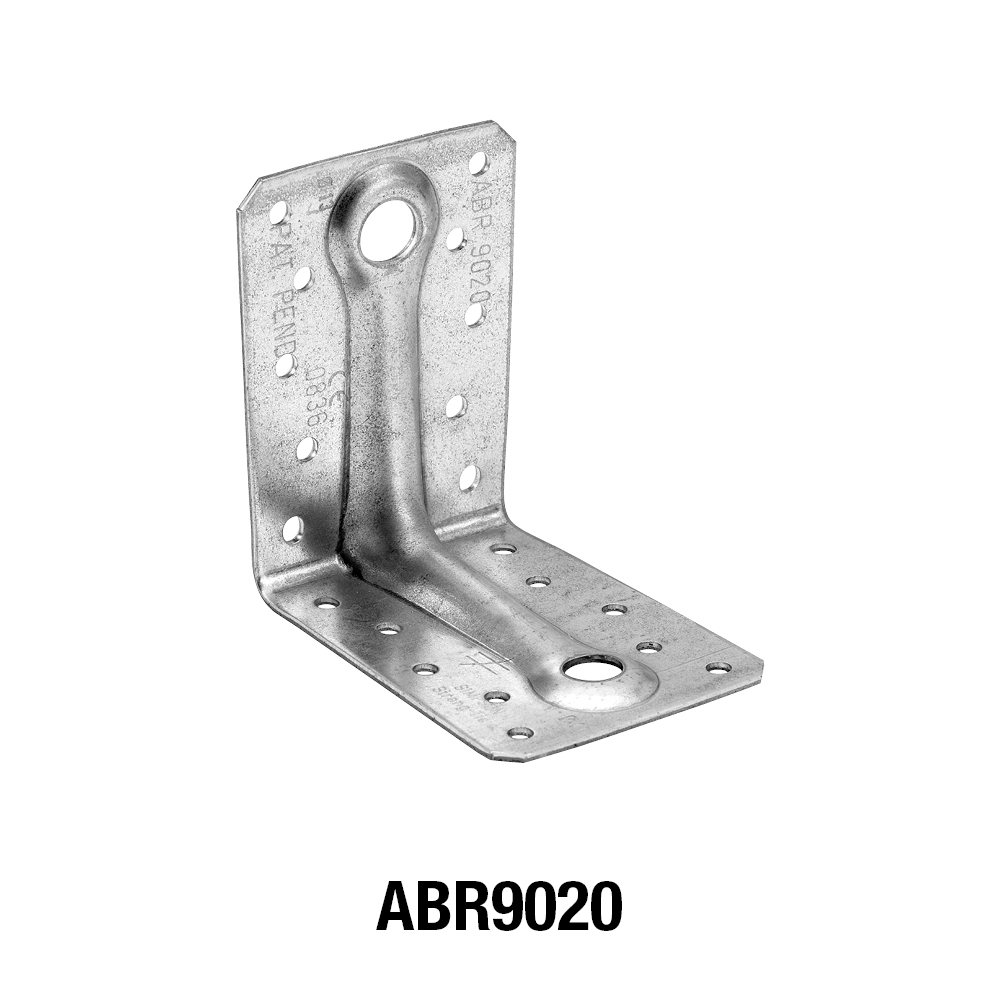

Úhelník ABR(9020)
Úhelník je opatřen žebry, je vhodný pro spoje, které jsou zatíženy velkou silou.

Označení CE

ETA

Servisní třída 2
EPD

Pozinkovaná ocel Z275

Uvnitř
Podrobnosti produktu
Vlastnosti
Material
Kvalita oceli:
S250GD+Z275 dle norem DIN EN10346
Ochrana proti korozi:
275 g/m pozinkováno z obou stran cca 20mm
Vorteile
- Nízká hmotnost - lepší manipulace, vysoké hodnoty zatížení, evropský patent.
Aplikace
Anwendbare Materialien
- Dřevo, výrobky ze dřeva
Anwendungsbereich

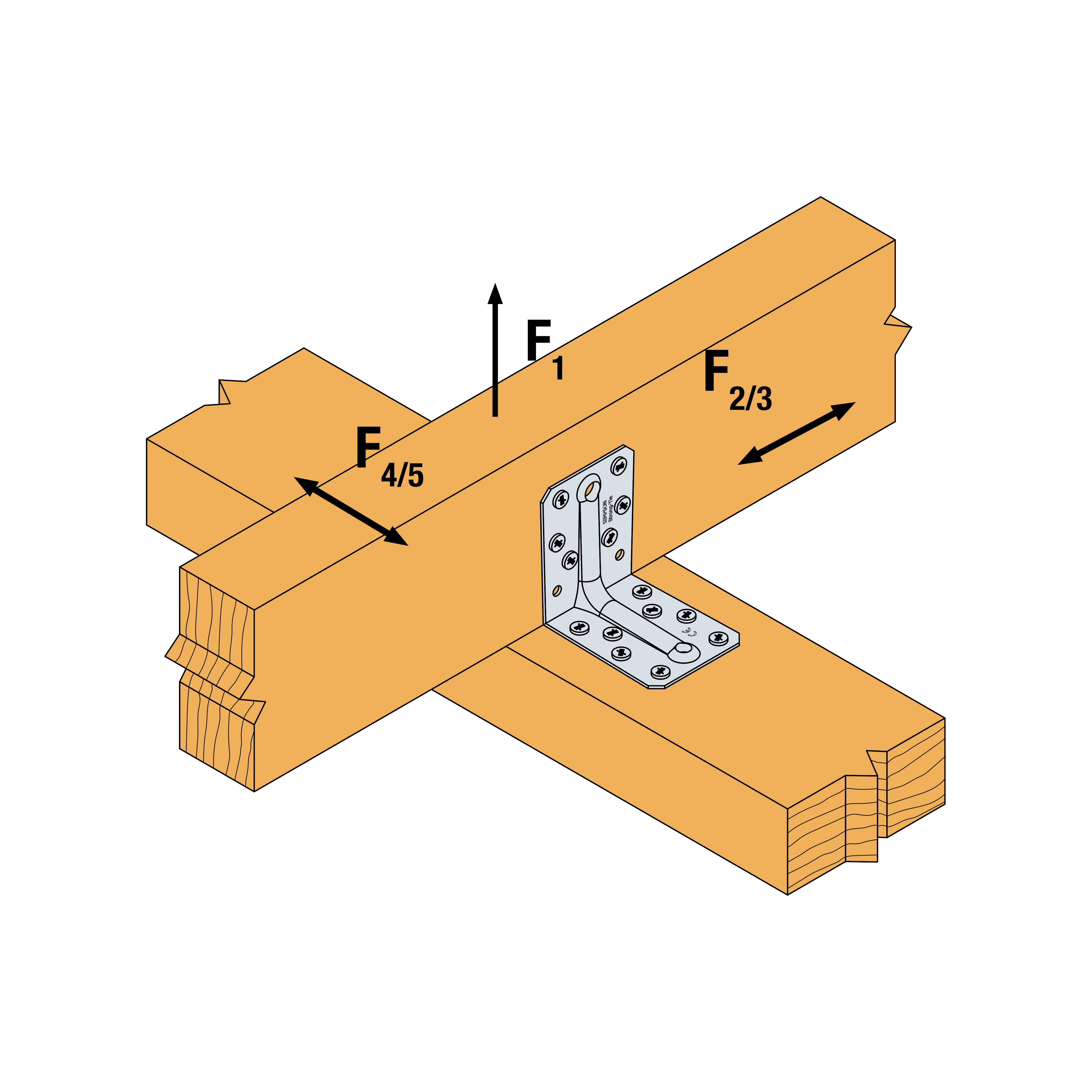

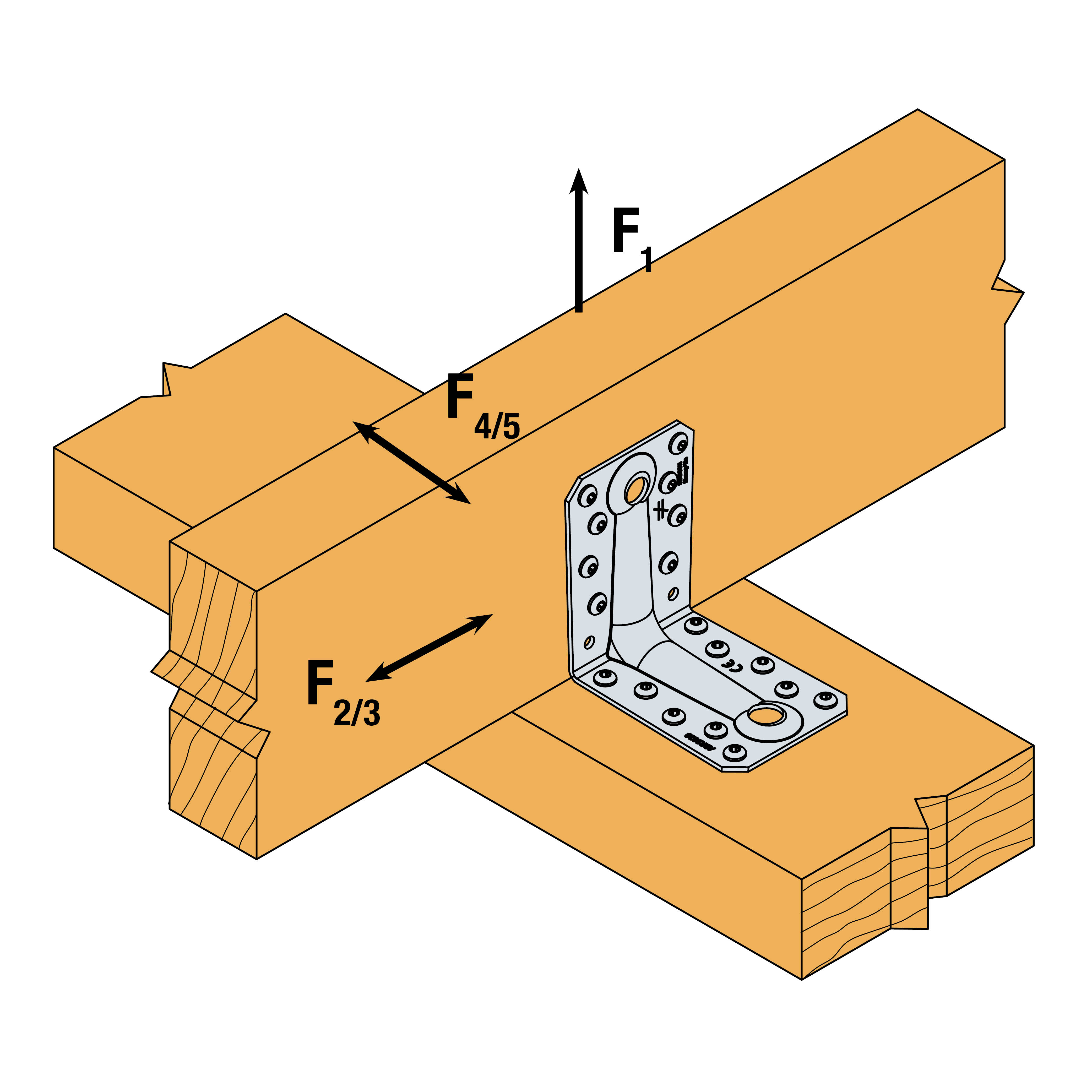

- Kompaktní připojení dřevo/dřevo, při relativně vysokém zatížení všemi směry např. vaznice, krov
Technické údaje
Product capacities - Timber to timber - Full nailing - 2 angles brackets
| Reference | úhelník únosnost | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Full nailing | |||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | ||||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4,k = R5,k(1) | |||||
| množství | množství | CNA4.0x40 | CNA4.0x60 | CSA5.0x40 | CNA4.0x40 | CNA4.0x60 | CSA5.0x40 | CNA4.0x40 | |
| ABR9020 | 8.0 | 10.0 | 10.8 | 14.9 | 14.6 | 10.3 | 13 | 12.3 | 4,9 / kmod^0,7 |
* b = 75 mm and e = 130 mm
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Product capacities - Timber to timber - Partial nailing - 2 angles brackets
| Reference | úhelník únosnost | |||||
|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Partial nailing | ||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | |||
| množství | množství | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| ABR9020 | 4.0 | 6.0 | 7.8 | 9.8 | 7.6 | 8.1 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Product capacities - Timber beam to steel 6 mm - Partial nailing - 2 angles brackets
| Reference | úhelník únosnost | ||||
|---|---|---|---|---|---|
| výrobek capacities - dřevo beam to ocel beam 6 mm - Partial nailing - 2 angle brackets | |||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | ||||
| nosník | příruba B | R₁,ₖ | |||
| množství | typ | množství | typ | CNA4.0x60 | |
| ABR9020 | 8.0 | CNA | 4.0 | PDPA-75 | 12.1 |
