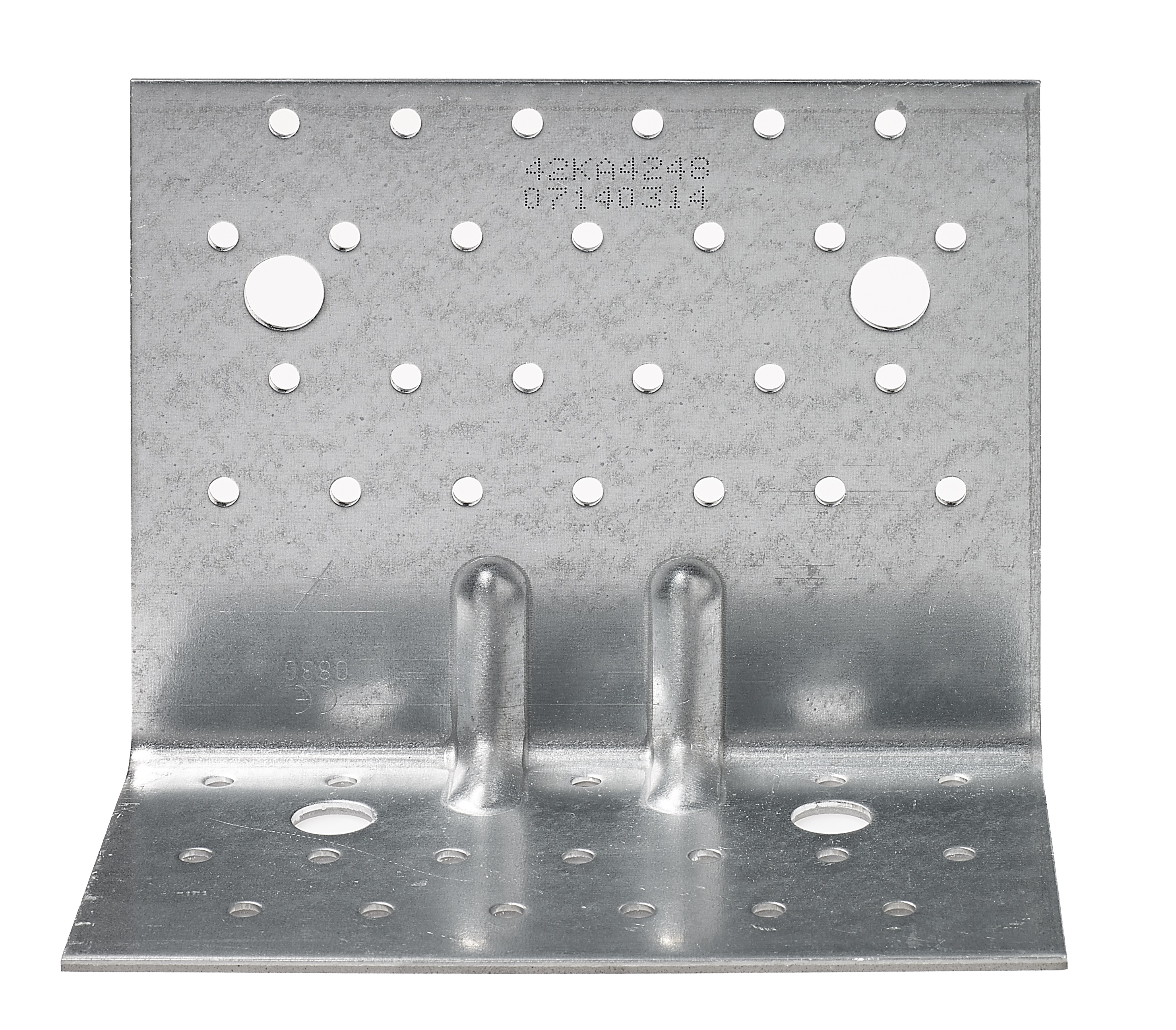

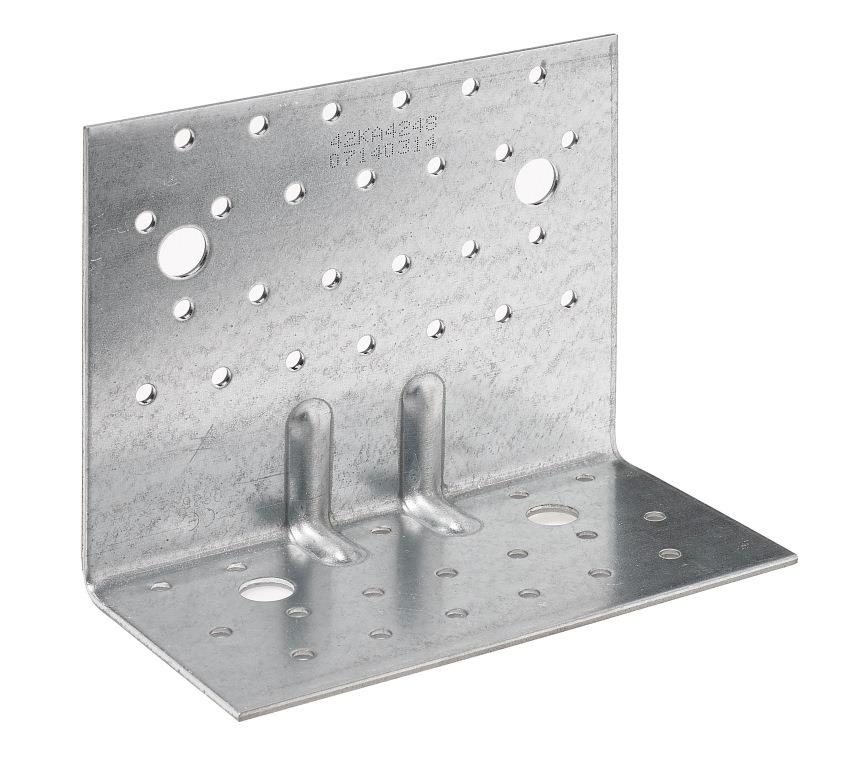

Úhelník AG922
Univerzální úhelník pro podporu a konstrukční účely. Se používají pro spoje dřevo/dřevo, nebo pro připojení dřevěných konstrukcí do betonu.






Podrobnosti produktu
Vlastnosti
Materiál
Kvalita oceli:
S250GD+Z275 dle norem DIN EN10346
Ochrana proti korozi:
275 g/m pozinkováno z obou stran cca 20mm
Vorteile
-
Snížení vzdálenosti od okraje vzhledem k malé velikosti
Aplikace
Anwendbare Materialien
Masivní dřevo, lepených nosníků, beton, ocel ...
Intend Use
- Die AG Winkelverbinder sind für Holz / Holz oder Holz / Beton Anschlüsse in tragenden Konstruktionen geeignet.
Technické údaje

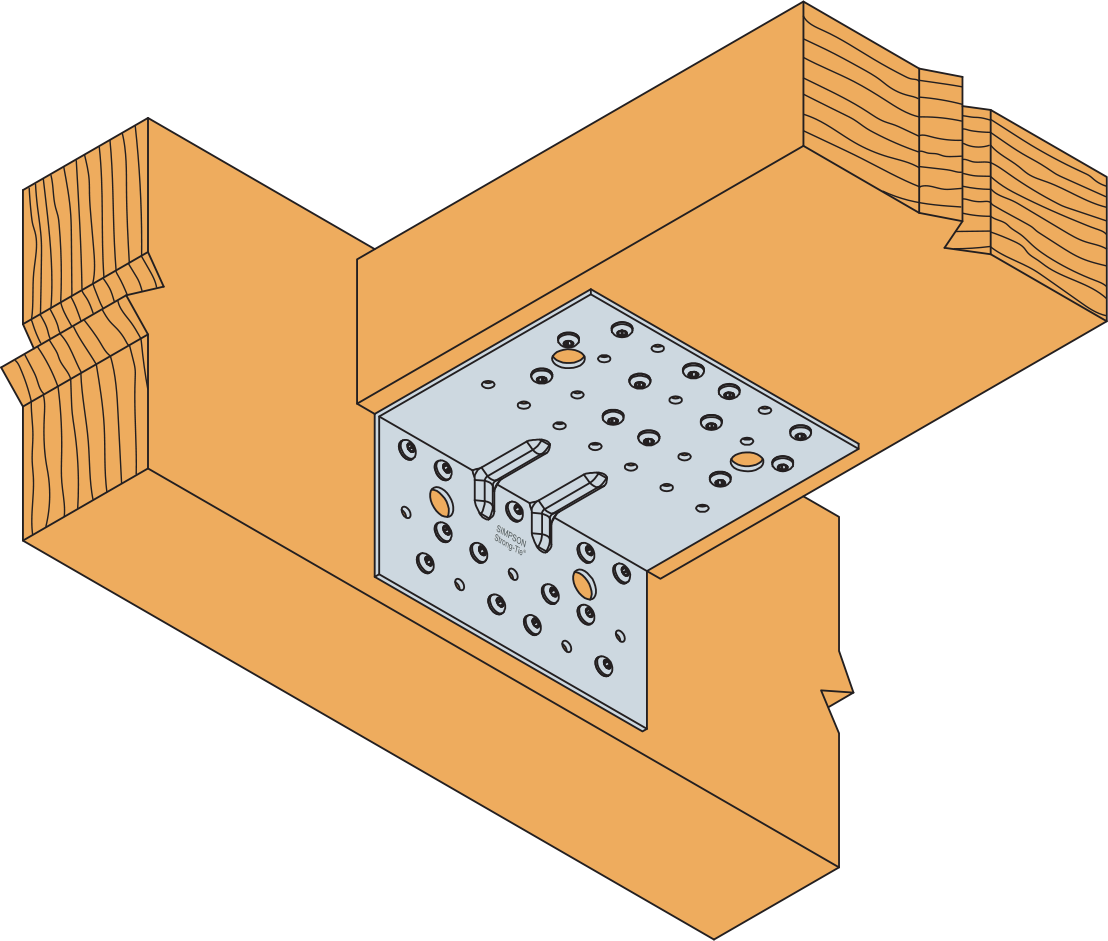

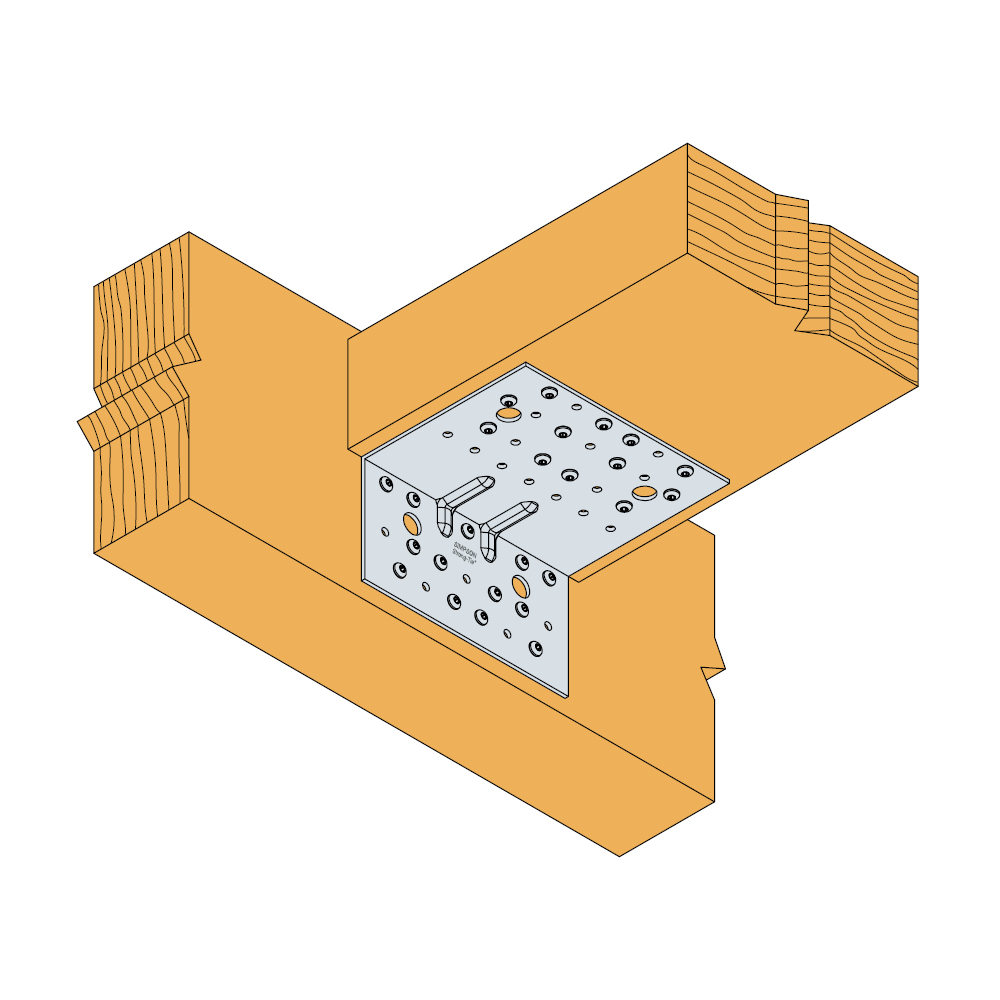

Holz an Holz - 2 Winkel pro Anschluss
| Reference | úhelník únosnost | |||
|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Beam to beam - Full nailing | ||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ[kN] | |
| množství | množství | CNA4.0x50 | CNA4.0x50 | |
| AG922 | 16 | 13 | 18.5 | 29.5 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Stütze an Holz - 2 Winkel pro Anschluss
| Reference | úhelník únosnost | ||
|---|---|---|---|
| výrobek capacities - dřevo post to dřevo beam | |||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | ||
| nosník | příruba B | R₁,ₖ | |
| množství | množství | CNA4.0x50 | |
| AG922 | 12.0 | 13.0 | 19.5 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

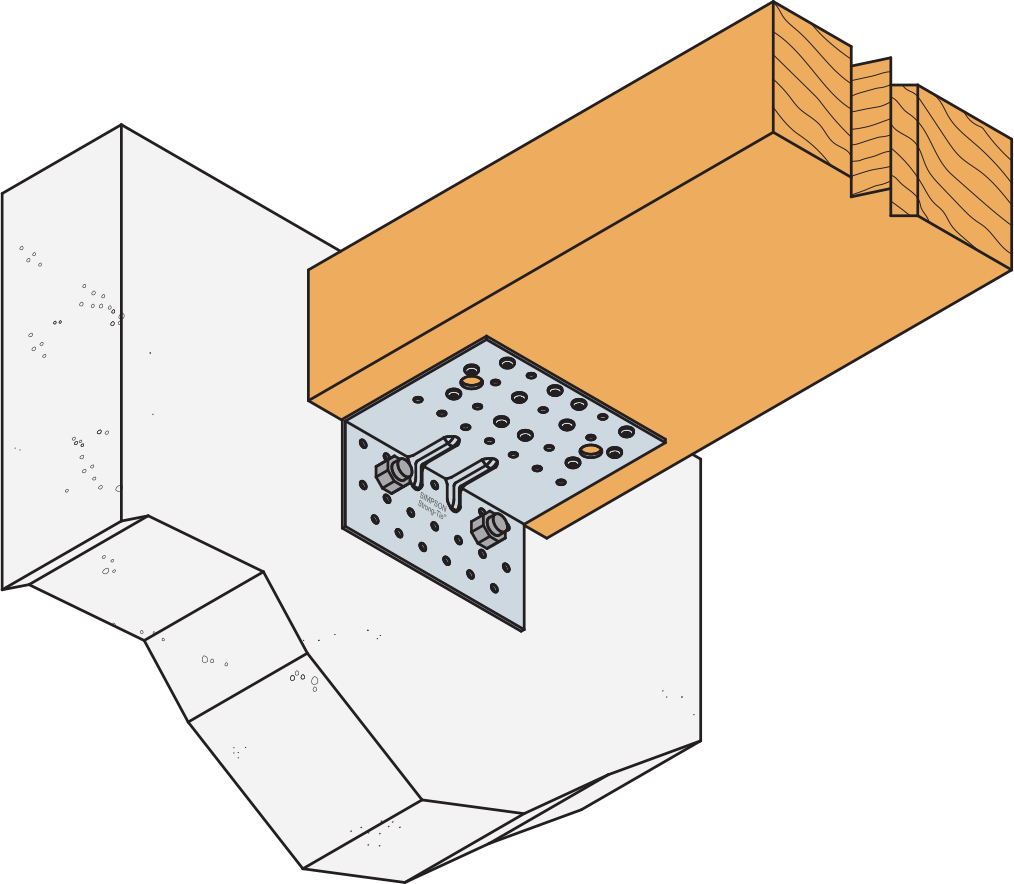

Holz an Beton - 2 Winkel pro Anschluss
| Reference | úhelník únosnost | |||||
|---|---|---|---|---|---|---|
| výrobek capacities - dřevo beam to rigid podpora | ||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | |||
| množství | typ | množství | typ | CNA4.0x50 | CNA4.0x50 | |
| AG922 | 16.0 | CNA* | 2.0 | Ø12 | 30.6 | 48.2 |
*) Bolzenanker z.B. WA, BoAX II oder gleichwertig sind separat nachzuweisen.
Stütze an Beton- 2 Winkel pro Anschluss
| Reference | úhelník únosnost | ||||
|---|---|---|---|---|---|
| výrobek capacities - dřevo post to rigid podpora | |||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | ||||
| nosník | příruba B | R₁,ₖ | |||
| množství | typ | množství | typ | CNA4.0x50 | |
| AG922 | 12.0 | CNA* | 2.0 | Ø12 | 37.5 |
*) Bolzenanker z.B. WA, BoAX II oder gleichwertig sind separat nachzuweisen.
Stütze an Holz - 1 Winkel pro Anschluss (für Lastrichtung F4)
| Reference | úhelník únosnost | ||||
|---|---|---|---|---|---|
| Characteristic capacities - dřevo to rigid podpora | |||||
| počet of Fasteners | Characteristic capacities - dřevo C24 - 1 angle brackets per connection[kN] | ||||
| nosník | příruba B | R4,k | |||
| množství | typ | množství | typ | CNA4.0x50 | |
| AG922 | 12.0 | CNA* | 2.0 | Ø12 | 24.8 |
*) Bolzenanker z.B. WA, BoAX II oder gleichwertig sind separat nachzuweisen.
Instalace
Ostatní
Certifikace
Prohlášení o vlastnostech (DoP)
Evropské technické posouzení (ETA)
Environmental Product Declarations (EPD)
