ABR255

Angle Bracket for CLT

The ABR255 angle bracket is developed for CLT construction. It can be used on timber or concrete support. Flexible, it is designed for shear loading.

Technický list

Označení CE

ETA

Novinky

Servisní třída 2

EPD

Uvnitř

Pozinkovaná ocel Z275

ABR255_SSTBP_homepage_FR_fr

ABR255_SSTBP_homepage_ES_es

ABR255_SSTBP_homepage_NL_nl

ABR255_SSTBP_homepage_PT_pt

ABR255_SSTBP_homepage_FI_fi

ABR255_SSTBP_homepage_DE_de

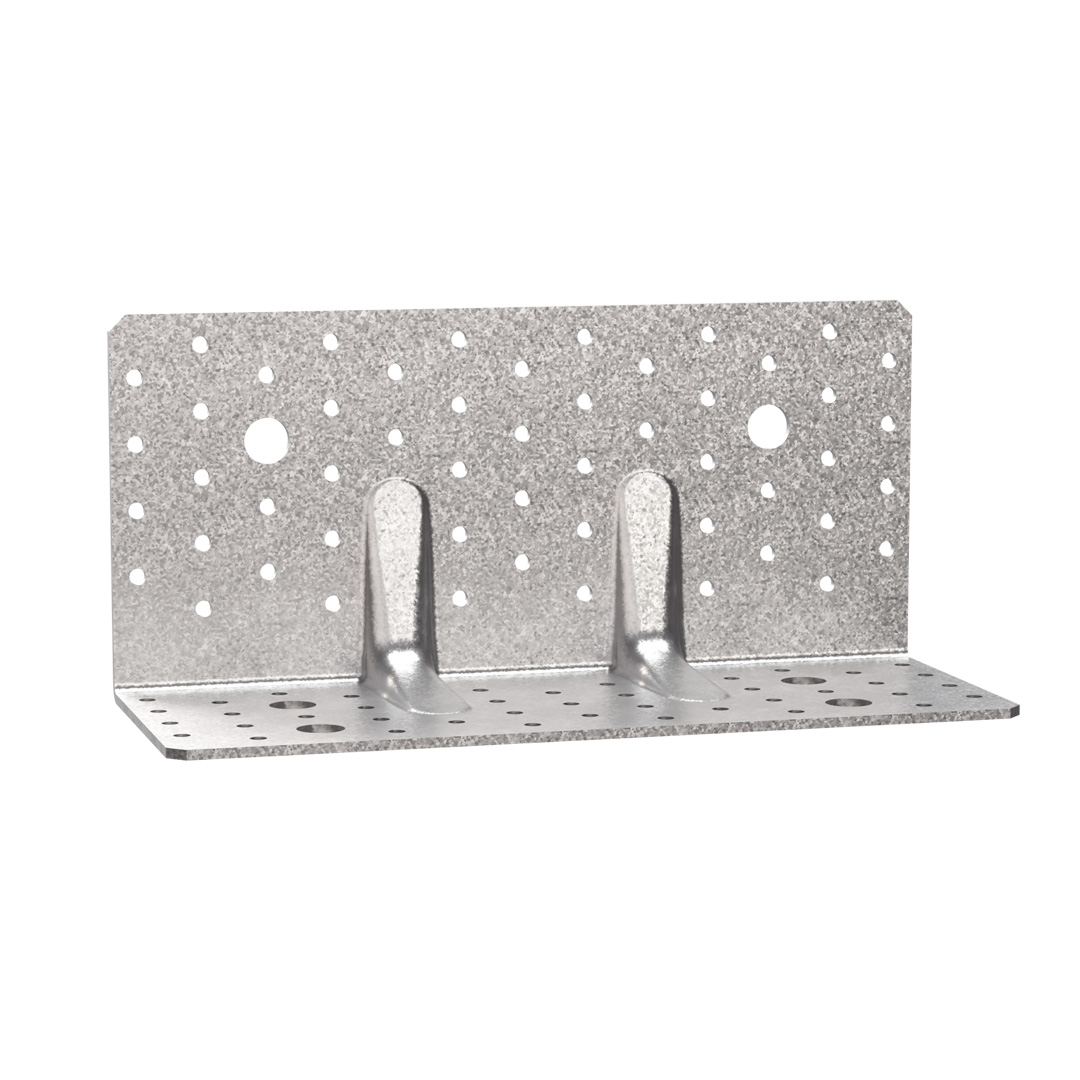

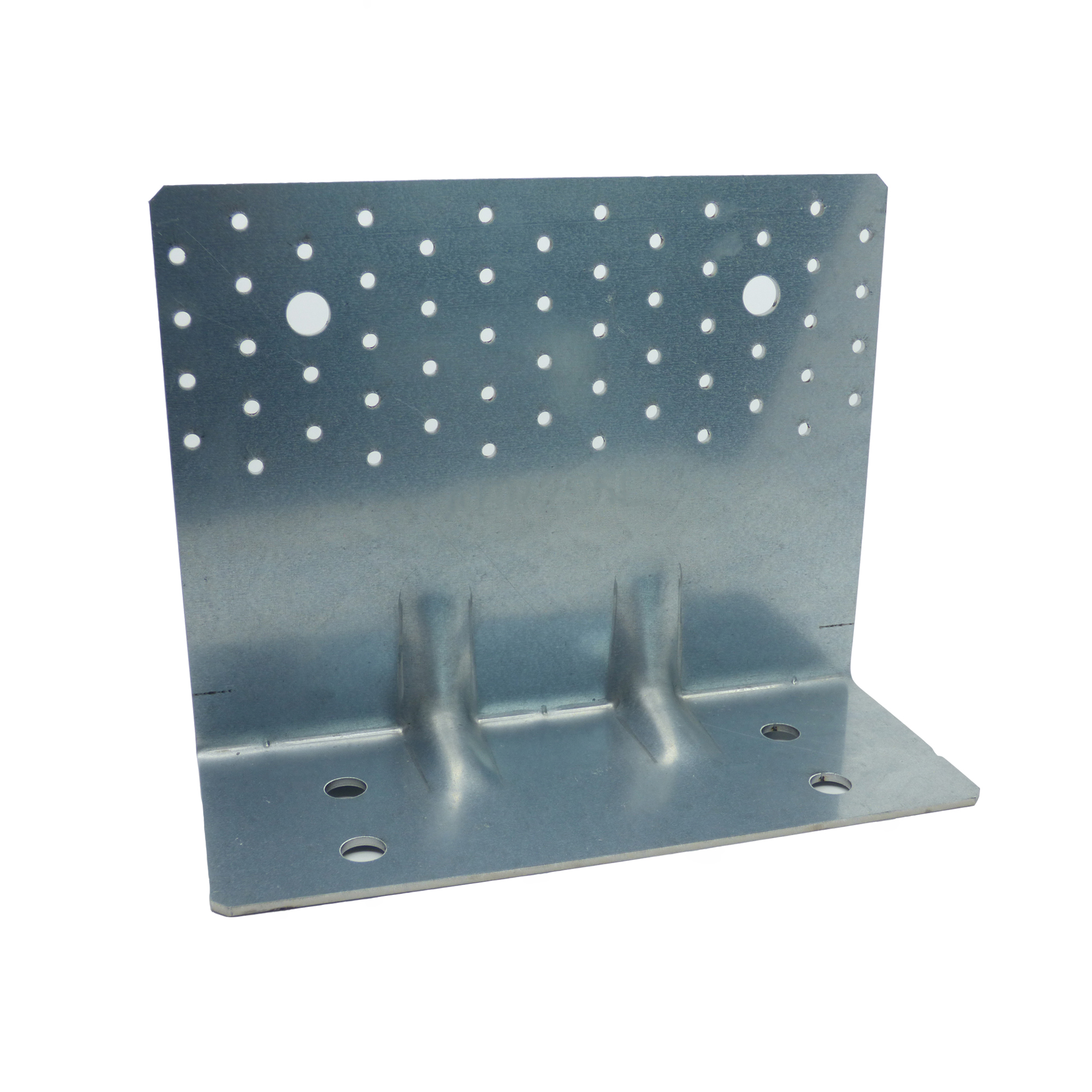

ABR255 main image

Podrobnosti produktu

Obrázky

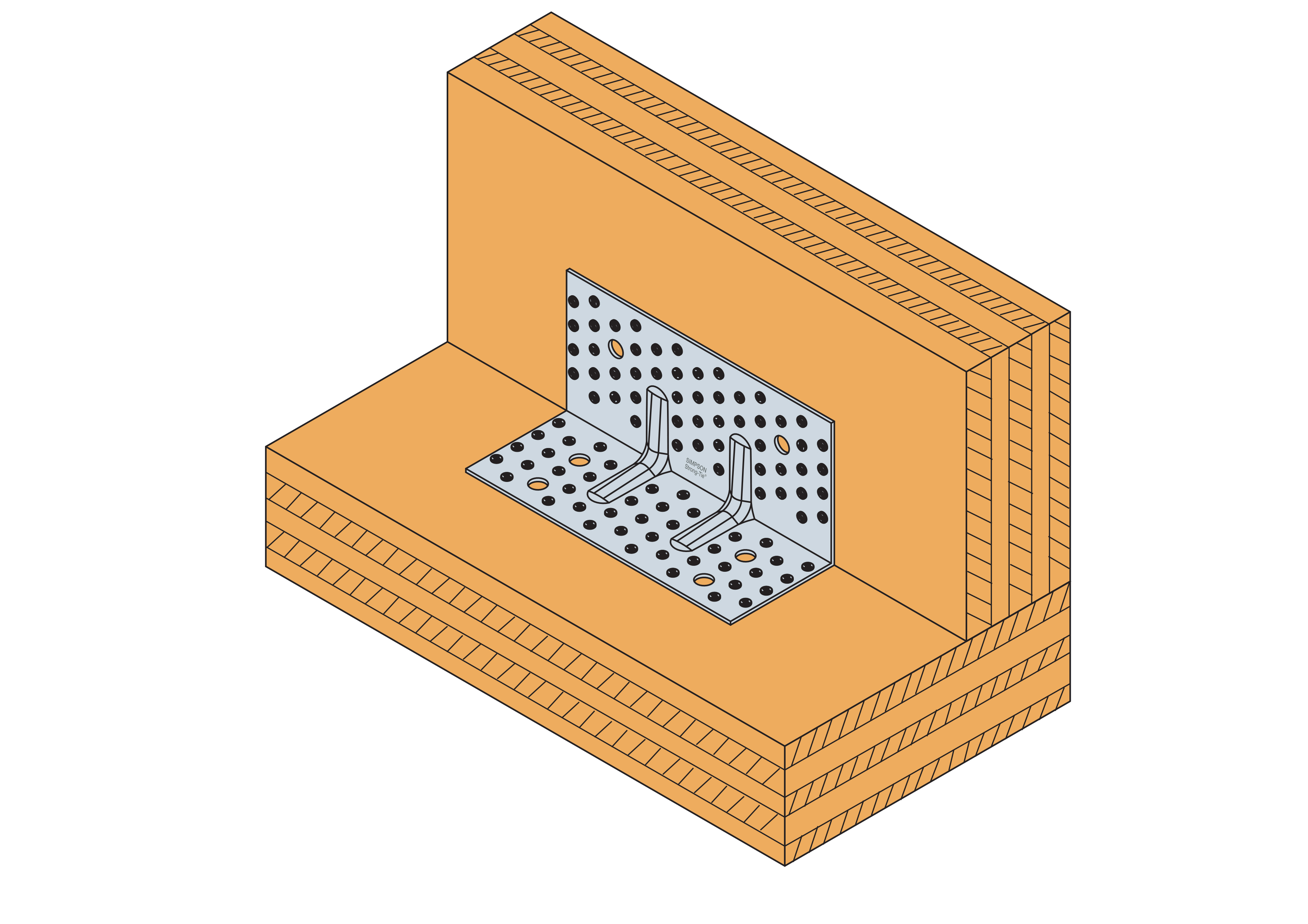

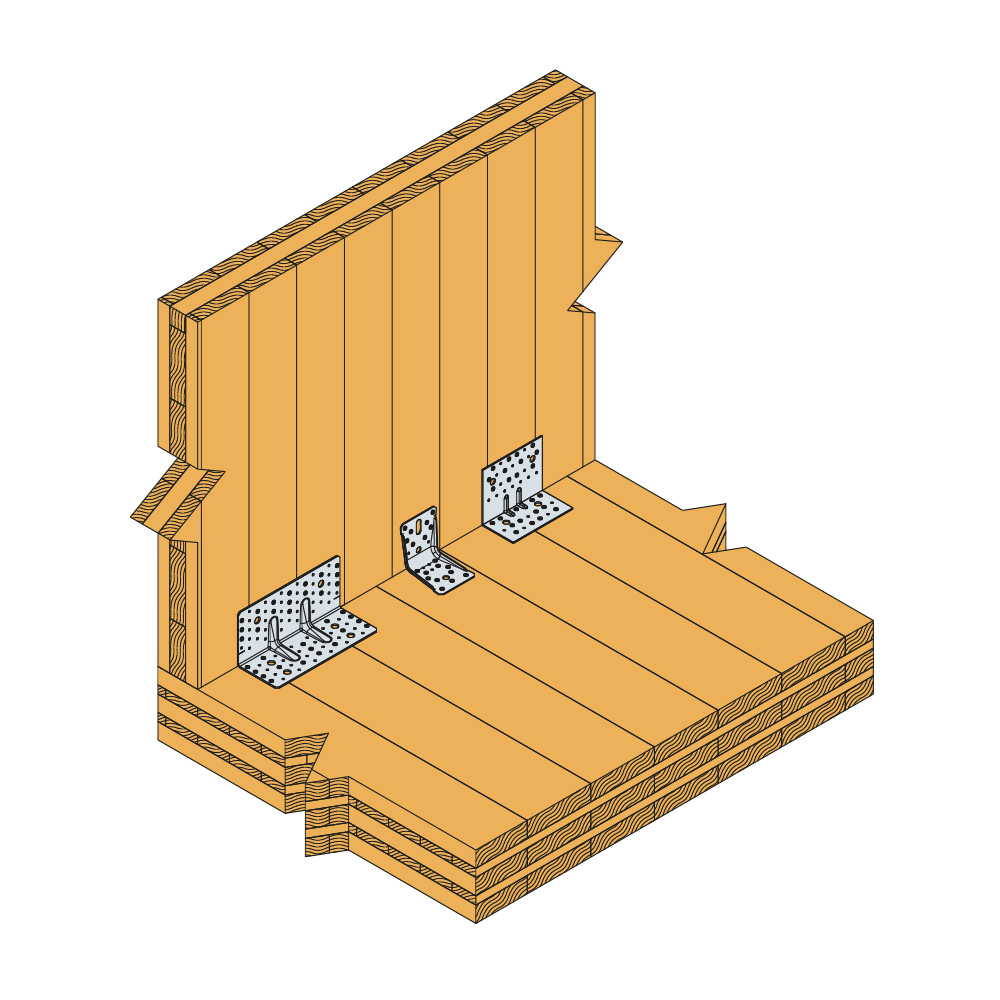

C_ABR255 wood-wood_InstIll_Ill_Instld_Br46_CLT_DK_EU_C0.jpg

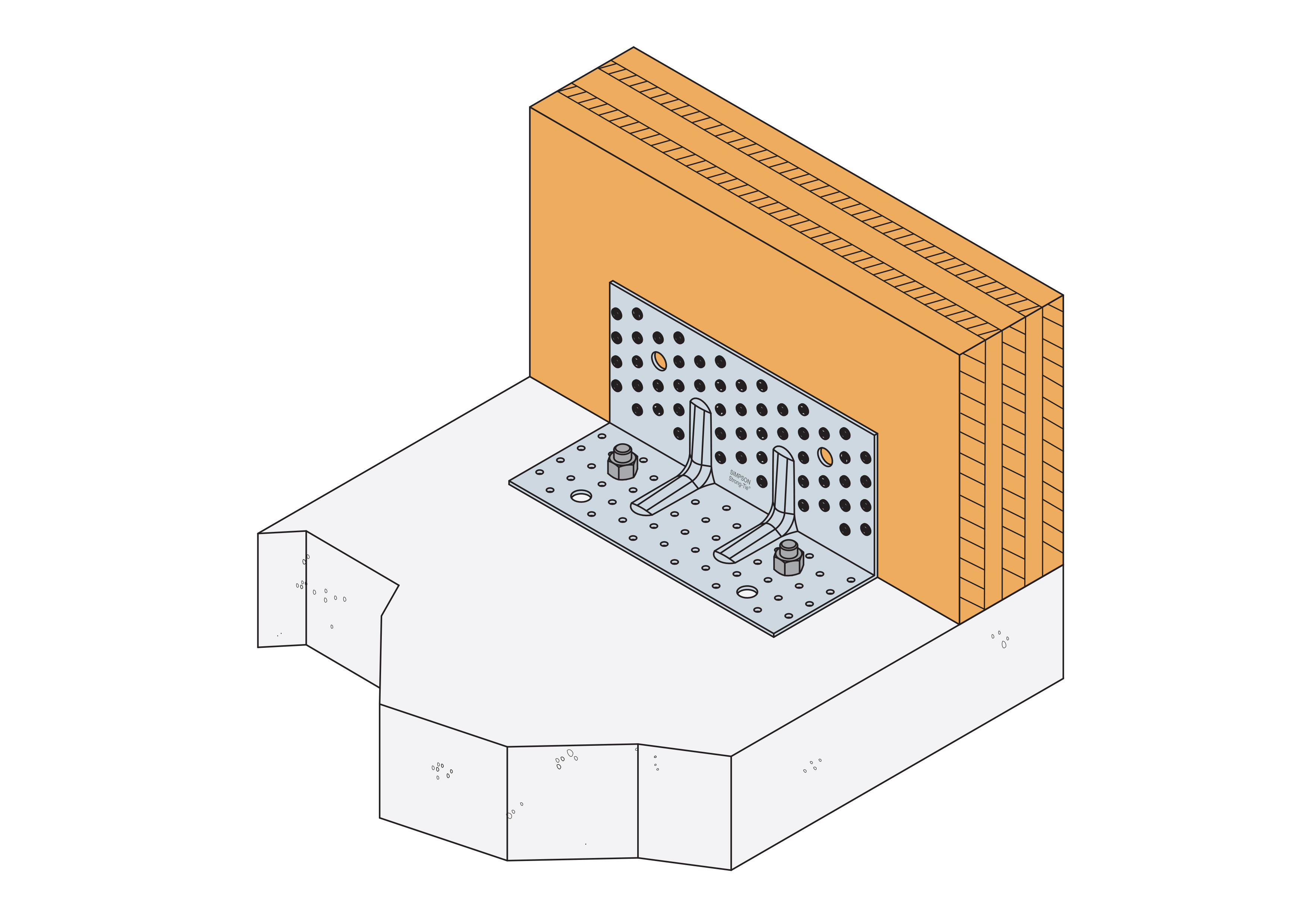

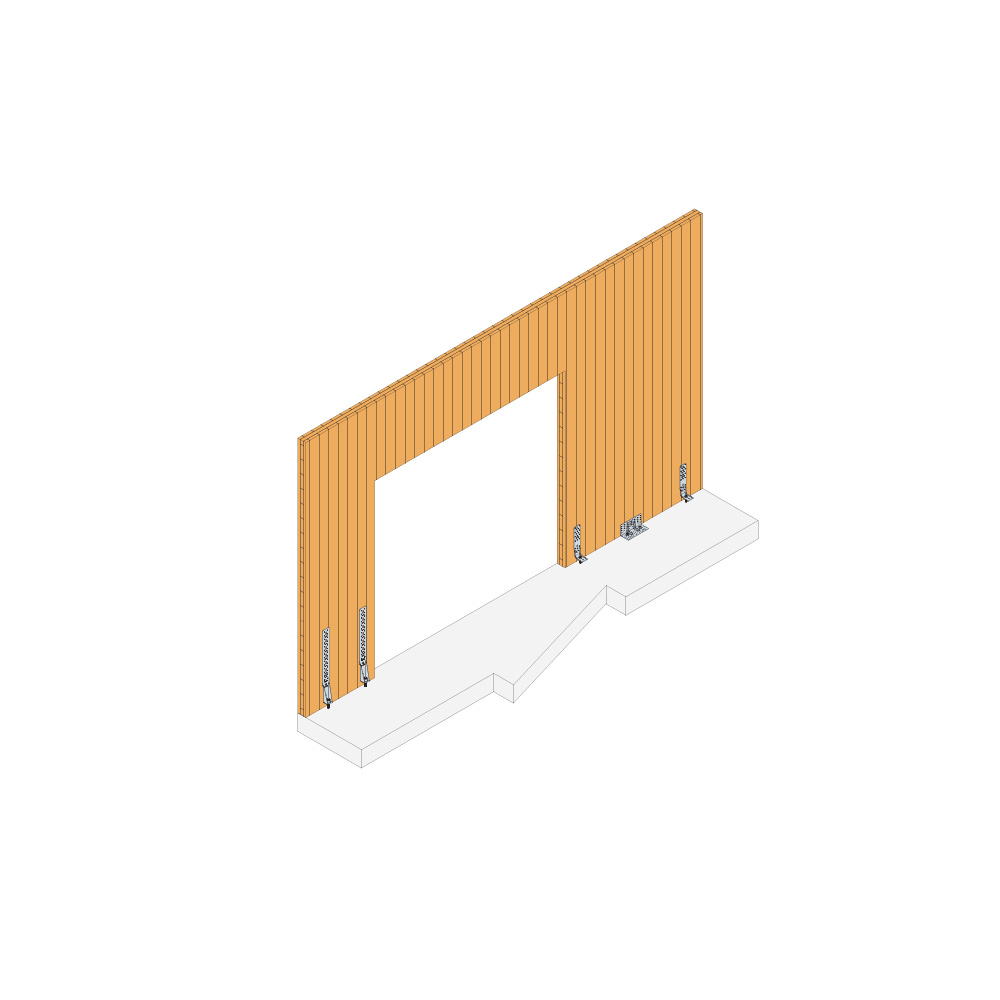

C_ABR255 concrete-wood_InstIll_Ill_Instld_Br46_CLT_DK_EU_C0.jpg

Vlastnosti

Materiál

Kvalita oceli:

S 250 GD+Z 275 dle norem DIN EN

Ochrana proti korozi:

275 g/m pozinkováno z obou stran cca 20mm

Vorteile

Perfect for CLT building
Versatile: can be used on timber and concrete support
Superior performance for forces in horizontal (F₂/F₃)
and vertical directions (F₁)

Aplikace

Anwendbare Materialien

Supporting member: solid wood, glued-laminated wood, concrete, steel, etc.
Supported member: solid wood, composite lumber, glued-laminated wood.

Anwendungsbereich

Solid timber panels,
CLT panels.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Rozměry a typické hodnoty

Reference	konektor rozměry
	ostatní		rozměry výrobku[mm]				nosník[mm]		příruba B[mm]
	množství v krabici	hmotnost[kg]	A[mm]	B[mm]	C[mm]	tloušťka[mm]	kulatý		kulatý
	množství v krabici	hmotnost[kg]	A[mm]	B[mm]	C[mm]	tloušťka[mm]	Ø5[mm]	Ø14[mm]	Ø5[mm]	Ø14[mm]
ABR255	10.0	1.2	120	100	255	3	52	2	41	4
ABR255SO	10.0	1.7	200	100	255	3	56	2	-	4

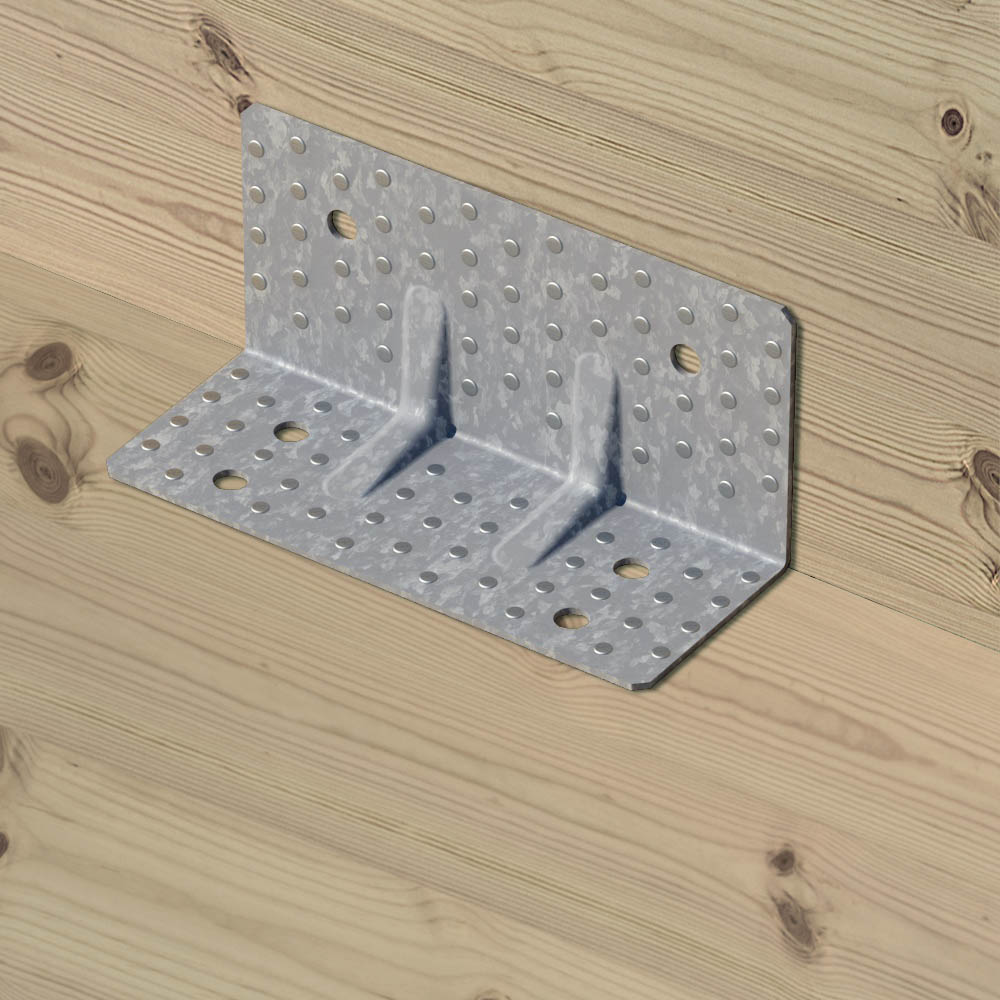

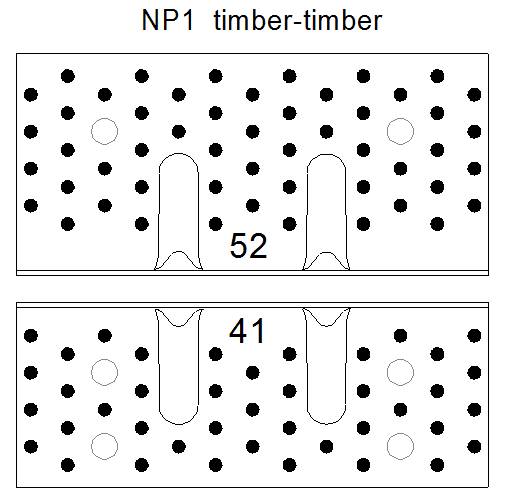

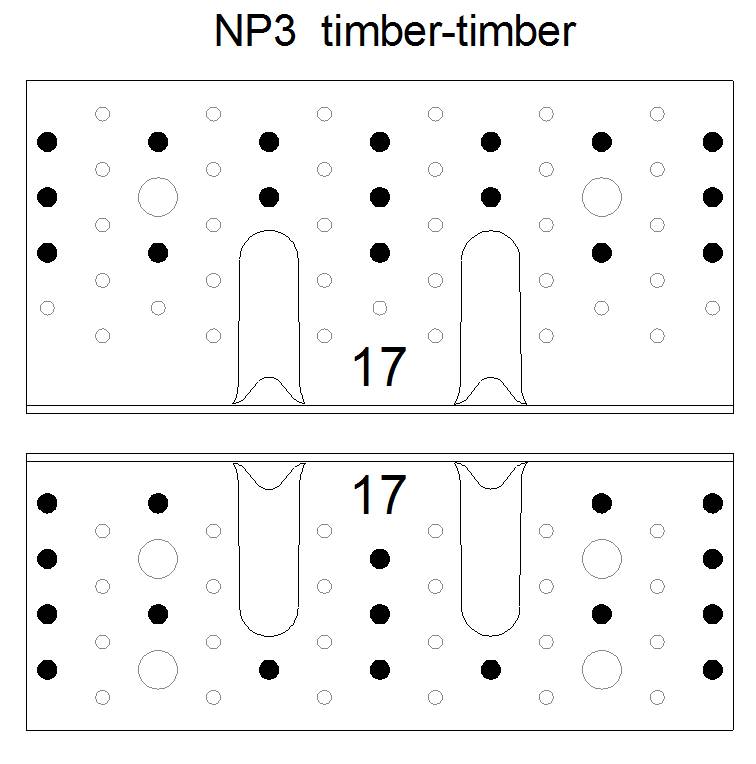

Product characteristic capacities - Timber to timber - 1 angle bracket - Full nailing - Nailing pattern 1

Rozměry

Product characteristic capacities - Timber to timber - 1 angle bracket - Full nailing - Nailing pattern 1

Reference	úhelník únosnost
	výrobek capacities - dřevo to dřevo - Full nailing - Nailing pattern 1
	počet of Fasteners		Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník	příruba B	R₂,ₖ=R₃,ₖ		R₁,ₖ
	množství	množství	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60
ABR255	52.0	41.0	45.9	50.5	19,5/ kmod^0,4	22,5 / kmod^0,4

The value in the table above can be used if the panel can't rotate.

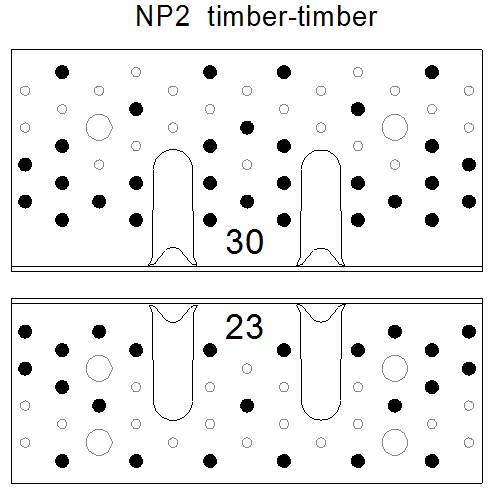

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 2

Rozměry

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 2

Reference	úhelník únosnost
	výrobek capacities - dřevo to dřevo - Partial nailing - Nailing pattern 2
	počet of Fasteners		Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník	příruba B	R₁,ₖ		R₂,ₖ=R₃,ₖ
	množství	množství	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60
ABR255	30.0	23.0	16,5 / kmod^0,4	19,5 / kmod^0,4	38	42.1

The value in the table above can be used if the panel can't rotate.

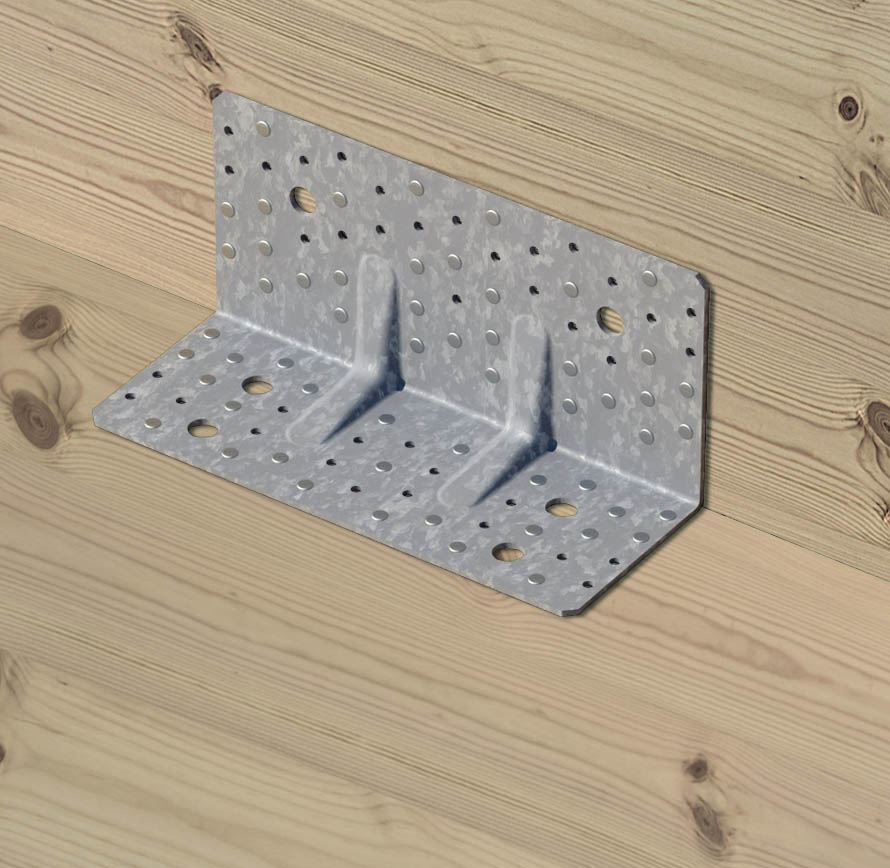

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 4

Rozměry

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 4

Reference	úhelník únosnost
	výrobek capacities - dřevo to dřevo - Partial nailing - Nailing pattern 4
	Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]				počet of Fasteners
	R₂,ₖ=R₃,ₖ		R₁,ₖ		nosník	příruba B
	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60	množství	množství
ABR255	28.6	31.4	15,6/kmod^0,4	18,1/kmod^0,4	24.0	21.0

The value in the table above can be used if the panel can't rotate.

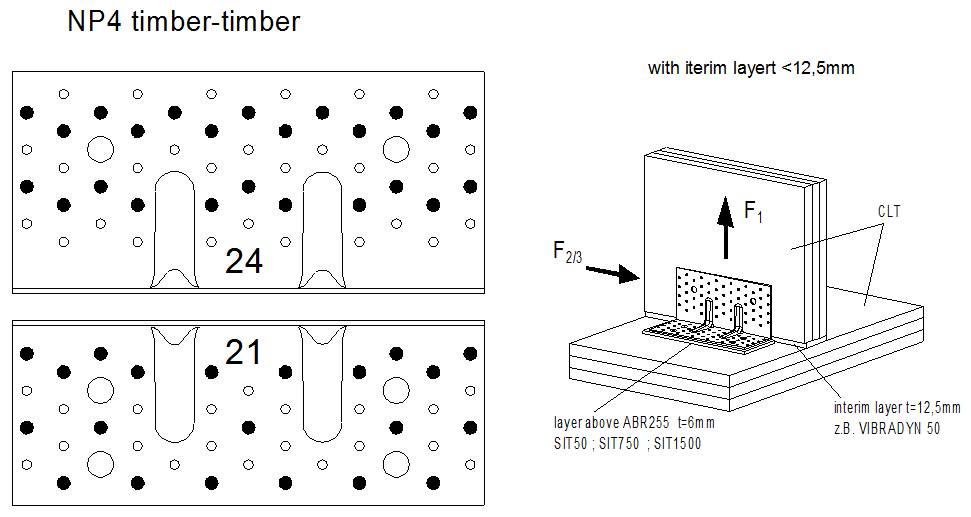

Nailing pattern 4 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 5

Rozměry

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 5

Reference	úhelník únosnost
	výrobek capacities - dřevo to dřevo - Partial nailing - Nailing pattern 5
	Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]		počet of Fasteners
	R₂,ₖ=R₃,ₖ	R₁,ₖ	nosník	příruba B
	CSA5.0x50	CSA5.0x50	množství	množství
ABR255	51.7	23,6 / kmod	46.0	41.0

The value in the table above can be used if the panel can't rotate.

Nailing pattern 5 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 6

Product characteristic capacities - Timber to timber - 1 angle bracket - Partial nailing - Nailing pattern 6

Reference	úhelník únosnost
	výrobek capacities - dřevo to dřevo - Partial nailing - Nailing pattern 6
	počet of Fasteners		Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník	příruba B	R₂,ₖ=R₃,ₖ		R₁,ₖ
	množství	množství	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60
ABR255	32.0	21.0	36.1	39.2	-	-

The value in the table above can be used if the panel can't rotate.

Nailing pattern 6 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

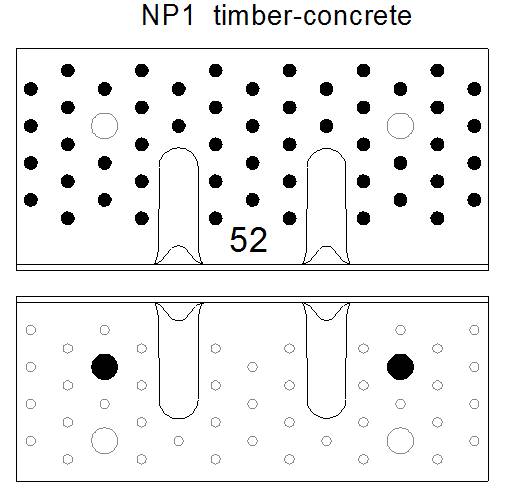

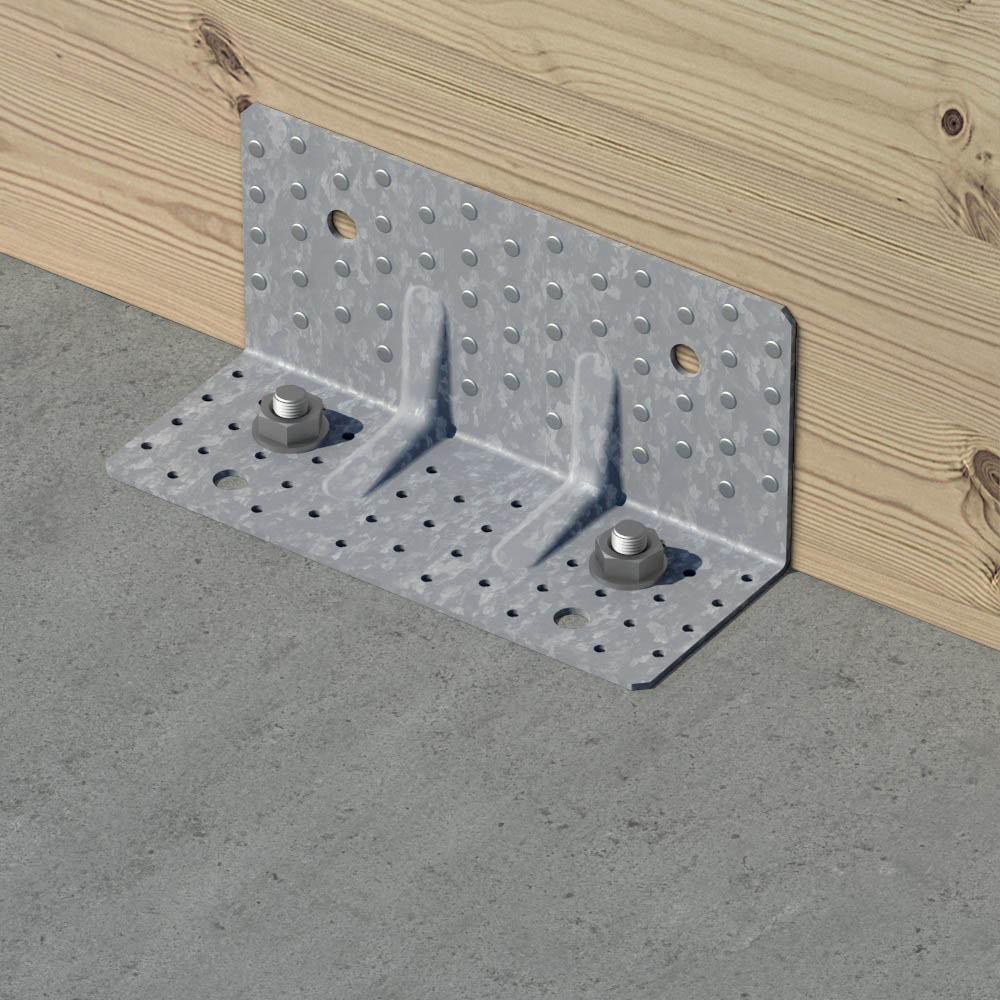

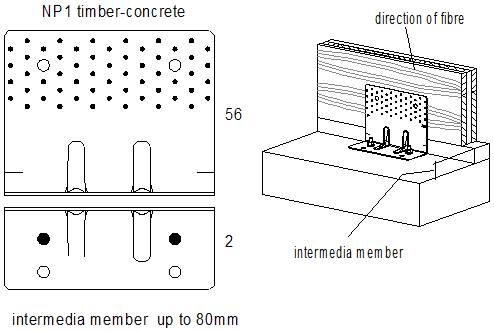

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Full nailing - Nailing pattern 1

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Full nailing - Nailing pattern 1

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Full nailing - Nailing pattern 1
	počet of Fasteners				Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	příruba B		nosník		R₁,ₖ		R₂,ₖ=R₃,ₖ
	množství	typ	množství	typ	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60
ABR255	2.0	Ø12	52.0	CNA	22 / kmod	22 / kmod	min (45,3 ; 42,9/kmod)	min (49,2 ; 42,9/kmod)

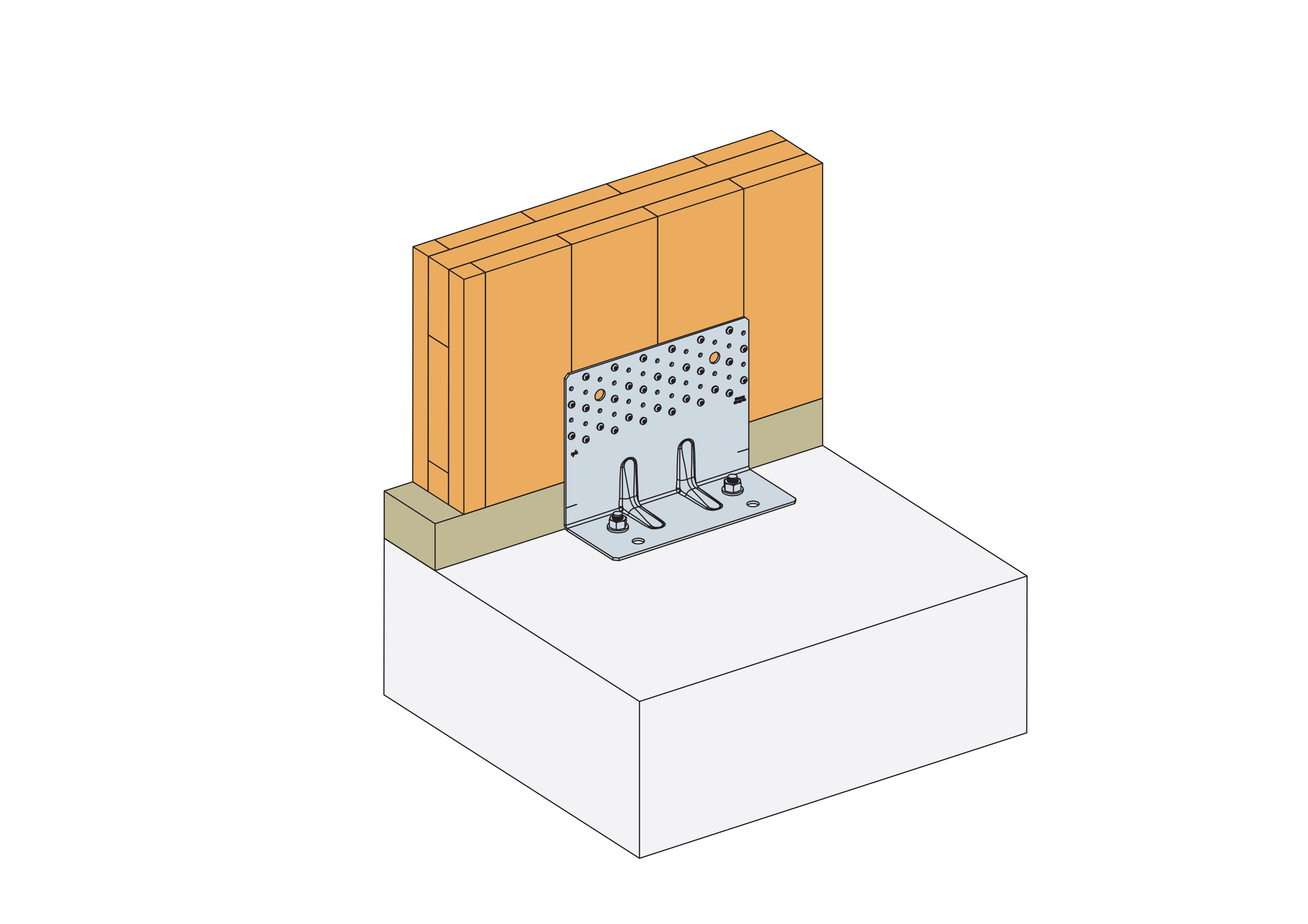

ABR255SO	2.0	Ø12	56.0	CNA	22,9/kmod	22,9/kmod	38.6	-

The value in the table above can be used if the panel can't rotate.

The anchors must be checked seperatly using tension value of 1.1*F1, 1*F2 and 1.1*F5

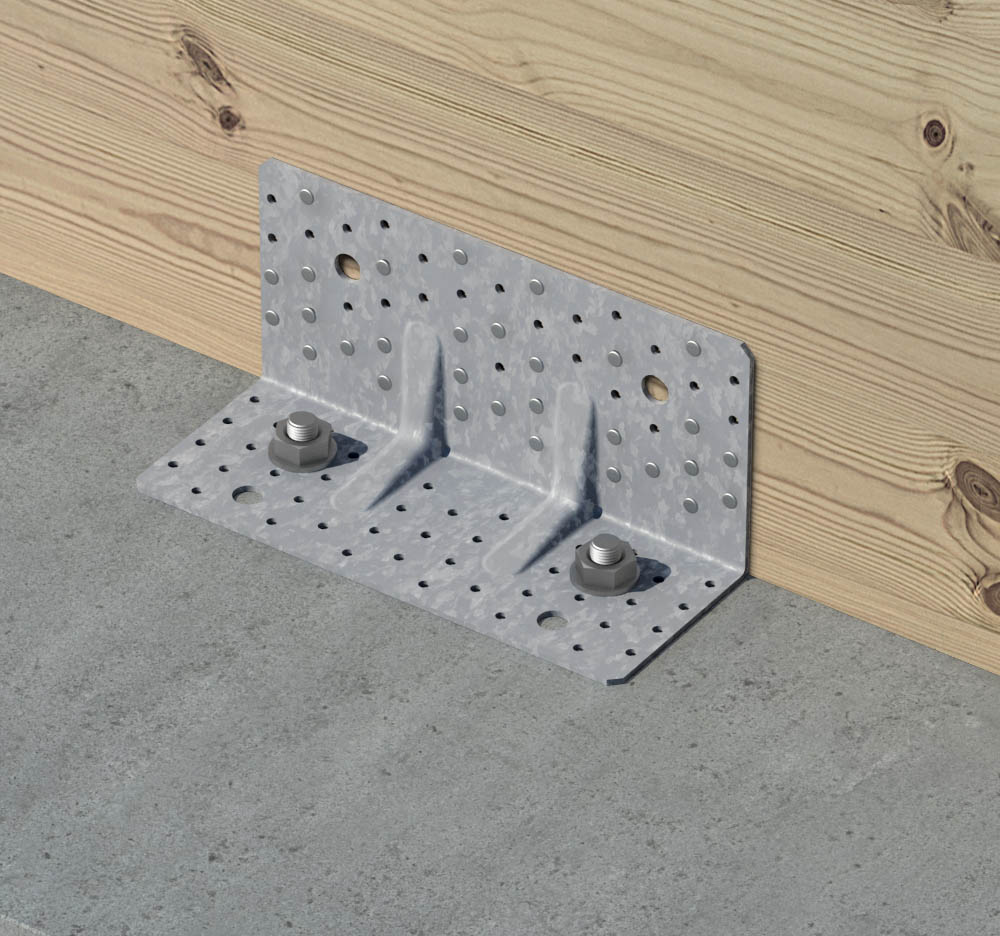

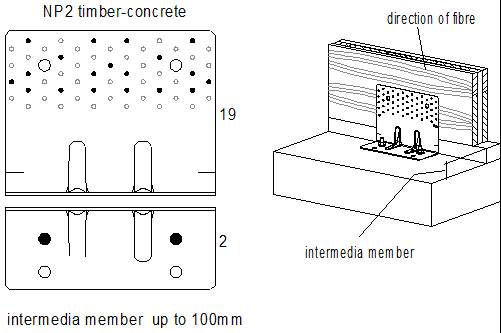

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 2

Rozměry

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 2

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Partial nailing - Nailing pattern 2
	Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]								počet of Fasteners
	R₁,ₖ		R₂,ₖ=R₃,ₖ		R4,k		R5,k		nosník		příruba B
	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60	množství	typ	množství	typ
ABR255	min (24,8 ; 22 / kmod)	min (30,3 ; 22 / kmod)	29	32	18.3/kmod^0,7	18.3/kmod^0,7	min (19.9/kmod^0.4 ; 17.7 / kmod)	min (23.3/kmod^0.4 ; 17.7 / kmod)	30.0	CNA	2.0	Ø12
ABR255SO	min (34,7; 22,9/kmod)	22,9/kmod	20.7	-	18,2/kmod^0,66	18,2/kmod^0,66	5,05/kmod	5,05/kmod	19.0	CNA	2.0	Ø12

The value in the table above can be used if the panel can't rotate.

The anchors must be checked seperatly using tension value of 1.1*F1, 1*F2 and 1.1*F5

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 4

Rozměry

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 4

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Partial Nailing - Nailing pattern 4
	počet of Fasteners				Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník		příruba B		R₁,ₖ		R₂,ₖ=R₃,ₖ		R4,k		R5,k
	množství	typ	množství	typ	CNA4.0x50	CNA4.0x60	CNA4.0x50	mit CNA4,0x60	CNA4.0x50	mit CNA4,0x60	CNA4.0x50	mit CNA4,0x60
ABR255SO	26.0	CNA	2.0	Ø12	22,9/kmod	22,9/kmod	21.7	-	18,2/kmod^0,66	18,2/kmod^0,66	5,05/kmod	5,05/kmod

The value in the table above can be used if the panel can't rotate.

The anchor capacities must be checked separatly by multiplying the F1 load by a factor 1.1, F2 load by a factor of 1 and F5 by a factor of 2.2.

Nailing pattern 4 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 7

Rozměry

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 7

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Partial nailing - Nailing pattern 7
	Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]				počet of Fasteners
	R₁,ₖ		R₂,ₖ=R₃,ₖ		příruba B		nosník
	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60	množství	typ	množství	typ
ABR255	-	-	39.8	42.5	2.0	Ø12	30.0	CNA
ABR255SO	-	-	-	-	-	-	-	-

The value in the table above can be used if the panel can't rotate.

The anchor capacities must be checked separatly by multiplying the F₂ load by a factor of 1.

Nailing pattern 7 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

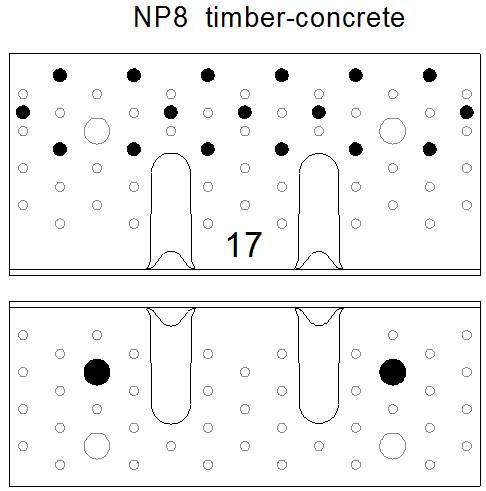

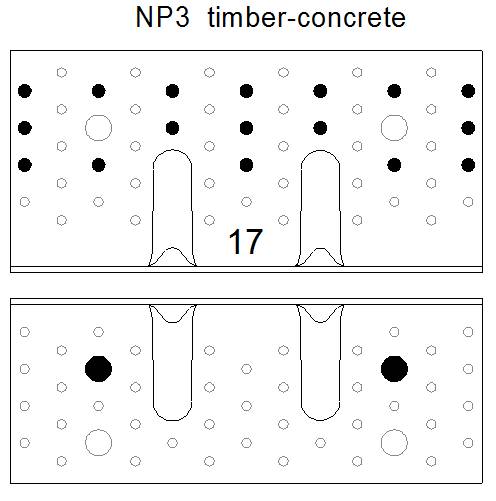

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 8

Rozměry

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 8

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Partial Nailing - Nailing pattern 8
	počet of Fasteners				Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník		příruba B		R₁,ₖ		R₂,ₖ=R₃,ₖ
	množství	typ	množství	typ	CNA4.0x50	CNA4.0x60	CNA4.0x50	CNA4.0x60
ABR255	17.0	CNA	2.0	Ø12	20	20	24.9	26.5
ABR255SO	30.0	CNA	2.0	Ø12	22,9/kmod	22,9/kmod	26.1	-

The value in the table above can be used if the panel can't rotate.

The anchor capacities must be checked separatly by multiplying the F₁ load by a factor 1.1, F₂ load by a factor of 1 and F5 by a factor of 2.2.

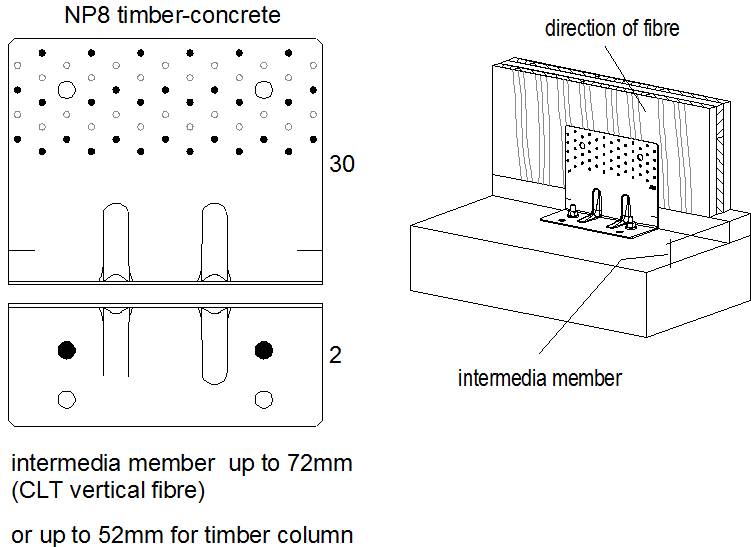

Nailing pattern 8 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 9

Rozměry

Product characteristic capacities - Timber to rigid support - 1 angle bracket - Partial nailing - Nailing pattern 9

Reference	úhelník únosnost
	výrobek capacities - dřevo to beton - Partial nailing - Nailing pattern 9
	počet of Fasteners			Characteristic capacities - dřevo C24 - 1 úhelník per connection[kN]
	nosník		příruba B	R₁,ₖ	R₂,ₖ=R₃,ₖ
	množství	typ	množství	CSA5.0x50	CSA5.0x50
ABR255	35.0	CSA	2.0	min (79,5 ; 22 / kmod)	min (58 ; 57,6 / kmod)
ABR255SO	-	-	-	-	-

The value in the table above can be used if the panel can't rotate.

The anchor capacities must be checked separatly by multiplying the F₁ load by a factor 1.1 and F₂ load by a factor of 1.

Nailing pattern 9 has been specifically developed for CLT application. It can be used for applications with other timber based materials provided that the materials comply with the spacing and distances of fasteners in CLT.

Instalace

Instalace

Befestigung

On timber:

CNA 4.0x50 on timber
CSA 5.0x40 or CSA 5.0x50 screws
SSH Ø 12 x 80 mm

On concrete:

Mechanical anchor: WA M12-104/5
Chemical anchor: AT-HP resin + LMAS M12-150/35 threaded rod

Certifikace

Evropské technické posouzení (ETA)

eta-06-0106-2026-03-09.pdf

product.doc.history.show

2021-04-29

eta-06-0106-2021-04-09.pdf

2020-11-09

eta-06-0106-2020-01-29-cor1.pdf

2020-01-29

eta-06-0106.pdf

2018-12-18

eta-060106-sst-ab-r10-2018-issued.pdf

2016-12-12

eta-060106-sst-ab-v8-2016.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

ZIP balíčky

2D
2D DWG ZIP DXF ZIP PDF ZIP

3D/3D zjednodušené
IFC ZIP SAT ZIP SKP ZIP STL ZIP
