PPRC

Stützenfüße Typ PRC

Die PPRC Stützenfüße sind für die Aufständerung von Wandkonstruktionen und Veranden vorgesehen.

Označení CE
Označení CE
ETA
ETA
Elektroizolační ocel
Elektroizolační ocel
Servisní třída 2
Servisní třída 2
EPD
EPD
PPRC_SSTBP_homepage_LV_en
PPRC_SSTBP_homepage_PL_pl

Podrobnosti produktu

Obrázky

PPRC

Vlastnosti

Material

  • Korrosionsschutz: Galvanischverzinkt Fe/Zn12/C nach EN ISO 2081

Vorteile

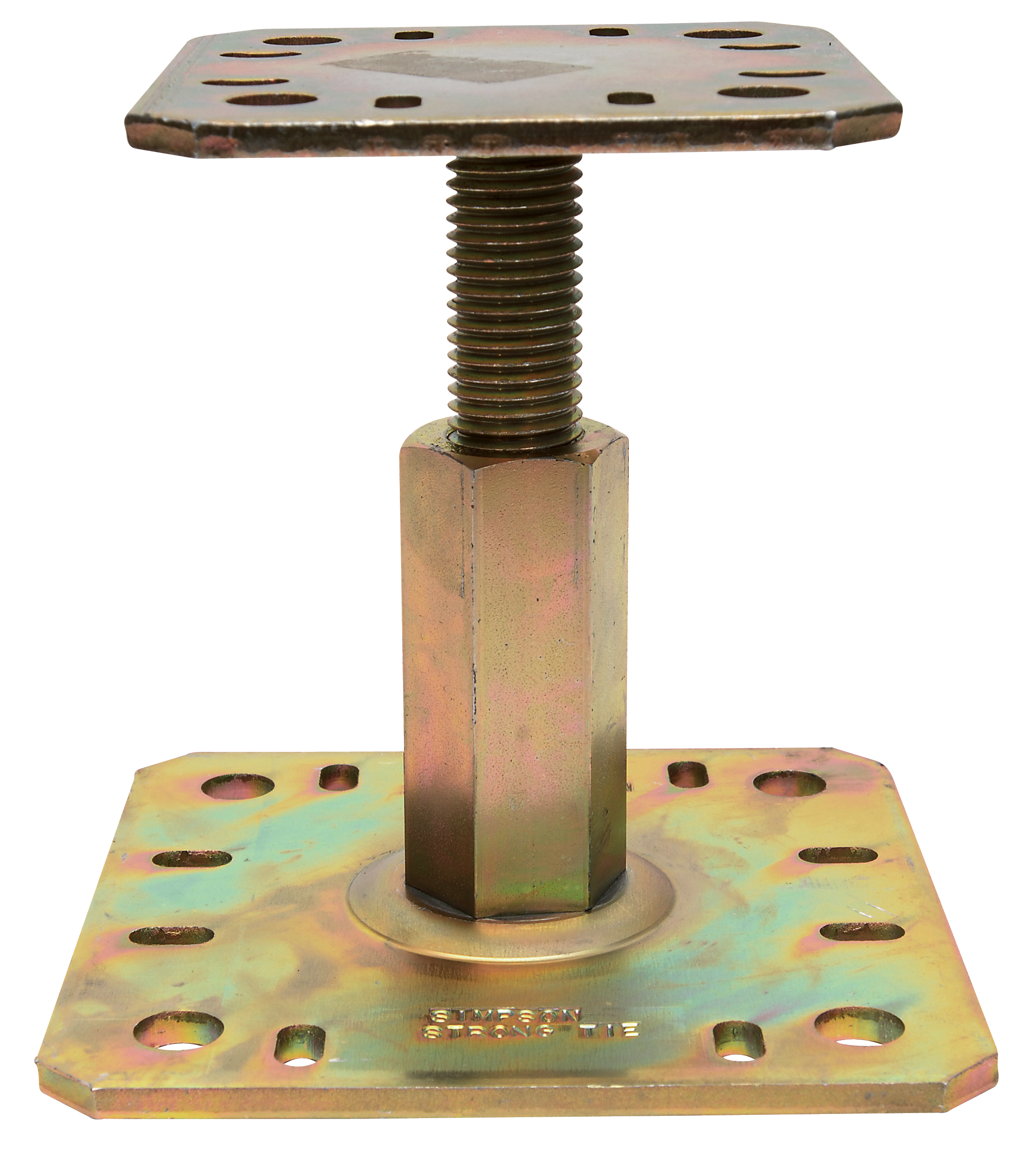

  • Die PPRC Stützenfüße sind stückverzinkt und bestehen aus einem Stahlrohr mit angeschweißter Kopf- und Fußplatte.
  • Die Schrauben und Ankerbolzen dienen der konstruktiven Lagesicherung.
  • Der PPRC ist höhenverstellbar und nur für den Innenbereich einsetzbar.

Aplikace

Anwendbare Materialien

Auflager:

  • Beton

Aufzulagerndes Bauteil:

  • Holz, Holzwerkstoffe

Anwendungsbereich

  • Die PPRC Stützenfüße sind für die Aufständerung von Wandkonstruktionen vorgesehen und nur für den Innenbereich einsetzbar.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Referencekonektor rozměry
Postrozměry výrobku[mm]nosníkotvory příruba Costatní
Size[mm]A[mm]B[mm]D[mm]E[mm]F[mm]E[mm] Tloušťka[mm]kulatýoválnýkulatýoválnýhmotnost[kg]
Ø12drážky Ø6x12Ø12drážky Ø6x12
PPRC100x100 to 200x200100100130130100 - 15030548481.4

Es gilt:

\frac{F_{1,d}} {R_{1,d}}\le1

Characteristic capacities - Timber to Concrete

Rozměry

Referencepatka sloupku únosnost
výrobek capacities - dřevo to beton[kN]
počet of FastenersCharacteristic capacities - dřevo C24[kN]
On postOn betonR₁,ₖ
množstvítypmnožstvítyp
PPRC4Ø104.0Ø10*51.1 / kmod^0.5

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.

Instalace

Instalace

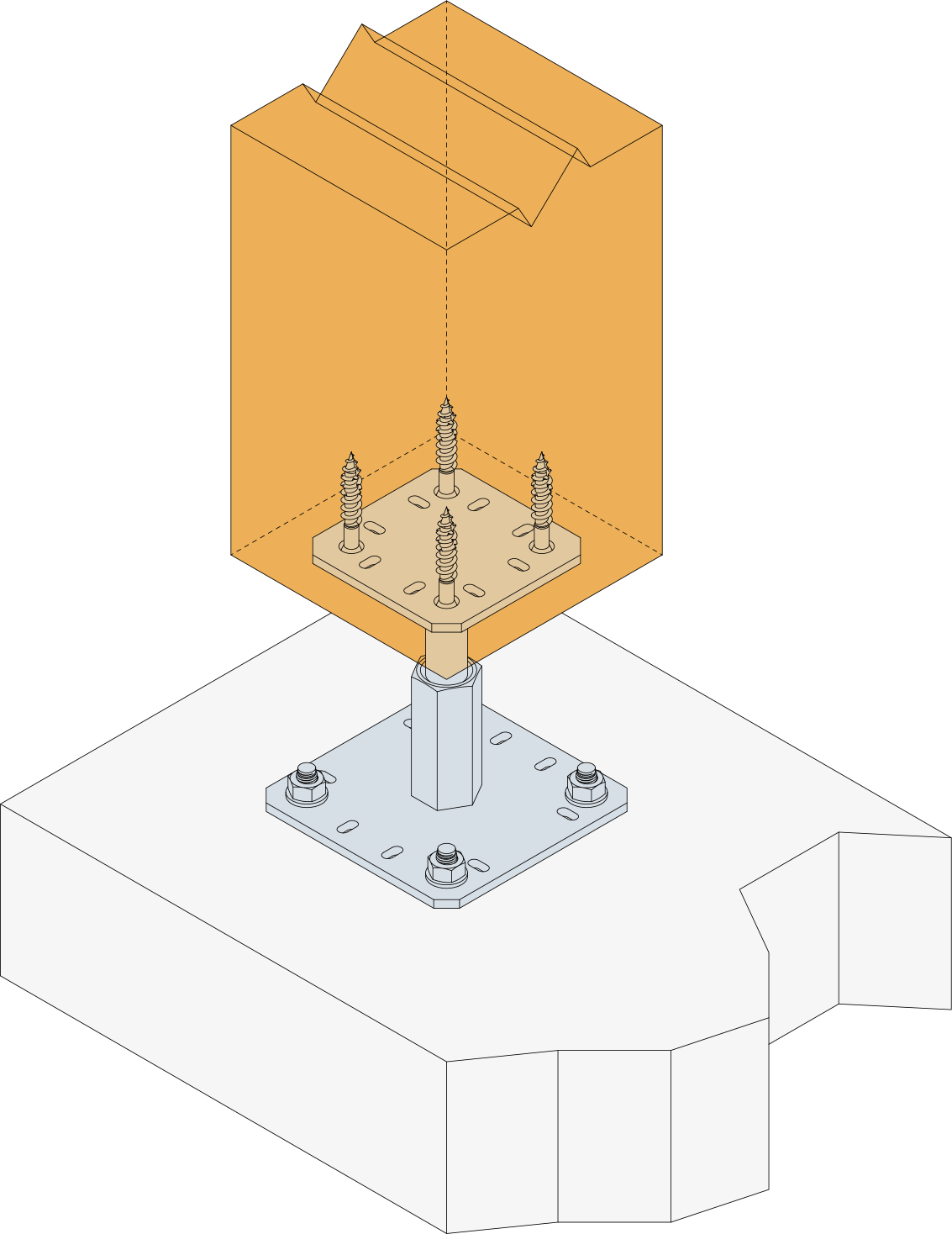

Befestigung

  • Der Anschluss am Holz erfolgt mit Schrauben Ø 10 mm, am Beton mit Ankerbolzen Ø 10 mm.

Certifikace

Prohlášení o vlastnostech (DoP)

product.doc.history.none

Evropské technické posouzení (ETA)

product.doc.history.none

Environmental Product Declarations (EPD)

ZIP balíčky

Koupit online

Contact

Simpson Strong-Tie Německo

Simpson Strong-Tie GmbH

Hubert-Vergölst-Straße 6-14
61231 Bad Nauheim
Německo
