GLE 2.5
Big face fix hangers exterior flange- 2,5 mm

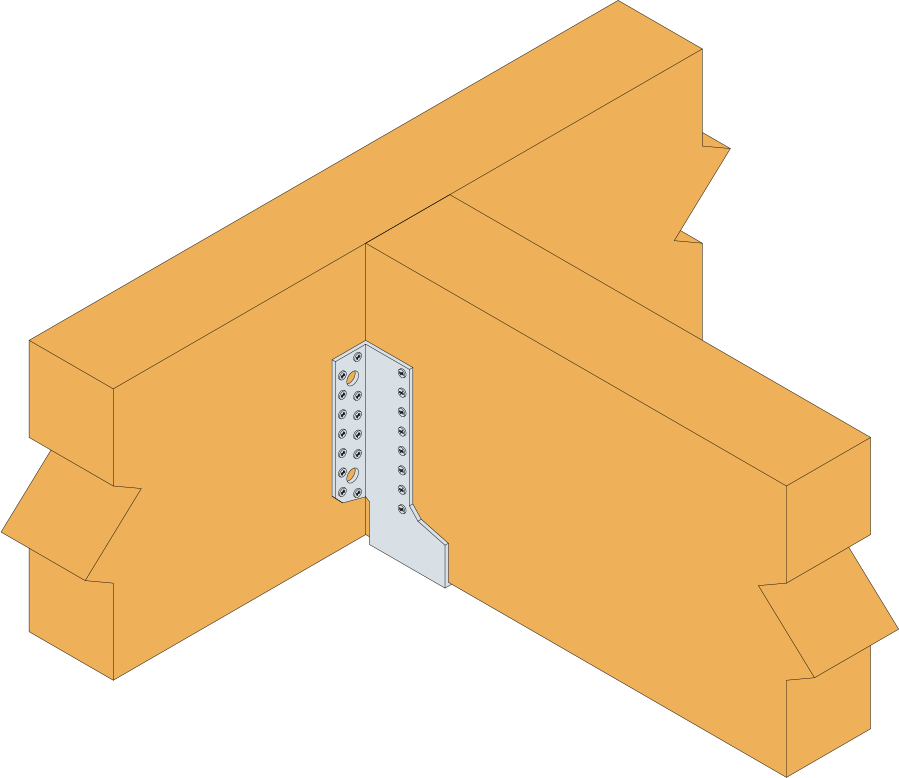

Big face hangers external or internal flange are recommended in a number of applications. They are used to assemble a structure effectively without custom machining and thus enhance structural reliability. Similarly, with a large number of applications, these versatile products have today become essential in construction.
This new profile allows greater versatility particularly in terms of bending width. It is also designed to be fully compatible with Simpson Strong-Tie anchors and thus facilitate fastening on concrete substrate.
Označení CE
ETA
Servisní třída 2
Uvnitř
Pozinkovaná ocel Z275
Podrobnosti produktu
Vlastnosti
Materiál
- S250GD + Z275 according to NF EN 10346.
- Thickness: 2.5 mm.
Vorteile
- Quick and simple installation
- Great adaptivness
- Facilitate connection on concrete support
- Choice of widths according to the ranges indicated
Aplikace
Support
- Supporting member: solid wood, composite lumber, glued-laminated wood, steel, concrete.
- Supported member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
Anwendungsbereich
- Joists, purlins.
- Cladding plates and uprights.
- Rafter ends.
- Refurbishment of existing assemblies,etc.
Technické údaje
Rozměry a typické hodnoty
Art. nr. | Rozměry vedlejšího nosníku [mm] | Rozměry a typické hodnoty [mm] | Otvory hlavy | Otvory trámu | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Šířka | Výška [mm] | A | B | C | D | F | t | Ø5 | Ø14 | Ø5 | |||
Výška [mm] | Max. | Výška [mm] | Max. | ||||||||||
GLE540/80/2,5 | 78 | 80 | 240 | 345 | 80 | 230 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 |
GLE600/80/2,5 | 78 | 80 | 270 | 390 | 260 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/80/2,5 | 78 | 80 | 300 | 435 | 290 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/80/2,5 | 78 | 80 | 330 | 480 | 320 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/80/2,5 | 78 | 80 | 360 | 525 | 350 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/80/2,5 | 78 | 80 | 390 | 570 | 380 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/80/2,5 | 78 | 80 | 420 | 615 | 410 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/80/2,5 | 78 | 80 | 450 | 660 | 440 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/80/2,5 | 78 | 80 | 480 | 705 | 470 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE540/90/2,5 | 88 | 90 | 235 | 337 | 90 | 225 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 |
GLE600/90/2,5 | 88 | 90 | 265 | 382 | 255 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/90/2,5 | 88 | 90 | 295 | 427 | 285 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/90/2,5 | 88 | 90 | 325 | 472 | 315 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/90/2,5 | 88 | 90 | 355 | 517 | 345 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/90/2,5 | 88 | 90 | 385 | 562 | 375 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/90/2,5 | 88 | 90 | 415 | 607 | 405 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/90/2,5 | 88 | 90 | 445 | 652 | 435 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/90/2,5 | 88 | 90 | 475 | 697 | 465 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE540/100/2,5 | 98 | 100 | 230 | 330 | 100 | 220 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 |
GLE600/100/2,5 | 98 | 100 | 260 | 375 | 250 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/100/2,5 | 98 | 100 | 290 | 420 | 280 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/100/2,5 | 98 | 100 | 320 | 465 | 310 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/100/2,5 | 98 | 100 | 350 | 510 | 340 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/100/2,5 | 98 | 100 | 380 | 555 | 370 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/100/2,5 | 98 | 100 | 410 | 600 | 400 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/100/2,5 | 98 | 100 | 440 | 645 | 430 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/100/2,5 | 98 | 100 | 470 | 690 | 460 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE540/120/2,5 | 118 | 120 | 220 | 315 | 120 | 210 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 |
GLE600/120/2,5 | 118 | 120 | 250 | 360 | 240 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/120/2,5 | 118 | 120 | 280 | 405 | 270 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/120/2,5 | 118 | 120 | 310 | 450 | 300 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/120/2,5 | 118 | 120 | 340 | 495 | 330 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/120/2,5 | 118 | 120 | 370 | 540 | 360 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/120/2,5 | 118 | 120 | 400 | 585 | 390 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/120/2,5 | 118 | 120 | 430 | 630 | 420 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/120/2,5 | 118 | 120 | 460 | 675 | 450 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE540/140/2,5 | 138 | 140 | 210 | 300 | 140 | 200 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 |
GLE600/140/2,5 | 138 | 140 | 240 | 345 | 230 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/140/2,5 | 138 | 140 | 270 | 390 | 260 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/140/2,5 | 138 | 140 | 300 | 435 | 290 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/140/2,5 | 138 | 140 | 330 | 480 | 320 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/140/2,5 | 138 | 140 | 360 | 525 | 350 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/140/2,5 | 138 | 140 | 390 | 570 | 380 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/140/2,5 | 138 | 140 | 420 | 615 | 410 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/140/2,5 | 138 | 140 | 450 | 660 | 440 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE500/160/2,5 | 158 | 160 | 180 | 255 | 160 | 170 | 90 | 38.5 | 95 | 2.5 | 26 | 4 | 15 |
GLE540/160/2,5 | 158 | 160 | 200 | 285 | 190 | 90 | 38.5 | 95 | 2.5 | 30 | 4 | 17 | |
GLE600/160/2,5 | 158 | 160 | 230 | 330 | 220 | 90 | 38.5 | 95 | 2.5 | 36 | 4 | 20 | |
GLE660/160/2,5 | 158 | 160 | 260 | 375 | 250 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 23 | |
GLE720/160/2,5 | 158 | 160 | 290 | 420 | 280 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 26 | |
GLE780/160/2,5 | 158 | 160 | 320 | 465 | 310 | 90 | 38.5 | 95 | 2.5 | 48 | 6 | 29 | |
GLE840/160/2,5 | 158 | 160 | 350 | 510 | 340 | 90 | 38.5 | 95 | 2.5 | 54 | 6 | 32 | |
GLE900/160/2,5 | 158 | 160 | 380 | 555 | 370 | 90 | 38.5 | 95 | 2.5 | 60 | 6 | 35 | |
GLE960/160/2,5 | 158 | 160 | 410 | 600 | 400 | 90 | 38.5 | 95 | 2.5 | 64 | 8 | 38 | |
GLE1020/160/2,5 | 158 | 160 | 440 | 645 | 430 | 90 | 38.5 | 95 | 2.5 | 70 | 8 | 41 | |
GLE500/180/2,5 | 178 | 180 | 170 | 240 | 180 | 160 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 |
GLE540/180/2,5 | 178 | 180 | 190 | 270 | 180 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 | |
GLE600/180/2,5 | 178 | 180 | 220 | 315 | 210 | 90 | 38.5 | 95 | 2.5 | 24 | 4 | 16 | |
GLE660/180/2,5 | 178 | 180 | 250 | 360 | 240 | 90 | 38.5 | 95 | 2.5 | 28 | 6 | 19 | |
GLE720/180/2,5 | 178 | 180 | 280 | 405 | 270 | 90 | 38.5 | 95 | 2.5 | 34 | 6 | 22 | |
GLE780/180/2,5 | 178 | 180 | 310 | 450 | 300 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 25 | |
GLE840/180/2,5 | 178 | 180 | 340 | 495 | 330 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 28 | |
GLE900/180/2,5 | 178 | 180 | 370 | 540 | 360 | 90 | 38.5 | 95 | 2.5 | 52 | 6 | 31 | |
GLE960/180/2,5 | 178 | 180 | 400 | 585 | 390 | 90 | 38.5 | 95 | 2.5 | 58 | 6 | 34 | |
GLE1020/180/2,5 | 178 | 180 | 430 | 630 | 420 | 90 | 38.5 | 95 | 2.5 | 62 | 8 | 37 | |
GLE500/200/2,5 | 198 | 200 | 160 | 225 | 200 | 150 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 |
GLE540/200/2,5 | 198 | 200 | 180 | 255 | 170 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 | |
GLE600/200/2,5 | 198 | 200 | 210 | 300 | 200 | 90 | 38.5 | 95 | 2.5 | 24 | 4 | 16 | |
GLE660/200/2,5 | 198 | 200 | 240 | 345 | 230 | 90 | 38.5 | 95 | 2.5 | 28 | 6 | 19 | |
GLE720/200/2,5 | 198 | 200 | 270 | 390 | 260 | 90 | 38.5 | 95 | 2.5 | 34 | 6 | 22 | |
GLE780/200/2,5 | 198 | 200 | 300 | 435 | 290 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 25 | |
GLE840/200/2,5 | 198 | 200 | 330 | 480 | 320 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 28 | |
GLE900/200/2,5 | 198 | 200 | 360 | 525 | 350 | 90 | 38.5 | 95 | 2.5 | 52 | 6 | 31 | |
GLE960/200/2,5 | 198 | 200 | 390 | 570 | 380 | 90 | 38.5 | 95 | 2.5 | 58 | 6 | 34 | |
GLE1020/200/2,5 | 198 | 200 | 420 | 615 | 410 | 90 | 38.5 | 95 | 2.5 | 62 | 8 | 37 | |
GLE540/220/2,5 | 218 | 220 | 170 | 240 | 220 | 160 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 |
GLE600/220/2,5 | 218 | 220 | 200 | 285 | 190 | 90 | 38.5 | 95 | 2.5 | 24 | 4 | 16 | |
GLE660/220/2,5 | 218 | 220 | 230 | 330 | 220 | 90 | 38.5 | 95 | 2.5 | 28 | 6 | 19 | |
GLE720/220/2,5 | 218 | 220 | 260 | 375 | 250 | 90 | 38.5 | 95 | 2.5 | 34 | 6 | 22 | |
GLE780/220/2,5 | 218 | 220 | 290 | 420 | 280 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 25 | |
GLE840/220/2,5 | 218 | 220 | 320 | 465 | 310 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 28 | |
GLE900/220/2,5 | 218 | 220 | 350 | 510 | 340 | 90 | 38.5 | 95 | 2.5 | 52 | 6 | 31 | |
GLE960/220/2,5 | 218 | 220 | 380 | 555 | 370 | 90 | 38.5 | 95 | 2.5 | 58 | 6 | 34 | |
GLE1020/220/2,5 | 218 | 220 | 410 | 600 | 400 | 90 | 38.5 | 95 | 2.5 | 62 | 8 | 37 | |
GLE540/240/2,5 | 238 | 240 | 160 | 225 | 240 | 150 | 90 | 38.5 | 95 | 2.5 | 18 | 4 | 13 |
GLE600/240/2,5 | 238 | 240 | 190 | 270 | 180 | 90 | 38.5 | 95 | 2.5 | 24 | 4 | 16 | |
GLE660/240/2,5 | 238 | 240 | 220 | 315 | 210 | 90 | 38.5 | 95 | 2.5 | 28 | 6 | 19 | |
GLE720/240/2,5 | 238 | 240 | 250 | 360 | 240 | 90 | 38.5 | 95 | 2.5 | 34 | 6 | 22 | |
GLE780/240/2,5 | 238 | 240 | 280 | 405 | 270 | 90 | 38.5 | 95 | 2.5 | 40 | 6 | 25 | |
GLE840/240/2,5 | 238 | 240 | 310 | 450 | 300 | 90 | 38.5 | 95 | 2.5 | 46 | 6 | 28 | |
GLE900/240/2,5 | 238 | 240 | 340 | 495 | 330 | 90 | 38.5 | 95 | 2.5 | 52 | 6 | 31 | |
GLE960/240/2,5 | 238 | 240 | 370 | 540 | 360 | 90 | 38.5 | 95 | 2.5 | 58 | 6 | 34 | |
GLE1020/240/2,5 | 238 | 240 | 400 | 585 | 390 | 90 | 38.5 | 95 | 2.5 | 62 | 8 | 37 |
Product capacities – Timber to timber – Full nailing
Art. nr. | Charakteristické kapacity - Dřevo na dřevo - úplné upevnění hřeby | |||||
---|---|---|---|---|---|---|
Upevňovací prvky | Charakteristické kapacity - dřevo C24 [kN] | |||||
Hlava | Trám | R1.k | R2.k | R3.k | R4.k | |
Množství | Množství | CNA4,0x50 | CNA4,0x50 | CNA4,0x50 | CNA4,0x50 | |
GLE540/80/2,5 | 30 | 17 | 37.2 | 33.5 | 8.5 | 13.7 |
GLE600/80/2,5 | 36 | 20 | 43.8 | 39.4 | 8.9 | 15.7 |
GLE660/80/2,5 | 40 | 23 | 50.4 | 45.3 | 9.2 | 17.6 |
GLE720/80/2,5 | 46 | 26 | 56.9 | 51.2 | 9.5 | 19.6 |
GLE780/80/2,5 | 48 | 29 | 63.5 | 57.2 | 10 | 21.6 |
GLE840/80/2,5 | 54 | 32 | 70.1 | 63.1 | 10.1 | 23.5 |
GLE900/80/2,5 | 60 | 35 | 76.7 | 69 | 10.2 | 27.4 |
GLE960/80/2,5 | 64 | 38 | 83.2 | 74.9 | 10.3 | 27.4 |
GLE1020/80/2,5 | 70 | 41 | 89.8 | 80.8 | 10.3 | 31.4 |
GLE540/90/2,5 | 30 | 17 | 37.2 | 33.5 | 9.3 | 13.7 |
GLE600/90/2,5 | 36 | 20 | 43.8 | 39.4 | 9.8 | 15.7 |
GLE660/90/2,5 | 40 | 23 | 50.4 | 45.3 | 10.2 | 17.6 |
GLE720/90/2,5 | 46 | 26 | 56.9 | 51.2 | 10.5 | 19.6 |
GLE780/90/2,5 | 48 | 29 | 63.5 | 57.2 | 11.1 | 21.6 |
GLE840/90/2,5 | 54 | 32 | 70.1 | 63.1 | 11.3 | 23.5 |
GLE900/90/2,5 | 60 | 35 | 76.7 | 69 | 11.4 | 27.4 |
GLE960/90/2,5 | 64 | 38 | 83.2 | 74.9 | 11.5 | 27.4 |
GLE1020/90/2,5 | 70 | 41 | 89.8 | 80.8 | 11.6 | 31.4 |
GLE540/100/2,5 | 30 | 17 | 37.2 | 33.5 | 10 | 13.7 |
GLE600/100/2,5 | 36 | 20 | 43.8 | 39.4 | 10.7 | 15.7 |
GLE660/100/2,5 | 40 | 23 | 50.4 | 45.3 | 11.1 | 17.6 |
GLE720/100/2,5 | 46 | 26 | 56.9 | 51.2 | 11.5 | 19.6 |
GLE780/100/2,5 | 48 | 29 | 63.5 | 57.2 | 12.2 | 21.6 |
GLE840/100/2,5 | 54 | 32 | 70.1 | 63.1 | 12.4 | 23.5 |
GLE900/100/2,5 | 60 | 35 | 76.7 | 69 | 12.6 | 27.4 |
GLE960/100/2,5 | 64 | 38 | 83.2 | 74.9 | 12.7 | 27.4 |
GLE1020/100/2,5 | 70 | 41 | 89.8 | 80.8 | 12.8 | 31.4 |
GLE540/120/2,5 | 30 | 17 | 37.2 | 33.5 | 11.3 | 13.7 |
GLE600/120/2,5 | 36 | 20 | 43.8 | 39.4 | 12.2 | 15.7 |
GLE660/120/2,5 | 40 | 23 | 50.4 | 45.3 | 12.8 | 17.6 |
GLE720/120/2,5 | 46 | 26 | 56.9 | 51.2 | 13.4 | 19.6 |
GLE780/120/2,5 | 48 | 29 | 63.5 | 57.2 | 14.3 | 21.6 |
GLE840/120/2,5 | 54 | 32 | 70.1 | 63.1 | 14.6 | 23.5 |
GLE900/120/2,5 | 60 | 35 | 76.7 | 69 | 14.8 | 27.4 |
GLE960/120/2,5 | 64 | 38 | 83.2 | 74.9 | 15 | 27.4 |
GLE1020/120/2,5 | 70 | 41 | 89.8 | 80.8 | 15.1 | 31.4 |
GLE540/140/2,5 | 30 | 17 | 37.2 | 33.5 | 12.3 | 13.7 |
GLE600/140/2,5 | 36 | 20 | 43.8 | 39.4 | 13.5 | 15.7 |
GLE660/140/2,5 | 40 | 23 | 50.4 | 45.3 | 14.3 | 17.6 |
GLE720/140/2,5 | 46 | 26 | 56.9 | 51.2 | 15.1 | 19.6 |
GLE780/140/2,5 | 48 | 29 | 63.5 | 57.2 | 16.1 | 21.6 |
GLE840/140/2,5 | 54 | 32 | 70.1 | 63.1 | 16.5 | 23.5 |
GLE900/140/2,5 | 60 | 35 | 76.7 | 69 | 16.8 | 27.4 |
GLE960/140/2,5 | 64 | 38 | 83.2 | 74.9 | 17.1 | 27.4 |
GLE1020/140/2,5 | 70 | 41 | 89.8 | 80.8 | 17.4 | 31.4 |
GLE500/160/2,5 | 26 | 15 | 32.9 | 29.1 | 12.1 | 11.8 |
GLE540/160/2,5 | 30 | 17 | 37.2 | 33.5 | 13.2 | 13.7 |
GLE600/160/2,5 | 36 | 20 | 43.8 | 39.4 | 14.5 | 15.7 |
GLE660/160/2,5 | 40 | 23 | 50.4 | 45.3 | 15.6 | 17.6 |
GLE720/160/2,5 | 46 | 26 | 56.9 | 51.2 | 16.5 | 19.6 |
GLE780/160/2,5 | 48 | 29 | 63.5 | 57.2 | 17.7 | 21.6 |
GLE840/160/2,5 | 54 | 32 | 70.1 | 63.1 | 18.3 | 23.5 |
GLE900/160/2,5 | 60 | 35 | 76.7 | 69 | 18.7 | 27.4 |
GLE960/160/2,5 | 64 | 38 | 83.2 | 74.9 | 19.1 | 27.4 |
GLE1020/160/2,5 | 70 | 41 | 89.8 | 80.8 | 19.5 | 31.4 |
GLE500/180/2,5 | 18 | 13 | 26 | 16.9 | 11.4 | 7.8 |
GLE540/180/2,5 | 18 | 13 | 28.5 | 16.9 | 11.3 | 7.8 |
GLE600/180/2,5 | 24 | 16 | 35 | 25.9 | 13.2 | 9.8 |
GLE660/180/2,5 | 28 | 19 | 41.6 | 34.3 | 14.8 | 11.8 |
GLE720/180/2,5 | 34 | 22 | 48.2 | 43.4 | 16.2 | 13.7 |
GLE780/180/2,5 | 40 | 25 | 54.8 | 49.3 | 17.3 | 17.6 |
GLE840/180/2,5 | 46 | 28 | 61.3 | 55.2 | 18.3 | 19.6 |
GLE900/180/2,5 | 52 | 31 | 67.9 | 61.1 | 19 | 23.5 |
GLE960/180/2,5 | 58 | 34 | 74.5 | 67 | 19.7 | 25.5 |
GLE1020/180/2,5 | 62 | 37 | 81 | 72.9 | 20.2 | 27.4 |
GLE500/200/2,5 | 18 | 13 | 24.1 | 16.9 | 11.7 | 7.8 |
GLE540/200/2,5 | 18 | 13 | 27.7 | 16.9 | 11.6 | 7.8 |
GLE600/200/2,5 | 24 | 16 | 35 | 25.9 | 13.7 | 9.8 |
GLE660/200/2,5 | 28 | 19 | 41.6 | 34.3 | 15.5 | 11.8 |
GLE720/200/2,5 | 34 | 22 | 48.2 | 43.4 | 17.1 | 13.7 |
GLE780/200/2,5 | 40 | 25 | 54.8 | 49.3 | 18.3 | 17.6 |
GLE840/200/2,5 | 46 | 28 | 61.3 | 55.2 | 19.4 | 19.6 |
GLE900/200/2,5 | 52 | 31 | 67.9 | 61.1 | 20.3 | 23.5 |
GLE960/200/2,5 | 58 | 34 | 74.5 | 67 | 21.2 | 25.5 |
GLE1020/200/2,5 | 62 | 37 | 81 | 72.9 | 21.8 | 27.4 |
GLE540/220/2,5 | 18 | 13 | 26 | 16.9 | 11.8 | 7.8 |
GLE600/220/2,5 | 24 | 16 | 35 | 25.9 | 14 | 9.8 |
GLE660/220/2,5 | 28 | 19 | 41.6 | 34.3 | 16 | 11.8 |
GLE720/220/2,5 | 34 | 22 | 48.2 | 43.4 | 17.7 | 13.7 |
GLE780/220/2,5 | 40 | 25 | 54.8 | 49.3 | 19.2 | 17.6 |
GLE840/220/2,5 | 46 | 28 | 61.3 | 55.2 | 20.5 | 19.6 |
GLE900/220/2,5 | 52 | 31 | 67.9 | 61.1 | 21.5 | 23.5 |
GLE960/220/2,5 | 58 | 34 | 74.5 | 67 | 22.5 | 25.5 |
GLE1020/220/2,5 | 62 | 37 | 81 | 72.9 | 23.3 | 27.4 |
GLE540/240/2,5 | 18 | 13 | 24.1 | 16.9 | 12 | 7.8 |
GLE600/240/2,5 | 24 | 16 | 34.7 | 25.9 | 14.3 | 9.8 |
GLE660/240/2,5 | 28 | 19 | 41.6 | 34.3 | 16.4 | 11.8 |
GLE720/240/2,5 | 34 | 22 | 48.2 | 43.4 | 18.3 | 13.7 |
GLE780/240/2,5 | 40 | 25 | 54.8 | 49.3 | 19.9 | 17.6 |
GLE840/240/2,5 | 46 | 28 | 61.3 | 55.2 | 21.4 | 19.6 |
GLE900/240/2,5 | 52 | 31 | 67.9 | 61.1 | 22.6 | 23.5 |
GLE960/240/2,5 | 58 | 34 | 74.5 | 67 | 23.7 | 25.5 |
GLE1020/240/2,5 | 62 | 37 | 81 | 72.9 | 24.6 | 27.4 |
A, B a C jsou vnitřní rozměry trámové botky.
Product capacities – Timber to timber – Partial nailing
Art. nr. | Characteristic capacities - Timber to timber - Partial nailing | |||||
---|---|---|---|---|---|---|
Upevňovací prvky | Charakteristické kapacity - dřevo C24 [kN] | |||||
Hlava | Trám | R1.k | R2.k | R3.k | R4.k | |
Množství | Množství | CNA4,0x50 | CNA4,0x50 | CNA4,0x50 | CNA4,0x50 | |
GLE540/80/2,5 | 14 | 9 | 19.7 | 16.9 | 4.5 | 13.7 |
GLE600/80/2,5 | 16 | 10 | 21.9 | 19.7 | 4.5 | 15.7 |
GLE660/80/2,5 | 18 | 12 | 26.3 | 23.7 | 4.8 | 17.6 |
GLE720/80/2,5 | 20 | 14 | 30.7 | 27.6 | 5.2 | 19.6 |
GLE780/80/2,5 | 22 | 15 | 32.9 | 29.6 | 5.2 | 21.6 |
GLE840/80/2,5 | 24 | 16 | 35 | 31.5 | 5.2 | 23.5 |
GLE900/80/2,5 | 28 | 18 | 39.4 | 35.5 | 5.3 | 27.4 |
GLE960/80/2,5 | 28 | 20 | 43.8 | 39.4 | 5.5 | 27.4 |
GLE1020/80/2,5 | 32 | 21 | 46 | 41.4 | 5.3 | 31.4 |
GLE540/90/2,5 | 14 | 9 | 19.7 | 16.9 | 4.9 | 13.7 |
GLE600/90/2,5 | 16 | 10 | 21.9 | 19.7 | 5 | 15.7 |
GLE660/90/2,5 | 18 | 12 | 26.3 | 23.7 | 5.3 | 17.6 |
GLE720/90/2,5 | 20 | 14 | 30.7 | 27.6 | 5.8 | 19.6 |
GLE780/90/2,5 | 22 | 15 | 32.9 | 29.6 | 5.8 | 21.6 |
GLE840/90/2,5 | 24 | 16 | 35 | 31.5 | 5.8 | 23.5 |
GLE900/90/2,5 | 28 | 18 | 39.4 | 35.5 | 5.9 | 27.4 |
GLE960/90/2,5 | 28 | 20 | 43.8 | 39.4 | 6.1 | 27.4 |
GLE1020/90/2,5 | 32 | 21 | 46 | 41.4 | 5.9 | 31.4 |
GLE540/100/2,5 | 14 | 9 | 19.7 | 16.9 | 5.3 | 13.7 |
GLE600/100/2,5 | 16 | 10 | 21.9 | 19.7 | 5.4 | 15.7 |
GLE660/100/2,5 | 18 | 12 | 26.3 | 23.7 | 5.8 | 17.6 |
GLE720/100/2,5 | 20 | 14 | 30.7 | 27.6 | 6.3 | 19.6 |
GLE780/100/2,5 | 22 | 15 | 32.9 | 29.6 | 6.4 | 21.6 |
GLE840/100/2,5 | 24 | 16 | 35 | 31.5 | 6.3 | 23.5 |
GLE900/100/2,5 | 28 | 18 | 39.4 | 35.5 | 6.5 | 27.4 |
GLE960/100/2,5 | 28 | 20 | 43.8 | 39.4 | 6.8 | 27.4 |
GLE1020/100/2,5 | 32 | 21 | 46 | 41.4 | 6.6 | 31.4 |
GLE540/120/2,5 | 14 | 9 | 19.7 | 16.9 | 6 | 13.7 |
GLE600/120/2,5 | 16 | 10 | 21.9 | 19.7 | 6.2 | 15.7 |
GLE660/120/2,5 | 18 | 12 | 26.3 | 23.7 | 6.7 | 17.6 |
GLE720/120/2,5 | 20 | 14 | 30.7 | 27.6 | 7.3 | 19.6 |
GLE780/120/2,5 | 22 | 15 | 32.9 | 29.6 | 7.4 | 21.6 |
GLE840/120/2,5 | 24 | 16 | 35 | 31.5 | 7.4 | 23.5 |
GLE900/120/2,5 | 28 | 18 | 39.4 | 35.5 | 7.6 | 27.4 |
GLE960/120/2,5 | 28 | 20 | 43.8 | 39.4 | 8 | 27.4 |
GLE1020/120/2,5 | 32 | 21 | 46 | 41.4 | 7.8 | 31.4 |
GLE540/140/2,5 | 14 | 9 | 19.7 | 16.9 | 6.5 | 13.7 |
GLE600/140/2,5 | 16 | 10 | 21.9 | 19.7 | 6.8 | 15.7 |
GLE660/140/2,5 | 18 | 12 | 26.3 | 23.7 | 7.5 | 17.6 |
GLE720/140/2,5 | 20 | 14 | 30.7 | 27.6 | 8.2 | 19.6 |
GLE780/140/2,5 | 22 | 15 | 32.9 | 29.6 | 8.4 | 21.6 |
GLE840/140/2,5 | 24 | 16 | 35 | 31.5 | 8.4 | 23.5 |
GLE900/140/2,5 | 28 | 18 | 39.4 | 35.5 | 8.7 | 27.4 |
GLE960/140/2,5 | 28 | 20 | 43.8 | 39.4 | 9.1 | 27.4 |
GLE1020/140/2,5 | 32 | 21 | 46 | 41.4 | 8.9 | 31.4 |
GLE500/160/2,5 | 12 | 8 | 16.1 | 13.6 | 6.5 | 11.8 |
GLE540/160/2,5 | 14 | 9 | 19.7 | 16.9 | 7 | 13.7 |
GLE600/160/2,5 | 16 | 10 | 21.9 | 19.7 | 7.3 | 15.7 |
GLE660/160/2,5 | 18 | 12 | 26.3 | 23.7 | 8.1 | 17.6 |
GLE720/160/2,5 | 20 | 14 | 30.7 | 27.6 | 9 | 19.6 |
GLE780/160/2,5 | 22 | 15 | 32.9 | 29.6 | 9.2 | 21.6 |
GLE840/160/2,5 | 24 | 16 | 35 | 31.5 | 9.3 | 23.5 |
GLE900/160/2,5 | 28 | 18 | 39.4 | 35.5 | 9.7 | 27.4 |
GLE960/160/2,5 | 28 | 20 | 43.8 | 39.4 | 10.2 | 27.4 |
GLE1020/160/2,5 | 32 | 21 | 46 | 41.4 | 10 | 31.4 |
GLE500/180/2,5 | 8 | 7 | 12.4 | 7.7 | 6.2 | 7.8 |
GLE540/180/2,5 | 8 | 7 | 13.6 | 7.7 | 6.1 | 7.8 |
GLE600/180/2,5 | 10 | 8 | 17.5 | 10.7 | 6.7 | 9.8 |
GLE660/180/2,5 | 12 | 10 | 21.3 | 15.1 | 7.8 | 11.8 |
GLE720/180/2,5 | 14 | 12 | 25.8 | 18.4 | 9 | 13.7 |
GLE780/180/2,5 | 18 | 13 | 28.5 | 25.6 | 9 | 17.6 |
GLE840/180/2,5 | 20 | 14 | 30.7 | 27.6 | 9.2 | 19.6 |
GLE900/180/2,5 | 24 | 16 | 35 | 31.5 | 9.8 | 23.5 |
GLE960/180/2,5 | 26 | 18 | 39.4 | 35.5 | 10.6 | 25.5 |
GLE1020/180/2,5 | 28 | 19 | 41.6 | 37.4 | 10.4 | 27.4 |
GLE500/200/2,5 | 8 | 7 | 11.6 | 7.7 | 6.3 | 7.8 |
GLE540/200/2,5 | 8 | 7 | 13.1 | 7.7 | 6.3 | 7.8 |
GLE600/200/2,5 | 10 | 8 | 17.2 | 10.7 | 6.9 | 9.8 |
GLE660/200/2,5 | 12 | 10 | 20.7 | 15.1 | 8.2 | 11.8 |
GLE720/200/2,5 | 14 | 12 | 25.2 | 18.4 | 9.4 | 13.7 |
GLE780/200/2,5 | 18 | 13 | 28.5 | 25.6 | 9.6 | 17.6 |
GLE840/200/2,5 | 20 | 14 | 30.7 | 27.6 | 9.8 | 19.6 |
GLE900/200/2,5 | 24 | 16 | 35 | 31.5 | 10.5 | 23.5 |
GLE960/200/2,5 | 26 | 18 | 39.4 | 35.5 | 11.3 | 25.5 |
GLE1020/200/2,5 | 28 | 19 | 41.6 | 37.4 | 11.2 | 27.4 |
GLE540/220/2,5 | 8 | 7 | 12.4 | 7.7 | 6.4 | 7.8 |
GLE600/220/2,5 | 10 | 8 | 16.5 | 10.7 | 7.1 | 9.8 |
GLE660/220/2,5 | 12 | 10 | 20 | 15.1 | 8.4 | 11.8 |
GLE720/220/2,5 | 14 | 12 | 24.6 | 18.4 | 9.8 | 13.7 |
GLE780/220/2,5 | 18 | 13 | 28.5 | 25.6 | 10 | 17.6 |
GLE840/220/2,5 | 20 | 14 | 30.7 | 27.6 | 10.3 | 19.6 |
GLE900/220/2,5 | 24 | 16 | 35 | 31.5 | 11.1 | 23.5 |
GLE960/220/2,5 | 26 | 18 | 39.4 | 35.5 | 12.1 | 25.5 |
GLE1020/220/2,5 | 28 | 19 | 41.6 | 37.4 | 12 | 27.4 |
GLE540/240/2,5 | 8 | 7 | 11.6 | 7.7 | 6.5 | 7.8 |
GLE600/240/2,5 | 10 | 8 | 15.8 | 10.7 | 7.2 | 9.8 |
GLE660/240/2,5 | 12 | 10 | 19.2 | 15.1 | 8.7 | 11.8 |
GLE720/240/2,5 | 14 | 12 | 23.9 | 18.4 | 10.1 | 13.7 |
GLE780/240/2,5 | 18 | 13 | 28.5 | 25.6 | 10.4 | 17.6 |
GLE840/240/2,5 | 20 | 14 | 30.7 | 27.6 | 10.8 | 19.6 |
GLE900/240/2,5 | 24 | 16 | 35 | 31.5 | 11.7 | 23.5 |
GLE960/240/2,5 | 26 | 18 | 39.4 | 35.5 | 12.7 | 25.5 |
GLE1020/240/2,5 | 28 | 19 | 41.6 | 37.4 | 12.6 | 27.4 |
A, B a C jsou vnitřní rozměry trámové botky.
Instalace
Instalace
Befestigung
On supported member:
- CNA annular ring-shank nails dia. 4.0 x 50 mm.
- CNA annular ring-shank nails dia. 4.0 x 35 mm for thickness less than 64 mm.
- CSA screws dia. 5.0 x 40 mm.
- CSA screws dia. 5.0 x 35 mm for thickness less than 60 mm.
On supporting member:
Wood substrate:
- CNA annular ring-shank nails dia. 4.0 x 50 mm.
- CNA annular ring-shank nails dia. 4.0 x 35 mm for thickness less than 64 mm.
- CSA screws dia. 5.0 x 40 mm.
- CSA screws dia. 5.0 x 35 mm for thickness less than 60 mm.
- SSH Ø 12.0 x 60 - 80 mm
Steel substrate:
- Bolts dia. 12 mm (bolt diameter cannot be more than 2 mm smaller than the drill hole diameter).
Concrete substrate:
- Mechanical anchor: WA M12-104/5 pin.
- Chemical anchor: AT-HP resin + LMAS M12-150/35 threaded rod.
Hollow masonry substrate:
- Chemical anchor: AT-HP or POLY-GP resin + LMAS M12-150/35 + SH 20-130 screen.
Certifikace
Prohlášení o funkčnosti (DoP)
cz-dop-e06-0270-issue-6.pdf
(128.21 KB)
cz-dop-e06-0270-issue-5.pdf
(97.83 KB)
cz-dop-e06-0270-issue-3.pdf
(93.03 KB)
cz-dop-e06-0270-issue-2.pdf
(93.06 KB)
Evropské technické posouzení (ETA)
eta-060270-sst-rev-9-2024.pdf
(14.09 MB)
