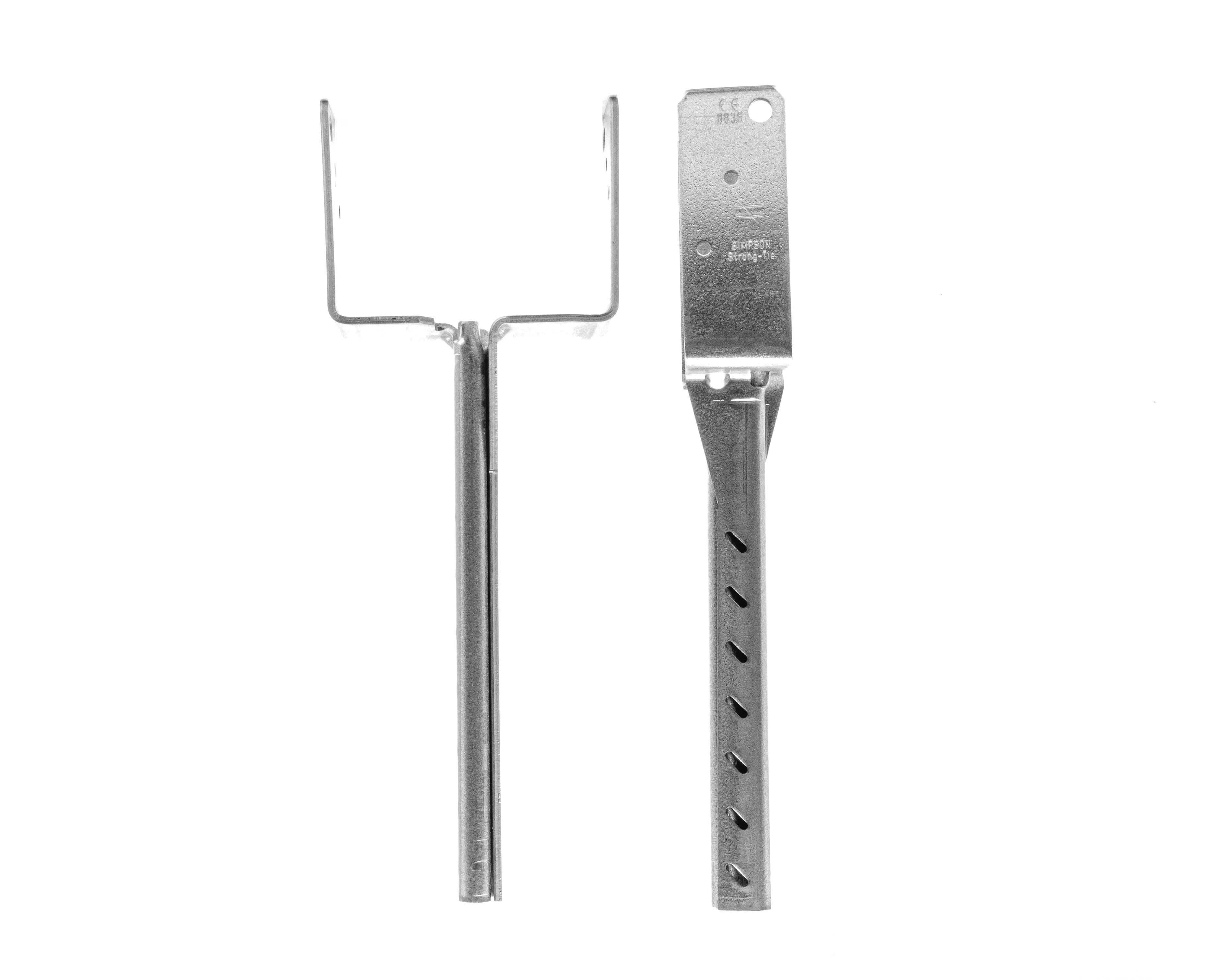

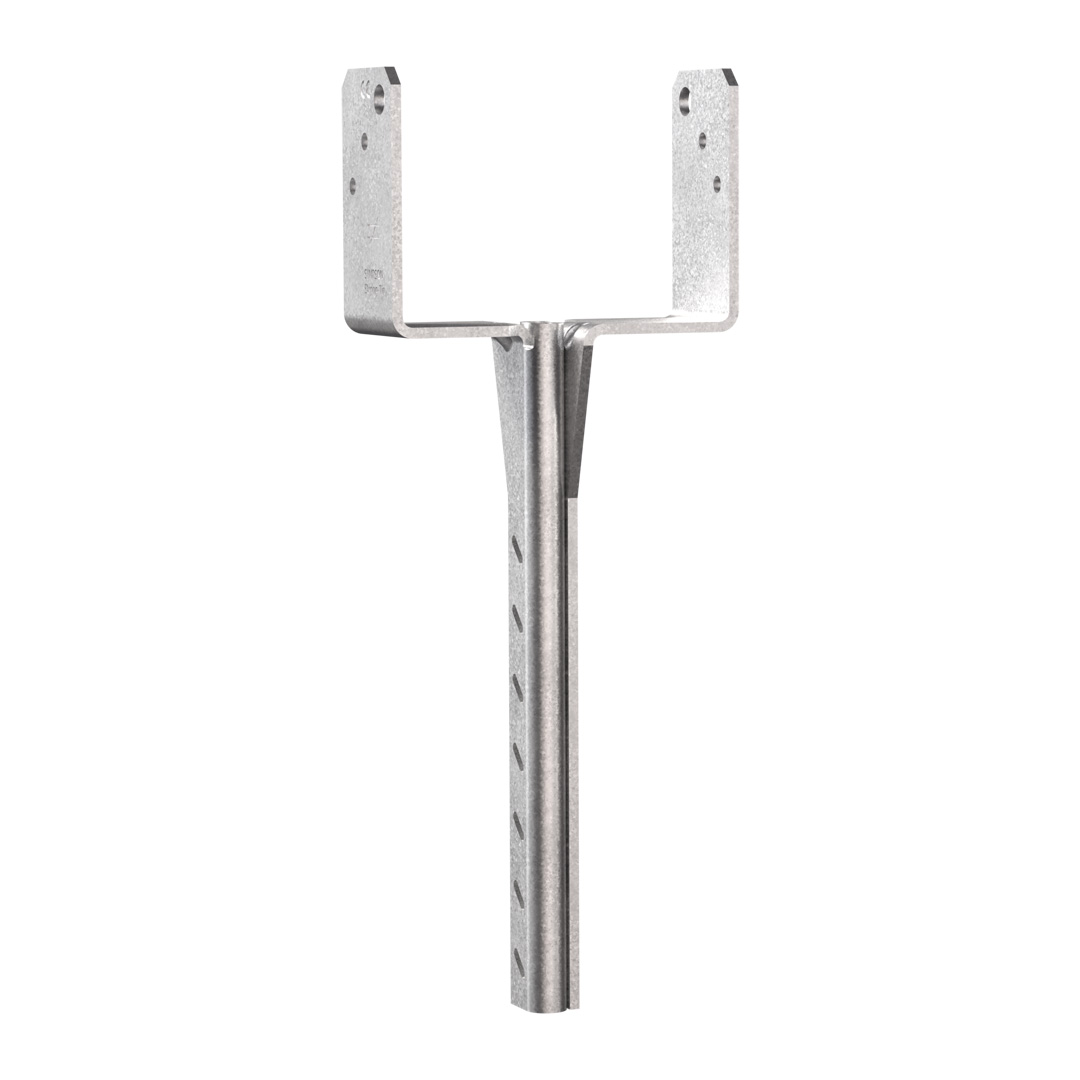

PBWS is single-piece, non-welded post base for connecting timber to concrete. An engineered solution, this connector requires up to 45% less steel than a traditionally designed post base.

Označení CE
Označení CE
ETA
ETA
Novinky
Novinky
Plná sledovatelnost na etiketě
Plná sledovatelnost na etiketě
Servisní třída 2
Servisní třída 2
ZPRO
ZPRO
Exteriér
Exteriér
EPD
EPD
PBWS_SSTBP_homepage_PL_pl
PBWS_SSTBP_homepage_SE_sv
PBWS_SSTBP_homepage_FI_fi
PBWS_SSTBP_homepage_DK_da

Podrobnosti produktu

Vlastnosti

Material

Steel:

S250GD + ZPRO

Corrosion protection:

ZPRO coating - corresponding to a zinc layer of approx. 55 μm

Benefits

  • Light and easy to handle
  • No pre-drilling required
  • Reduced environmental impact due to material reduction
  • Flexible fastening option

Aplikace

Suitable on

  • Supporting member: concrete,
  • Supported member: solid timber, glulam...

When to use

  • Pergolas
  • Decking
  • Fence posts
  • Sheds
  • Awnings
  • Porches
  • Car ports

Technické údaje

Product dimensions

Rozměry

Referencekonektor rozměry
ostatnírozměry výrobku[mm]Top plate otvory
množství v krabicihmotnost[kg]A[mm]B[mm]C[mm]E[mm]F[mm]E[mm] t[mm]kulatý
Ø[mm]Ø8.5[mm]
PBWS70Z200.57040875015022342
PBWS90Z200.59040775015022342
PBWS100Z200.510040725015022342

Product capacities

Referencepatka sloupku únosnost
výrobek capacities - dřevo to beton
počet of FastenersCharacteristic capacities - dřevo C24[kN]
On postR₁,ₖR₂,ₖ
množstvítyp
PBWS70Z4CSA5,0x40Z20.22.5
PBWS90Z4CSA5,0x40Z20.22.5
PBWS100Z4CSA5,0x40Z20.22.5

*Minimum concrete strengt C12/15

Instalace

Instalace

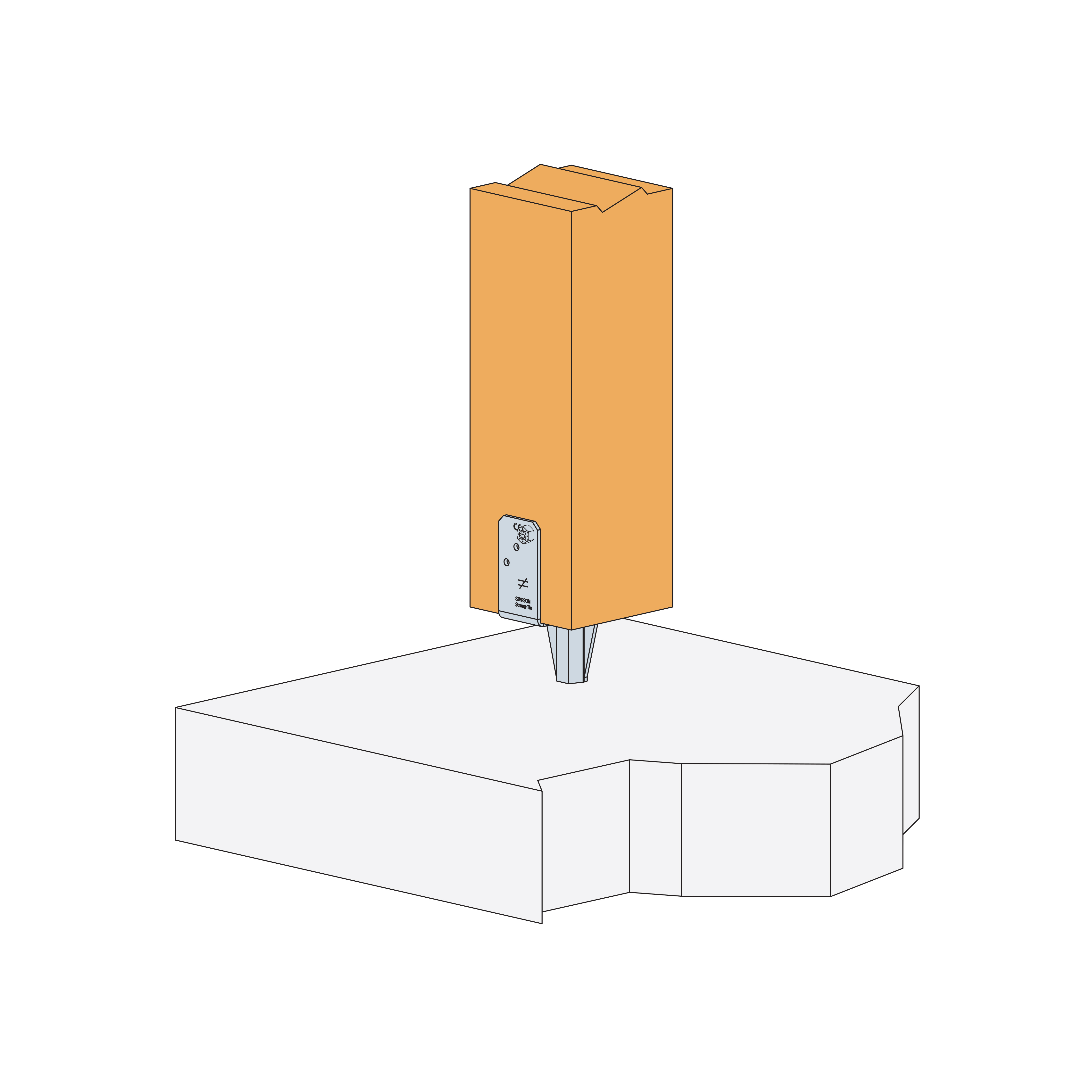

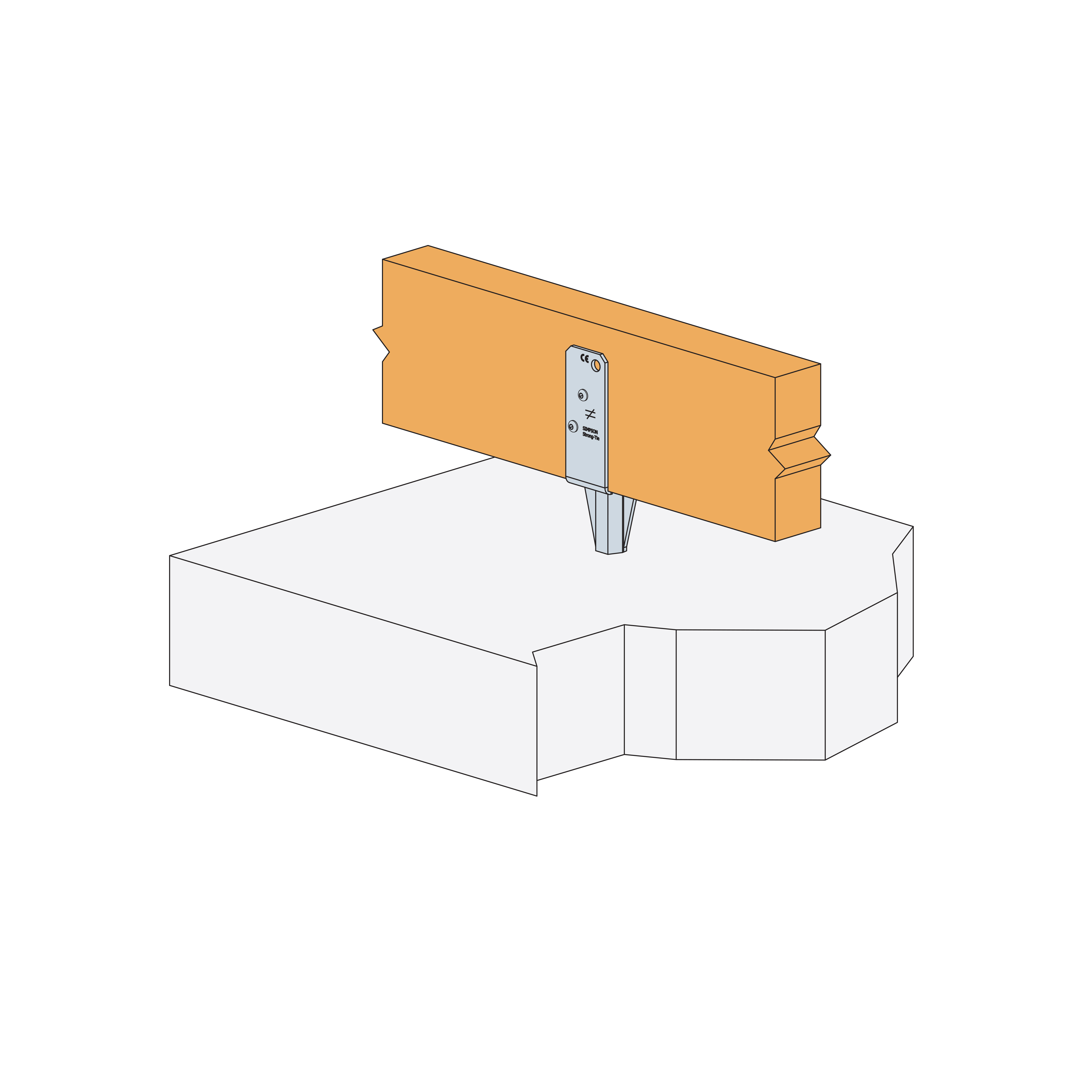

Fixing

On timber :

  • CNA4.0 ring shank nails,
  • CSA5.0 screws,
  • Ø8 mm SSH screws,
  • Bolts Ø8 mm.

On concrete :

  • Chemical resin AT-HP

The  distance between the plate and the concrete must be 50 mm maximum.

Certifikace

Evropské technické posouzení (ETA)

product.doc.history.none

Environmental Product Declarations (EPD)

Související produkty

Knihovna CAD a BIM

ZIP balíčky

Koupit online

Contact
