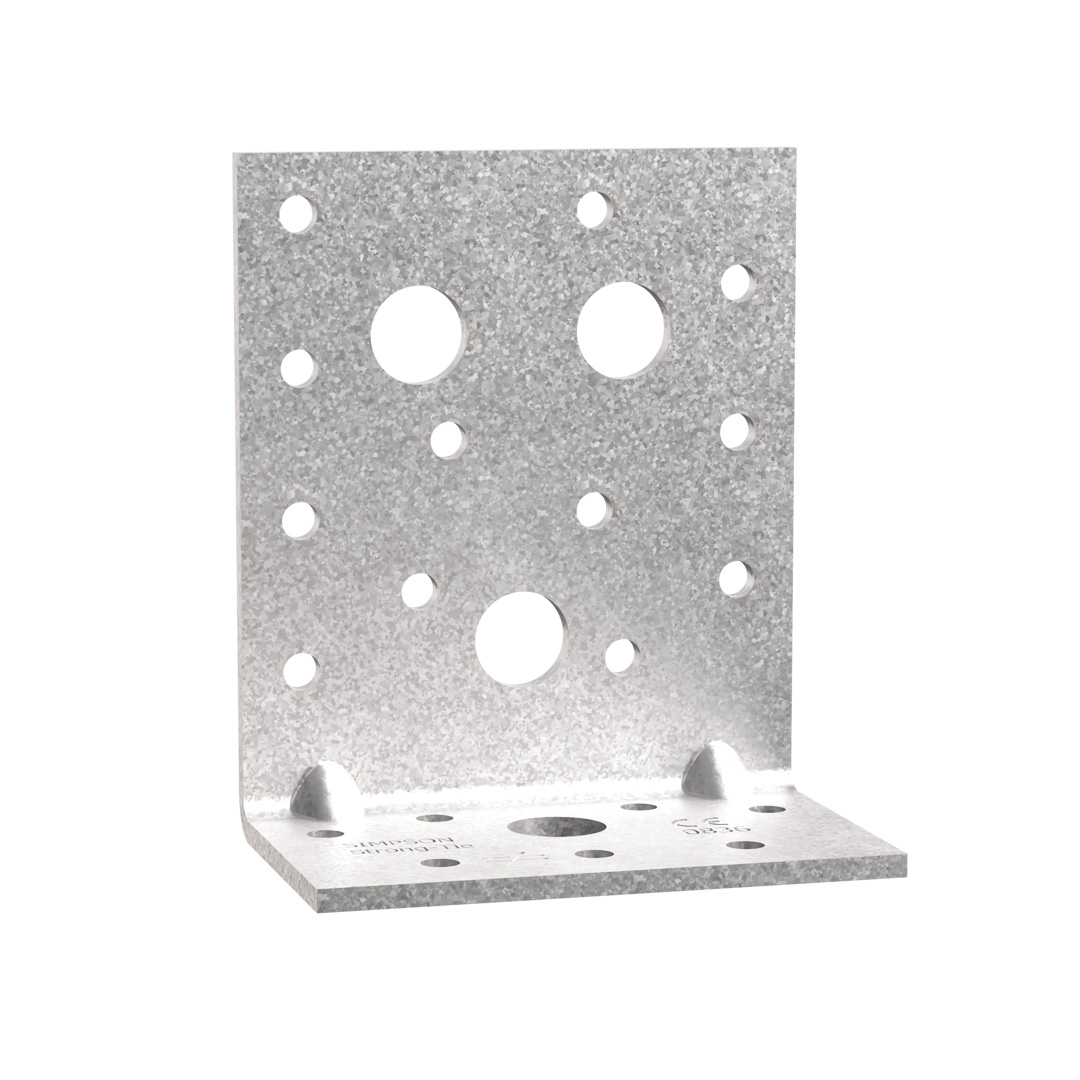

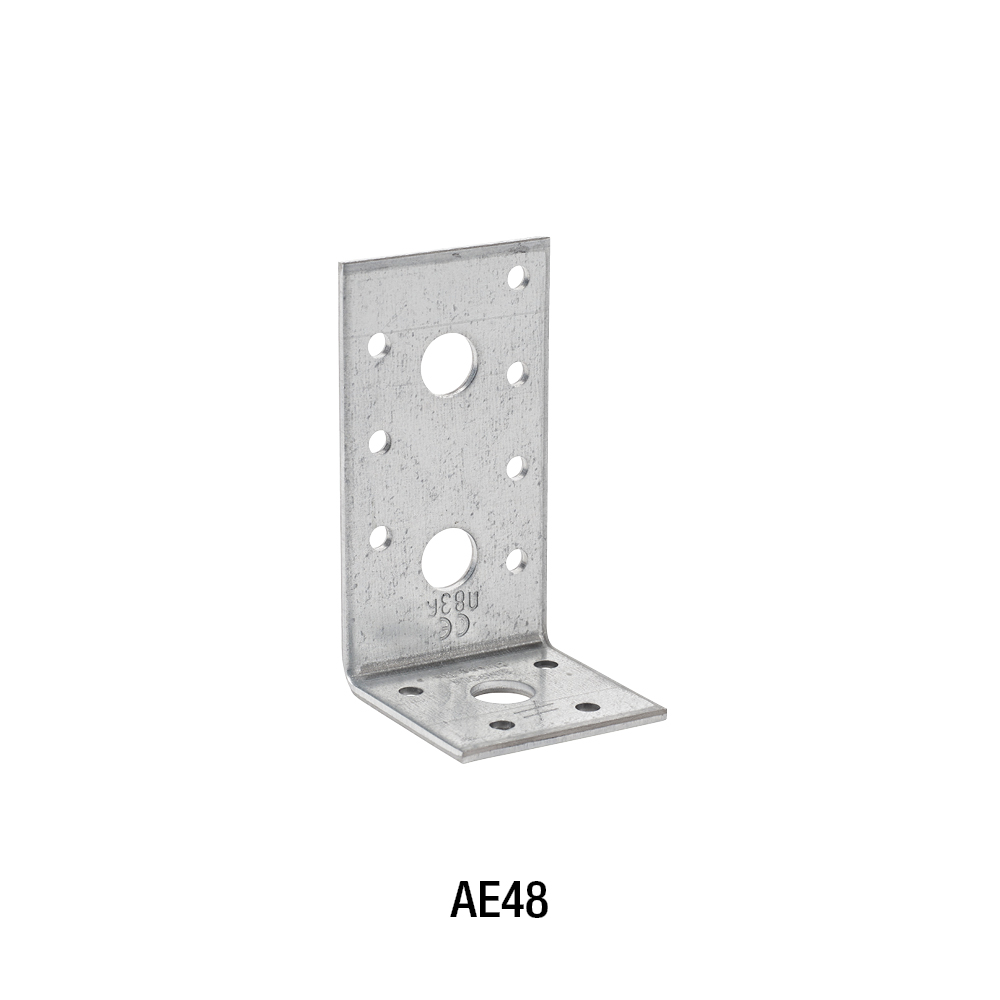

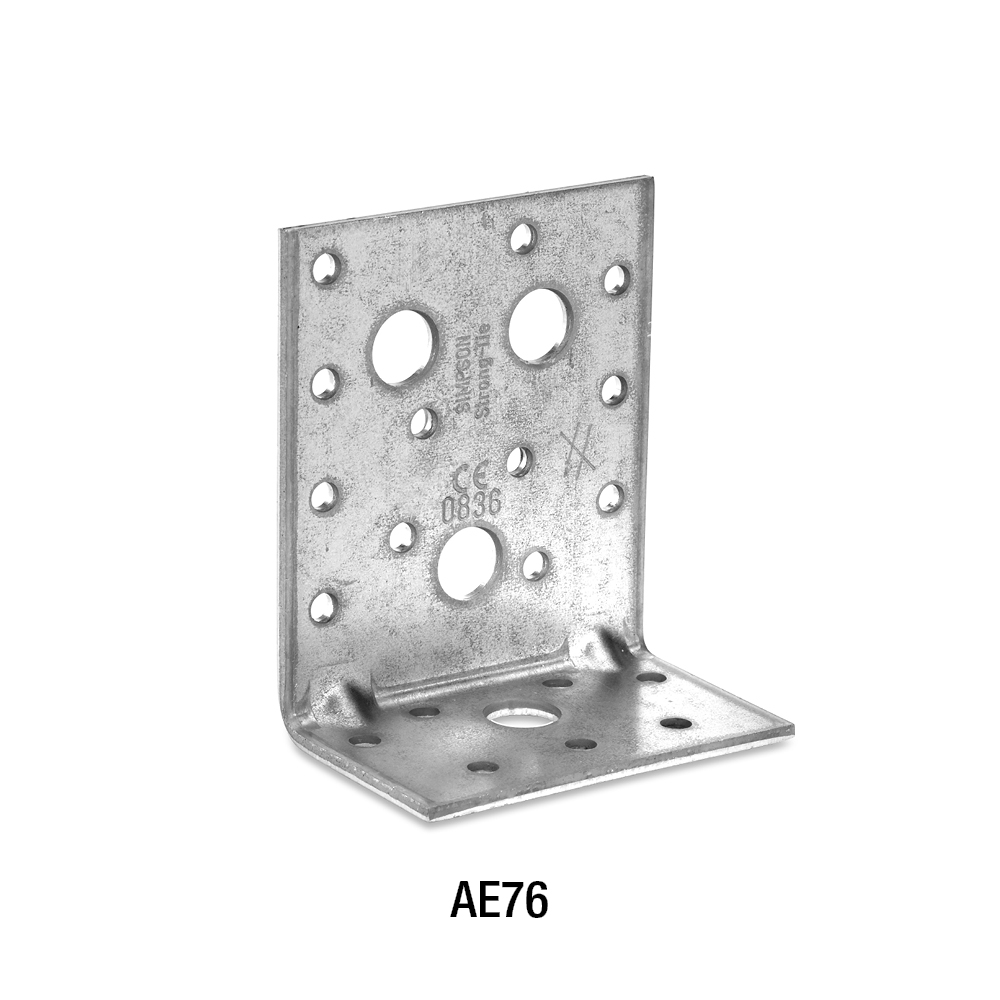

Úhelník
Tyto úhelníky se používají pro spoje dřevo/dřevo, nebo pro připojení dřevěných konstrukcí do betonu, oceli, zdiva







Podrobnosti produktu
Vlastnosti
Materiál
Kvalita oceli:
- S250GD+Z275 dle norem DIN EN10346
Ochrana proti korozi:
-
275 g/m pozinkováno z obou stran cca 20mm
Vorteile
-
Připojení dřevo/beton
-
Zatížení ve všech směrech 4
Aplikace
Anwendbare Materialien
Dřevo, dřevěné materiály, beton ,ocel
Anwendungsbereich
- Spoje prvků ze dřeva nebo dřevěných materiálů na komponenty vyrobené ze dřeva / dřevěných materiálů nebo betonu / oceli
Technické údaje

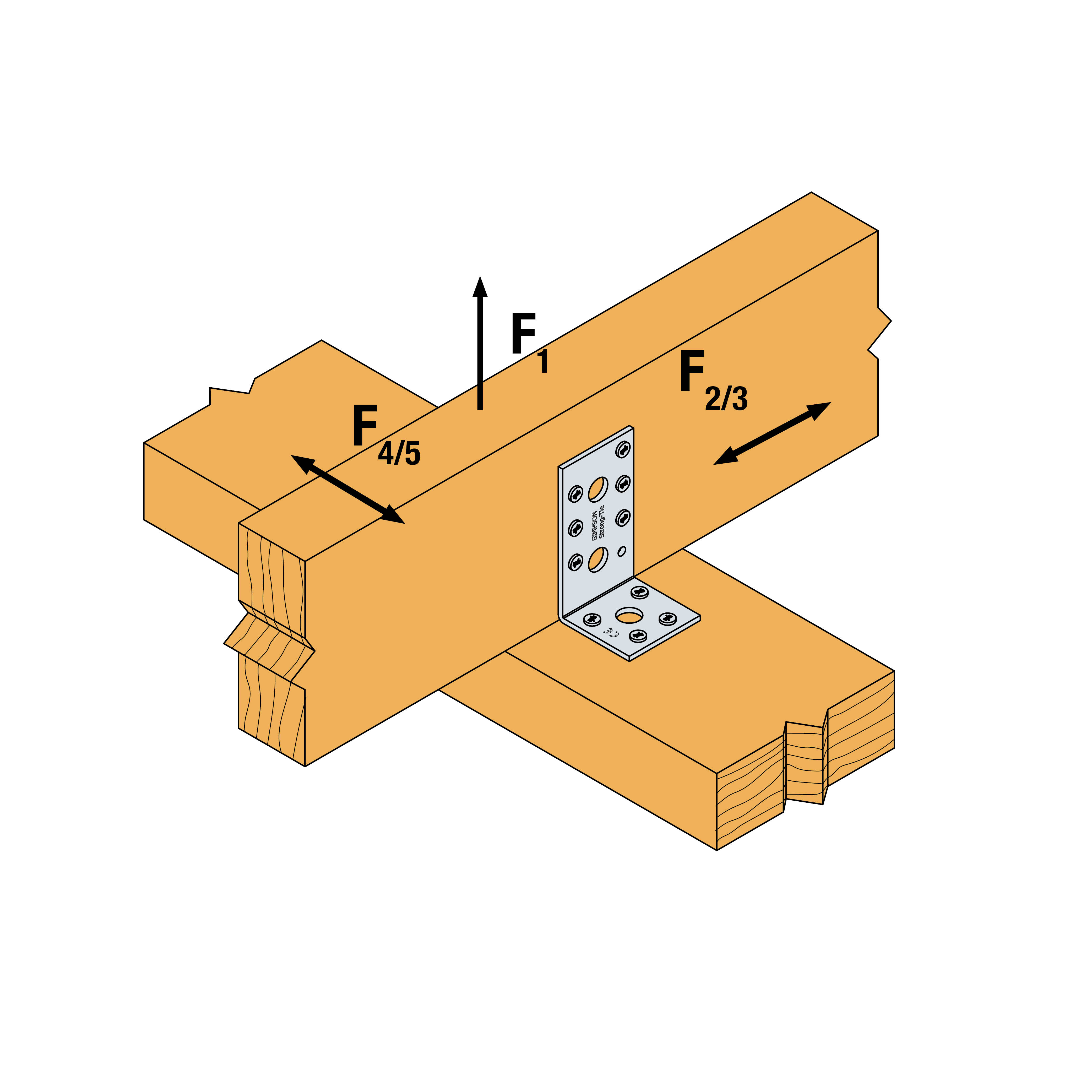

Tragfähigkeiten Holz/Holz Anschluss - Vollausnagelung
| Reference | úhelník únosnost | |||||
|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Beam to beam - Full nailing | ||||||
| charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | ||||||
| R₁,ₖ | R₂,ₖ=R₃,ₖ[kN] | R4/5,k | ||||
| CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| AE48 | 3 | 4.9 | 4 | 6 | 1.3/kmod^0.25 | 2.0/kmod^0.25 |
| AE76 | 5.9 | 9.8 | 11.6 | 15.7 | 2.9/kmod^0.25 | 4.2/kmod^0.25 |
| AE116 | 5.9 | 9.8 | 16.5 | 23 | 3.2/kmod^0.25 | 4.7/kmod^0.25 |
1) R4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor kmod.
If the overall structure prevents the rotation of the purlin, the load values R1,k and R2/3,k in an assembly with only one bracket equal to half of the given value in the table
* For higher F2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106
Tragfähigkeit Teilausnagelung
| Reference | úhelník únosnost | |||||||
|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Partial nailing | ||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4,k = R5,k(1) | ||||
| množství | množství | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| AE48 | 4.0 | 4.0 | 2.9 | 4.9 | 3.9 | 5.4 | 1.3/kmod^0.25 | 2.0/kmod^0.25 |
| AE76 | 7.0 | 7.0 | 5.8 | 9.8 | 9.5 | 13.1 | 2.9/kmod^0.25 | 4.2/kmod^0.25 |
| AE116 | 8.0 | 7.0 | 5.8 | 9.8 | 13.8 | 19.4 | 3.2/kmod^0.25 | 4.7/kmod^0.25 |
1) R4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor kmod.
If the overall structure prevents the rotation of the purlin, the load values R1,k and R2/3,k in an assembly with only one bracket equal to half of the given value in the table
* For higher F2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106

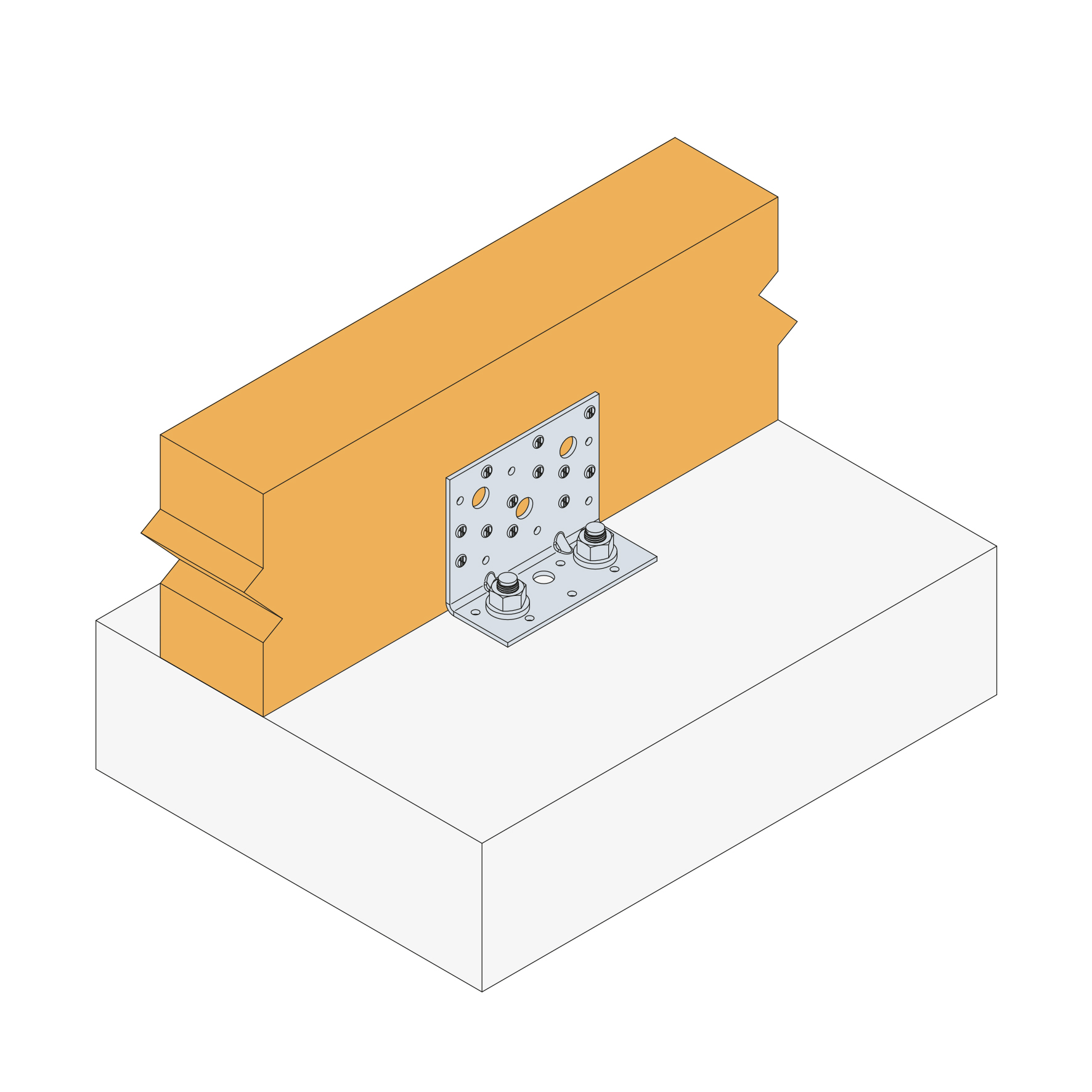

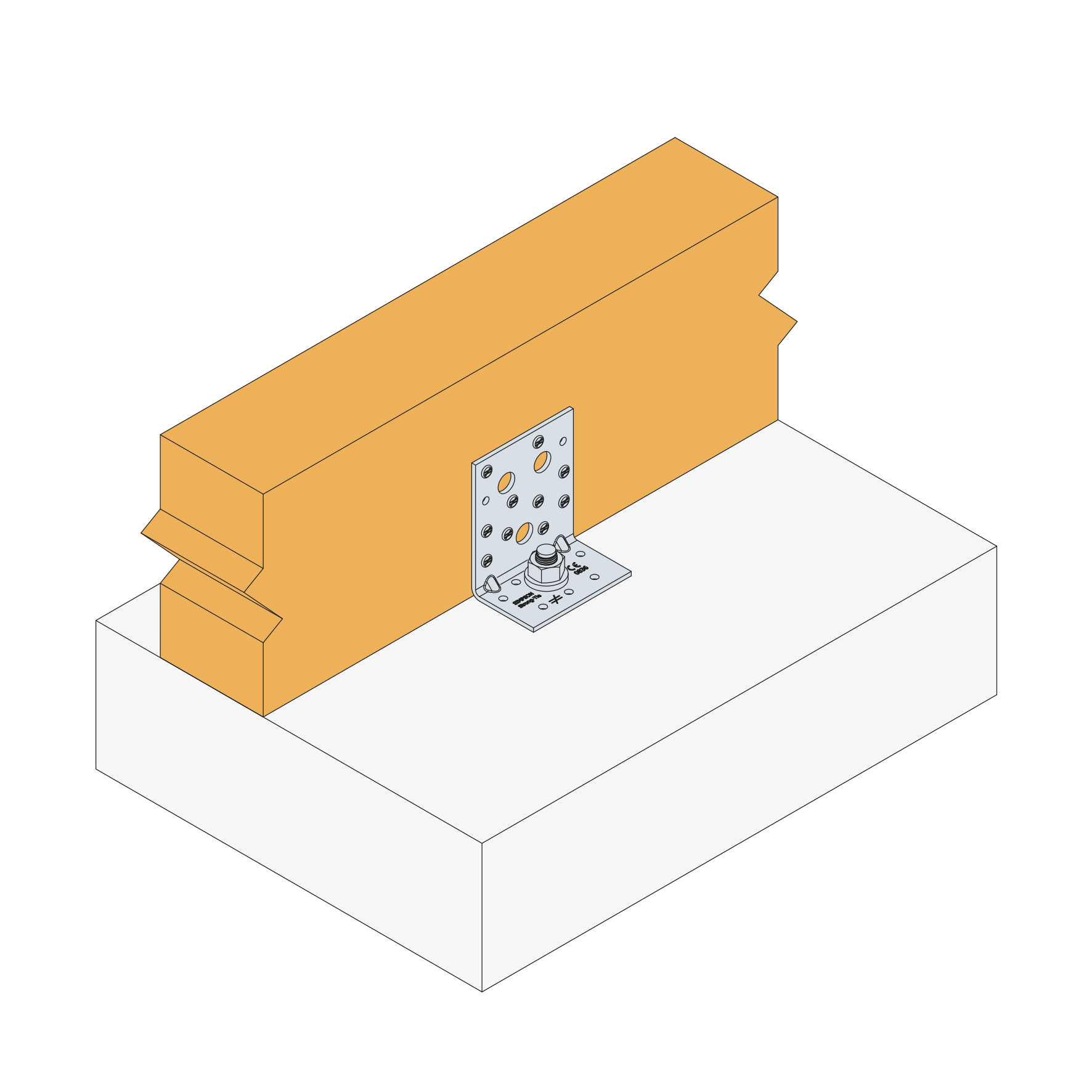

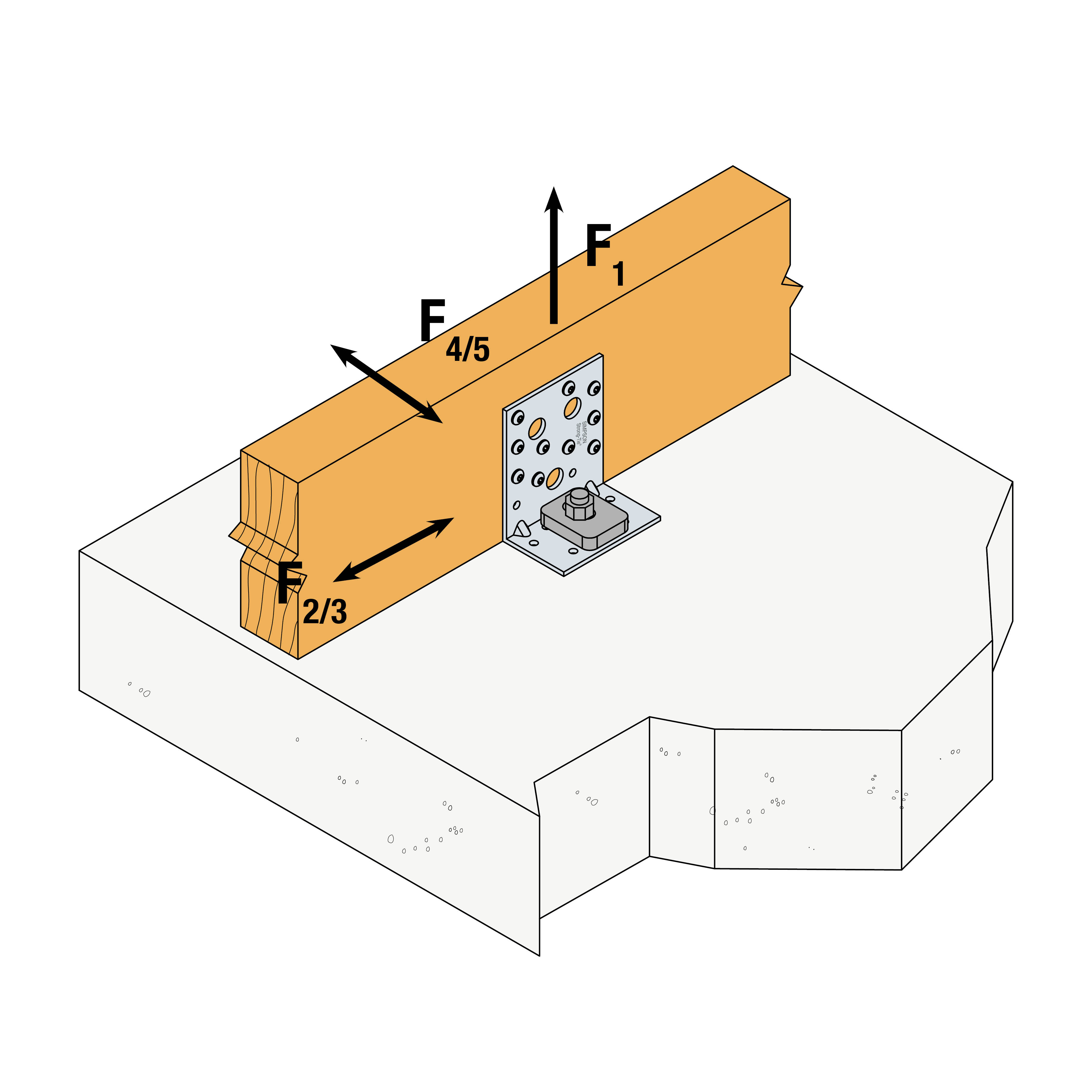

Characteristic capacities - Timber to concrete
| Reference | úhelník únosnost | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to beton | ||||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4/5,k | ||||||
| množství | typ | množství | typ | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| AE48 | 6 | CNA* | 1 | M12 | min: 14.9 ; 12.6/kmod | 12.6/kmod | 2.1 | 3.5 | min: 5.2 ; 4.2/kmod^0.7 | 4.2/kmod^0.7 |
| AE76 | 9 | CNA* | 1 | M12 | min: 22.7 ; 16.8/kmod | 16.8/kmod | 7.5 | 11.2 | min: 8.5 ; 6.1/kmod | 6.1 / kmod |
| AE116 | 12 | CNA* | 2 | M12 | 25.1 | min: 38.1 ; 28.1/kmod | 25.8 | 27.7 | 9,1 / kmod^0.2 | min: 14 ; 10/kmod |
1) R4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor kmod. The characteristic anchoring strength of the bolt must be minimum 15,3 kN for both withdrawal and shear force. The bearing capacity value for the assembly must be reduced proportionally if the bearing capacities of the bolt is less than 15,3 kN.
If the overall structure prevents the rotation of the purlin, the load values R1,k and R2/3,k in an assembly with only one bracket equal to half of the given value in the table
*For higher F2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106

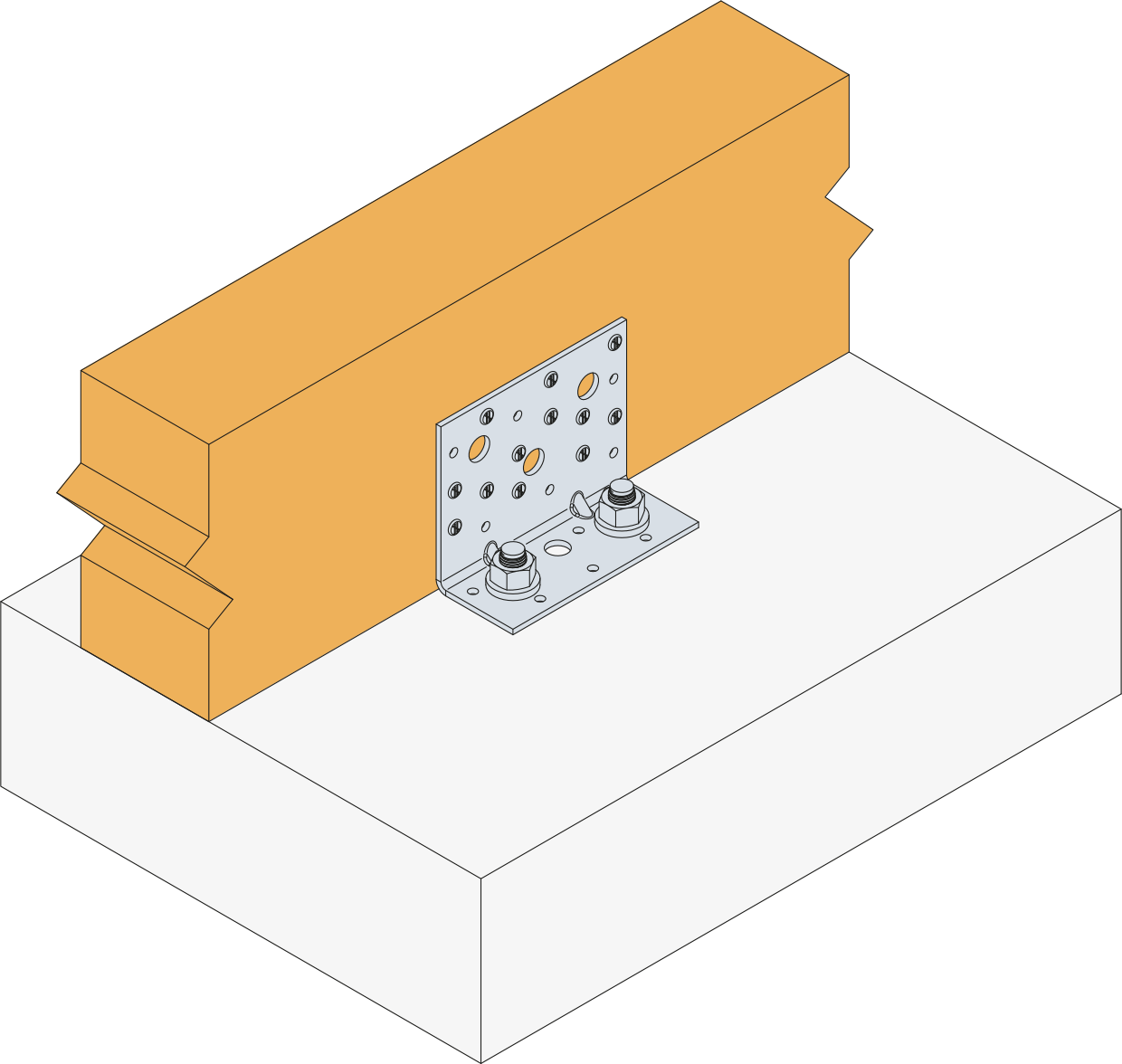

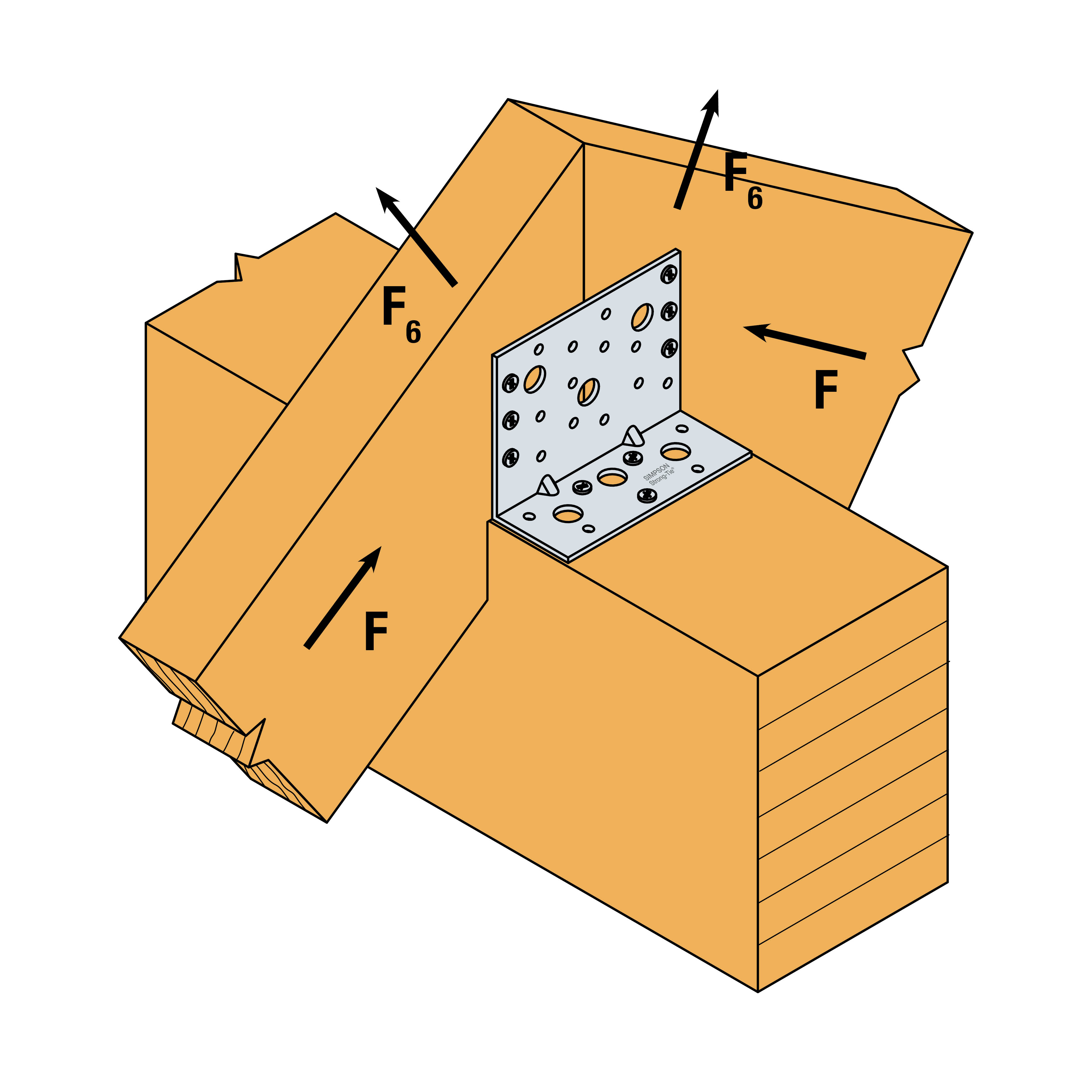

Instalace
Certifikace
Prohlášení o vlastnostech (DoP)
Evropské technické posouzení (ETA)
Environmental Product Declarations (EPD)
Knihovna CAD a BIM

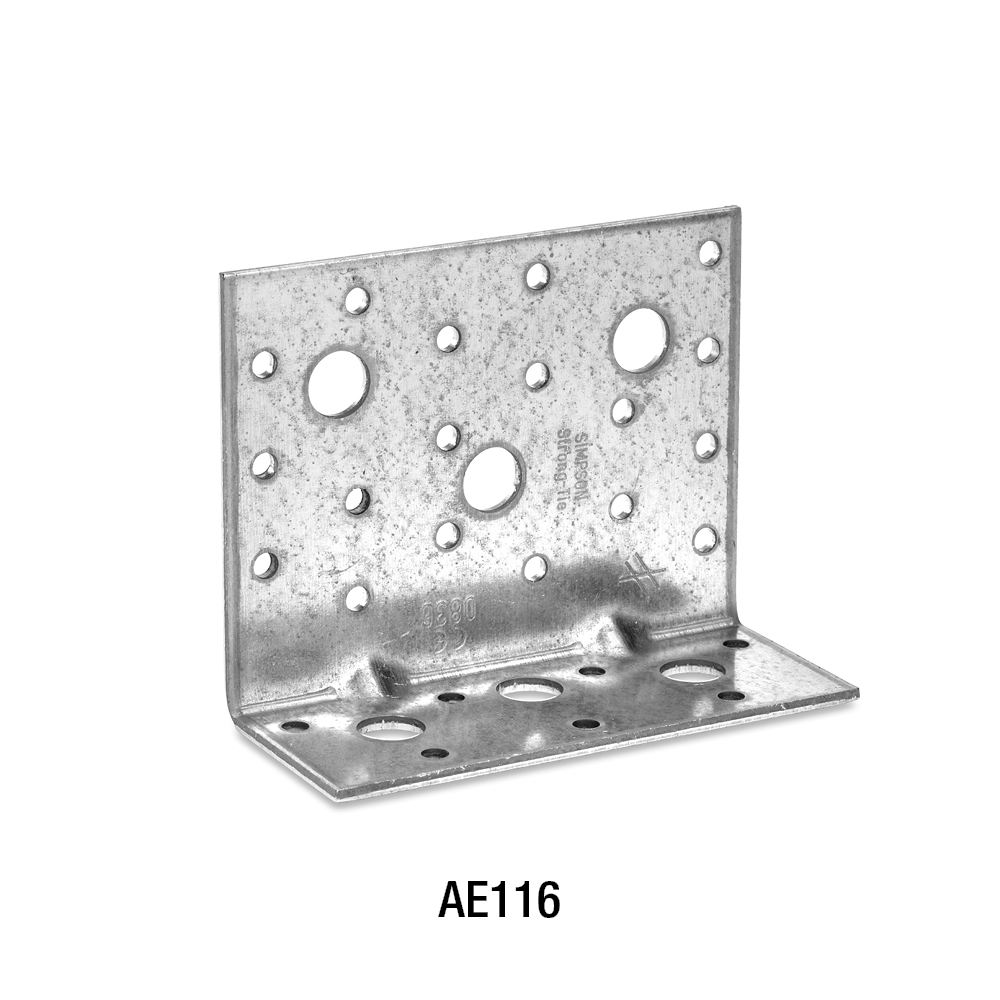

AE116
-
-
-
-
