PPA100PB

Stützenfüße Typ PA

Die PPA Stützenfüße sind für die Aufständerung von Wandkonstruktionen und Veranden vorgesehen.

Označení CE
Označení CE
ETA
ETA
Novinky
Novinky
Finition noire
Finition noire
EPD
EPD
Servisní třída 3
Servisní třída 3
Exteriér
Exteriér

Podrobnosti produktu

Obrázky

Vlastnosti

Material

Stahlqualität:

S 235 JR gemäß DIN EN 10025

Korrosionsschutz:

nach Bearbeitung rundumfeuerverzinkt; Zinkschichtdicke ca. 55 μm gemäß DIN EN 1461

Vorteile

  • Die PPA Stützenfüße sind stückverzinkt und bestehen aus einem Stahlrohr mit angeschweißter Kopf- und Fußplatte.
  • Die Schrauben und Ankerbolzen dienen der konstruktiven Lagesicherung.

Aplikace

Anwendbare Materialien

Auflager:

  • Beton

Aufzulagerndes Bauteil:

  • Holz, Holzwerkstoffe

Anwendungsbereich

  • Die PPA Stützenfüße sind für die Aufständerung von Wandkonstruktionen und Veranden gedacht.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Referencekonektor rozměry
rozměry výrobku[mm]Top plate otvoryBottom plate otvoryostatní
A[mm]B[mm]D[mm]E[mm]F[mm]E[mm] tloušťka[mm]kulatýkulatýhmotnost[kg]
Ø12Porteur
PPA100PB10010013013010048.34441.1

Product characteristic capacities

Referencepatka sloupku únosnost
výrobek capacities - dřevo to beton
počet of FastenersCharacteristic capacities - dřevo C24[kN]
On postOn betonR₁,ₖ
množstvítypmnožstvítyp
PPA100PB4.0Ø10x804.0Ø10*78,5 / kmod^0.4

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.

Instalace

Instalace

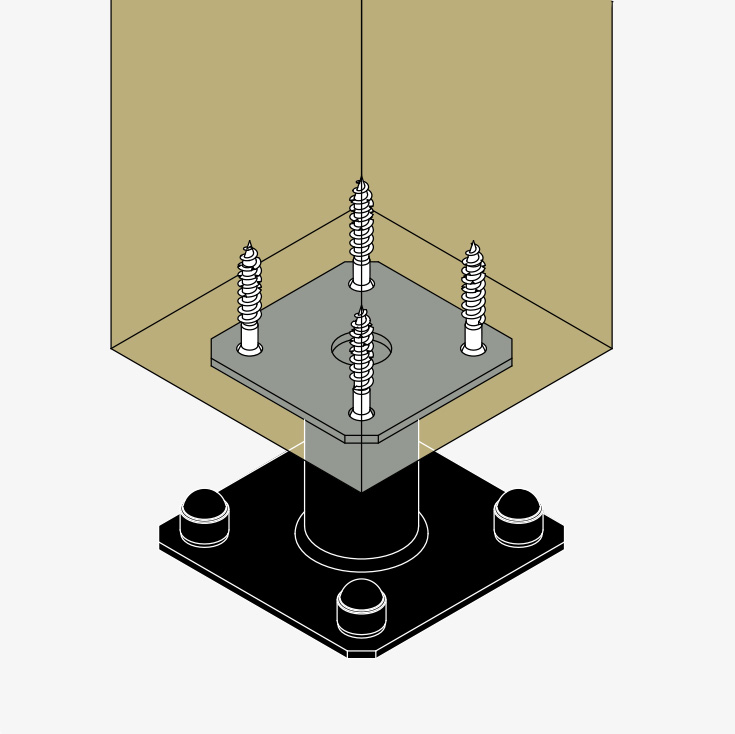

Befestigung

  • Der Anschluss am Holz erfolgt mit Schrauben Ø 10 mm, am Beton mit Ankerbolzen Ø 10 mm.

Certifikace

Evropské technické posouzení (ETA)

product.doc.history.none

Environmental Product Declarations (EPD)

Související produkty

Koupit online

Contact

Simpson Strong-Tie Německo

Simpson Strong-Tie GmbH

Hubert-Vergölst-Straße 6-14
61231 Bad Nauheim
Německo
