E20/3

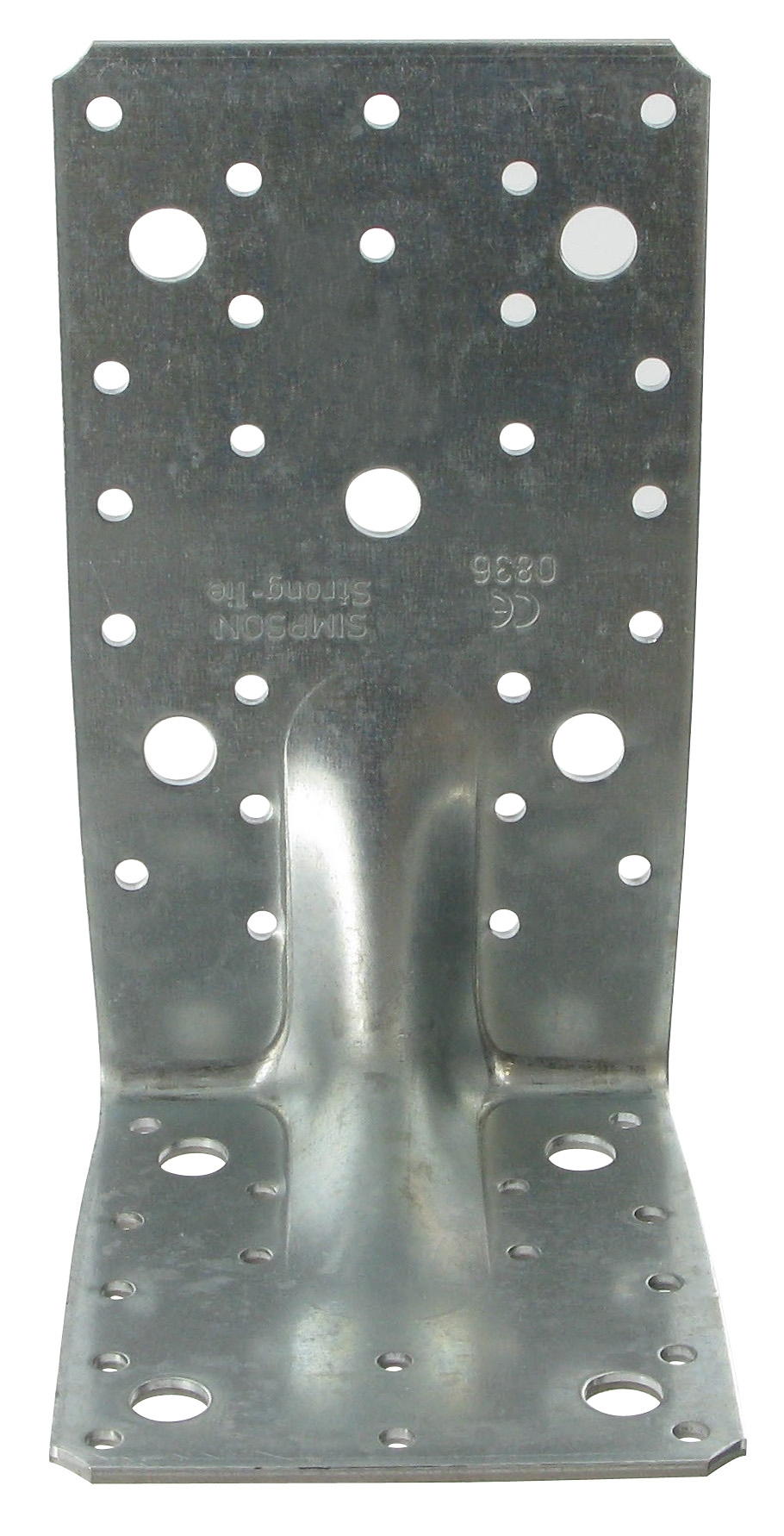

Úhelník E20/3
Tyto úhelníky jsou vhodné pro přenos vysokých zatížení. Jsou opatřeny žebry.
Označení CE
ETA
Servisní třída 2
Uvnitř
Pozinkovaná ocel Z275
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry
Rozměry a typické hodnoty
| Art. nr. | Rozměry a typické hodnoty [mm] | Příruba A | Hlava | Box Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | t | Ø5 | Ø11 | Ø5 | Ø11 | ||
| E20/3 | 170 | 113 | 95 | 3 | 24 | 5 | 16 | 4 | 25 |
Kombinierte Beanspruchung:
Product capacities - Timber beam to timber beam - Full nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber to timber - Full nailing | |||||
|---|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
| Příruba A | Hlava | R1.k | R2.k = R3.k | |||
| Množství | Množství | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 24 | 16 | 11.77 | 14.71 | 26.61 | 28.31 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Product capacities - Timber beam to timber beam - Partial nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber beam to timber beam - Partial nailing | |||||
|---|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
| Příruba A | Hlava | R1.k | R2.k = R3.k | |||
| Množství | Množství | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 12 | 9 | 8.78 | 10.97 | 20.22 | 21.51 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Product capacities - Timber post to timber beam - Partial nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber post to timber beam - Partial nailing | |||||
|---|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
| Příruba A | Hlava | R1.k | R2.k = R3.k | |||
| Množství | Množství | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 13 | 8 | 8.78 | 10.97 | 15.91 | 16.92 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities”.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.
Product capacities - Trimmer connection - Partial nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber to timber - Trimmer connection | |||
|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||
| Příruba A | Hlava | R2.k = R3.k | ||
| Množství | Množství | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 18 | 16 | 19.31 | 24.14 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

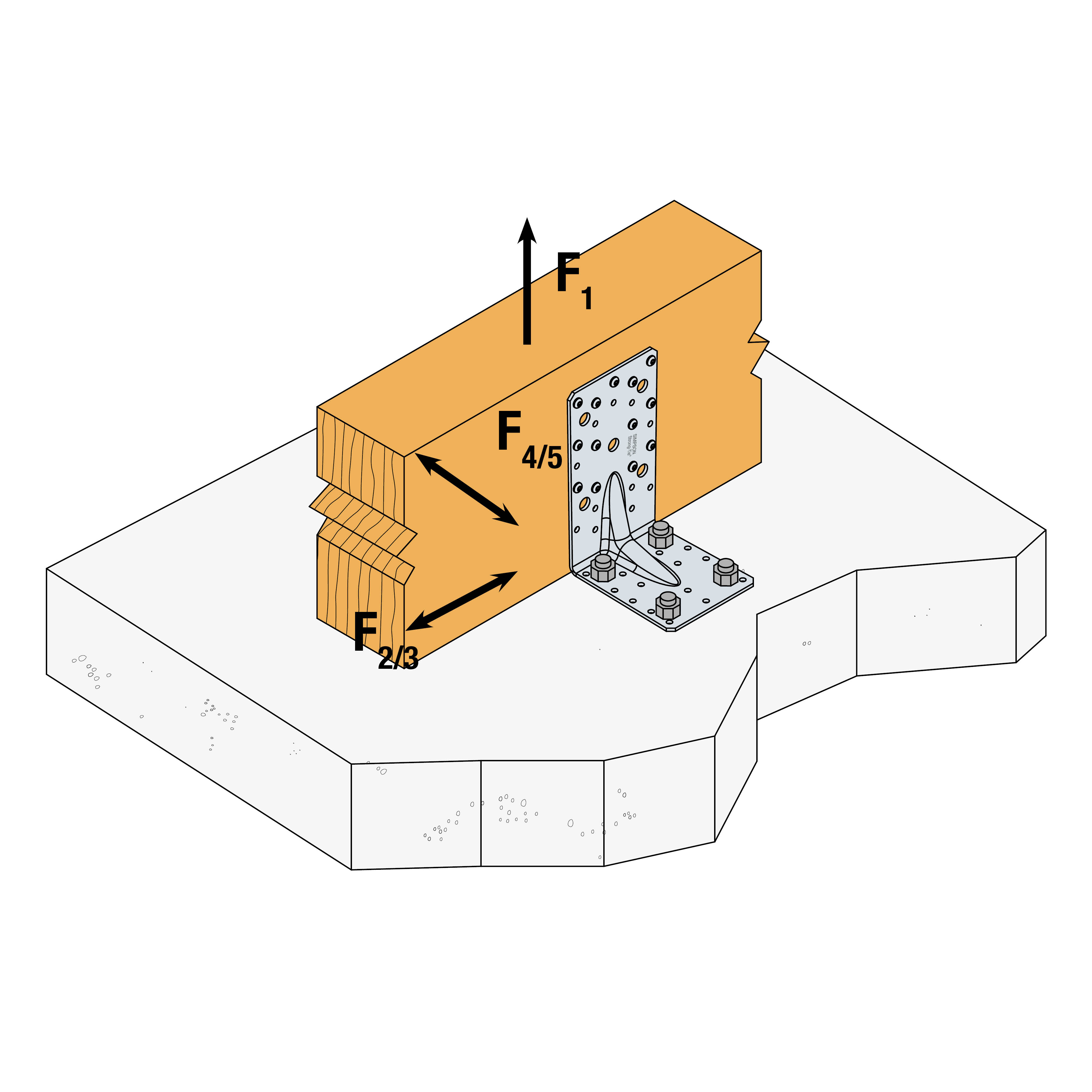

Product capacities - Timber beam to rigid support - Full nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber to Concrete - Full nailing | |||||||
|---|---|---|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||||
| Příruba A | Hlava | R1.k | R2.k = R3.k | |||||
| Množství | Typ | Množství | Typ | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 24 | CNA | 4 | Ø10 | 71 | 88.8 | 44.7 | 47.5 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

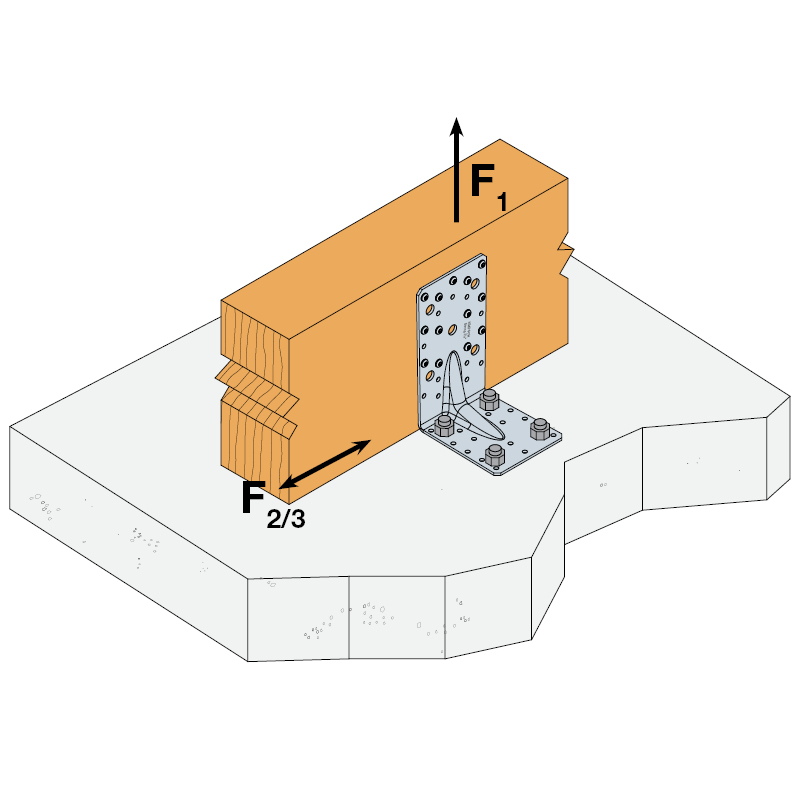

Product capacities - Timber beam to rigid support - Partial nailing - 2 angles brackets
| Art. nr. | Product capacities - Timber to Concrete - Partial nailing | |||||||
|---|---|---|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||||
| Příruba A | Hlava | R1.k | R2.k = R3.k | |||||
| Množství | Typ | Množství | Typ | CNA4.0x50 | CNA4.0x60 | CNA4.0x50 | CNA4.0x60 | |
| E20/3 | 13 | CNA | 4 | Ø10 | 40 | 50 | 29.1 | 31 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0,9. For other load duration and service class, please refer to the ETA to get more accurate capacities.
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

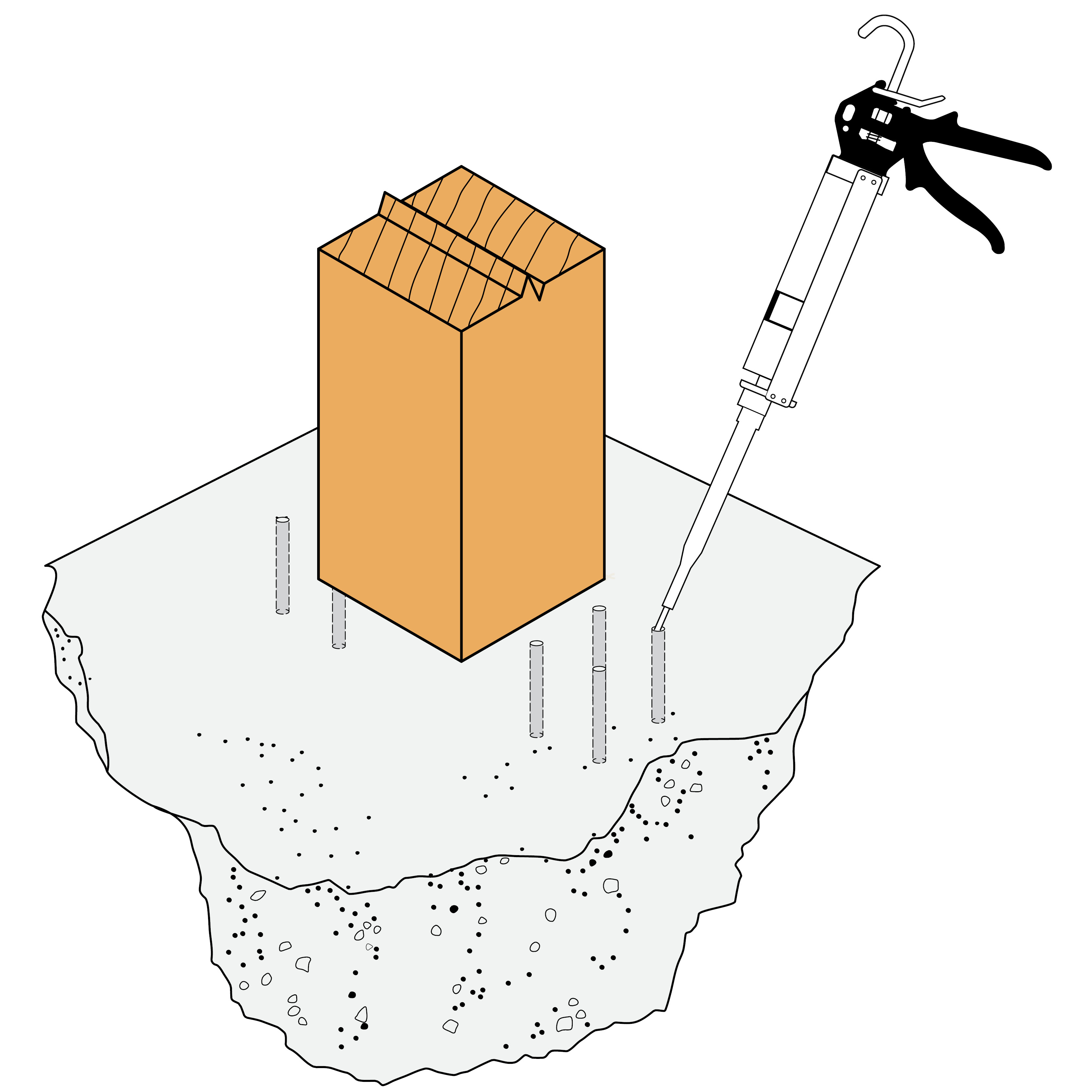

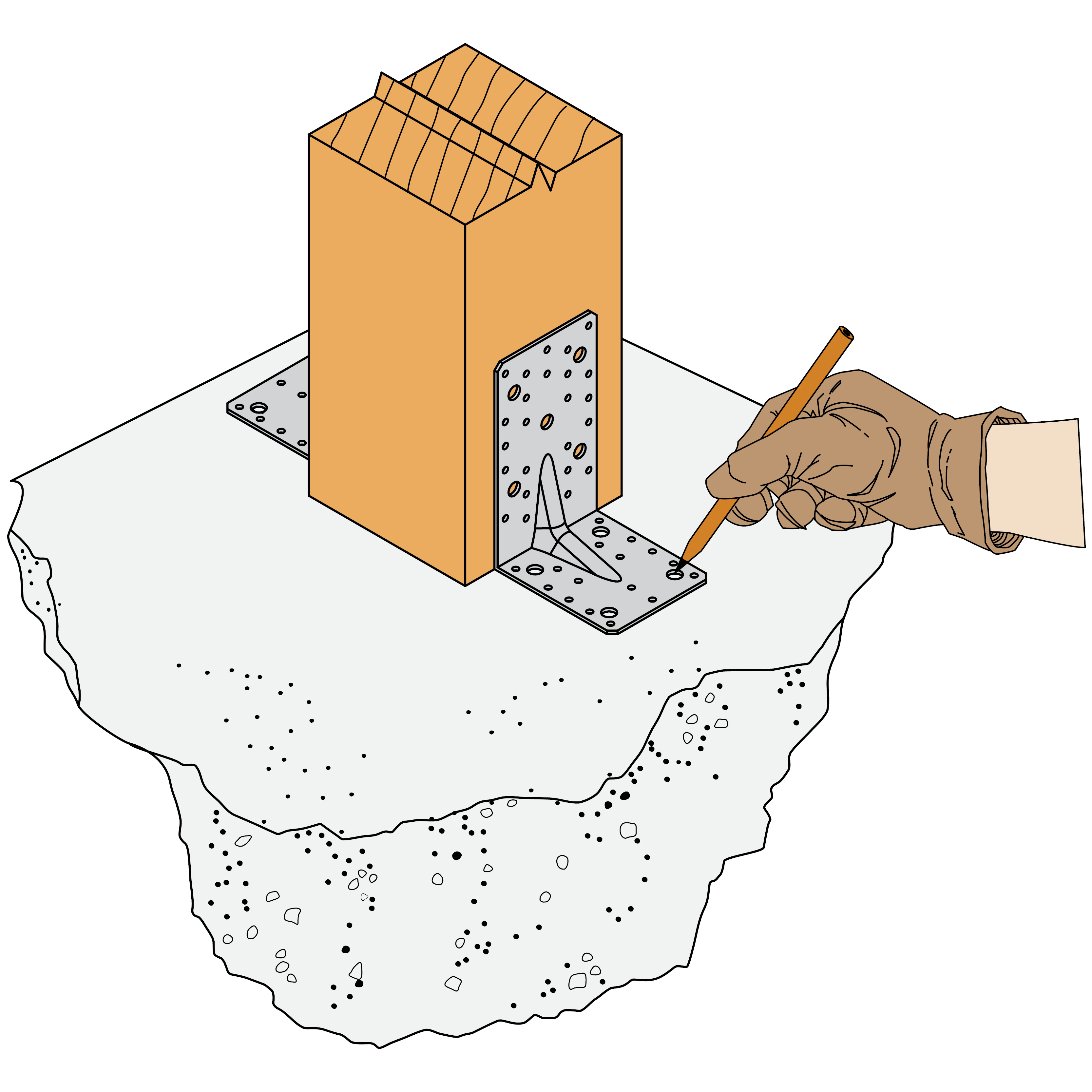

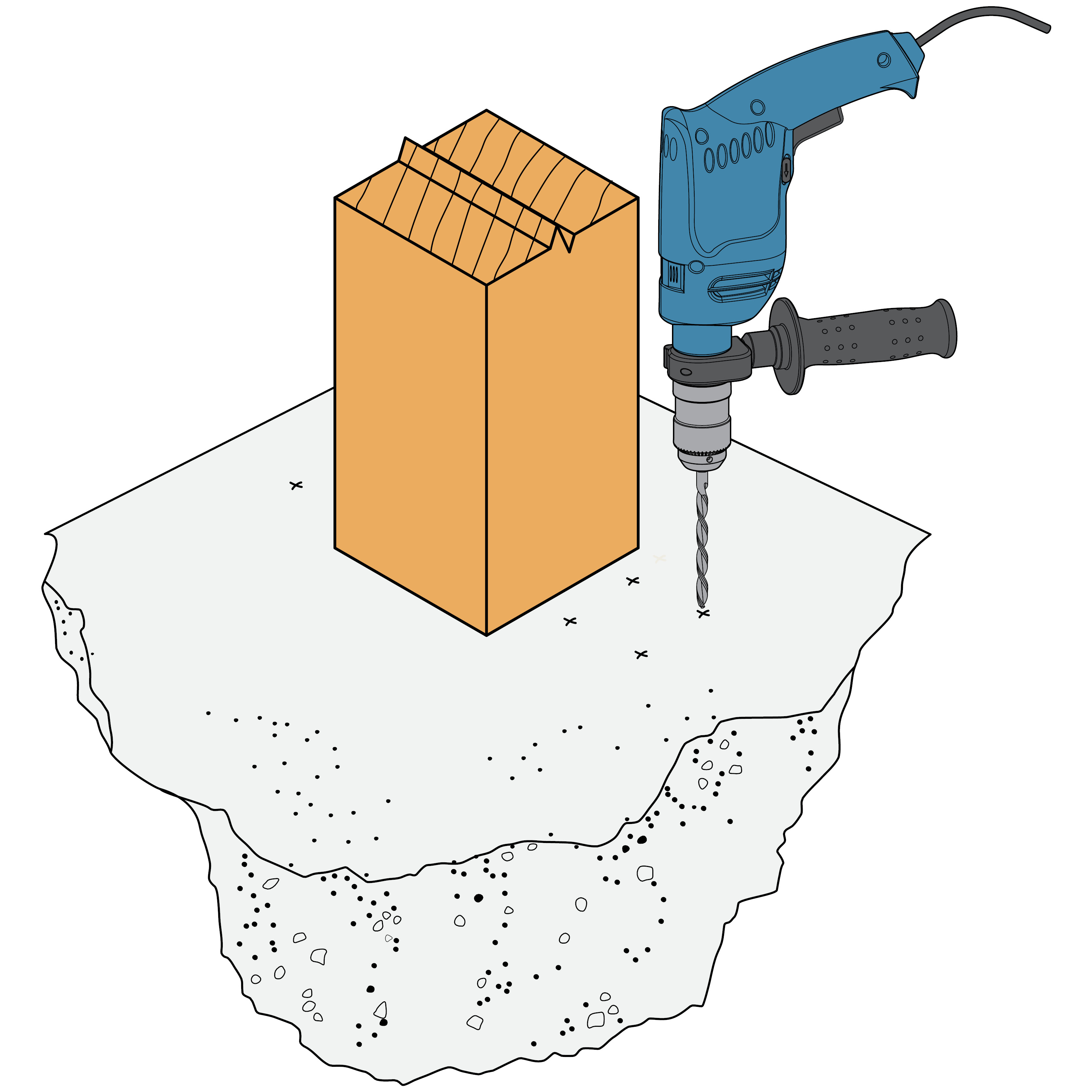

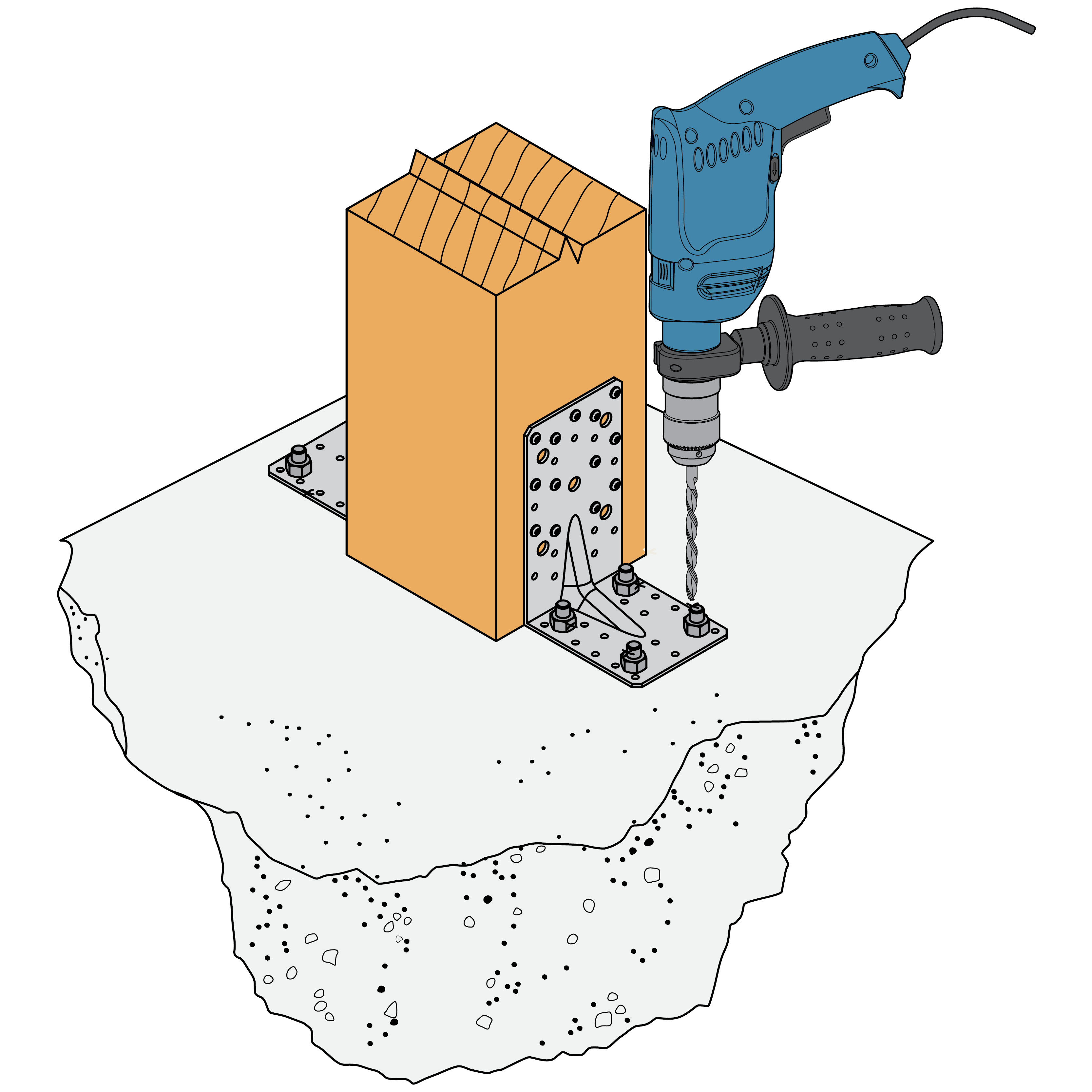

Instalace
Instalace
