ER

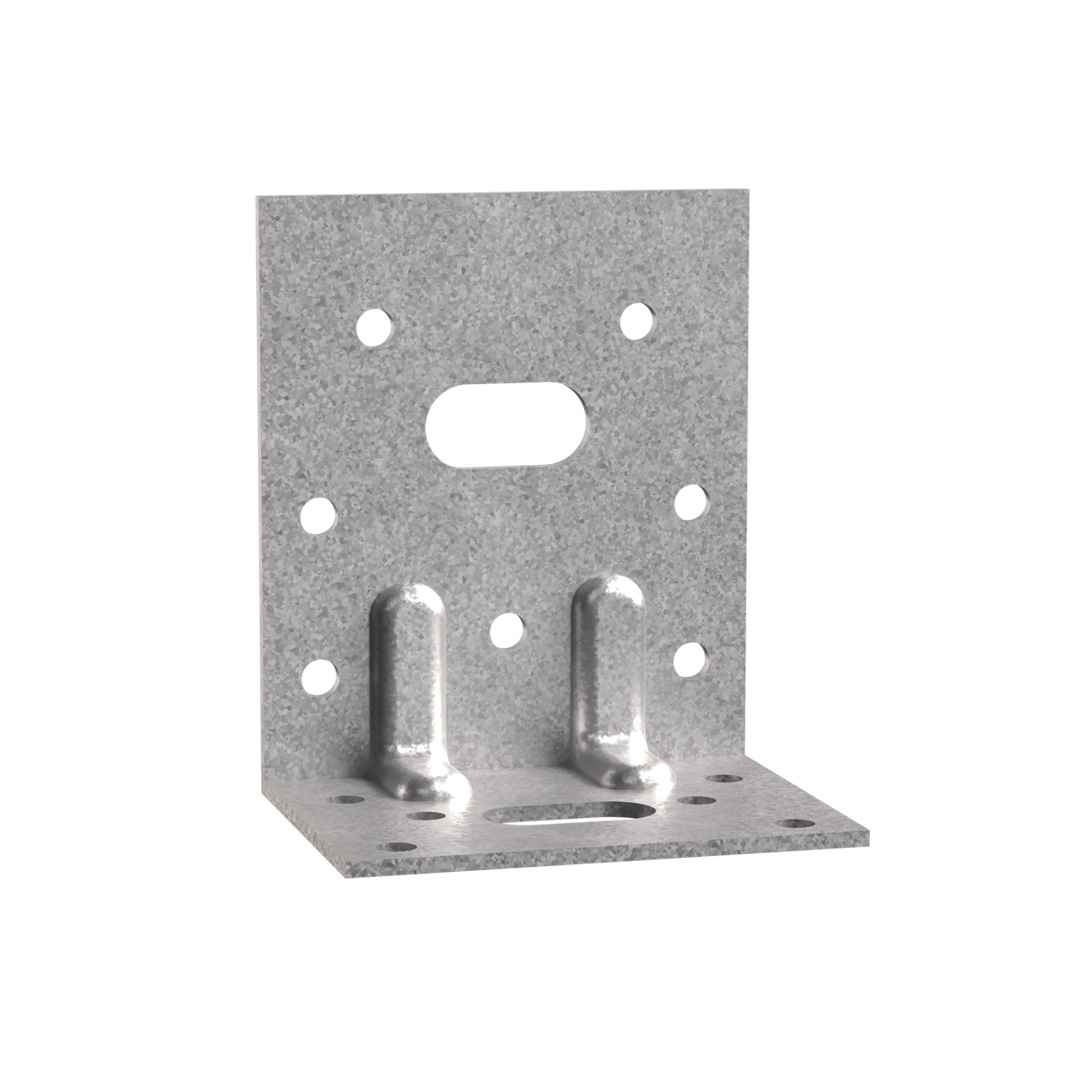

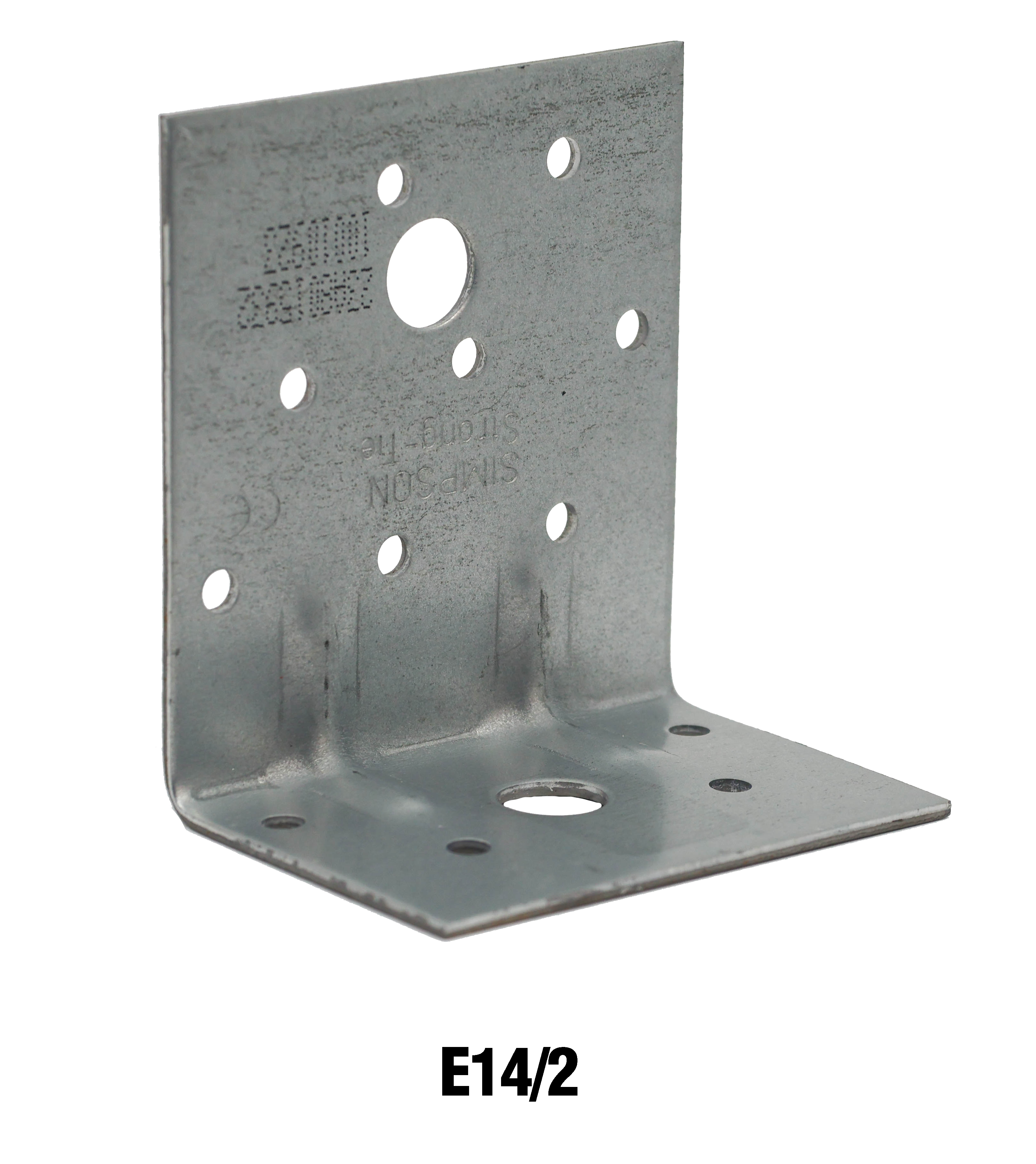

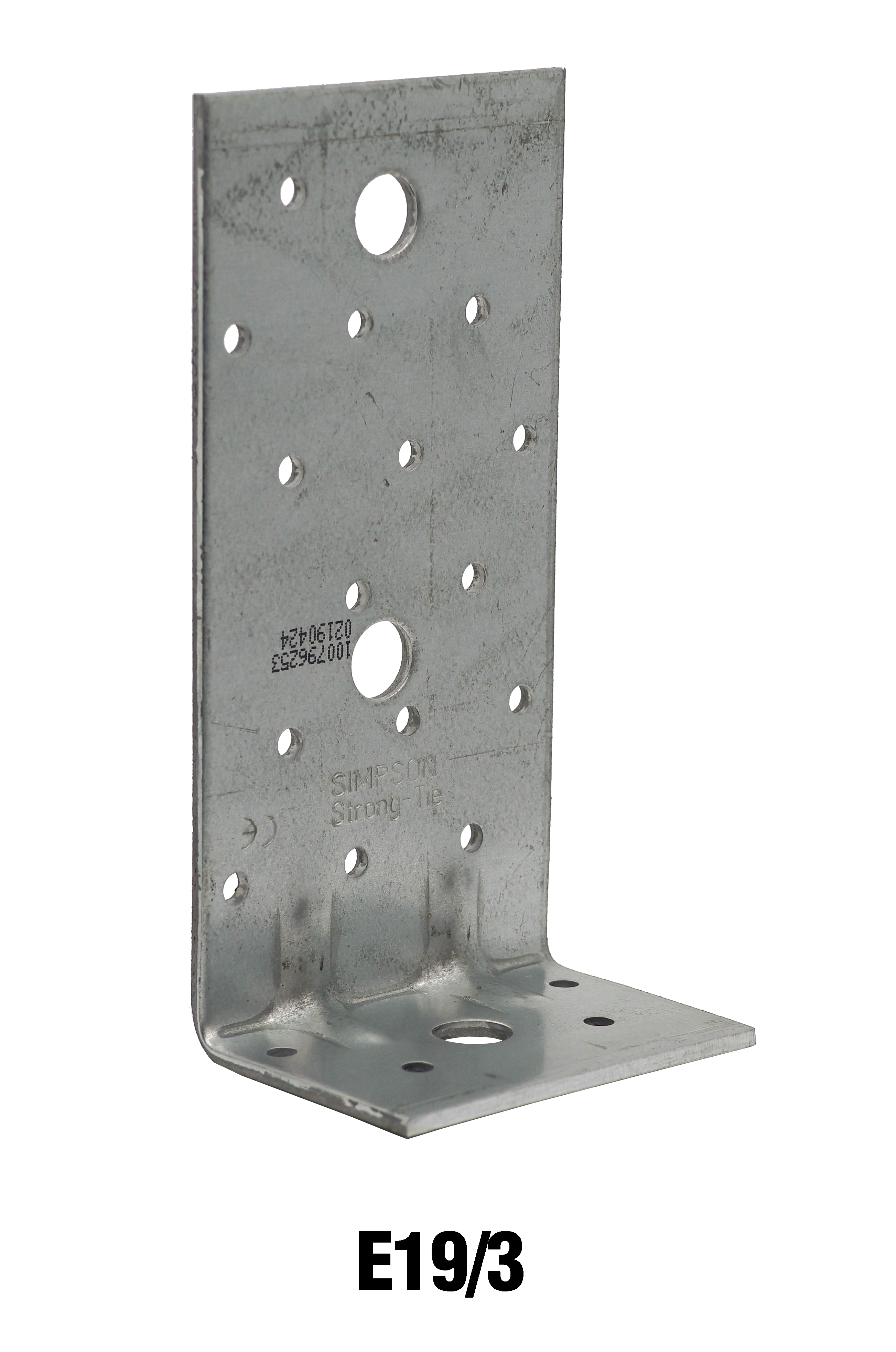

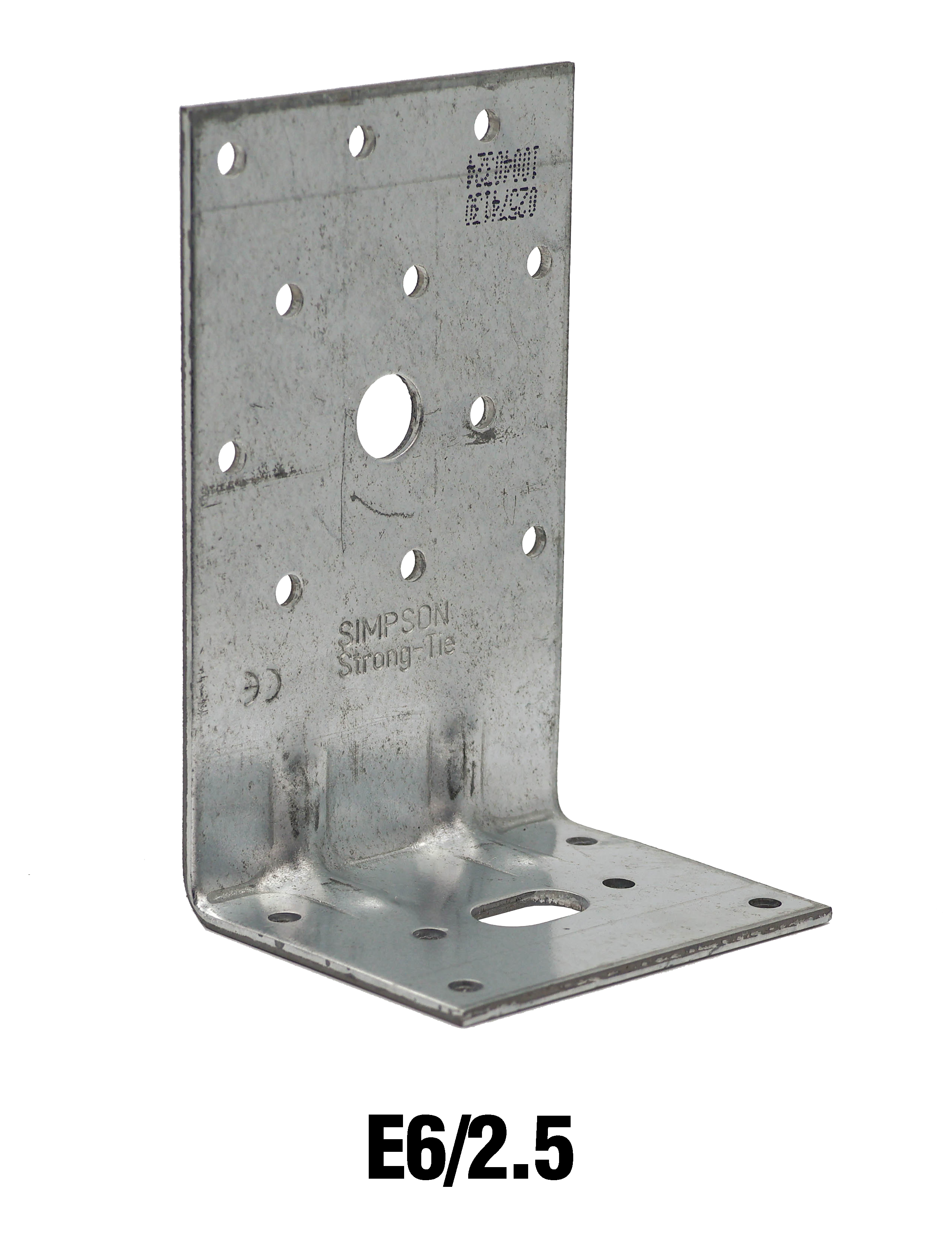

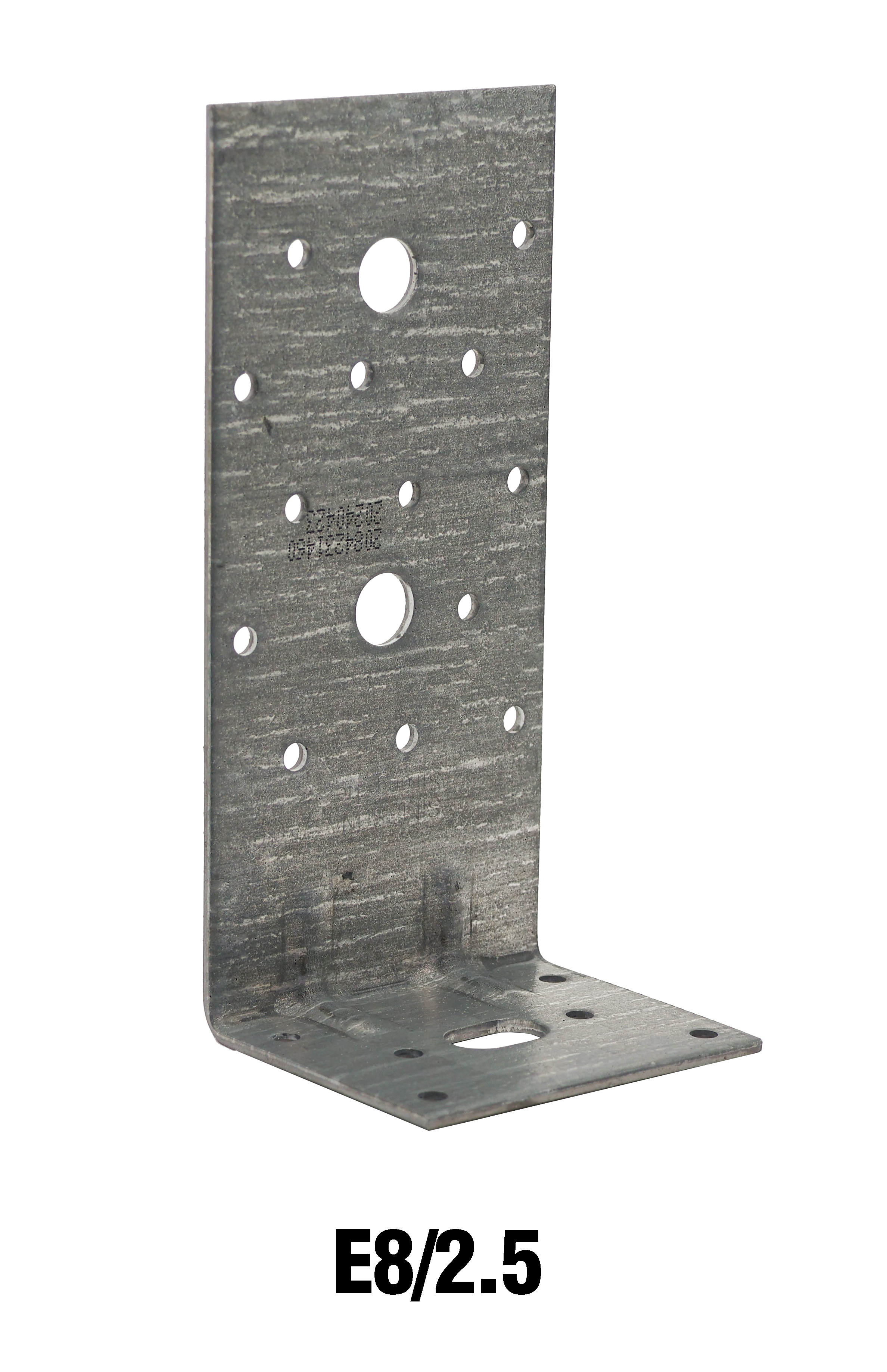

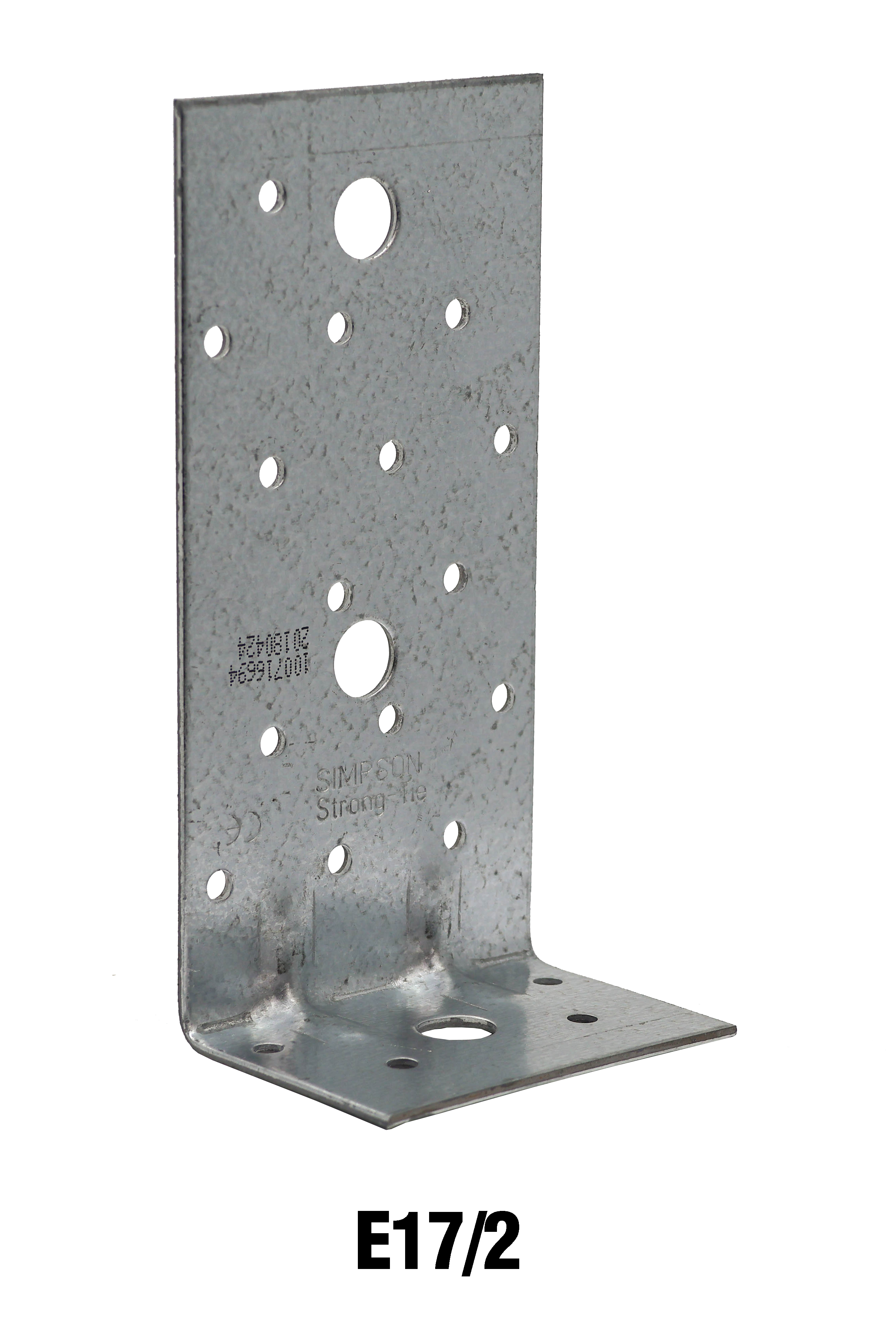

Reinforced Angle Bracket

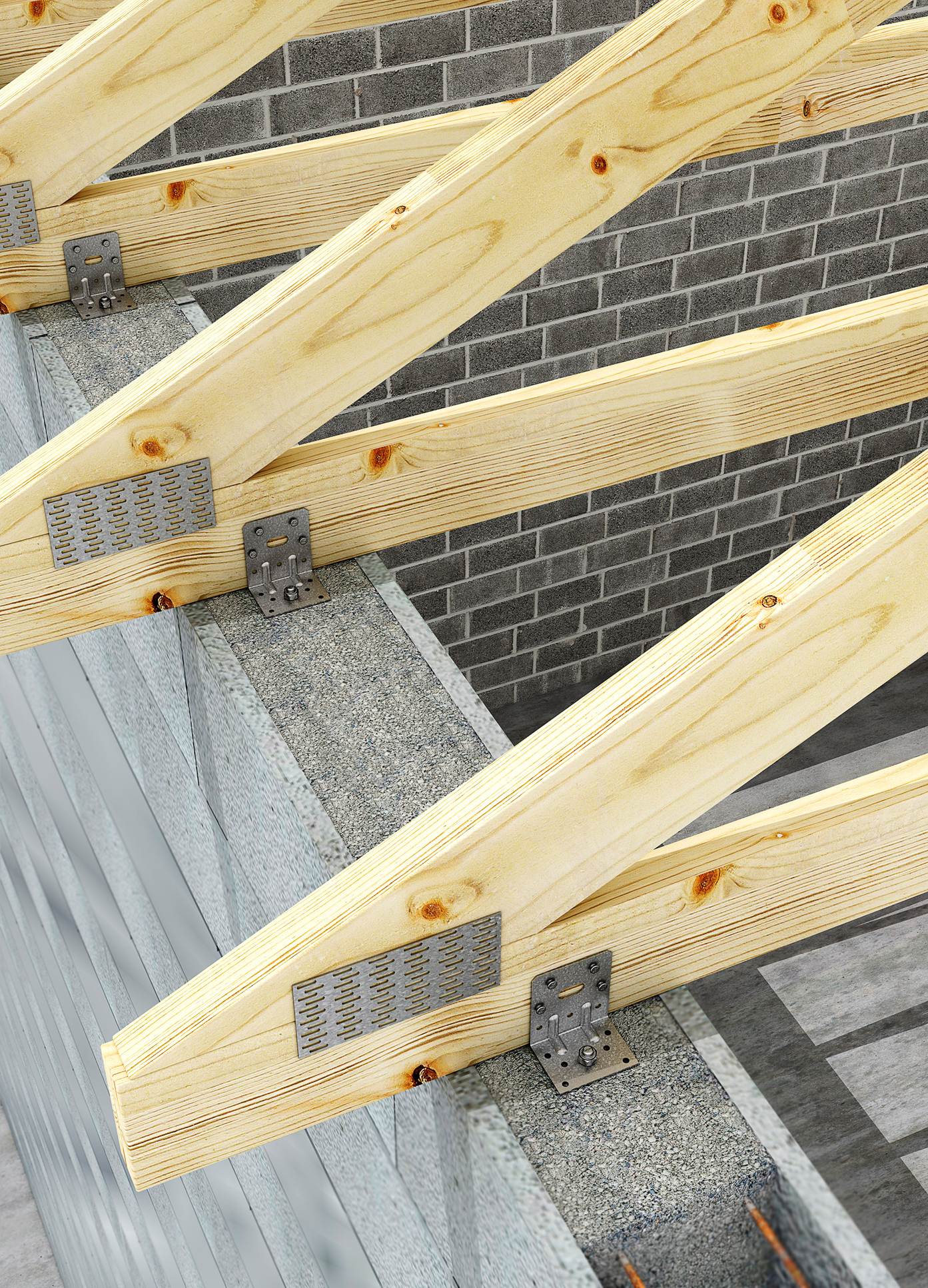

Reinforced angle brackets are suitable for structural applications in framing and wood-frame houses.

Označení CE
Označení CE
ETA
ETA
Servisní třída 2
Servisní třída 2
Uvnitř
Uvnitř
EPD
EPD
Pozinkovaná ocel Z275
Pozinkovaná ocel Z275

Podrobnosti produktu

Obrázky

Vlastnosti

Materiál

Kvalita oceli:

S 250 GD+Z 275 dle norem DIN EN

Ochrana proti korozi:

275 g/m pozinkováno z obou stran cca 20mm

Aplikace

Anwendbare Materialien

  • Supporting member: solid wood, glued-laminated wood, concrete, steel, etc.
  • Supported member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.

Anwendungsbereich

  • Befestigungen von Holzbalken, Holzstützen an Pfetten oder Haupträger

Technické údaje

Product Dimensions

Rozměry

Referencekonektor rozměry
rozměry výrobku[mm]nosník[mm]příruba B[mm]ostatní
A[mm]B[mm]C[mm]tloušťka[mm]kulatýkulatýoválnýhmotnost[kg]
Ø5[mm]nØ5[mm]Ø12x20

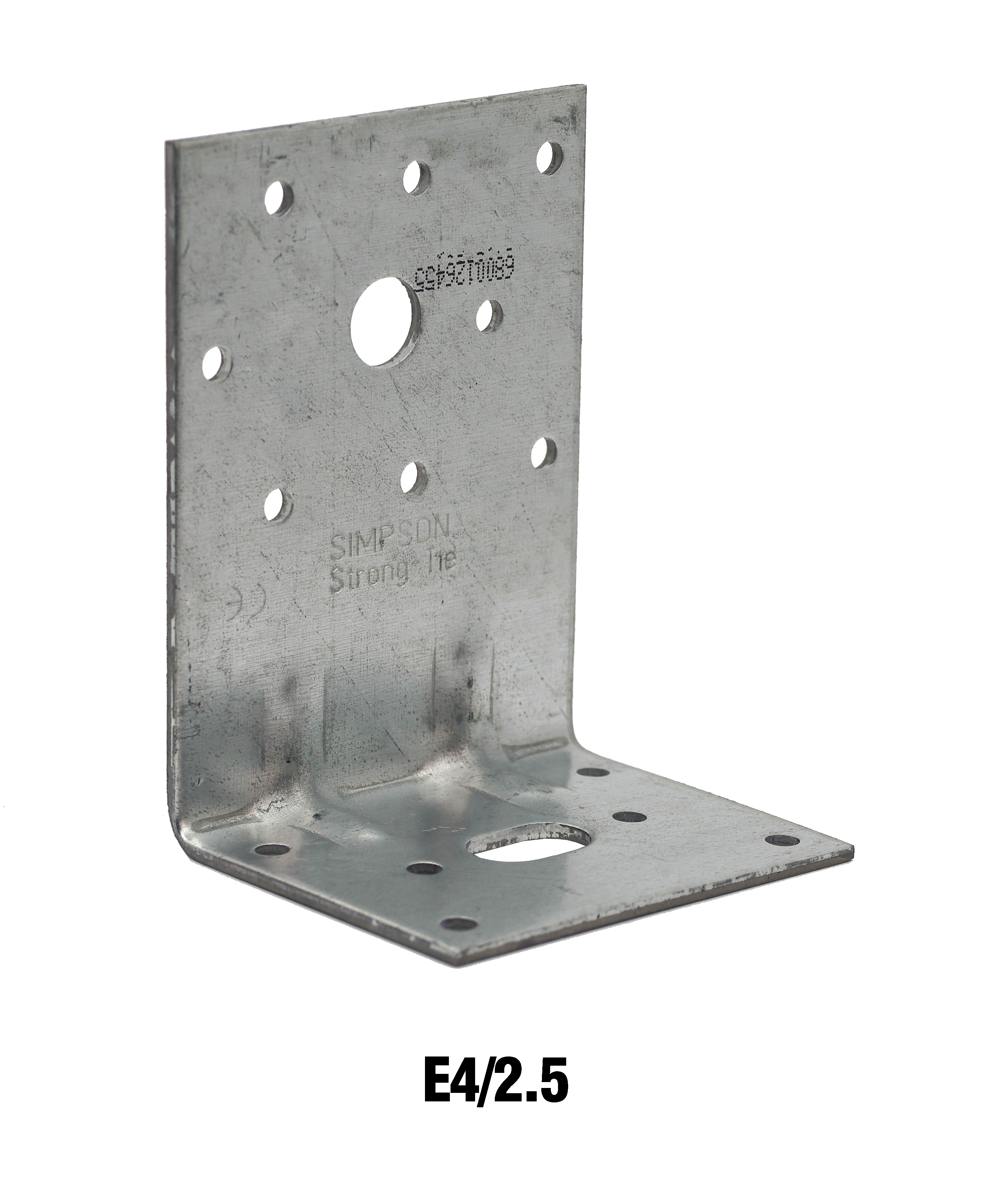

E4/2.5102.562.5752.581610.22

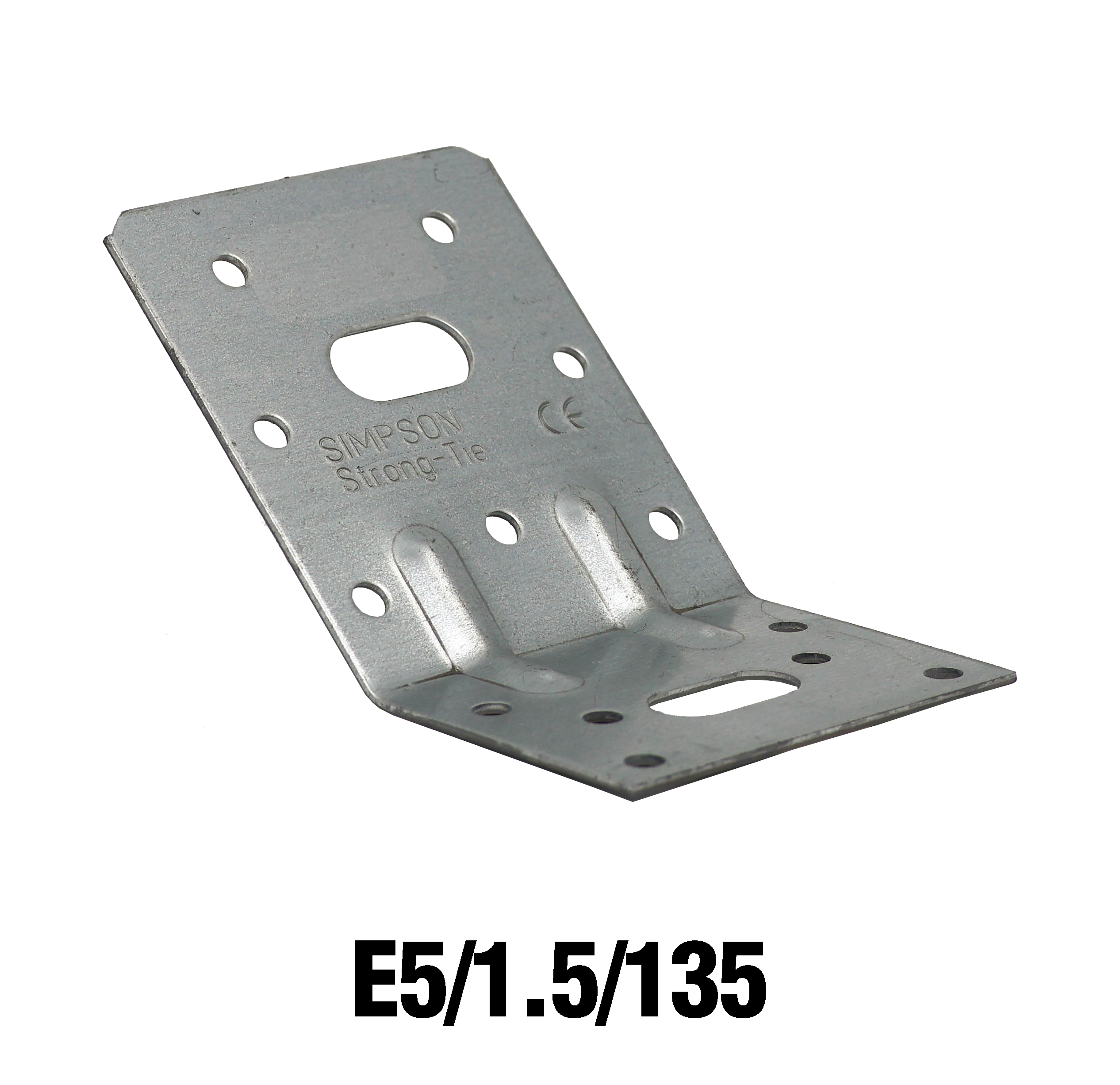

*angle bracket folded at 135°

Product characteristic capacities - Timber beam to timber beam - full nailing - assembly with 2 angle brackets

Rozměry

Referenceúhelník únosnost
výrobek capacities - dřevo to dřevo - Beam to beam - Full nailing
počet of Fastenerscharakteristická únosnost - 2 angle brackets per connection - full nailing[kN]
nosníkpříruba BR₁,ₖR₂,ₖ=R₃,ₖ[kN]
množstvímnožstvíCNA4.0x35CNA4.0x40CNA4.0x50CNA4.0x60CNA4.0x35CNA4.0x40CNA4.0x50CNA4.0x60
E4/2.5865.56.37.27.67.68.310.110.7

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

Product characteristic capacities - Timber beam to rigid support - assembly with 2 angle brackets

Rozměry

Referenceúhelník únosnost
výrobek capacities - dřevo to beton
počet of Fastenerscharakteristická únosnost - 2 angle brackets per connection - full nailing[kN]
nosníkpříruba BR₁,ₖR₂,ₖ=R₃,ₖ
množstvítypmnožstvítypCNA4.0x40CNA4.0x50CNA4.0x60CNA4.0x40CNA4.0x50CNA4.0x60
E4/2.58CNA1Ø1012.612.612.6- *- *- *

* No capacities are given as it is a slip connection due to oblong hole.

To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

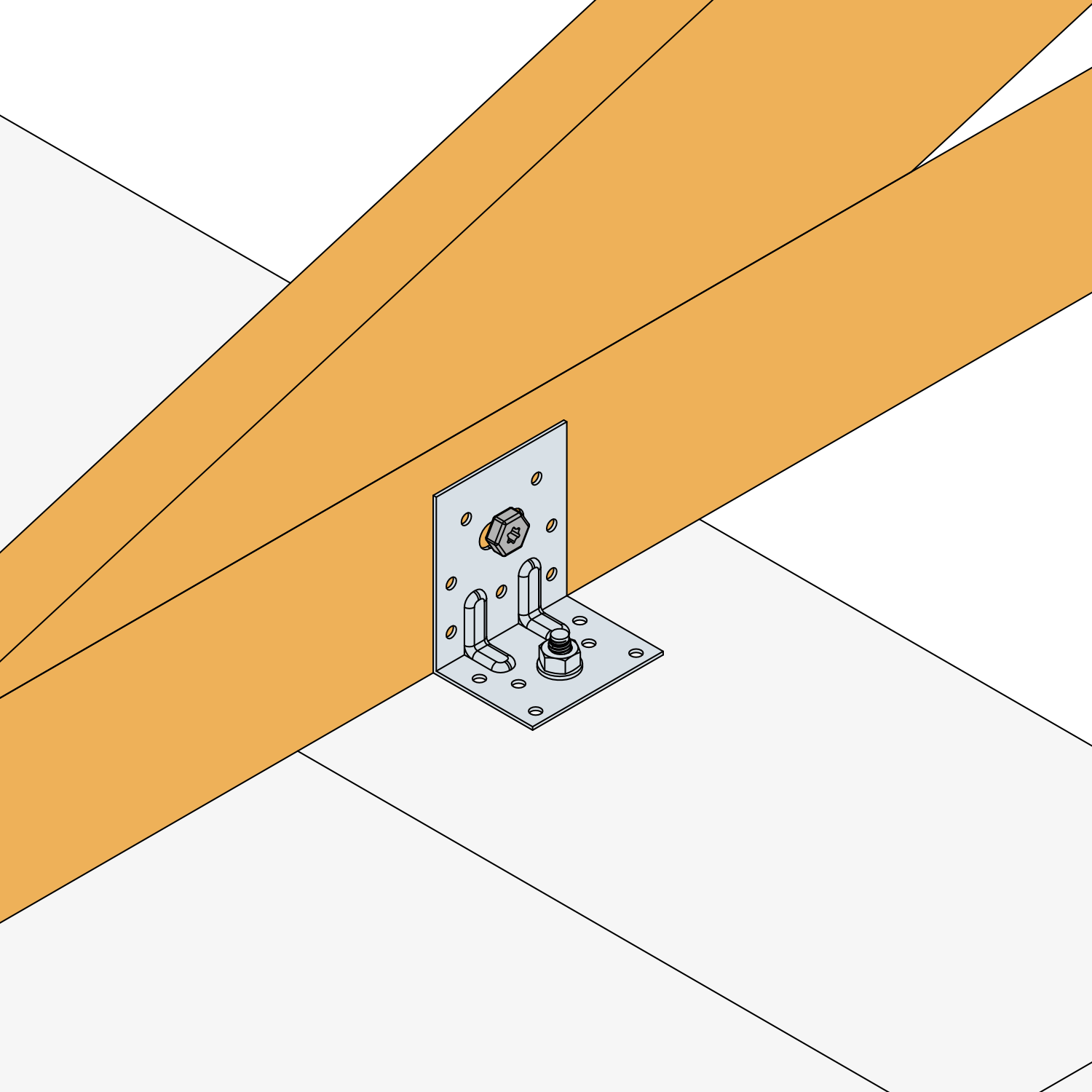

Instalace

Instalace

Befestigung

On wood:

  • CNA annular ring-shank nails dia. 4.0 x 35 or dia. 4.0 x 50 mm.
  • CSA screws dia. 5.0 x 35 mm or CSA screws dia. 5.0 x 40 mm.
  • Bolts.
  • LAG screws.

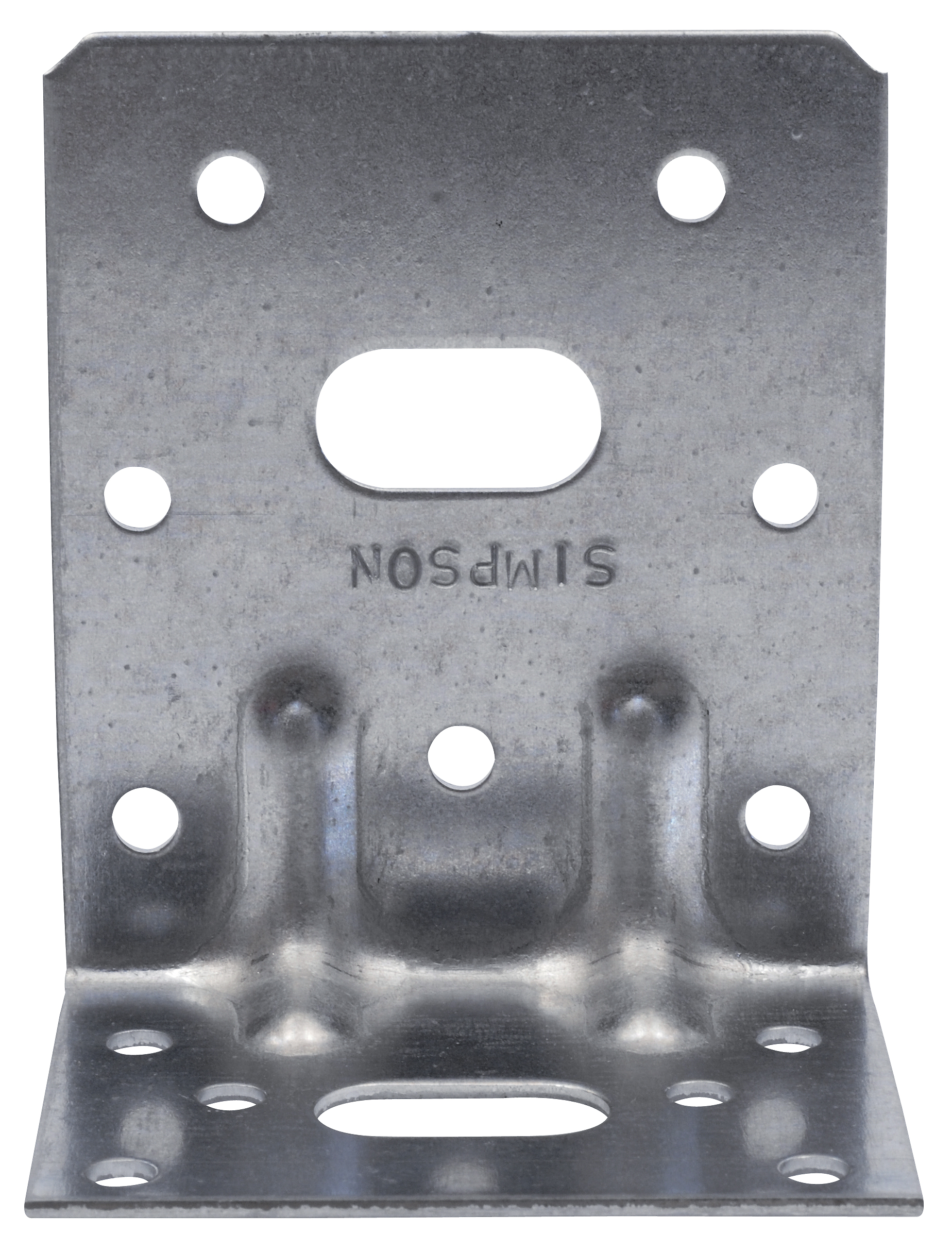

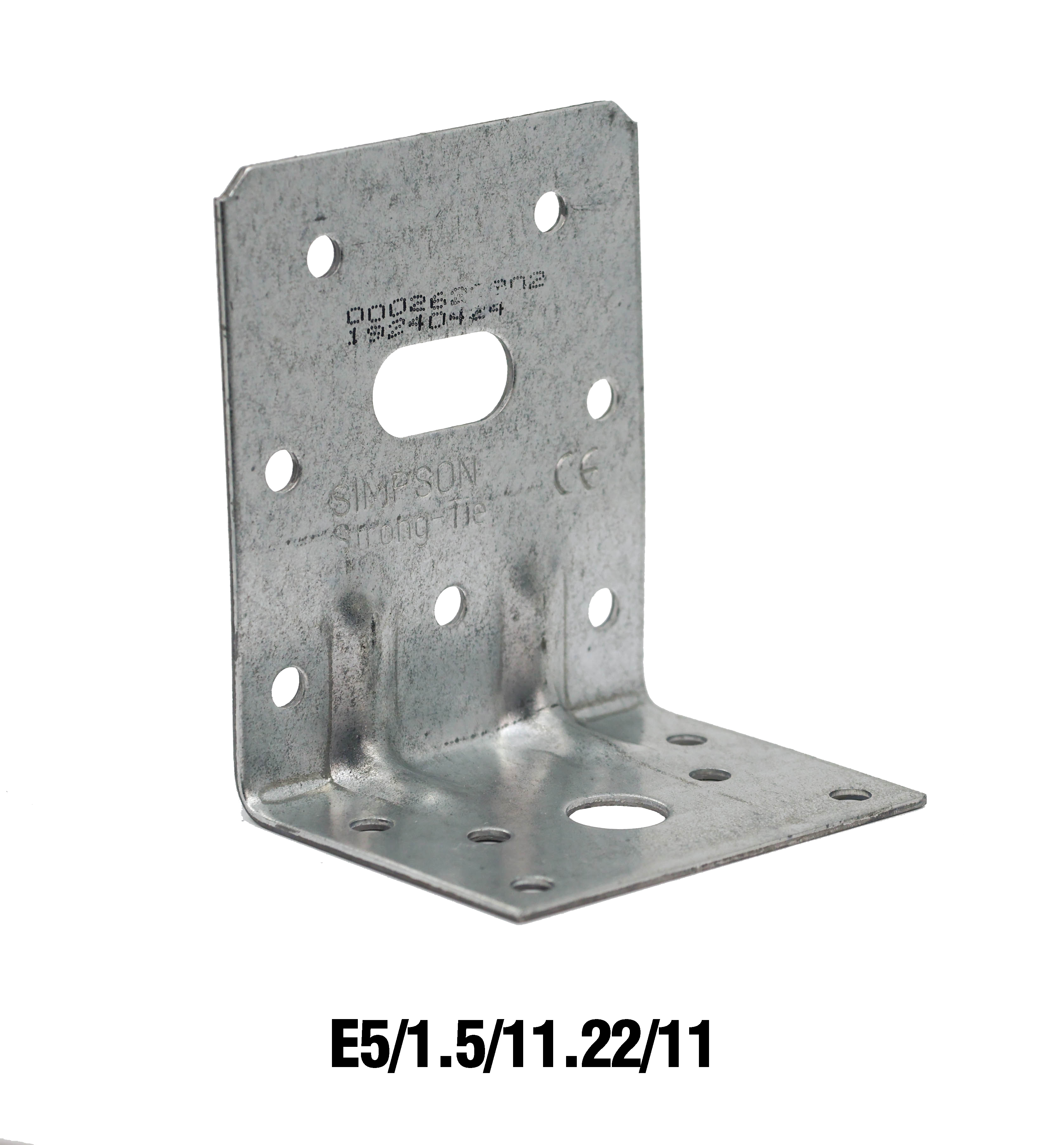

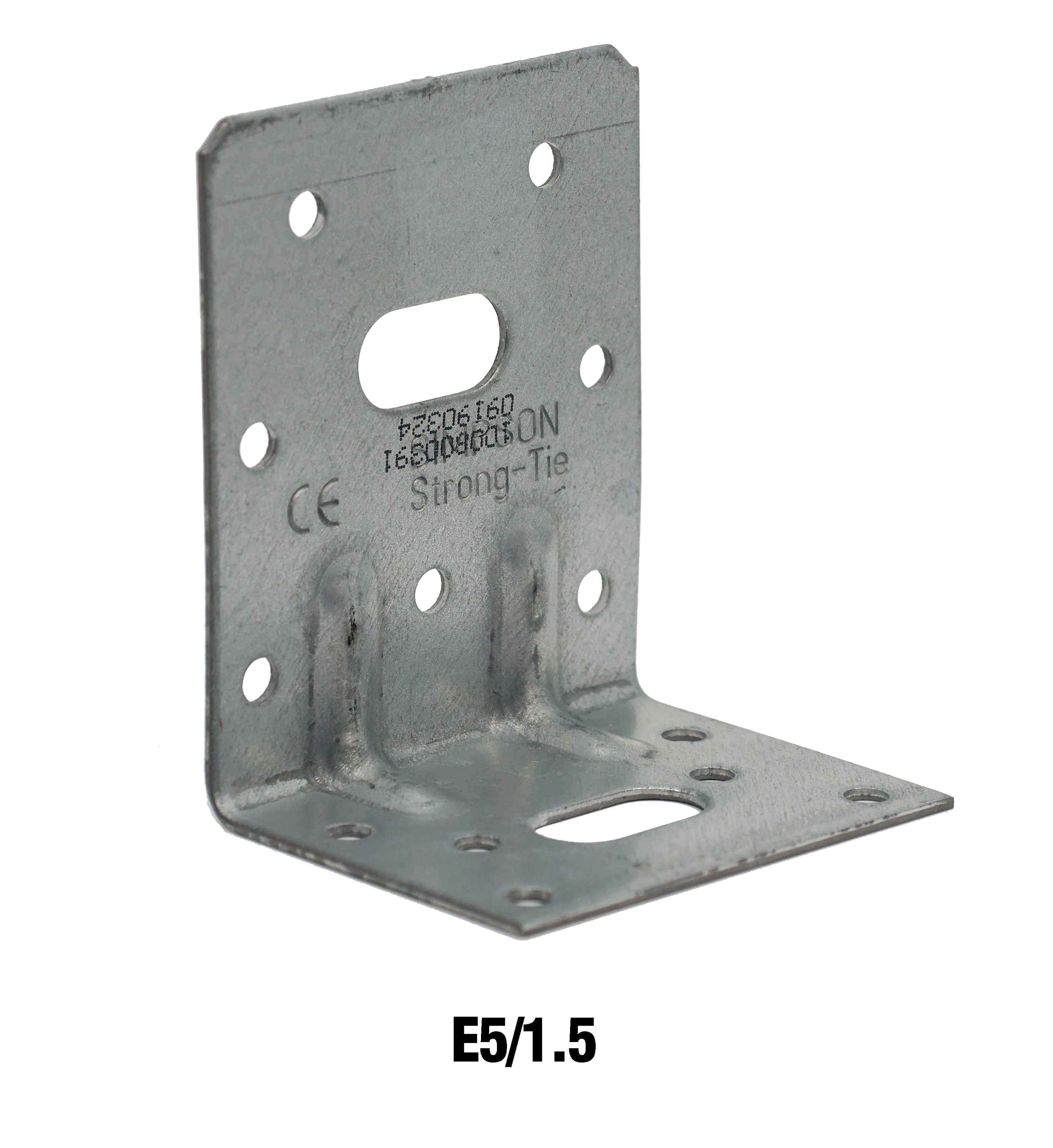

  • SSH Ø 10.0 x 40 mm (for E5/1.5 and E5/1.5/11.22/11)

On concrete:
Concrete substrate

  • Mechanical anchor: WA M10-78/5 OR WA M12-104/5 pin.
  • Chemical anchor: AT-HP resin + LMAS M10-120/25 or LMAS M12-150/35 threaded rod.

Hollow masonry substrate:

  • Chemical anchor: AT-HP or POLY-GP resin + LMAS M10-110/35 threaded rod with SH16x130 screen or LMAS M12-150/35 with SH20130 screen

On steel:

  • Bolts.

Technické poznámky

Informations

F1: tensile force in the central axis of the angle-bracket
Particular situation of a fastening with only one angle-bracket:

  • If the overall structure prevents the rotation of the purlin or the post, the tensile strength is equal to half of the given value for two angle-brackets.
  • Otherwise, the connection resistance depends on the « f » distance between the vertical contact surface and the point of load application.

F2 and F3: shear lateral force
Particular situation of a connection with only one angle-bracket:

  • The resistance value to consider is equal to half of the one given for two angle-brackets.

F4 and F5: transversal force directed towards or opposite the angle-bracket

  • The connection resistance depends on the « e » distance between the base of the angle-bracket and the point of load application.
  • To consult corresponding loads, contact us.

Only F1, F2 and F3 forces for connections with 2 angle-brackets are present on this sheet.
For more information, contact us
.
