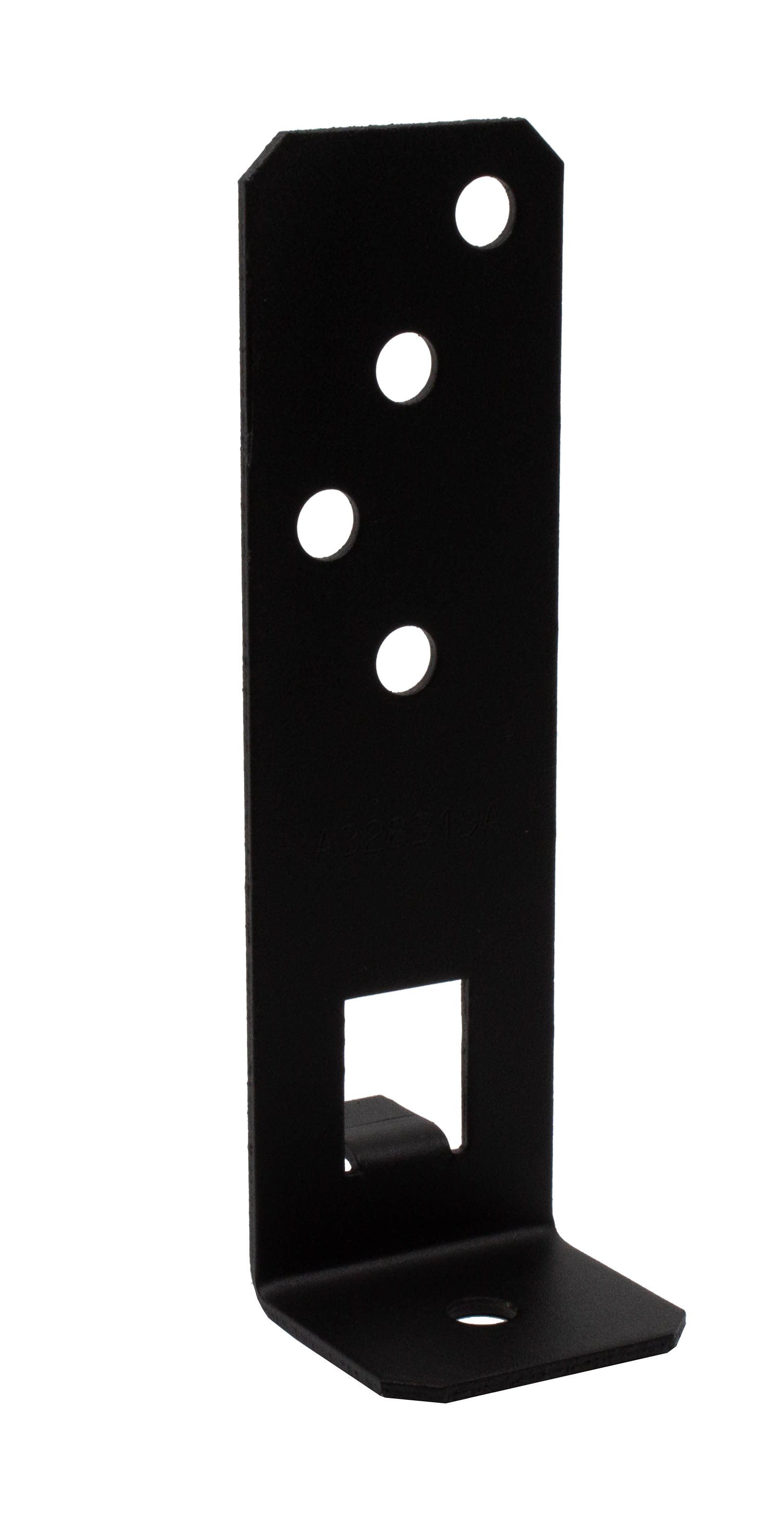

PPG60/25PB

Garden post base for variable width painted black

PPG60/25PB is a garden postbase suitable for project with variable post base widths. 2 PPG60/25PB are required for square posts up to 150x150 mm. 4 PPG60/25PB are required for square larger posts up to 250x250 mm

Servisní třída 3
Exteriér
Acier RAL 9005

Podrobnosti produktu

Obrázky

Vlastnosti

Material

  • Galvanized steel S250GD + ZM310
  • ​Painted black RAL9005

Benefits

  • High corrosion resistance for use under service class 3 conditions
  • Black paiting : discrete

Aplikace

Header member

  • Header: timber, concrete
  • Joist: timber, glulam,

Field of use

  • Fences, light garden structures

Technické údaje

Rozměry

Rozměry a typické hodnoty

Art. nr. Rozměry a typické hodnoty [mm] Otvory
A B C D t Top part Plate
Ø12 Ø12
PPG60/25PB200556025341

Instalace

Instalace

Fasteners

  • On timber post: SSH Ø10, Ø10 bolt

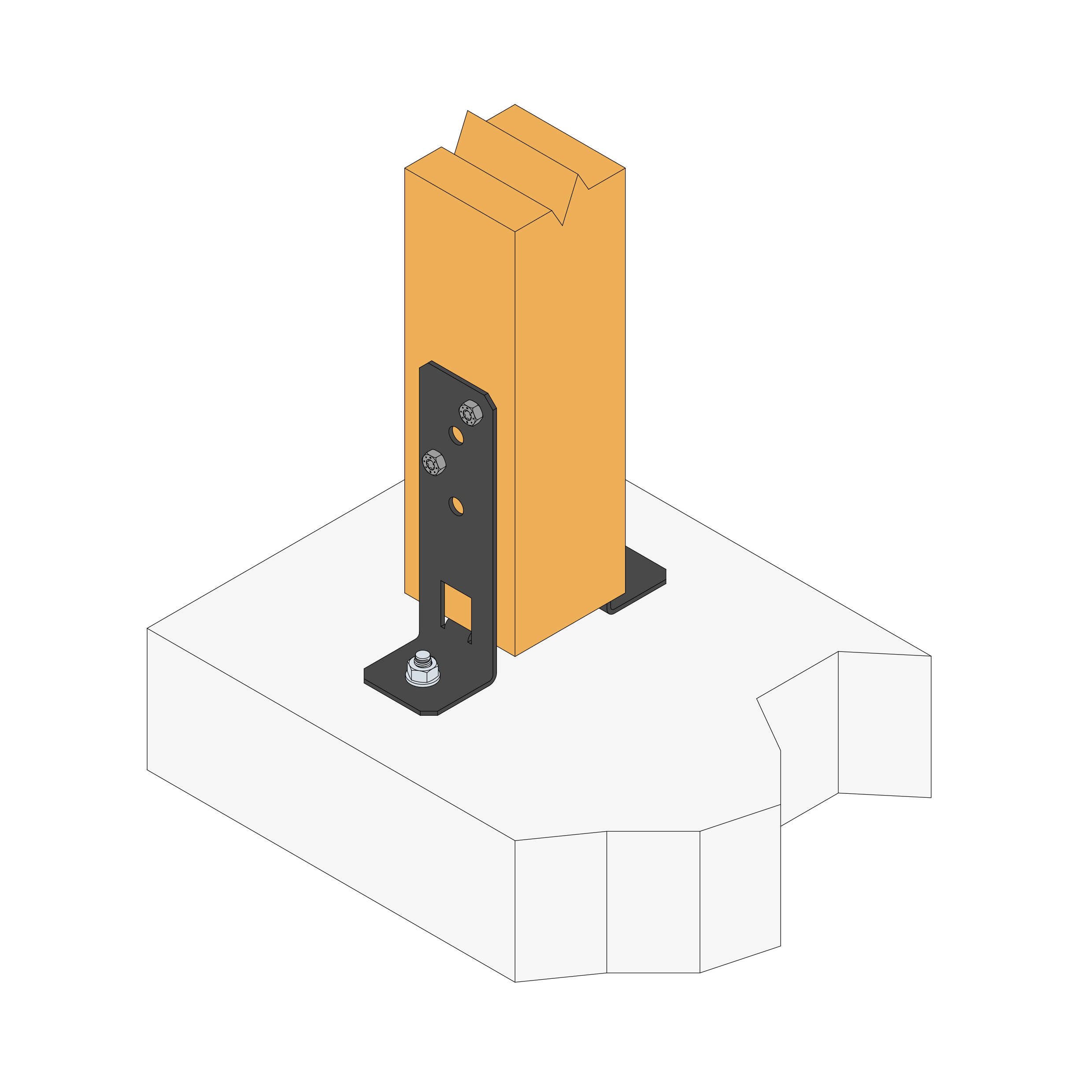

  • On concrete: anchor bolt WA M10-78/5

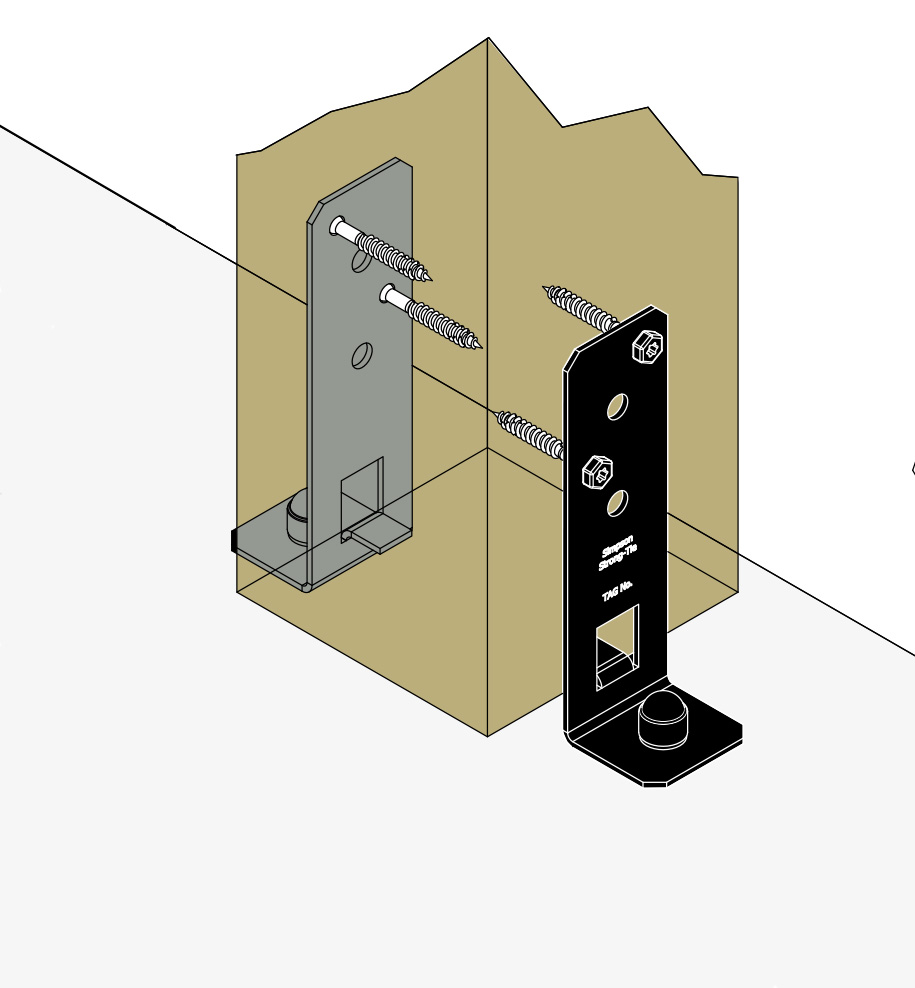

Installation

  • 2 post bases: square post up to 150 x 150 mm
  • 4 post bases: square post up to 250 x 250 mm
