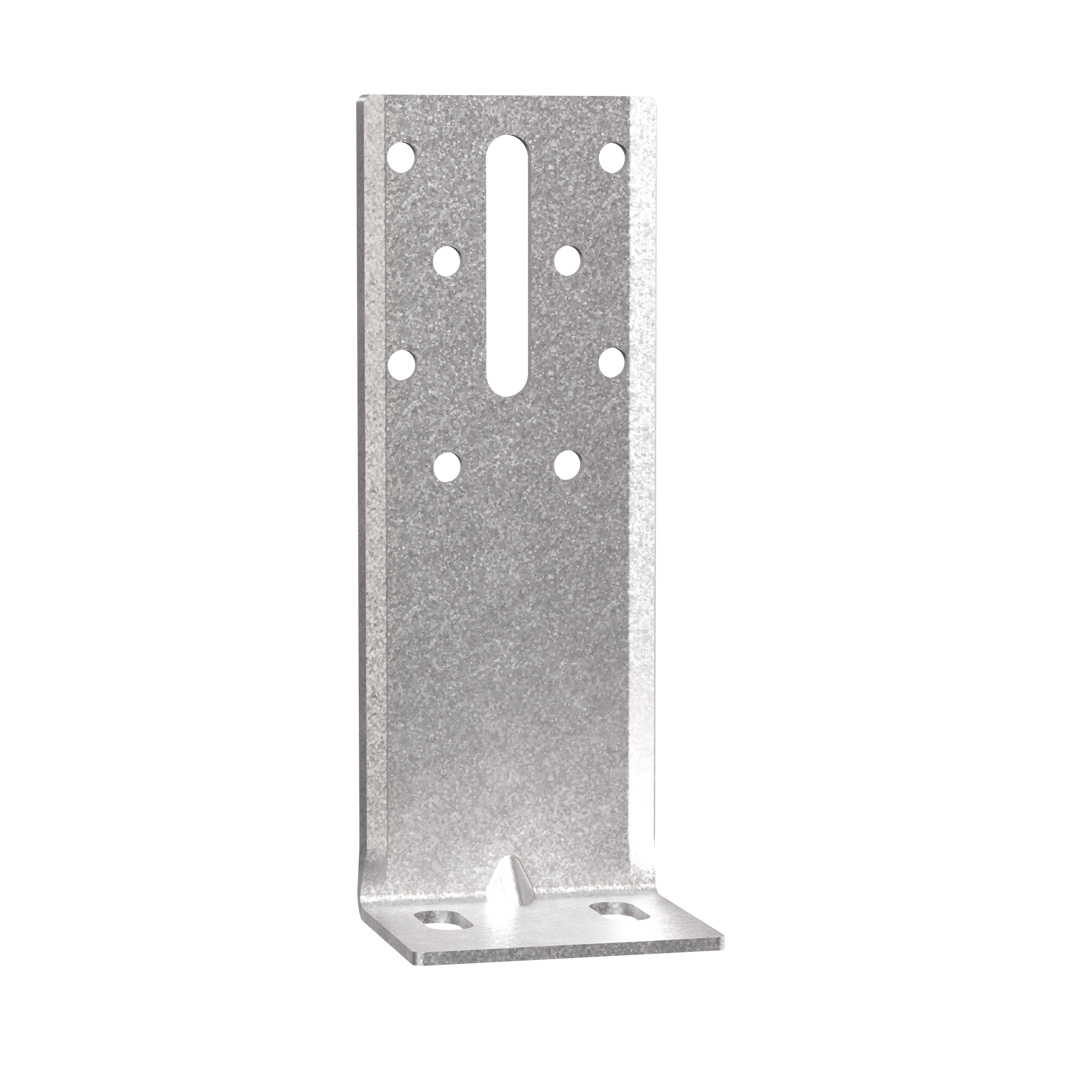

EBCN
Úhelník pro opláštění
The EBCN (previously EBC) angle bracket has been designed to fix vertical battens of facades directly to the supporting structure without the need for additonal battens, it creates a zone for insulation and/or ventilation between the wall and the cladding.
Novinky
Acier galvanisé Z450
Servisní třída 2
Podrobnosti produktu
Obrázky
ABC

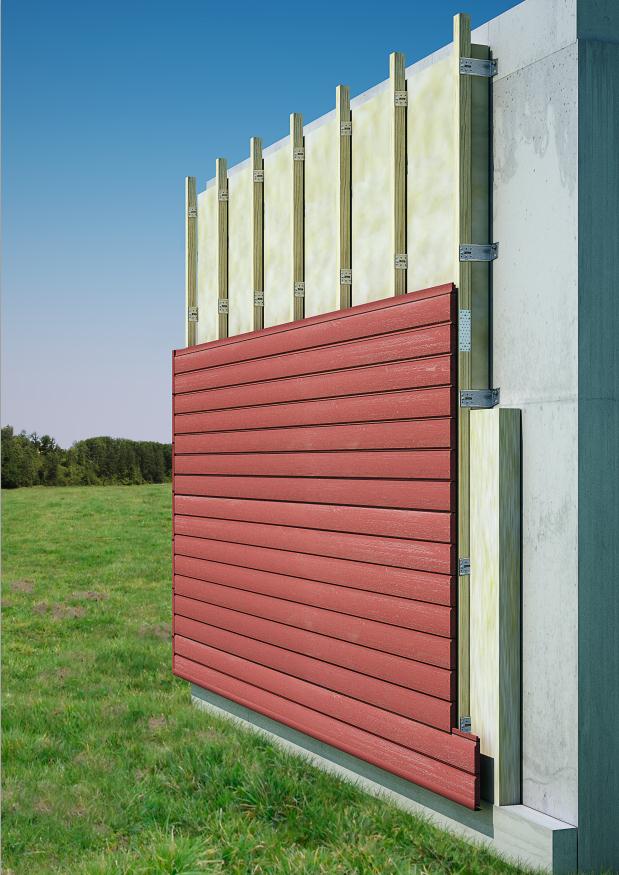

Cladding installation

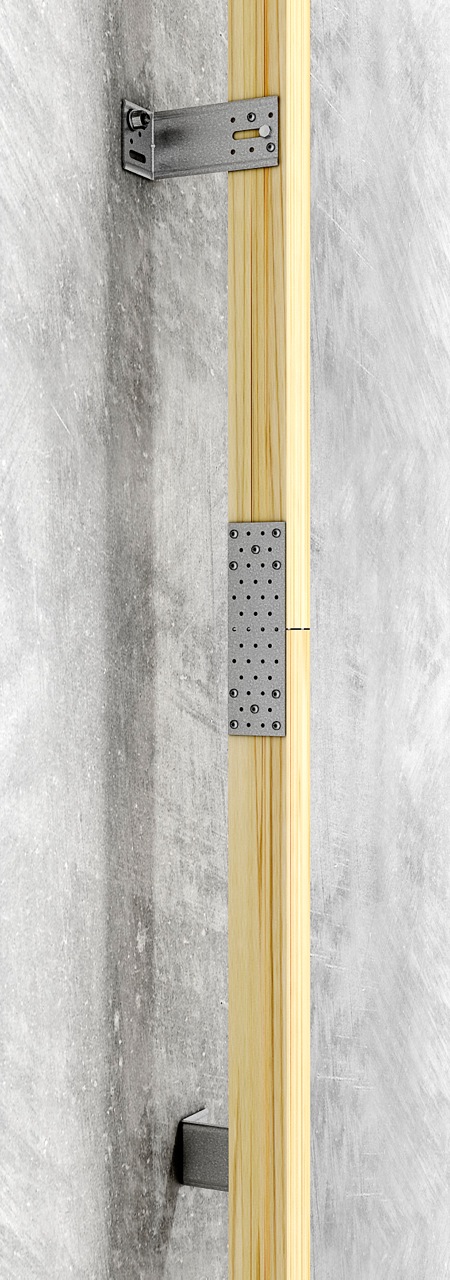

Längsstoss
Vlastnosti
Material
- Pre-galvanised mild steel. S250GD with Z450 coating (acc. to EN10346)
- 2.5 mm thickness
Benefits
- Connect vertical timber batten of steel profile directly to the supporting structure.
- Creates a zone for insulation or ventilation.
- Reduces installation time, materials and cost.
- Coating (Z450) suitable for external use protected from direct rain, in ventilated environment with dist.>200m from coast
- Oblong hole to adjust alignment on the support.
- Oblong hole to adjust the plumb line of the batten/profile,
Aplikace
Header member
- Supporting member: concrete, masonry, etc.
- Supported member: solid wood, etc.
For Use With
- Fastening of timber battens or steel profile, to support exterior cladding (ETICS).
Technické údaje
Product dimensions
Rozměry
| Reference | konektor rozměry | |||||||
|---|---|---|---|---|---|---|---|---|
| ostatní | rozměry výrobku[mm] | nosník | příruba B | |||||
| hmotnost[kg] | A[mm] | B[mm] | C[mm] | tloušťka[mm] | kulatý | oválný | oválný | |
| Ø | rozměr oválný | Ø9x20[mm] | ||||||
| EBCN100/2.5 | 0.19 | 100 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN110/2.5 | 0.2 | 110 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN120/2.5 | 0.22 | 120 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN130/2.5 | 0.23 | 130 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN140/2.5 | 0.24 | 140 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN150/2.5 | 0.25 | 150 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN160/2.5 | 0.26 | 160 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN170/2.5 | 0.28 | 170 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN180/2.5 | 0.29 | 180 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN190/2.5 | 0.3 | 190 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN200/2.5 | 0.31 | 200 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN210/2.5 | 0.32 | 210 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN220/2.5 | 0.34 | 220 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN230/2.5 | 0.35 | 230 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN240/2.5 | 0.36 | 240 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
| EBCN250/2.5 | 0.37 | 250 | 50 | 60 | 2.5 | 8 | 9.0x51 | 2 |
Instalace
Instalace
Fixing
Drill holes: Number and diameter, see table of dimensions.
- Wood rafters :
- 1 LAG lag screw dia. 8-50 + 2 screws anti-rotation 5 x 40 mm. (it can be either TTUFS, TTZNFS or SSH screws)
- 1 SSH Ø 8 x 40 mm + 2 screws anti-rotation Ø 5 x 40 mm.(it can be either TTUFS, TTZNFS or SSH screws)
- Concrete substrate : FM 753 EVO M8-68/5 anchor or FM-X5 8-80/10 nylon plug
- Hollow masonry substrate :FM-X5 8-80/10 nylon plug or chemical anchor: AT-HP or POLY-GP resin + LMAS M8-95/20 threaded rod + SH M16-130 screen.
Connect timber battens.
Cladding installation
ABC
Top view
