EBC

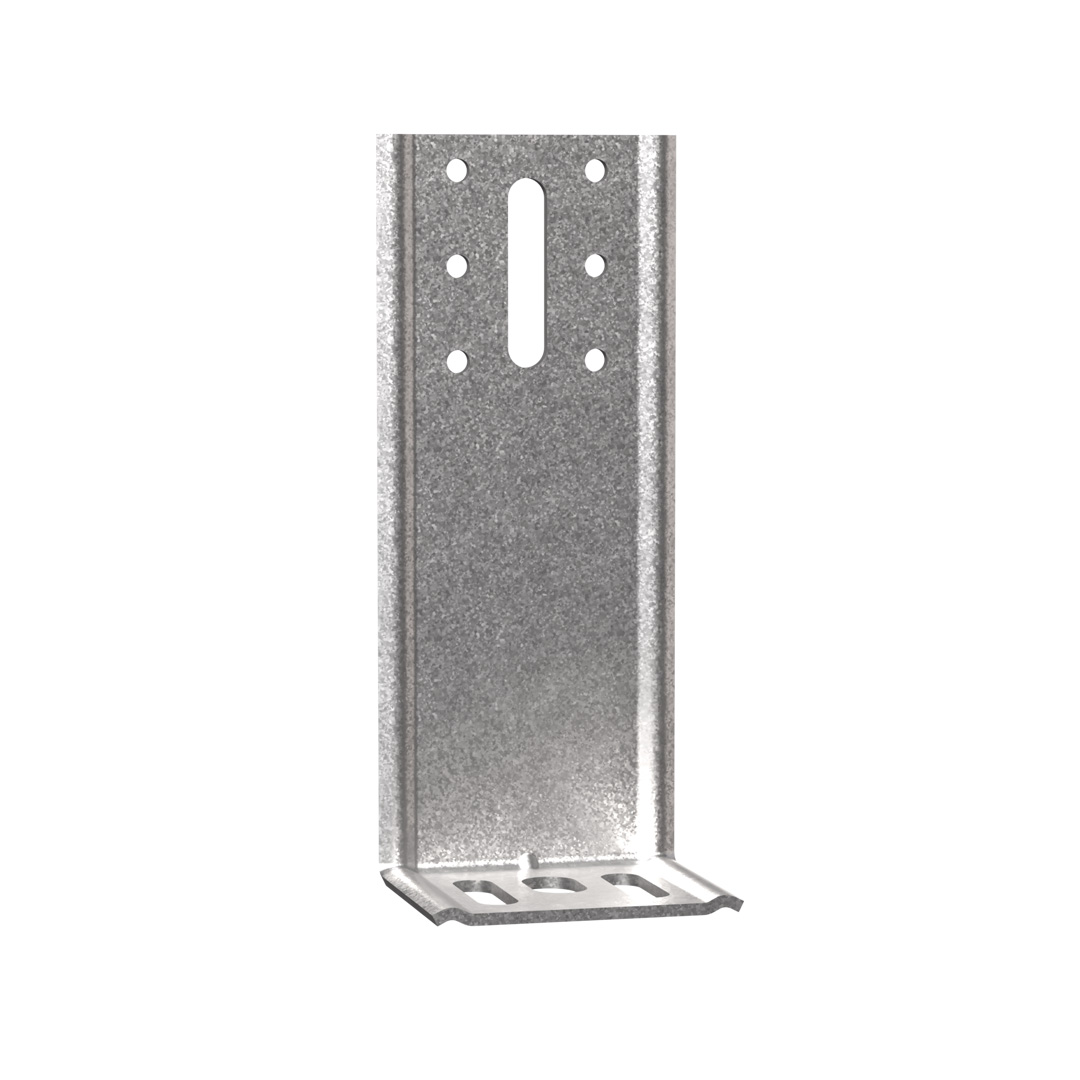

Úhelník pro opláštění

Servisní třída 2
Uvnitř
Acier galvanisé Z350

Podrobnosti produktu

Obrázky

Disposition des équerres
Mise en place d'un pare-pluie
Längsstoss

Vlastnosti

Material

  • Pre-galvanised mild steel.

Benefits

  • Connect vertical battens directly to the supporting structure.
  • No need for horizontal battens.
  • Creates a zone for insulation or ventilation.
  • Reduces installation time, materials and cost.
  • Suitable for cavities 50mm to 145mm.

Aplikace

Header member

  • Supporting member: concrete, masonry, etc.
  • Supported member: solid wood, etc.

For Use With

  • Fastening of battens for exterior cladding.

Technické údaje

Rozměry

Rozměry a typické hodnoty

Art. nr. Rozměry a typické hodnoty [mm] Příruba A Hlava Box Quantity
A B C t Ø5 Ø8,5x40 Ø8,5x30 Ø11,5x20
EBC100/2.59853642.5612150
EBC110/2.510853642.5612150
EBC120/2.511853642.5612150
EBC130/2.512853642.5612150
EBC140/2.513853642.5612150
EBC150/2.514853642.5612150
EBC160/2.515853642.5612150
EBC170/2.516853642.5612125
EBC180/2.517853642.5612125
EBC190/2.518853642.5612125
EBC200/2.519853642.5612125
EBC210/2.520853642.5612125
EBC220/2.521853642.5612125
EBC230/2.522853642.5612125
EBC240/2.523853642.5612150
EBC250/2.524853642.5612150

Instalace

Instalace

Fixing

Drill holes: Number and diameter, see table of dimensions.

  • Wood rafters :
    • 1 LAG lag screw dia. 8-50 + 2 CSA screws anti-rotation dia. 5 x 35 or dia. 5 x 40 mm.
    • 1 SSH Ø 8 x 40 mm + 2 CSA screws anti-rotation Ø 5 x 35 or Ø 5 x 40 mm.
  • Concrete substrate : WA-M8 65/5 anchor or mechanical anchor HIPC 8-60/20
  • Hollow masonry substrate : chemical anchor: AT-HP or POLY-GP resin + LMAS M8-95/20 threaded rod + SH M16-130 screen.
