Nail plate for CLT

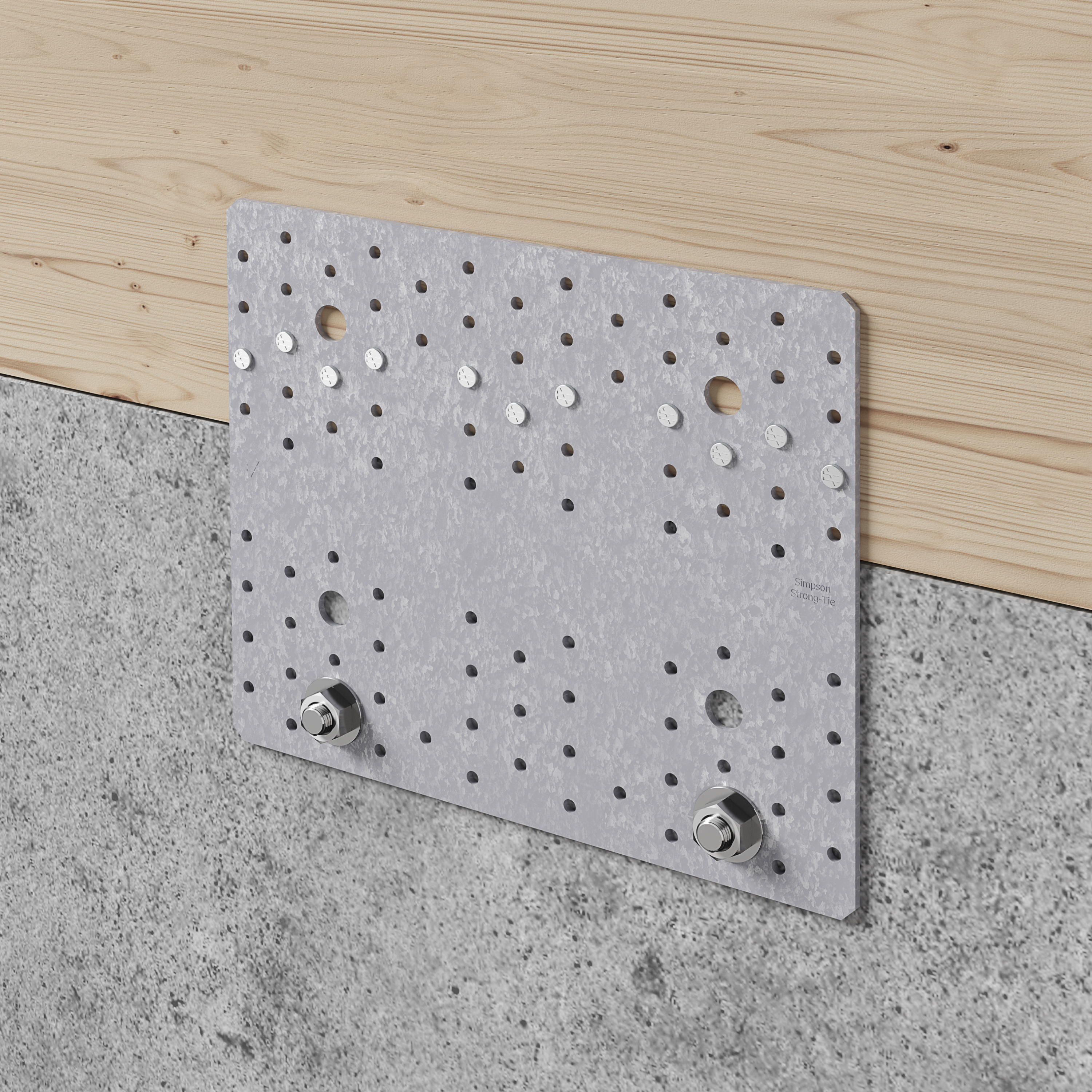

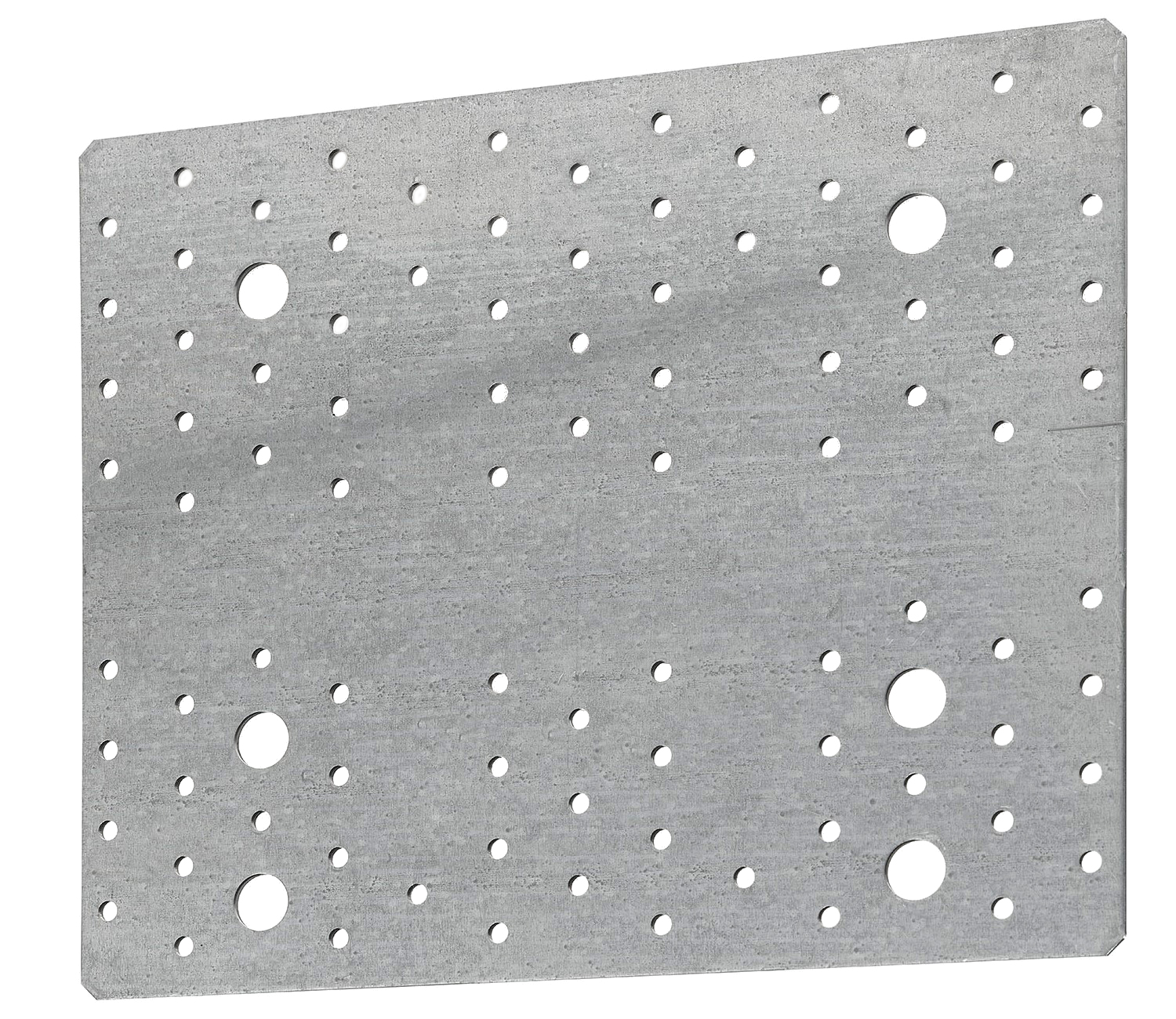

The NPB255 nail plate have been designed especially for CLT building. Flexible, the installation is helped by a line that indicate where to place the plate.





Podrobnosti produktu
Vlastnosti
Materiál
Kvalita oceli:
- S 250 GD+Z 275 dle norem DIN EN
Ochrana proti korozi:
275 g/m pozinkováno z obou stran cca 20mm
Vorteile
- Ideal for CLT building
- Easy installation with the line on it
- Can be used on timber and concrete support
- High capacity
Aplikace
Anwendungsbereich
- Velmi užitečné napínátko pro zavětrovací pásky o rozměrech 40x2,0mm.
- Mohou být použity k 60mm široké zavětrovací pásce, ale pro tento rozměr doporučujeme BANSTRS.
- Zavětrovací páska musí být přichycena hřebíky
Technické údaje

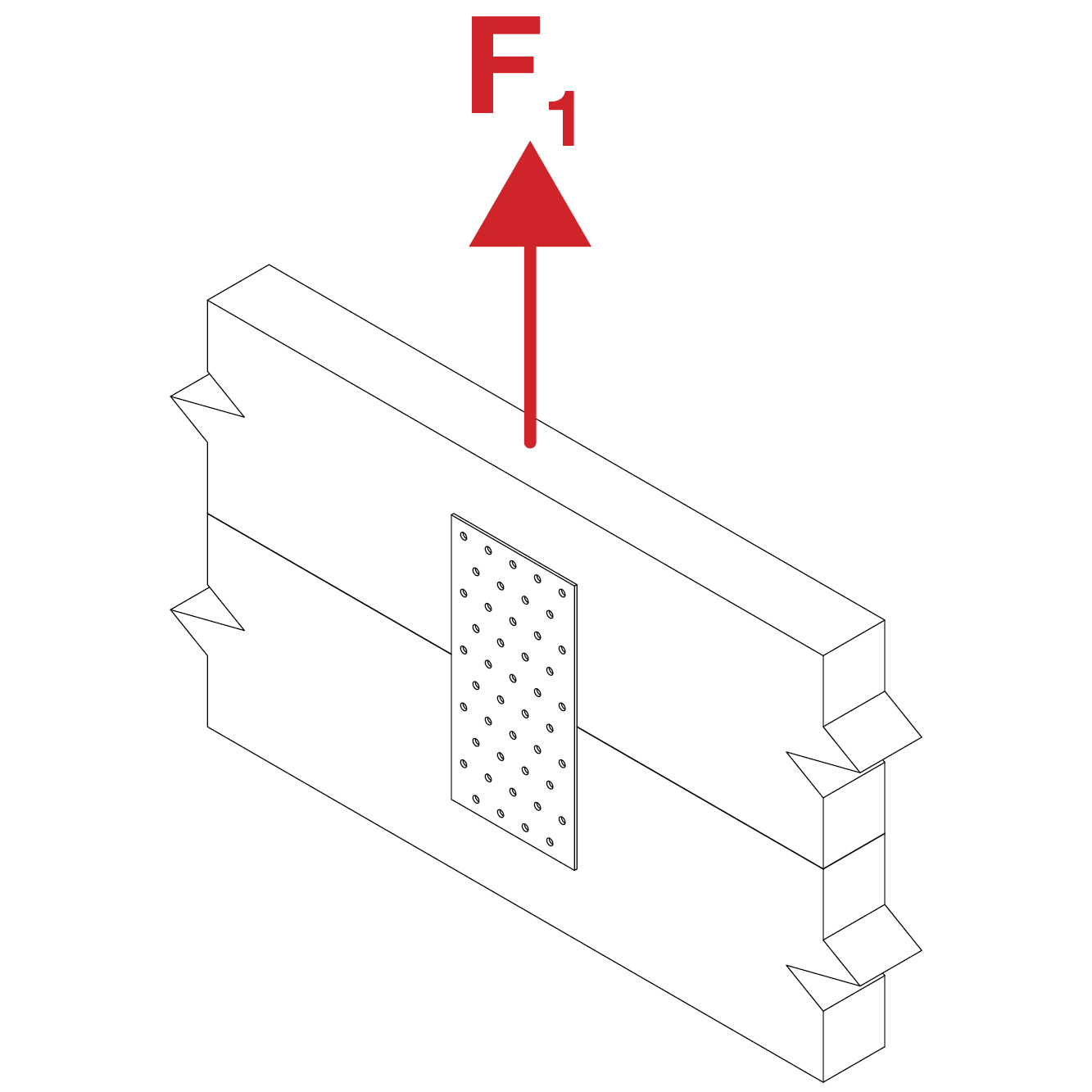

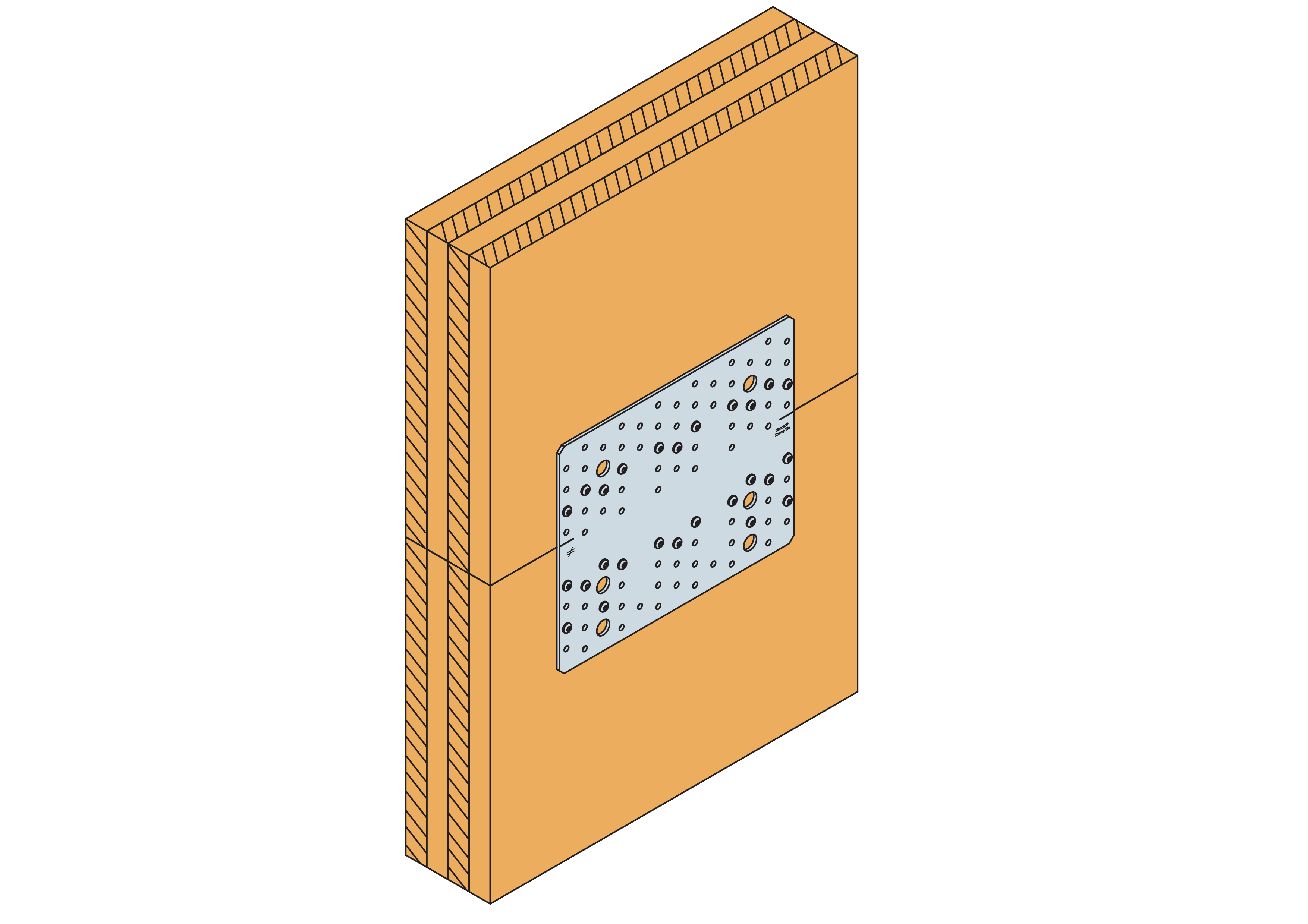

Connection timber to timber
Art. nr. | Product capacities - Timber to timber or CLT to CLT | |||||
---|---|---|---|---|---|---|
Upevňovací prvky | Charakteristické kapacity - dřevo C24 [kN] | |||||
Top part | Bottom part | R1.k | R2.k | |||
CNA4.0x50 | CSA5.0x50 | CNA4.0x50 | CSA5.0x50 | |||
NPB255 NP 1 | 11 | 15 | 23.9 | 27.6 | 20.8 | 24 |
NPB255 NP 2 | 13 | 15 | 28.3 | 32.6 | 19.4 | 22.3 |
NPB255 NP 3 | 30 | 31 | 66.5 | 78.9 | 33.9 | 40.2 |
NPB255 NP 4 | 24 | 28 | 53.2 | 63.1 | 27.7 | 32.9 |
NPB255SO NP 5 | 30 | 31 | 66.5 | 78.9 | 25 | 29.7 |
The connection for timber can also be apply for CLT connection. The distances to the border have to considered in relation to the direction of fibre.
The nail pattern NP 1 to 5 are described in the pdf document available in the installation tab.

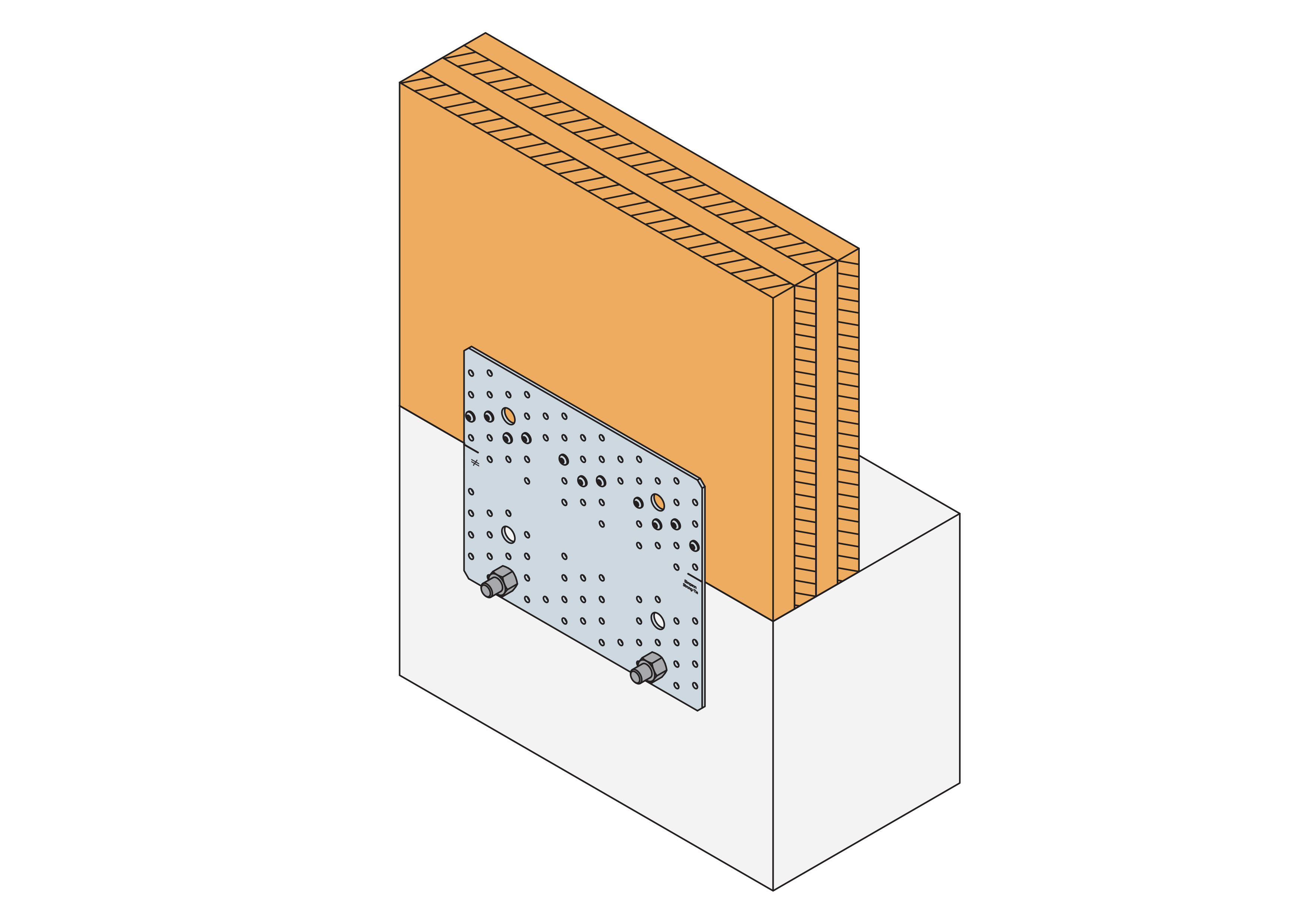

Connection timber to rigit support
Art. nr. | Product capacities - timber or CLT to Rigid support | ||||||
---|---|---|---|---|---|---|---|
Fasteners | Product characteristic capacities - Timber C24 [kN] | f [mm] | |||||
Top part | Bottom part | R1.k | R2.k | ||||
CNA4.0x50 | CSA5.0x50 | CNA4.0x50 | CSA5.0x50 | ||||
NPB255 NP 6 | 11 | 2 | 23.9 | 27.6 | 22.8 | 26.3 | 115 |
NPB255 NP 7 | 13 | 2 | min (37,1 /kmod ; 28,9) | min (37,1 /kmod ; 34,2) | min (21,1 /kmod ; 19,3) | min (21,1 /kmod ; 22,9) | 120 |
NPB255 NP 8 | 30 | 2 | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) | min (27,8 /kmod ; 28,4) | min (27,8 /kmod ; 33,7) | 70 |
NPB255 NP 9 | 19 | 2 | min (37,1 /kmod ; 42,2) | min (37,1 /kmod ; 50,0) | min (21,1 /kmod ; 24,0) | min (21,1 /kmod ; 28,4) | 100 |
NPB255SO NP 10 | 24 | 2 | min (37,1 /kmod ; 52,2) | min (37,1 /kmod ; 60,2) | 22.2 | 25.6 | 120 |
NPB255SO NP 11 | 26 | 2 | min (37,1 /kmod ; 56,6) | min (37,1 /kmod ; 65,3) | 21.5 | 24.8 | 120 |
NPB255SO NP 12 | 30 | 2 | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) | min (27,8 /kmod ; 21,3) | min (27,8 /kmod ; 25,2) | 115 |
NPB255SO NP 13 | 30 | 2 | min (37,1 /kmod ; 66,6) | min (37,1 /kmod ; 78,9) | min (23,2 /kmod ; 25,5) | min (23,1 /kmod ; 30,2) | 100 |
The connection for timber can also be apply for CLT connection. The distances to the border have to considered in relation to the direction of fibre. The connection to concrete has to be check for the anchors and the distances.
The ancorage of the bolts M12 has to check with the relavant distances.
The force F2 has to considered with the lever arm "f" , which is given in the table. Ist also to find in the dpf with the nailing pattern.
The nail pattern NP 6 to 13 are described in the pdf document given first line on the installation tab.
Instalace
Instalace
Befestigung
On timber:
- CNA 4.0x50 on timber
- CSA 5.0x40 or CSA 5.0x50 screws
On concrete:
- Mechanical anchor: WA M12-104/5
- CHemical anchor: AT-HP resin + LMAS M12-150/35 threaded rod
Anwendungsbereich
- Velmi užitečné napínátko pro zavětrovací pásky o rozměrech 40x2,0mm.
- Mohou být použity k 60mm široké zavětrovací pásce, ale pro tento rozměr doporučujeme BANSTRS.
- Zavětrovací páska musí být přichycena hřebíky
