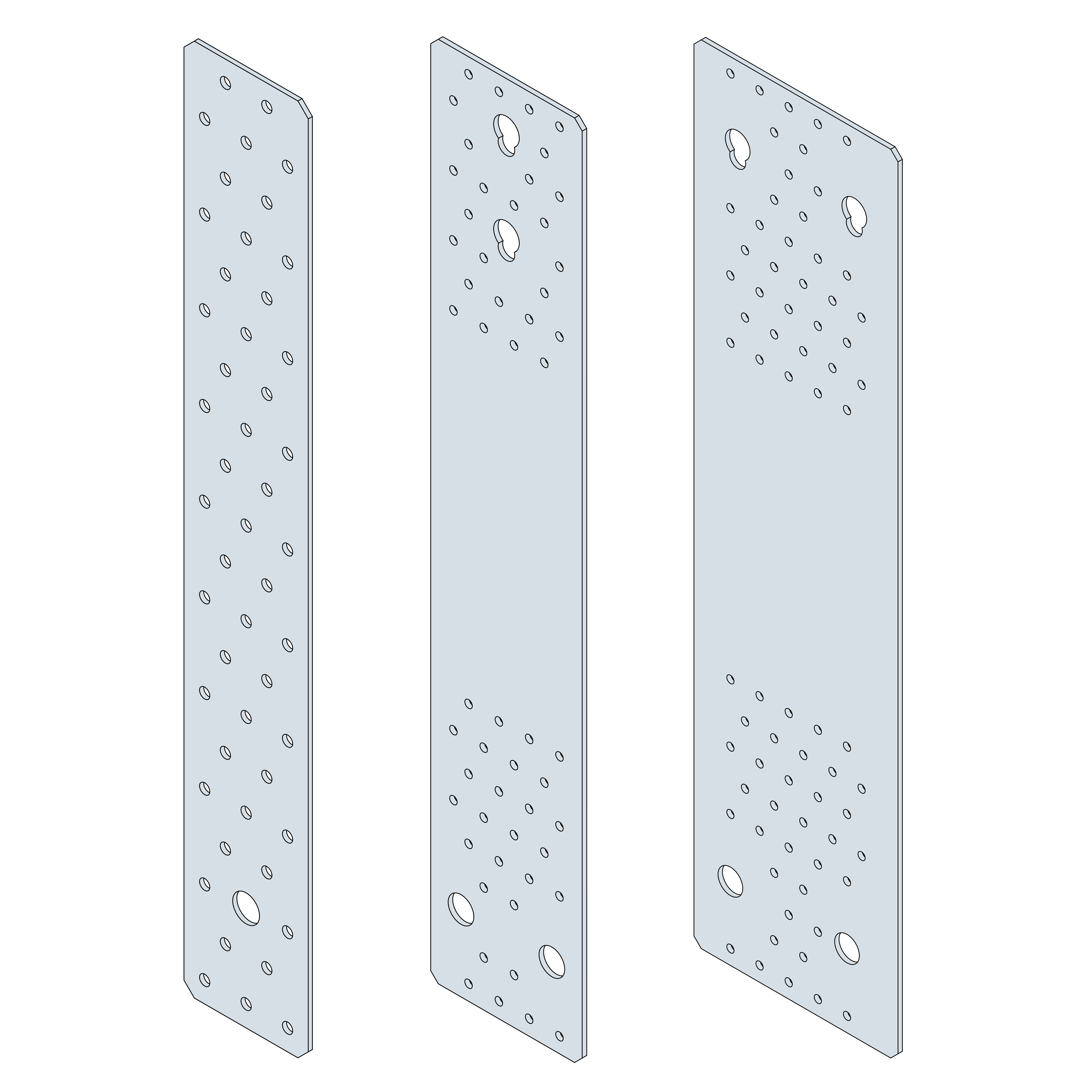

NPB

Nail plate for CLT

NPB nail plates have been especially designed for CLT building. They allow the installation of CLT panels to CLT support or concrete support.

Označení CE
Označení CE
Novinky
Novinky
EPD
EPD
Servisní třída 2
Servisní třída 2
Pozinkovaná ocel Z275
Pozinkovaná ocel Z275
Uvnitř
Uvnitř

Podrobnosti produktu

Vlastnosti

Material

  • Pre-galvanised steel S250GD + Z275 according to standard NF EN 10346
  • Thickness 2 and 3 mm

Advantages

  • Ideal for CLT building,
  • Great versatility: can be fixed on a wooden support and a concrete support,
  • High capacity for vertical force directions.

Aplikace

Application

  • Cross laminated panels (CLT),
  • Solid panels...

Technické údaje

Dimensions

Rozměry

Referencekonektor rozměry
rozměry výrobku[mm]nosníkotvory[mm]ostatní
A[mm]B[mm]tloušťka[mm]kulatýkulatýmnožství v krabicihmotnost[kg]
Ø[mm]nØ17
NPB60400604002491-100.36
NPB100540100540326+282 (Ø14)2101.2
NPB140540140540336+36-2+2101.7

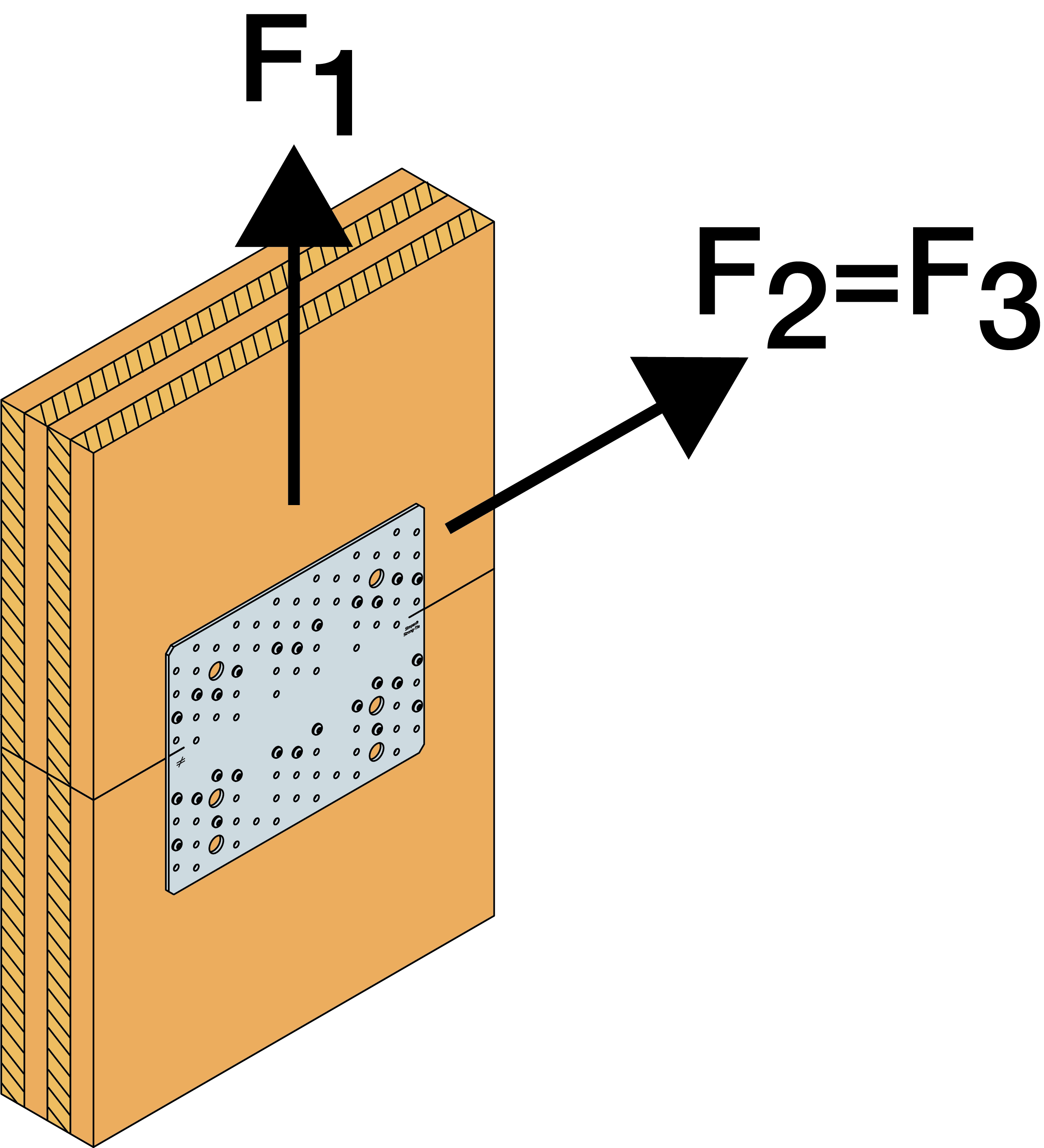

Product characteristic capacities - CLT to CLT

Referencehřebík plates únosnost
výrobek capacities - dřevo to Rigid podpora - Nailing pattern 1
počet of Fastenersvýrobek characteristic capacities - dřevo C24[kN]
Top partBottom partR₁,ₖR₂,ₖ=R₃,ₖ
CNA4.0x50CSA5.0x50CNA4.0x50CSA5.0x50
NPB60400nnmin (26.7/kmod ; n x 2.22)min (26.7/kmod ; n x 2.63)--
NPB100540nnmin (71.3/kmod ; n x 2.22)min (71.3/kmod ; n x 2.63)--
NPB140540nnmin (102.5/kmod ; n x 2.22)min (102.5/kmod ; n x 2.63)--

n = number of fasteners (CNA or CSA) on the top or bottom part of the plate. This number of fasteners has to be the same on both timber elements.

Distances to the edges of the timber must be checked.

For combinied forces it´s to check: \sum\frac{F_{i,d}} {R_{i,d}}\le1

Product characteristic capacities - CLT to concrete

Referencehřebík plates únosnost
výrobek capacities - dřevo to Rigid podpora - Nailing pattern 2
počet of Fastenersvýrobek characteristic capacities - dřevo C24[kN]
Top partR₁,ₖ
CNA4.0x50CSA5.0x50
NPB60400nmin (20.6/kmod ; n x 2.22)min (20.6/kmod ; n x 2.63)
NPB100540nmin (58.8/kmod ; n x 2.22)min (58.8/kmod ; n x 2.63)
NPB140540nmin (82.4/kmod ; n x 2.22)min (82.4/kmod ; n x 2.63)

n = number of fasteners (CNA or CSA) on the top part of the plate. The distances to the edges of the timber as well as the distances to the edges of the concrete must be checked.

Anchors resistance must also be checked

Instalace

Instalace

Installation

On timber :
1. Approach the two elements to be fixed,
2. Point or screw the plate on the 1st element to be fixed,
3. Point or screw the plate on the 2nd element.

On concrete :
1. Approach the element to be fixed from the concrete support,
2. Point the plate on the element to be fixed,
3. Secure the plate to the concrete with the recommended anchors.

Fasteners

On timber :

  • CNA Ø4.0x50 mm nails
  • CSA Ø5.0x40 or CSA Ø5.0x50 screws

On concrete :

  • Mechanical anchor : WA M12-104/5 anchor
  • Chemical anchor : AT-HP resin + LMAS M12-150/35 threaded rod
