Úhelník
Jsou ideální pro ty spojení, které potřebují přenášet velké síly, jako například krokve, vaznice, dřevěné trámy
Úhelník 40412 jsou silné 4 mm, pro úsporu je zde úhelník AG40312 silný pouze 3 mm






Podrobnosti produktu
Vlastnosti
Material
Kvalita oceli:
-
S250GD+Z275 dle norem DIN EN10346
Ochrana proti korozi:
-
275 g/m pozinkováno z obou stran cca 20mm
Výhody
- Univerzální úhelník pro podporu a konstrukční účely
Aplikace
Použitelné materiály
Dřevo, dřevěné materiály, beton ,ocel
Oblast použití
- Dřevo a dřevěné materiály
Technické údaje
Product Dimensions
| Reference | konektor rozměry | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ostatní | rozměry výrobku[mm] | nosník[mm] | příruba B[mm] | |||||||||
| množství v krabici | hmotnost[kg] | A[mm] | B[mm] | C[mm] | tloušťka[mm] | kulatý | kulatý | |||||
| Ø5[mm] | Ø8.5[mm] | Ø11[mm] | Ø5[mm] | Ø8.5[mm] | Ø11[mm] | |||||||
| AG40312 | 100.0 | 0.18 | 119 | 91 | 40 | 3 | 10 | 1 | 2 | 6 | 1 | 1 |
| AG40412 | 50.0 | 0.24 | 120 | 92 | 40 | 4 | 10 | 1 | 2 | 6 | 1 | 1 |
| AG40314 | 50.0 | 0.21 | 141 | 91 | 40 | 3 | 12 | 1 | 2 | 6 | 1 | 1 |
| AG40414 | 50.0 | 0.28 | 142 | 92 | 40 | 4 | 12 | 1 | 2 | 6 | 1 | 1 |
Product Capacities - Beam to Beam and Beam to Column
| Reference | úhelník únosnost | |||||||
|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to dřevo - Beam to beam - Full nailing | ||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ[kN] | R4/5,k | ||||
| množství | množství | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| AG40312 | 4 | 4 | 3 | 4,2/kmod^0,3 | 3.3 | 5 | 1,3/kmod^0,25 | 1,8/kmod^0,25 |
| AG40412 | 4 | 4 | 3 | 4.9 | 3.2 | 4.4 | 1,4/kmod^0,25 | 2,2/kmod^0,25 |
| AG40314 | 4 | 4 | 3 | 4,2/kmod^0,3 | 3.3 | 5 | 1,3/kmod^0,25 | 1,8/kmod^0,25 |
| AG40414 | 4 | 4 | 3 | 4.9 | 3.2 | 4.4 | 1,4/kmod^0,25 | 2,2/kmod^0,25 |
To obtain the resistance values for a single bracket, the values in the above table should be divided by two, provided that the supported beam is locked in rotation. Please consult our ETA-06/0106 if the beam is free to rotate.

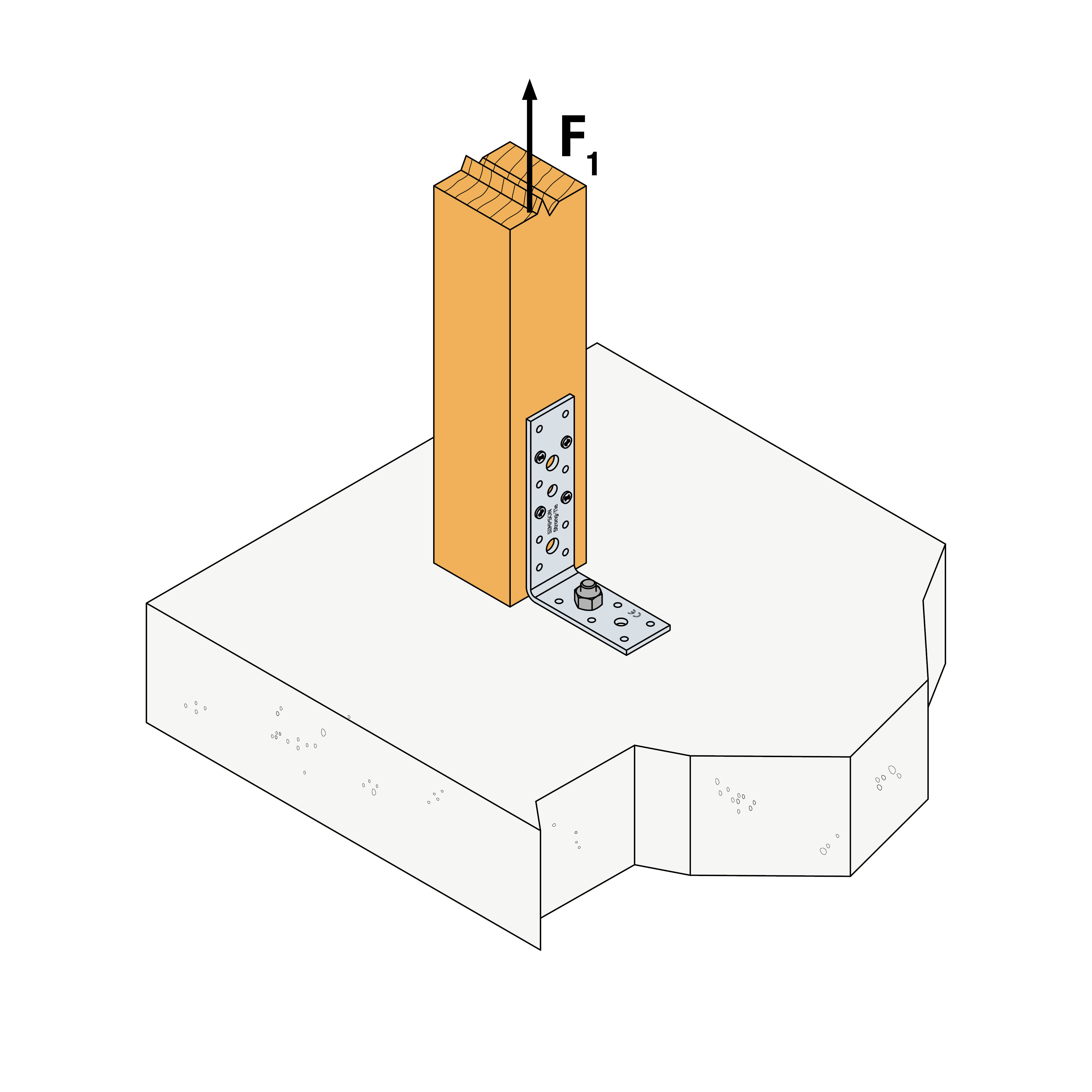

Product Capacities - Beam or Column to concrete
| Reference | úhelník únosnost | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| výrobek capacities - dřevo to beton | ||||||||||
| počet of Fasteners | charakteristická únosnost - 2 angle brackets per connection - full nailing[kN] | |||||||||
| nosník | příruba B | R₁,ₖ | R₂,ₖ=R₃,ₖ | R4/5,k | ||||||
| množství | typ | množství | typ | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
| AG40412 | 4 | CNA | 1 | M10 Bolt | min (10,5 ; 8,1/kmod) | 8,1/kmod | min (1,0 ; 1,0/kmod) | 1,0/kmod | min (4,3 x kmod^0,5 ; 2,9/kmod) | min (4,3 ; 2,9/kmod) |
| AG40414 | 4 | CNA | 1 | M10 Bolt | min (10,5 ; 8,1/kmod) | 8,1/kmod | min (1,0 ; 1,0/kmod) | 1,0/kmod | min (4,3 x kmod^0,5 ; 2,9/kmod) | min (4,3 ; 2,9/kmod) |
The load capacity belongs to a load group with the modification factor kmod.
1) R4/5,k is determined for beam width b = 75 mm and essentricity e = 130 mm. See ETA for other values of b and e.
If the overall structure prevents the rotation of the purlin, the load values R1,k and R2/3,k in an assembly with only one bracket equal to half of the given value in table 2. See ETA if the purlin is able to rotate.
The Bolt must have a characteristic withdrawal strength of min. 10 kN and used with a washer US60/60/6. In case of lower Bolt strengtf, the capacity must be reduced accordingly.
