SIT

Zvukové ložisko

Technický list

Podrobnosti produktu

Obrázky

Exemple de mise en œuvre


Vlastnosti

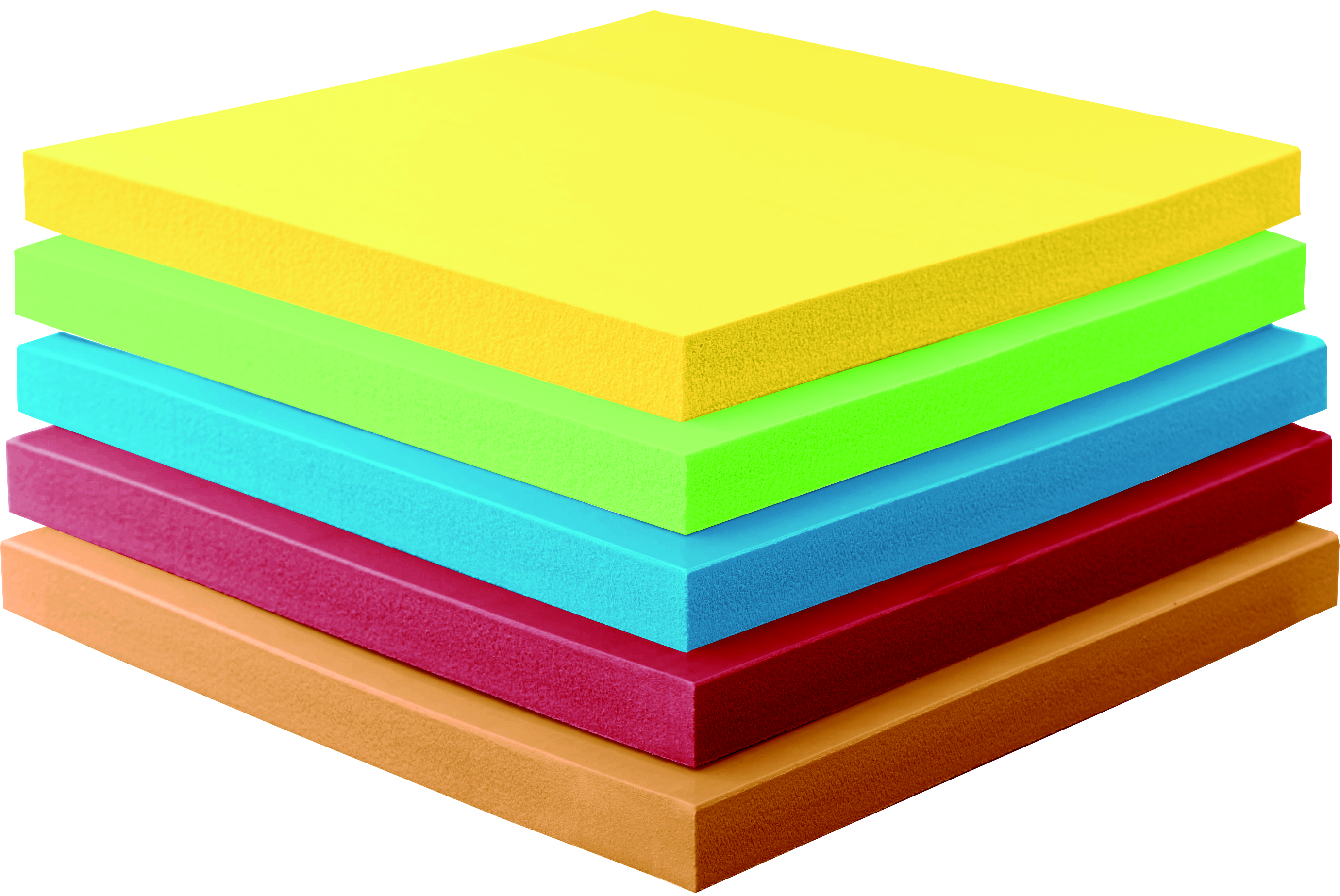

Material

Polyurethane with closed cell structure
Thickness 12.5 mm

Advantages

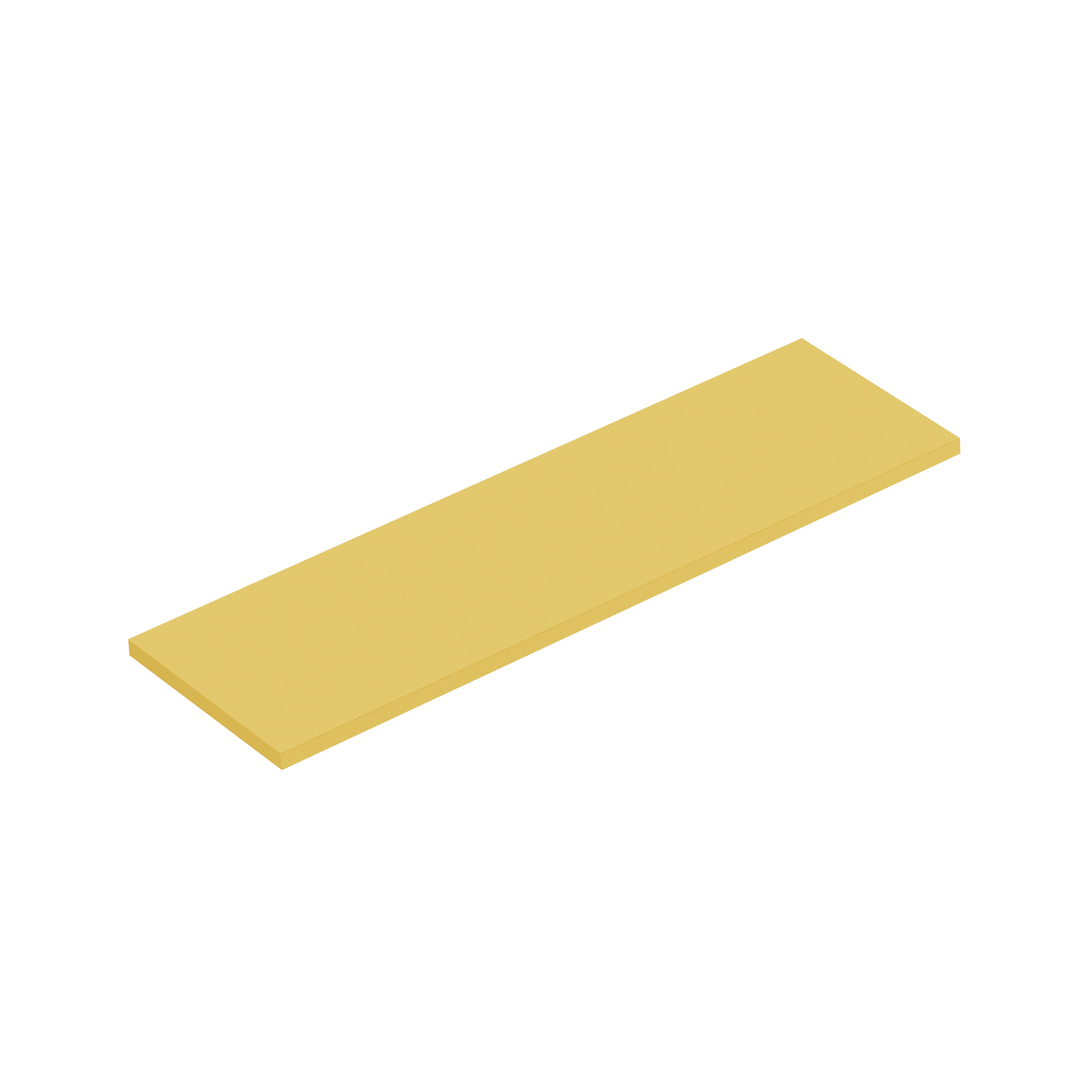

Available in a strip of 2m Length, width can be cut on demand,
Absorbs vibrations
Can be used in humid environments
Estimated service life of 50 years
Improved draught sealing

Aplikace

When to use

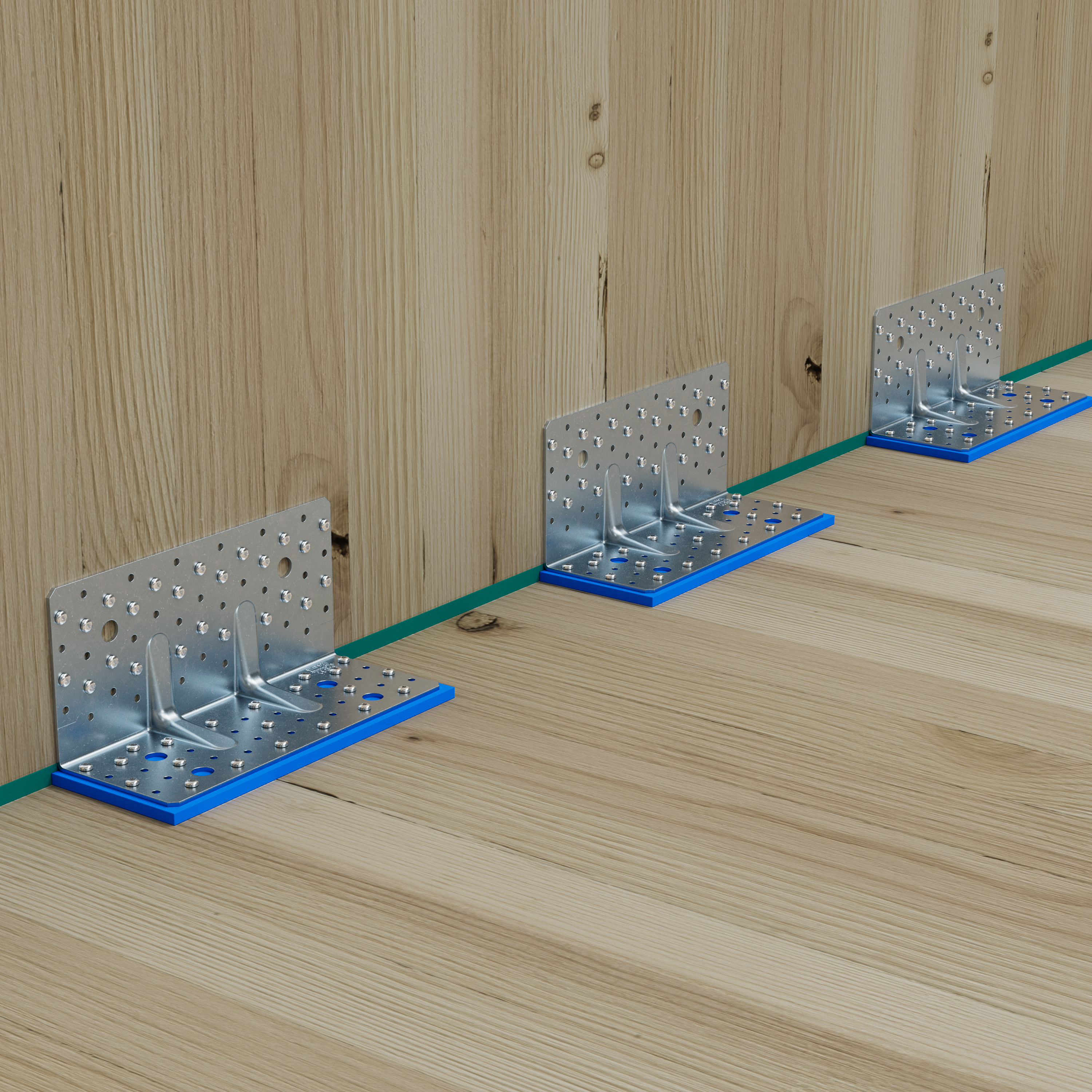

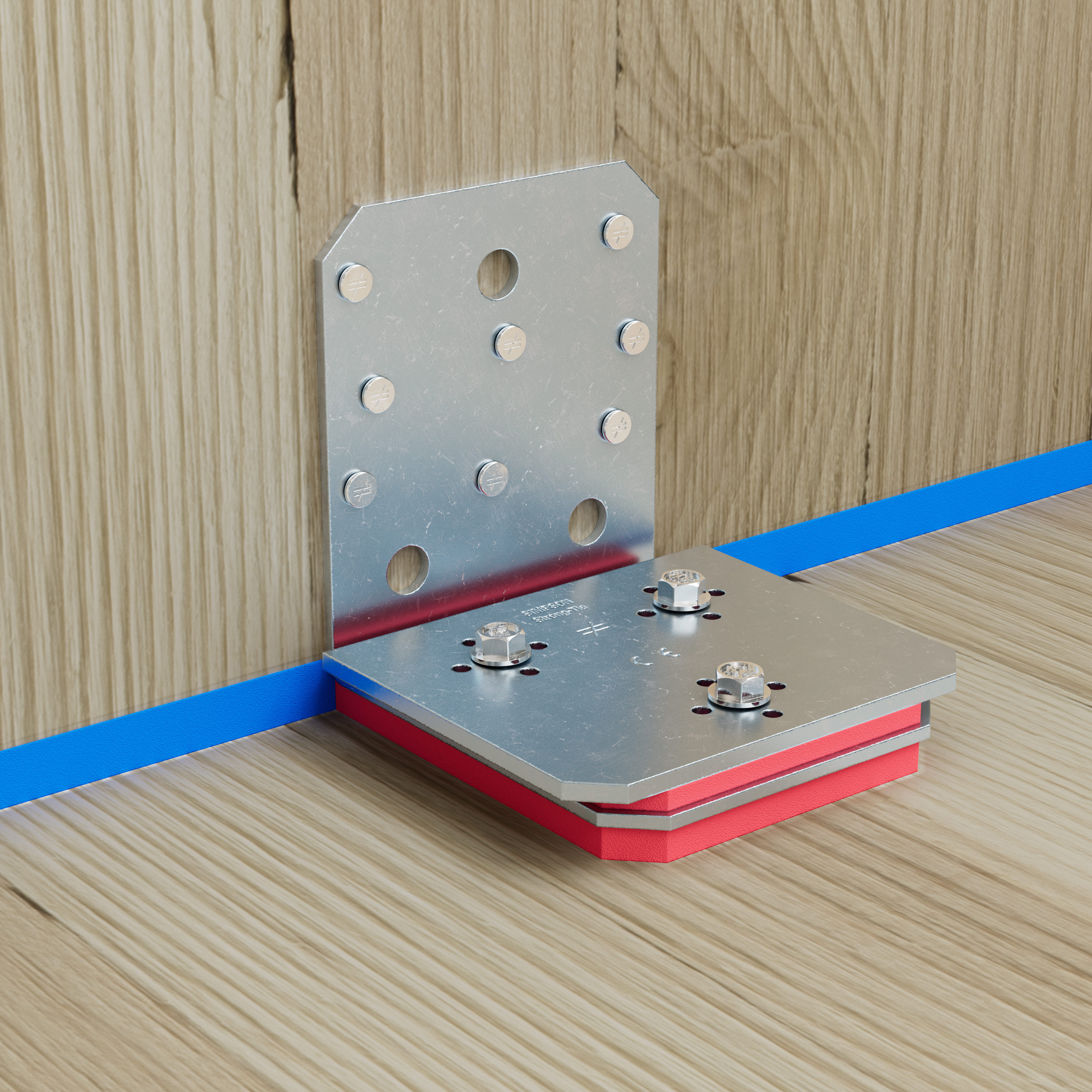

Suitable with Cross Laminated Timber (CLT) Brackets

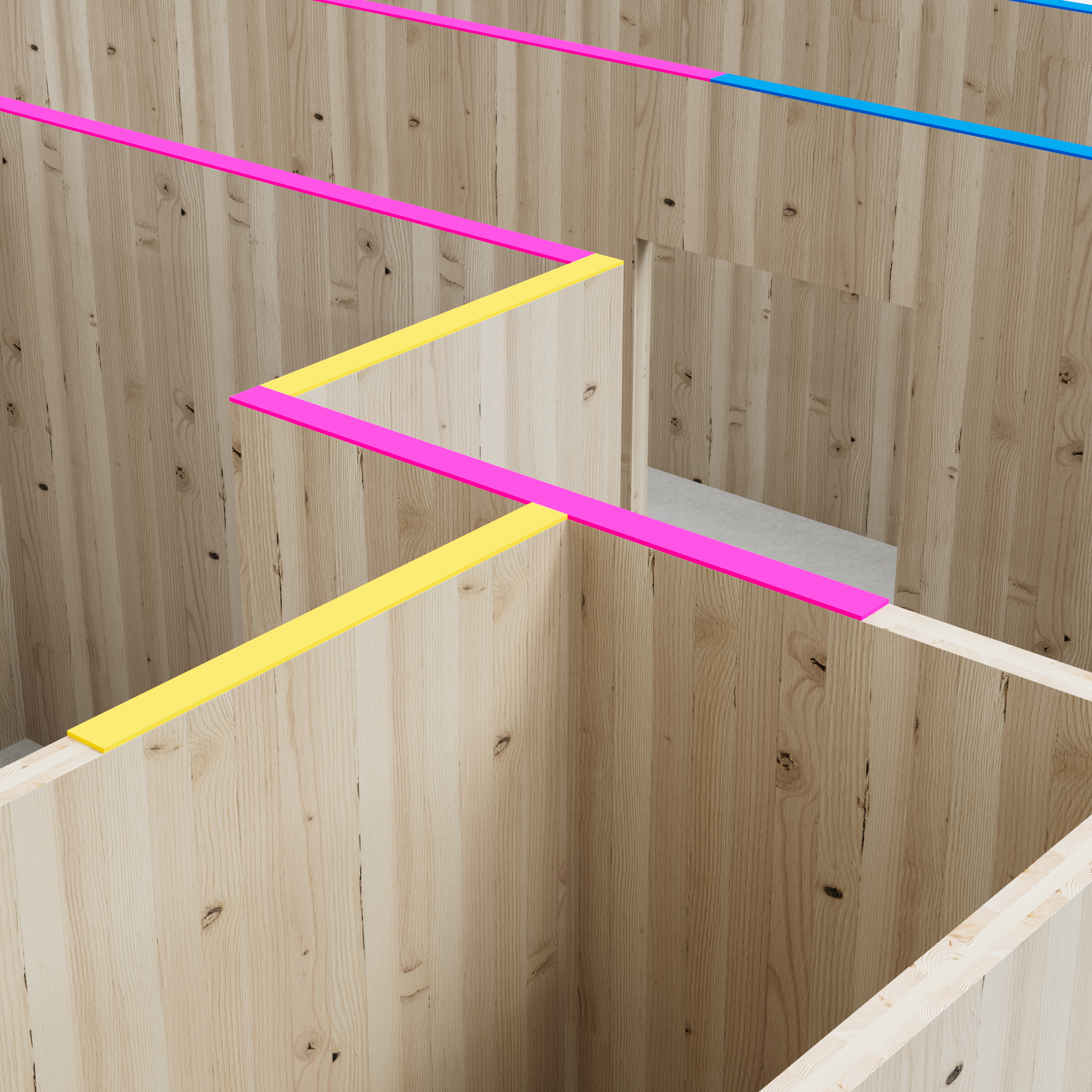

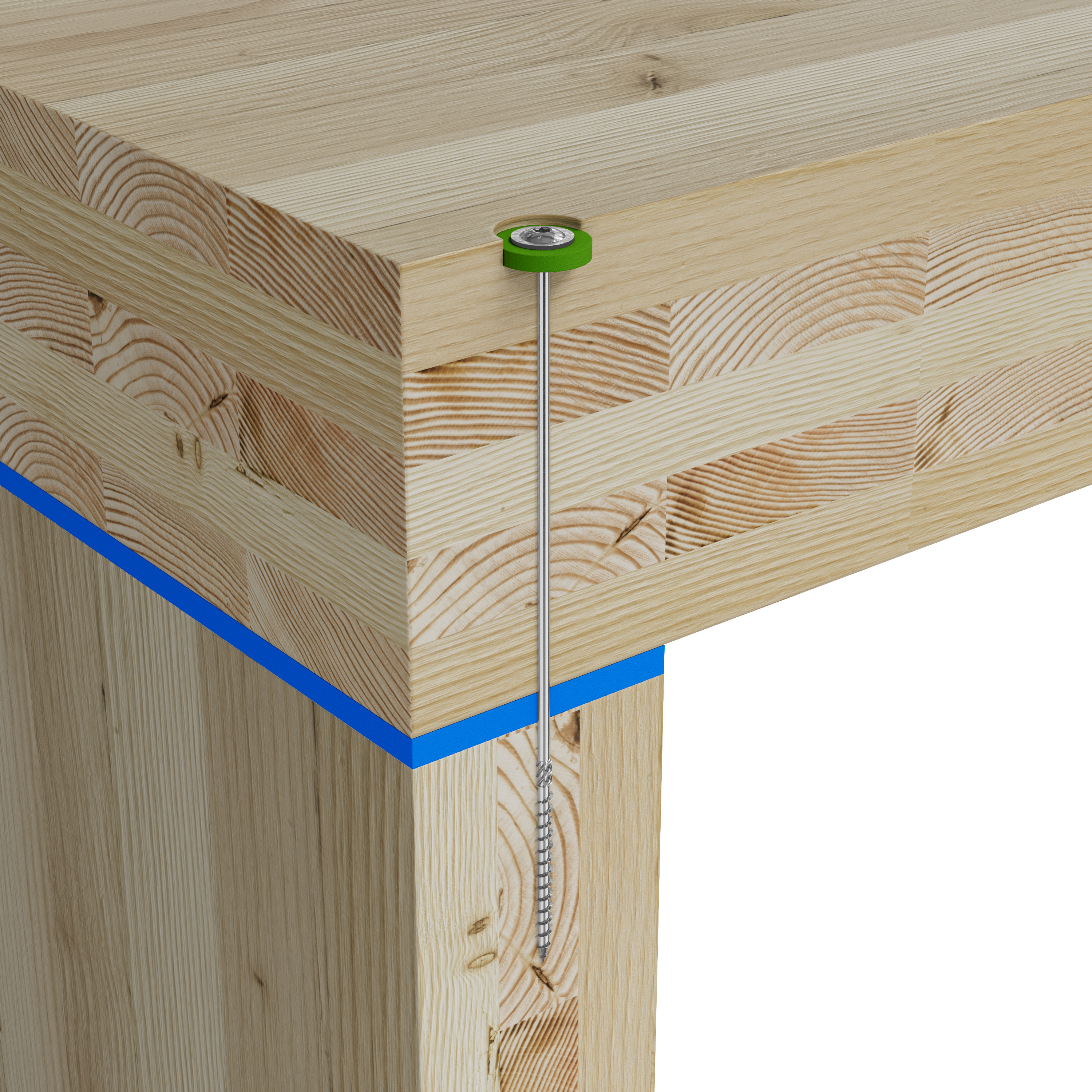

Connection of floors and walls in CLT Installations

Technické údaje

Mechanical properties - Part 1

Art. nr.	color	Static loads ⁽¹⁾ [N/mm²]		Dynamic loads ⁽¹⁾ [N/mm²]	Load peaks ⁽¹⁾ [N/mm²]	Mechanical loss factor ⁽²⁾	Static E-modulus ⁽²⁾ [N/mm²]	Dynamic E-modulus⁽²⁾ [N/mm²]	Static shear modulus⁽²⁾ [N/mm²]	Dynamic shear modulus ^₍₂₎ [N/mm²]
Art. nr.	color	Min.	Max.	Dynamic loads ⁽¹⁾ [N/mm²]	Load peaks ⁽¹⁾ [N/mm²]	Mechanical loss factor ⁽²⁾	Static E-modulus ⁽²⁾ [N/mm²]	Dynamic E-modulus⁽²⁾ [N/mm²]	Static shear modulus⁽²⁾ [N/mm²]	Dynamic shear modulus ^₍₂₎ [N/mm²]
SIT75	gelb	0.05	0.075	0.12	2	0.06	0.63	0.92	0.16	0.27
SIT150	grün	0.1	0.15	0.25	3	0.03	1.25	1.65	0.22	0.35
SIT350	blau	0.23	0.35	0.5	4	0.03	2.53	3.25	0.35	0.52
SIT750	rot	0.5	0.75	1.2	6	0.04	5.21	8.88	0.8	1.22
SIT1500	orange	1	1.5	2	8	0.05	9.21	16.66	1.15	1.69

⁽¹⁾Values apply to form factor q = 3

Mechanical properties - Part 2

Art. nr.	Resistance to strain at 10% deformation [N/mm²]	Residual compression set [%]	Tensile strength [N/mm²]	Elongation at break [%]	Tear resistance [N/mm]	Rebound elasticity [%]	Specific volume resistance [Ω.cm]
SIT75	0.083	< 5	> 1,5	> 500	> 1,6	70	> 10^11
SIT150	0.16	< 5	> 2	> 500	> 2,1	70	> 10^11
SIT350	0.32	< 5	> 3,5	> 500	> 2,5	70	> 10^11
SIT750	0.59	< 6	> 5	> 500	> 4,3	70	> 10^11
SIT1500	0.94	< 8	> 7	> 500	> 5,6	70	> 10^11

⁽²⁾Measured at maximum limit of static application range

Thermal properties

Art. nr.	Thermal conductivity [W/m.k]	Operating temperature [°C]	Temperature peak [°C]	Inflammability
SIT75	0.06	- 30 / + 70	+ 120	E / EN 13501-1
SIT150	0.075	- 30 / + 70	+ 120	E / EN 13501-1
SIT350	0.09	- 30 / + 70	+ 120	E / EN 13501-1
SIT750	0.1	- 30 / + 70	+ 120	E / EN 13501-1
SIT1500	0.11	- 30 / + 70	+ 120	E / EN 13501-1

⁽³⁾Test according to respective standards
