SITW
Sound Insulation washer

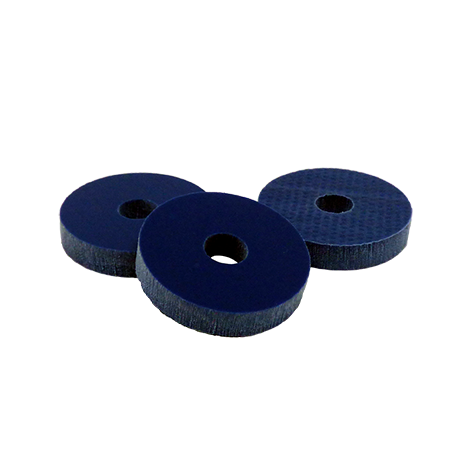

SITW washers are combined with SIT isolating strips to create a high-performance system in CLT buildings that are required to deliver superior acoustic performance. The isolating washer is fitted between a metal washer and the CLT when assembling with screws, which prevents vibrations from spreading through the fastenings.
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry
Dimensions
| Art. nr. | Washer | Hmotnost [kg] | ||||
|---|---|---|---|---|---|---|
| Hlava | Rozměry [mm] | |||||
| A | B | C | t | |||
| SITW70/70 | HTT | Ø~16 | 70 | 70 | 6 | 0.27 |
| SITW70/90 | AKR | Ø~12 | 70 | 90 | 6 | 0.35 |
| SITW100/265 | ABR255 | - | 100 | 265 | 6 | 0.13 |
Simply drill pilot holes in the first CLT panel to avoid transferring vibrations through the flat part of the screw
