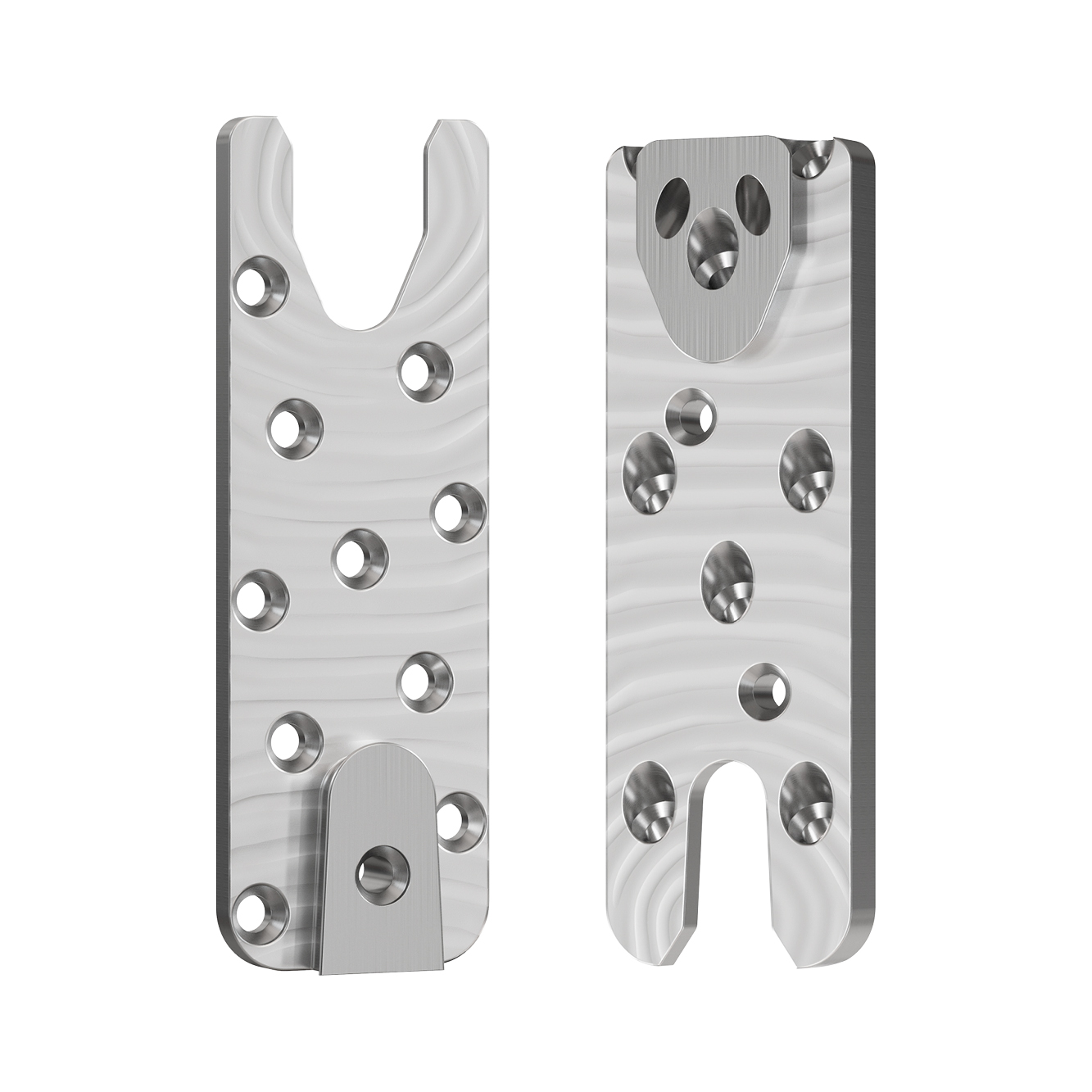

End Grain Connector Medium

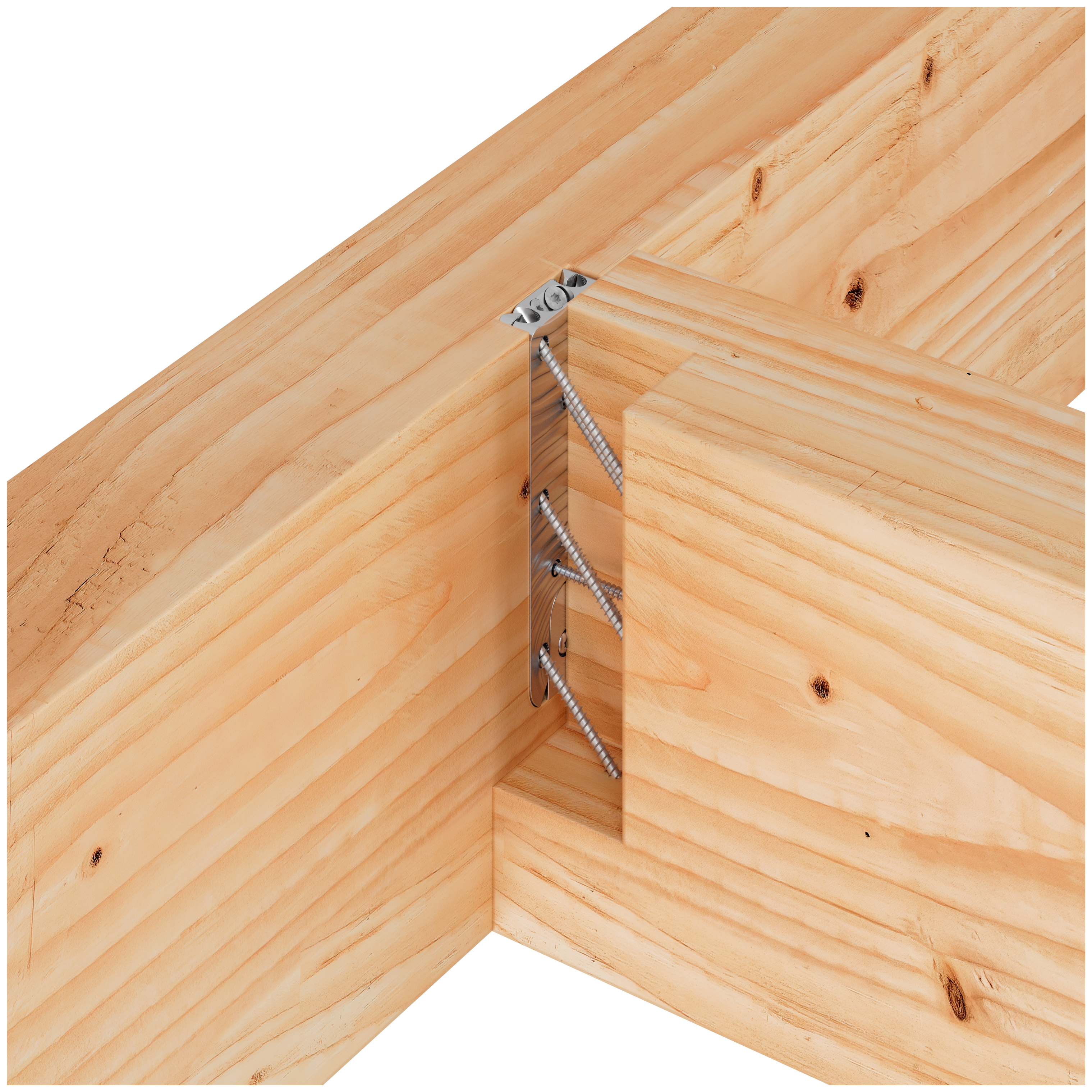

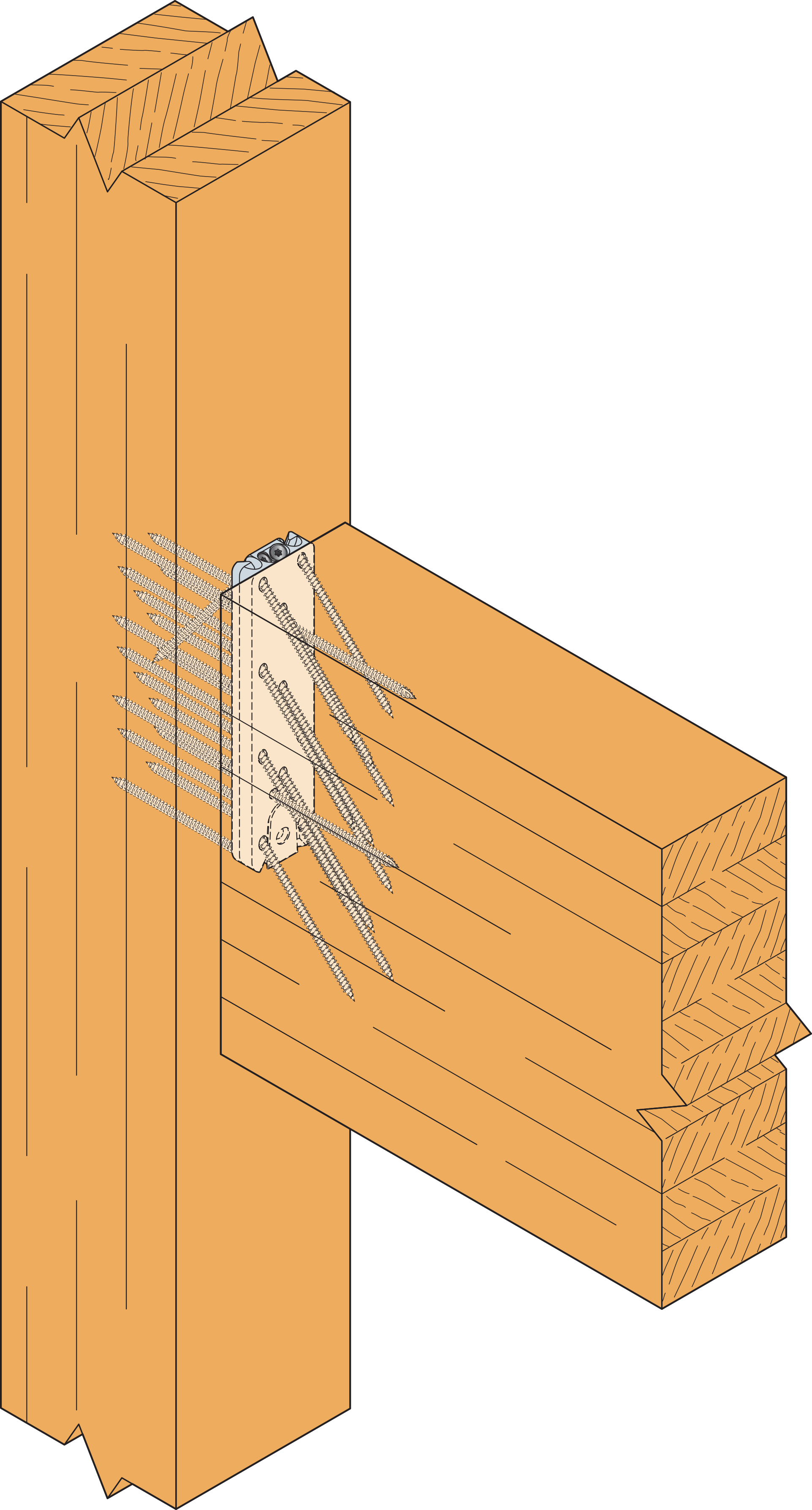

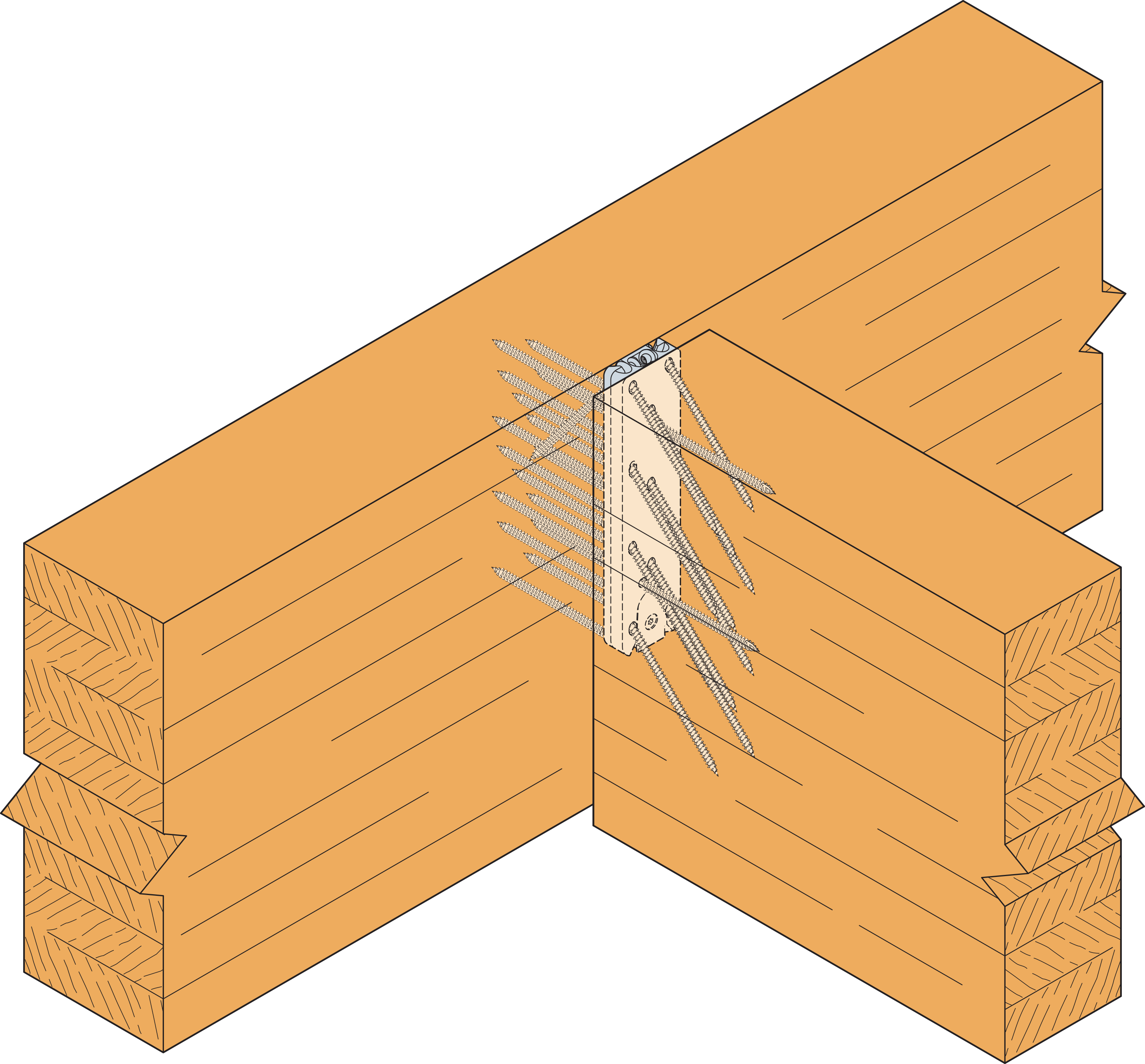

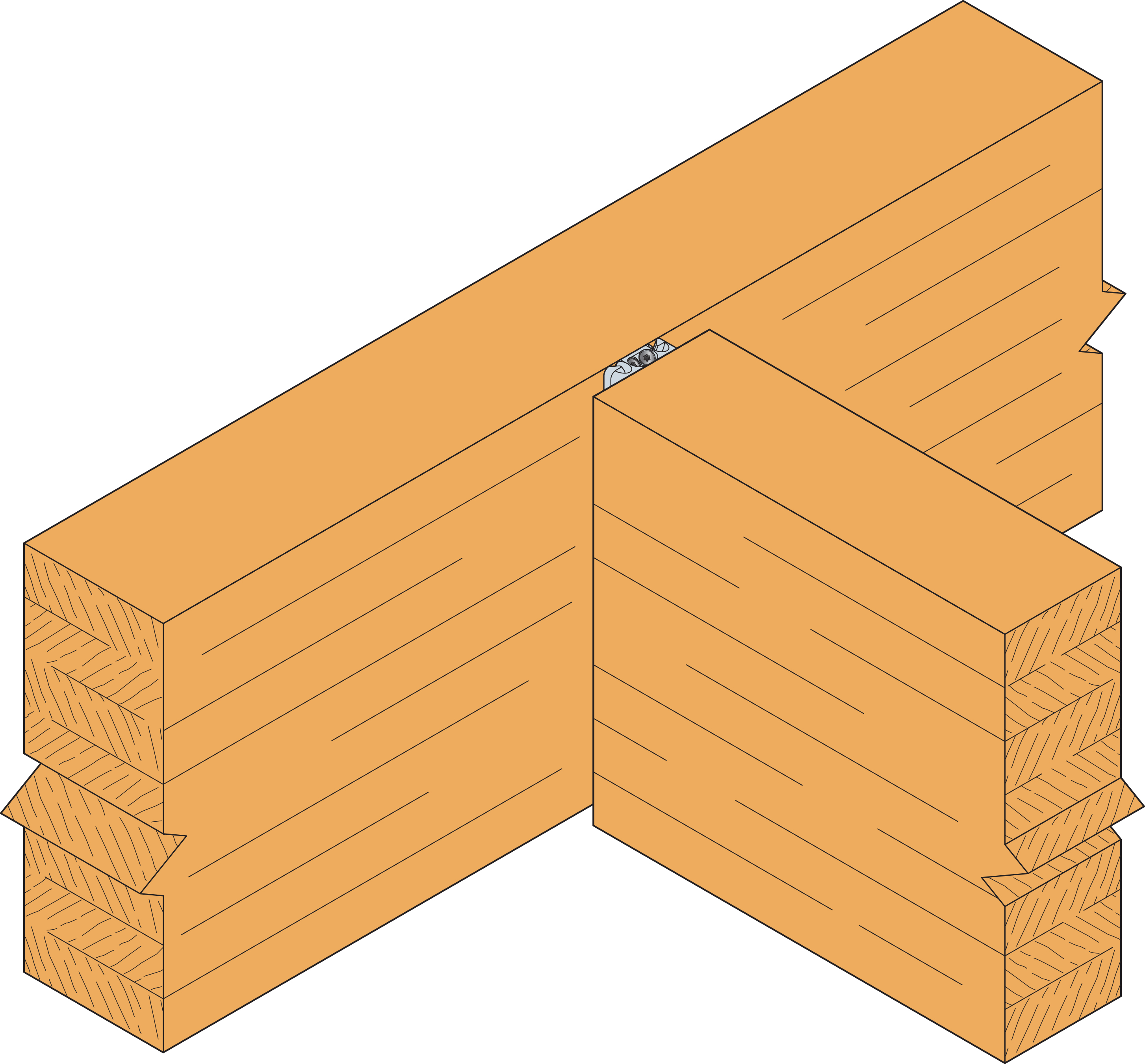

Suitable for solid timber and Glulam joists: EGCM is a two-piece system that provides a high-strength, hidden connection between timber members where the joist header or post is fastened into the end-grain of a carried joist.

As the connector is concealed within the timbers, this method provides 30 minutes fire resistance. EGCM can be surface mounted or recess fitted. A routing template is available separately.

Technický list

Označení CE

ETA

Novinky

Hliník

Servisní třída 2

Požární

Podrobnosti produktu

Obrázky

Vlastnosti

Material

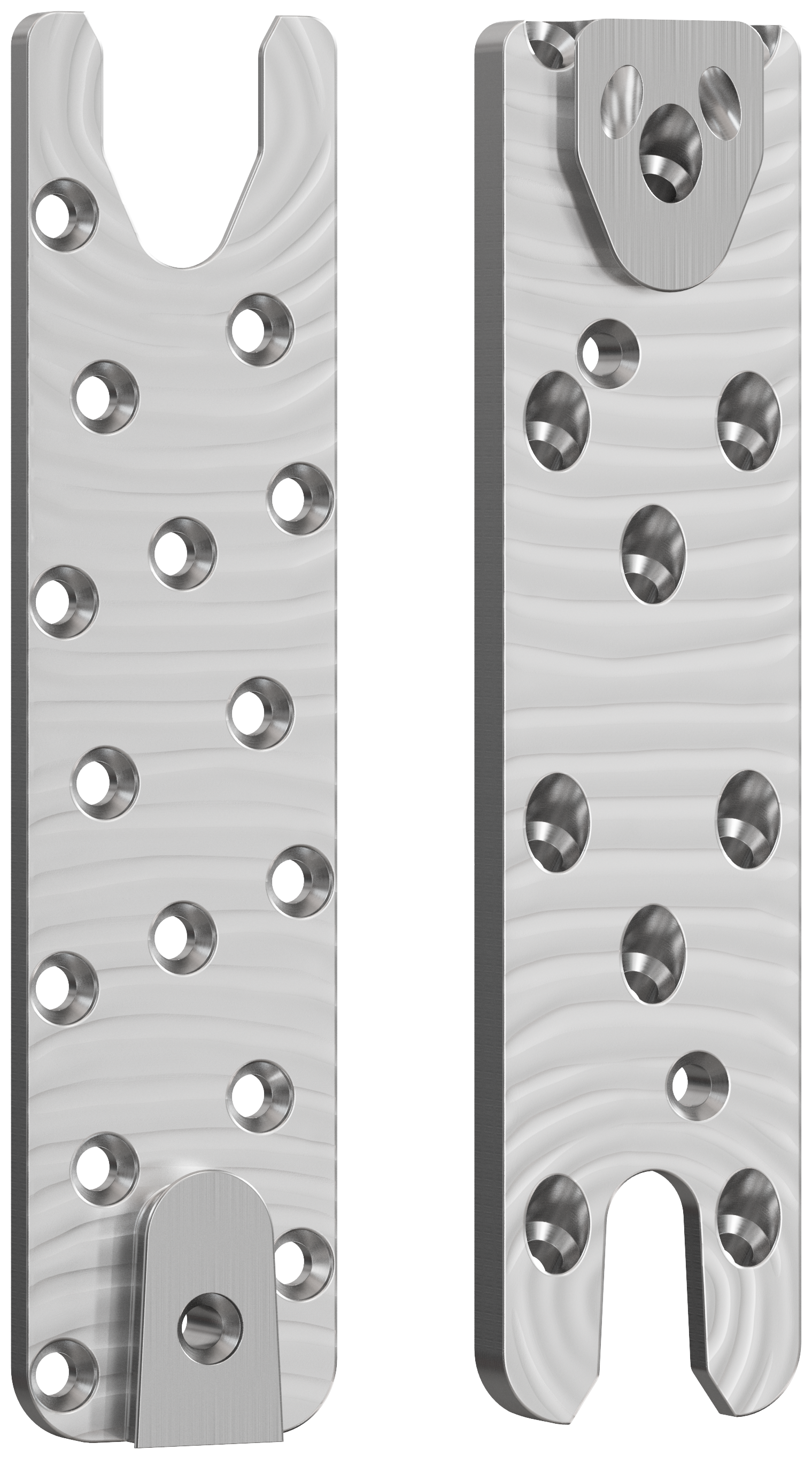

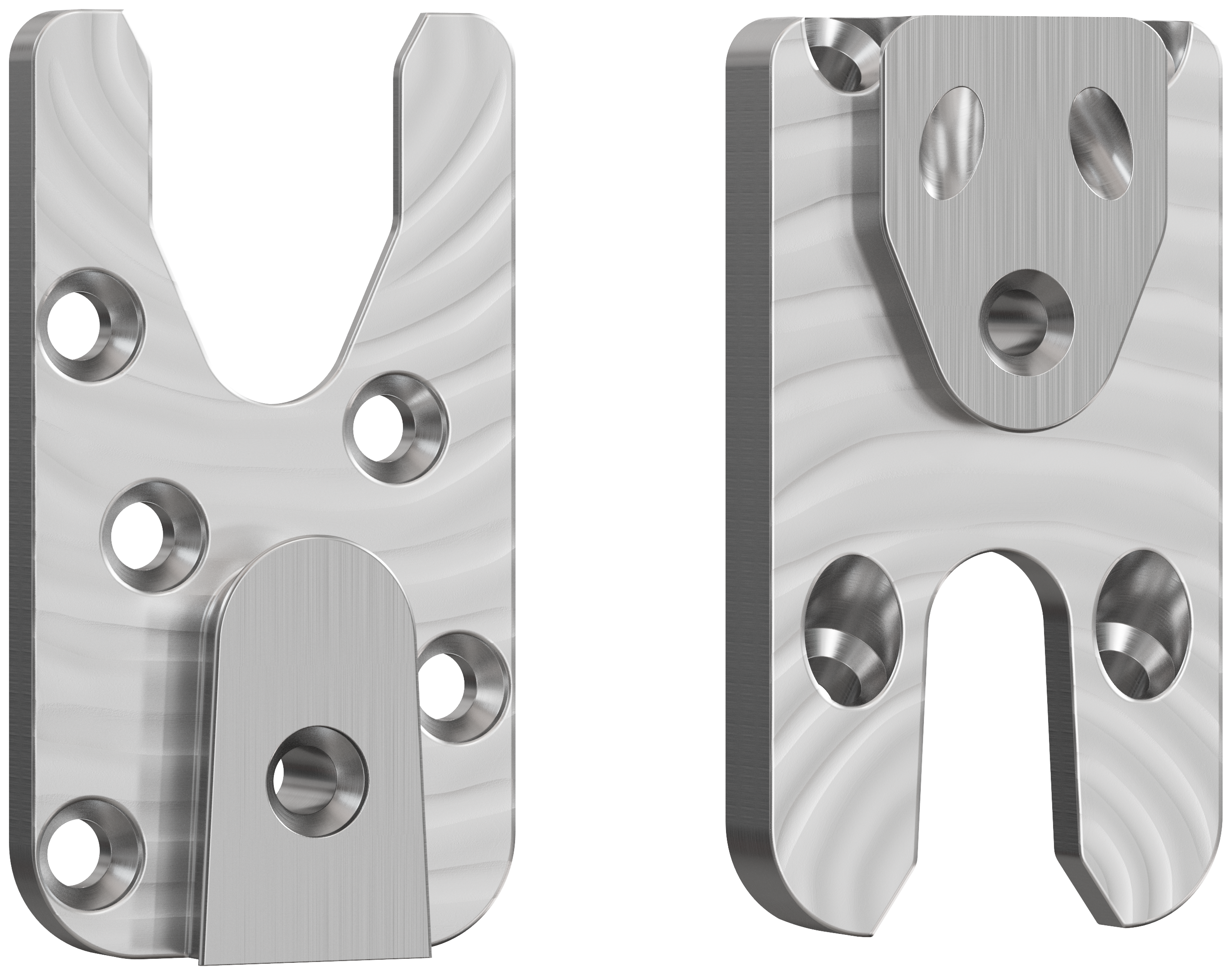

Joist plate: 16mm aluminium
Header plate: 16mm aluminium

Features

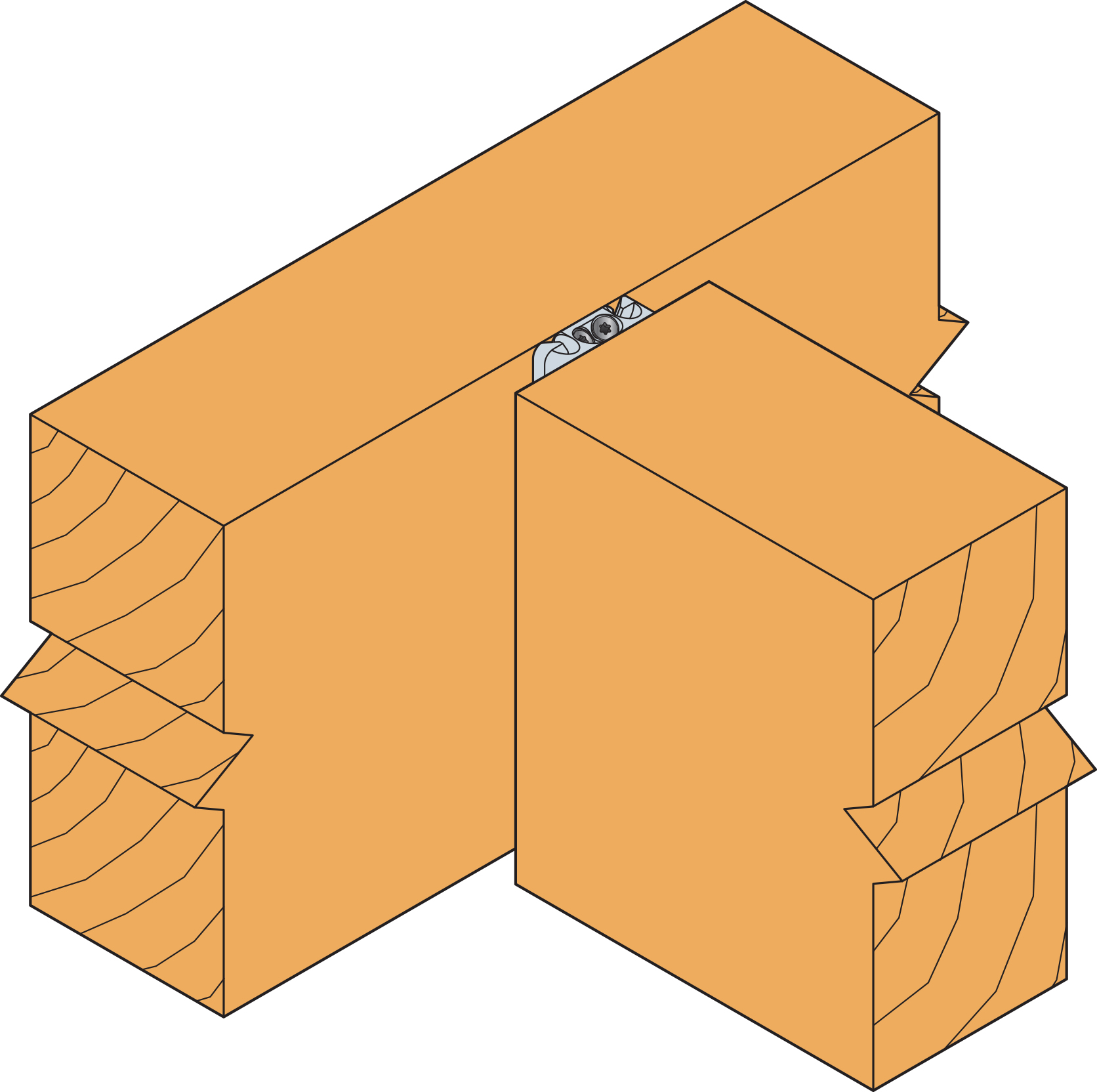

Concealed connection
Provides up to 30 mins fire resistance

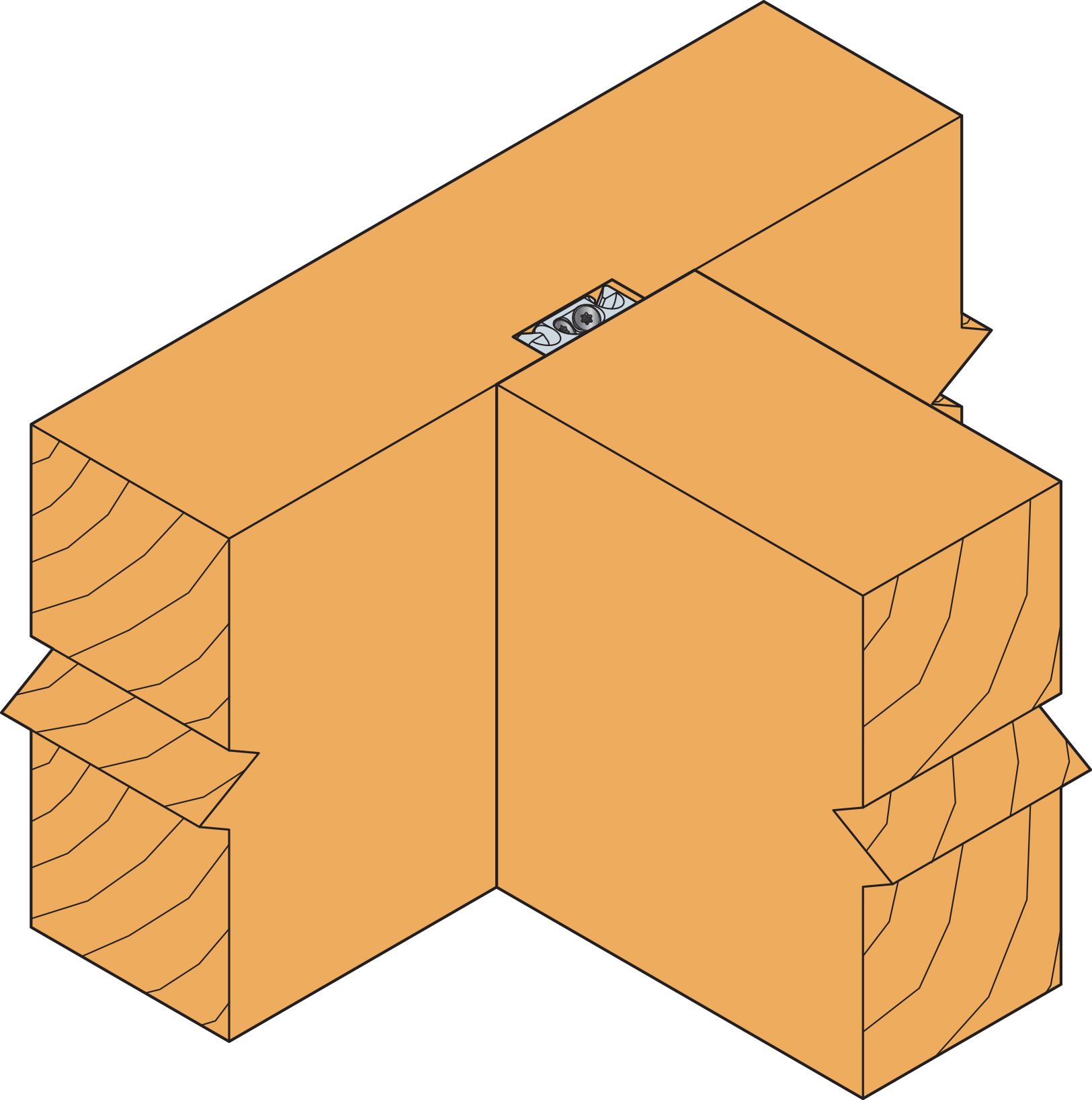

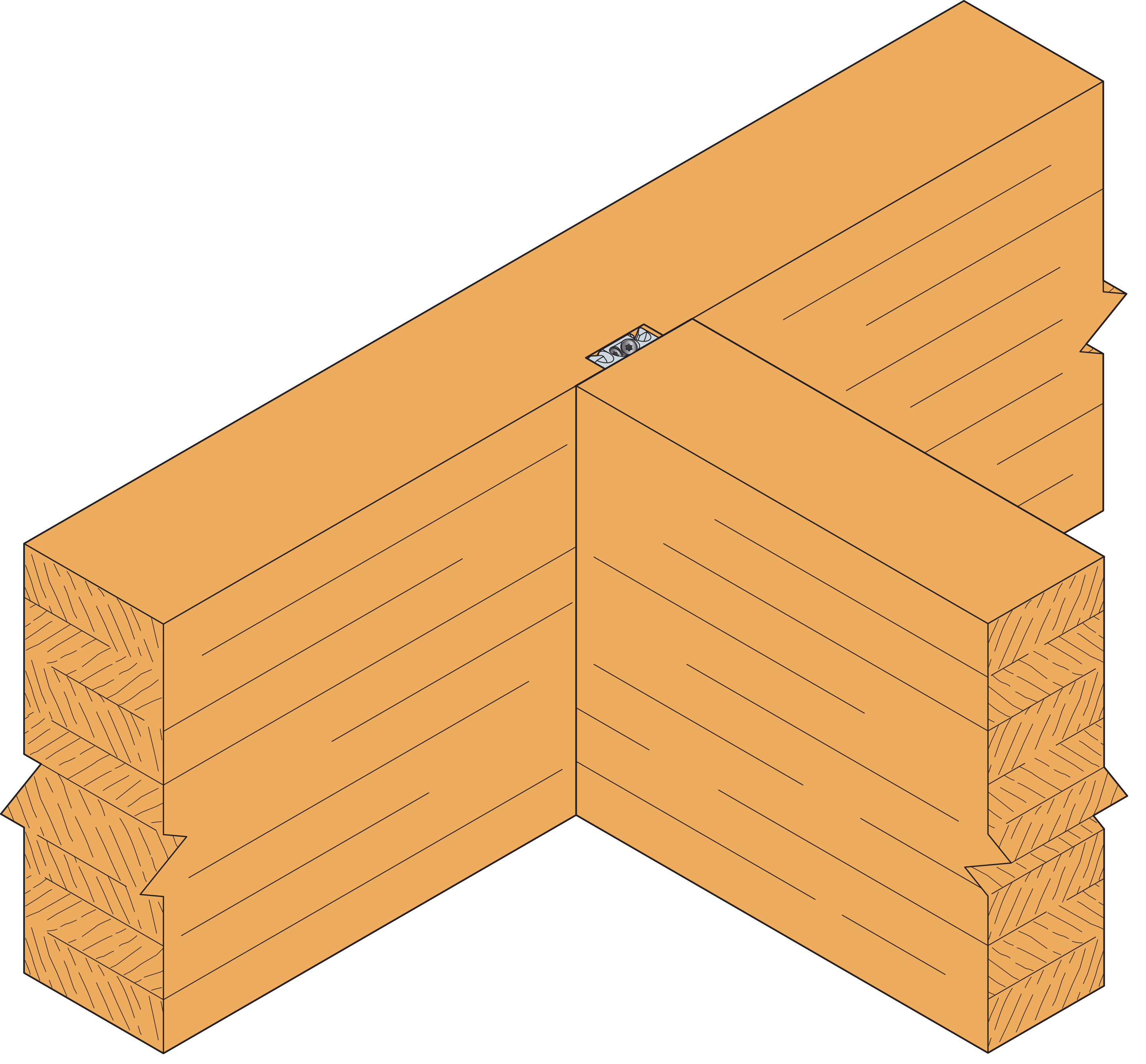

Can be routed for flush installation, or surface mounted
Can be pre-installed off-site for rapid assembly
Each component easy to pair due to identical width and height
Light weight aluminium for ease of handling

Aplikace

Suitable on

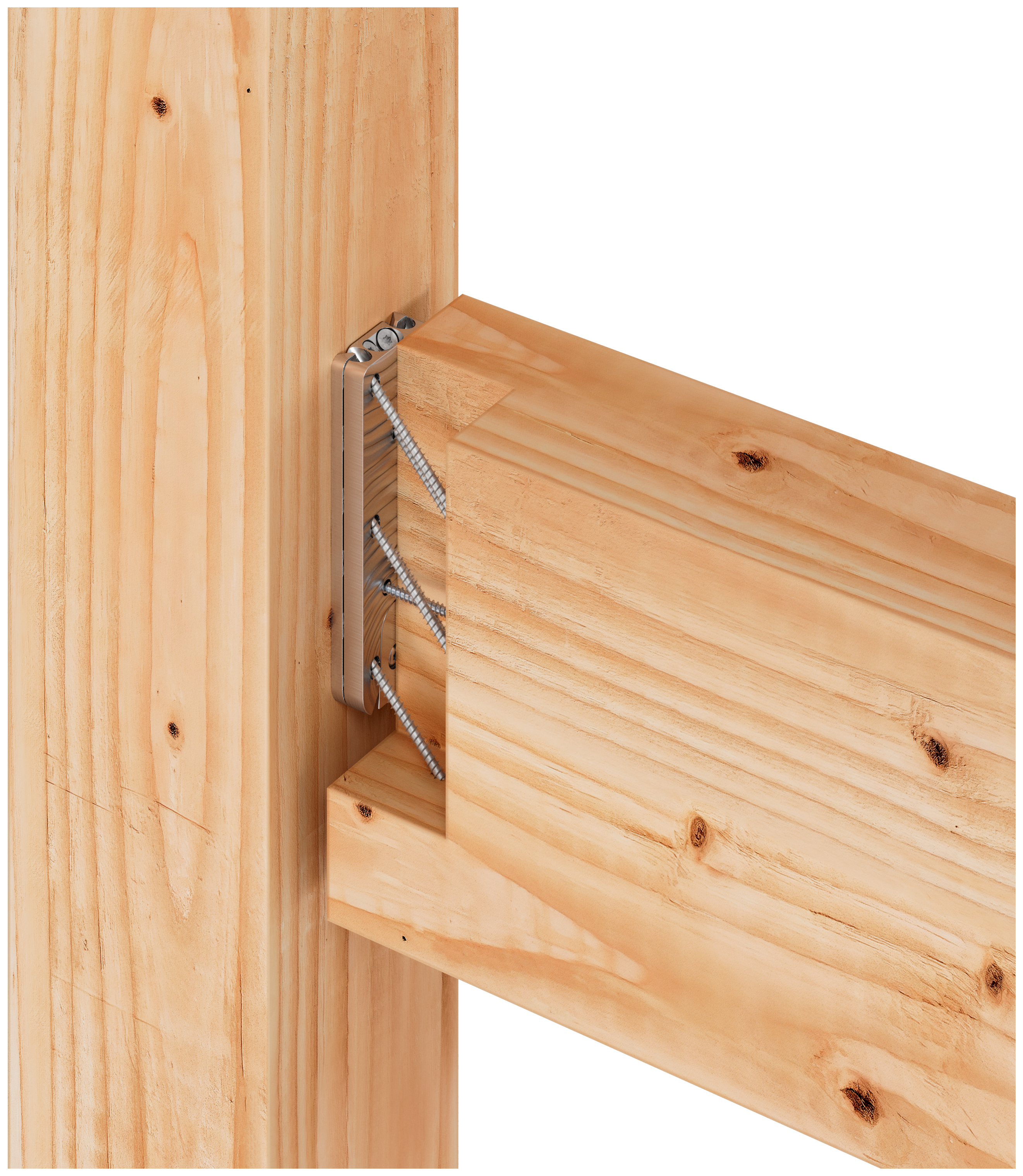

Solid timber

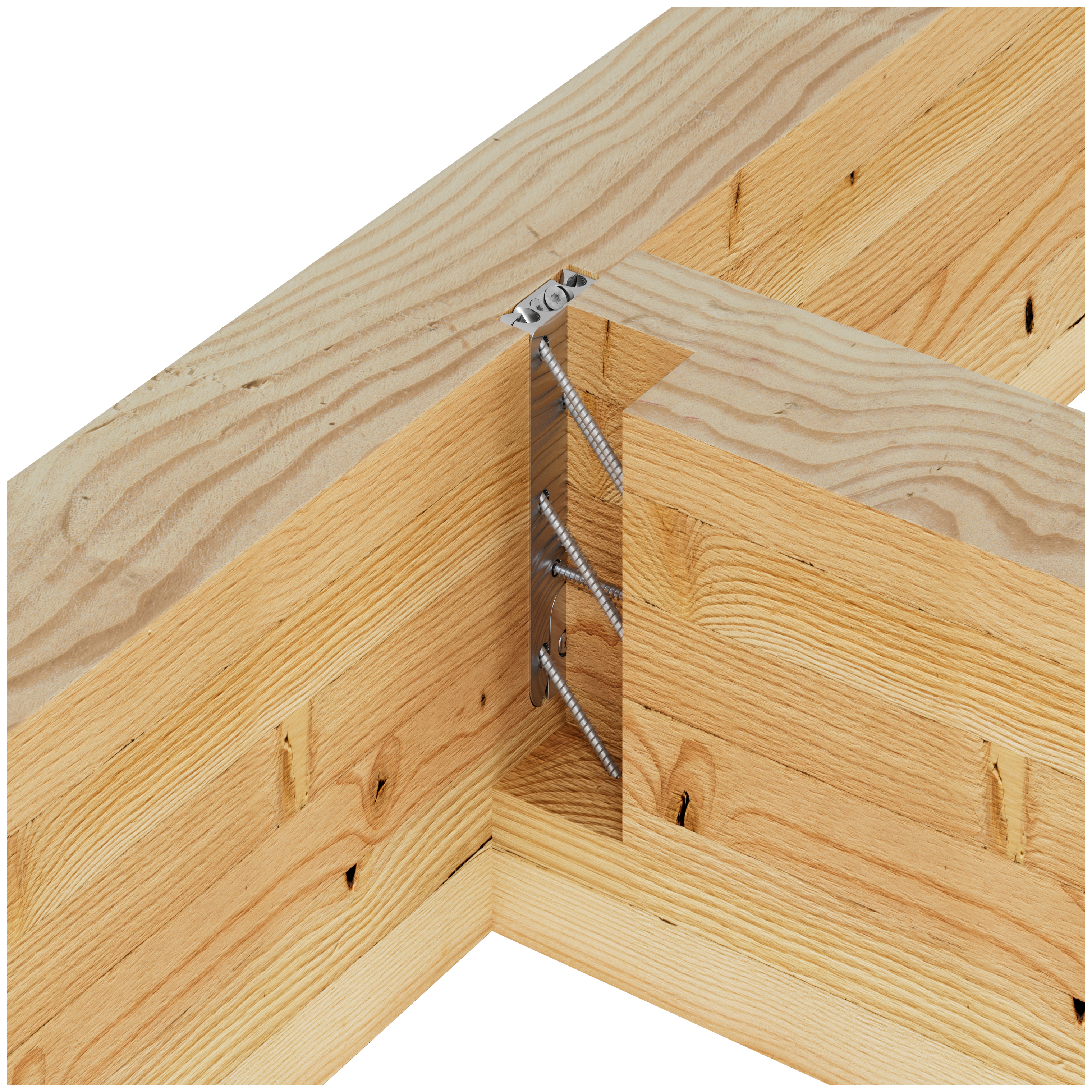

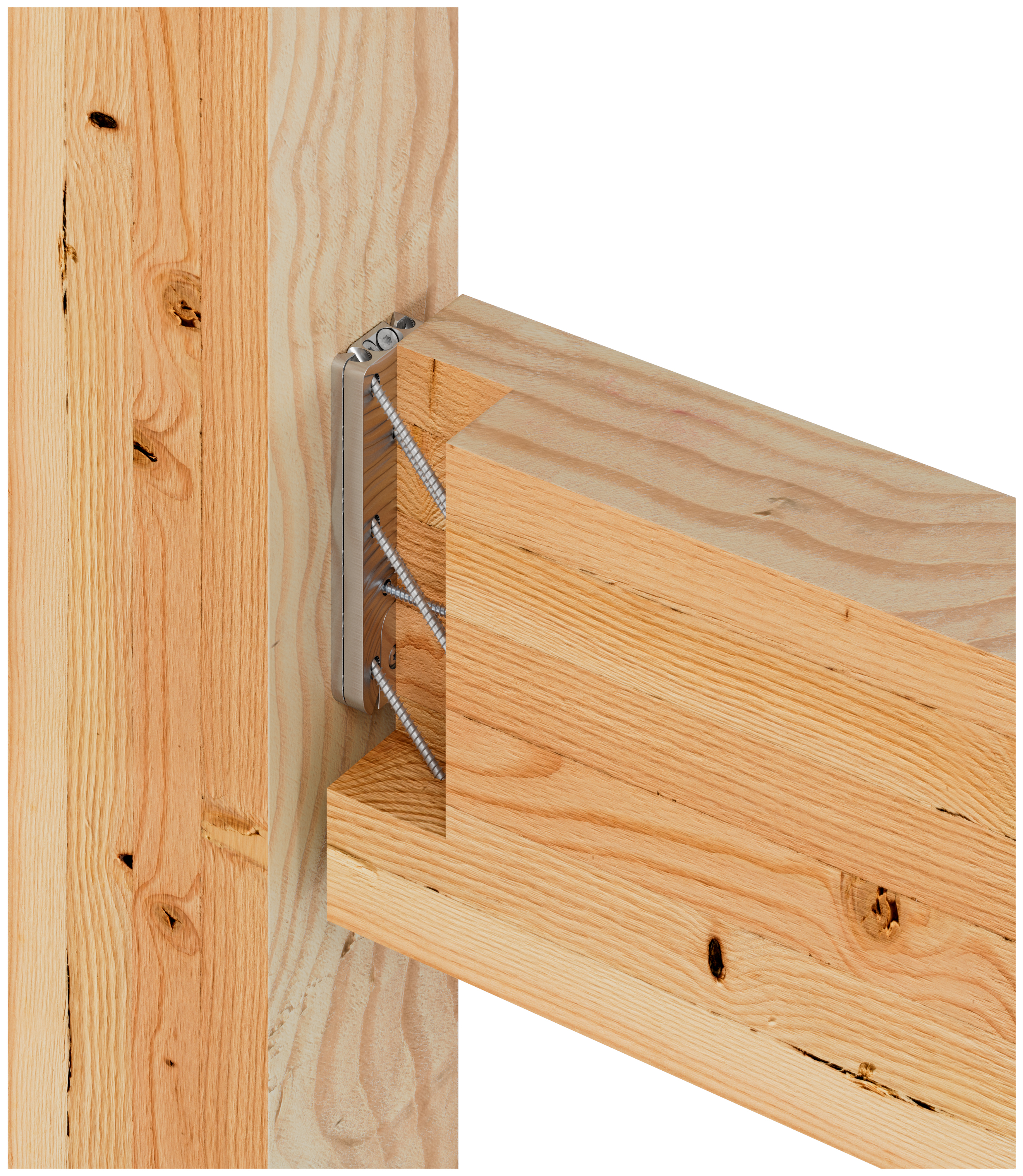

Glulam

For use with

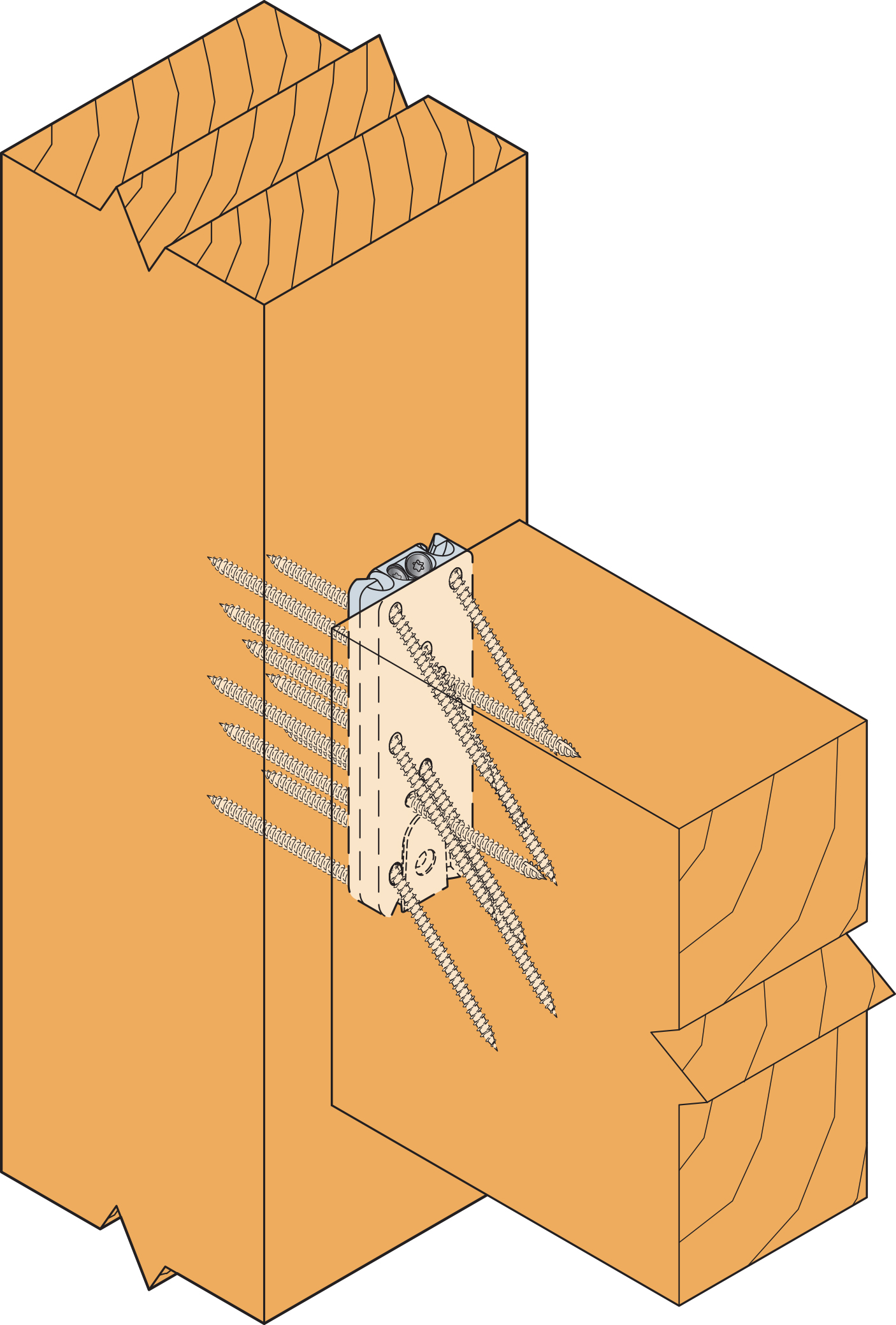

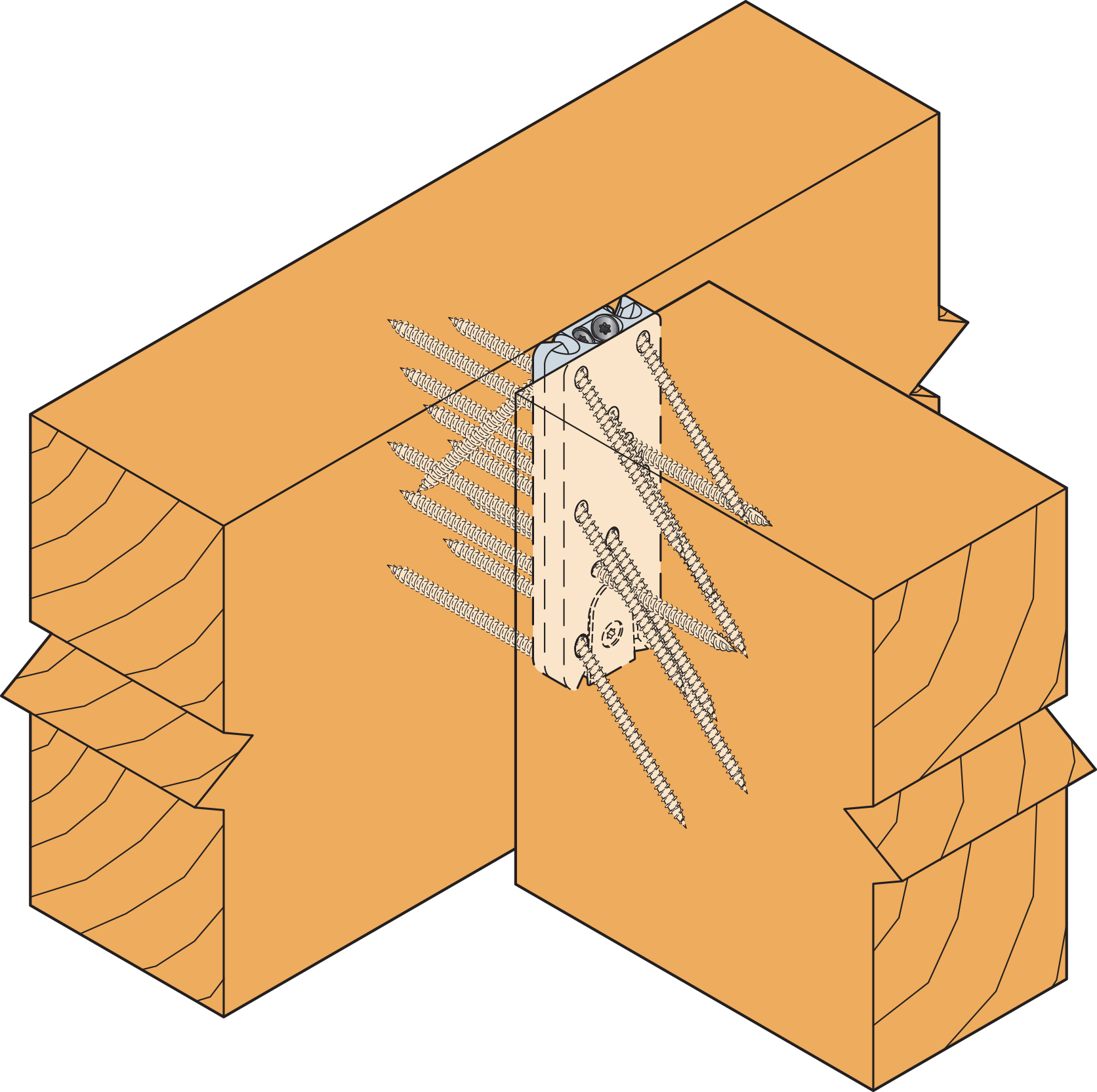

Timber to timber connections as part of single or multi-storey construction projects

Installation

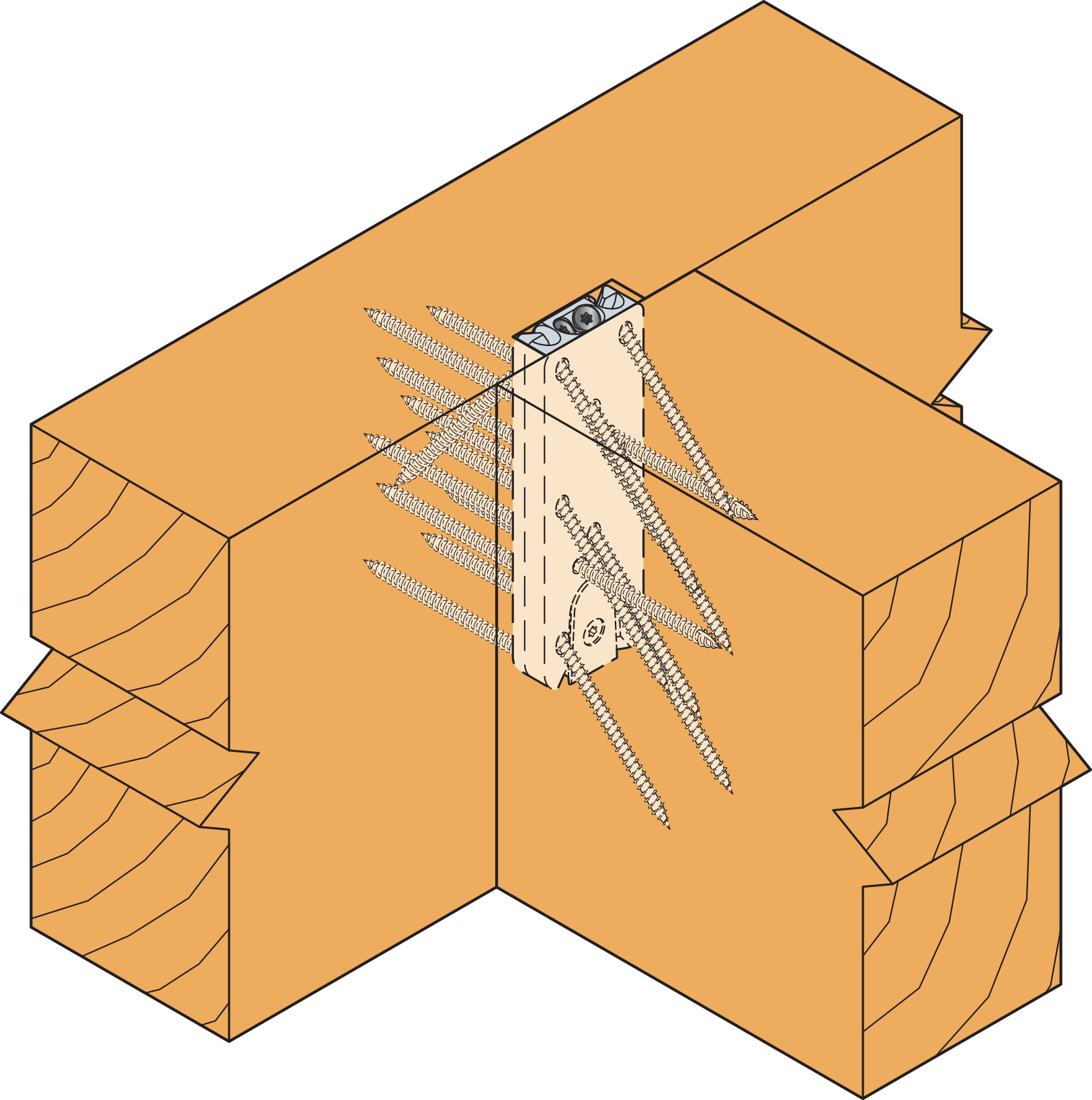

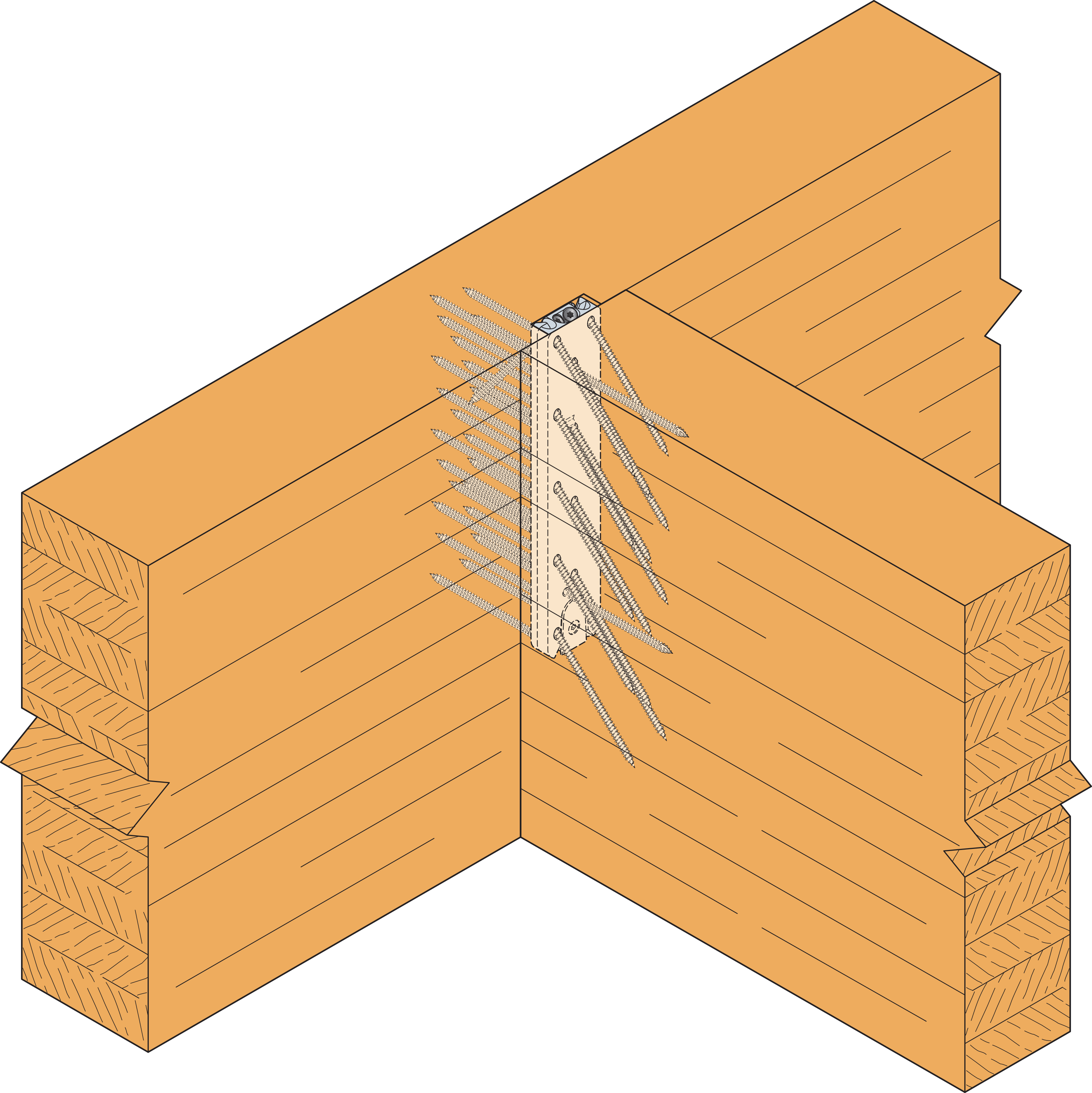

Mounting connectors EGCM is simplified by the use of a jig available on stock.

The slot can be routed by using a Ø16mm cutter with Ø30mm washer.

For more information on fitting the EGCM bracket, see the TPEGCM jig instructions.

CAUTION: EGCM should not be used for an assembly with a negative slope.

Technické údaje

Product dimensions

Rozměry

Reference	konektor rozměry
	rozměry výrobku[mm]			Header otvory[mm]	nosník otvory[mm]	ostatní
	A[mm]	B[mm]	t[mm]	kulatý	kulatý	hmotnost[kg]
	A[mm]	B[mm]	t[mm]	Ø6.5	Ø6.5	hmotnost[kg]
EGCM90	90	50	16	6	7	0.17
EGCM150	150	50	16	11	12	0.28
EGCM210	210	50	16	18	15	0.4
EGCM270	270	50	16	21	18	0.52

*Depends on CSFT screw length

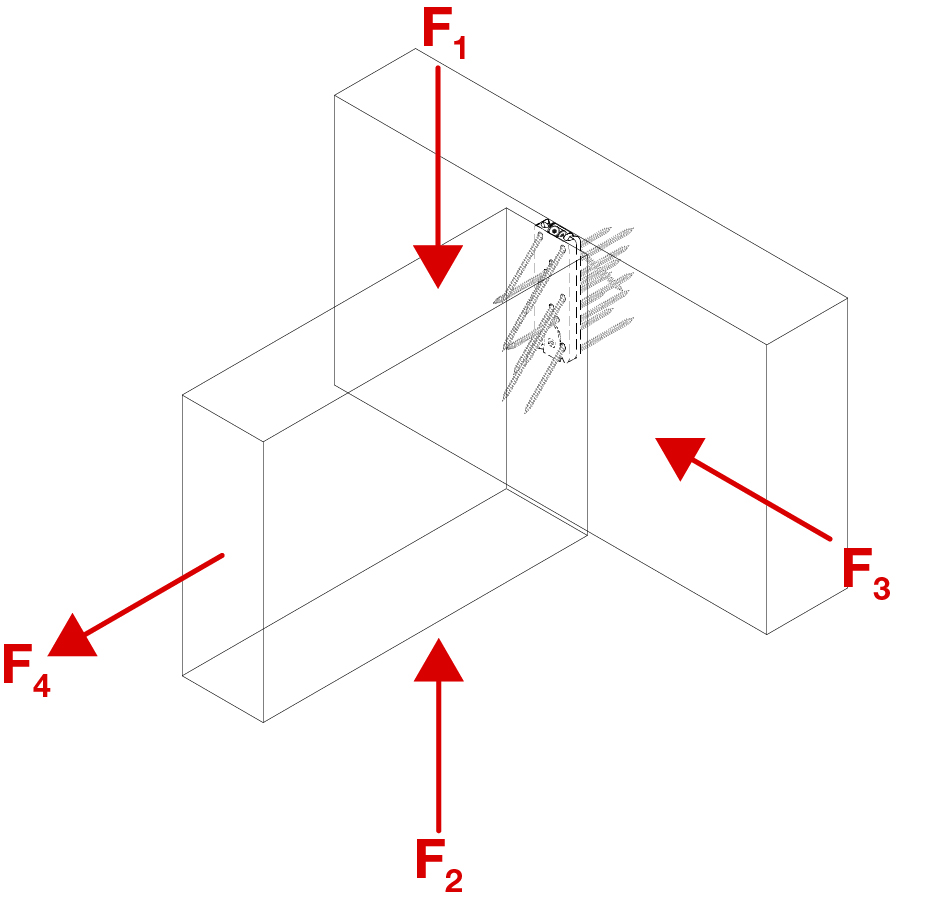

DE - Product characteristic capacities - Timber beam to timber beam / post

Reference	Hanger únosnost
	dřevo/dřevo fastening- charakteristické hodnoty in kn													výrobek Characteristic Capacities - dřevo Beam to dřevo Post
	počet of Fasteners		Characteristic capacities - dřevo C24[kN]											Characteristic capacities - dřevo C24[kN]
	Header	nosník	CSFT6.0x110					CSFT6.0x85						CSFT6.0x110
	množství	množství	R₂,ₖ	R3,k - DE	R4,k - DE	nosník výška[mm]		R₁,ₖ	R₂,ₖ	R3,k - DE	R4,k - DE	nosník výška[mm]		R₁,ₖ
	množství	množství	R₂,ₖ	R3,k - DE	R4,k - DE	Min	Max	R₁,ₖ	R₂,ₖ	R3,k - DE	R4,k - DE	Min	Max	R₁,ₖ
EGCM90	6.0	5 (7)	8.7	*	9.6	150	210	14.2	6.5	*	8.6	135	180	18.3
EGCM150	11.0	10 (12)	8.7	*	18.2 / kmod	210	350	27.8	6.5	*	16.7	195	270	31.6
EGCM210	16.0	13 (15)	8.7	*	18.2 / kmod	270	390	35.6	6.5	*	18.2 / kmod	255	360	41.1
EGCM270	21.0	16 (18)	8.7	*	18.2 / kmod	330	480	43.2	6.5	*	18.2 / kmod	315	450	56.2
