End Grain Connector Light

Technický list

Označení CE

ETA

Servisní třída 2

Hliník

Požární

Podrobnosti produktu

Obrázky

Vlastnosti

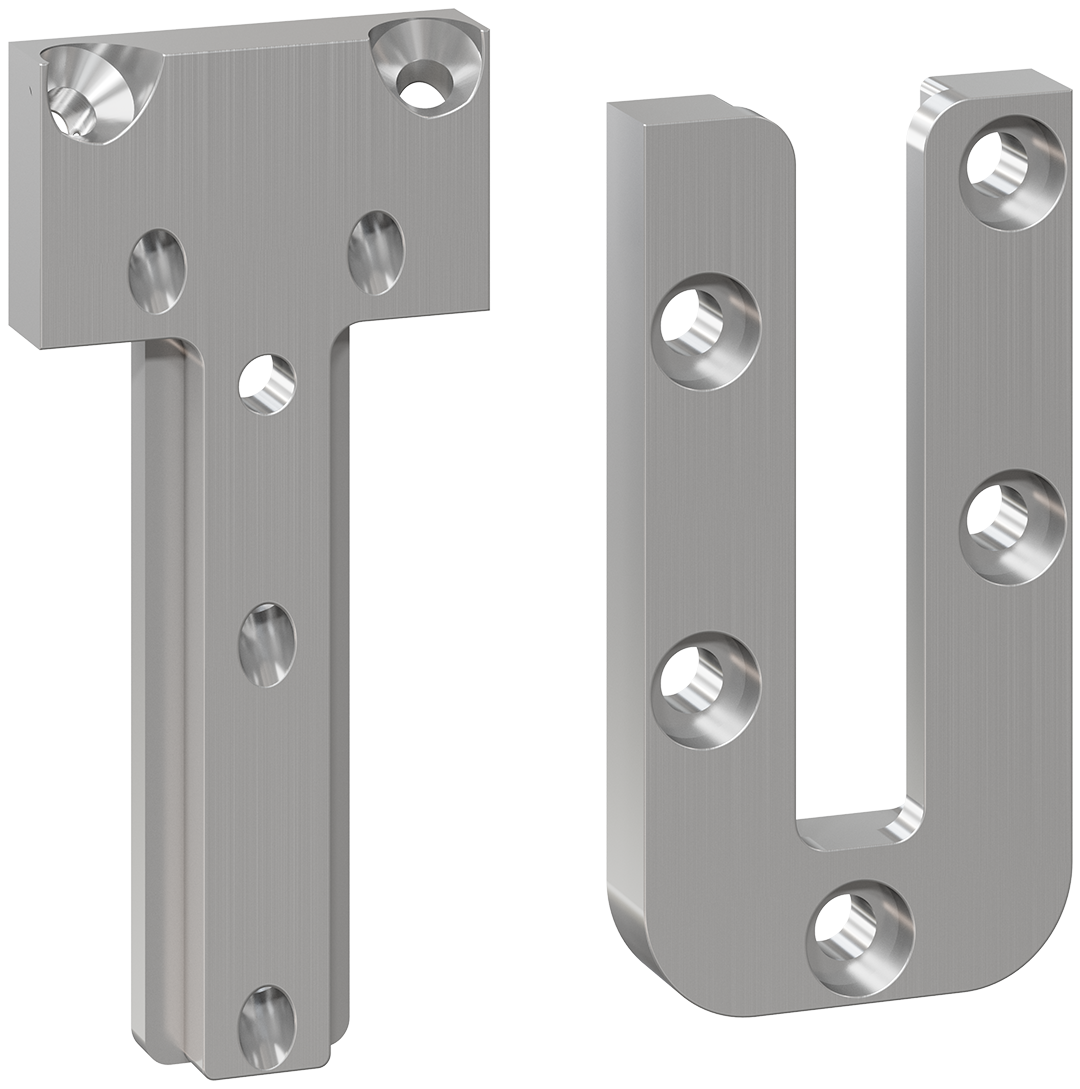

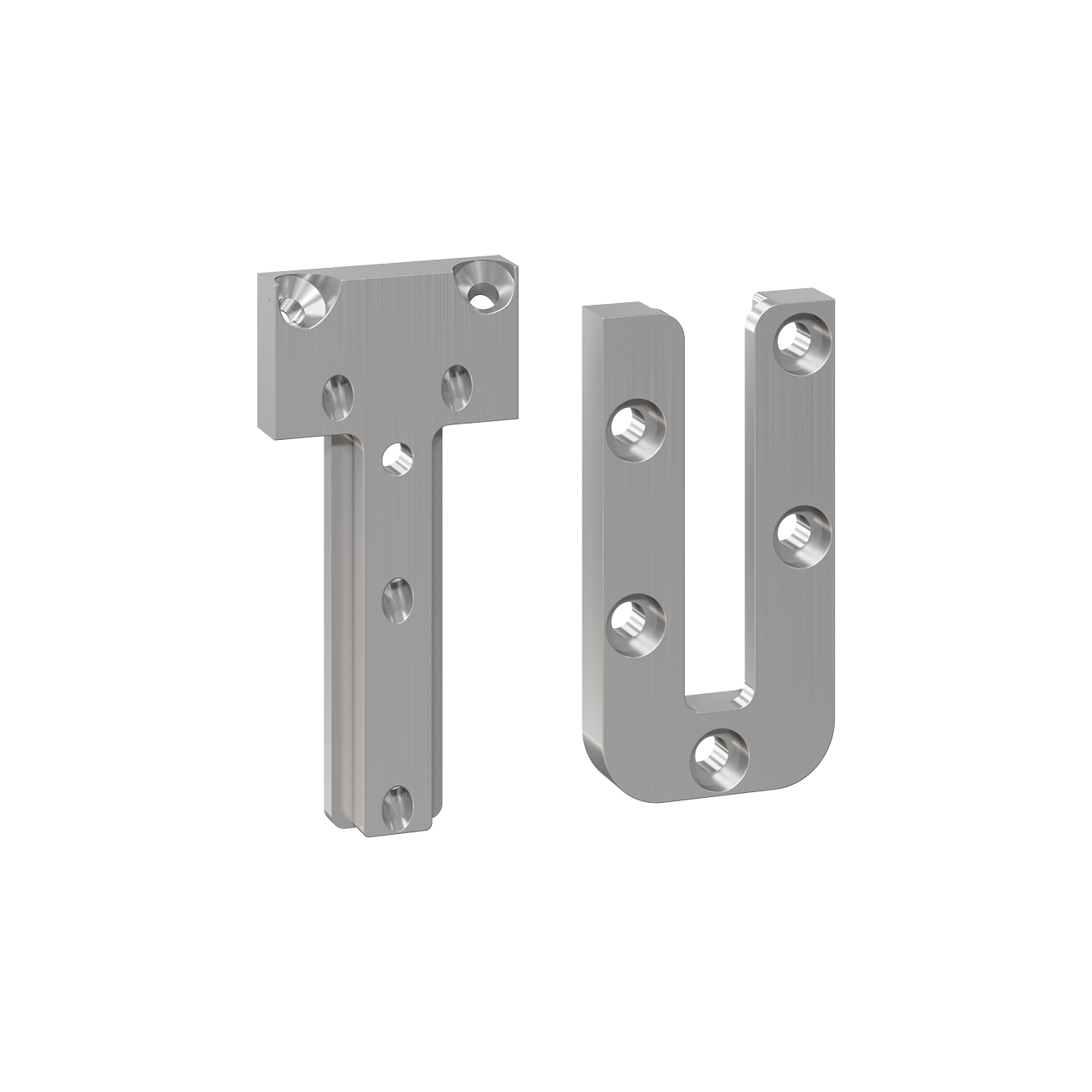

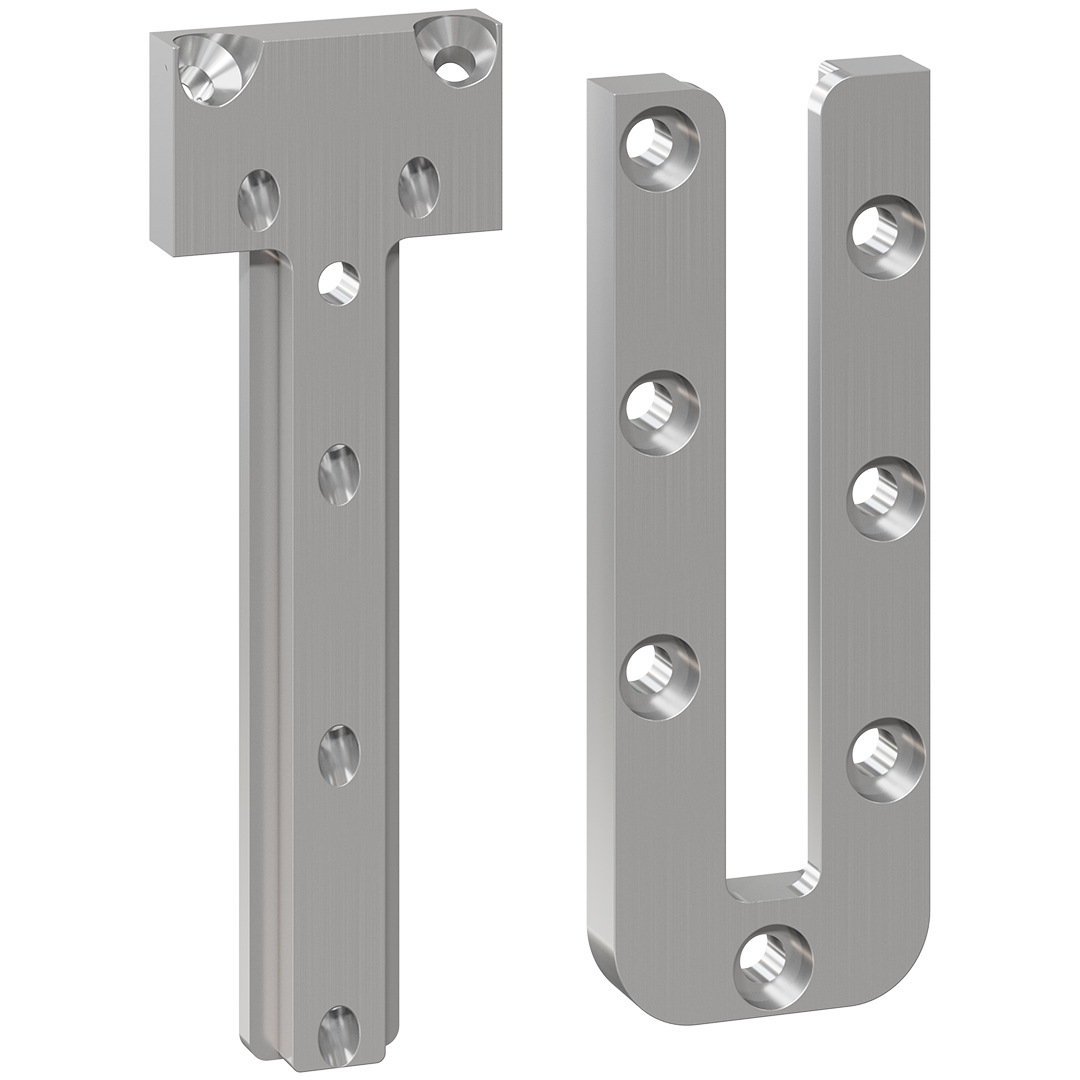

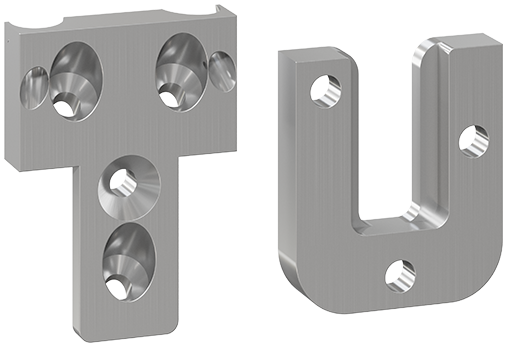

Material

Joist plate: 8mm aluminium
Header plate: 8mm aluminium

Benefits

Concealed connection
Multiple applications
Extrem small connetor

Aplikace

Suitable on

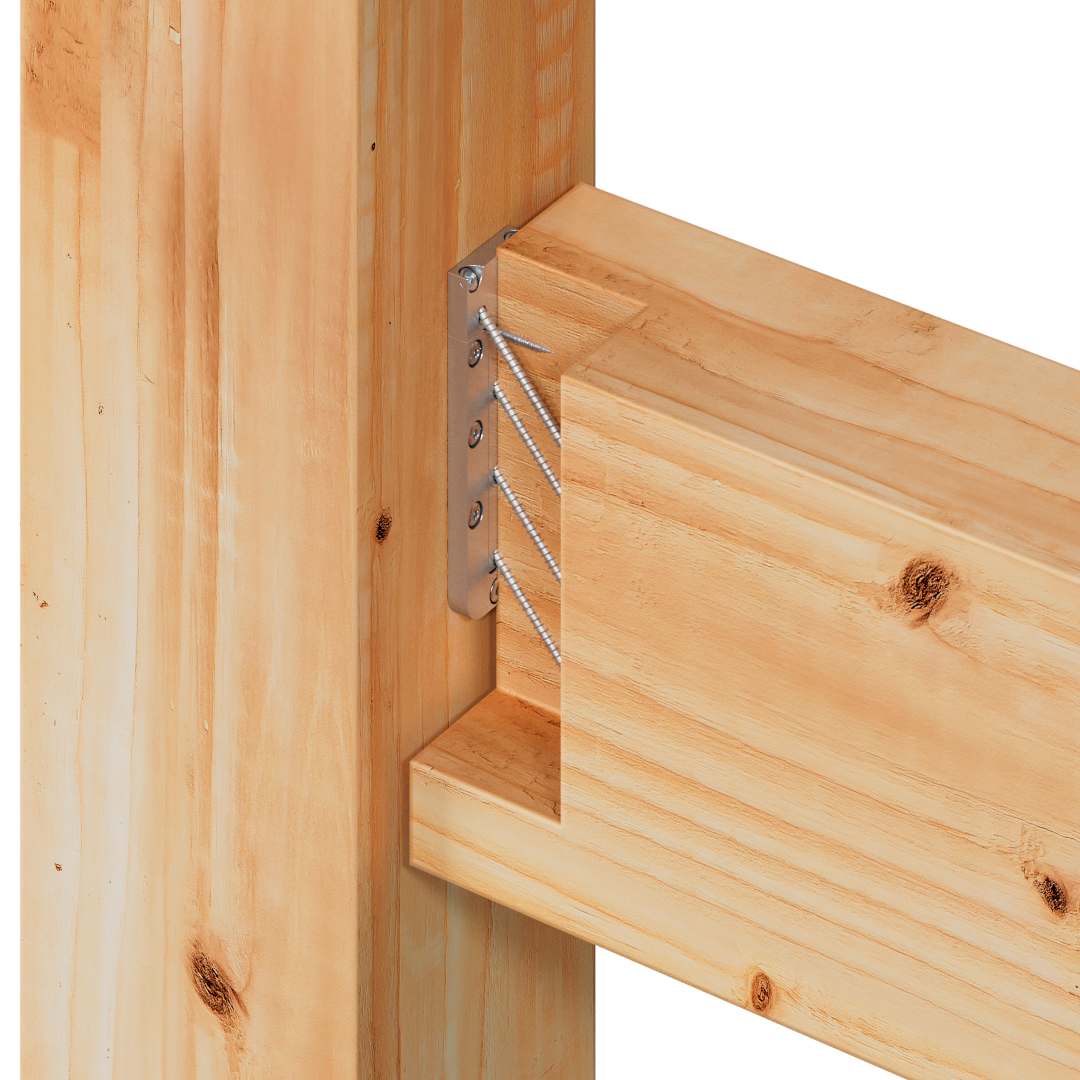

Solid timber

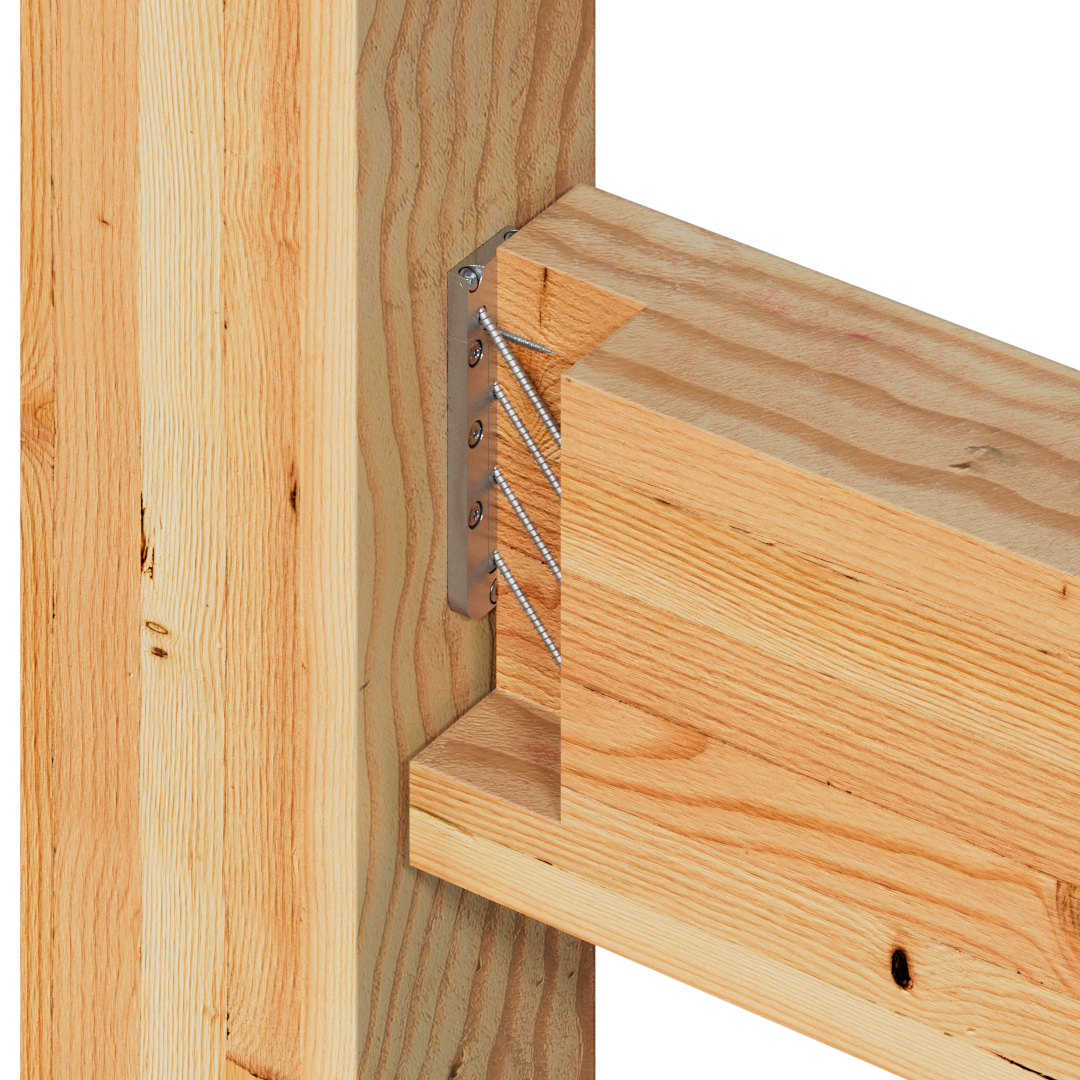

Glulam

For use with

Timber to timber connections only

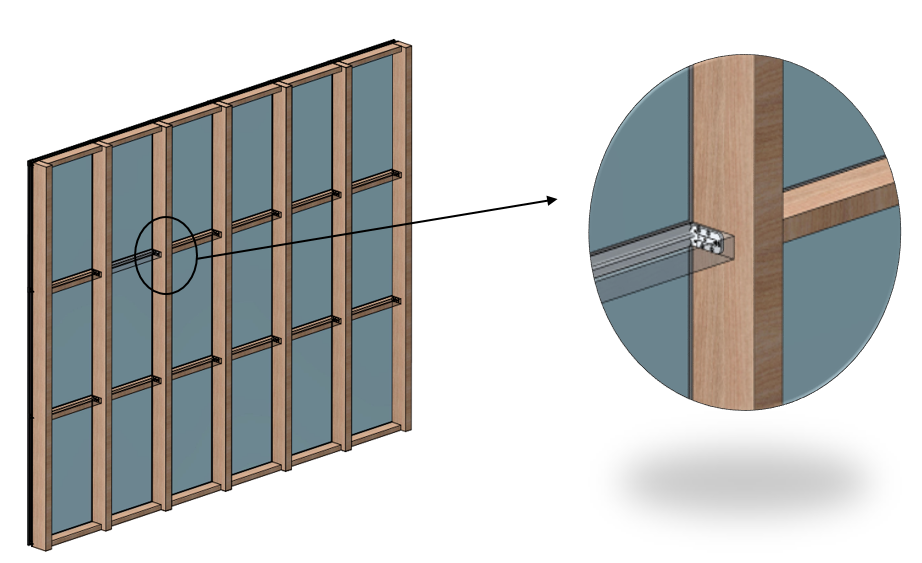

Facades

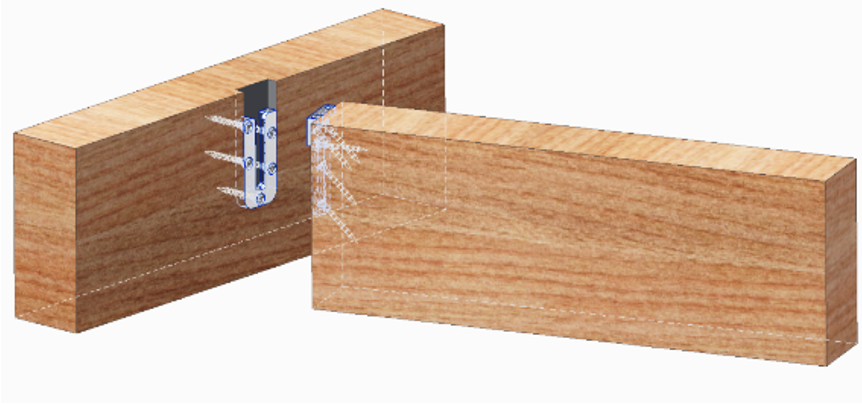

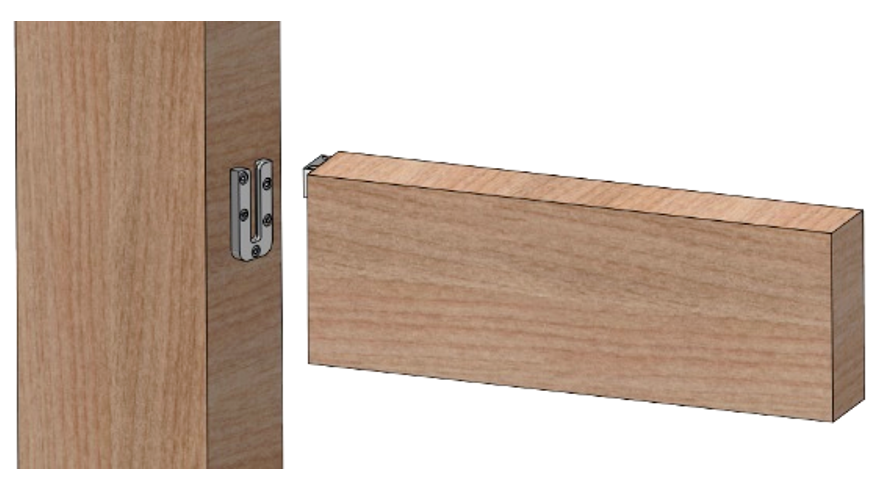

Installation

Mounting connectors EGCL is simplified by the use of a jig available on stock.

The slot can be routed by using a Ø16mm cutter with Ø30mm washer.

Technické údaje

Dimensions

Rozměry

Reference	konektor rozměry
	rozměry výrobku[mm]						otvory			ostatní
	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	t1 = t2[mm]	U-part Ø5	T-part Ø4		hmotnost[kg]
	A[mm]	B[mm]	C[mm]	D[mm]	E[mm]	t1 = t2[mm]	90°	45°	90°	hmotnost[kg]
EGCL60	61	35	48	21	40	8	3	3 + 2	1	0.039
EGCL90	89	35	76	21	68	8	5	4 + 2	1	0.058
EGCL120	117	35	104	21	96	8	7	5 + 2	1	0.076

Except for the two optional uplift screws, fill all screw holes with screws.
To prevent rotation and to absorb uplifting, lateral and axial loads, two optional fully threaded screws are inserted from the joist through the connector into the header.

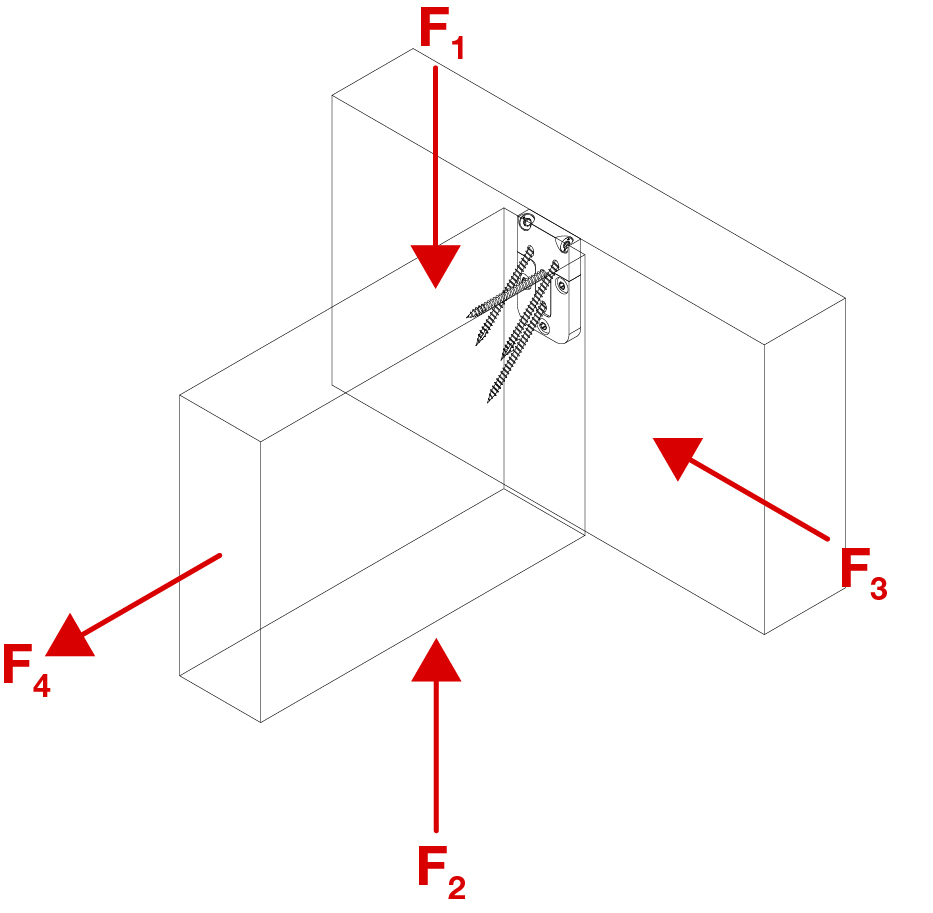

Characteristic capacities - Timber beam to timber beam

Rozměry

Reference	Hanger únosnost
	Characteristic capacities - dřevo Beam to dřevo beam
	Characteristic capacities - dřevo C24[kN]					Fastener množství			min. rozměry - nosník[mm]
	R₂,ₖ	R3,k	R₄.ₖ	R₁,ₖ		nosník		Header / post	B	H
				nosník šířka		TTUFS 4,0x60 (No.77616)	TTUFS 4,0x60 (No.77616) - optional	CSA 5,0x40
				≥40mm	≥60mm	TTUFS 4,0x60 (No.77616)	TTUFS 4,0x60 (No.77616) - optional	CSA 5,0x40
EGCL60	3.1	1.5	2.3	5.3	6.7	4	2	3	40	100
EGCL90	3.6	1.8	3.1	5.9	8.9	5	2	5	40	120
EGCL120	4.2	2.2	3.9	7.5	11.1	6	2	7	40	150

The specified values apply to the minimum dimensions of the joist.
For larger cross-sections and different screws, observe the specifications of the respective ETA.
If the force is only in the F1 direction, the two optional screws from above can be left out.

$\sum\frac{F_{i,d}} {R_{i,d}}\le1$

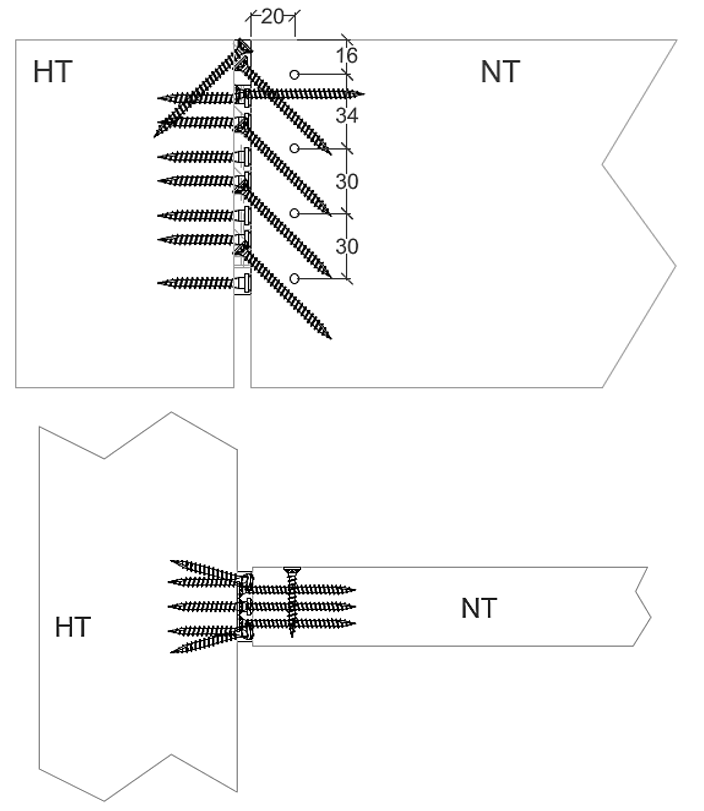

Characteristic capacities - R_3,k - incl. reinforcement screws

Rozměry

Reference	Hanger únosnost
	Reinforcing šrouby in the nosník Full závit šroub 4,0x l *	Characteristic capacities - R3,k - depending of min. rozměry of nosník
		high[mm]	šířka
		high[mm]	CNA4.0x40[mm]	CNA4.0x50[mm]	60[mm]	70[mm]	80[mm]
EGCL60	3	100	2.6	3.3	3.9	4.6	5.2
EGCL90	3	120	3.1	3.9	4.7	5.2	6.2
EGCL120	4	150	3.9	4.9	5.9	6.8	7.8

* The reinforcement screws are countersunk screws with full thread and must be selected according to the joist width:

40-60 mm (joist width) = screw length max. 5 mm and l_g max. 10 mm shorter than joist width
70-80 mm (joist width) = screw length max. 10 mm and l_g max. 20 mm shorter than joist width

Instalace

Fasteners

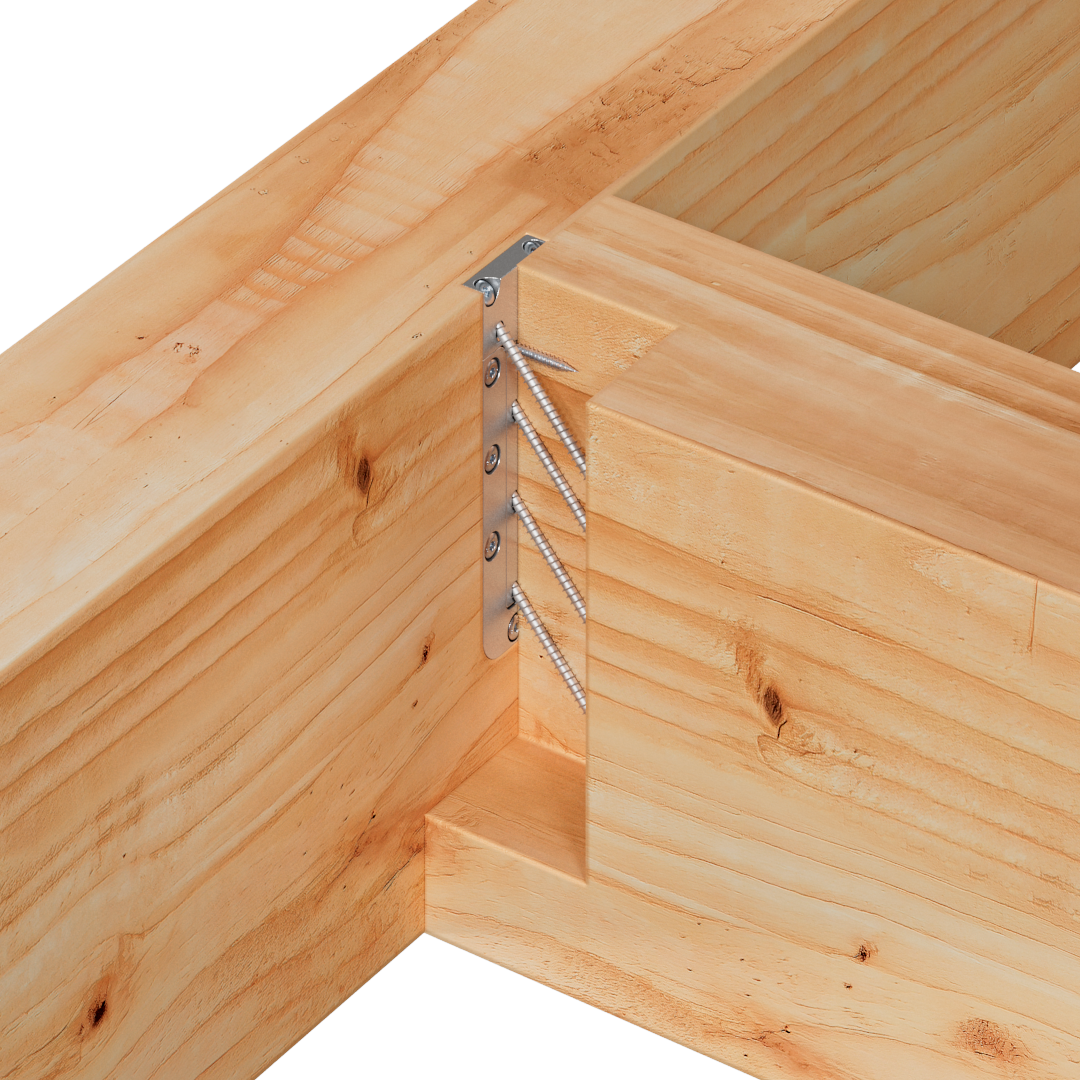

On header, CSA Ø5mm according to ETA-04/0013: The CSA screws are screwed in perpendicular (90°) to the connector.
On joist, TTUFS Ø4mm (full thread) according to ETA-21/0670: The TTUFS screws are inserted 45° to the connector. Except one TTUFS in the middle of the joist (male part), which is inserted into the joist perpendicular to the connector, this one is also used as an installation help.
