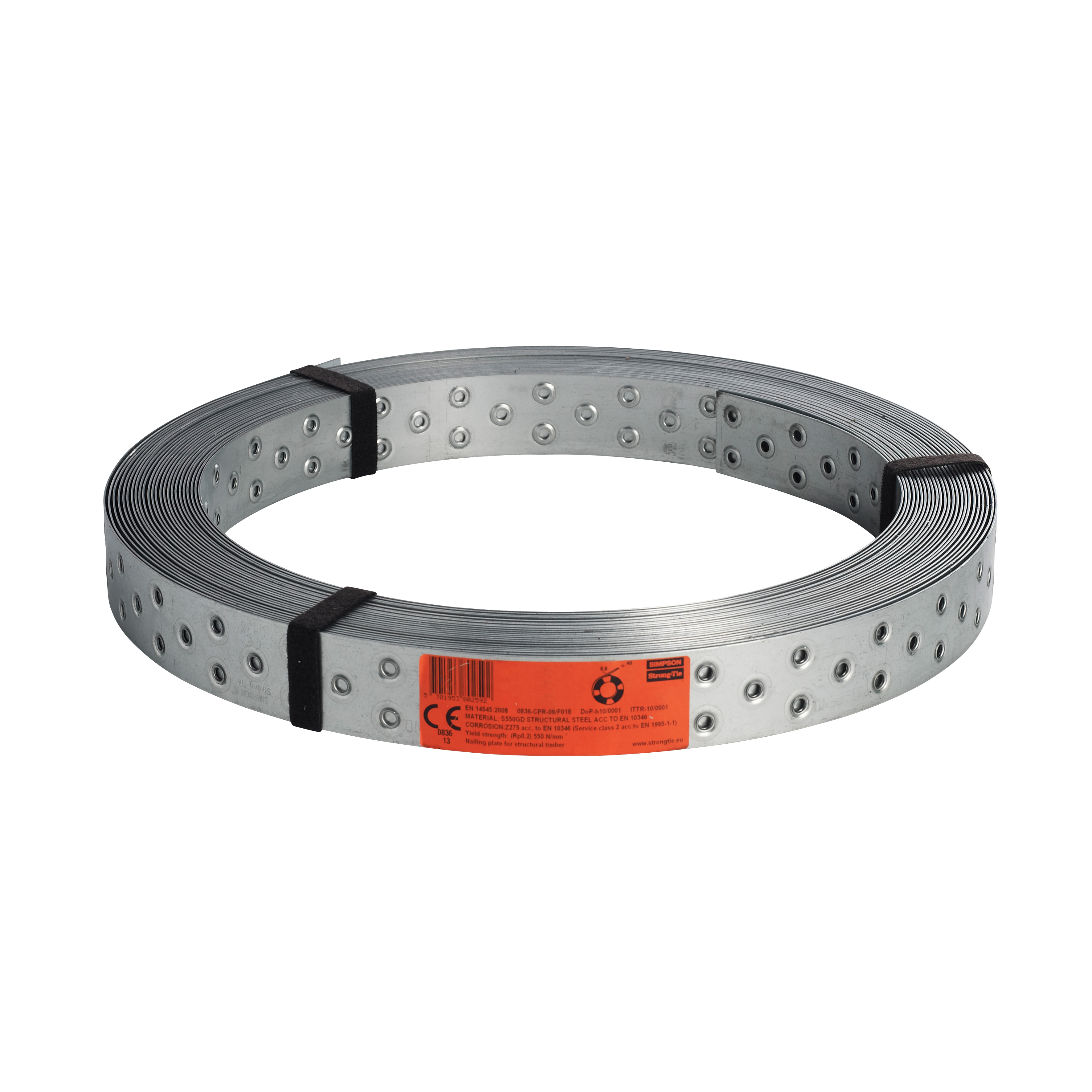

BAN09
Windbracing Strap
BAN09 windbracing straps can be used for anchoring and bracing of roof constructions. The engineered "strong-holes" ensures a very light 0,9 mm strap with the same capacities as a 2 mm strap. The thin material makes the strap easy to lift and handle on the job site. And it is easy to cut with metal shears.
Označení CE
Servisní třída 2
Elektroizolační ocel 20 µm
Uvnitř
Podrobnosti produktu
Obrázky
Vlastnosti
Technické údaje
Rozměry
Rozměry a typické hodnoty
| Art. nr. | Rozměry a typické hodnoty | Otvory | ||
|---|---|---|---|---|
| A [mm] | B [m] | t [mm] | Ø | |
| BAN094050 | 40 | 50 | 0.9 | 5 |
Product capacities
| Art. nr. | Characteristic capacities R1.k Timber C24 [kN] | ||
|---|---|---|---|
| Maximum value | CNA4.0x40 | CNA4.0x50 | |
| BAN094050 | 17.8 | 1.83 x n | 2.22 x n |
n = effective number of nails in the row according to Eurocode 5 – 8.3.1.1 (8)
