KIT FIX PPJBT

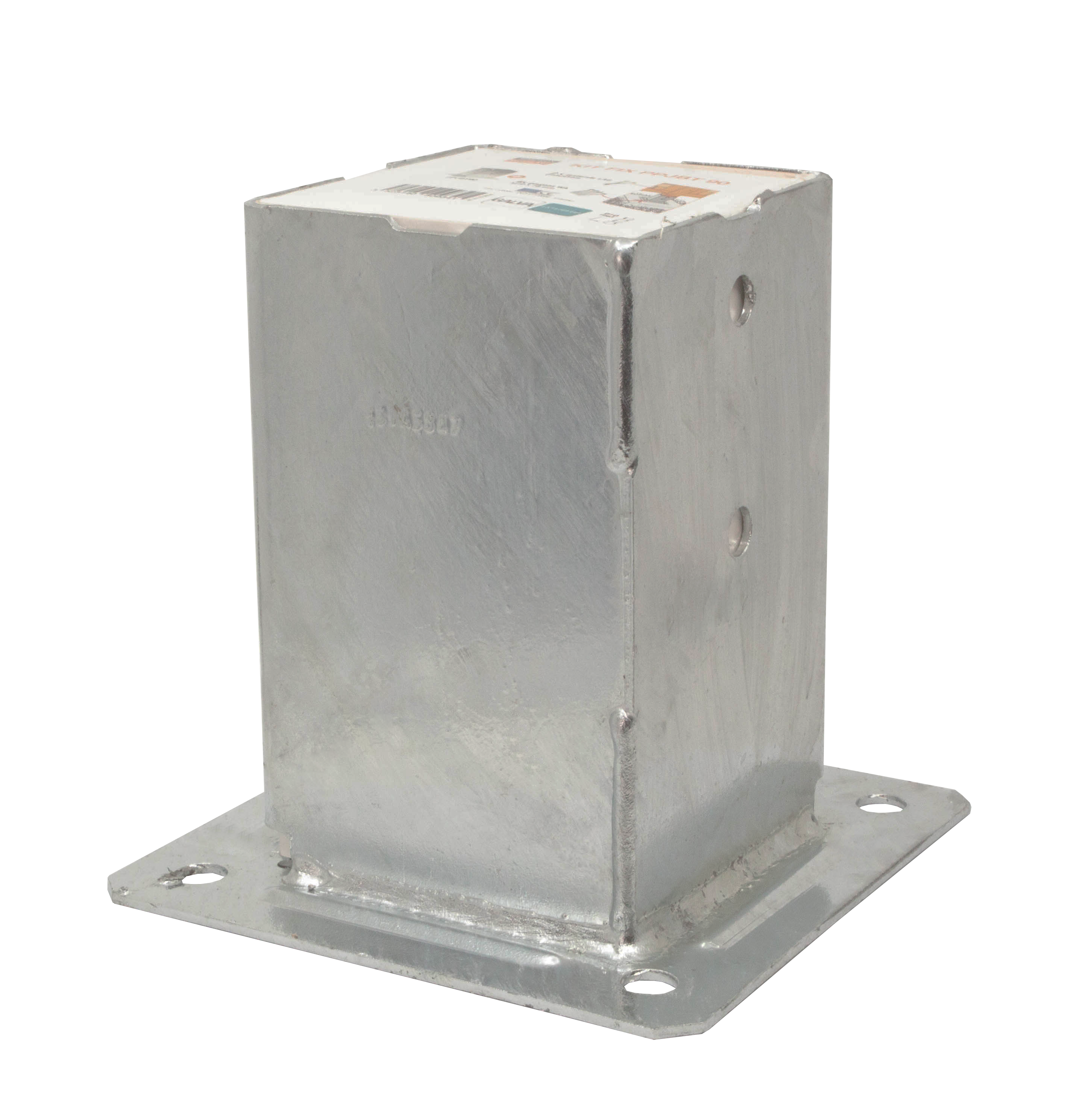

Square post base on plate "ready to fix"
The square post bases on plate PPJBT are dedicated to built small structures as fence or light structures for garden. Easy to uninstall, they can be bolted on concrete or rigid support or screwed on timber.

Žárově pozinkovaná ocel
EPD

Servisní třída 3
Podrobnosti produktu
Vlastnosti
Material
- Acier DD11 suivant NF EN 10111,
- Finition galvanisation à chaud suivant NF EN ISO 1461,
- Épaisseur corps : 2 à 3 mm selon les modèles,
- Épaisseur platine : 2,5 à 3 mm selon les modèles.
Vorteile
- Platine d'épaisseur 2,5 mm renforcée : grande résistance à la déformation,
- Angles de la platine découpés pour plus de sécurité,
- Compatible avec les sections de poteau courantes du marché.
Aplikace
Anwendbare Materialien
- Porteur : béton, acier, bois massif, lamellé-collé, bois composite...
- Porté : bois massif, lamellé-collé, bois composite...
Anwendungsbereich
- Clôtures de jardin, panneaux, claustras,
- Abris de jardin, bûchers de jardin, carports,
- Structures légères et ouvrages temporaires de jardin.
Technické údaje
Rozměry a typické hodnoty
| Reference | konektor rozměry | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| rozměry výrobku[mm] | Top plate otvory | Bottom plate otvory | ostatní | ||||||||
| A[mm] | B[mm] | C[mm] | D[mm] | E[mm] | t₁[mm] | t₂[mm] | kulatý | kulatý | Kit composition | hmotnost[kg] | |
| Ø11 | Porteur | ||||||||||
| KIT FIX PPJBT 70 | 71 | 150 | 71 | 150 | 150 | 2 | 2.5 | 4 | 4 | 1 PPJBT70 - 4 WA M10-78/5 - 2 LAG10050 | 1.5 |
| KIT FIX PPJBT 90 | 91 | 150 | 91 | 150 | 150 | 2 | 2.5 | 4 | 4 | 1 PPJBT90 - 4 WA M10-78/5 - 2 LAG10050 | 1.7 |
Instalace
Instalace
Befestigung

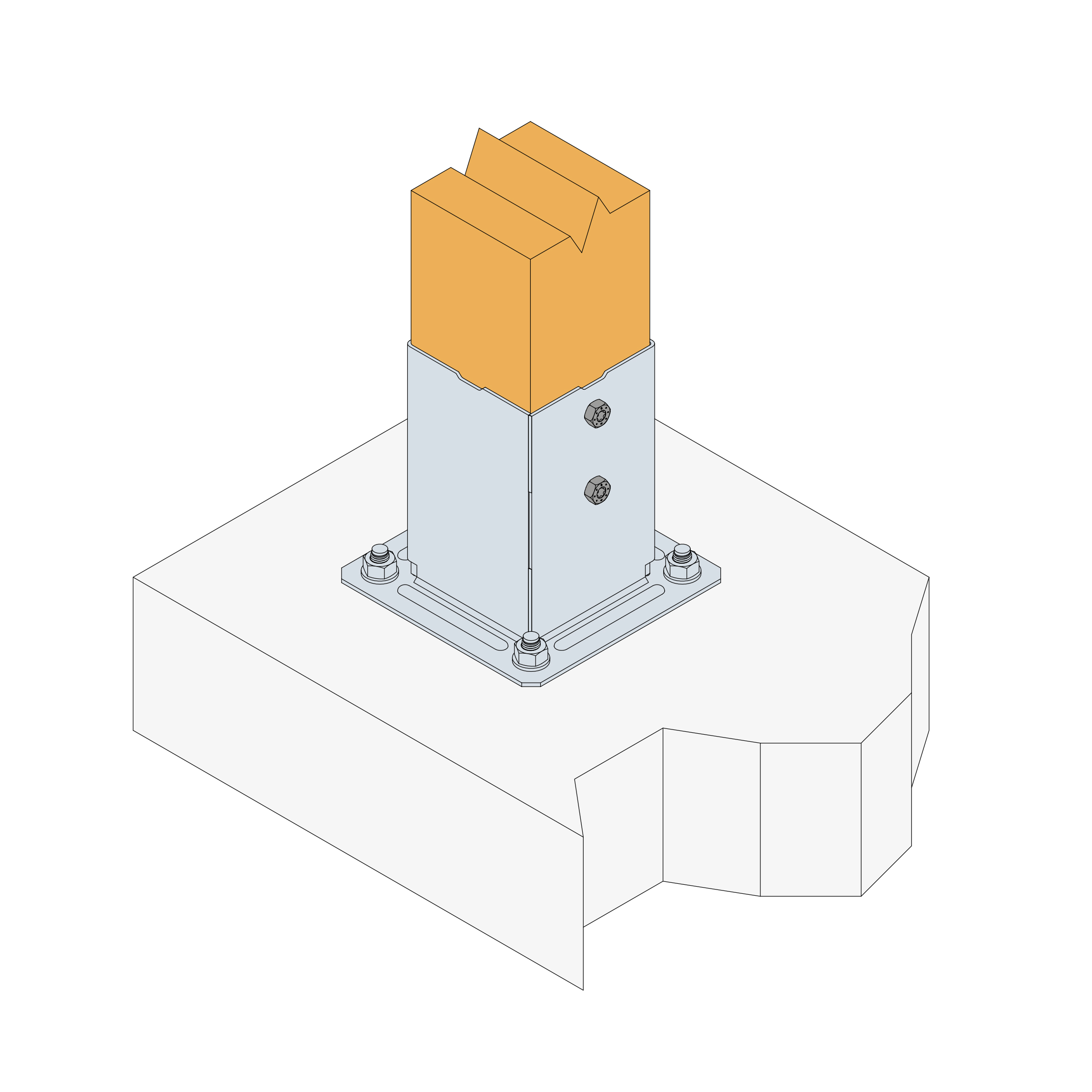

Poteau :
- Boulons.
- Tirefonds LAG Ø10 mm.
Platine :
- Cheville mécanique : goujon WA M10-78/5, tirefond LAG 10-80.
- Ancrage chimique : résine AT-HP + tige filetée LMAS M10-120/25.
Certifikace
Environmental Product Declarations (EPD)
Knihovna CAD a BIM
Nailing Pattern
KIT FIX PPJBT 70
-
-
KIT FIX PPJBT 90
-
-
