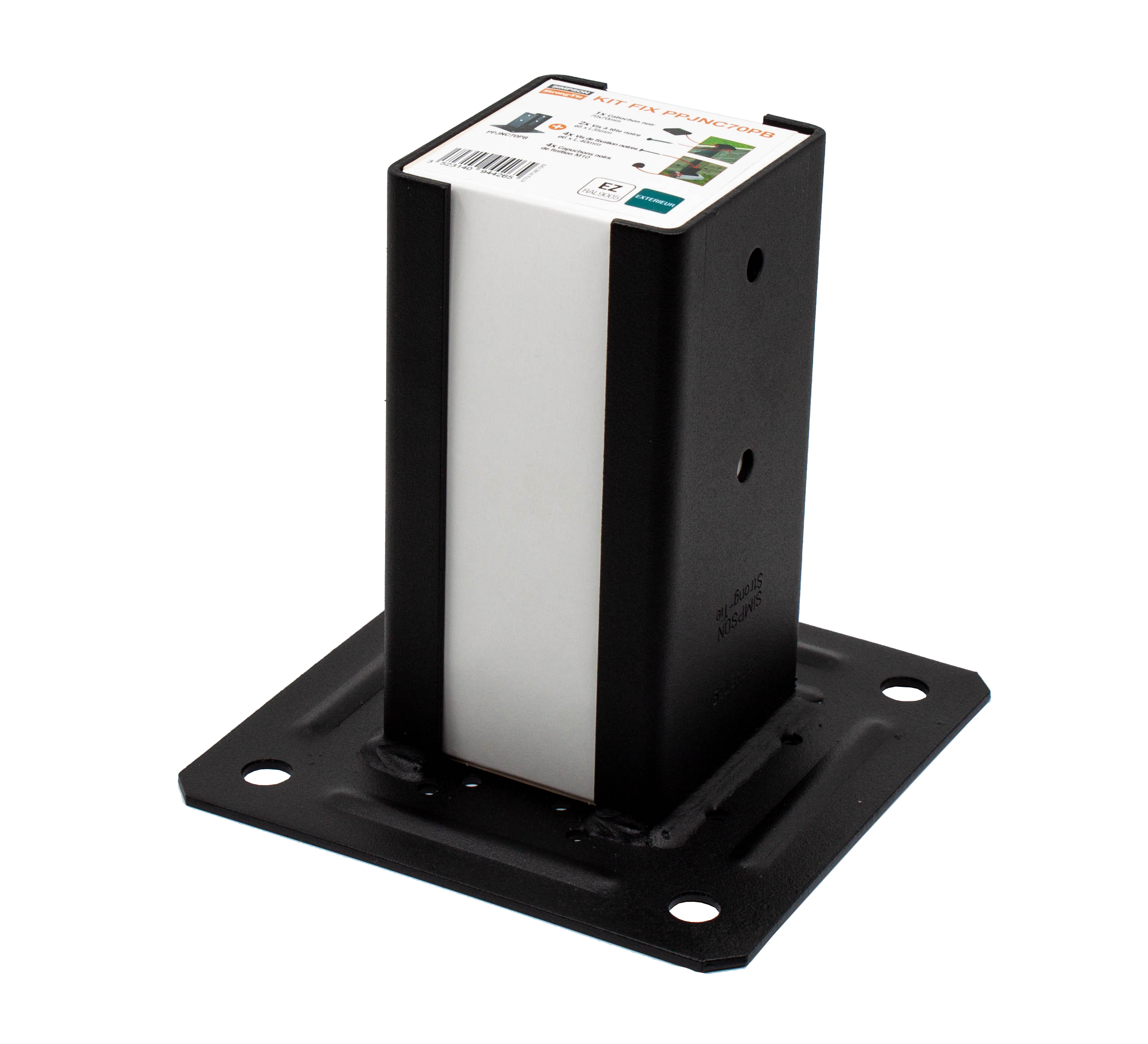

KIT FIX PPJNCPB

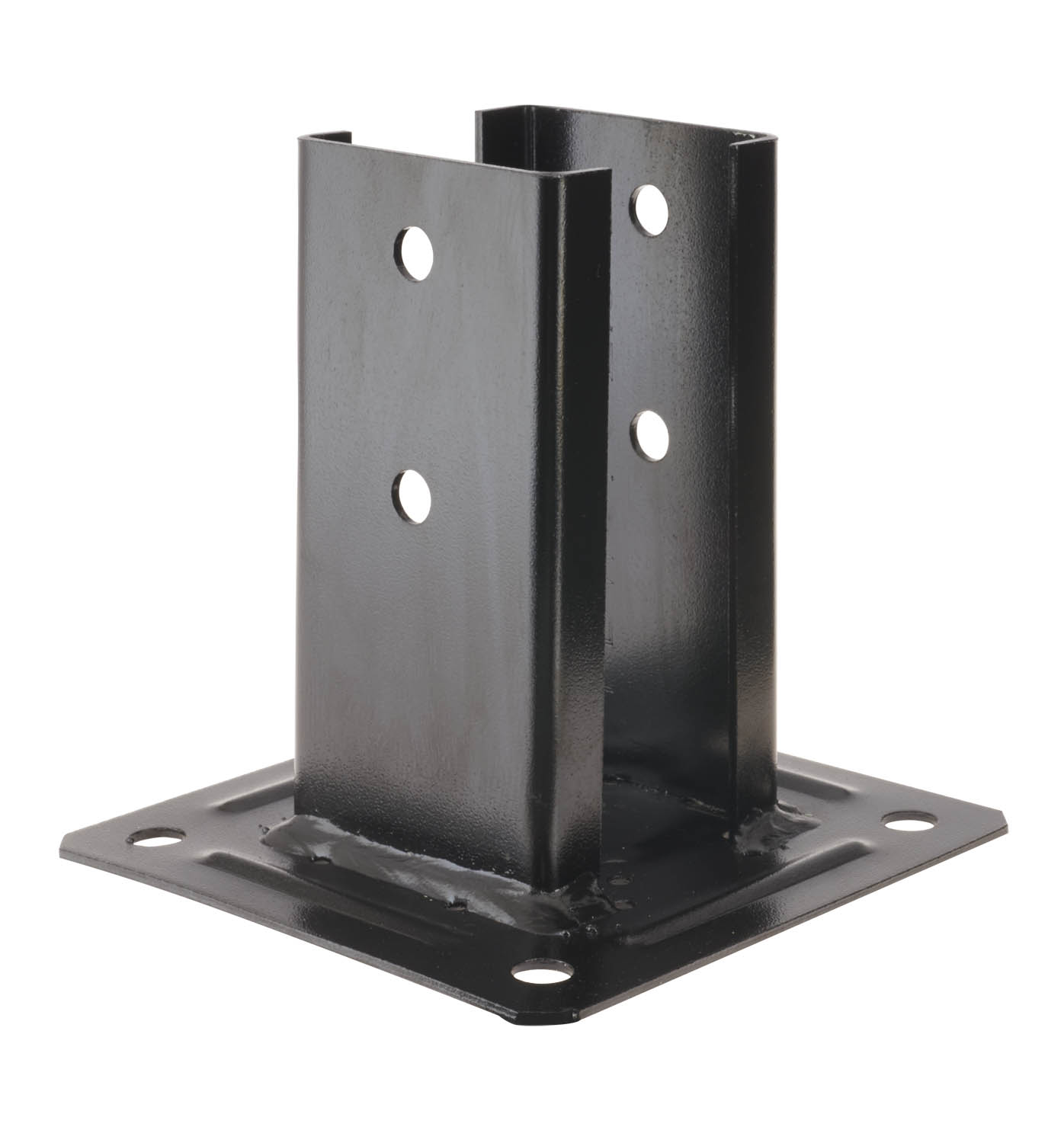

Postbase for wind screen

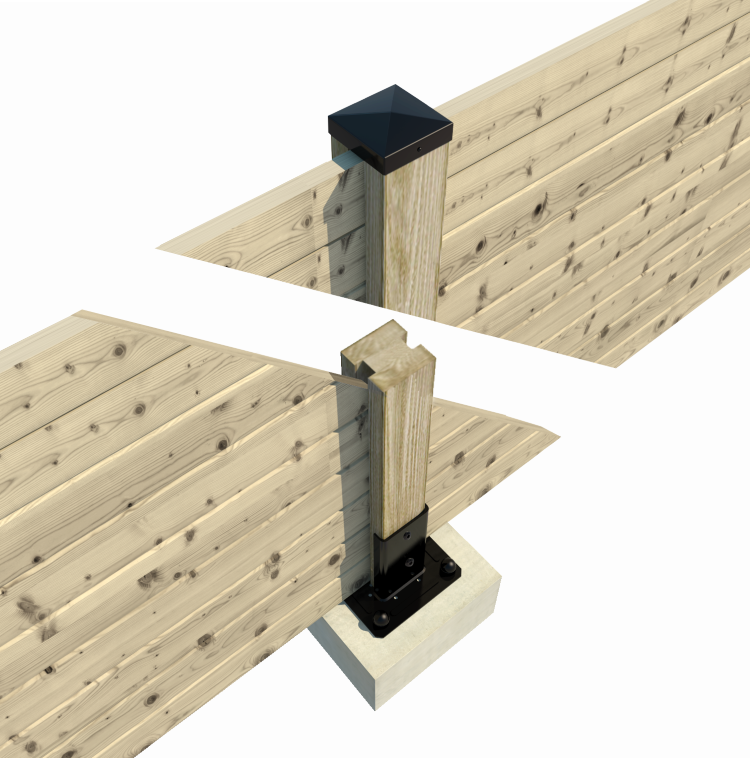

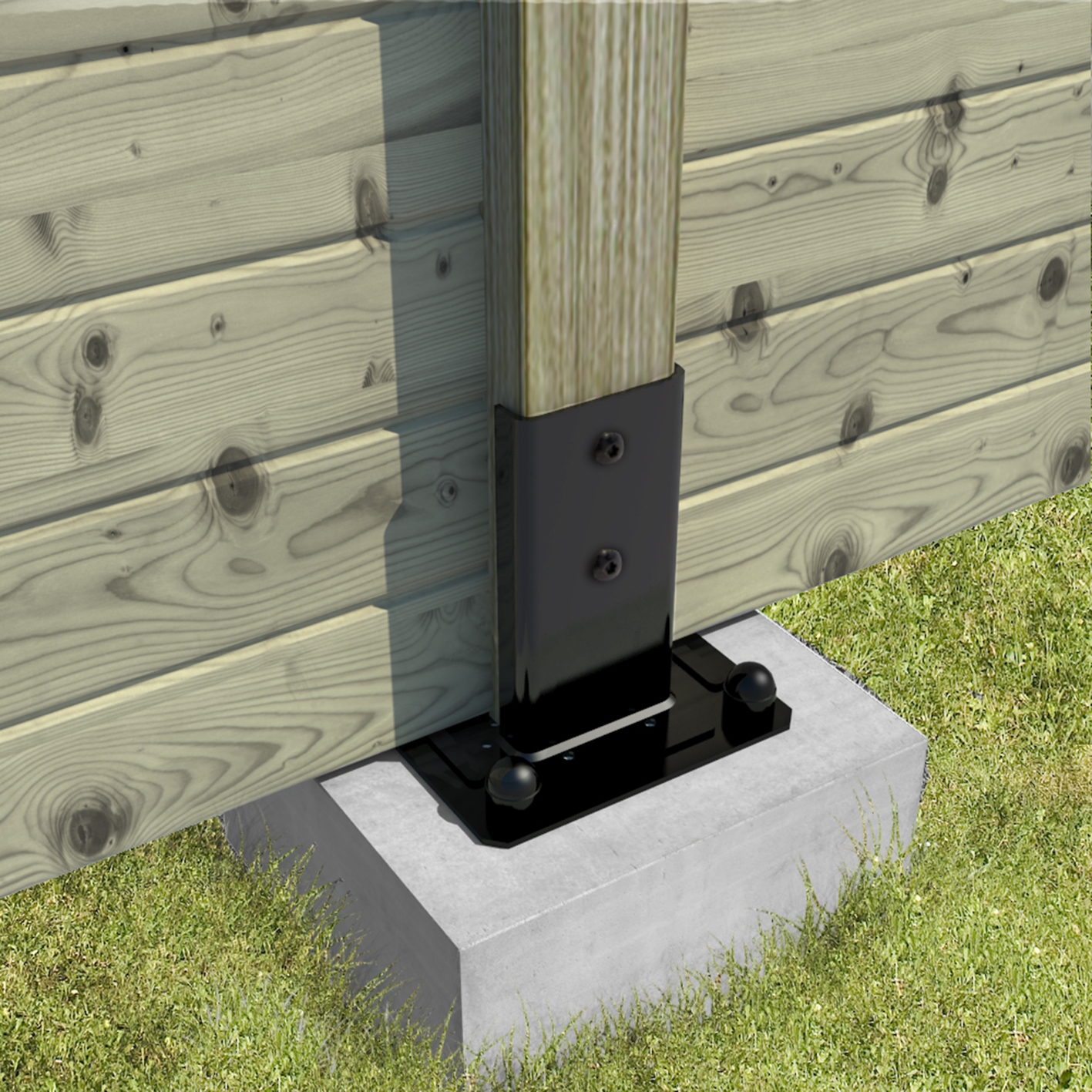

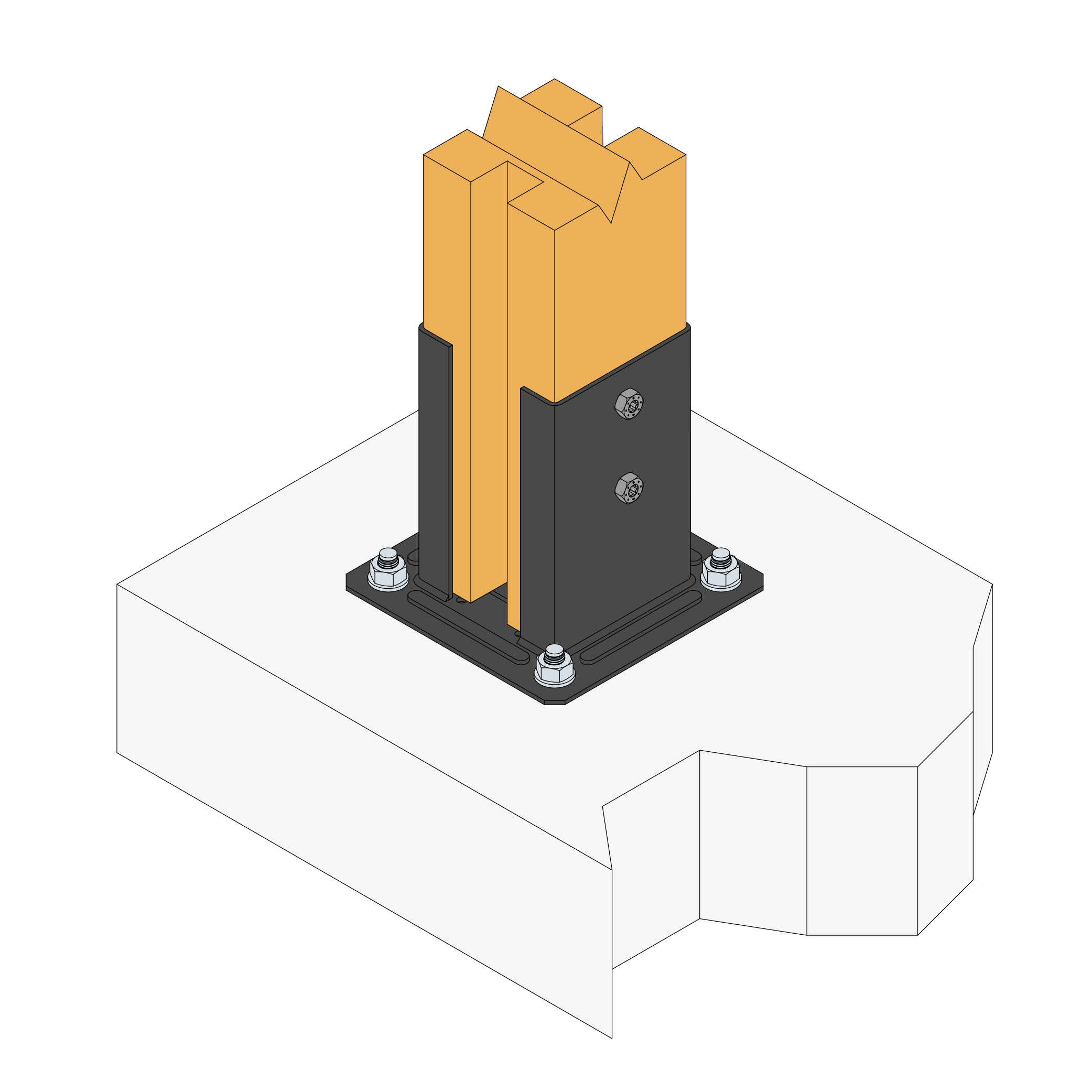

Black square "ready-to-fix" postbases for windscreens PPJNCPB are recommended in the realization of small works such as fences and light garden structures. Very easy to install, they can be bolted on concrete support or screwed on wood.
Novinky
EPD
Exteriér
Acier électrozingué RAL 9005
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry a typické hodnoty
Rozměry
| Reference | Rozměry konektoru | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rozměry[mm] | Otvory | Bottom plate holes | Other | ||||||||
| A[mm] | B[mm] | C[mm] | D[mm] | E[mm] | F[mm] | t₁[mm] | t₂[mm] | Top part | Round | Hmotnost[kg] | |
| Ø8 | Porteur | ||||||||||
| KITFIXPPJNC70NPB | 71 | 152.5 | 71 | 150 | 150 | 41 | 2.5 | 2.5 | 4 | 4 | 1.2 |
| KITFIXPPJNC90NPB | 91 | 152.5 | 91 | 150 | 150 | 49 | 2.5 | 2.5 | 4 | 4 | 1.4 |
