SAEPB

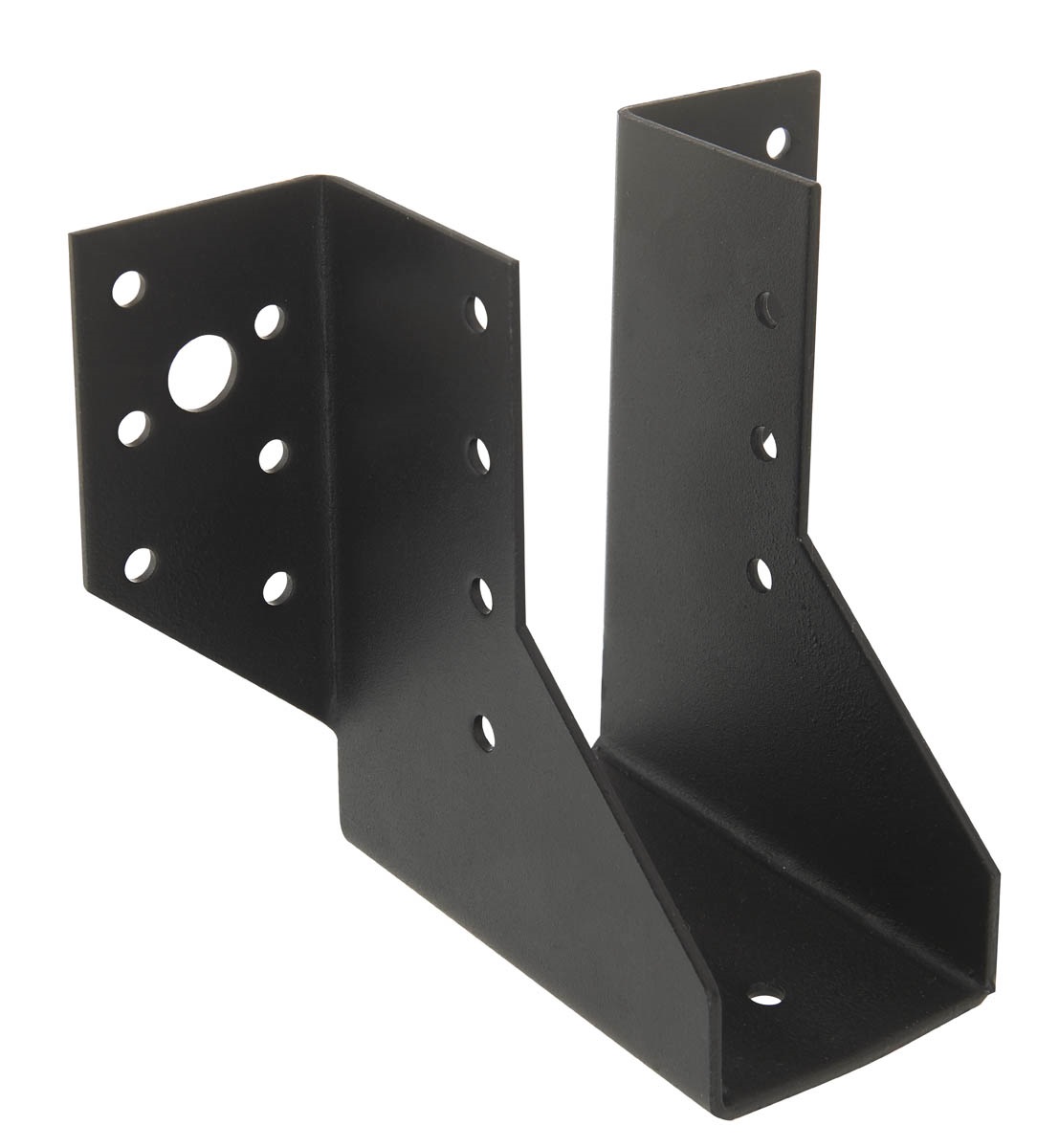

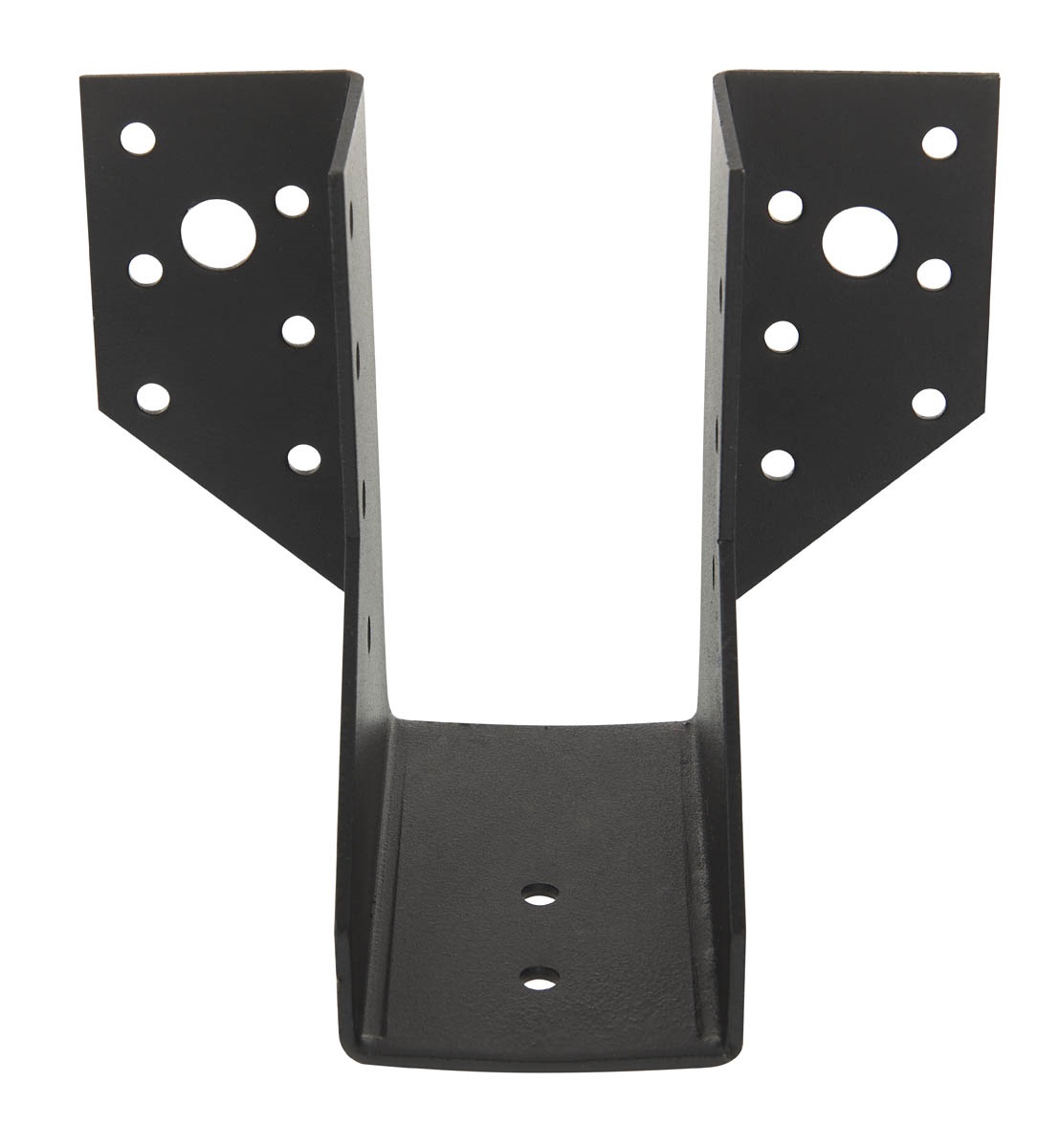

Joist Hanger with External Flanges

The Joist hangers with external flanges SAE is a reference. It can be used in a lot of condition. The fixation is reliable and easy to make.

Označení CE
Označení CE
ETA
ETA
Vnější příruby
Vnější příruby
Plná sledovatelnost na etiketě
Plná sledovatelnost na etiketě
Servisní třída 3
Servisní třída 3
Acier RAL 9005
Acier RAL 9005
EPD
EPD
Exteriér
Exteriér

Podrobnosti produktu

Obrázky

Vlastnosti

Material

  • Galvanized Steel S250GD + Z275 according to EN 10346
  • Thickness 2 mm

Advantage

  • Easy and quick installation

Aplikace

Support

  • Header Member: Solid timber, Composite timber, Glulam, Steel, Concrete.
  • Joist: Solid timber, Composite timber, Glulam.

For use with

  • Joist

Technické údaje

Rozměry a typické hodnoty

Rozměry

Referencekonektor rozměry
ostatnírozměry výrobku[mm]Header otvorynosník otvory
hmotnost[kg]A[mm]B[mm]C[mm]d[mm]F[mm]tloušťka[mm]kulatýkulatý
ØnØ
SAE250/46/2PB0.28461028441.58621227

Product characteristic capacities - Timber to timber - full nailing

ReferenceDecking únosnost
Characteristic capacities - dřevo to dřevo - Full nailing
počet of Fastenersvýrobek characteristic capacities - dřevo C24[kN]
HeadernosníkR₁,ₖR₂,ₖR₃,ₖR4,k
množstvímnožstvíCSA5.0x35PBCSA5.0x35PBCSA5.0x35PBCSA5.0x35PB
SAE250/46/2PB12.07.010.47.21.74.4

Product capacities - Timber to timber - Partial nailing

ReferenceDecking únosnost
výrobek capacities - dřevo to dřevo - Partial nailing
počet of FastenersCharacteristic capacities - dřevo C24[kN]
HeadernosníkR₁,ₖR₂,ₖR₃,ₖR4,k
množstvímnožstvíCSA5.0x35PBCSA5.0x35PBCSA5.0x35PBCSA5.0x35PB
SAE250/46/2PB6.04.06.32.90.92.2

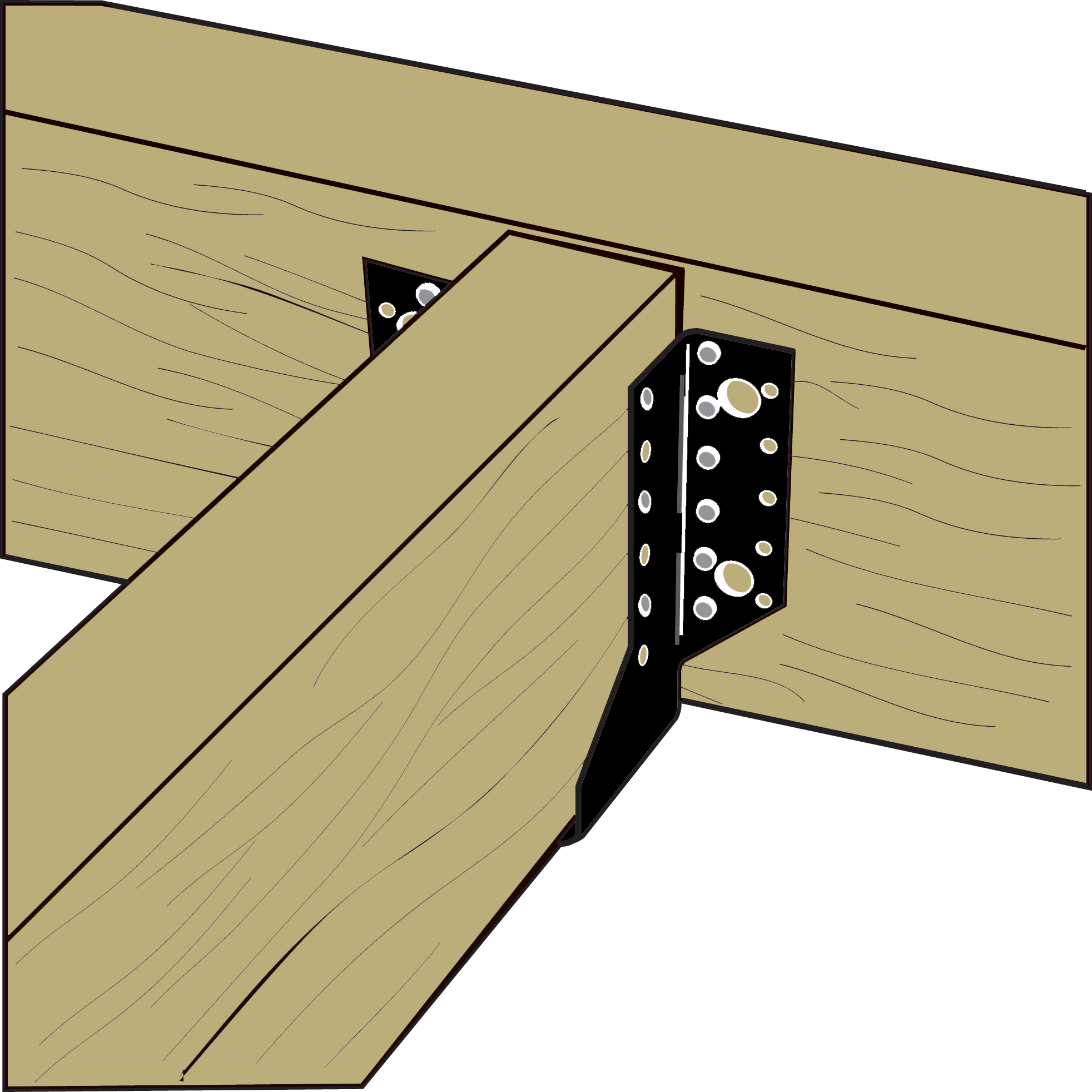

Values given in the table above are valid for a joist to joist and joist to column application, subject to respecting the partial nailing plans specific to each configuration given in our ETA-06/0270 page 17.

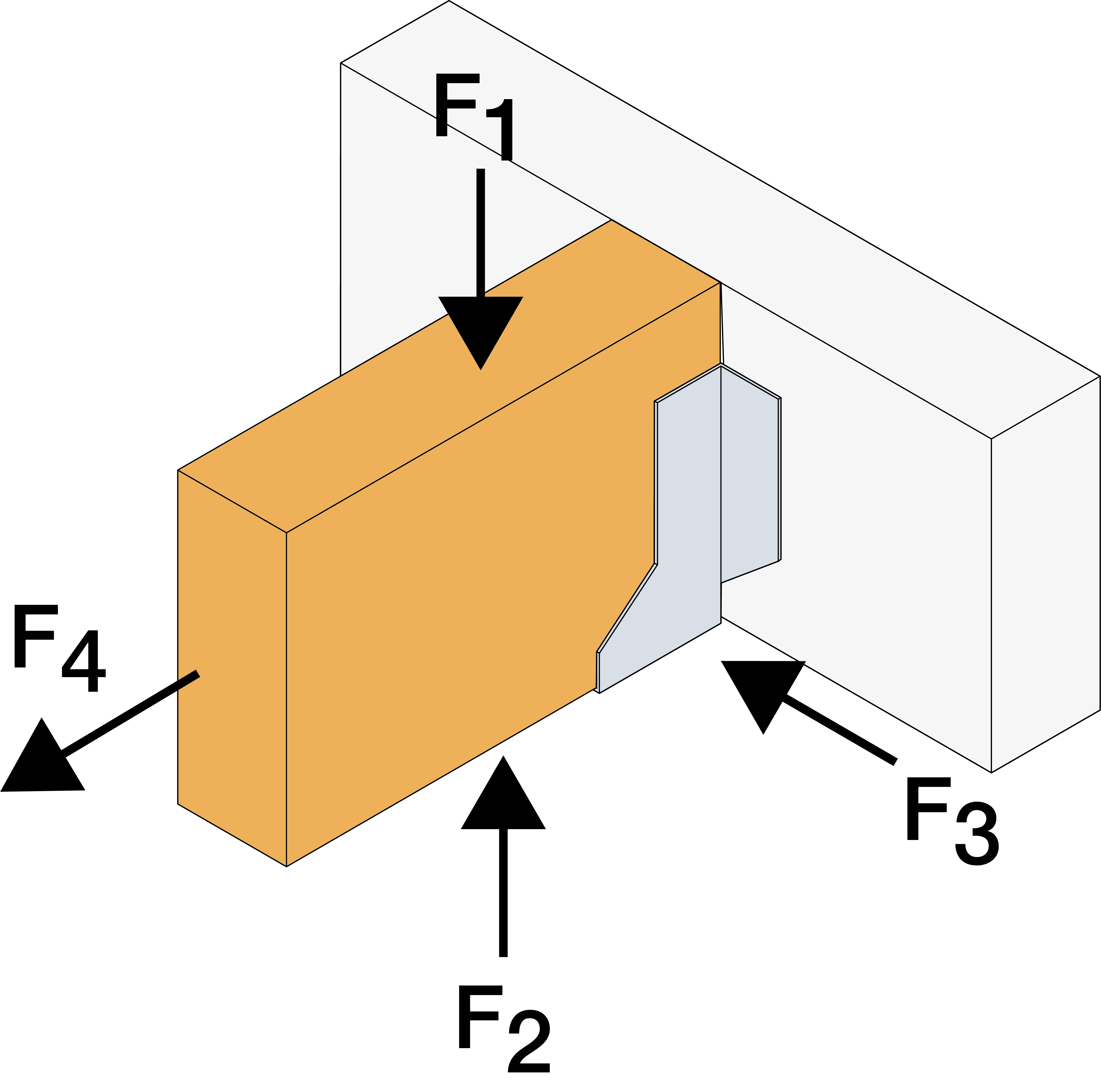

Product characteristic capacities - Timber beam to rigid support

ReferenceDecking únosnost
výrobek capacities - dřevo to beton
počet of FastenersCharacteristic capacities - dřevo C24[kN]
HeadernosníkR₁,ₖR₂,ₖR4,kR₃,ₖ
množstvítypmnožstvítypCSA5.0x35PBCSA5.0x35PBCSA5.0x35PBCSA5.0x35PB

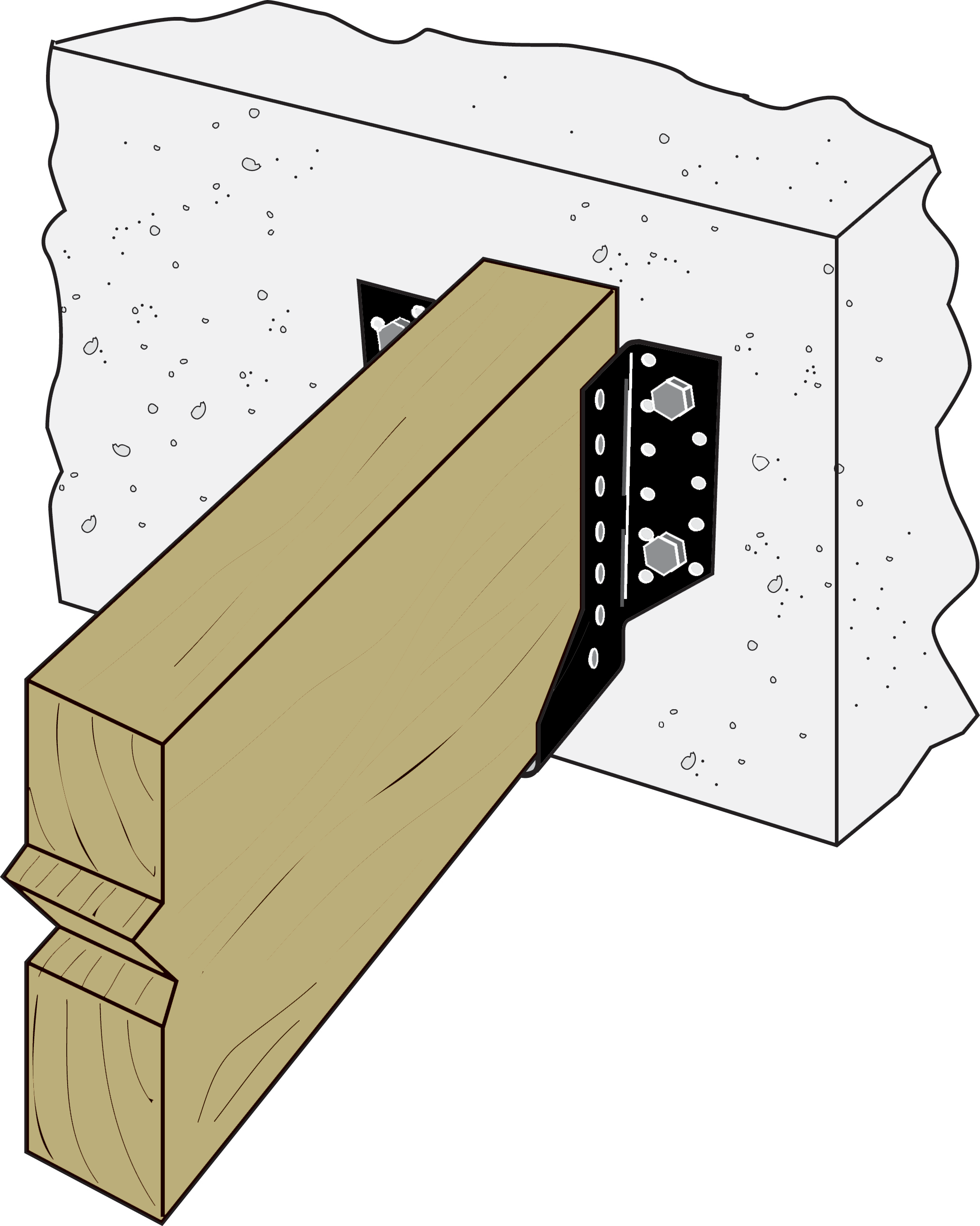

SAE250/46/2PB2.0Ø10*7.0CSA**16.512.853.8

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances. The values in this table are given for an installation in the middle of a concrete slab. In other installation condition (close to the edge,...), the designer must check the anchor separately (Our free software Anchor Designer is available for download on our website).

** CSA5,0x35PB

Instalace

Instalace

Fasteners

Joist :

  • Connector Nails CNA Ø 4.0 x 50 mm.
  • Connector Nails CNA Ø 4.0 x 35 mm for width smaller than 64 mm.
  • Screws CSA Ø 5.0 x 40 mm.
  • Screws CSA Ø 5.0 x 35 mm for width smaller than 60 mm.

Header :
   Timber

  • Connector Nails CNA Ø 4.0 x 50 mm.
  • Connector Nails CNA Ø 4.0 x 35 mm for width smaller than 64 mm.
  • Screws CSA Ø 5.0 x 40 mm.
  • Screws CSA Ø 5.0 x 35 mm for width smaller than 60 mm.

   Steel :

  • Bolt Ø 12 or Ø 10 mm depending of the blank model (The diameter of the model must be maximum 2mm smaller than the hole diameter).

   Concrete :

  • Mecahnical anchor : WA M10-78/5 (for SAE200 and 250) and WA M12-104/5 (for SAE300, 340, 380, 440 and 500).
  • Chemical anchor : resin AT-HP with threaded rod LMAS M10-120/25 (for SAE200 and 250) and LMAS M12-150/35 (for SAE300, 340, 380, 440 and 500).

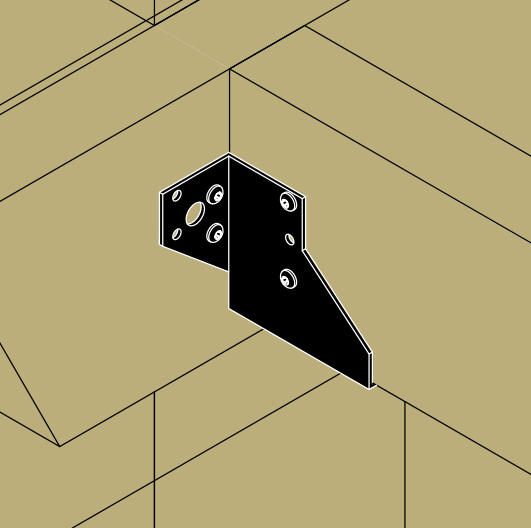

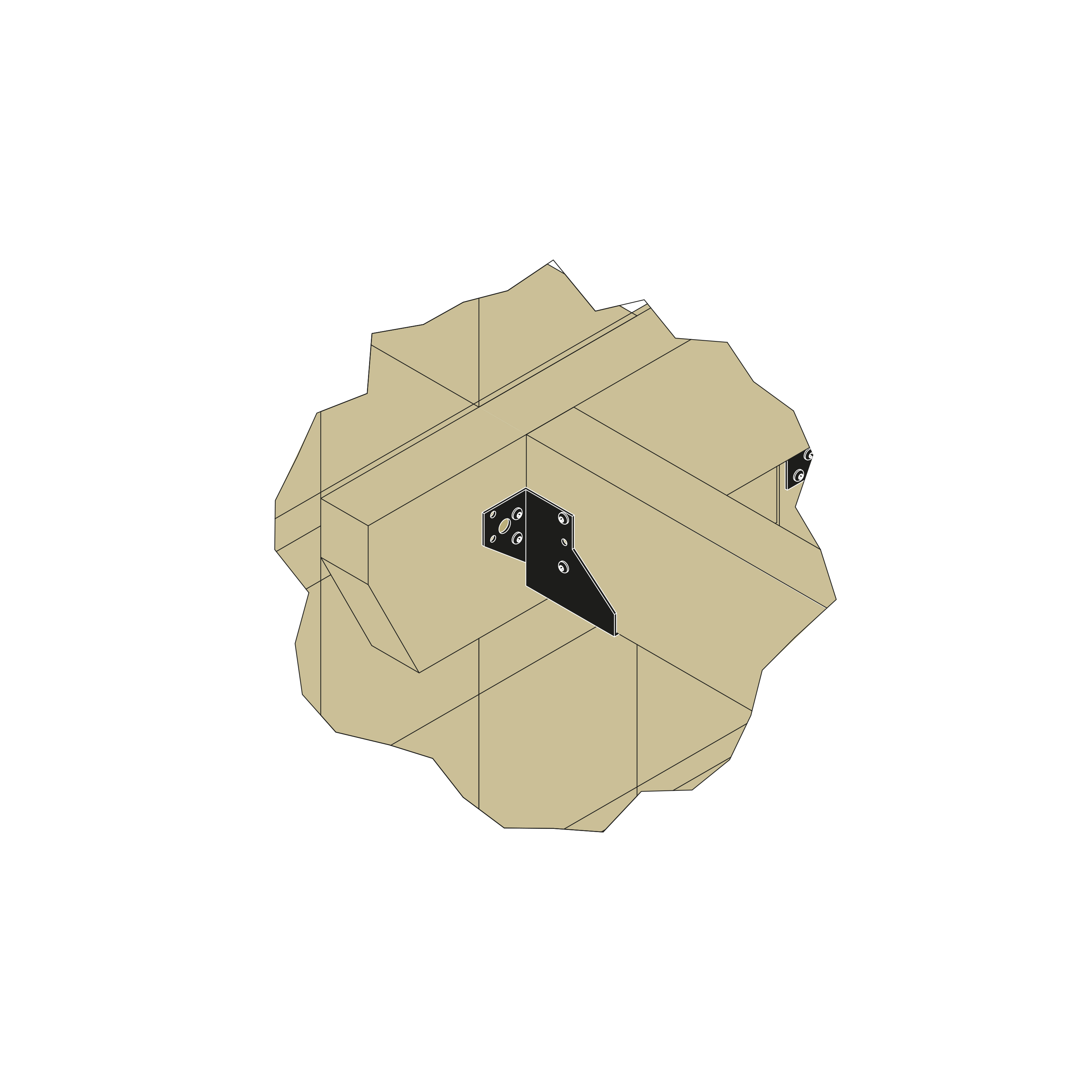

Installation

c

Certifikace

Evropské technické posouzení (ETA)
