KIT FIX PPA
Fixed post bases "ready-to-fix"
These post bases are versatile and are commonly used in structural applications.
Servisní třída 3
Podrobnosti produktu
Obrázky

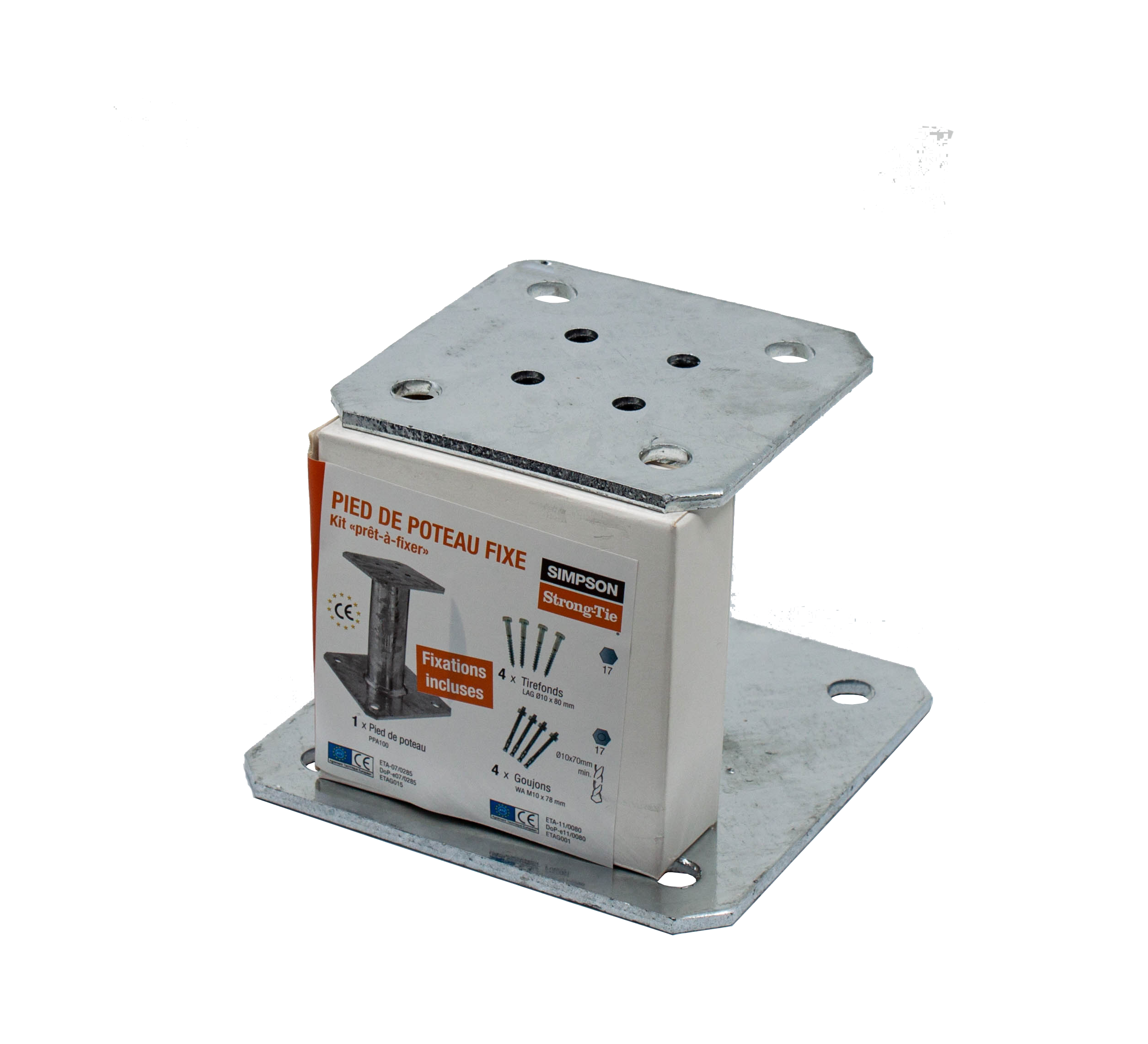

PPA Installation.
Vlastnosti
Aplikace
Technické údaje
Rozměry
Rozměry a typické hodnoty
| Art. nr. | Rozměry a typické hodnoty [mm] | Top plate holes | Bottom plate holes | Kit composition | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | G | t | Ø12 [mm] | Ø12 [mm] | ||
| KIT FIX PPA100 | 100 | 100 | 130 | 130 | 100 | 48.3 | 4 | 4 | 4 | 1 PPA100 - 4 WA M10-78/5 - 4 LAG10080 |
Product characteristic capacities
| Art. nr. | Product capacities - Timber to Concrete | ||||
|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 [kN] | ||||
| On post | On concrete | R1.k | |||
| Množství | Typ | Množství | Typ | ||
| KIT FIX PPA100 | 4 | Ø10x80 | 4 | Ø10* | 78,5/kmod^0,4 |
* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.
