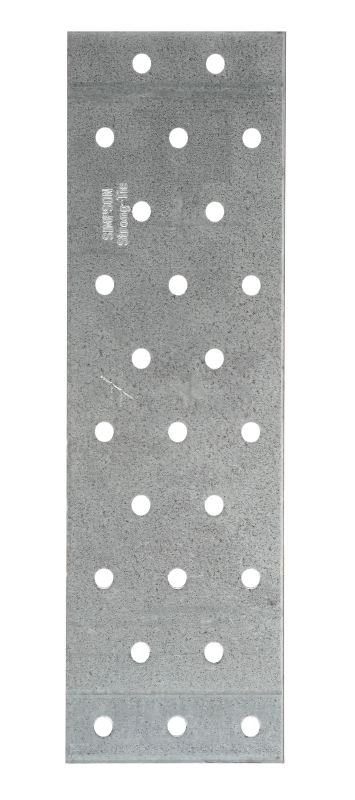

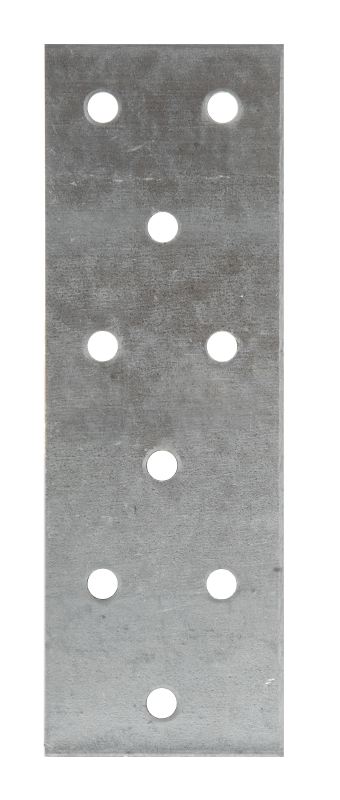

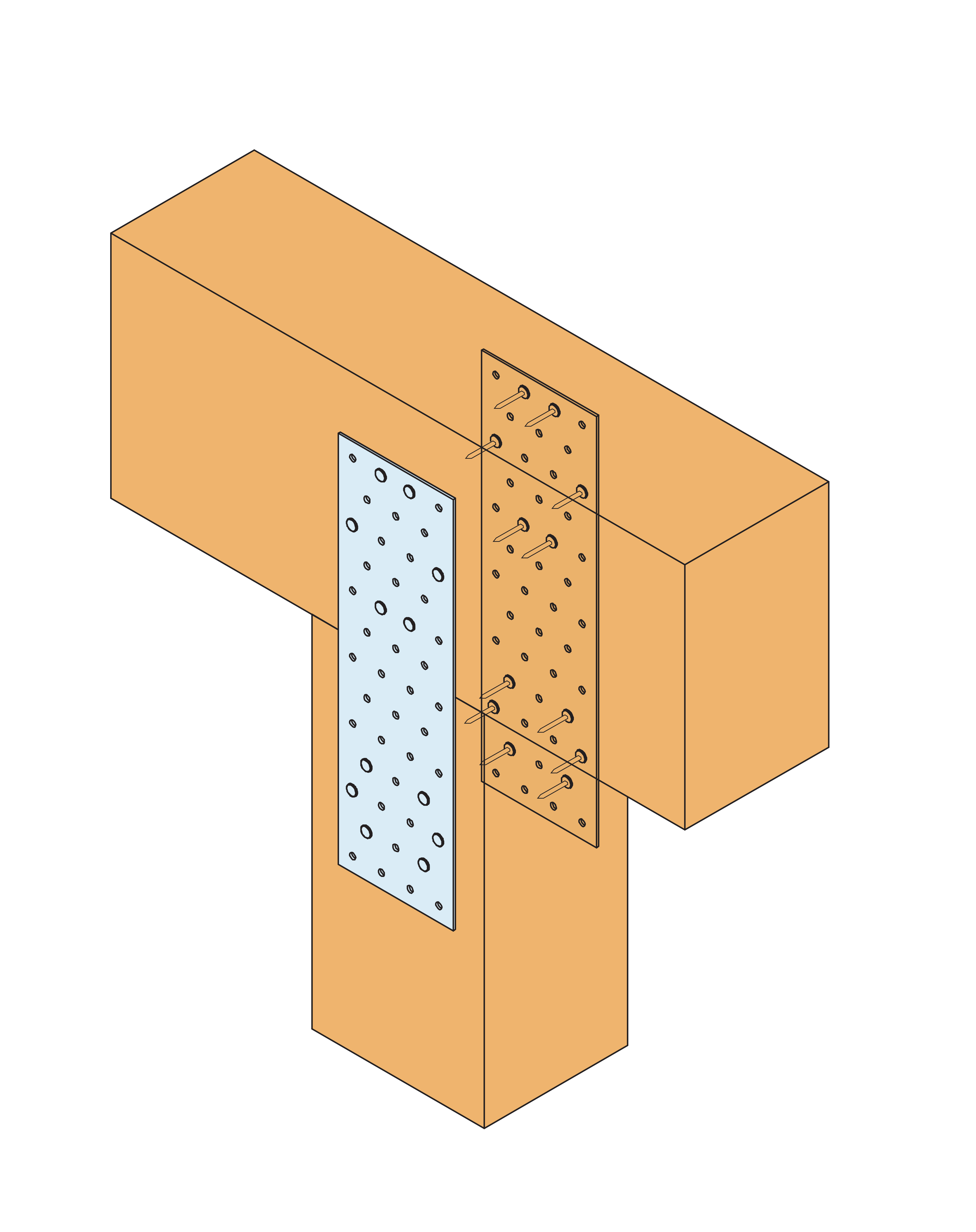

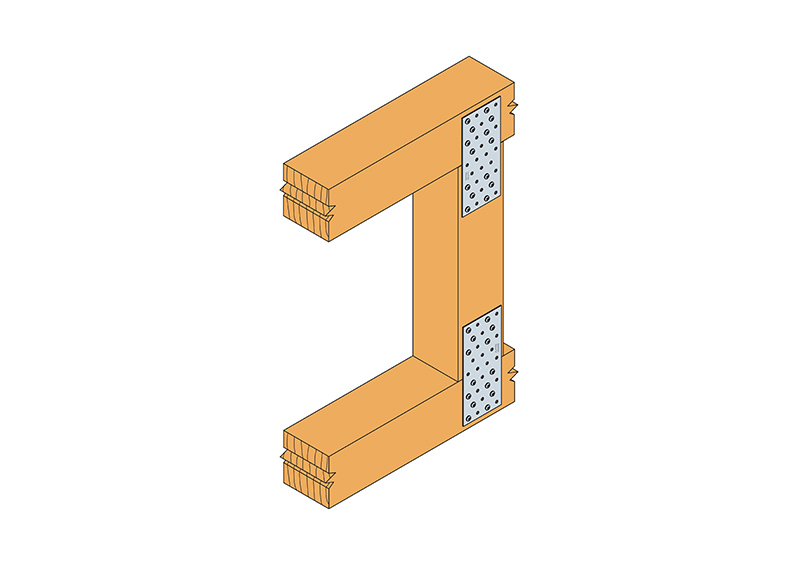

Děrované styčníkové plechy NP
NP děrované plechy jsou vyrobeny z tažené oceli o tloušťce 1,5 mm, 2,0 mm, 2,5 mm a 3,0 mm. Průměr otvoru je 5 mm.
Různé tloušťky desek t = 1,5 a t = 2,0 mm se vyrábějí ve standardních velikostech.
Kromě toho, se vyrábí také speciální velikosti v tloušťce 1,5 - 2,0 - 2,5 a 3,0 mm.
Označení CE
Servisní třída 2
Elektroizolační ocel 20 µm
Uvnitř
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry
Rozměry a typické hodnoty
| Art. nr. | Rozměry [mm] | Otvory | Box Quantity | |||
|---|---|---|---|---|---|---|
| A | B | Tloušťka | Množství | Gewindedurchmesser | ||
| NP15/40/120 | 40 | 120 | 1.5 | 9 | Ø5 | 100 |
| NP15/40/160 | 40 | 160 | 1.5 | 12 | Ø5 | 50 |
| NP15/40/360 | 40 | 360 | 1.5 | 27 | Ø5 | 100 |
| NP15/60/140 | 60 | 140 | 1.5 | 18 | Ø5 | 100 |
| NP15/60/160 | 60 | 160 | 1.5 | 20 | Ø5 | 50 |
| NP15/60/180 | 60 | 180 | 1.5 | 23 | Ø5 | 50 |
| NP15/60/200 | 60 | 200 | 1.5 | 25 | Ø5 | 50 |
| NP15/60/220 | 60 | 220 | 1.5 | 28 | Ø5 | 50 |
| NP15/60/240 | 60 | 240 | 1.5 | 30 | Ø5 | 50 |
| NP15/60/300 | 60 | 300 | 1.5 | 38 | Ø5 | 50 |
| NP15/60/420 | 60 | 420 | 1.5 | 53 | Ø5 | 50 |
| NP15/60/500 | 60 | 500 | 1.5 | 63 | Ø5 | 50 |
| NP15/80/100 | 80 | 100 | 1.5 | 18 | Ø5 | 50 |
| NP15/80/140 | 80 | 140 | 1.5 | 25 | Ø5 | 50 |
| NP15/80/200 | 80 | 200 | 1.5 | 35 | Ø5 | 50 |
| NP15/80/220 | 80 | 220 | 1.5 | 39 | Ø5 | 50 |
| NP15/80/240 | 80 | 240 | 1.5 | 42 | Ø5 | 50 |
| NP15/80/260 | 80 | 260 | 1.5 | 46 | Ø5 | 50 |
| NP15/80/300 | 80 | 300 | 1.5 | 53 | Ø5 | 50 |
| NP15/80/380 | 80 | 380 | 1.5 | 67 | Ø5 | 50 |
| NP15/80/420 | 80 | 420 | 1.5 | 74 | Ø5 | 50 |
| NP15/100/180 | 100 | 180 | 1.5 | 41 | Ø5 | - |
| NP15/100/200 | 100 | 200 | 1.5 | 45 | Ø5 | 50 |
| NP15/100/240 | 100 | 240 | 1.5 | 54 | Ø5 | 50 |
| NP15/100/300 | 100 | 300 | 1.5 | 68 | Ø5 | 50 |
| NP15/100/380 | 100 | 380 | 1.5 | 86 | Ø5 | 25 |
| NP15/120/220 | 120 | 220 | 1.5 | 61 | Ø5 | 50 |
| NP15/120/240 | 120 | 240 | 1.5 | 66 | Ø5 | 50 |
| NP15/120/300 | 120 | 300 | 1.5 | 83 | Ø5 | 25 |
| NP15/120/340 | 120 | 340 | 1.5 | 94 | Ø5 | 25 |
| NP15/120/380 | 120 | 380 | 1.5 | 105 | Ø5 | 25 |
| NP15/140/140 | 140 | 140 | 1.5 | 46 | Ø5 | - |
| NP15/140/180 | 140 | 180 | 1.5 | 59 | Ø5 | 50 |
| NP15/140/200 | 140 | 200 | 1.5 | 65 | Ø5 | 50 |
| NP15/140/220 | 140 | 220 | 1.5 | 72 | Ø5 | - |
| NP15/140/260 | 140 | 260 | 1.5 | 85 | Ø5 | 50 |
| NP15/140/300 | 140 | 300 | 1.5 | 98 | Ø5 | 25 |
| NP15/160/180 | 160 | 180 | 1.5 | 68 | Ø5 | 50 |
| NP15/160/220 | 160 | 220 | 1.5 | 83 | Ø5 | 50 |
| NP15/160/240 | 160 | 240 | 1.5 | 90 | Ø5 | 25 |
| NP15/160/340 | 160 | 340 | 1.5 | 128 | Ø5 | 25 |
| NP15/160/380 | 160 | 380 | 1.5 | 143 | Ø5 | 25 |
| NP15/160/400 | 160 | 400 | 1.5 | 150 | Ø5 | 20 |
| NP15/160/420 | 160 | 420 | 1.5 | 158 | Ø5 | 25 |
| NP15/180/180 | 180 | 180 | 1.5 | 77 | Ø5 | 50 |
| NP15/200/260 | 200 | 260 | 1.5 | 124 | Ø5 | 25 |
| NP15/220/220 | 220 | 220 | 1.5 | 116 | Ø5 | 25 |
| NP15/220/260 | 220 | 260 | 1.5 | 137 | Ø5 | 25 |
| NP15/220/300 | 220 | 300 | 1.5 | 158 | Ø5 | 25 |
| NP15/240/180 | 240 | 180 | 1.5 | 104 | Ø5 | - |
| NP15/240/220 | 240 | 220 | 1.5 | 127 | Ø5 | 25 |
| NP15/240/260 | 240 | 260 | 1.5 | 150 | Ø5 | - |
| NP15/240/300 | 240 | 300 | 1.5 | 173 | Ø5 | 20 |
| NP15/260/260 | 260 | 260 | 1.5 | 163 | Ø5 | 20 |
| NP15/280/220 | 280 | 220 | 1.5 | 149 | Ø5 | 25 |
| NP15/280/260 | 280 | 260 | 1.5 | 173 | Ø5 | 20 |
| NP15/280/300 | 280 | 300 | 1.5 | 203 | Ø5 | 20 |
| NP20/40/120 | 40 | 120 | 2 | 9 | Ø5 | 100 |
| NP20/40/160 | 40 | 160 | 2 | 12 | Ø5 | 50 |
| NP20/50/200 | 50 | 200 | 2 | 20 | Ø5 | 50 |
| NP20/60/140 | 60 | 140 | 2 | 18 | Ø5 | 50 |
| NP20/60/200 | 60 | 200 | 2 | 25 | Ø5 | 50 |
| NP20/60/240 | 60 | 240 | 2 | 30 | Ø5 | 50 |
| NP20/80/200 | 80 | 200 | 2 | 35 | Ø5 | 50 |
| NP20/80/240 | 80 | 240 | 2 | 42 | Ø5 | 50 |
| NP20/80/300 | 80 | 300 | 2 | 53 | Ø5 | 50 |
| NP20/100/140 | 100 | 140 | 2 | 32 | Ø5 | 50 |
| NP20/100/200 | 100 | 200 | 2 | 45 | Ø5 | 50 |
| NP20/100/240 | 100 | 240 | 2 | 54 | Ø5 | 50 |
| NP20/100/260 | 100 | 260 | 2 | 59 | Ø5 | 50 |
| NP20/100/300 | 100 | 300 | 2 | 68 | Ø5 | 25 |
| NP20/100/400 | 100 | 400 | 2 | 89 | Ø5 | 25 |
| NP20/100/500 | 100 | 500 | 2 | 112 | Ø5 | 25 |
| NP20/120/200 | 120 | 200 | 2 | 55 | Ø5 | 50 |
| NP20/120/240 | 120 | 240 | 2 | 66 | Ø5 | 25 |
| NP20/120/260 | 120 | 260 | 2 | 72 | Ø5 | 25 |
| NP20/120/300 | 120 | 300 | 2 | 83 | Ø5 | 25 |
| NP20/120/400 | 120 | 400 | 2 | 110 | Ø5 | 25 |
| NP20/140/400 | 140 | 400 | 2 | 130 | Ø5 | 25 |
| NP20/160/300 | 160 | 300 | 2 | 113 | Ø5 | 25 |
| NP20/160/400 | 160 | 400 | 2 | 150 | Ø5 | 20 |
| NP20/200/300 | 200 | 300 | 2 | 200 | Ø5 | 20 |
| NP20/620/1240 | 620 | 1240 | 2 | - | Ø5 | - |
| NP25/620/1240 | 620 | 1240 | 2.5 | - | Ø5 | - |
| NP30/620/1240 | 620 | 1240 | 3 | - | Ø5 | - |
With
n: the number of nails
Rlat,k : Shear capacity of the fastener
