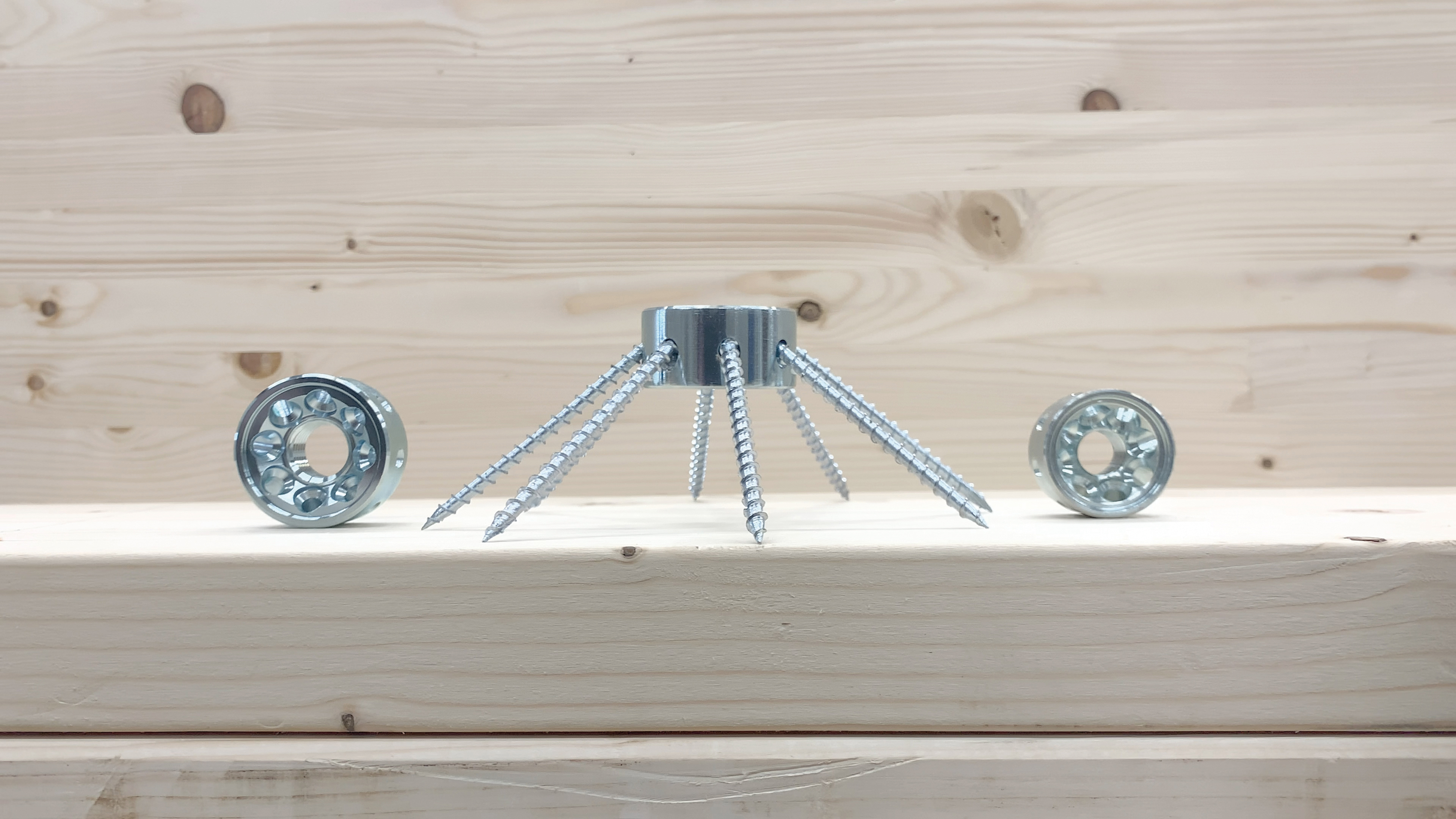

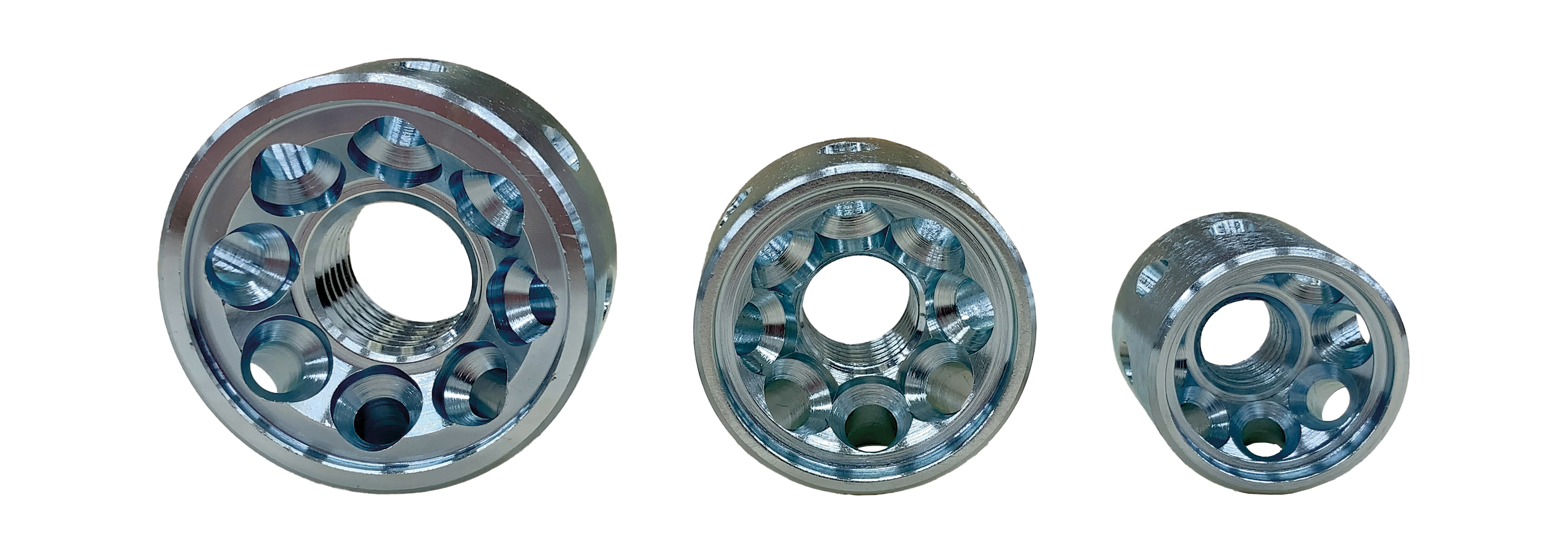

CCS
Cylindrical connector series

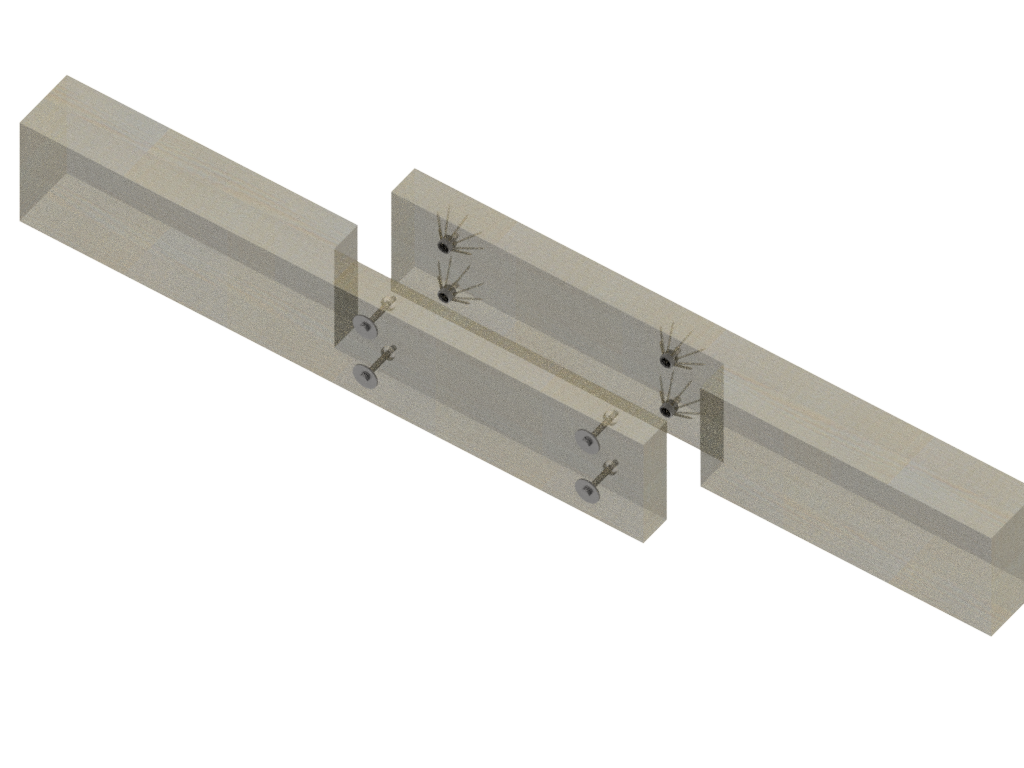

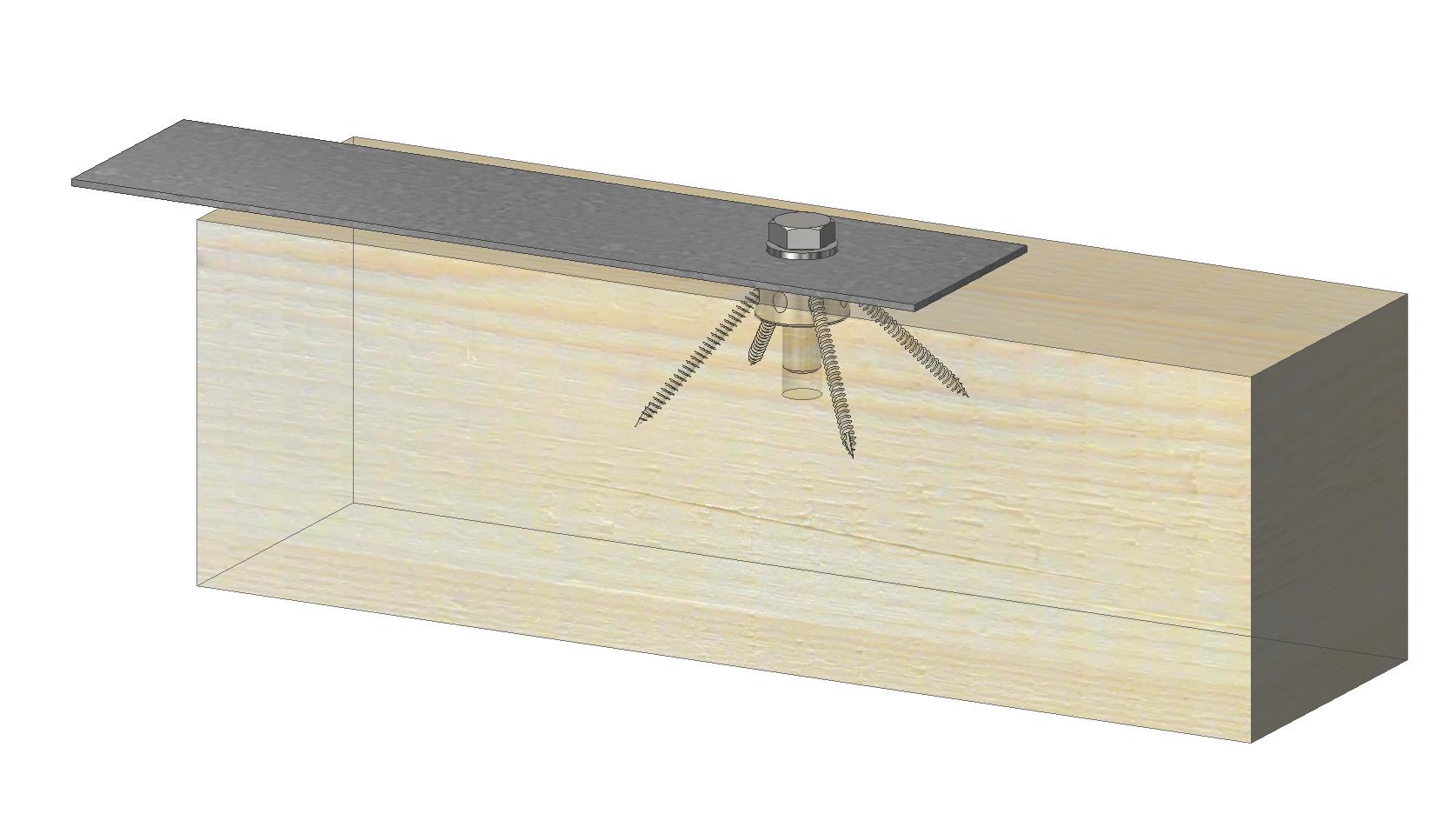

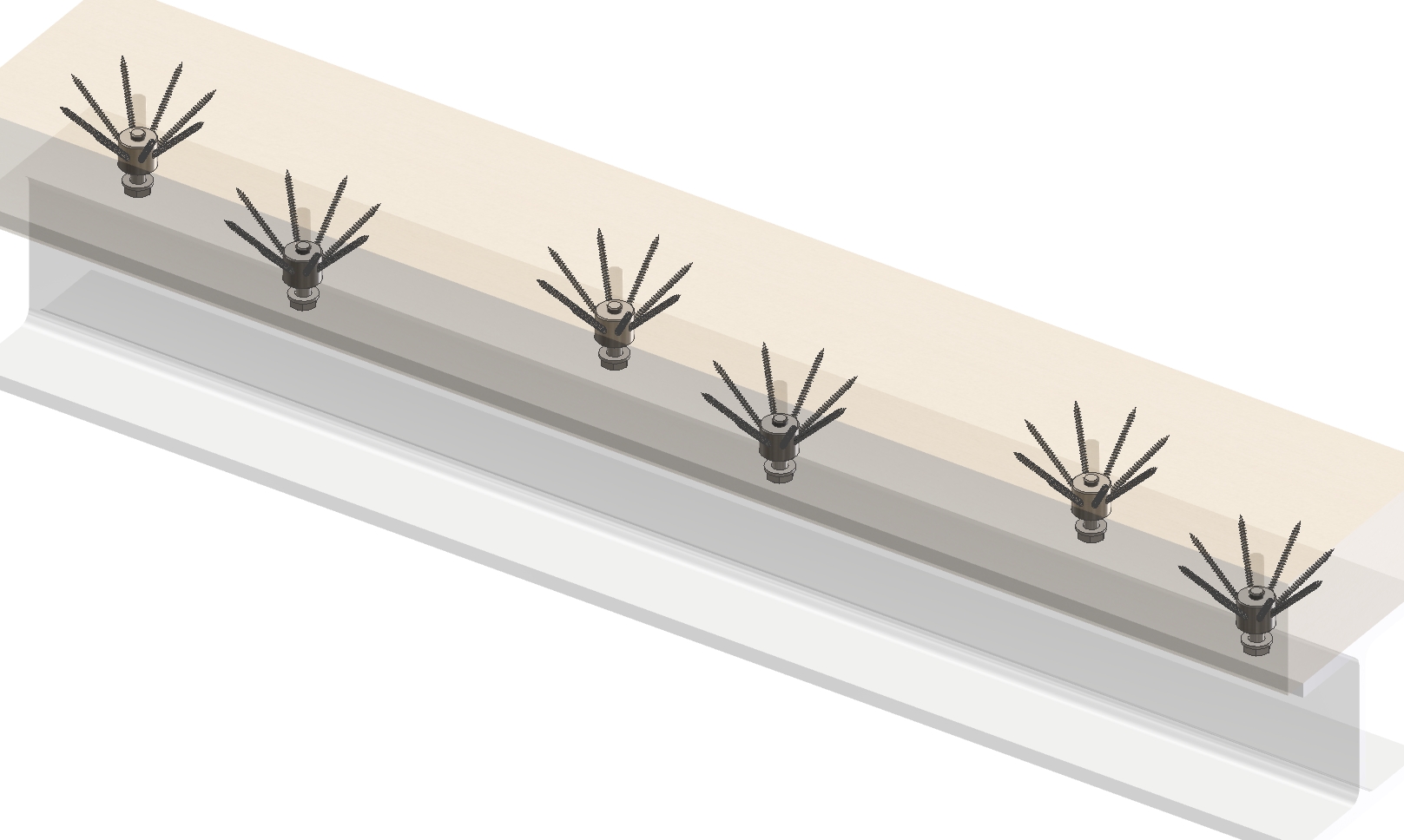

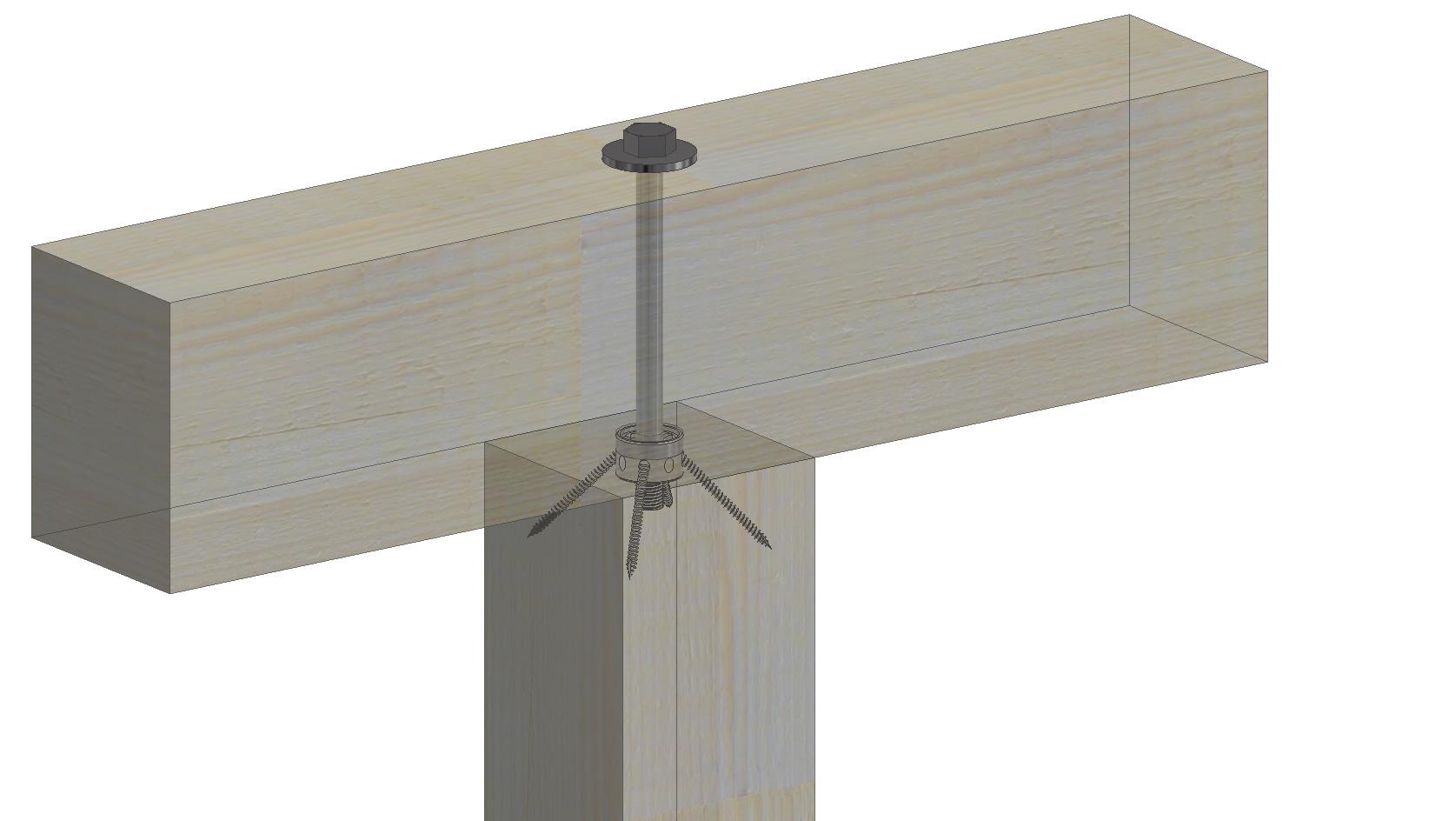

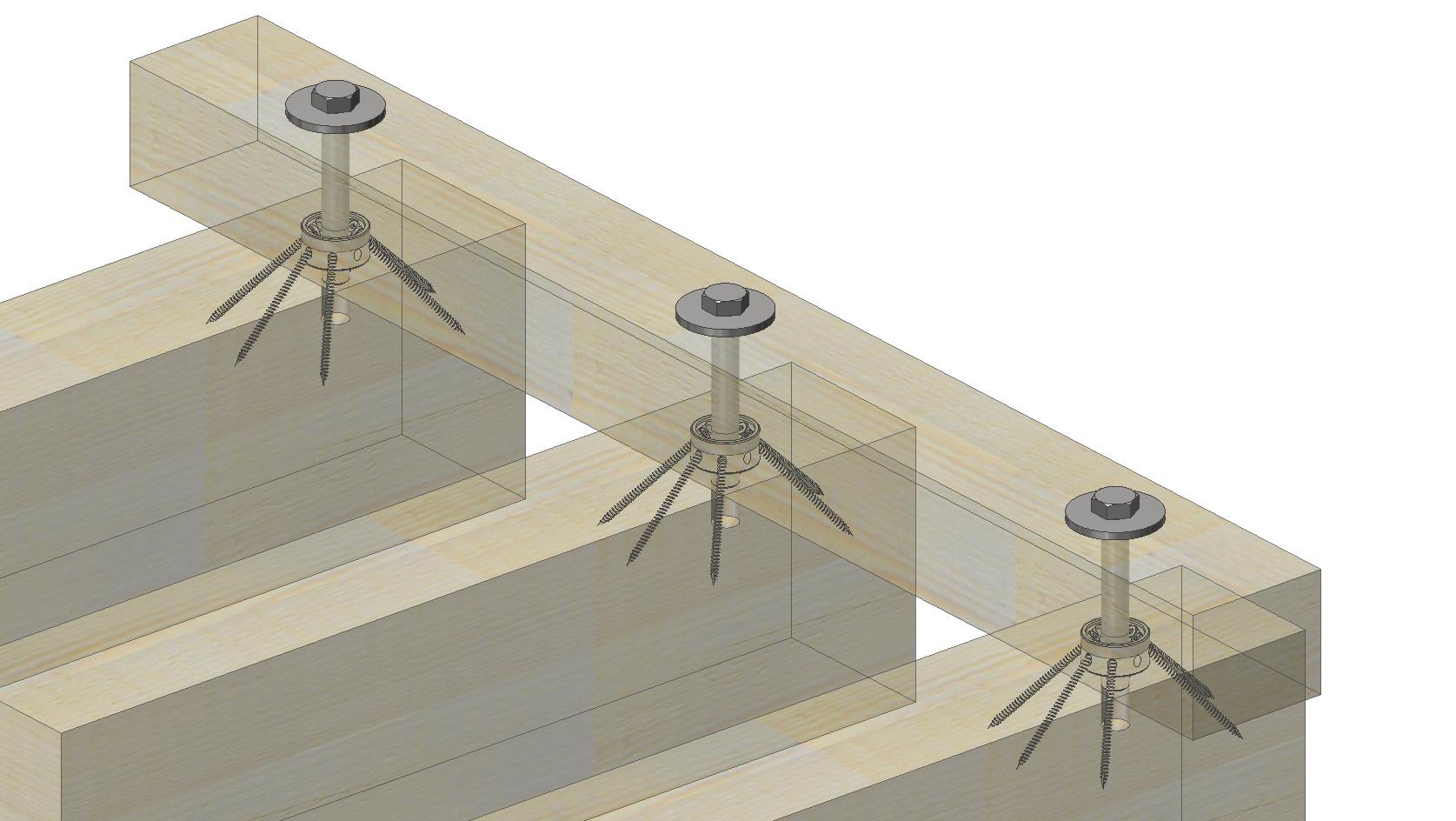

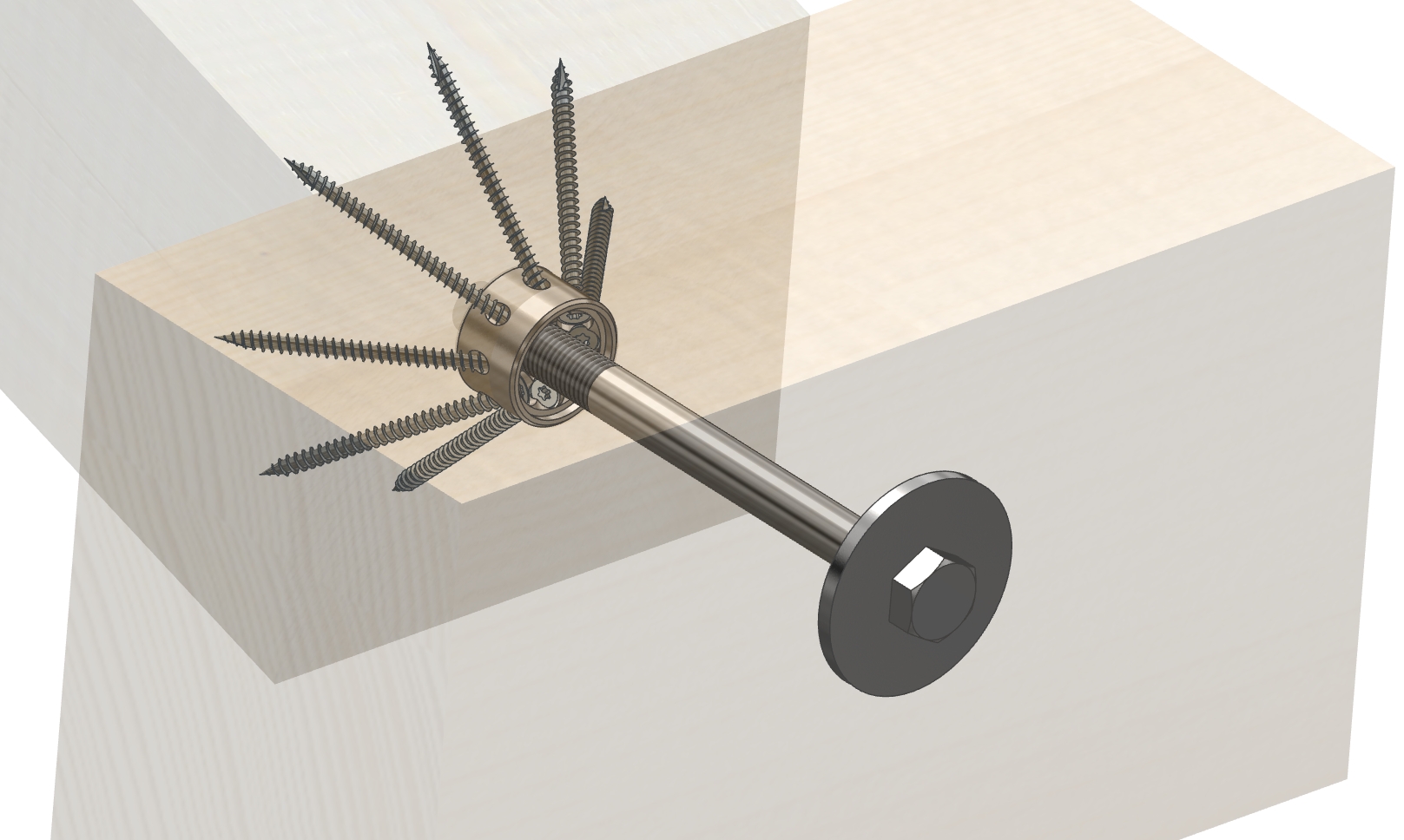

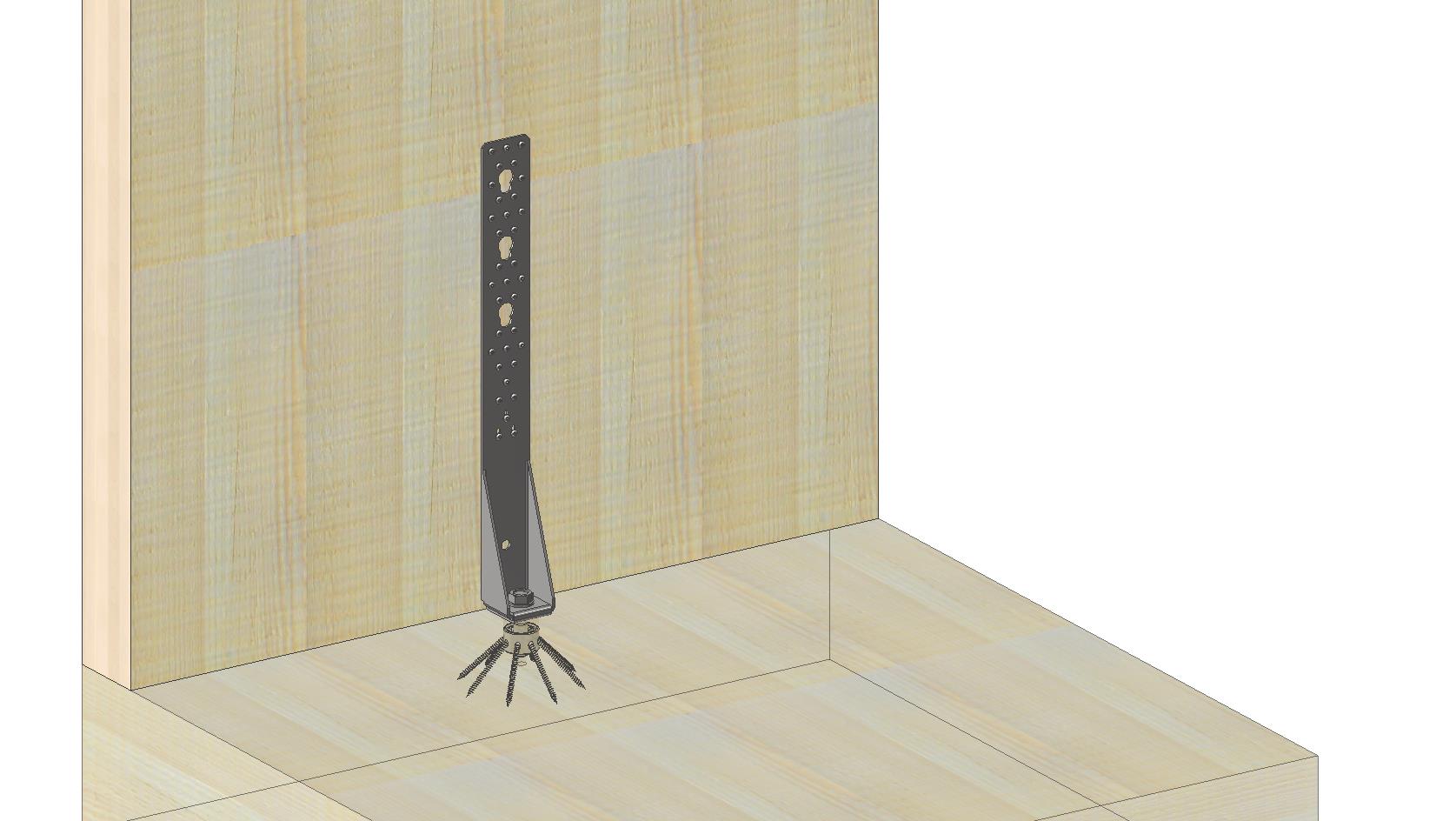

CCS connectors are designed for timber to timber or timber to steel connections. They are designed for axial and shear load.

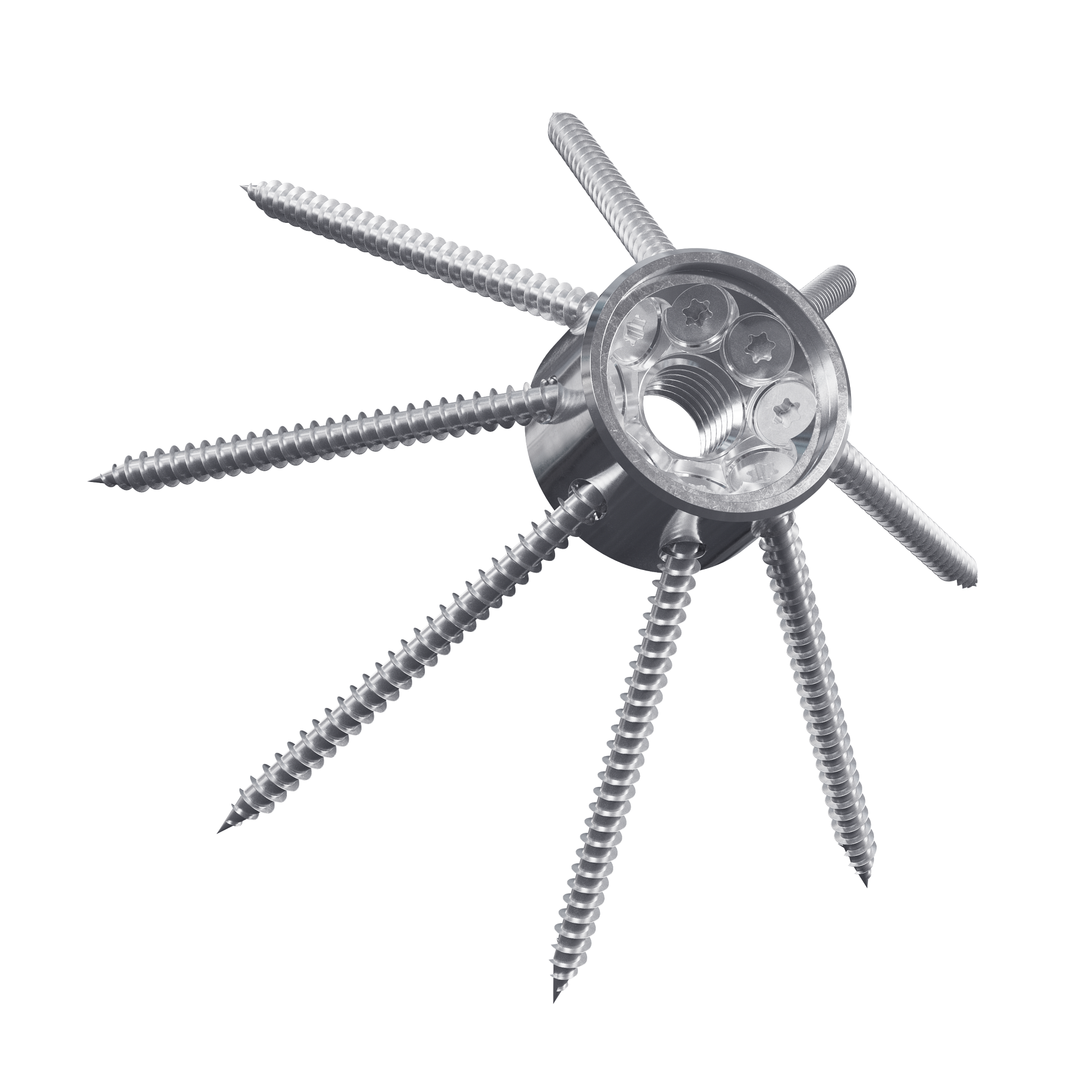

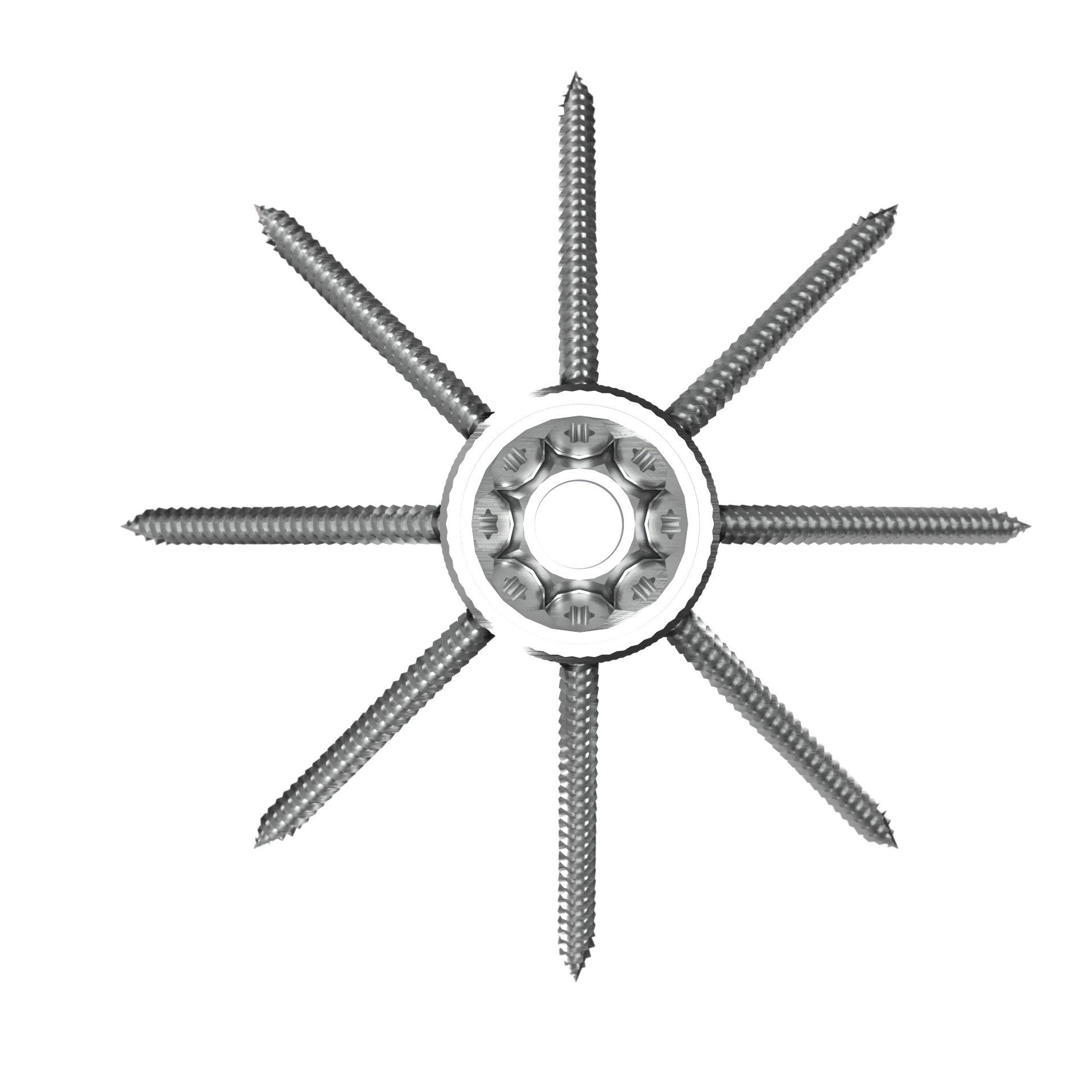

They can be connected to the timber with 4, 6 or 8 CSFT-screws.
Označení CE
ETA
Servisní třída 2
Acier électrozingué 12µm
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry

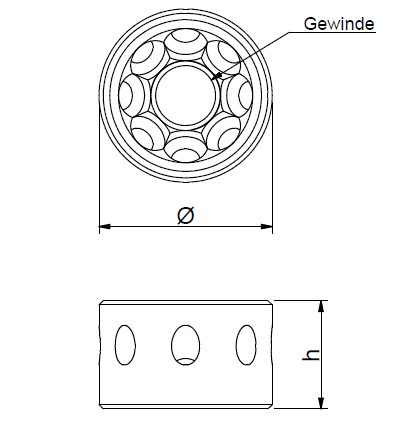

Product Dimensions
| Art. nr. | Ø [mm] | h [mm] | Holes | Thread Ø | Fitting ring | |
|---|---|---|---|---|---|---|
| units | Ø [mm] | |||||
| CCS30/70 | 30 | 25 | 8 | 5.2 | M12 | CCSW30 |
| CCS40/85 | 40 | 25 | 8 | 6.5 | M16 | CCSW40 |
| CCS40/110 | 40 | 25 | 8 | 6.5 | M16 | CCSW40 |
| CCS50/85 | 50 | 25 | 8 | 6.5 | M20 | CCSW50 |
| CCS50/110 | 50 | 25 | 8 | 6.5 | M20 | CCSW50 |

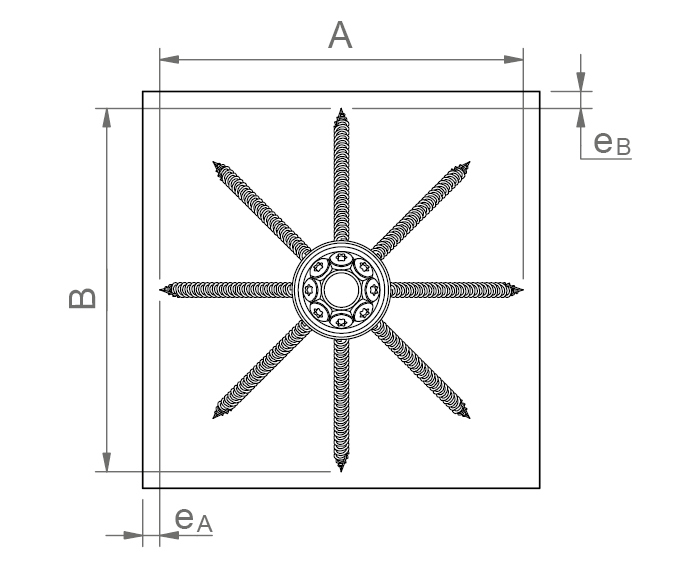

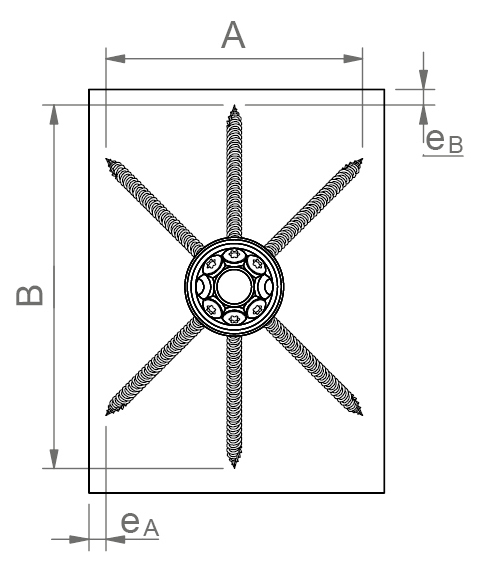

Installation dimensions - screwing pattern 1
| Art. nr. | Screwing pattern 1 - Installation dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| CSFT-screws | Product information | ||||||||

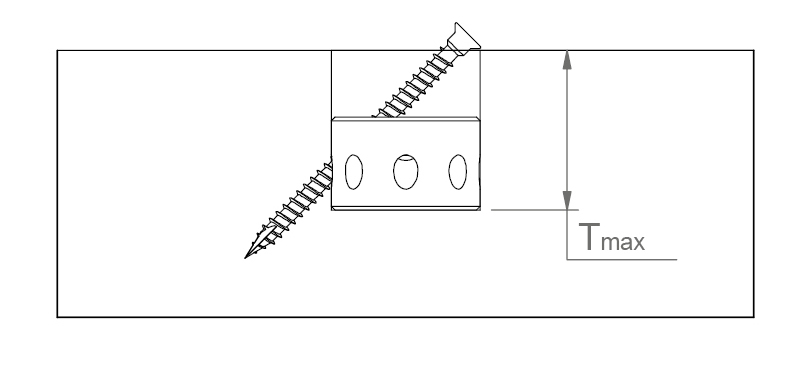

| number [n] | dimensions [∅ x l] | A | Overhang to the edge [ eA ] | B | Overhang to the edge [ eB ] | H | Overhang to the edge [ eH ] | drillinhg depth[ Tmax ] | |
| CCS30/70 | 8 | 5.0x70 | 120 | 7 | 120 | 7 | 61 | 3 | 32 |
| CCS40/85 | 8 | 6.0x85 | 147 | 11 | 147 | 11 | 68 | 5 | 42 |
| CCS40/110 | 8 | 6.0x110 | 182 | 15 | 182 | 15 | 85 | 7 | 42 |
| CCS50/85 | 8 | 6.0x85 | 153 | 10 | 153 | 10 | 66 | 5 | 52 |
| CCS50/110 | 8 | 6.0x110 | 188 | 13 | 188 | 13 | 83 | 7 | 52 |

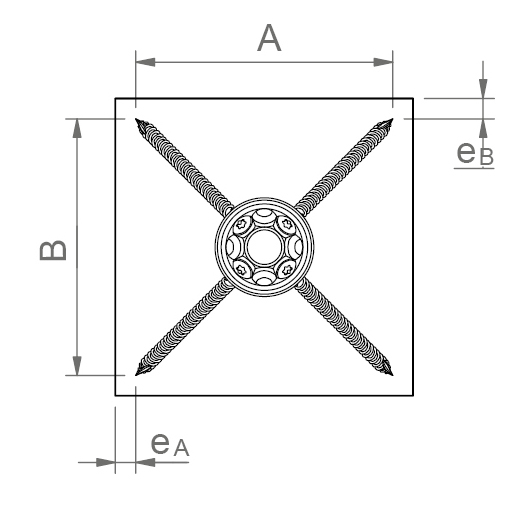

Installation dimensions - screwing pattern 2
| Art. nr. | Screwing pattern 2 - Installation dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| CSFT-screws | Product information | ||||||||
| number [ n ] | dimensions [ ∅ x l ] | A | Overhang to the edge [ eA ] | B | Overhang to the edge [ eB ] | H | Overhang to the edge [ eH ] | drillinhg depth [ Tmax ] | |
| CCS30/70 | 4 | 5.0x70 | 85 | 7 | 85 | 7 | 61 | 3 | 32 |
| CCS40/85 | 4 | 6.0x85 | 104 | 11 | 104 | 11 | 68 | 5 | 42 |
| CCS40/110 | 4 | 6.0x110 | 129 | 14 | 129 | 14 | 85 | 7 | 42 |
| CCS50/85 | 4 | 6.0x85 | 108 | 10 | 108 | 10 | 66 | 5 | 52 |
| CCS50/110 | 4 | 6.0x110 | 133 | 12 | 133 | 12 | 83 | 7 | 52 |
Installation dimensions - - screwing pattern 3
| Art. nr. | Screwing pattern 3 - Installation dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| CSFT-screws | Product information | ||||||||
| number [ n ] | dimensions [ Ø x 1 ] | A | Overhang to the edge [ eA ] | B | Overhang to the edge [ eB ] | H | Overhang to the edge [ eH ] | drillinhg depth [ Tmax ] | |
| CCS30/70 | 6 | 5.0x70 | 85 | 7 | 120 | 7 | 61 | 3 | 32 |
| CCS40/85 | 6 | 6.0x85 | 104 | 11 | 147 | 11 | 68 | 5 | 42 |
| CCS40/110 | 6 | 6.0x110 | 129 | 14 | 182 | 15 | 85 | 7 | 42 |
| CCS50/85 | 6 | 6.0x85 | 108 | 10 | 153 | 10 | 66 | 5 | 52 |
| CCS50/110 | 6 | 6.0x110 | 133 | 12 | 188 | 12 | 83 | 7 | 52 |
Installation dimensions - screwing pattern 4
| Art. nr. | Screwing pattern 4 - Installation dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| CSFT-screws | Product information | ||||||||
| number [ n ] | dimension [ Ø x 1 ] | A | Overhang to the edge [ eA ] | B | Overhang to the edge [ eB ] | H | Overhang to the edge [ eH ] | drillinhg depth [ Tmax ] | |
| CCS30/70 | 4 | 5.0x70 | 46 | 4 | 111 | 9 | 61 | 3 | 32 |
| CCS40/85 | 4 | 6.0x85 | 56 | 6 | 136 | 14 | 68 | 5 | 42 |
| CCS40/110 | 4 | 6.0x110 | 70 | 8 | 168 | 18 | 85 | 7 | 42 |
| CCS50/85 | 4 | 6.0x85 | 59 | 5 | 141 | 11 | 66 | 5 | 52 |
| CCS50/110 | 4 | 6.0x110 | 72 | 7 | 174 | 16 | 83 | 7 | 52 |
