KIT FIX PPRC

Adjustable Post Base set

These post bases are height-adjustable. Easy and quick to install, they can be adjusted on site.



Označení CE
Označení CE
ETA
ETA
Servisní třída 2
Servisní třída 2
EPD
EPD
Elektroizolační ocel 8 µm
Elektroizolační ocel 8 µm
KIT_FIX_PPRC_SSTBP_homepage_FR_fr
KIT_FIX_PPRC_SSTBP_homepage_ES_es
KIT_FIX_PPRC_SSTBP_homepage_NL_nl
KIT_FIX_PPRC_SSTBP_homepage_PT_pt

Podrobnosti produktu

Obrázky

Vlastnosti

Material

  • Korrosionsschutz: Galvanischverzinkt Zn25 / A nach EN 12329: 2000 und 1403

Vorteile

  • Die PPRC Stützenfüße sind stückverzinkt und bestehen aus einem Stahlrohr mit angeschweißter Kopf- und Fußplatte.
  • Die Schrauben und Ankerbolzen dienen der konstruktiven Lagesicherung.
  • Der PPRC ist höhenverstellbar und nur für den Innenbereich einsetzbar.

Aplikace

Anwendbare Materialien

Auflager:

  • Beton

Aufzulagerndes Bauteil:

  • Holz, Holzwerkstoffe

Anwendungsbereich

  • Die PPRC Stützenfüße sind für die Aufständerung von Wandkonstruktionen vorgesehen und nur für den Innenbereich einsetzbar.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Referencekonektor rozměry
rozměry výrobku[mm]Top plate otvoryBottom plate otvoryostatní
A[mm]B[mm]D[mm]E[mm]F[mm]E[mm] Tloušťka[mm]kulatýoválnýkulatýoválnýKit compositionhmotnost[kg]
Ø12[mm]Ø6x12[mm]Porteur[mm]Ø6x12[mm]
KIT FIX PPRC100100130130100-15030548481 PPRC - 4 FM-753 3DG M10X75/5 - 4 LAG 100801.8

Product characteristic capacities

Rozměry

Referencepatka sloupku únosnost
výrobek capacities - dřevo to beton[kN]
počet of FastenersCharacteristic capacities - dřevo C24[kN]
On postOn betonR₁,ₖ
množstvítypmnožstvítyp
KIT FIX PPRC4Ø104.0Ø10*51,1/kmod^0,5

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.

Instalace

Instalace

Befestigung

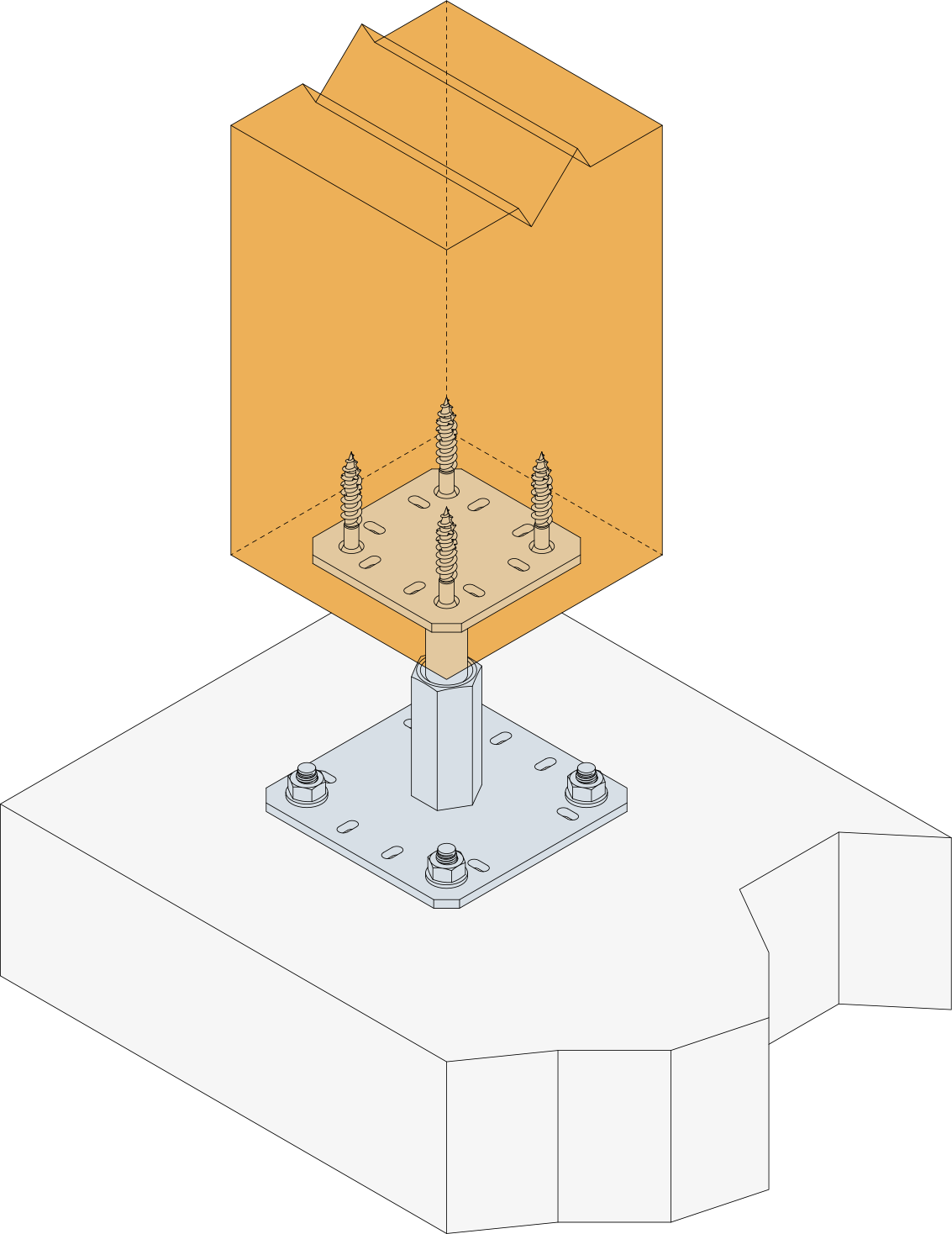

  • Der Anschluss am Holz erfolgt mit Schrauben Ø 10 mm, am Beton mit Ankerbolzen Ø 10 mm.

Certifikace

Evropské technické posouzení (ETA)

product.doc.history.none

Environmental Product Declarations (EPD)
