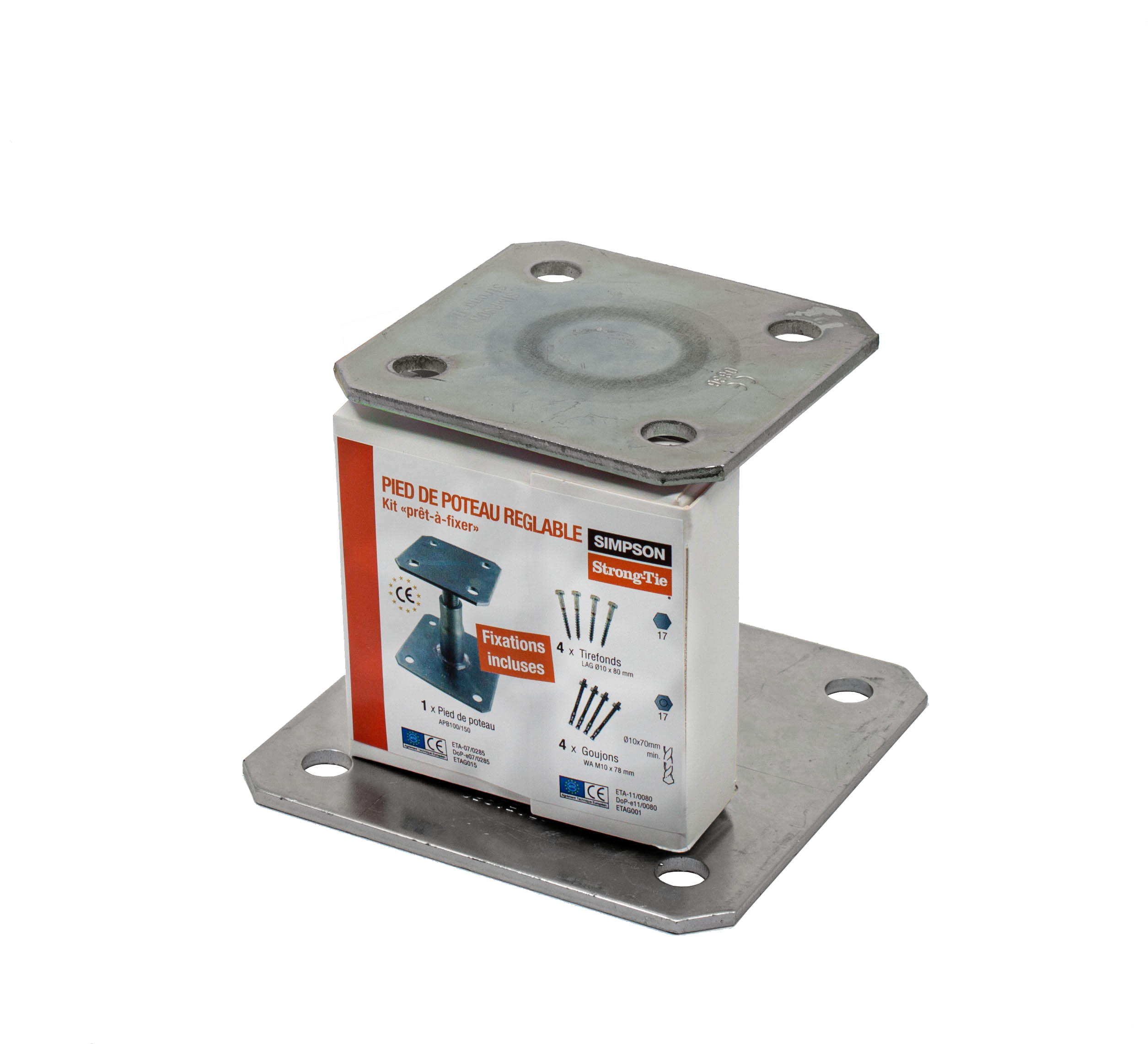

KIT FIX APB
Adjustable Post Base set
These post bases are height-adjustable. Easy and quick to install, they can be adjusted on site.

ETA

Servisní třída 2
EPD
Podrobnosti produktu
Vlastnosti
Material
- Acier S235 JR suivant NF EN 10025,
- Épaisseur : 4 mm
Vorteile
- Ne nécessite aucun usinage,
- Réglable sur chantier.
Aplikace
Anwendbare Materialien
- Porteur : bois massif, lamellé-collé, béton
- Porté : bois massif, bois composite, lamellé-collé
Anwendungsbereich
- Poteaux de auvent,
- Pergola, terrasse,
- Véranda.
Technické údaje
Rozměry a typické hodnoty
| Reference | konektor rozměry | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| rozměry výrobku[mm] | Top plate otvory | Bottom plate otvory | ostatní | ||||||||
| A[mm] | B[mm] | D[mm] | E[mm] | F[mm] | E[mm] | Tloušťka[mm] | kulatý | kulatý | Kit composition | hmotnost[kg] | |
| Ø12[mm] | Porteur[mm] | ||||||||||
| KIT FIX APB100 | 100 | 100 | 130 | 130 | 100-150 | 20 | 4 | 4 | 4 | 1 APB100/150 - 4 ANCHORS M10X75/5 - 4 LAG10080 | 1.6 |
Product characteristic capacities
| Reference | patka sloupku únosnost | ||||
|---|---|---|---|---|---|
| výrobek capacities - dřevo to beton[kN] | |||||
| počet of Fasteners | Characteristic capacities - dřevo C24[kN] | ||||
| On post | On beton | R₁,ₖ | |||
| množství | typ | množství | typ | ||
| KIT FIX APB100 | 4 | Ø10 | 4.0 | Ø10* | 58/kmod^0,5 |
* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.

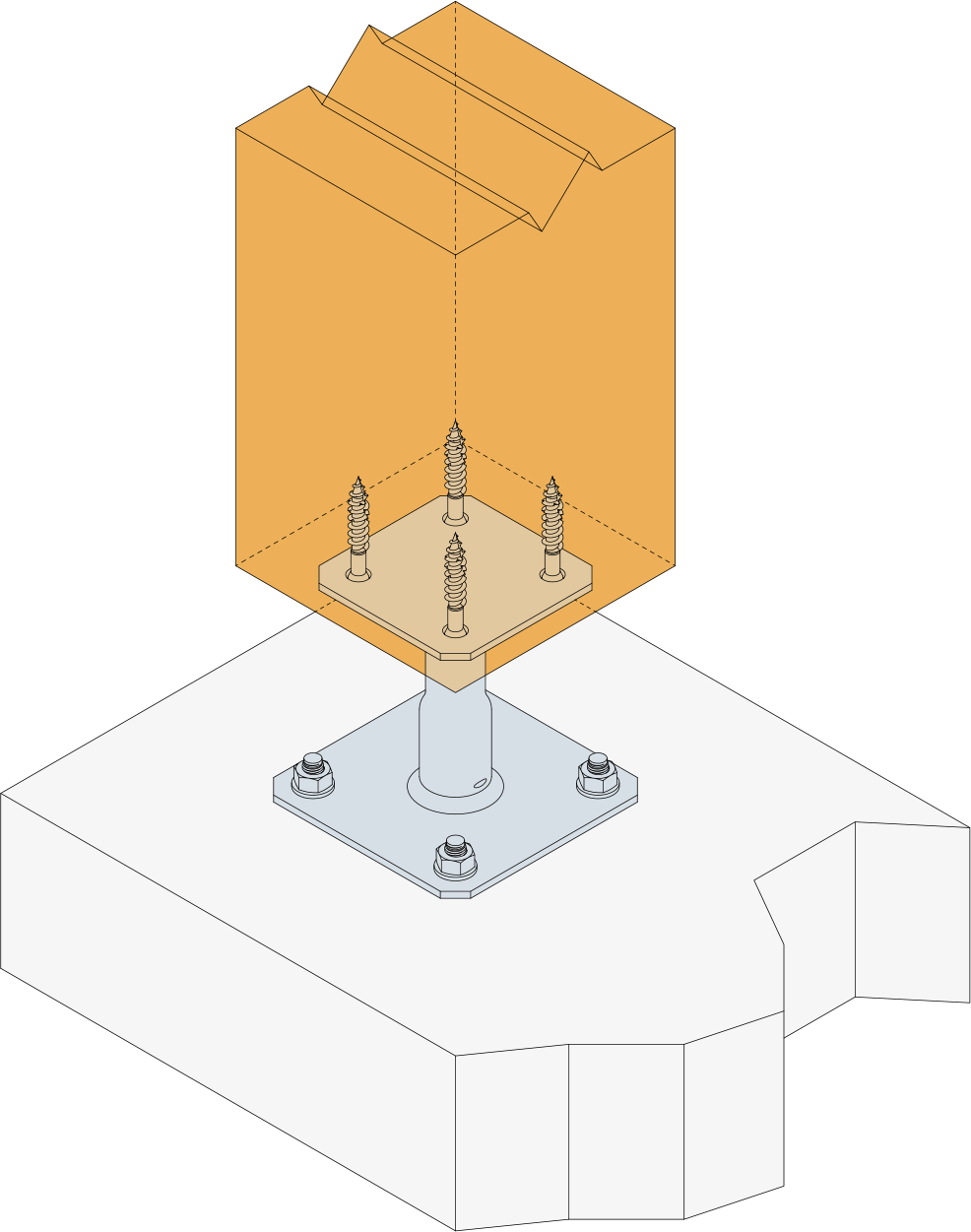

Instalace
Instalace
Befestigung
Sur poteau bois :
- Tirefonds LAG Ø10x80
Sur béton :
- Cheville mécanique : goujon WA M10-78/5
- Ancrage chimique : résine AT-HP + tige filetée LMAS M10-120/25
Certifikace
Environmental Product Declarations (EPD)
Knihovna CAD a BIM
Nailing Pattern
KIT FIX APB100
-
-
