APB100/150PB

Adjustable Elevated Post Base

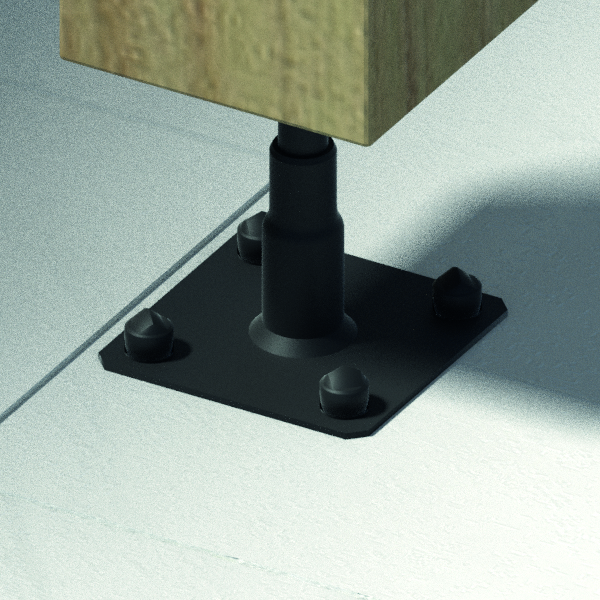

APB features a post mounting plate on a screw allowing it to be adjusted to a specific standoff height ranging from 100-150 mm.

Suitable for post sizes 100 x 100 mm to 200 x 200 mm.

Označení CE
Označení CE
ETA
ETA
Novinky
Novinky
Servisní třída 2
Servisní třída 2
Acier RAL 9005
Acier RAL 9005
Exteriér
Exteriér
EPD
EPD
Elektroizolační ocel
Elektroizolační ocel
APB100_150PB_SSTBP_homepage_PL_pl

Podrobnosti produktu

Obrázky

Vlastnosti

Material

  • Pre-galvanised mild steel.

Benefits

  • Simple, height adjustable

Aplikace

Header member

  • Solid or glulam timber

Header member

  • Post support.
  • Garage ports.
  • Pergola.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Referencekonektor rozměry
rozměry výrobku[mm]Top plate otvoryBottom plate otvoryostatní
A[mm]B[mm]D[mm]E[mm]F[mm]E[mm] tloušťka[mm]kulatýkulatýhmotnost[kg]
Ø12Porteur
APB100/150PB100100130130100-150204441.2

Product capacities - Timber to concrete

Referencepatka sloupku únosnost
počet of FastenersCharacteristic capacities - dřevo C24[kN]
On postOn betonR₁,ₖ
množstvítypmnožstvítyp
APB100/150PB4.0Ø104.0Ø10**58/kmod^0,5

*The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities

** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions depend on the concrete type, spacing and edge distances.

Instalace

Instalace

Installation

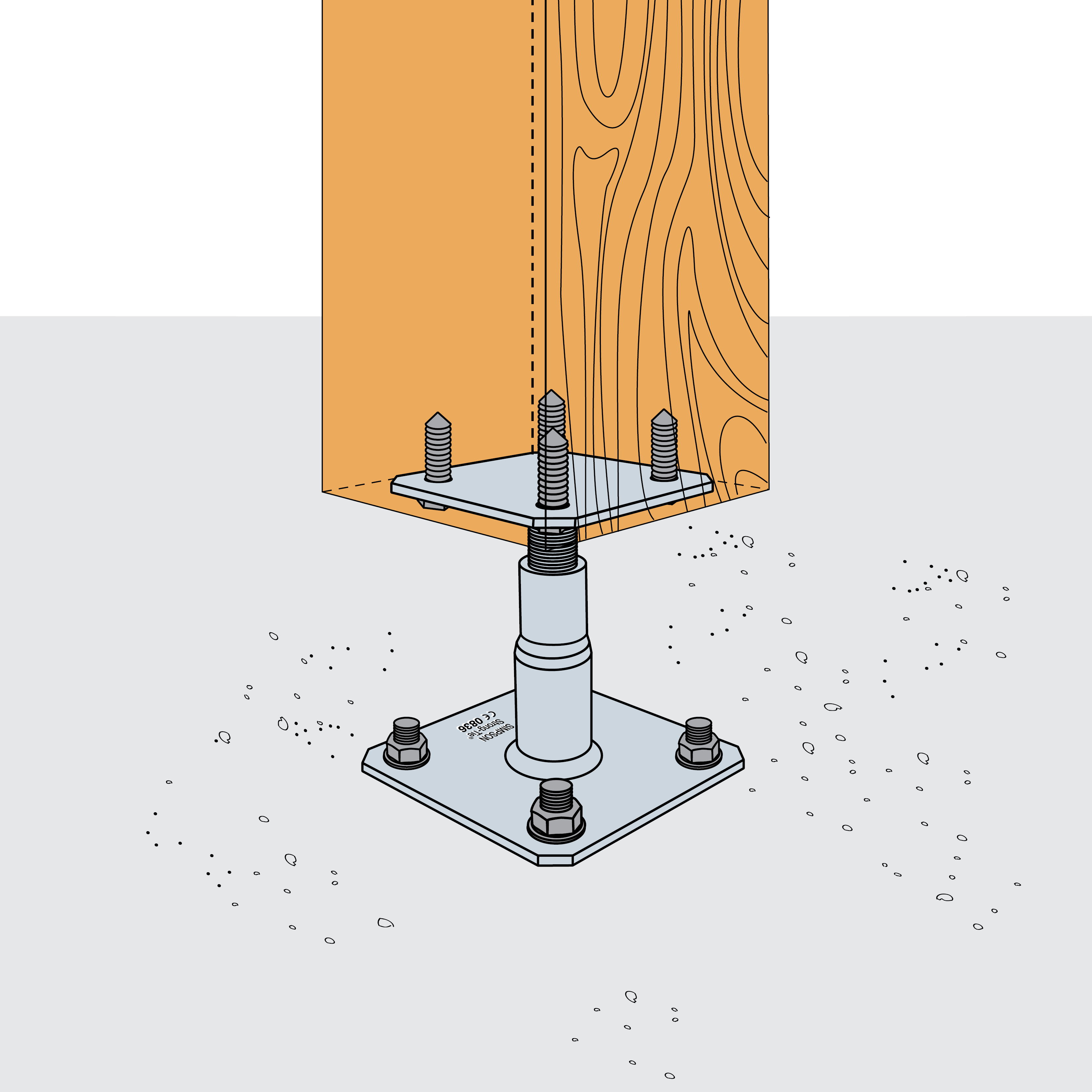

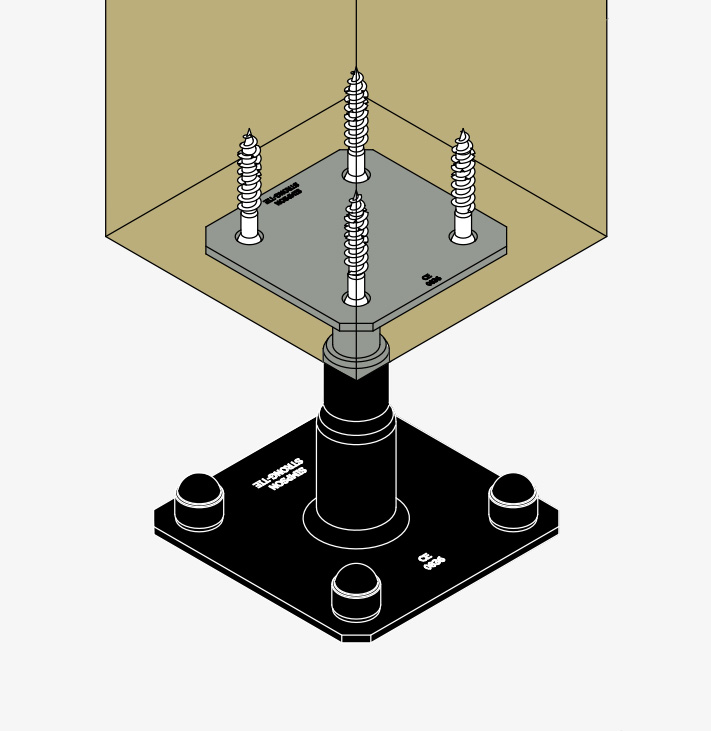

Fix to the foundation with concrete/mechanical anchor system. Fix to the post using M10 coach screws.
