Trámová botka BSIN

Se používají pro připojení sekundárního svazku na hlavní podporu nebo podpory..

Technický list

Označení CE

ETA

Vnitřní příruby

Servisní třída 2

EPD

Elektroizolační ocel 20 µm

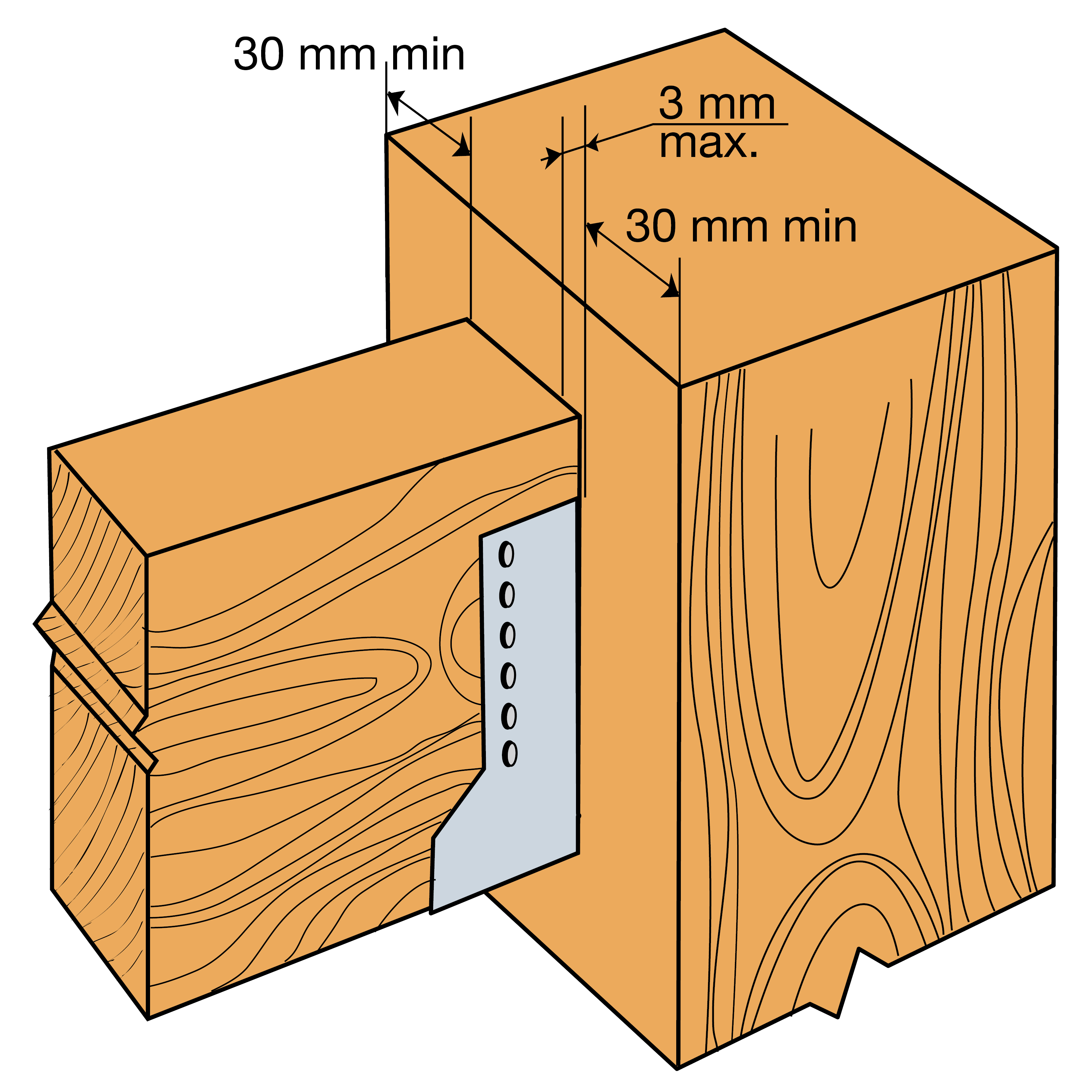

Podrobnosti produktu

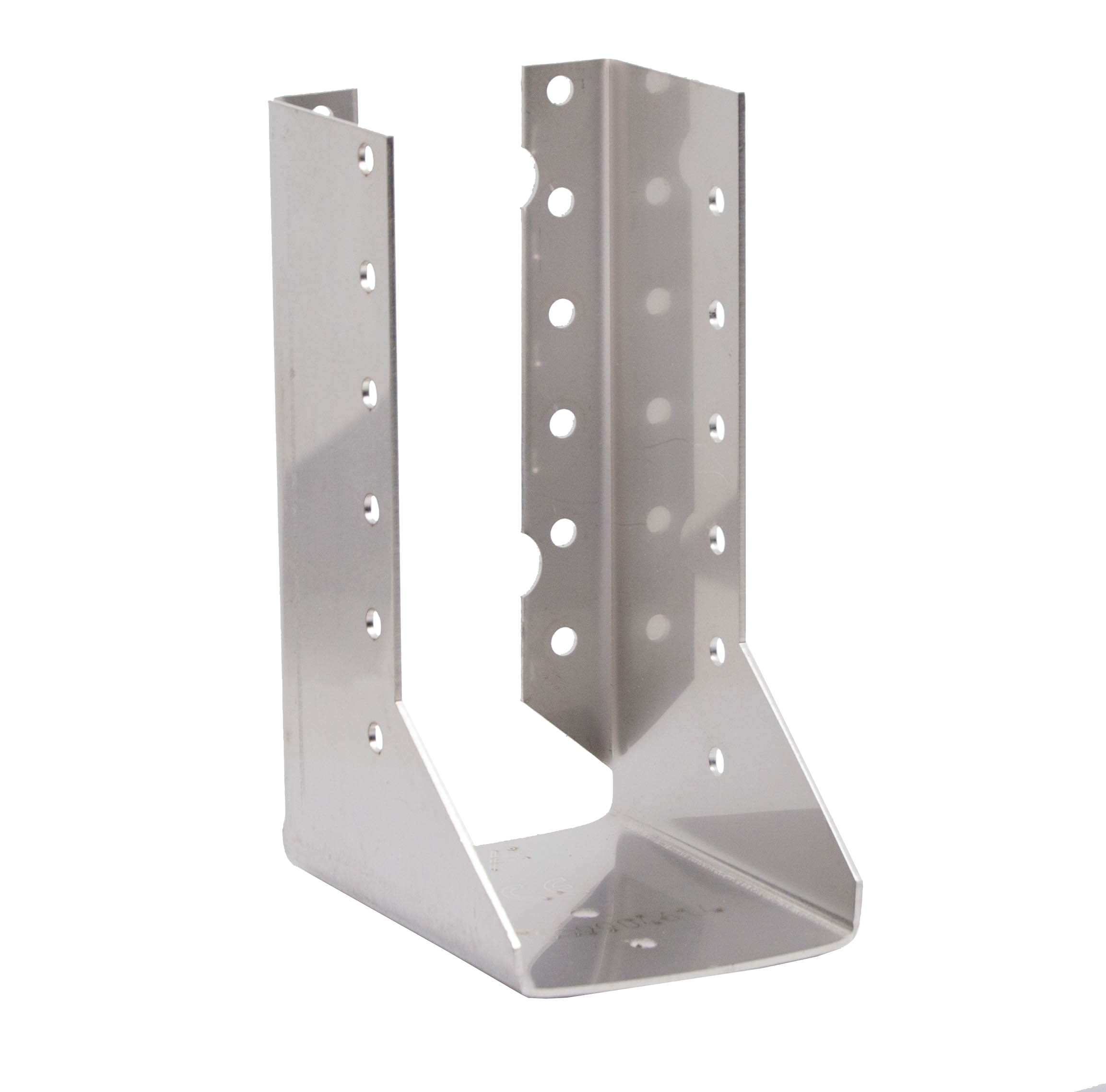

SAI Internal Flange Hanger

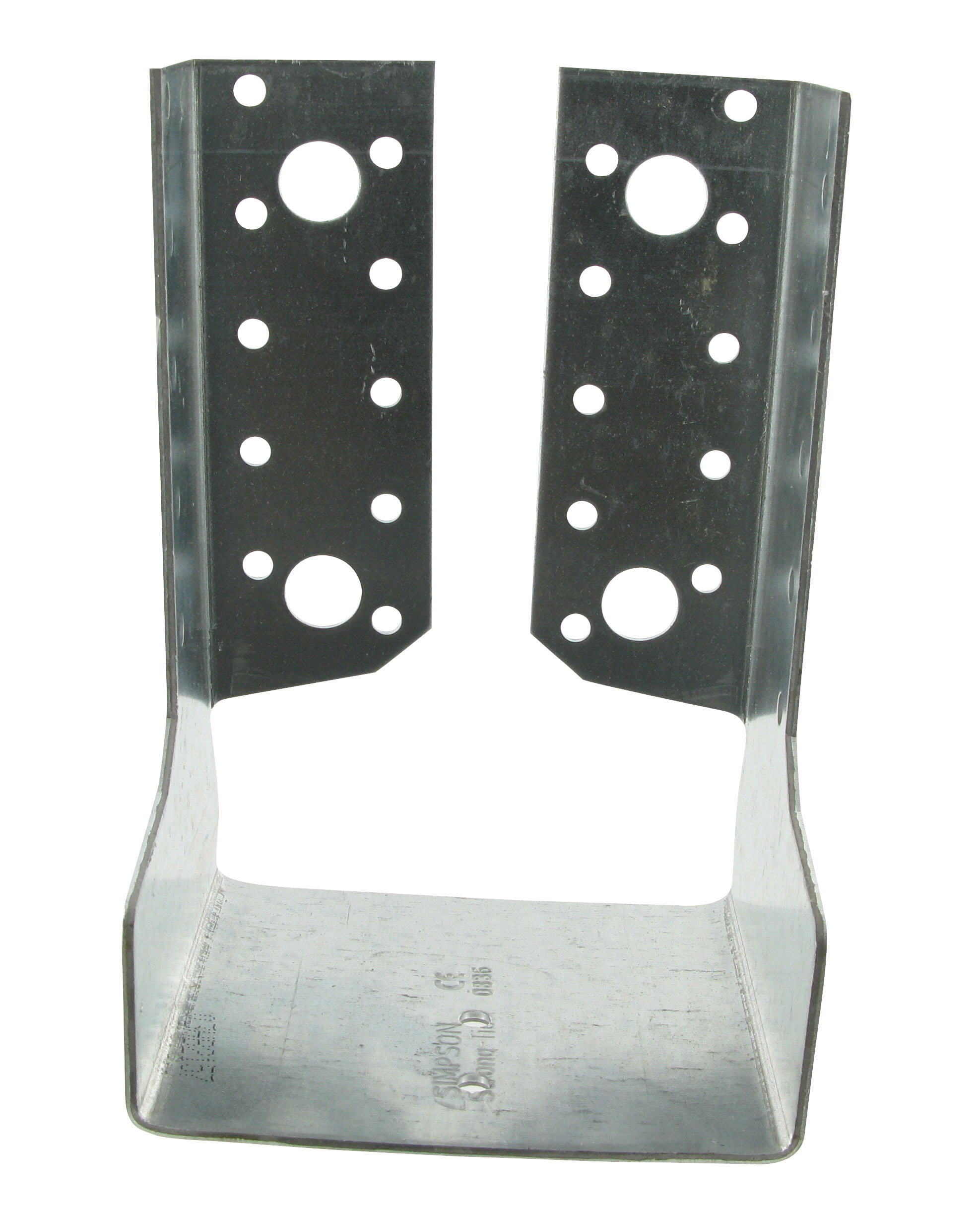

Internal Flange Face Fix Hanger SAIL

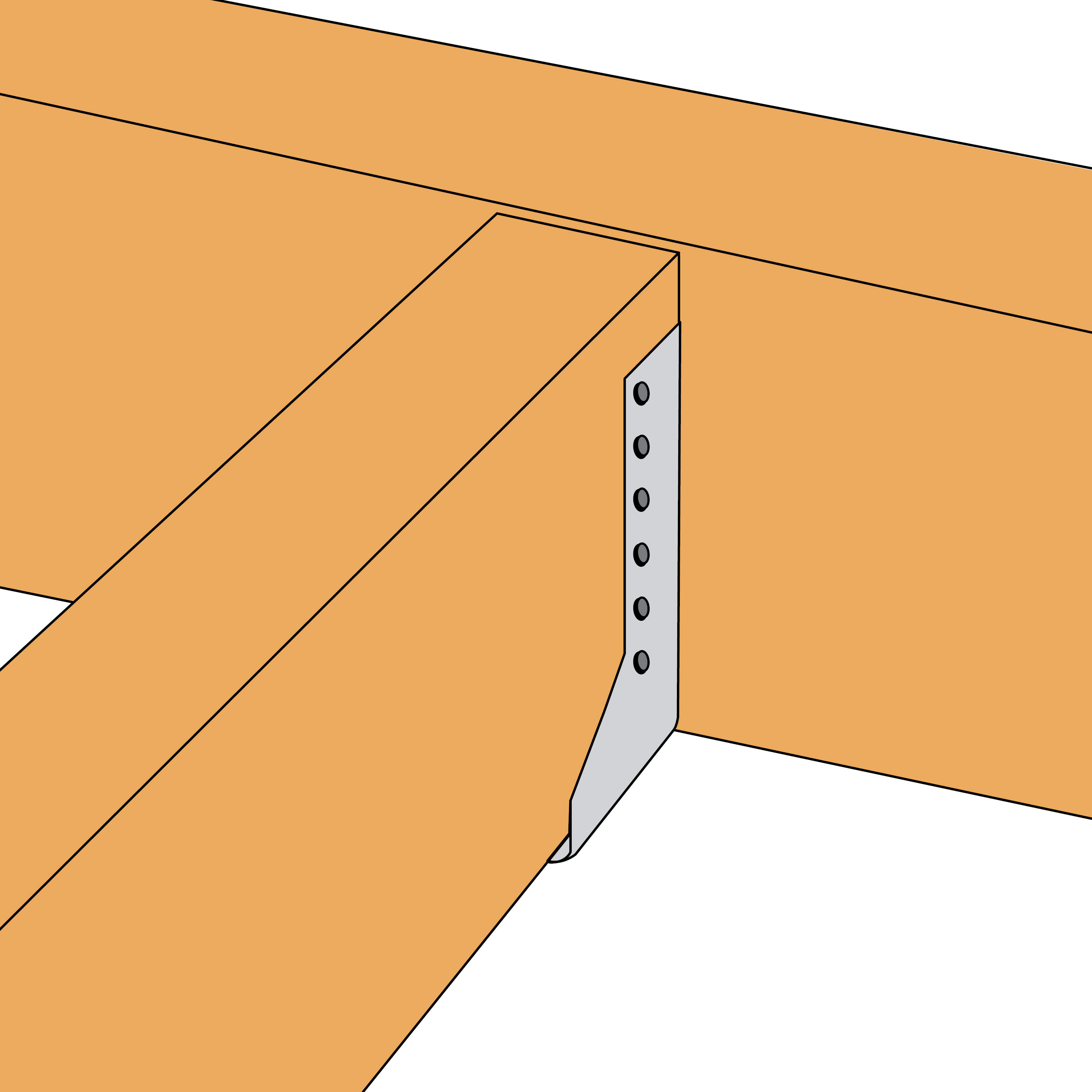

Full nailing

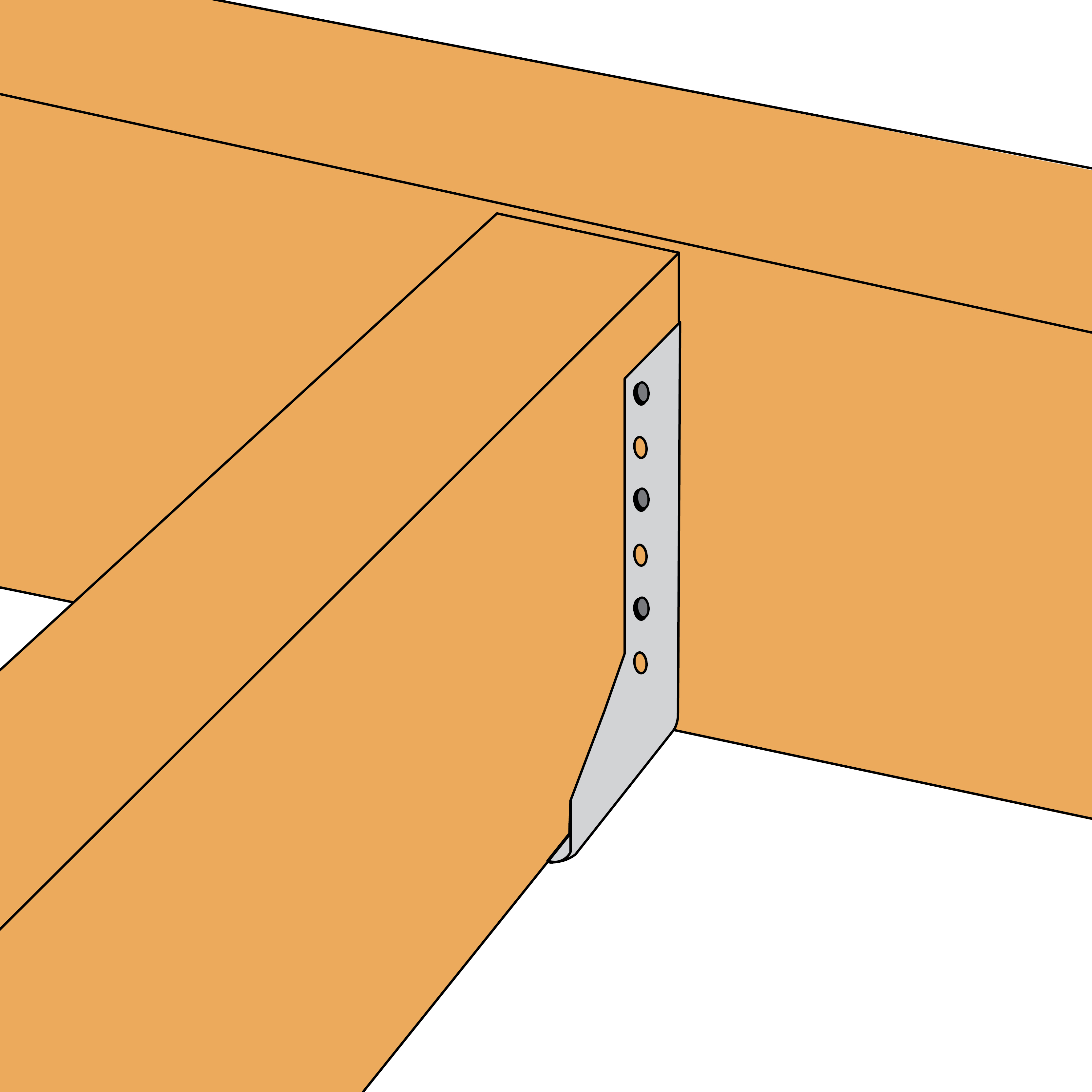

Partial Nailing

Kvalita oceli:

S 250 GD+Z 275 dle norem DIN EN 10346

Ochrana proti korozi:

275 g/m pozinkováno z obou stran cca 20mm

Dřevo, výrobky ze dřeva

HT = Hlavní nosník

NT = Sekunkární nosníky

Kombinované hodnoty:

$\left(\frac{F_{1,d}} {R_{1,d}}\right)^2+\left(\frac{F_{2,d}} {R_{2,d}}\right)^2\le1$

Reference	Hanger únosnost
	Characteristic capacities - dřevo to dřevo - Full nailing
	počet of Fasteners		výrobek characteristic capacities - dřevo C24[kN]
	Header	nosník	R₁,ₖ			R2,k			R3,k			R4,k
	množství	množství	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x40	CNA4,0x50	CNA4,0x60	CNA4,0x40	CNA4,0x50	CNA4,0x60
BSIN40/105	6.0	6	5.1	-	-	3.4	-	-	0.7	-	-	2.2	-	-
BSIN45/78	4.0	4	3.1	-	-	1.9	-	-	0.4	-	-	1.5	-	-
BSIN48/166	10.0	10	13.5	-	-	7.7	-	-	1.7	-	-	3.7	-	-
BSIN60/95	6.0	6	4.3	5.7	-	3.4	4.4	-	0.7	0.9	0.9	2.2	2.9	3.7
BSIN60/160	10.0	10	13.1	16.6	-	7.7	10	-	1.7	2.1	2.2	3.7	4.9	6.2
BSIN64/93	10.0	6	7.8	10.3	12.4	5	6.6	8.2	1.3	1.6	1.7	3.7	4.9	6.2
BSIN80/110	16.0	9	12.3	16.1	19.5	11.3	14.8	18	2.8	3.4	3.7	5.9	7.8	9.8
BSIN80/130	16.0	10	16	20.6	24.3	11.3	14.8	18	2.4	2.9	3.1	5.9	7.8	9.8
BSIN80/150	20.0	12	21.2	27.3	32	15.9	20.7	25	3.6	4.3	4.6	7.4	9.8	12.3
BSIN80/180	26.0	15	30.4	37.7	40.1	22.8	29.6	35.4	4.9	6	6.3	9.6	12.7	16
BSIN80/210	32.0	18	36.7	44.3	47.2	32.9	40	42.5	6.7	8.1	8.6	11.8	15.7	19.7
BSIN90/145	20.0	12	20.2	26.1	30.7	15.9	20.7	25	3.6	4.4	4.6	7.4	9.8	12.3
BSIN100/100	12.0	8	9.7	12.5	15.1	7.4	9.7	11.8	2.9	3.5	3.7	5.9	7.8	9.8
BSIN100/140	20.0	12	19.2	24.8	29.4	15.9	20.7	25	3.6	4.4	4.7	7.4	9.8	12.3
BSIN100/170	26.0	15	28.3	36.3	40.1	22.8	29.6	35.4	5	6	6.4	9.6	12.7	16
BSIN100/200	32.0	18	36.7	44.3	47.2	32.9	40	42.5	6.8	8.2	8.7	11.8	15.7	19.7
BSIN120/130	20.0	12	17.1	22.2	26.6	15.9	20.7	25	2.4	2.9	3.1	5.9	7.8	9.8
BSIN120/160	26.0	15	25.8	33.4	39.4	22.8	29.6	35.4	5	6	6.4	9.6	12.7	16
BSIN120/190	32.0	18	34.5	44.3	47.2	32.9	40	42.5	6.8	8.3	8.8	11.8	15.7	19.7
BSIN140/120	20.0	10	16.4	21.4	25.8	15.9	20.6	23.6	3.5	4.2	4.5	7.4	9.8	12.3
BSIN140/180	32.0	16	33	39.9	42.5	29.3	35.5	37.8	7.1	8.5	9.1	11.8	15.7	19.7

Reference	Hanger únosnost
	výrobek capacities - dřevo to dřevo - Partial nailing
	Characteristic capacities - dřevo C24[kN]												počet of Fasteners
	R₁,ₖ			R2,k			R3,k			R4,k			nosník	Header
	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x40	CNA 4.0x50	CNA 4.0x60	CNA 4.0x40	CNA4.0x50	CNA4.0x60	CNA 4.0x40	CNA4.0x50	CNA 4.0x60	množství	množství
BSIN64/93	4.4	5.7	7	3.4	4.4	5.4	0.9	1.1	1.2	2.2	2.9	3.7	4.0	6.0
BSIN80/110	8.1	10.6	12.7	7.7	10	11.8	2.4	2.9	3	3.7	4.9	6.2	5.0	10.0
BSIN80/130	10.4	13.4	15.8	7.7	10	12.1	2	2.4	2.6	3.7	4.9	6.2	6.0	10.0
BSIN80/150	13.4	17.2	18.9	10.3	13.3	14.2	2.6	3.2	3.4	4.4	5.9	7.4	6.0	12.0
BSIN80/180	16.2	20.7	23.6	13.2	17	18.9	3.1	3.7	3.9	5.1	6.9	8.6	8.0	14.0
BSIN80/210	22	26.6	28.3	18.3	22.2	23.6	4.5	5.5	5.8	6.6	8.8	11.1	10.0	18.0
BSIN90/145	12.8	16.5	18.9	10.3	13.3	14.2	2.6	3.2	3.4	4.4	5.9	7.4	6.0	12.0
BSIN100/100	7.1	9.2	10.9	5.4	7	8.6	1.5	1.8	1.9	2.9	3.9	4.9	4.0	8.0
BSIN100/140	12.3	15.8	18.6	10.3	13.3	14.2	2.6	3.2	3.4	4.4	5.9	7.4	6.0	12.0
BSIN100/170	15	19.3	22.6	13.2	17	18.9	3.1	3.7	4	5.1	6.9	8.6	8.0	14.0
BSIN100/200	21.5	26.6	28.3	18.3	22.2	23.6	4.6	5.6	5.9	6.6	8.8	11.1	10.0	18.0
BSIN120/130	10.4	13.4	15.8	9.9	12.7	14.2	2	2.4	2.6	3.7	4.9	6.2	6.0	10.0
BSIN120/160	13.7	17.8	21	13.2	17	18.9	3.1	3.8	4	5.1	6.9	8.6	8.0	14.0
BSIN120/190	20.2	25.9	28.3	18.3	22.2	23.6	4.6	5.6	6	6.6	8.8	11.1	10.0	18.0
BSIN140/120	9.6	12.5	14.8	7.7	10	12.1	1.8	2.2	2.3	3.7	4.9	6.2	6.0	10.0
BSIN140/180	18.4	22.2	23.6	14.6	17.8	18.9	3.6	4.4	4.7	5.9	7.8	9.8	8.0	16.0
