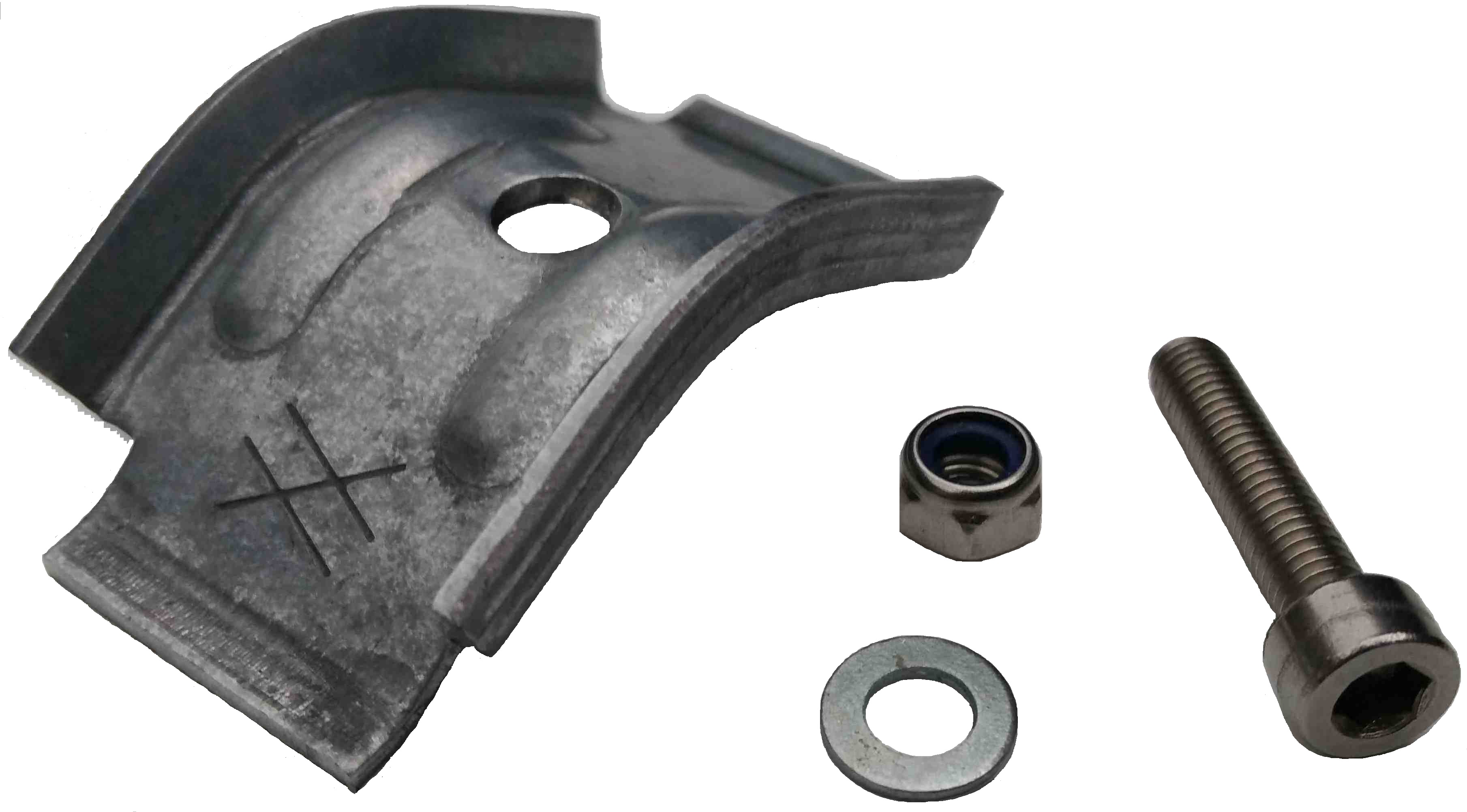

M5x30 - 8.8 acc. to DIN912
self locking nut
washer Ø 5,3x10 acc. to DIN125
electrolytical galvanised
Benefit
Easy installation without having to cut the windbracing straps
External ribs and internal profiling for dimensional stability
Rounded ends to protect the windbracing strap from sharp bending
Secure attachment with enclosed screw, washer and locknut
Aplikace
Application
Applicable for these strap sizes:
40x1,5mm
40x2,0mm

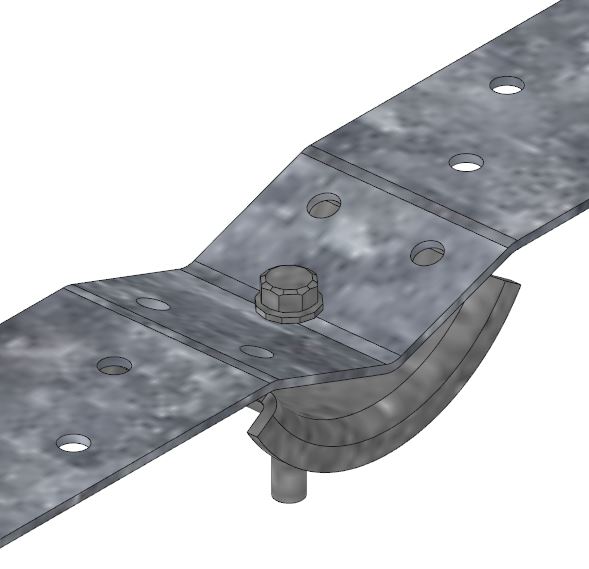

Windbracing straps shall always be installed tightly. Should not negligible sags occur after some time, the BANSTR4 can be a simple solution. At full static utilisation of the windbracing strap an additional displacement of about 2mm per clip shall be considered. Therefore the use of BNSP type tensioners is recommended for deformation-sensitive structures (e.g. large span trusses) instead.
