SC2P

SC2P - dvoudílný zásuvný úhelník

Technický list
Označení CE
ETA
Servisní třída 2
Pozinkovaná ocel Z275

Podrobnosti produktu

Obrázky


Vlastnosti

Material

Steel quality:

S 250 GD + Z 275 according to DIN EN

Corrosion protection:

275 g/m2 galvanized on both sides 20mm

Benefits

  • Setting up the base on site

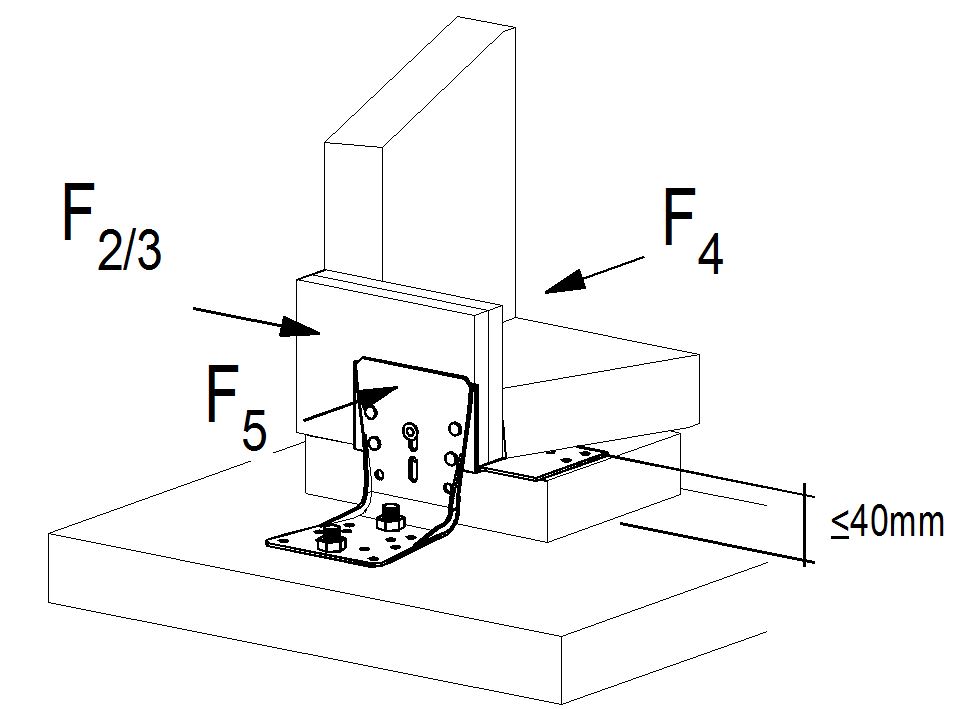

  • It´s given the option for a height compensation up to 40mm
  • fixing through a layer up to 30mm

Aplikace

Applications

Supporting member:

  • Concrete, steel

Supported member:

  • Solid wood, engineered wood

When to use

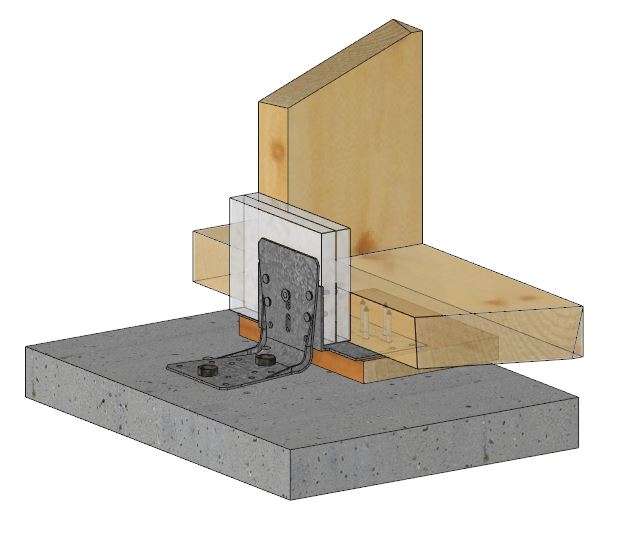

With this shear connector, timber constructions can be optimally connected to concrete substructures, as described, e.g. reinforced in wood frame construction.

Technické údaje

Rozměry


Rozměry a typické hodnoty

Art. nr. Rozměry [mm] Holes Flange A Hlava
A B C D t Ø6 6x16 Ø5 Ø12
SC2P-V10010310390-262102
SC2P-H1805782180952-112-
SC2P-1---------

The both parts, SC2P-V100 and SC2P-H180, are offered together with the appropriate EJOT screws only as set.

Kapacita při plném zahřebíkování

Art. nr. Anzahl der Befestigungsmittel Typická kapacita [kN]
Příruba A Hlava R2/3.k R4.k R5.k
Množství Typ Množství Typ
SC2P-14 + 1EJOT JT2-3-5.5x25 + Screw Ø6x1001 + 12Bolt M10 + CNA4.0x406.8/kmod6.4/kmod5.4/kmod

The capacities are vailid for the combination of both items

For connection with 2 bolts, the capacity for R2/3.k is 10.4/kmod

Product capacities - timber

Art. nr. Fastener for timber characteristic capacities on timber [kN]
Flange A Flange B R2/3,k R4,k R5,k
Qty typ Qty typ
SC2P-14 + 1EJOT JT2-3-5.5x25 + Screw Ø6x10010 + 12CNA4.0x50 + CNA4,0x406.8/kmod6.4/kmodmin (5.6 ; 5.4/kmod)

Instalace

Instalace

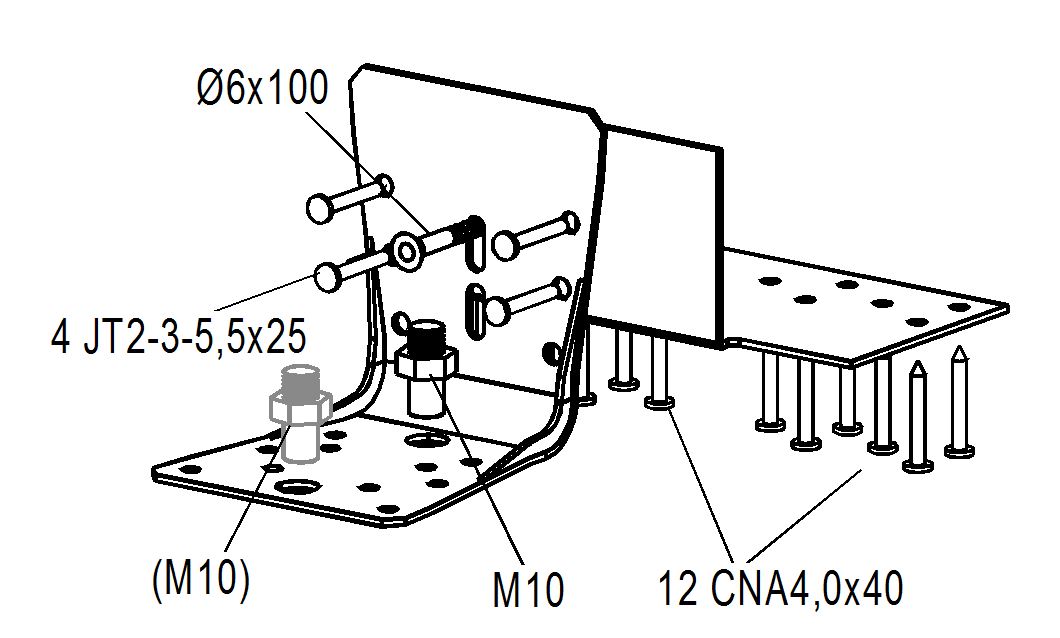

Fasteners

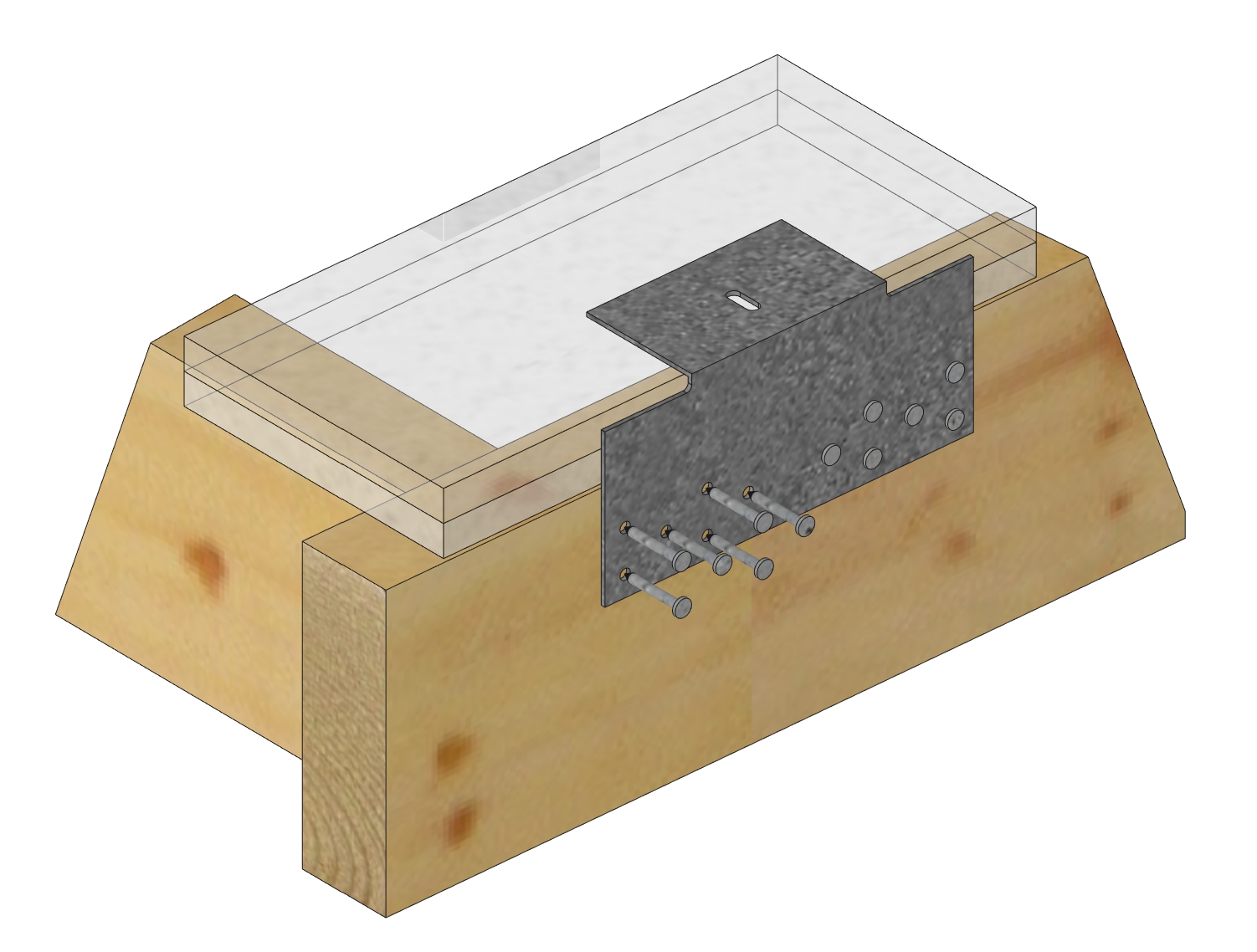

The fastening is made on the wall element with CNA4.0x40

The fising on the floor is made with anchor Ø10mm, the options are given for using 1 or 2 anchors.

The connection betwenn both SC2P elements is made with a Ø6mm screw and 4 self drilling screws JT-2-3-5,5x25 .

Certifikace

Evropské technické posouzení (ETA)

eta-06-0106-2021-04-09.pdf (11.66 MB)
eta-06-0106-2020-01-29-cor1.pdf (13.43 MB)
eta-06-0106.pdf (13.43 MB)
eta-060106-sst-ab-r10-2018-issued.pdf (10.1 MB)
eta-060106-sst-ab-v8-2016.pdf (9.59 MB)
