L-PB

L Strap Design Series

L shaped strap for connection beams to posts in garden applications such as pergolas and other light constructions.

Technický list
EPD
EPD
Exteriér
Exteriér
Acier RAL 9005
Acier RAL 9005
C_LPB_CovArt_Pho_Inst_ZPRO_EU_EU_FACE

Podrobnosti produktu

Obrázky

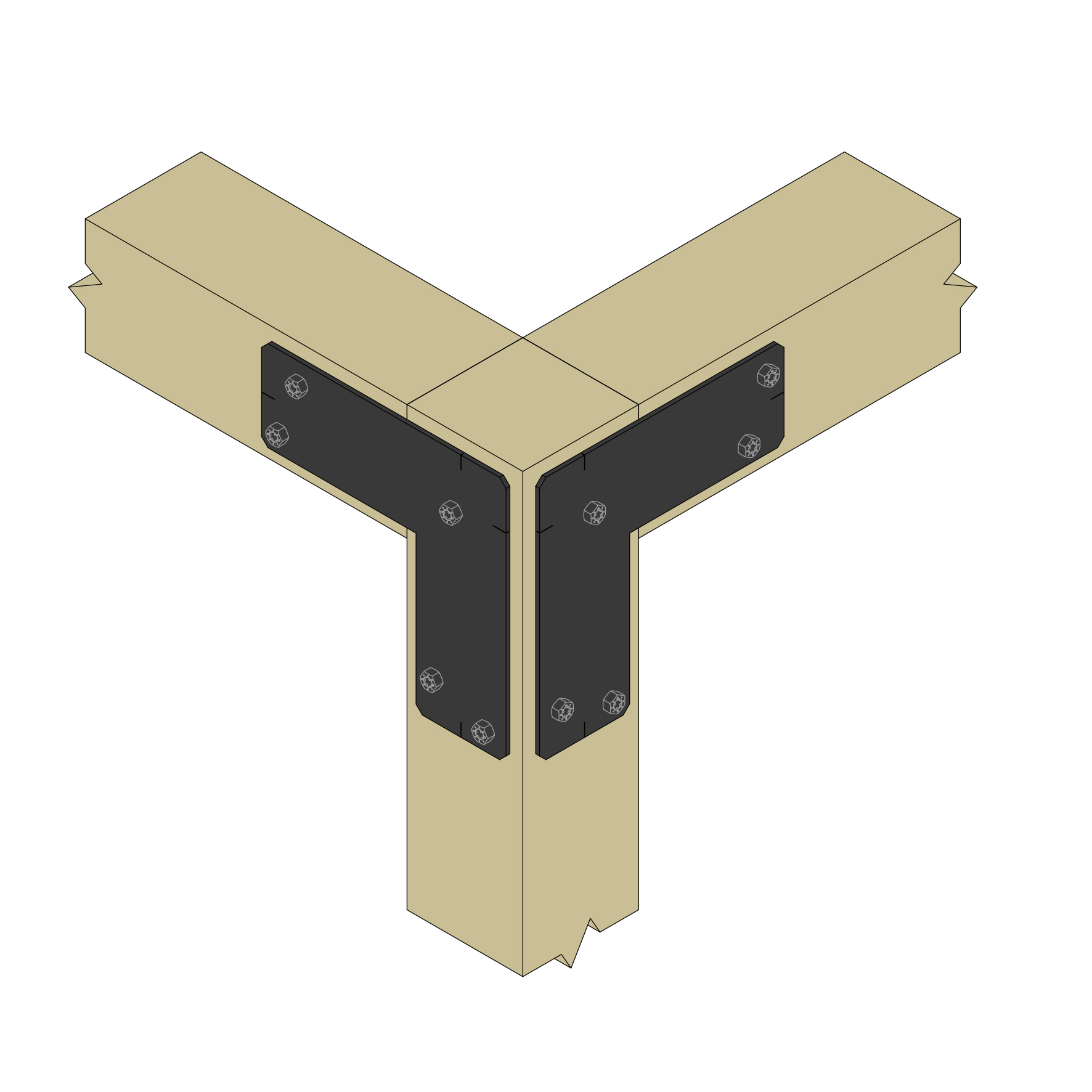

C_L190BPB_InstIll_Ill_Instld_FR_FR_CN_STEP01

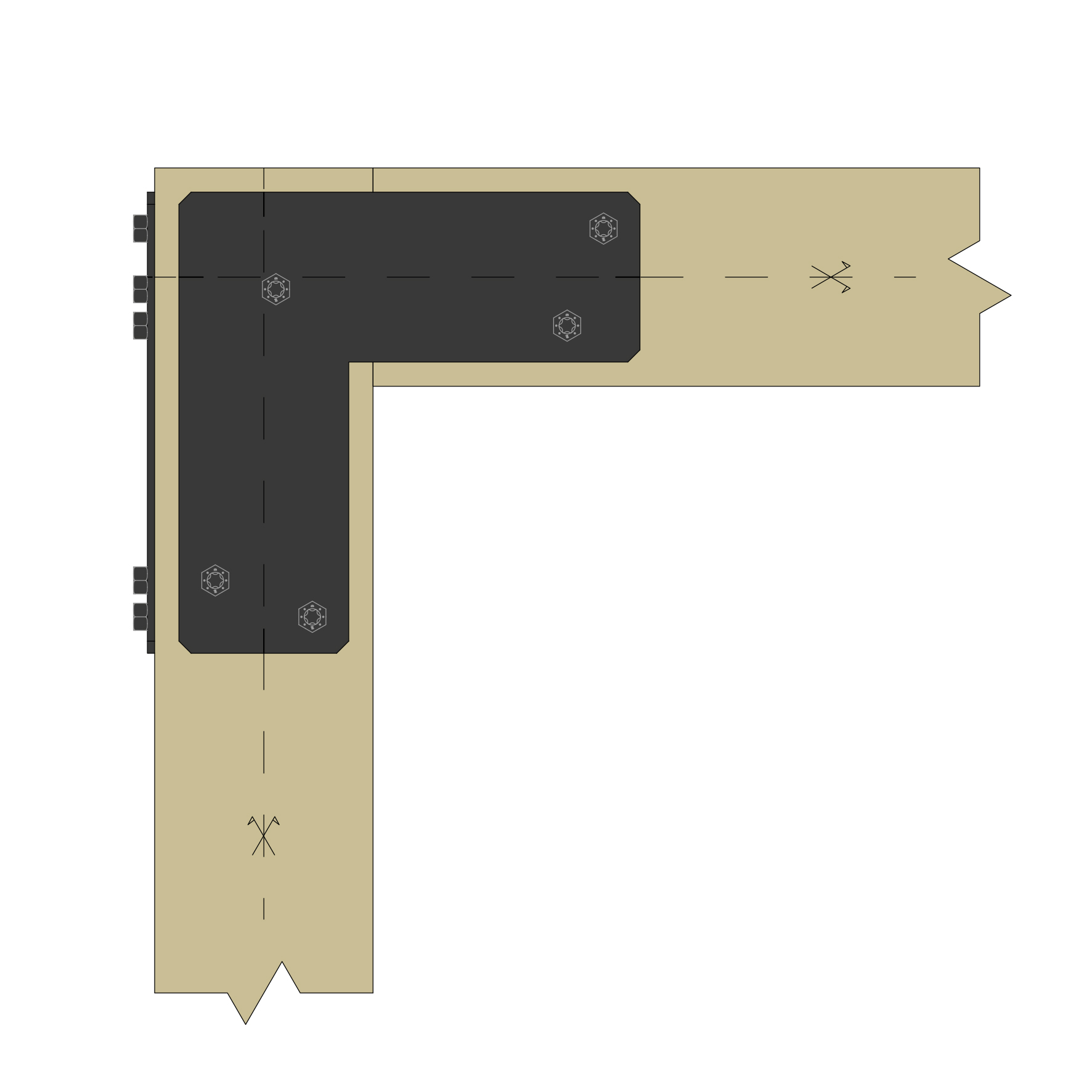

C_L190BPB_InstIll_Ill_Instld_FR_FR_CN_STEP02

Vlastnosti

Material

  • Galvanized steel S250GD + ZM310
  • Painted black RAL9005

Benefits

  • Increases the strength of beam-to-column connections,
  • Makes pergolas, awnings and other light structures more reliable where the end of a beam is supported by a post,
  • Simple to install using black head SSH-PB screws,
  • High corrosion resistance for use under service class 3 conditions,
  • Black paiting : discrete...

Aplikace

Support

  • Header Member: Solid timber, composite timber, glulam
  • Joist: Solid timber, composite timber, glulam

For use with

  • Joists

Technické údaje

Dimensions

Rozměry

Dimensions
Referencekonektor rozměry
ostatnírozměry výrobku[mm]otvory
hmotnost[kg]A[mm]B[mm]C[mm]tloušťka[mm]kulatý
ØØ8.5
L150PB0.16150150402103

Instalace

Instalace

Fasteners

  • Black head screw SSH8.0X40PB

Installation

  • For standard timber section from 90x90 mm to 200x200 mm

Certifikace

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
