BSNN

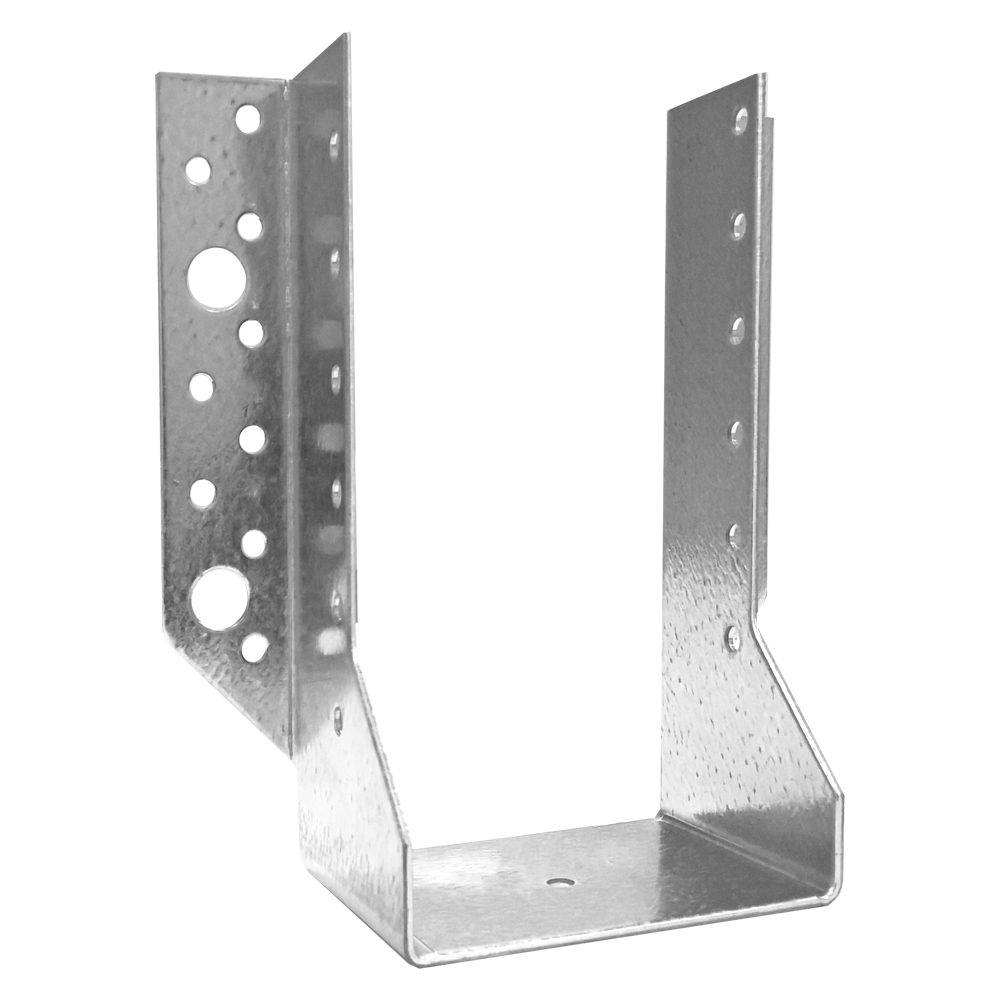

Joist hanger

Joist hangers are used for the connection of secondary beams to main beams or posts.

Označení CE
ETA
Servisní třída 2
Elektroizolační ocel 20 µm

Podrobnosti produktu

Obrázky

Vlastnosti

Materiál

Kvalita oceli:

S 250 GD+Z 275 dle norem DIN EN 10346

Ochrana proti korozi:

275 g/m pozinkováno z obou stran cca 20mm

Vorteile

  • The BSNN joist hangers are also approved for three-axle loads.
  • Connections to concrete, steel and masonry are permissible, see static values.

Aplikace

Anwendbare Materialien



Supporting member:

  • Solid wood, engineered wood, concrete, steel

Supported member:

  • Solid wood, engineered wood



Anwendungsbereich

  • For connections of secondary beams made of wood or engineered wood to main beams / posts made of engineered wood or concrete / steel.

Technické údaje

Rozměry

Rozměry a typické hodnoty

Art. nr. Rozměry vedlejšího nosníku [mm] Rozměry a typické hodnoty [mm] Otvory hlavy Otvory trámu
Šířka Výška [mm] A B C D F t Ø5 [mm] Ø11.5 [mm] Ø5 [mm]
Výška [mm] Max. Výška [mm] Max.
BSNN36/142 34 36 152 213 36 142 60 27 63 2 16 2 10
BSNN40/95 38 40 105 143 40 95 60 27 63 2 8 2 6
BSNN40/110 38 40 120 165 40 110 60 27 63 2 12 2 6
BSNN40/140 38 40 150 210 40 140 60 27 63 2 16 2 10
BSNN45/93 43 45 102 139 45 92 60 27 63 2 8 2 6
BSNN45/108 43 45 118 161 45 108 60 27 63 2 12 2 6
BSNN45/138 43 45 148 206 45 138 60 27 63 2 16 2 10
BSNN45/168 43 45 178 251 45 168 60 27 63 2 18 4 12
BSNN45/198 43 45 208 296 45 198 60 27 63 2 22 4 14
BSNN48/91 46 48 101 136 48 91 60 27 63 2 8 2 6
BSNN48/136 46 48 146 204 48 136 60 27 63 2 16 2 10
BSNN48/166 46 48 176 249 48 166 60 27 63 2 18 4 12
BSNN48/226 46 48 236 339 48 226 60 27 63 2 26 4 16
BSNN51/90 49 51 100 134 51 90 60 27 63 2 8 2 6
BSNN51/105 49 51 114 157 51 104 60 27 63 2 12 2 6
BSNN51/135 49 51 144 202 51 134 60 27 63 2 16 2 10
BSNN51/164 49 51 174 247 51 164 60 27 63 2 18 4 12
BSNN51/195 49 51 204 292 51 194 60 27 63 2 22 4 14
BSNN60/100 58 60 110 150 60 100 60 27 63 2 12 2 6
BSNN60/130 58 60 140 195 60 130 60 27 63 2 16 2 10
BSNN60/160 58 60 170 240 60 160 60 27 63 2 18 4 12
BSNN60/190 58 60 200 285 60 190 60 27 63 2 22 4 14
BSNN60/220 58 60 230 330 60 220 60 27 63 2 26 4 16
BSNN64/98 62 64 108 147 64 98 60 27 63 2 12 2 6
BSNN64/128 62 64 138 192 64 128 60 27 63 2 16 2 10
BSNN66/217 64 66 227 326 66 217 60 27 63 2 26 4 16
BSNN70/125 68 70 135 188 70 125 60 27 63 2 16 2 10
BSNN70/155 68 70 165 232 70 155 60 27 63 2 18 4 12
BSNN73/124 71 73 134 185 73 124 60 27 63 2 16 2 10
BSNN73/154 71 73 164 230 73 154 60 27 63 2 18 4 12
BSNN73/184 71 73 194 275 73 184 60 27 63 2 22 4 14
BSNN76/122 74 76 132 183 76 122 60 27 63 2 16 2 10
BSNN76/152 74 76 162 228 76 152 60 27 63 2 18 4 12
BSNN76/182 74 76 192 273 76 182 60 27 63 2 22 4 14
BSNN80/120 78 80 130 180 80 120 60 27 63 2 16 2 10
BSNN80/150 78 80 160 225 80 150 60 27 63 2 18 4 12
BSNN80/180 78 80 190 270 80 180 60 27 63 2 22 4 14
BSNN80/210 78 80 220 315 80 210 60 27 63 2 26 4 16
BSNN90/145 88 90 155 218 90 145 60 27 63 2 18 4 12
BSNN90/205 88 90 215 308 90 205 60 27 63 2 26 4 16
BSNN98/141 96 98 151 212 98 141 60 27 63 2 18 4 12
BSNN100/110 98 100 120 165 100 110 60 27 63 2 16 2 10
BSNN100/140 98 100 150 210 100 140 60 27 63 2 18 4 12
BSNN100/170 98 100 180 255 100 170 60 27 63 2 22 4 14
BSNN100/200 98 100 210 300 100 200 60 27 63 2 26 4 16
BSNN115/163 113 115 172 244 115 162 60 27 63 2 22 4 14
BSNN115/193 113 115 202 289 115 192 60 27 63 2 26 4 16
BSNN120/160 118 120 170 240 120 160 60 27 63 2 22 4 14
BSNN120/190 118 120 200 285 120 190 60 27 63 2 26 4 16
BSNN140/150 138 140 160 225 140 150 60 27 63 2 22 4 14
BSNN140/180 138 140 190 270 140 180 60 27 63 2 26 4 16

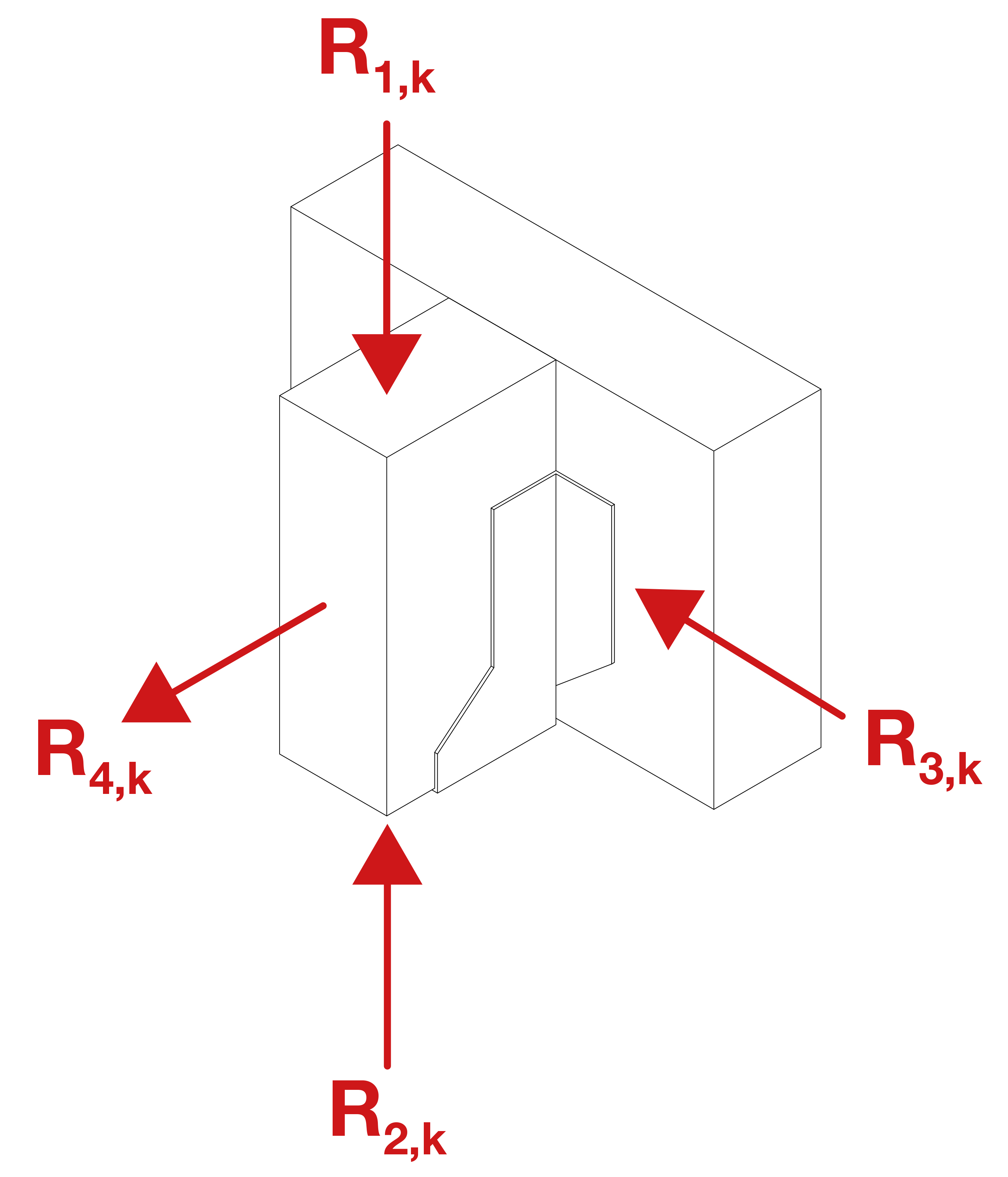

Charakteristické nosnosti - Dřevěný trám na dřevěný trám - plné hřebování

Art. nr. Charakteristické kapacity - Dřevo na dřevo - úplné upevnění hřeby
Upevňovací prvky Charakteristické kapacity - dřevo C24 [kN]
Hlava Trám R1.k R2.k R3.k R4.k
Množství Množství CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60
BSNN36/142 16 10 17.7 - - - 5.4 - - - 6.7 - - - 6.1 - - -
BSNN40/95 8 6 7.6 8.9 - - 4.3 4.3 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN40/110 12 6 11.8 13.8 - - 5.1 5.1 - - 4.8 5.5 - - 4.9 5.9 - -
BSNN40/140 16 10 17.5 20.3 - - 5.9 5.9 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN45/93 8 6 7.2 8.4 - - 4.7 4.7 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN45/108 12 6 11.4 13.4 - - 5.7 5.7 - - 4.8 5.5 - - 4.9 5.9 - -
BSNN45/138 16 10 17.1 19.9 - - 6.6 6.6 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN45/168 18 12 22.1 25.4 - - 7.4 7.4 - - 7.8 9 - - 7.3 8.9 - -
BSNN45/198 22 14 26.6 29.3 - - 8.2 8.2 - - 9.2 10.6 - - 8.5 10.4 - -
BSNN48/91 8 6 7.1 8.4 - - 5 5 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN48/136 16 10 16.9 19.7 - - 7 7 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN48/166 18 12 21.9 25.2 - - 7.9 7.9 - - 7.8 9 - - 7.3 8.9 - -
BSNN48/226 26 16 29.9 32.9 - - 9.4 9.4 - - 10.5 12.1 - - 9.8 11.8 - -
BSNN51/90 8 6 6.9 8.2 10.5 - 5.2 5.2 5.2 - 3.4 3.9 5 - 3.7 4.4 5.9 -
BSNN51/105 12 6 11 12.9 16.6 - 6.3 6.3 6.3 - 4.8 5.5 6.9 - 4.9 5.9 7.8 -
BSNN51/135 16 10 16.7 19.4 24.7 - 7.4 7.4 7.4 - 6.7 7.7 9.7 - 6.1 7.4 9.8 -
BSNN51/164 18 12 21.7 25 31.1 - 8.3 8.3 8.3 - 7.8 9 11.4 - 7.3 8.9 11.8 -
BSNN51/195 22 14 26.6 29.3 35.5 - 9.2 9.2 9.2 - 9.2 10.6 13.5 - 8.5 10.4 13.7 -
BSNN60/100 12 6 10.3 12.1 15.6 18.4 7.2 7.2 7.2 7.2 4.8 5.5 6.9 7.9 4.9 5.9 7.8 9.8
BSNN60/130 16 10 16 18.7 23.8 27.6 8.5 8.5 8.5 8.5 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN60/160 18 12 21.2 24.4 30.8 33 9.7 9.7 9.7 9.7 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN60/190 22 14 26.6 29.3 35.5 37.8 10.7 10.7 10.7 10.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN60/220 26 16 29.9 32.9 40 42.5 11.6 11.6 11.6 11.6 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN64/98 12 6 10 11.8 15.2 18 7.6 7.6 7.6 7.6 4.8 5.5 6.9 7.9 4.9 5.9 7.8 9.8
BSNN64/128 16 10 15.7 18.3 23.4 27.2 9 9 9 9 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN66/217 26 16 29.9 32.9 40 42.5 12.7 12.7 12.7 12.7 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN70/125 16 10 15.2 17.8 22.8 26.5 9.7 9.7 9.7 9.7 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN70/155 18 12 20.5 23.7 30 33 11.1 11.1 11.1 11.1 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN73/124 16 10 14.9 17.5 22.4 26.2 10.1 10.1 10.1 10.1 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN73/154 18 12 20.3 23.5 29.7 33 11.5 11.5 11.5 11.5 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN73/184 22 14 26.6 29.3 35.5 37.8 12.7 12.7 12.7 12.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN76/122 16 10 14.7 17.2 22.1 25.8 10.4 10.4 10.4 10.4 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN76/152 18 12 20.1 23.3 29.5 33 11.9 11.9 11.9 11.9 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN76/182 22 14 26.6 29.3 35.5 37.8 13.2 13.2 13.2 13.2 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN80/120 16 10 14.3 16.8 21.6 25.3 10.8 10.8 10.8 10.8 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN80/150 18 12 19.8 23 29.1 33 12.4 12.4 12.4 12.4 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN80/180 22 14 26.4 29.3 35.5 37.8 13.8 13.8 13.8 13.8 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN80/210 26 16 29.9 32.9 40 42.5 15.1 15.1 15.1 15.1 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN90/145 18 12 19 22.2 28.2 32.3 13.7 13.7 13.7 13.7 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN90/205 26 16 29.9 32.9 40 42.5 16.7 16.7 16.7 16.7 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN98/141 18 12 18.4 21.5 27.3 31.5 14.6 14.6 14.6 14.6 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN100/110 16 10 12.4 14.7 19 22.6 12.8 12.8 12.8 12.8 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN100/140 18 12 18.2 21.3 27.1 31.3 14.9 14.9 14.9 14.9 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN100/170 22 14 24.9 28.9 35.5 37.8 16.7 16.7 16.7 16.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN100/200 26 16 29.9 32.9 40 42.5 18.3 18.3 18.3 18.3 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN115/163 22 14 23.7 27.5 34.9 37.8 18.7 18.7 18.7 18.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN115/193 26 16 29.9 32.9 40 42.5 20.6 20.6 20.6 20.6 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN120/160 22 14 23.2 27.1 34.4 37.8 19.3 19.3 19.3 19.3 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN120/190 26 16 29.9 32.9 40 42.5 21.4 21.4 21.4 21.4 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN140/150 22 14 21.4 25 32 37.1 21.7 21.7 21.7 21.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN140/180 26 16 29 32.9 40 42.5 24.1 24.1 24.1 24.1 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7

The uplift capacities R2.k are determine for a joist with a height of 4/3x B (B = height of BSNN). Also for connection with partial nailing.
For smaller sizes may it be possible to determine a higher capacity according to the ETA.

Combined load:

Nosnosti - dřevo na dřevo - dílčí hřebování

Art. nr. Kapacity - Dřevo na dřevo - Částečné upevnění hřeby
Upevňovací prvky Charakteristické kapacity - dřevo C24 [kN]
Hlava Trám R1.k R2.k R3.k R4.k
Množství Množství CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60
BSNN36/142 10 6 11.9 - - - 5.4 - - - 2.4 - - - 6.1 - - -
BSNN40/95 6 3 6.6 7.7 - - 3.8 4.3 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN40/110 8 4 8.5 9.9 - - 5.1 5.1 - - 2 2.2 - - 4.9 5.9 - -
BSNN40/140 10 6 11.7 13.5 - - 5.9 5.9 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN45/93 6 3 6.4 7.4 - - 3.8 4.5 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN45/108 8 4 8.3 9.7 - - 5.7 5.7 - - 2 2.2 - - 4.9 5.9 - -
BSNN45/138 10 6 11.5 13.3 - - 6.6 6.6 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN45/168 12 6 13.3 14.6 - - 7.4 7.4 - - 2.9 3.2 - - 7.3 8.9 - -
BSNN45/198 14 8 16.6 18.3 - - 8.2 8.2 - - 3.3 3.6 - - 8.5 10.4 - -
BSNN48/91 6 3 6.3 7.4 - - 3.8 4.5 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN48/136 10 6 11.4 13.2 - - 7 7 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN48/166 12 6 13.3 14.6 - - 7.9 7.9 - - 2.9 3.2 - - 7.3 8.9 - -
BSNN48/226 16 8 16.6 18.3 - - 9.4 9.4 - - 3.7 4.1 - - 9.8 11.8 - -
BSNN51/90 6 3 6.2 7.2 9.2 - 3.8 4.5 5.2 - 1.3 1.4 1.7 - 2.8 3.1 3.8 -
BSNN51/105 8 4 8 9.4 12 - 5.9 6.3 6.3 - 2 2.2 2.7 - 4.9 5.9 7.5 -
BSNN51/135 10 6 11.3 13.1 16.5 - 7.4 7.4 7.4 - 2.4 2.7 3.3 - 6.1 7.4 9.8 -
BSNN51/164 12 6 13.3 14.6 17.8 - 8.3 8.3 8.3 - 2.9 3.2 3.8 - 7.3 8.9 11.3 -
BSNN51/195 14 8 16.6 18.3 22.2 - 9.2 9.2 9.2 - 3.3 3.6 4.4 - 8.5 10.4 13.7 -
BSNN60/100 8 4 7.6 8.9 11.4 13.3 5.9 7 7.2 7.2 2 2.2 2.7 2.9 4.9 5.9 7.5 8
BSNN60/130 10 6 10.9 12.6 16 18.3 8.3 8.5 8.5 8.5 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN60/160 12 6 13.3 14.6 17.8 18.9 9.7 9.7 9.7 9.7 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN60/190 14 8 16.6 18.3 22.2 23.6 10.7 10.7 10.7 10.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN60/220 16 8 16.6 18.3 22.2 23.6 11.6 11.6 11.6 11.6 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN64/98 8 4 7.4 8.7 11.1 13 5.9 7 7.6 7.6 2 2.2 2.7 2.9 4.9 5.9 7.5 8
BSNN64/128 10 6 10.7 12.4 15.7 18.1 8.3 9 9 9 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN66/217 16 8 16.6 18.3 22.2 23.6 12.7 12.7 12.7 12.7 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN70/125 10 6 10.4 12.1 15.4 17.7 8.3 9.7 9.7 9.7 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN70/155 12 6 13.3 14.6 17.8 18.9 10 11 11.1 11.1 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN73/124 10 6 10.2 12 15.2 17.5 8.3 9.8 10.1 10.1 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN73/154 12 6 13.3 14.6 17.8 18.9 10 11 11.5 11.5 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN73/184 14 8 16.6 18.3 22.2 23.6 12.7 12.7 12.7 12.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN76/122 10 6 10.1 11.8 15 17.3 8.3 9.8 10.4 10.4 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN76/152 12 6 13.3 14.6 17.8 18.9 10 11 11.9 11.9 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN76/182 14 8 16.6 18.3 22.2 23.6 13.2 13.2 13.2 13.2 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN80/120 10 6 9.9 11.5 14.7 17.1 8.3 9.8 10.8 10.8 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN80/150 12 6 13.3 14.6 17.8 18.9 10 11 12.4 12.4 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN80/180 14 8 16.6 18.3 22.2 23.6 13.3 13.8 13.8 13.8 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN80/210 16 8 16.6 18.3 22.2 23.6 13.3 14.6 15.1 15.1 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN90/145 12 6 13.2 14.6 17.8 18.9 10 11 13.3 13.7 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN90/205 16 8 16.6 18.3 22.2 23.6 13.3 14.6 16.7 16.7 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN98/141 12 6 12.7 14.6 17.8 18.9 10 11 13.3 14.2 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN100/110 10 6 11.6 13.4 17 18.9 8.3 9.8 12.7 12.8 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN100/140 12 6 12.6 14.6 17.8 18.9 10 11 13.3 14.2 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN100/170 14 8 16.6 18.3 22.2 23.6 13.3 14.6 16.7 16.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN100/200 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.3 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN115/163 14 8 15.8 18.3 22.2 23.6 13.3 14.6 17.8 18.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN115/193 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN120/160 14 8 15.6 18.1 22.2 23.6 13.3 14.6 17.8 18.9 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN120/190 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN140/150 14 8 14.4 16.8 21.4 23.6 13.3 14.6 17.8 18.9 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN140/180 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16

Combined load:

Instalace

Instalace

Befestigung

Timber support:

  • CNA 4.0xl or CSA5.0xl

Steel Support:

  • Bolt Ø10

Concrete Support:

  • Mechanical Anchor such as BOAXII12/5  or WA M10-78/5
  • Chemical Anchor such as AT-HP or MT-CM with threaded rod LMAS-M10/110

Certifikace

Prohlášení o funkčnosti (DoP)

Evropské technické posouzení (ETA)

Knihovna CAD

DWG (2D) REVIT (2D) DWG (3D) REVIT (3D) SAT XML
Žádné položky k dispozici.
Žádné položky k dispozici.
Žádné položky k dispozici.

Buy from Distributor

No items available.
