BTFLEX

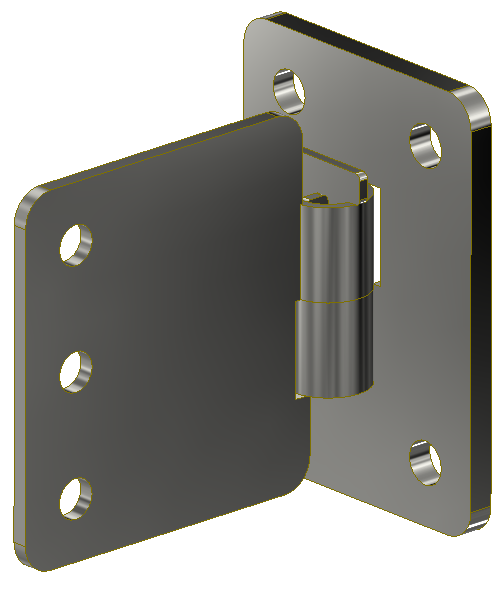

Hinge concealed beam hanger
The BTFLEX can be dowelled into the concrete as a flexible connection, slotted into the timber at the factory and then simply pushed in, secured with the split pin and the next connection can be made.
This solution is particularly flexible if there are different angles between the wooden beam and the wall.
Production Status
discontinued
Označení CE
ETA
Servisní třída 2
Elektroizolační ocel 8 µm
Technické údaje
Rozměry

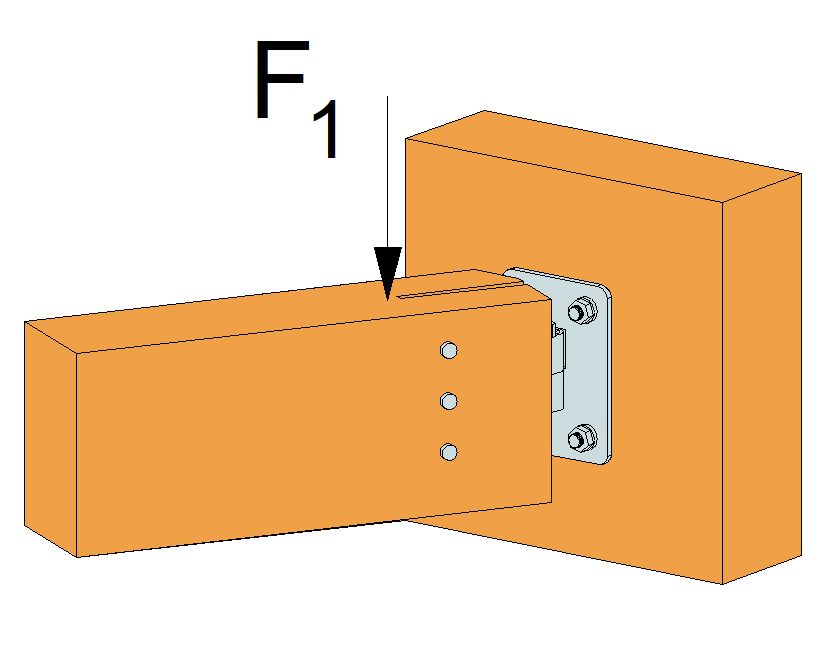

Product characteristic capacities - Timber beam to rigid support
Table "Product characteristic capacities - Timber beam to rigid support" cannot be displayed : no references available.
The bolt connection must be verified as follows:
Rbolt,lat.d = F1.d / 4 shear force to be absorbed per bolt
Rbolt.ax.d = F1.d x 0.15 Tensile force to be absorbed for both upper bolts together
for sloped connection, the capacies shall be multiply with the following factors:
| β | 0° | 15° | 30° | 45° |
|---|---|---|---|---|
| Factor | 1 | 0,95 | 0,9 | 0,85 |
