DSPROA4

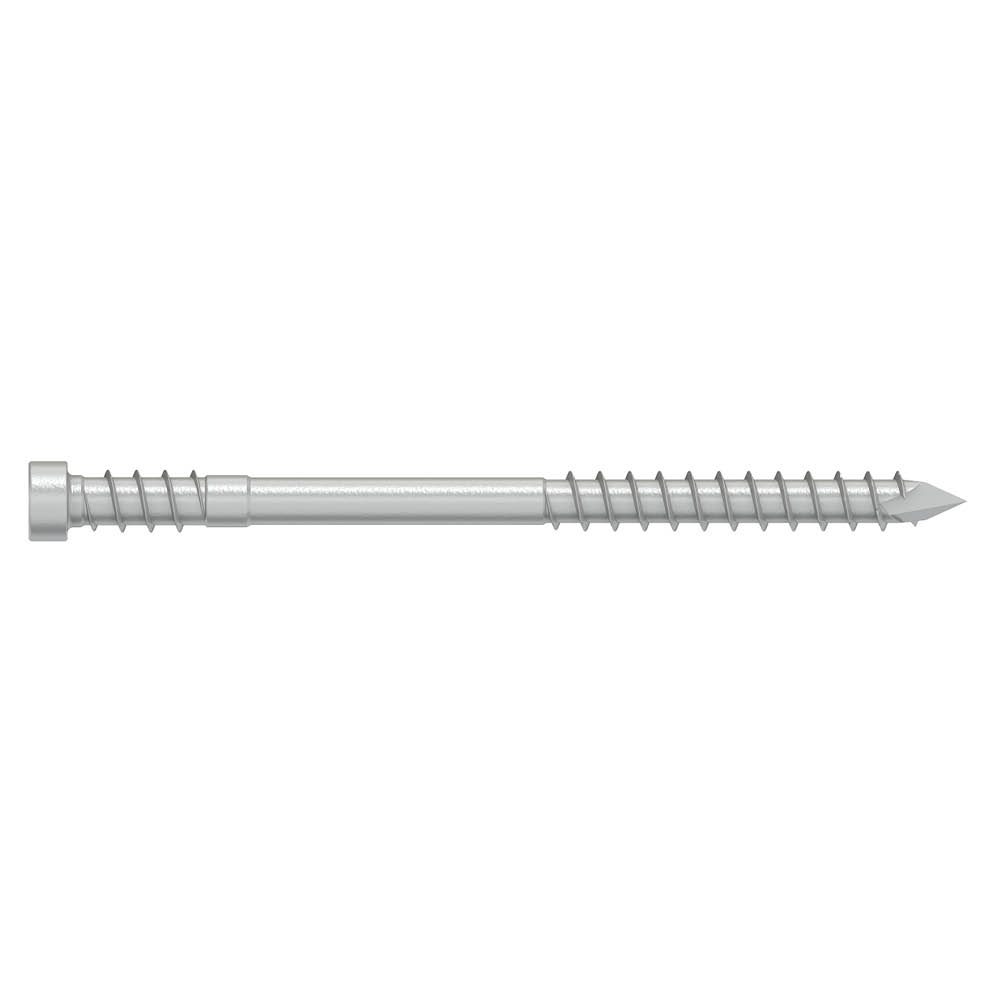

Hardwood Decking Screw - Stainless Steel A4

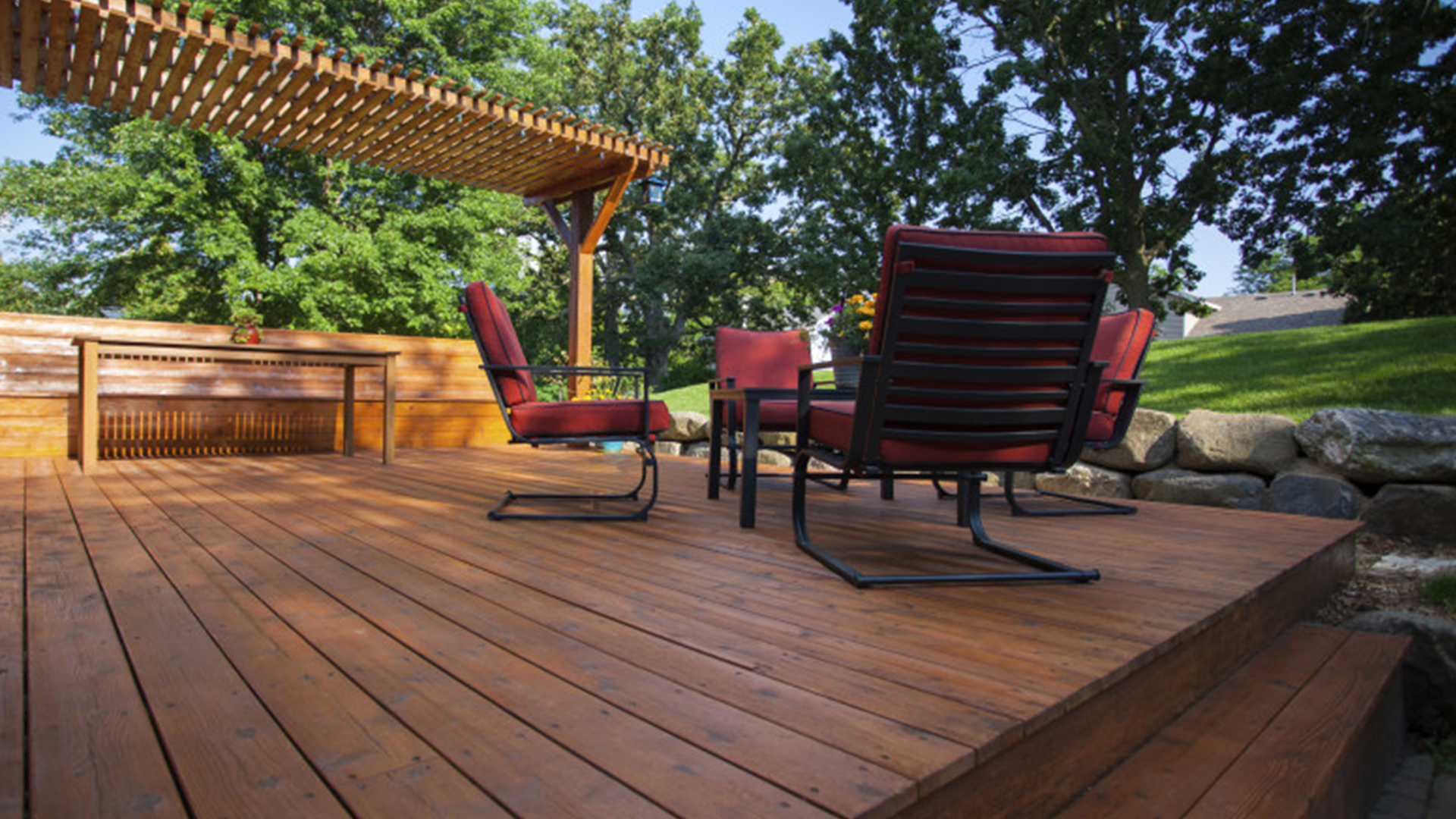

Made for hardwood decking such as Cumaro, Bankirai and others. Can be used in Marine environments. Needs pre-drilling with 4 mm drill and pre-countersinking close to the edge.
Označení CE
Novinky
Servisní třída 3
EPD
A4 nerezová ocel
Korozivní Atmosféra
Podrobnosti produktu
Obrázky
Vlastnosti
Aplikace
Technické údaje
Rozměry
Rozměry
| Reference | Fasteners rozměry | ||||||
|---|---|---|---|---|---|---|---|
| ostatní | rozměry výrobku[mm] | ||||||
| hmotnost[kg] | d[mm] | l[mm] | dₕ[mm] | lg₁ | lg₂ | Driver Bit[mm] | |
| DSPROA45.5X50 | 0.005 | 5.5 | 50 | 7 | 22.5 | 10.5 | T-25 |
| DSPROA45.5X60 | 0.005 | 5.5 | 60 | 7 | 27.5 | 10.5 | T-25 |
| DSPROA45.5X70 | 0.005 | 5.5 | 70 | 7 | 32.5 | 10.5 | T-25 |
| DSPROA45.5X80 | 0.006 | 5.5 | 80 | 7 | 37.5 | 10.5 | T-25 |
Knihovna CAD a BIM
2D
DSPROA45.5X70
-
-
-
-
DSPROA45.5X80
-
-
-
-
DSPROA45.5X50
-
-
-
-
DSPROA45.5X60
-
-
-
-
3D
DSPROA45.5X70
-
-
-
-
-
DSPROA45.5X80
-
-
-
-
-
DSPROA45.5X50
-
-
-
-
-
