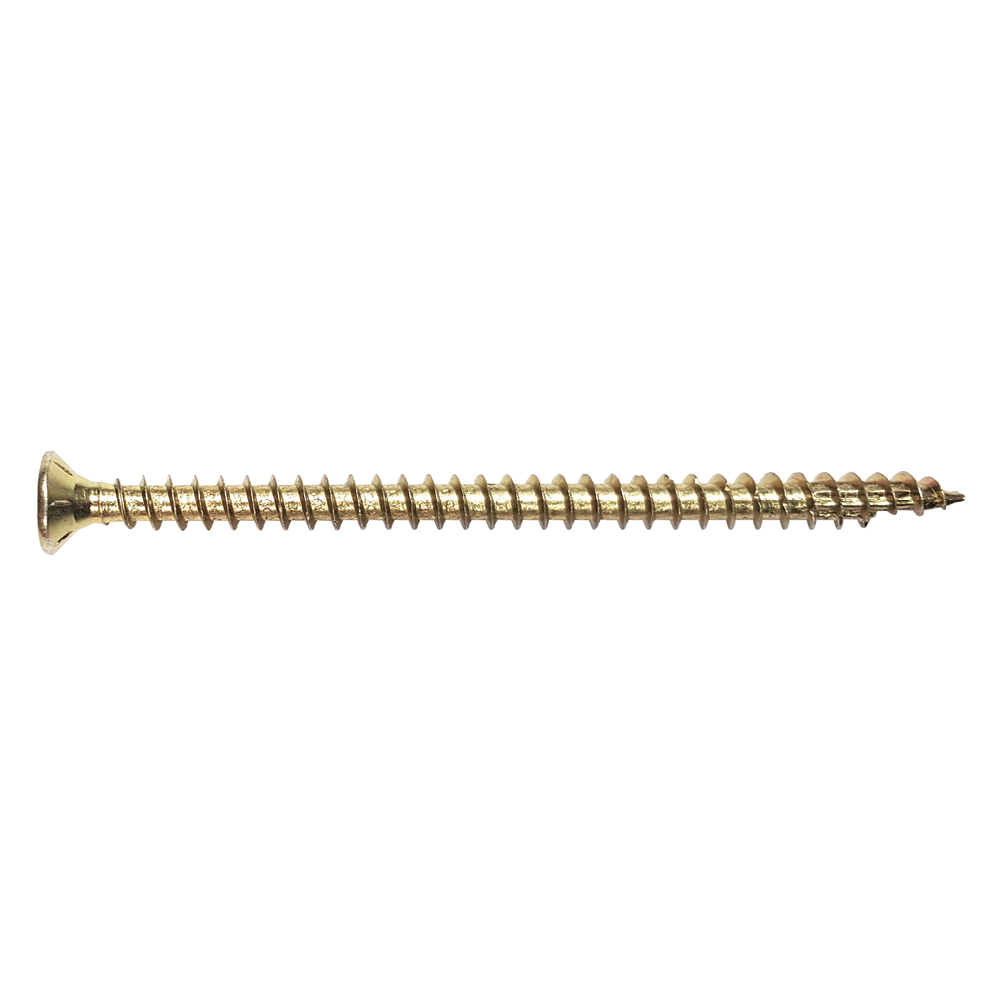

Fully Threaded Countersunk Structural Wood Screw

ESCRFTC is a full threaded screw with a countersunk head, suitable for hidden timber to timber assembly and steel to timber assembly. It can also be used for timber reinforcement.

Technický list

Označení CE

ETA

Žlutá galvanizovaná ocel

Servisní třída 2

Uvnitř

EPD

Fastener Designer

Podrobnosti produktu

Obrázky

Vlastnosti

Material

Hardened carbon steel
Electrogalvanized yellow passivated

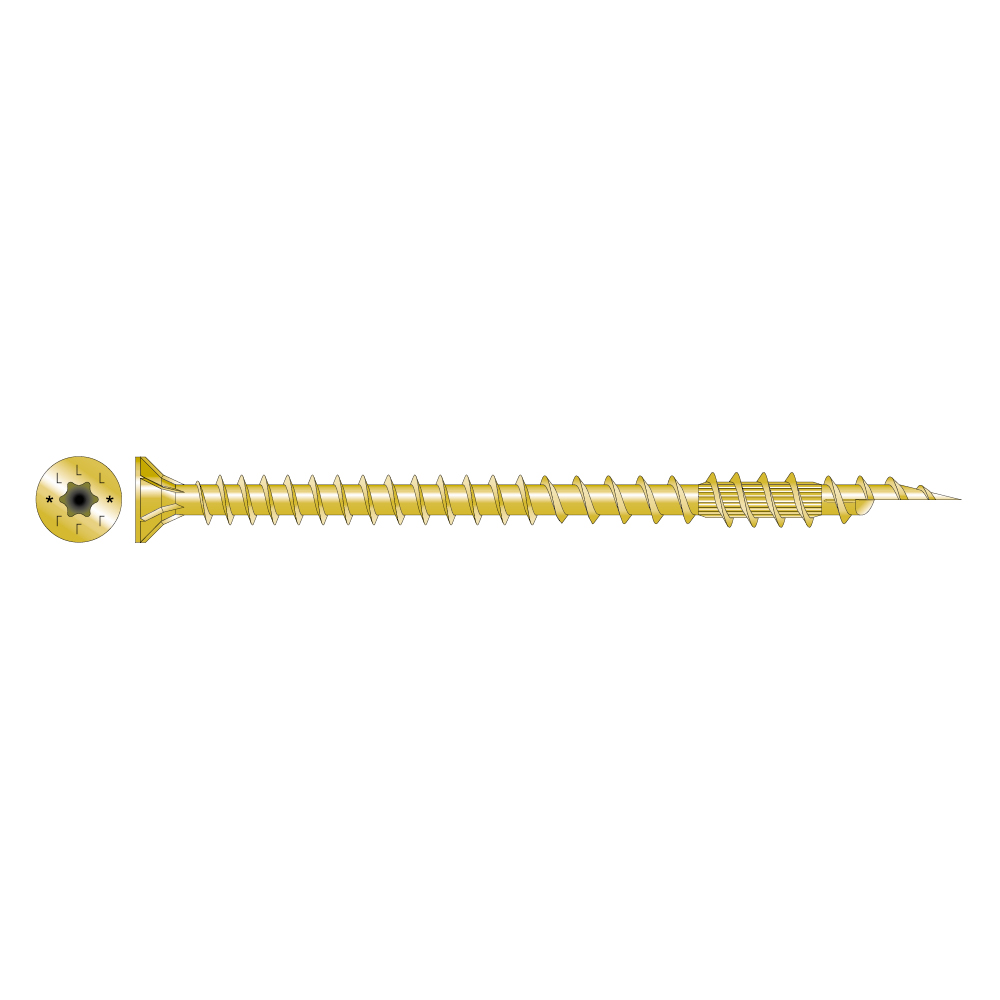

Advantages

Countersunk head: ideal for timber/timber or steel/timber assembly with head flush with surface
Underhead ribs: for a clear finish and no timber superficial split
Full asymetrical thread for a maximum withdrawal capacity, allows compressive load bearing
Half cut point: reduces splitting effect and allows smaller minimum spacings and edge distances. No pre-drilling needed, easier installation when skewed
Torx driven: reduces the wear of the bit

Aplikace

When to use

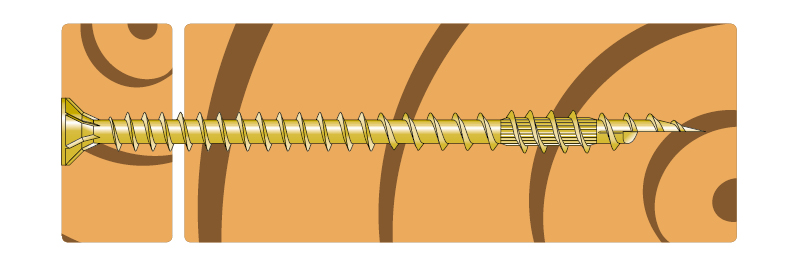

Timber to timber assembly
Steel to timber assembly
Timber reinforcement (to transversile tension or compression)

Technické údaje

Rozměry a typické hodnoty

Rozměry

Reference	Fasteners rozměry[mm]
	ostatní		rozměry výrobku[mm]
	množství v krabici	hmotnost[kg]	l[mm]	závit délka[mm]	d[mm]	dh[mm]	Driver Bit[mm]
ESCRFTC8.0X120	50.0	0.026	120	110	8	15	T-40
ESCRFTC8.0X140	50.0	0.03	140	130	8	15	T-40
ESCRFTC8.0X160	50.0	0.035	160	150	8	15	T-40
ESCRFTC8.0X180	50.0	0.039	180	170	8	15	T-40
ESCRFTC8.0X200	50.0	0.043	200	190	8	15	T-40
ESCRFTC8.0X220	50.0	0.047	220	210	8	15	T-40
ESCRFTC8.0X240	50.0	0.051	240	230	8	15	T-40
ESCRFTC8.0X260	50.0	0.055	260	250	8	15	T-40
ESCRFTC8.0X280	50.0	0.059	280	270	8	15	T-40
ESCRFTC8.0X300	50.0	0.063	300	290	8	15	T-40
ESCRFTC8.0X350	50.0	0.072	350	340	8	15	T-40
ESCRFTC8.0X400	50.0	0.084	400	390	8	15	T-40
ESCRFTC10.0X120	50.0	0.038	120	108	10	18.5	T-50
ESCRFTC10.0X160	-	0.05	160	148	10	18.5	T-50
ESCRFTC10.0X180	50.0	0.056	180	168	10	18.5	T-50
ESCRFTC10.0X200	50.0	0.062	200	188	10	18.5	T-50
ESCRFTC10.0X220	50.0	0.068	220	208	10	18.5	T-50
ESCRFTC10.0X240	50.0	0.074	240	228	10	18.5	T-50
ESCRFTC10.0X260	50.0	0.08	260	248	10	18.5	T-50
ESCRFTC10.0X280	50.0	0.086	280	268	10	18.5	T-50
ESCRFTC10.0X300	50.0	0.092	300	288	10	18.5	T-50
ESCRFTC10.0X350	50.0	0.11	350	338	10	18.5	T-50
ESCRFTC10.0X400	50.0	0.12	400	388	10	18.5	T-50
ESCRFTC12.0X200	25.0	0.068	200	180	12	20	T-50
ESCRFTC12.0X220	25.0	0.092	220	200	12	20	T-50
ESCRFTC12.0X240	25.0	0.085	240	220	12	20	T-50
ESCRFTC12.0X260	25.0	0.11	260	240	12	20	T-50
ESCRFTC12.0X280	25.0	0.1	280	260	12	20	T-50
ESCRFTC12.0X300	25.0	0.11	300	280	12	20	T-50
ESCRFTC12.0X350	25.0	0.13	350	330	12	20	T-50
ESCRFTC12.0X400	25.0	0.15	400	380	12	20	T-50
ESCRFTC12.0X450	25.0	0.062	450	430	12	20	T-50
ESCRFTC12.0X500	25.0	0.2	500	480	12	20	T-50
ESCRFTC12.0X600	25.0	0.24	600	580	12	20	T-50

Mekaniske egenskaber

Reference	šroub parametry
	charakteristické parametry
	Characteristic Yield Moment – My,ₖ[Nm]	Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²]	Characteristic hlava pull-through parameter - fₕₑₐd,ₖ[N/mm²]	Characteristic tensile únosnost - fₜₑₙₛ,ₖ[kN]	Characteristic torsional pevnost - ftor,k[Nm]
ESCRFTC8.0	20.3	13.1	12.4	24.1	25.8
ESCRFTC10.0	36.7	12.5	12.2	40	55
ESCRFTC12.0	48.5	11.2	11	46.7	73
