X1 evo

Four Segments Universal Nylon Plug - White zinc plated

The X1 evo universal plug in the versions Ø5 to Ø14 mm is designed for fixings in solid, hollow and board building materials.

Technický list
X1 evo

Podrobnosti produktu

Obrázky

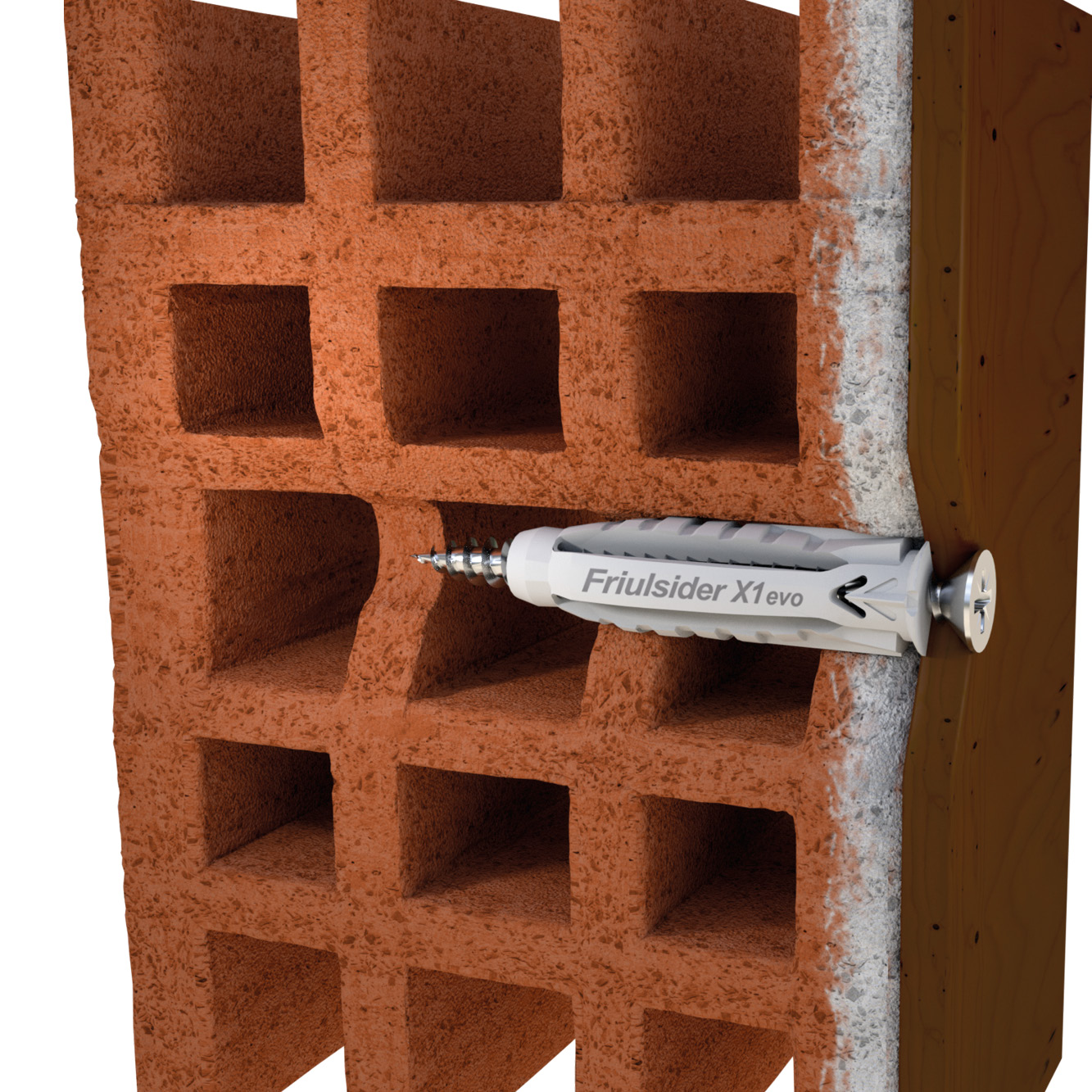

X1 hollow block application image

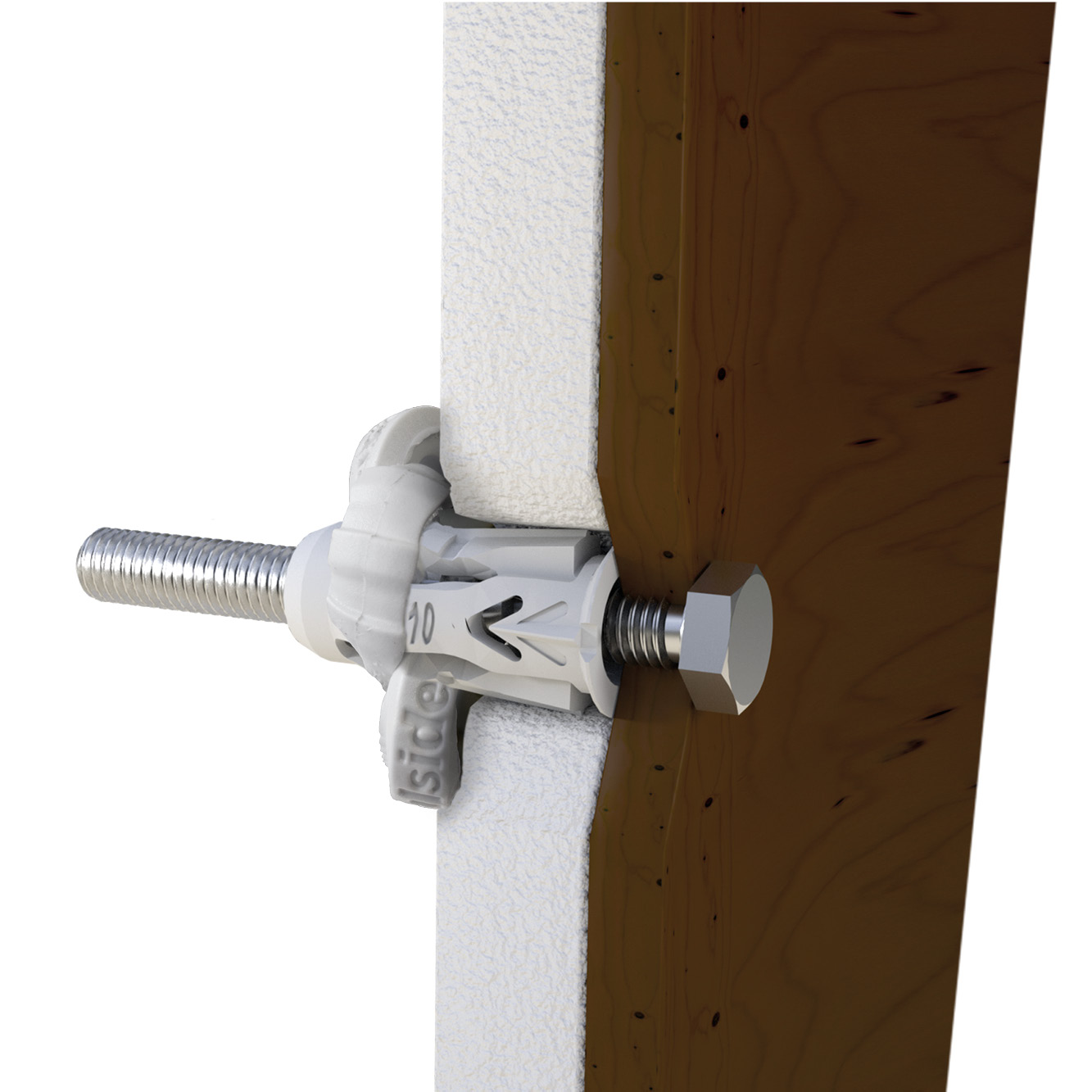

X1 plasterboard application image

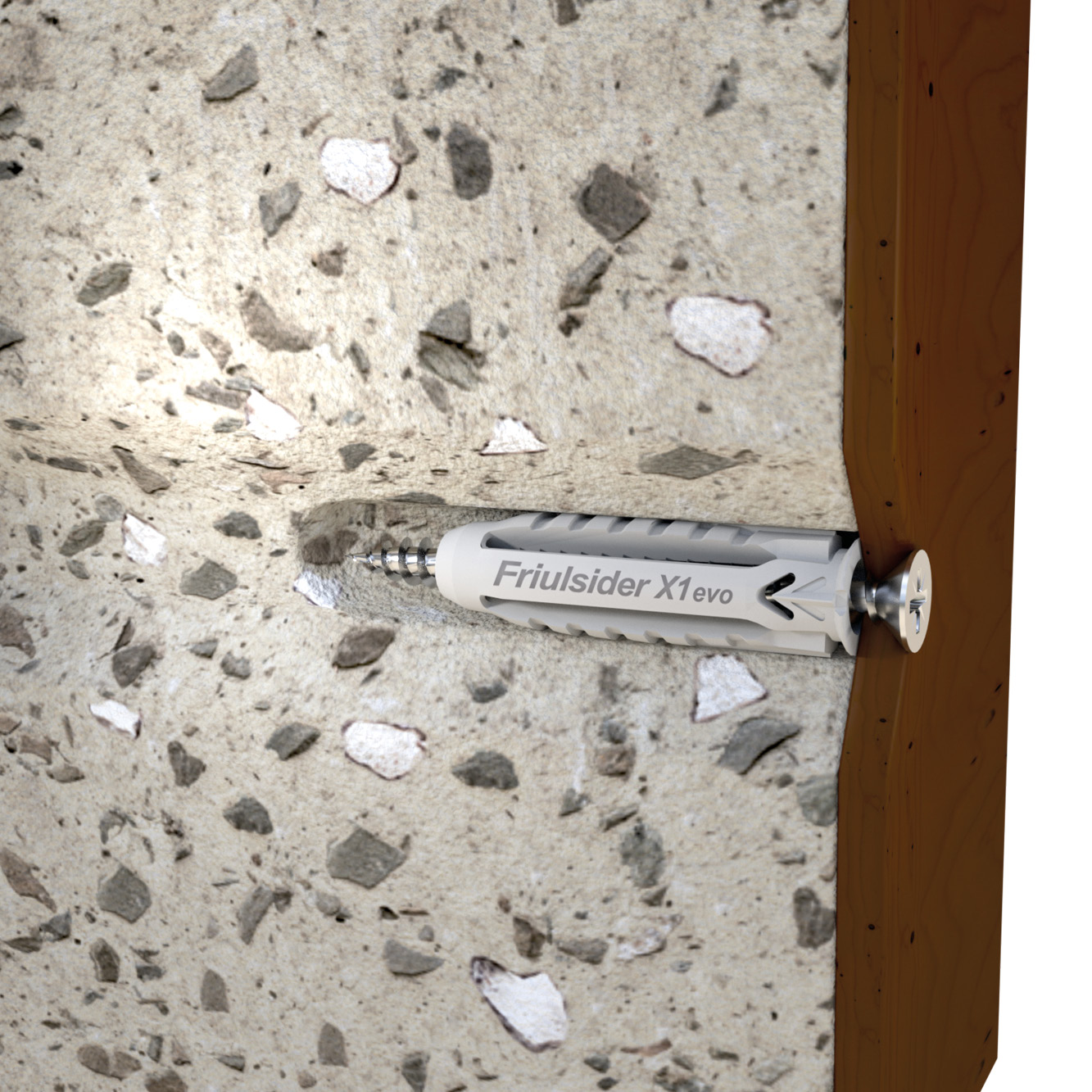

X1 solid concrete application image

Vlastnosti

Material

Plug: nylon
Screw: white zinc plated steel

Benefits

  • Collapsible rim for through or pre-positioned fixing
  • Dynamic geometry, ideal for tiled walls
  • Maxi dynamic anti-rotation wings for differentiated expansion

Aplikace

Applications

  • Cooling/heating systems
  • Electrical/Hydraulic installations
  • Lighting

Suitable for

  • Non-cracked concrete
  • Solid brick
  • Honeycomb brick
  • Cell like clay brick
  • Lightweight honeycomb brick
  • Hollow dense aggregate block
  • Hollow light aggregate block
  • Aerated concrete
  • Plasterboard
  • Solid stone

Technické údaje

Rozměry

X1 evo Dim image

Product Dimension - Plug Only

Art. nr. Product Reference Hole diameter x anchor length [doxL] [mm] Screw diameter (Min / Max) Hole diameter [do] [mm] Min. hole depth* [h1] [mm] Nominal embedment depth* [hnom] [mm] Qty per outer box
6007000502500X1 evoØ5x25-535253200
6007000603000Ø6x30Ø4 - Ø5640303200
6007000804000Ø8x40Ø4,5 - Ø6850401600
6007001005000Ø10x50Ø6 - Ø8106050800
6007001206000Ø12x60Ø8 - Ø10127060400
6007001407000Ø14x70-148070160

* Values refer to installation on solid or part hollow base materials.

* Load values, please refer to the document in the download tab of the page.

* These values are for guidance only



Product Dimension - Plug with Chipboard Screw

Art. nr. Product Reference Hole diameter x anchor length [doxL] [mm] Fixture thickness [tfix] [mm] Screw diameter [d] [mm] Screw length [Lv] [mm] Qty per outer box
60071B0502500X1 evoØ5x251.54303200
60071B0603000Ø6x3054.5401600
60071B0804000Ø8x405550800
60071B1005000Ø10x505660400

Instalace

Instalace

X1 evo Installation1

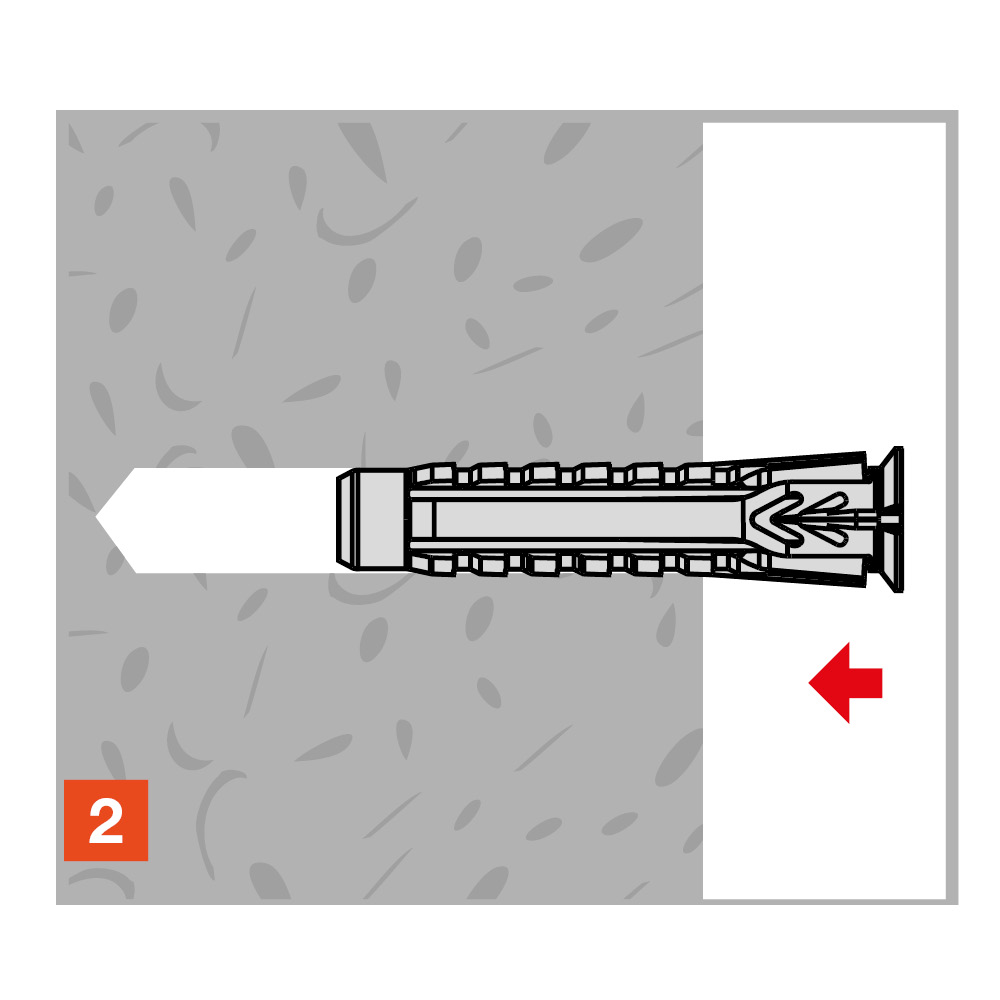

X1 evo Installation2

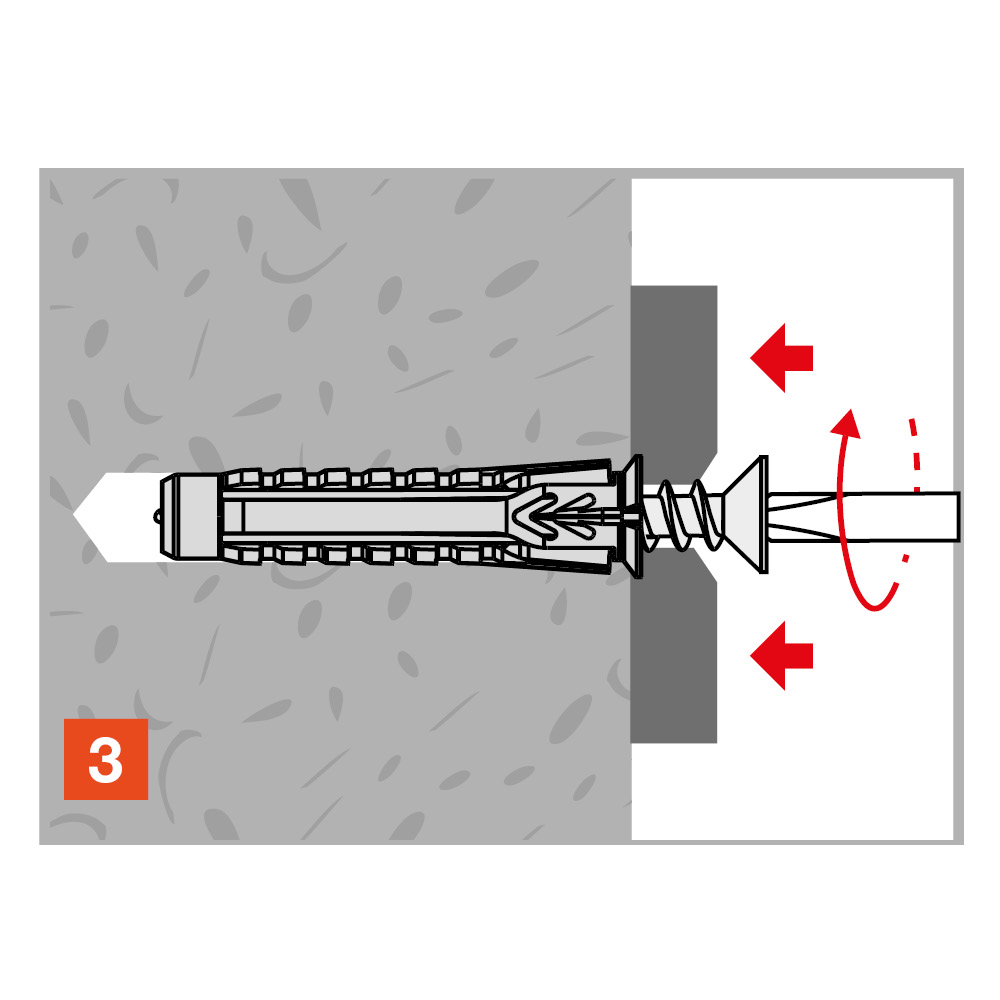

X1 evo Installation3

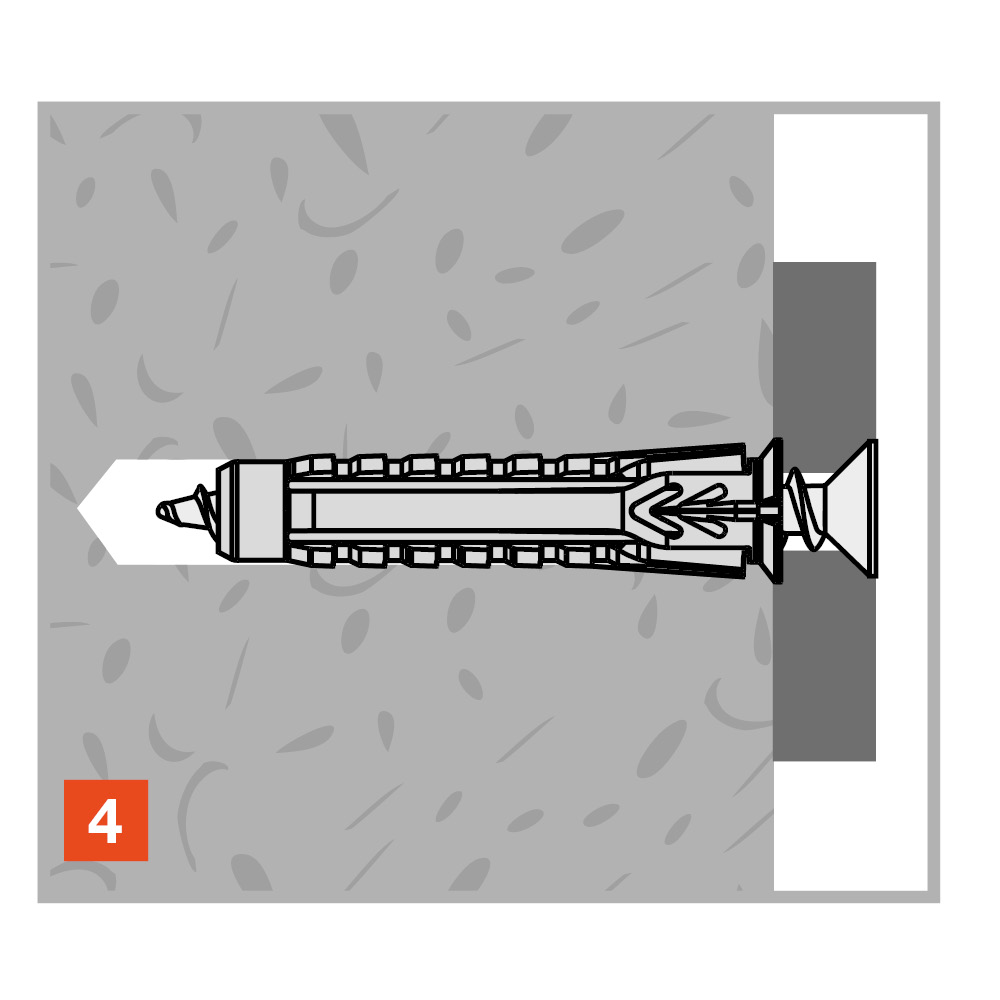

X1 evo Installation4

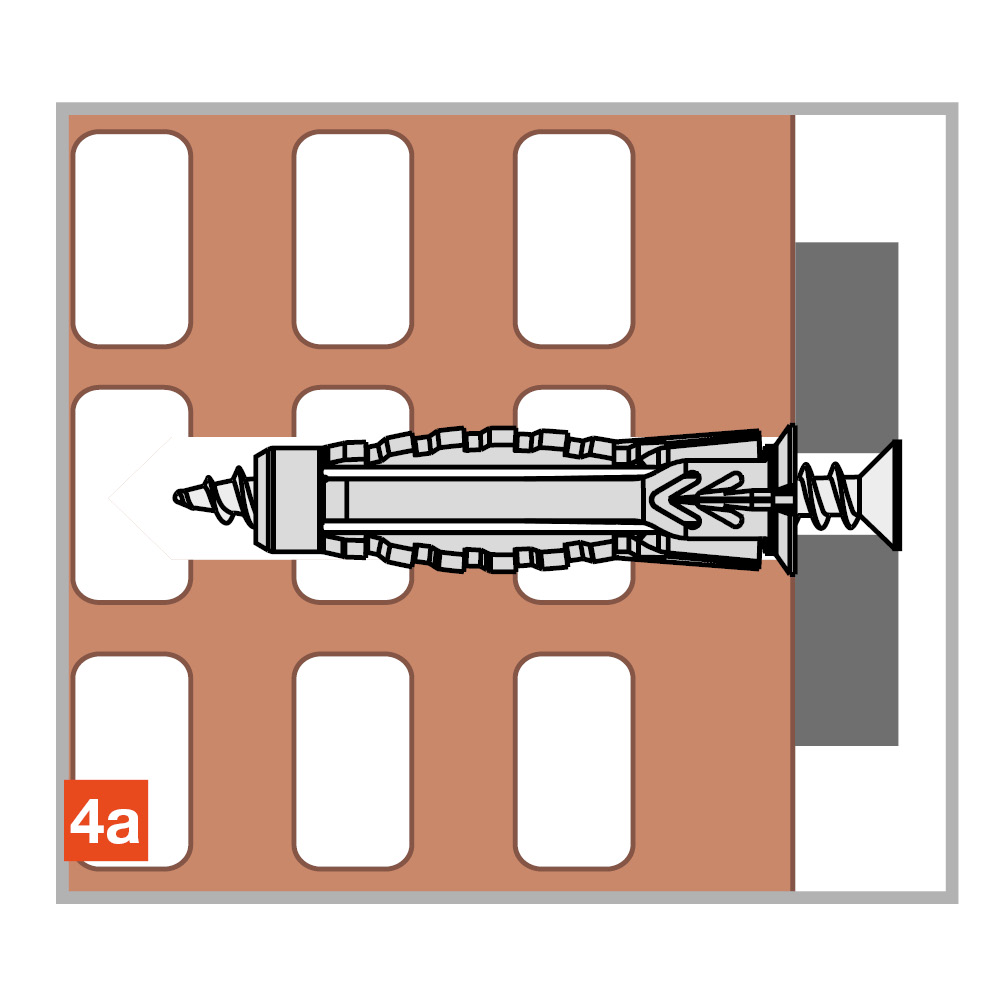

X1 evo Installation5

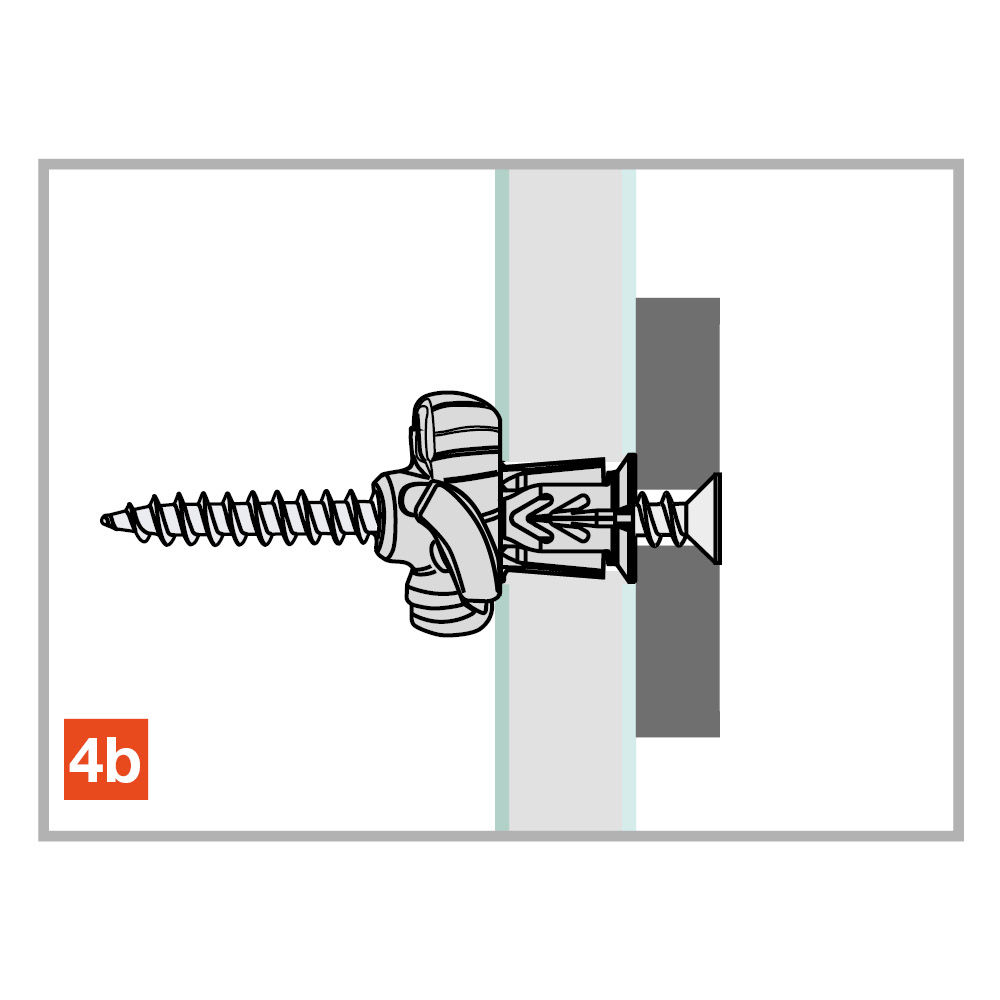

X1 evo Installation6

ZIP balíčky

Buy from Distributor

No items available.
