X1 evo-L

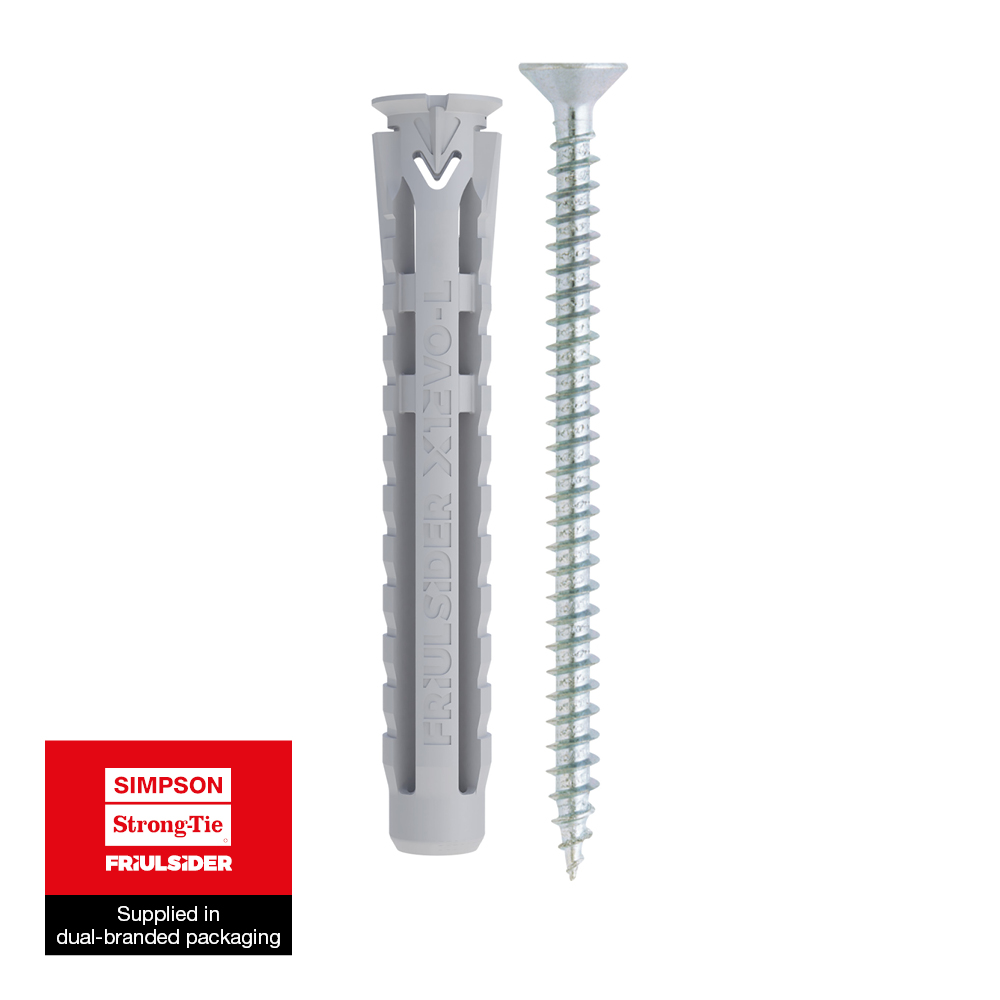

Four Segments Universal Nylon Plug - Increased Length

The X1 evo-L universal plug with increased lengths in the versions Ø5 to Ø14 mm is designed for fixings in solid, hollow and board building materials.

Technický list
X1 evo-L

Podrobnosti produktu

Obrázky

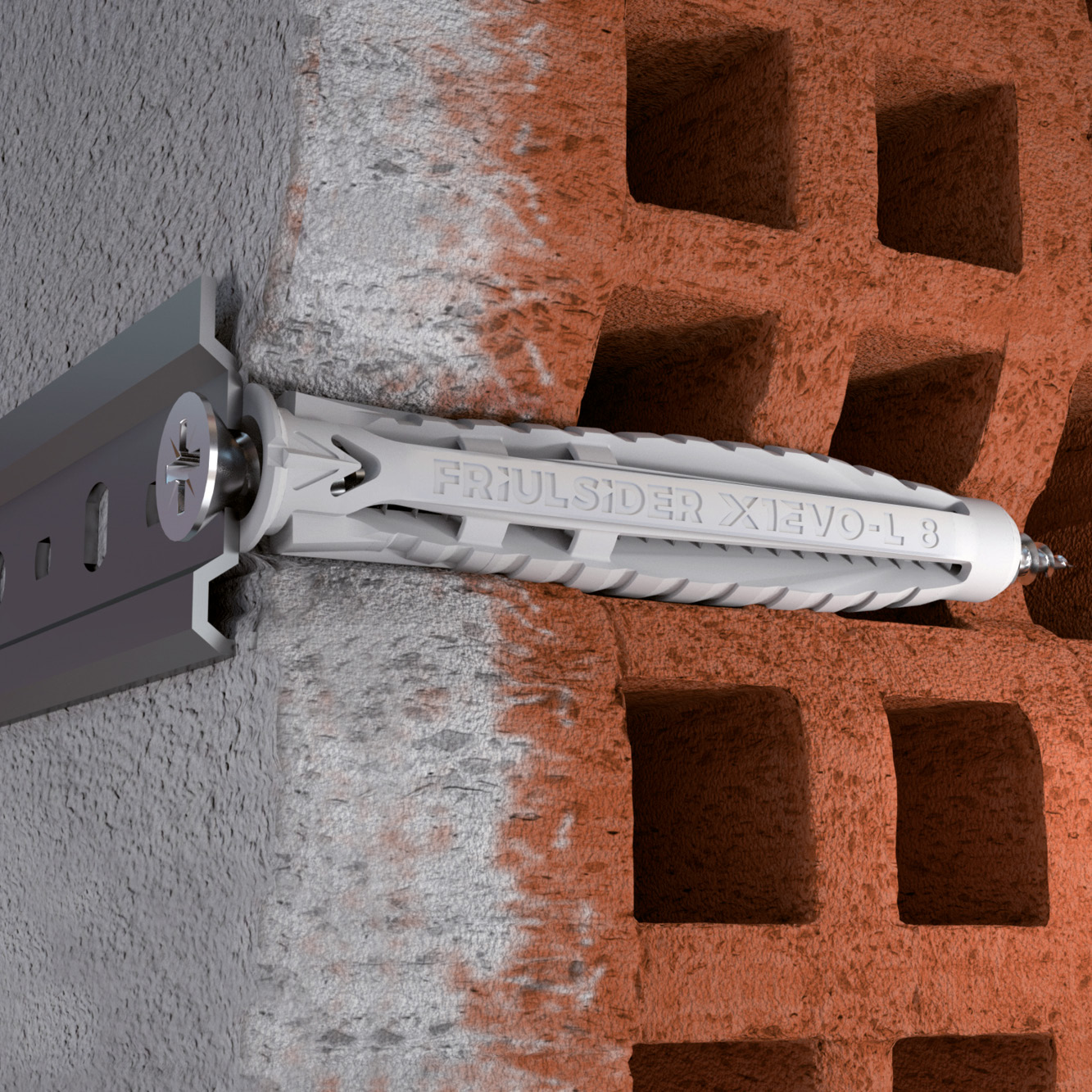

X1 evo-L hollow block application image

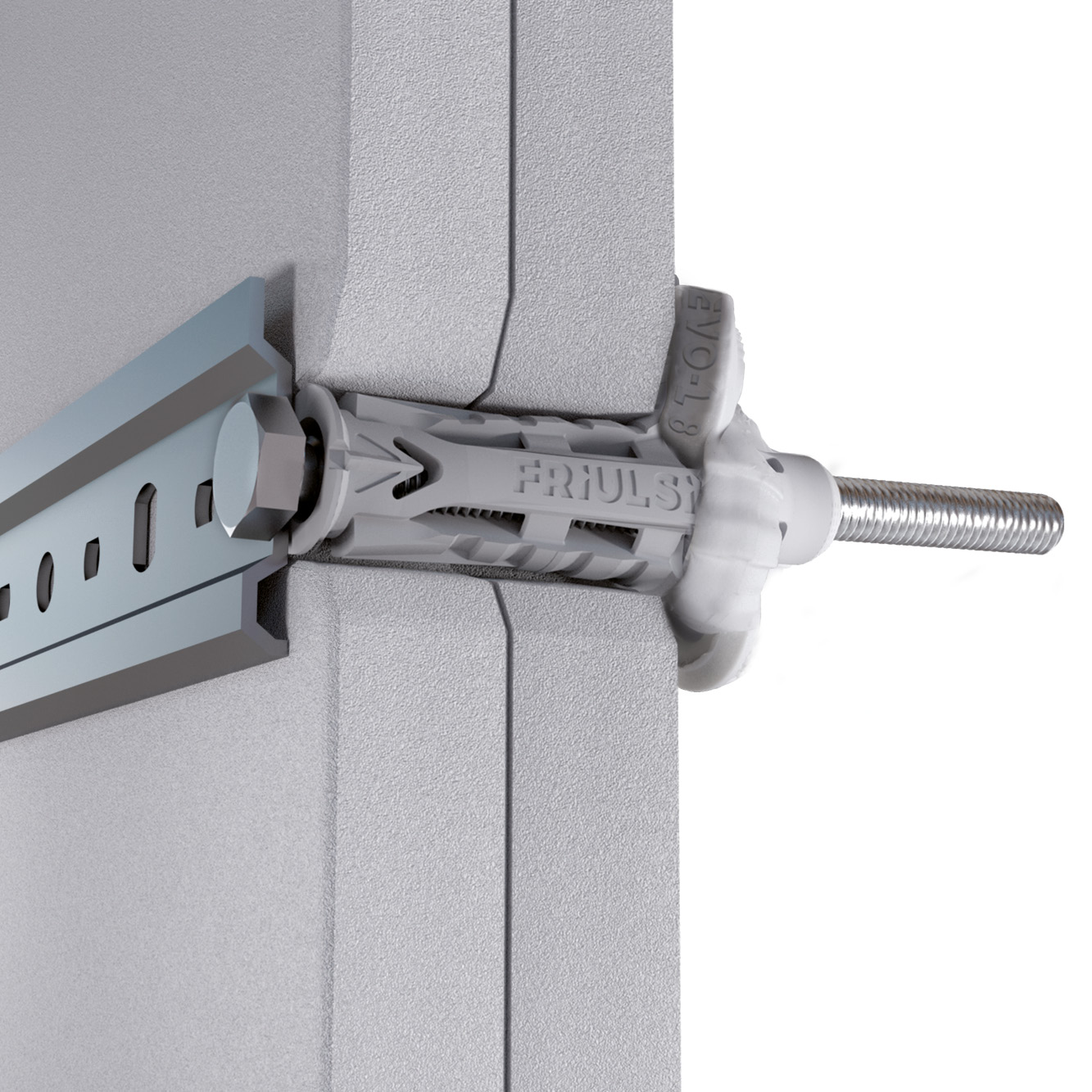

X1 evo-L plasterboard application image

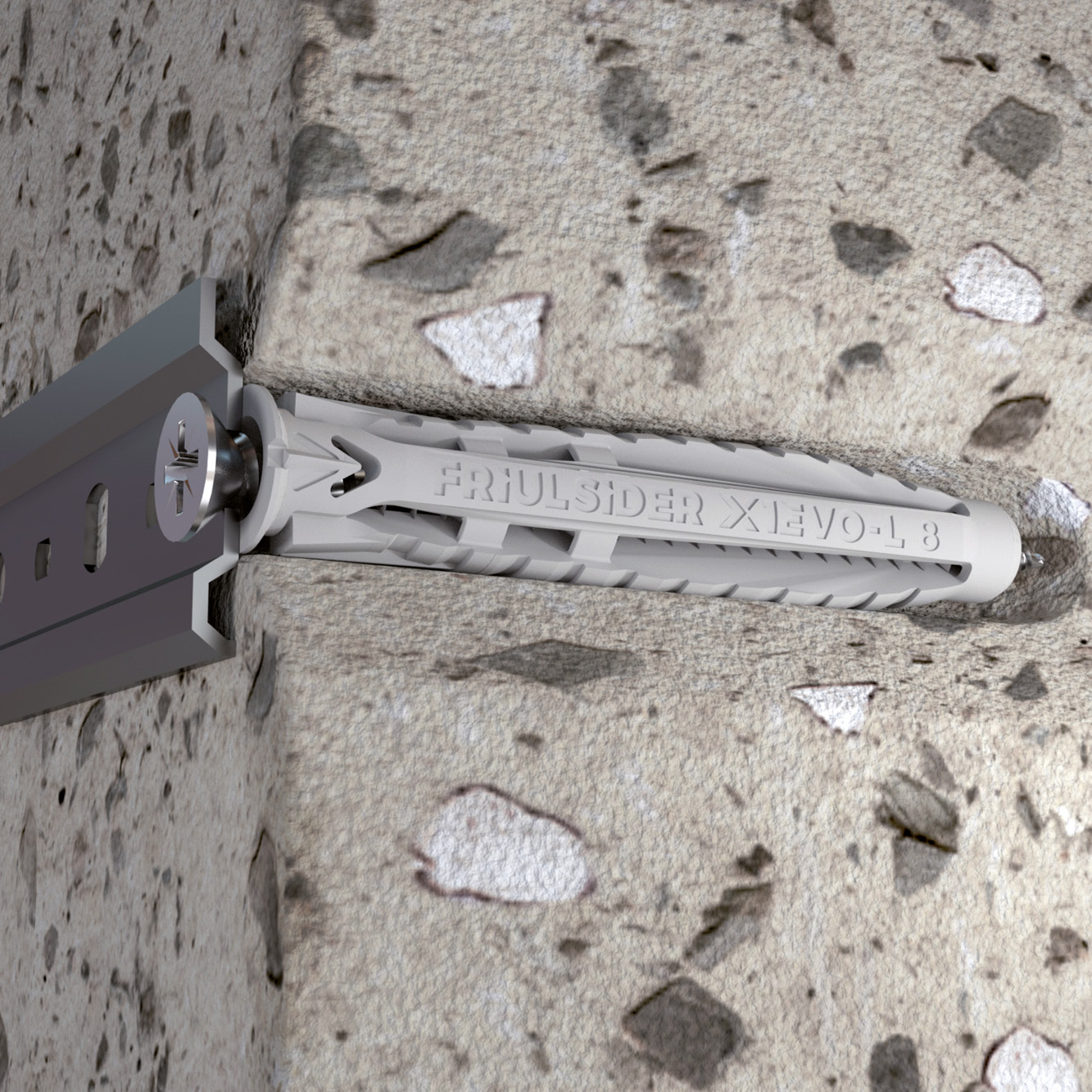

X1 evo-L solid concrete application image

Vlastnosti

Material

Plug: nylon
Screw: white zinc plated steel

Benefits

  • Greater anchoring depth
  • Knot guaranteed even on double plasterboard panels
  • Collapsible rim for through or pre-positioned fixing
  • Dynamic geometry, ideal for tiled walls
  • Maxi dynamic anti-rotation wings for differentiated expansion

Aplikace

Applications

  • Electrical installations
  • Railings
  • Cooling/Heating systems

Suitable for

  • Non-cracked concrete
  • Solid brick
  • Honeycomb brick
  • Cell like clay brick
  • Lightweight honeycomb brick
  • Hollow dense aggregate block
  • Hollow light aggregate block
  • Aerated concrete
  • Plasterboard
  • Solid stone

Technické údaje

Rozměry

X1 evo-L Dim image

Product Dimensions Plug Only

Art. nr. Product Reference Hole diameter x anchor length [doxL] [mm] Screw diameter ( Min / Max) Hole diameter [do] [mm] Min. hole depth* [h1] [mm] Nominal embedment depth* [hnom] [mm] Qty per box Qty per outer box [mm]
6007000605000X1 evo-LØ6x50Ø4 - Ø5660502001600
6007000806000Ø8x60Ø4,5 - Ø687060100800
6007001007000Ø10x70Ø6 - Ø810807050400

* Values refer to installation on solid or part hollow base materials.

* Load values, please refer to the document in the download tab of the page.

* These values are for guidance only

Product Dimensions Plug with Chipboard Screw

Art. nr. Product Reference Hole diameter x anchor length [doxL] [mm] Fixture thickness [tfix] [mm] Screw diameter [d] [mm] Screw length [Lv] [mm] Qty per box Qty per outer box [mm]
60071B0605000X1 evo-LØ6x5054.560100800
60071B0806000Ø8x60557050400
60071B1007000Ø10x70568025200

Instalace

Instalace

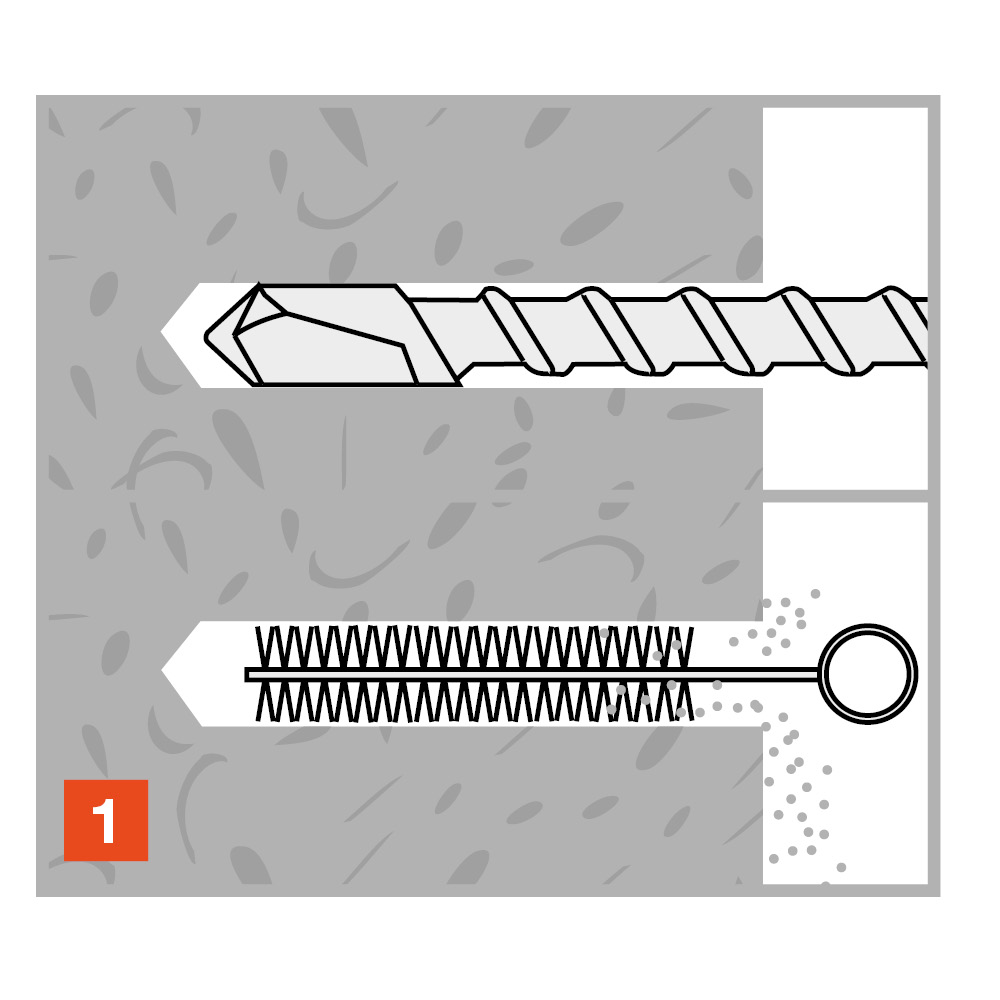

X1 evo Installation1

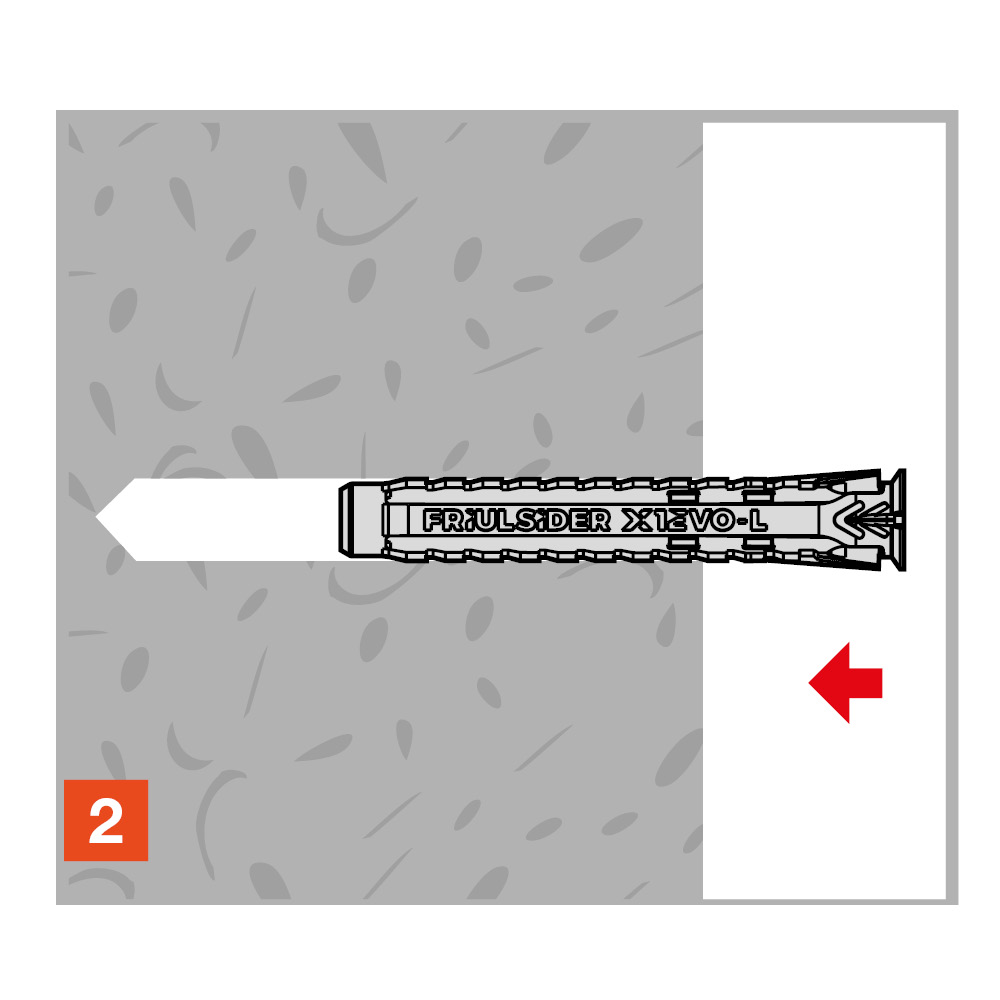

X1 evo-L Installation2

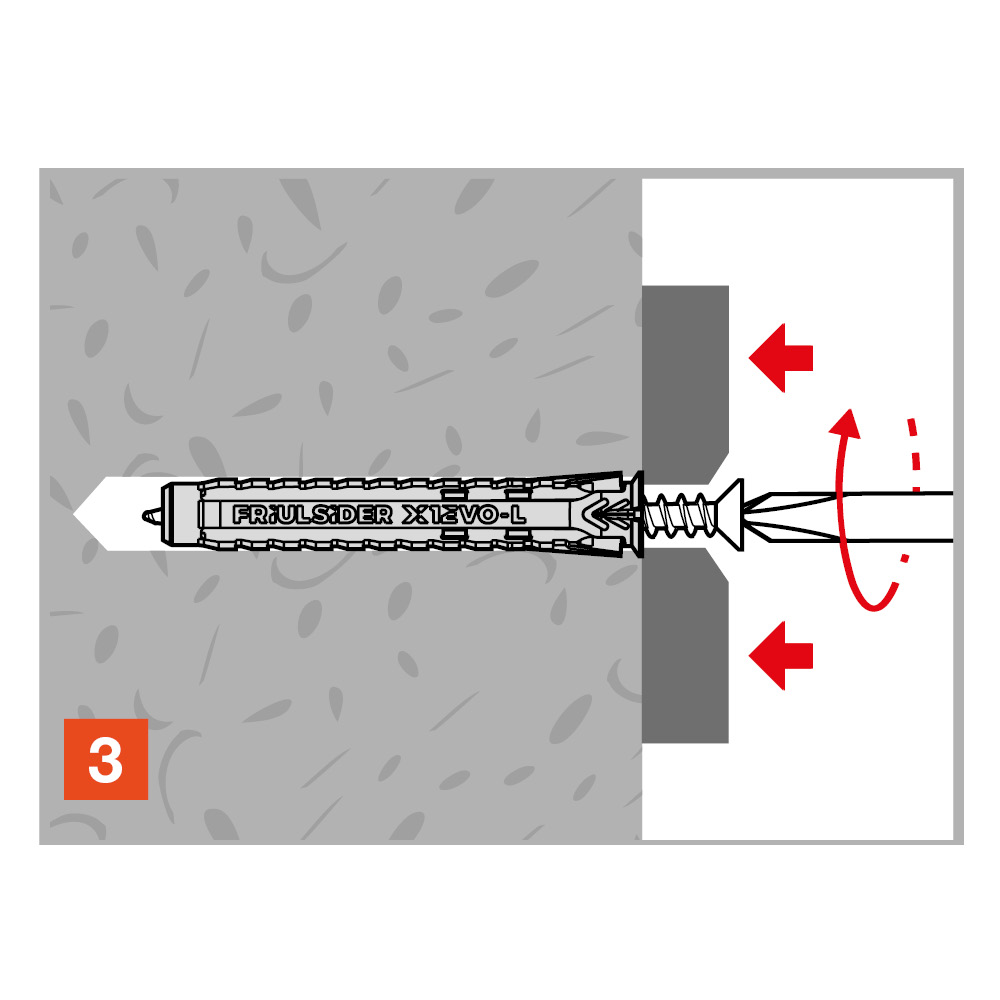

X1 evo-L Installation3

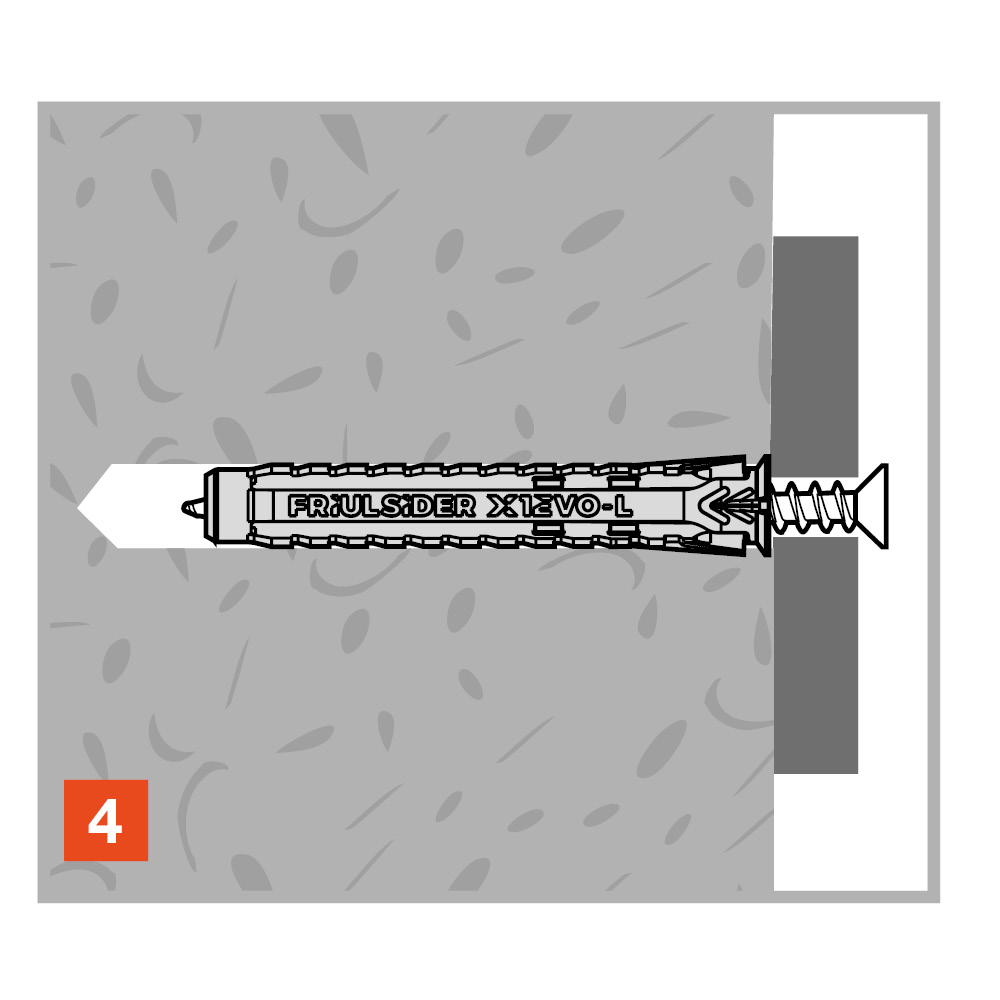

X1 evo-L Installation4

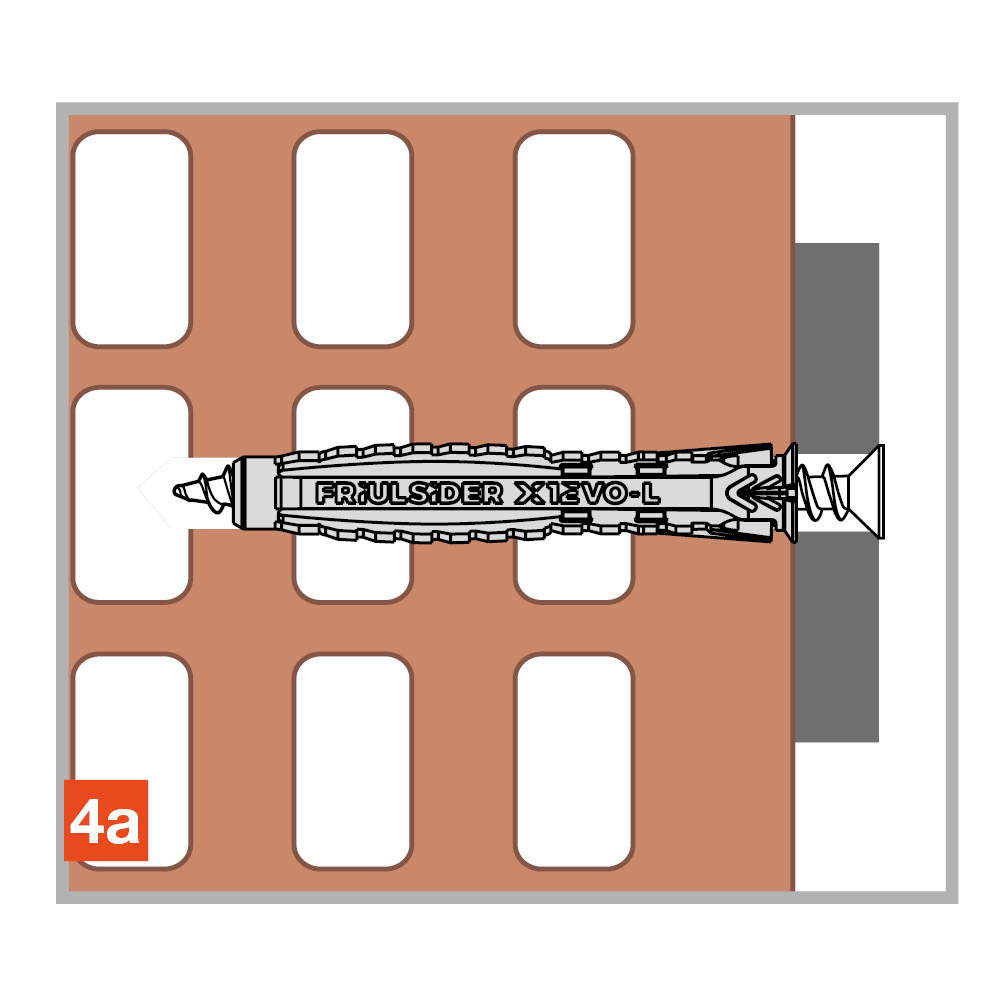

X1 evo-L Installation5

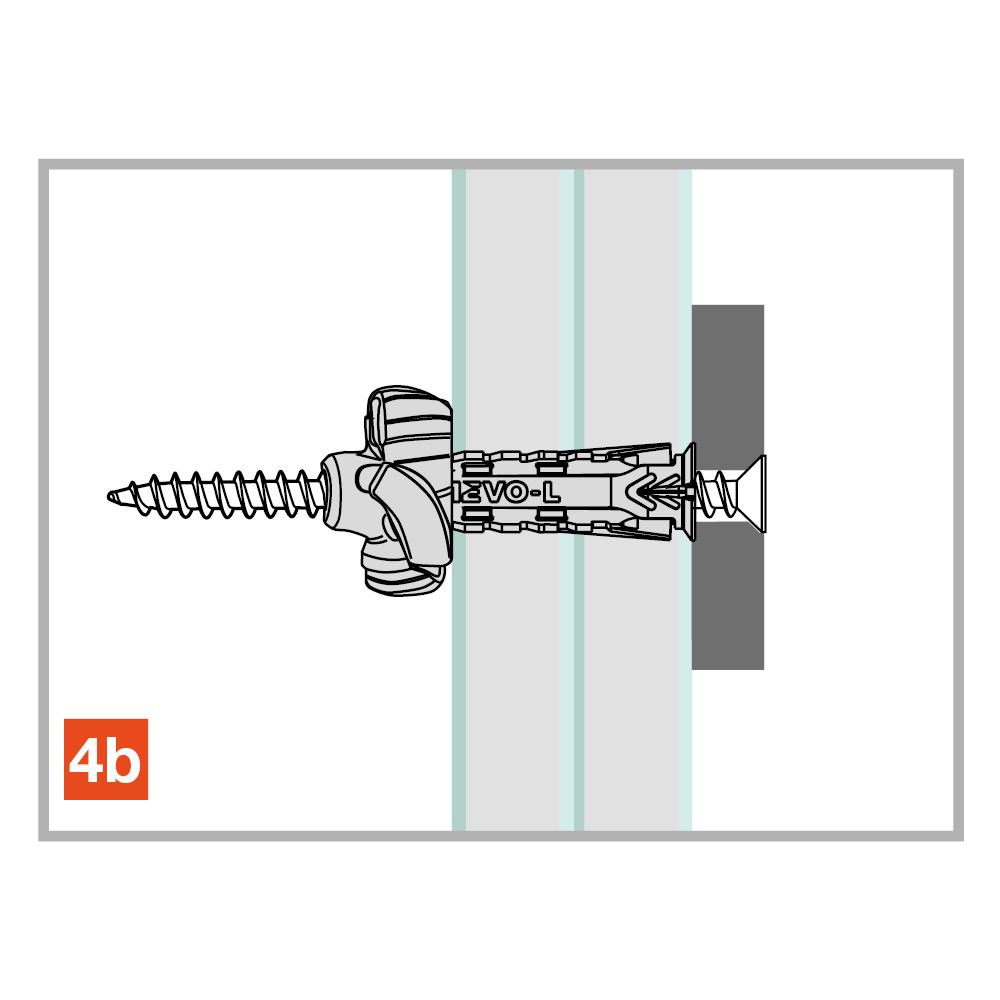

X1 evo-L Installation6
