SCMF

Floor Connector

The SCMF storey connector is a component of the two-part tie rod and can be quickly and flexibly adapted to the storey transition heights thanks to the continuous perforation.

Technický list

Servisní třída 2

Pozinkovaná ocel Z275

EPD

Podrobnosti produktu

Obrázky

Vlastnosti

Material

Pre-galvanised steel S250GD + Z275 according to standard NF EN 10346
Thickness 2 mm

Adventages

All lengths possible in 20 mm increments.
Quick connection of the connecting plates of the two-part tie rods with self-drilling EJOT screws.

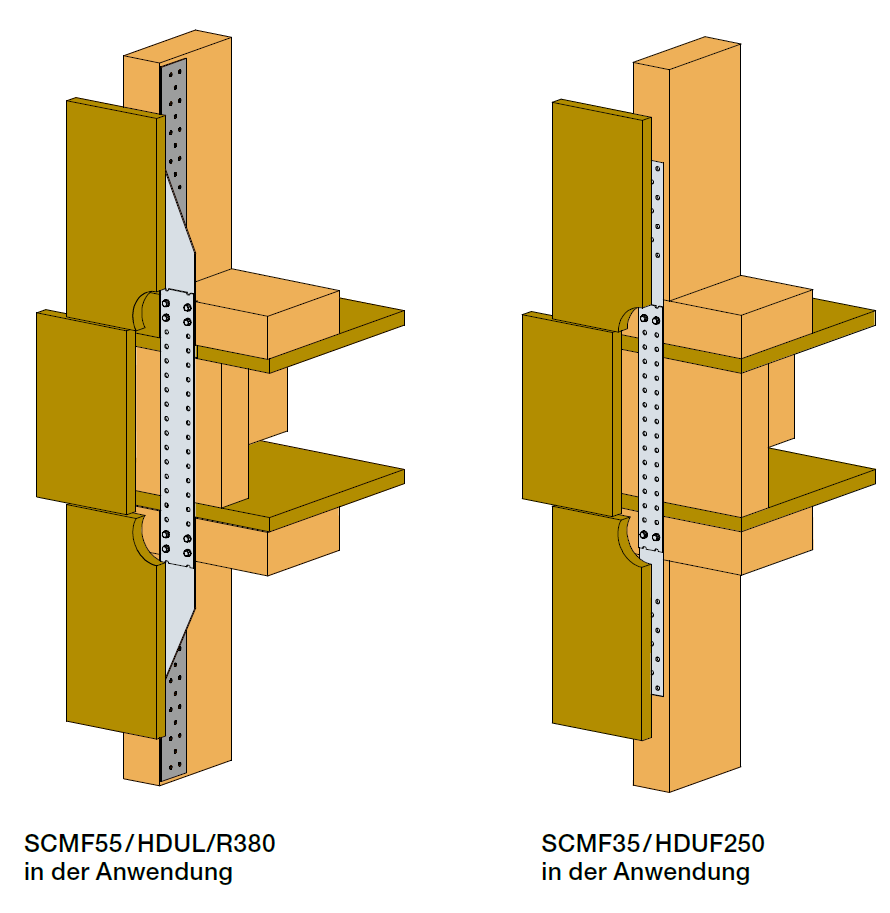

Aplikace

Fasteners

EJOT screws - JT2-3-5,5x25

Technické údaje

Rozměry

Dimension

Art. nr.	Dimension [mm]				Hole grid [mm]
Art. nr.	A [mm]	B [mm]	t [mm]	Ø [mm]	crosswise [mm]	lengthwise [mm]
SCMF35/B-X	35	1)	2	6	20	20
SCMF55/B-X	55	1)	2	6	36	20

1) according to customer requirements in 20 mm increments

Characteristic values

Art. nr.	Product capacities
Art. nr.	Number of Ejot-Scrwes ¹⁾ [mm]	Characteristic capacities R1,k [kN]
SCMF35/B-X	2x2	12,8/kmod
SCMF55/B-X	2x4	25,6/kmod

1)The EJOT screws must always be arranged symmetrically.
