Tesařské kování
Design Series

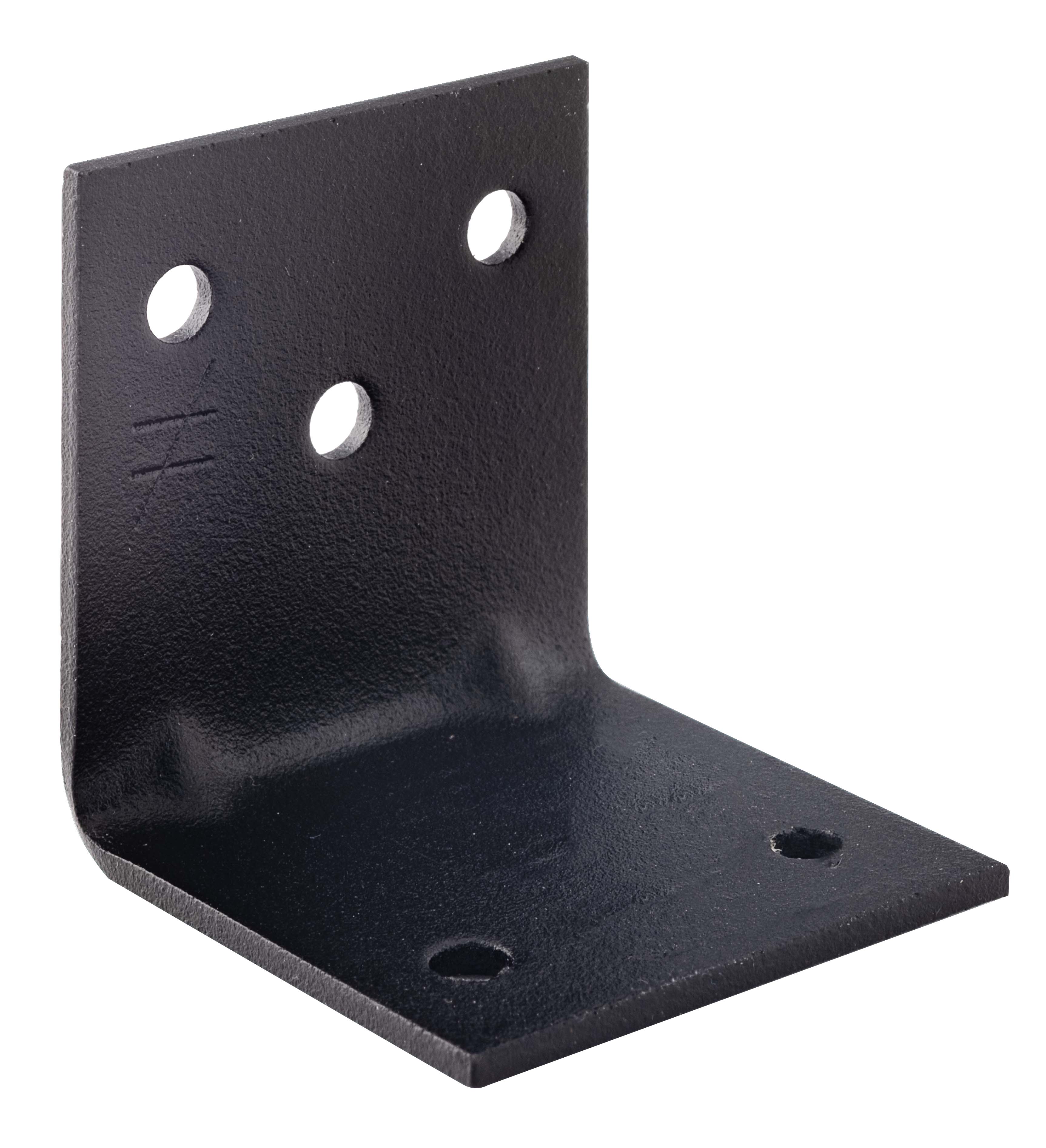

EA444/2PB

Black painted light reinforced angle bracket

Light reinforced black angle brackets are used to assemble small structural joinery for internal and external applications.


Technický list
Servisní třída 3
Exteriér
Acier RAL 9005

Podrobnosti produktu

Obrázky

EA444-2PB situation.jpg

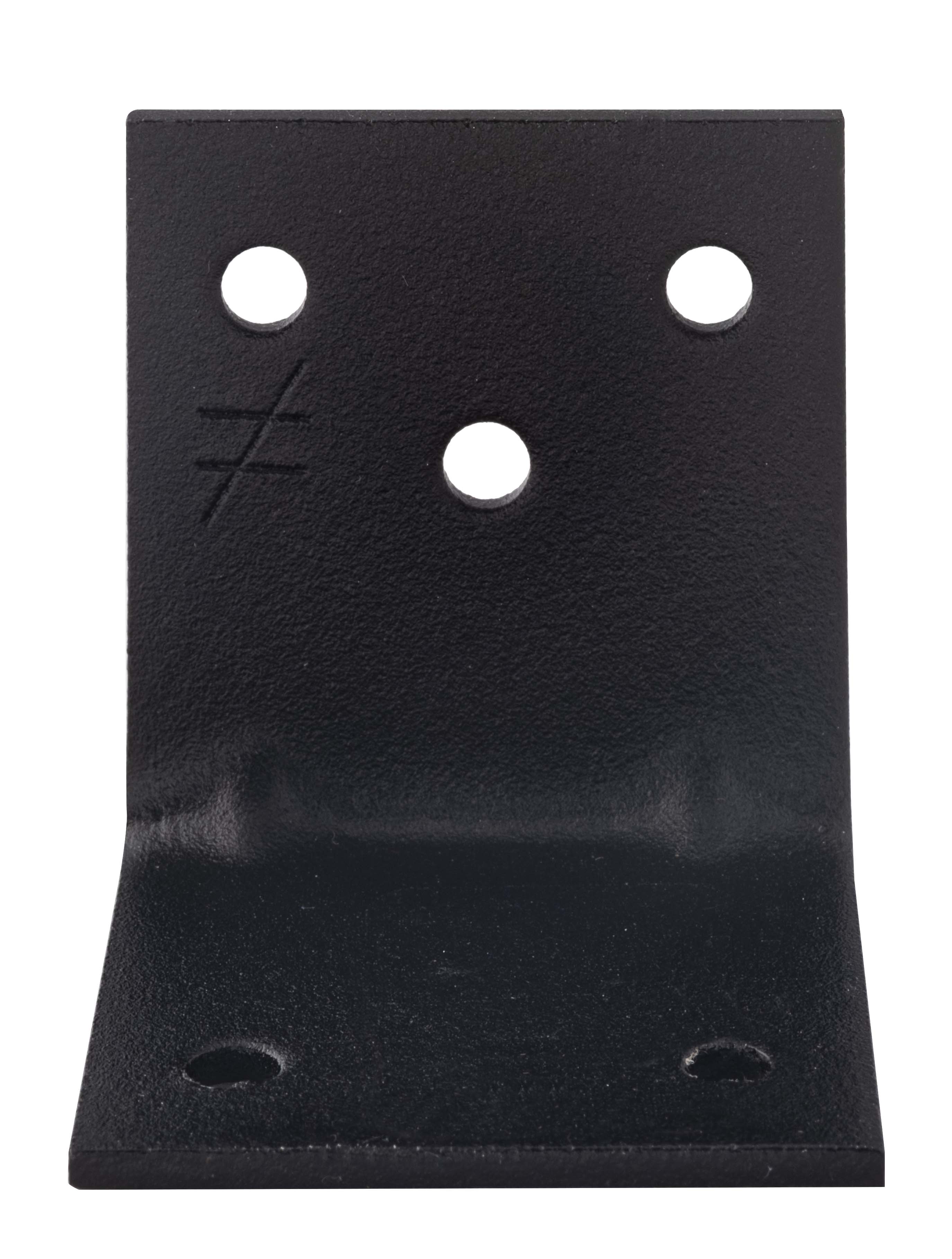

EA444-2PB face.jpg

Vlastnosti

Material

  • Pre-galvanised mild steel,
  • Painted black RAL9005,
  • 2 mm thickness

Benefits

  • Black colour to be discreet,
  • Multiple applications...

Aplikace

Header member

  • Supporting member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
  • Supported member: wood, concrete, steel, etc.

For Use With

  • Interior fittings.
  • Furniture.
  • Small frames, etc.

Technické údaje

Rozměry


Product dimensions

Art. nr. Rozměry [mm] Otvory
A B C Thick. Hlava Flange C
Ø5 Ø5
EA444/2PB-R404040233

Instalace

Instalace

Fixing

On wood:

  • 3.75 x 30mm square twist nail.
  • CNA annular ring-shank nails 4.0 mm.
  • CSA screw 5.0 mm.

On concrete:

  • HIPC 6-40/10 drive anchors or HIPC 8-60/20.

On metal:

  • Bolts.
  • HR bolts.
  • Rivets, etc.
EA444-2PB situation.jpg
