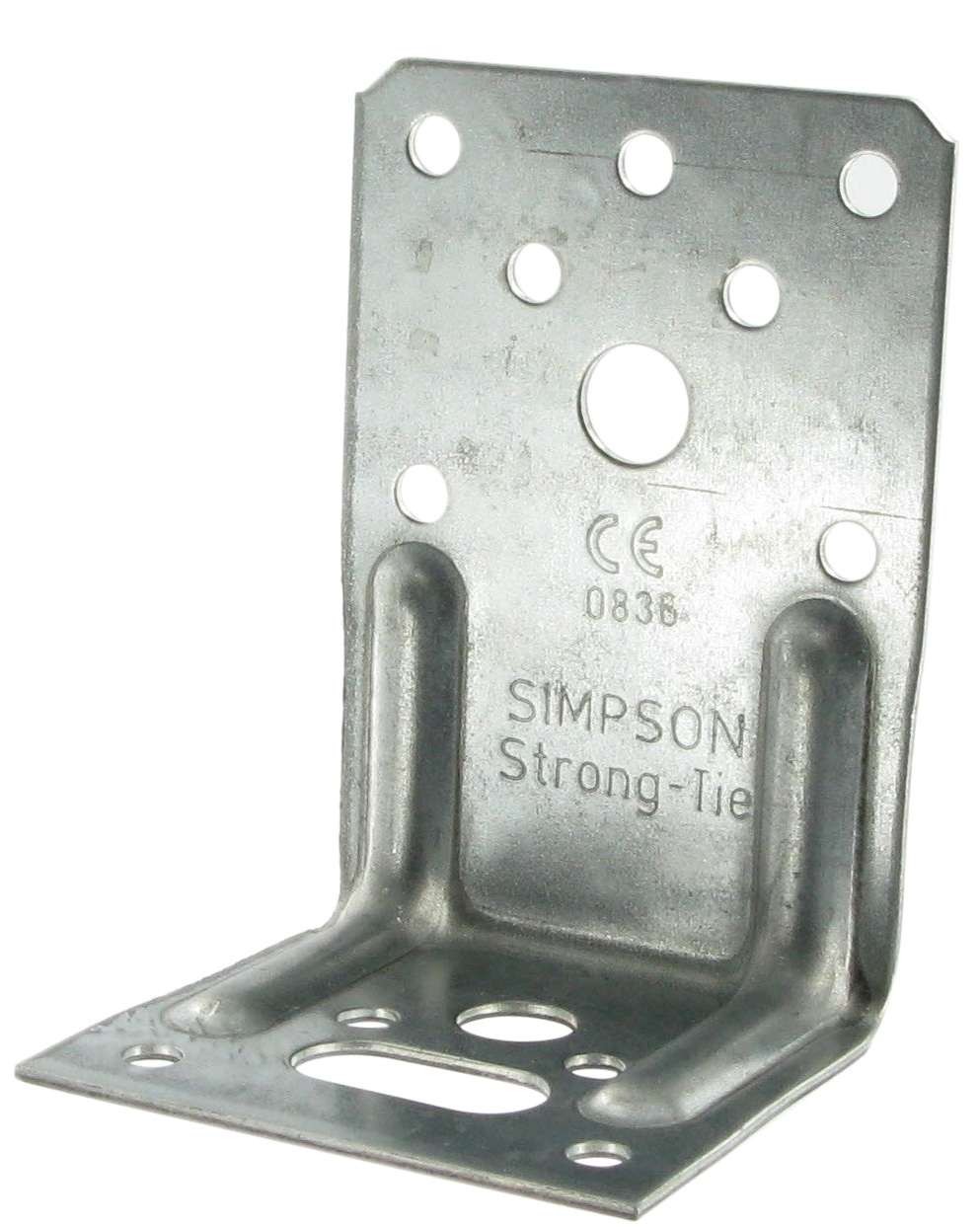

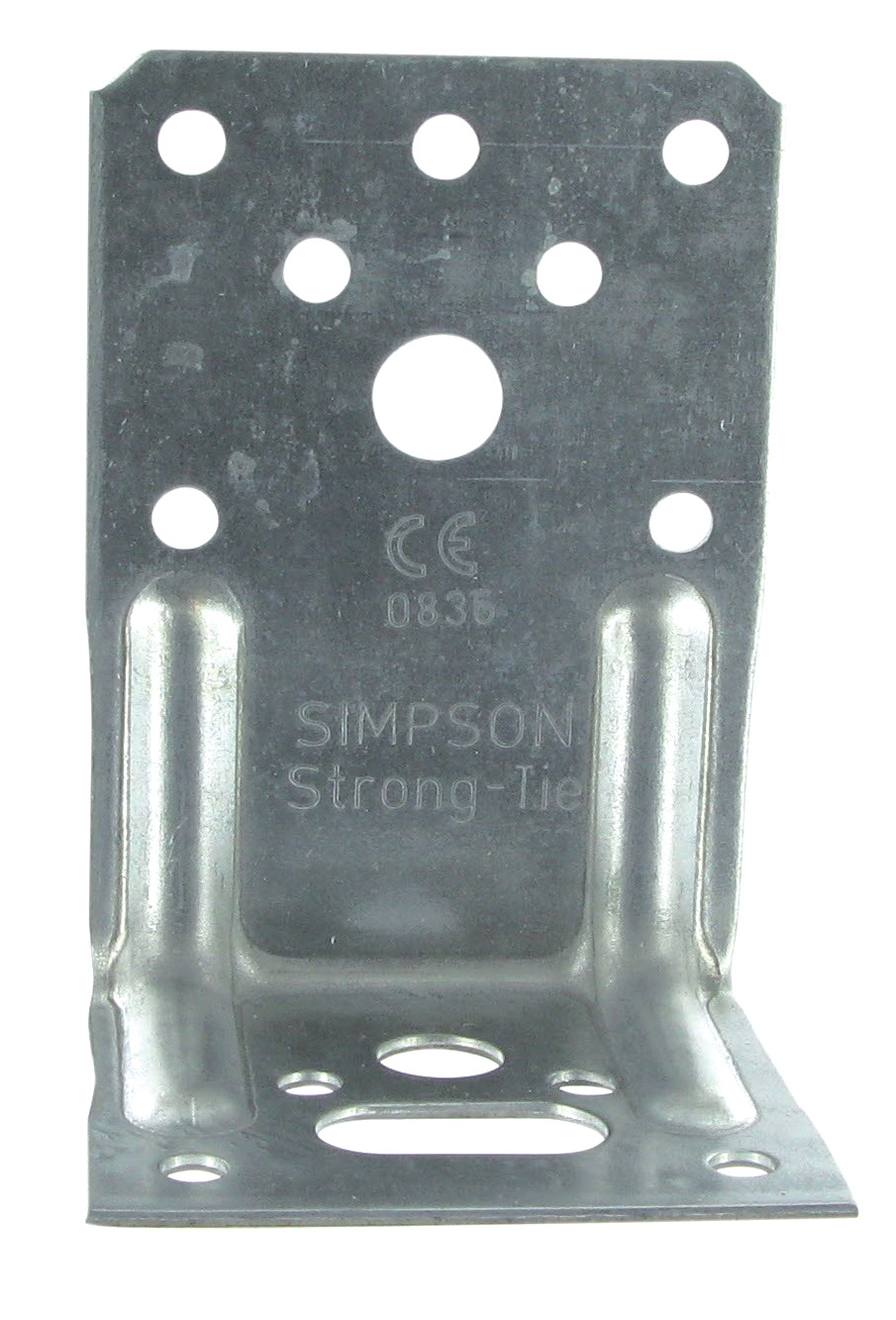

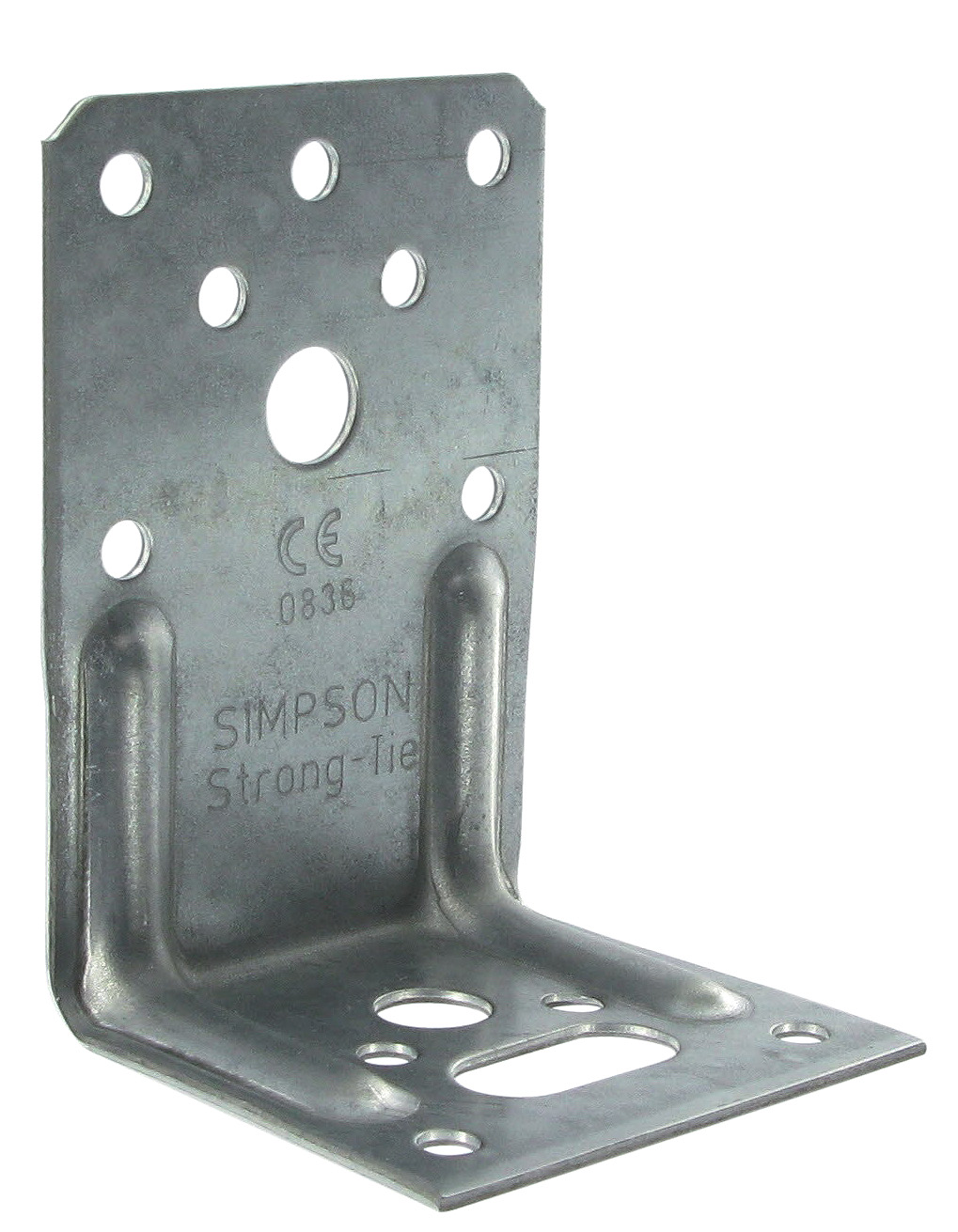

AT1
Angle brackets for trusses
The angle brackets AT1 has been developped for fixing of trusses. It is dedicated for timber to timber or timber to cncrete application.
Označení CE
ETA
Servisní třída 2
Podrobnosti produktu
Vlastnosti
Material
- S250GD + Z275 according to NF EN 10346 - 1,5 mm thickness
advantage
'Rib reinforcement ensures the formation of load-bearing two-sided or one-sided wood-wood and wood-concrete connections.
Aplikace
Anwendbare Materialien
- Header : Timber or concrete
- Joist : timber, trusses
Anwendungsbereich
- intsalltion of trusses
Technické údaje
Product dimensions
Art. nr. | Product dimensions [mm] | Holes flange A | Holes flange B | ||||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | t | Ø5 | Ø10 | Ø5 | Ø10 | Ø10x22 | |
AT1 | 76 | 47.5 | 55 | 1.5 | 7 | 1 | 4 | 1 | 1 |
Characteristic capacities - Timber beam to timber beam - 2 angles brackets
Art. nr. | Product capacities - Timber to timber - Full nailing | Product capacities - Timber to timber - CSA screws - 2 angle brackets | ||||
---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | ||||
Flange A | Flange B | R1.k | R2.k = R3.k | R1.k | R2.k = R3.k | |
Qty | Qty | CNA4.0x40 | CNA4.0x40 | |||
AT1 | 7 | 4 | - | - | 2.5 | 3.9 |
Characteristic capacities - Timber to rigid support - 2 angles brackets
Art. nr. | Product capacities - Timber to Concrete | |||||
---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
Flange A | Flange B | R1.k | R2.k = R3.k | |||
Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x40 | |
AT1 | 7 | CNA | 1 | Ø8 | 7,5 / kmod | 5,6 / kmod |
Characteristic capacities - Timber beam to timber beam - CSA screws - 2 angles brackets
Art. nr. | Product capacities - Timber to timber - CSA screws - 2 angle brackets | |||||
---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
Flange A | Flange B | R1.k | R2.k = R3.k | |||
Qty | Type | Qty | Type | CSA5.0x35 | CSA5.0x35 | |
AT1 | 2 | CSA | 2 | CSA | 4.9 | 2.8 |
Characteristic capacities - Timber beam to rigid support - CSA screws - 2 angles brackets
Art. nr. | Product capacities - Timber to rigid support - CSA screws - 2 angle brackets | |||||
---|---|---|---|---|---|---|
Fasteners | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||
Flange A | Flange B | R1.k | R2.k = R3.k | |||
Qty | Type | Qty | Type | CSA5.0x35 | CSA5.0x35 | |
AT1 | 2 | CSA | 1 | Ø8 | 6.2 | 4.0 |
Instalace
Instalace
Befestigung
- Holes: nombre and diameter, refer to Dimensions tables
- Timber: nails CNA Ø4.0x35 mm, screws CSA Ø5.0x35,
- Concrete: Mechnaical anchor WA M8-68/5, chemical anchor Ø8 AT-HP + threaded rod LMAS M8-100...
- Steel: bolts
