Winkel­verbinder
ABGU360

angle bracket

This angle brackets are made of galvanized sttel and used for anchoring and force transmission of fassade wailing

Technický list
Označení CE
ETA
Servisní třída 2
A4 nerezová ocel
Elektroizolační ocel 20 µm

Podrobnosti produktu

Obrázky

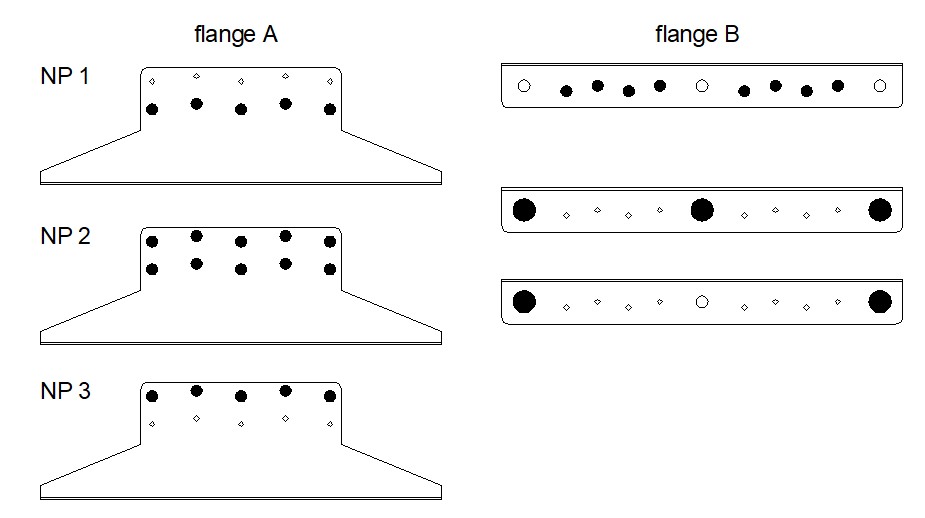

ABGU-NP

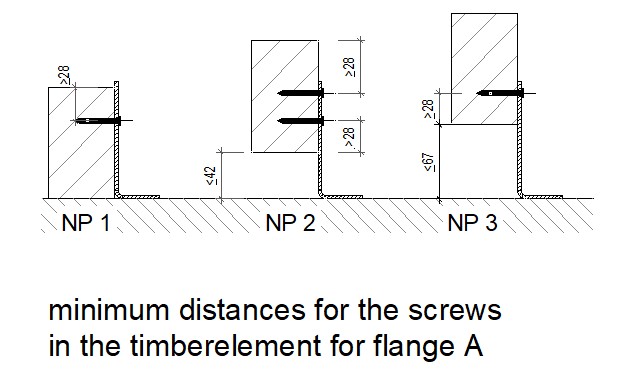

ABGU-nail-distances

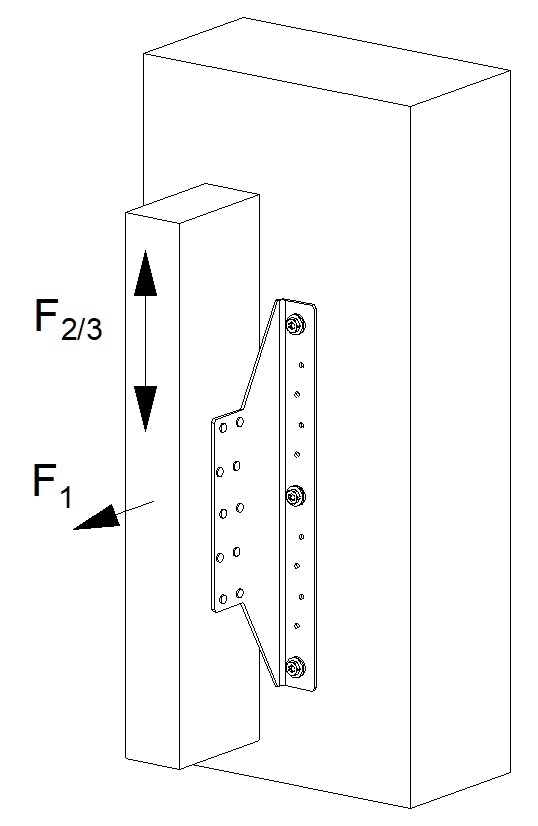

ABGU-Load

Vlastnosti

Material

Steel quality:

S 250 GD + Z 275 acc. to DIN EN 10346

Corrosion protection:

275 g/m2 on both sides - correspond to a zinc layer of approx. 20 μm

Benefits

to connect beams to a fassade with option for a distance, so the new fassade may be planar

The brackets are attached alternately to the uprights so that a connection is made on both sides.

Aplikace

Suitable On

Supporting member:

engineered wood, concrete, steel, brickwork

Supported member:

Solid wood, engineered wood

When to use

  • The angle brackets tare for fastening a timber construction that is to support subsequent thermal insulation.

Technické údaje

Rozměry

ABGU360-size

Product dimensions

Art. nr. Product dimensions [mm] Holes flange A Holes flange B Hmotnost [kg]
A B C D [mm] t Ø5 [mm] Ø5 [mm] Ø10.5 [mm]
ABGU36010540360180310830.87

Product capacities - Timber to timber

Art. nr. Product capacities - Timber to timber
Fasteners Characteristic capacities - Timber C24 - 1 angle brackets per connection [kN]
Flange A Flange B R1.k R2.k = R3.k
Qty Qty CSA5.0x35 CSA5.0x40 CSA5.0x50 CSA5.0x35 CSA5.0x40 CSA5.0x50
ABGU360 NP1588.49.411.14.95.46.5
ABGU360 NP21088.49.411.18.39.311
ABGU360 NP3588.49.411.13.84.35.1

Product capacities - Timber to ridgit support

Art. nr. Product capacities - Timber to rigid support
Fasteners Characteristic capacities - Timber C24 - 1 angle brackets per connection [kN]
Flange A Flange B R1.k R2.k = R3.k
Qty Qty Type CSA5.0x35 CSA5.0x40 CSA5.0x50 CSA5.0x35 CSA5.0x40 CSA5.0x50
ABGU360 NP152 or 3bolt Ø101011.1min(11.1 ; 12.6/kmod)4.95.46.5
ABGU360 NP2102 or 3bolt Ø10min(19.9 ; 12.6/kmod)min(22.2 ; 12.6/kmod)min(26.3 ; 12.6/kmod)8.39.311
ABGU360 NP352 or 3bolt Ø101011.1min(11.1 ; 12.6/kmod)3.84.35.1

The connection to concrete brickwall has to be check seperatly

Instalace

Instalace

Fixing

  • The fixing needs to be done with CNA4,0xl threaded nails or CSA5,0xl screws
  • For mounting on concrete surfaces / Brickwork are used M10 anchor bolts.

Certifikace

Evropské technické posouzení (ETA)

eta-06-0106-2021-04-09.pdf (11.66 MB)
eta-06-0106-2020-01-29-cor1.pdf (13.43 MB)
eta-06-0106.pdf (13.43 MB)
eta-060106-sst-ab-r10-2018-issued.pdf (10.1 MB)
eta-060106-sst-ab-v8-2016.pdf (9.59 MB)

ZIP balíčky
