ABD

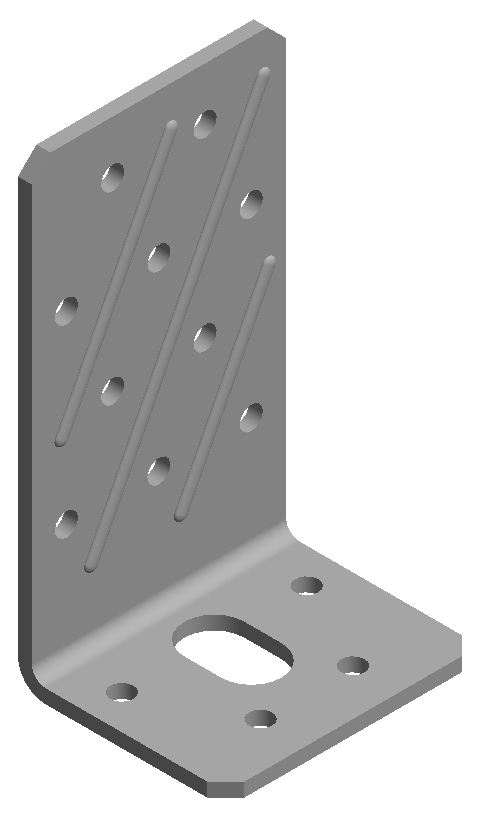

Angle bracket ABD

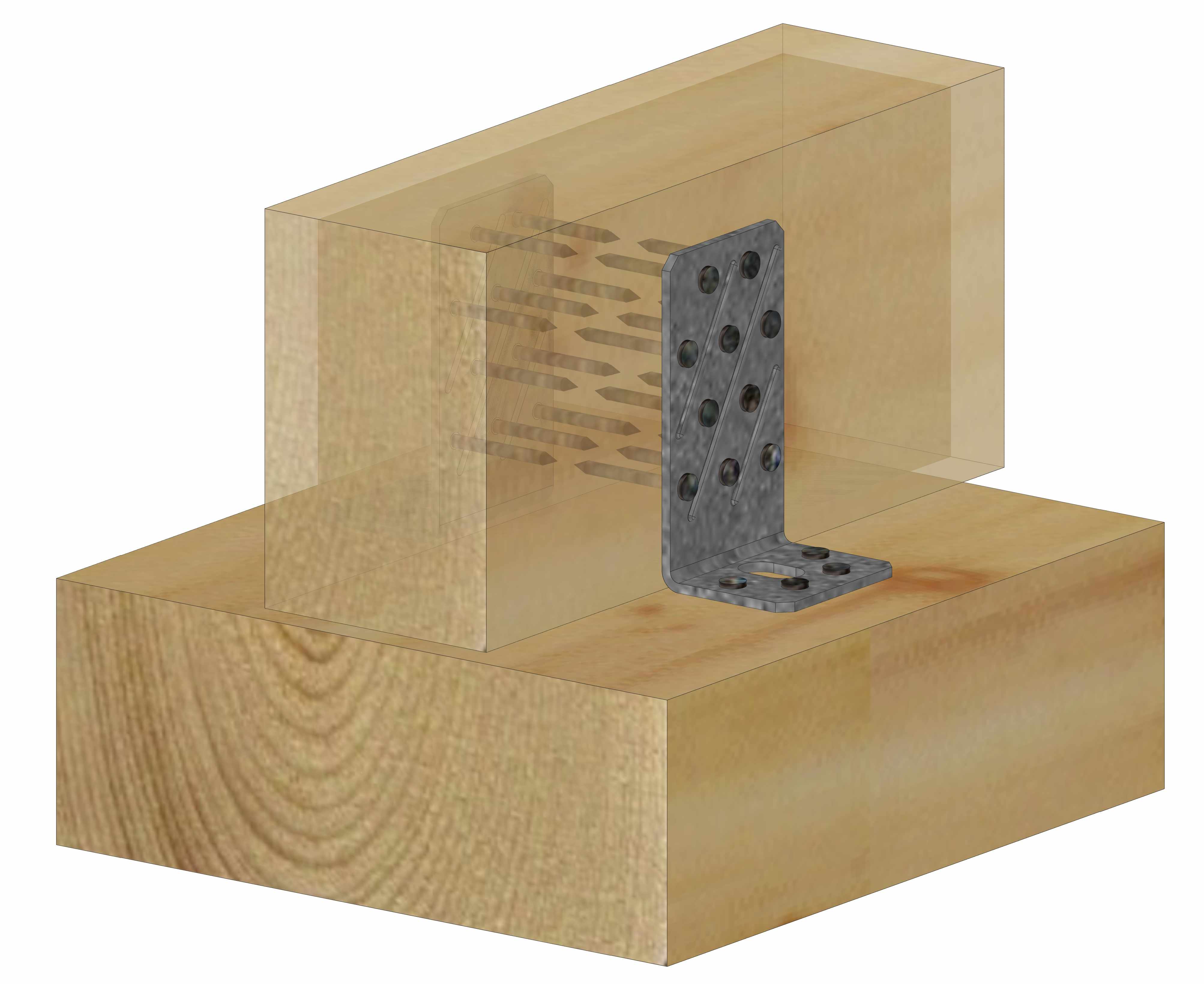

Angle bracket ABD45100 for connection timber to timber and the angle bracket ABDW45100 with washer for connection timber to rigid supports.

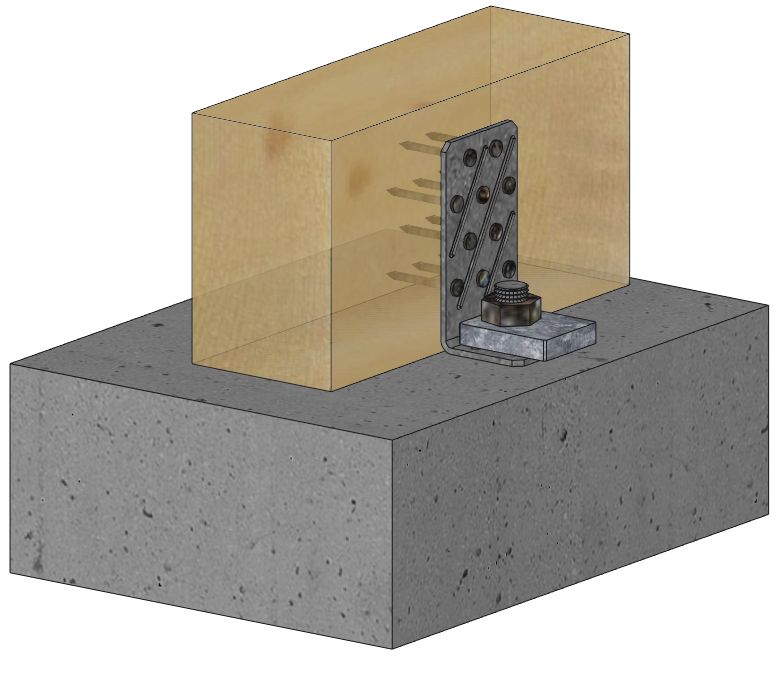

The fixing to the rigid support shall be done with anchor M12.

Technický list

Označení CE

ETA

Servisní třída 2

EPD

Pozinkovaná ocel Z275

Podrobnosti produktu

Obrázky

Vlastnosti

Materiál

Steel quality:
Angle bracket: S 250 GD + Z275 according to EN10346
Washer: S235JR according to EN 10025

Corrosion protection:
Angle bracket: Z 275 pre-galvanized, zinc coating ~ 20µm
Washer: hot dip galvanized, zinc coating ~ 50µm according to EN1461

Benefit

For applications timber to timber and timber to concrete

Aplikace

Anwendungsbereich

Applicable materials
Supporting member
Solid wood, engineered wood, concrete, steel, etc.

Supported member
Solid wood, engineered wood

Anwendungsbereich

With this angle brackets can be fixed timber elements to timber or rigid support.
With different nail pattern are given options for connection, with larger distances of first nail row.

Technické údaje

Rozměry a typické hodnoty

Rozměry

Reference	Rozměry konektoru
	Rozměry a typické hodnoty[mm]				Příruba A[mm]	Hlava[mm]		Other
	A[mm]	B[mm]	C[mm]	F[mm]	Round	Round	Obround	Hmotnost[kg]
	A[mm]	B[mm]	C[mm]	F[mm]	Ø[mm]	n[mm]	Ø13x21	Hmotnost[kg]
ABD45100	100	45	55	3	10	4	1	0.17

For load combination shall be fulfilled:

$\frac{F_{1,d}} {R_{1,d}}+\frac{F_{2/3,d}} {R_{2/3,d}}\le1$

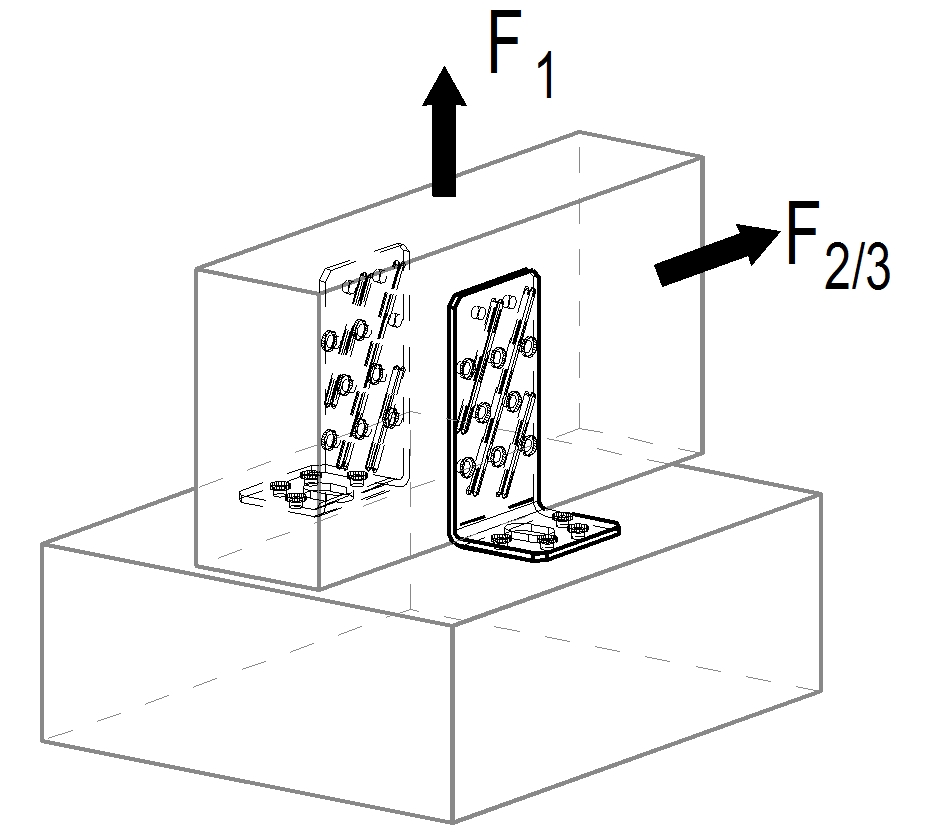

Characteristic capacities F1

Reference	Angle bracket capacity
	R₁,ₖ - 1 angle bracket per connection[kN]				R₁,ₖ - 2 angle brackets per connection[kN]

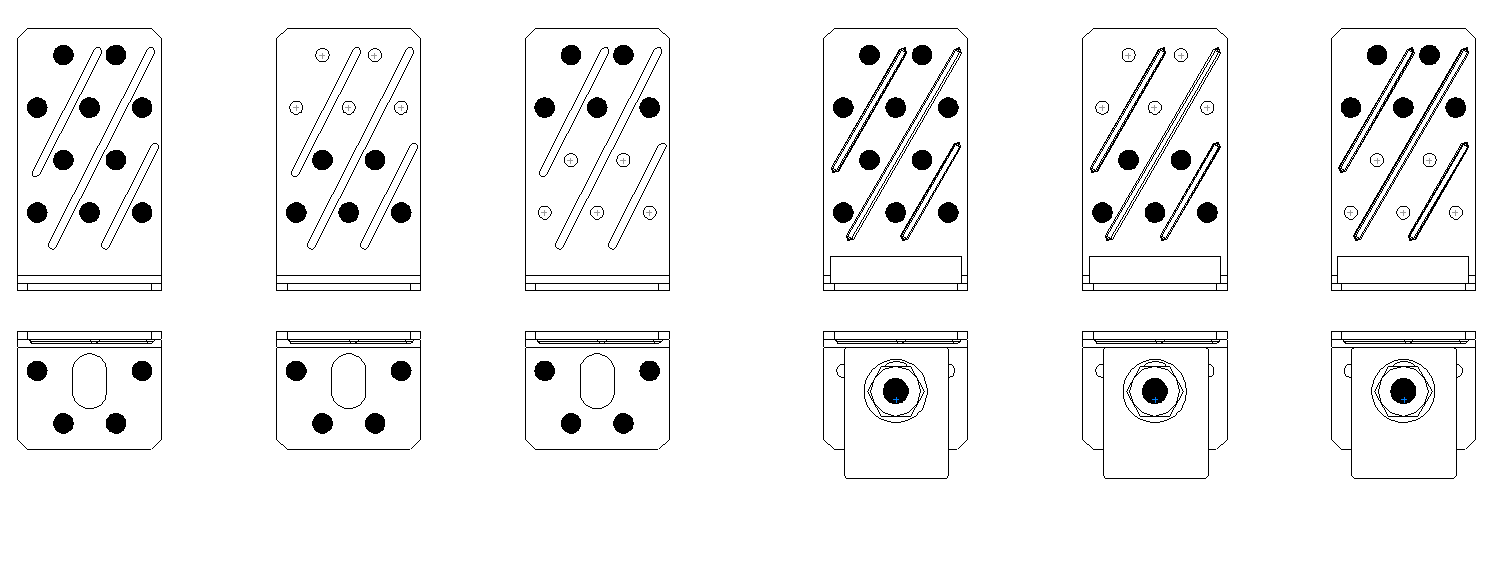

	Nail pattern 1 to 3 respectively 4 to 6				Nail pattern 1 to 3 respectively 4 to 6
	CNA4,0x35	mit CNA4,0x40	mit CNA4,0x50	mit CNA4,0x60	CNA4,0x35	mit CNA4,0x40	mit CNA4,0x50	mit CNA4,0x60

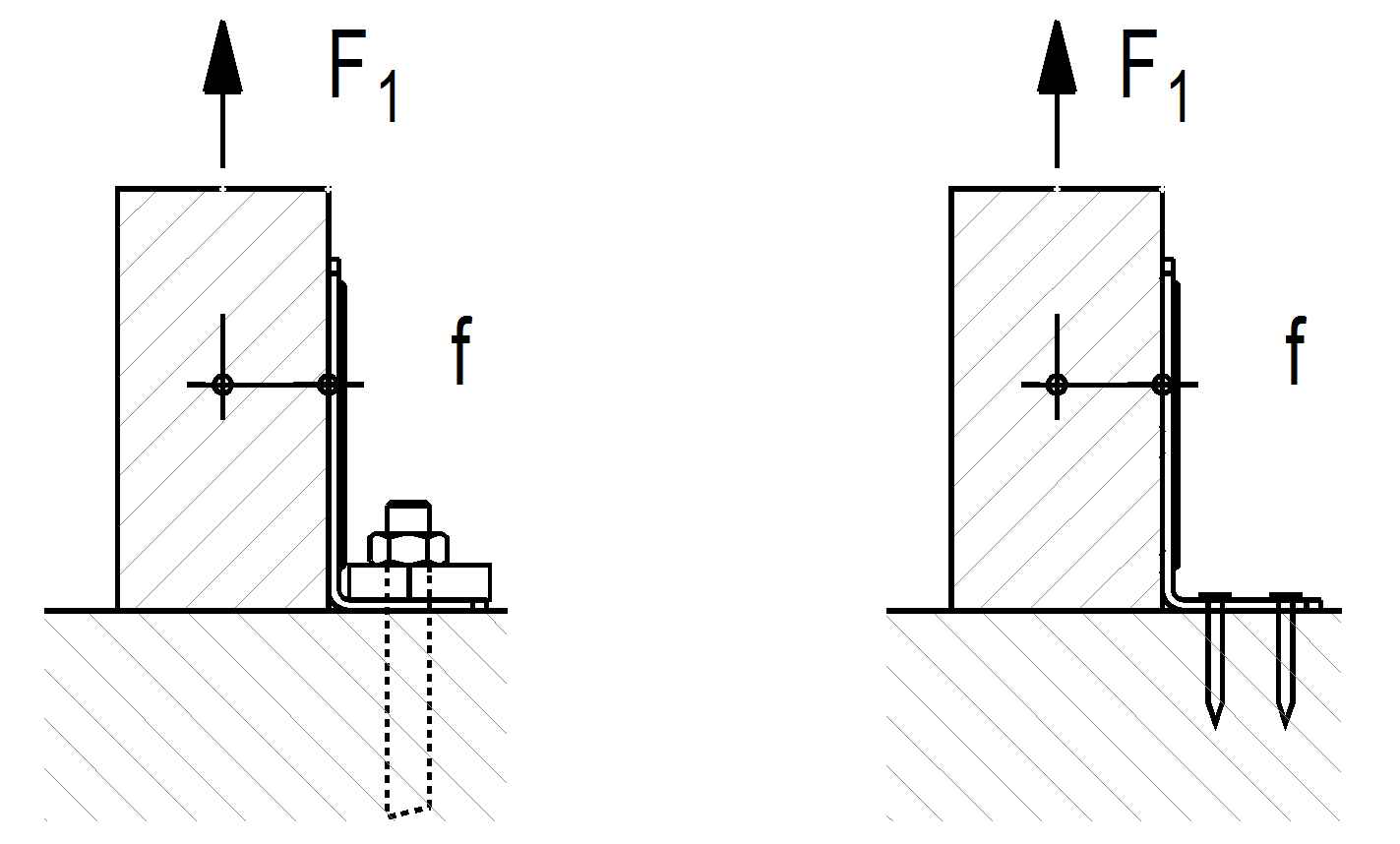

ABD45100	min : 1,47 ; 21,2 / ((f+15)*kmod)	min : 1,96 ; 21,2 / ((f+15)*kmod)	21,2 / ((f+15)*kmod)	21,2 / ((f+15)*kmod)	2.94	3.92	4.9	5.81

The necessary capacity of bolt has to be as minimum:

R_bolt.axial = F_1.dx 1.65
With:
R_bolt.axial= min. axial capacity of the bolt / both bolts (connection with 1 / 2 ABD )

Characteristic capacities F2/3

Reference	Angle bracket capacity
	R₂/₃,ₖ - 2 angle brackets per connection[kN]
	Nail pattern 2 and 5				Nail pattern 1 and 4				Nail pattern 3 and 6
	CNA4,0x35	mit CNA4,0x40	mit CNA4,0x50	mit CNA4,0x60	CNA4,0x35	mit CNA4,0x40	mit CNA4,0x50	mit CNA4,0x60	CNA4,0x35	mit CNA4,0x40	mit CNA4,0x50	mit CNA4,0x60
ABD45100	5.65	6.22	7.47	8.12	6.07	7.01	8.86	10.18	3.49	3.82	4.57	4.94

For connection with one ABD can be use the half of capacities as for connection with 2 ABD, if the timber elements are prevented against rotation.

The necessary capacity of bolt has to be as minimum:

R_bolt.axial = F_2.d x 0.4      R_bolt.lat = F_2.d
With:
R_bolt.axial = min. axial capacity of the bolt / both bolts   (connection with 1 / 2 ABD )
R_bolt.lat= min. lateral capacity of the bolt / both bolts   (connection with 1 / 2 ABD )

Certifikace

Evropské technické posouzení (ETA)

eta-06-0106-2026-03-09.pdf

product.doc.history.show

2021-04-29

eta-06-0106-2021-04-09.pdf

2020-11-09

eta-06-0106-2020-01-29-cor1.pdf

2020-01-29

eta-06-0106.pdf

2018-12-18

eta-060106-sst-ab-r10-2018-issued.pdf

2016-12-12

eta-060106-sst-ab-v8-2016.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
