PPC

Adjustable Elevated Post Base

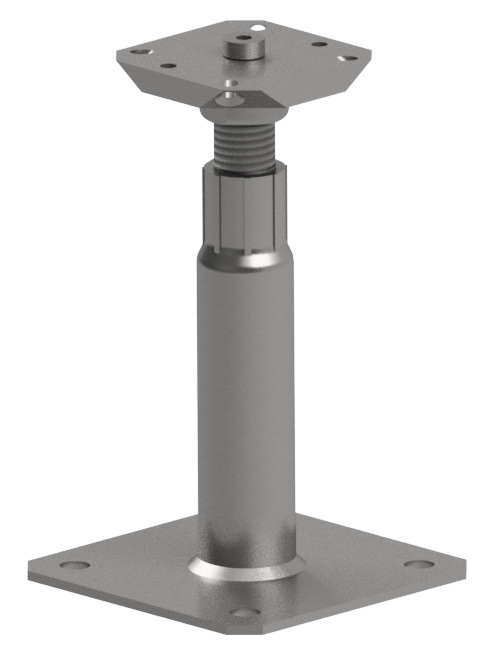

PPC features a post mounting plate on a screw allowing it to be adjusted to a specific standoff height ranging from 130-190 mm to 280-340mm

Suitable for post sizes from a size of 100 x 100 mm .

Technický list

Označení CE

ETA

Novinky

Servisní třída 2

PPC_SSTBP_homepage_DE_de

Podrobnosti produktu

Obrázky

Vlastnosti

Material

S235JR
zinc nickel + extra coating silver

Benefits

Simple, height adjustable
adjustable after installation
nice surface
all load direction possible

Aplikace

Header member

Solid or glulam timber.

Applications

Post support.
Garage ports.
Pergola.
small halls

Technické údaje

Product dimensions

Rozměry

Reference	konektor rozměry
	rozměry výrobku[mm]								Top plate otvory	Bottom plate otvory	ostatní
	A[mm]	B[mm]	D[mm]	E[mm]	F[mm]	E[mm]	t₁[mm]	t₂[mm]	kulatý	kulatý	hmotnost[kg]
	A[mm]	B[mm]	D[mm]	E[mm]	F[mm]	E[mm]	t₁[mm]	t₂[mm]	Ø6.5[mm]	Ø12[mm]	hmotnost[kg]
PPC14/20BZ	80	80	130	130	140-200	24	10	4	4	4	1.5
PPC19/25BZ	80	80	130	130	190-250	24	10	4	4	4	1.7
PPC24/30BZ	80	80	130	130	240-300	24	10	4	4	4	1.9
PPC29/35BZ	80	80	130	130	290-350	24	10	4	4	4	1.9

Product capacities - Timber to concrete

Reference	patka sloupku únosnost
	výrobek capacities - dřevo to beton
	počet of Fasteners				Characteristic capacities - dřevo C24[kN]

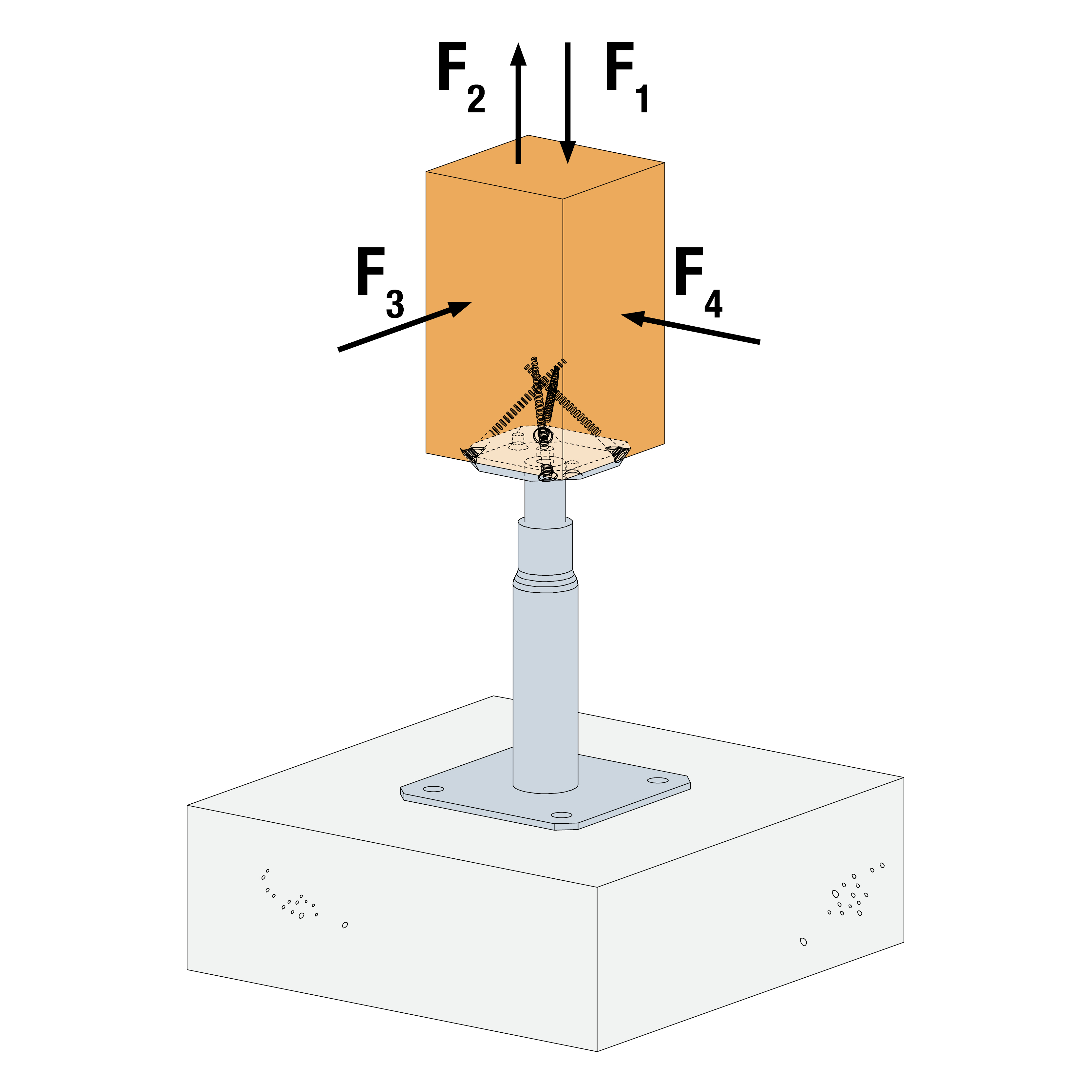

	On post		On beton		R₁,ₖ	R₂,ₖ	R3,k
	množství	typ	množství	typ	R₁,ₖ	R₂,ₖ	R3,k
PPC14/20BZ	4	Ø6*	4.0	Ø10**	min (130 ; 93 /kmod)	min (11.9 ; 10.3 /kmod)	min (3.0 ; 2.4 /kmod)
PPC19/25BZ	4	Ø6*	4.0	Ø10**	min (130 ; 93 /kmod)	min (11.9 ; 10.3 /kmod)	min (3.0 ; 1.9 /kmod)
PPC24/30BZ	4	Ø6*	4.0	Ø10**	min (130 ; 93 /kmod)	min (11.9 ; 10.3 /kmod)	1.6 /kmod
PPC29/35BZ	4	Ø6*	4.0	Ø10**	min (130 ; 93 /kmod)	min (11.9 ; 10.3 /kmod)	1.4 /kmod

* screw TTZNFS6x100 (art. 74497)

** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, VT-HP depending on the concrete type, spacing and edge distances.

Instalace

Fixing

M10 Bolts
Ø6mm skewed screws on post

Installation

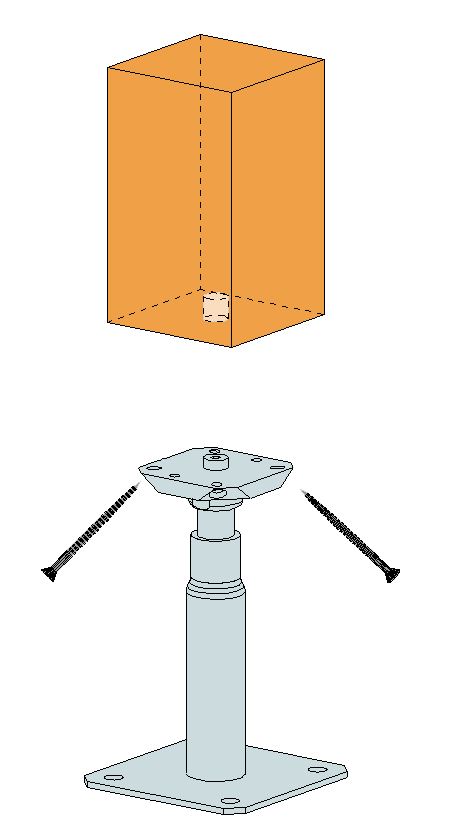

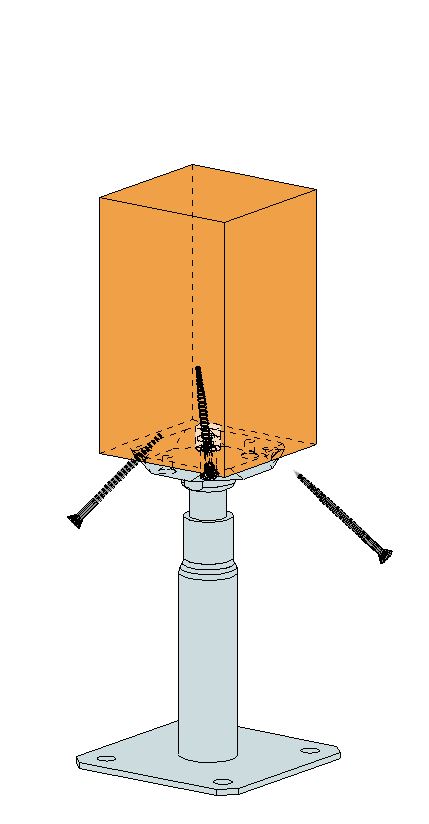

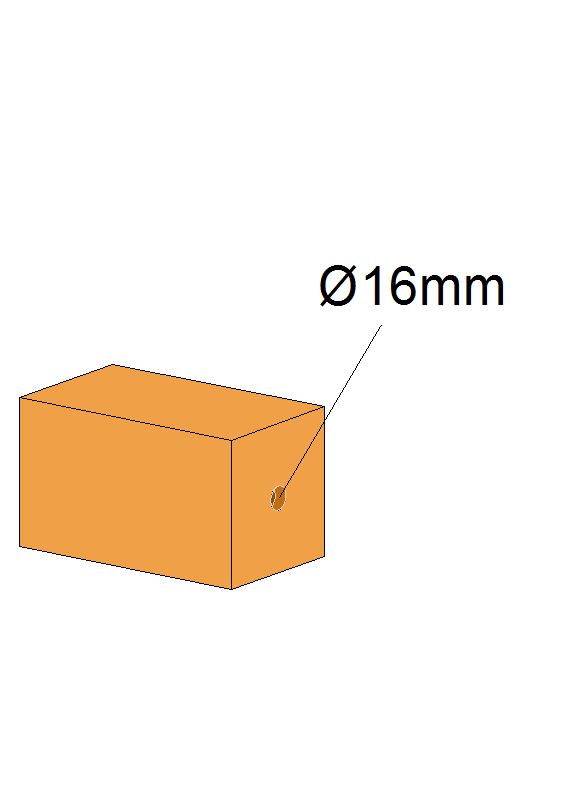

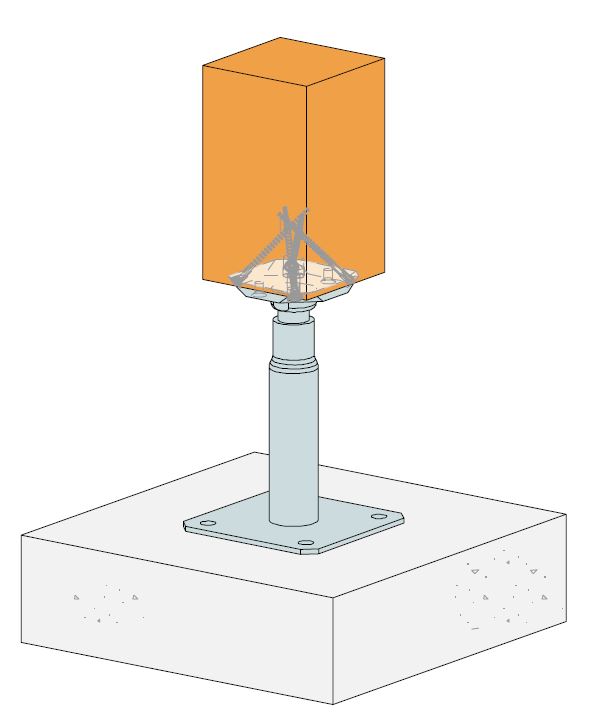

Fix to the foundation with concrete/mechanical anchor system. Fix to the post using Ø6mm skewed screws. A center hole Ø16mm help with the placing of PPC at the column.
After installation the height can adjusted with a 32mm open-end wrench in a range of ~60mm.
