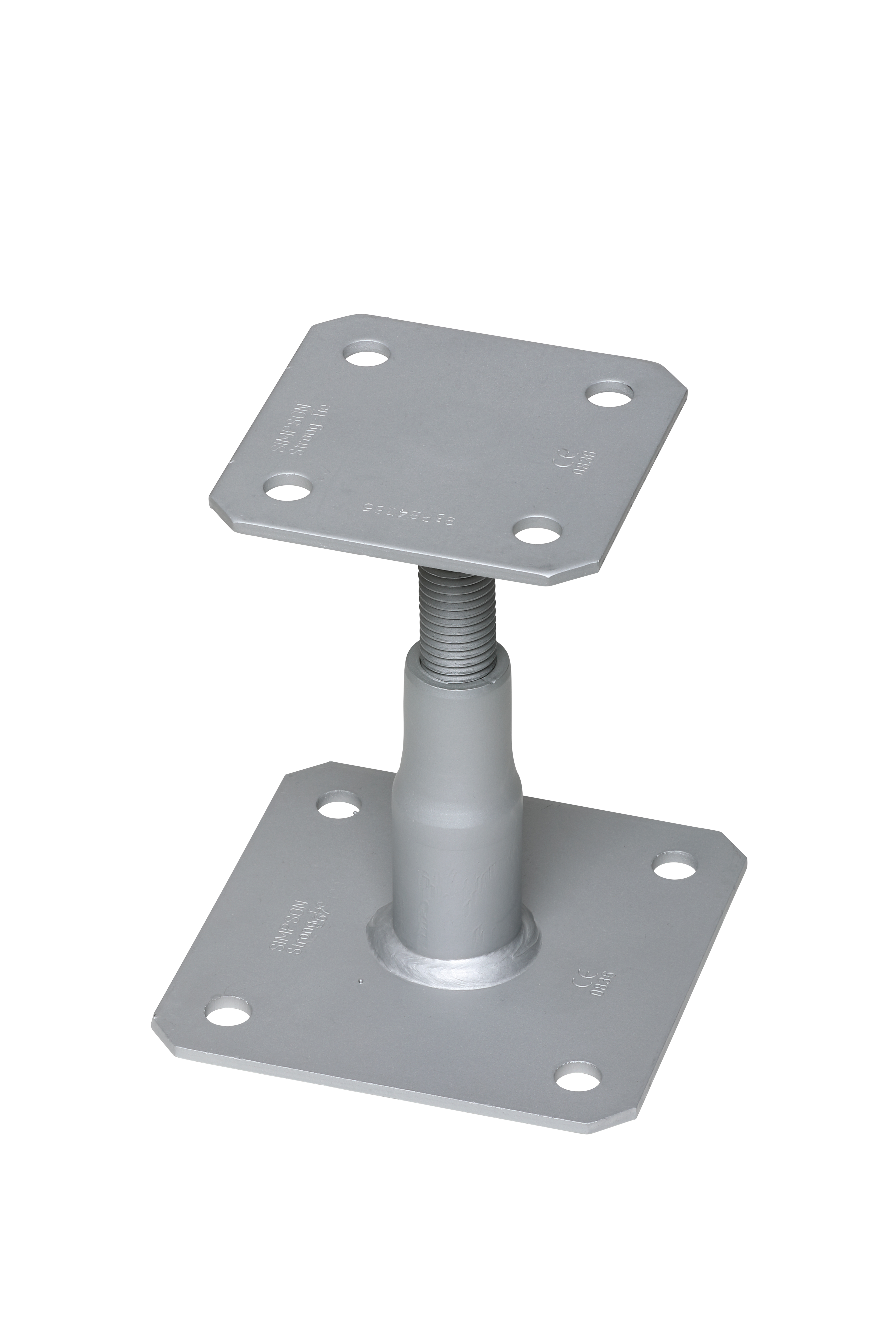

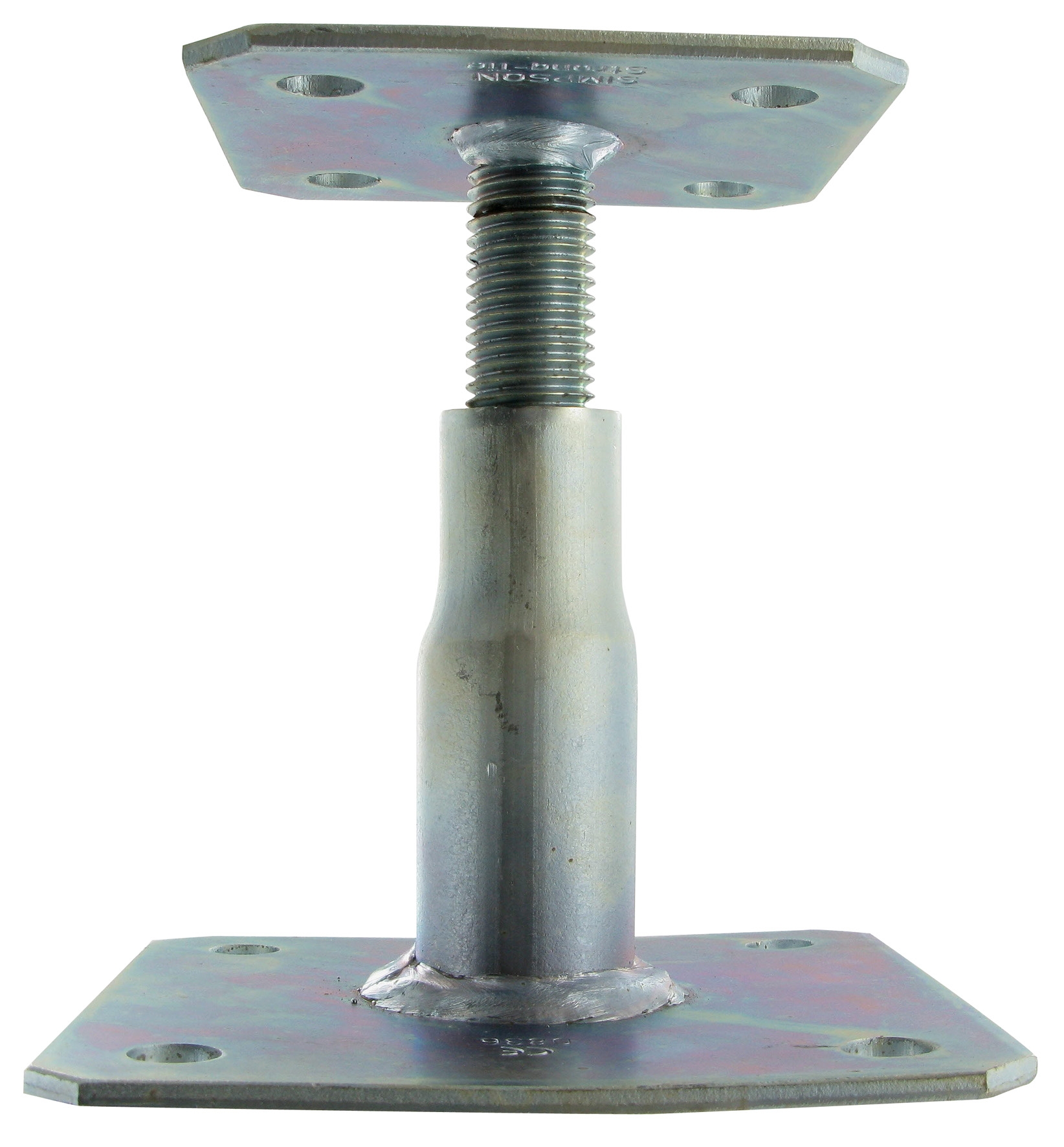

APB100/150Z
Adjustable Elevated Post Base
APB features a post mounting plate on a screw allowing it to be adjusted to a specific standoff height ranging from 100-150 mm.
Suitable for post sizes 100 x 100 mm to 200 x 200 mm.
Označení CE
ETA
Servisní třída 2
Podrobnosti produktu
Obrázky

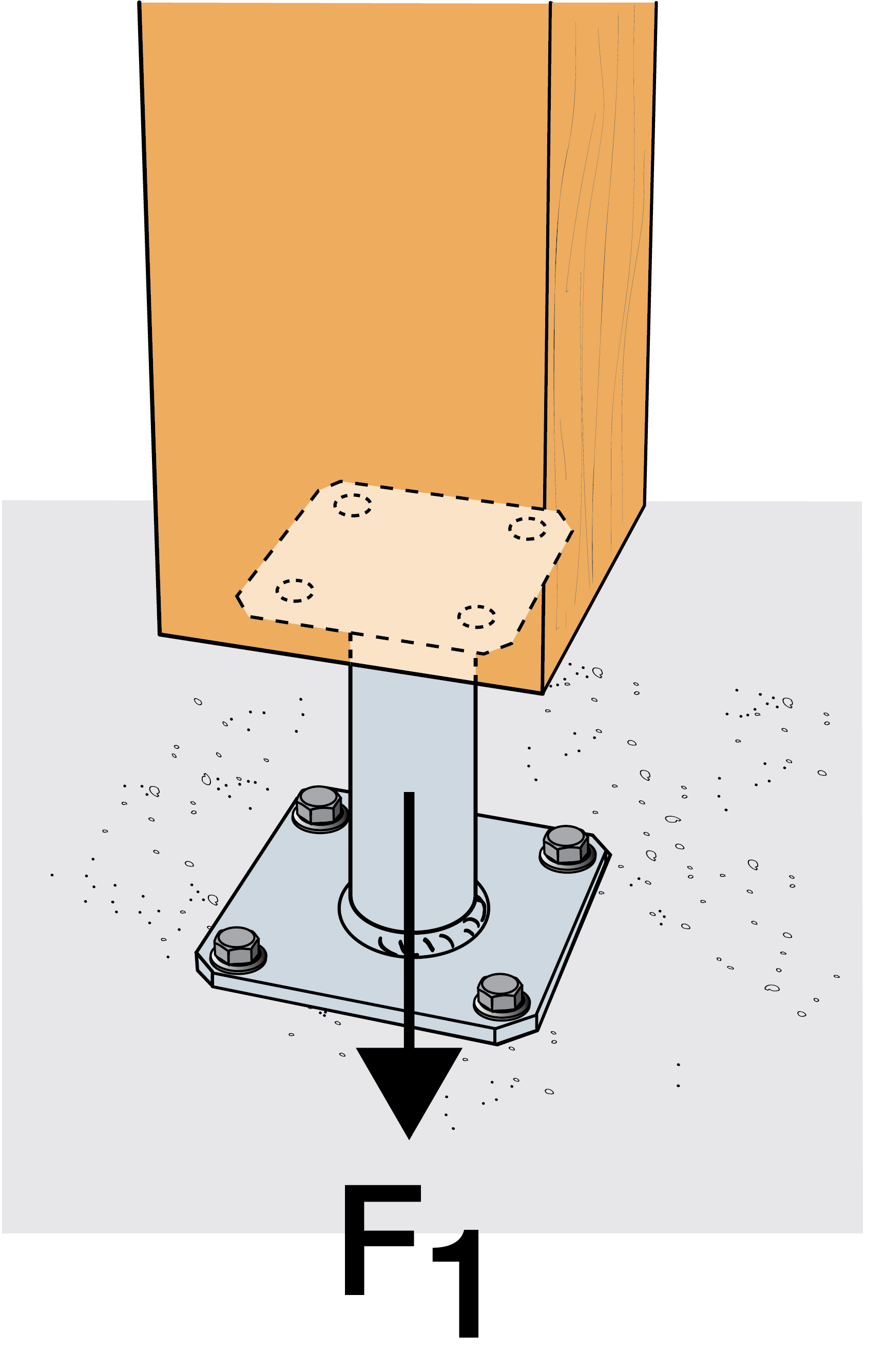

Fixation pied poteau APB100/150 sur support rigide
Vlastnosti
Aplikace
Technické údaje
Rozměry
Rozměry a typické hodnoty
| Art. nr. | Rozměry a typické hodnoty [mm] | Top plate holes | Bottom plate holes | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | G | t | Ø12 [mm] | Ø12 [mm] | |
| APB100/150Z | 100 | 100 | 130 | 130 | 100-150 | 20 | 4 | 4 | 4 |
Product capacities - Timber to concrete
| Art. nr. | Product capacities | ||||
|---|---|---|---|---|---|
| Upevňovací prvky | Characteristic capacities - Timber C24 [kN] | ||||
| on post | on concrete | R1.k | |||
| Qty | Type | Qty | Type | ||
| APB100/150Z | 4 | Ø10* | 4 | Ø10** | 58/kmod^0,5 |
* screw LAG10080 , Ø10x80
** Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Anchor solutions depend on the concrete type, spacing and edge distances.
Instalace
Instalace
Fixation pied poteau APB100/150 sur support rigide
